TDRSS scaled map for 1003313
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 31 Oct 20 14:21:08 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1003313, Seg_Num: 0
GRB_RA: 254.277d {+16h 57m 06s} (J2000),
254.562d {+16h 58m 15s} (current),
253.593d {+16h 54m 22s} (1950)
GRB_DEC: -9.140d {-09d 08' 23"} (J2000),
-9.171d {-09d 10' 16"} (current),
-9.063d {-09d 03' 46"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 7959 [cnts] Image_Peak=245 [image_cnts]
TRIGGER_DUR: 3.072 [sec]
TRIGGER_INDEX: 487 E_range: 50-350 keV
BKG_INTEN: 80940 [cnts]
BKG_TIME: 51550.09 SOD {14:19:10.09} UT
BKG_DUR: 32 [sec]
GRB_DATE: 19153 TJD; 305 DOY; 20/10/31
GRB_TIME: 51595.21 SOD {14:19:55.21} UT
GRB_PHI: -57.04 [deg]
GRB_THETA: 20.84 [deg]
SOLN_STATUS: 0x83
RATE_SIGNIF: 13.92 [sigma]
IMAGE_SIGNIF: 6.58 [sigma]
MERIT_PARAMS: +1 +0 +0 +2 +3 -4 -100 +0 -79 +0
SUN_POSTN: 216.24d {+14h 24m 59s} -14.38d {-14d 22' 30"}
SUN_DIST: 37.83 [deg] Sun_angle= -2.6 [hr] (East of Sun)
MOON_POSTN: 37.26d {+02h 29m 03s} +11.06d {+11d 03' 32"}
MOON_DIST: 143.25 [deg]
MOON_ILLUM: 100 [%]
GAL_COORDS: 10.56, 20.36 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 254.03, 13.43 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS: probably due to it occurring during a Malindi downlink session.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: Since the IMAGE_SIGNIF is less than 7 sigma, this is a questionable detection.
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 31 Oct 20 14:29:41 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1003313, Seg_Num: 0
POINT_RA: 274.068d {+18h 16m 16s} (J2000)
POINT_DEC: -17.165d {-17d 09' 52"} (J2000)
MAP_DATE: 19153 TJD; 305 DOY; 20/10/31
MAP_TIME: 51595.21 SOD {14:19:55.21} UT
TRIGGER_DUR: 3.072 [sec]
SOLN_STATUS: 0x83
RATE_SIGNIF: 13.92 [sigma]
IMAGE_SIGNIF: 6.58 [sigma]
MAP_URL: sw01003313000msbsm.fits
SUN_POSTN: 216.25d {+14h 25m 00s} -14.38d {-14d 22' 37"}
MOON_POSTN: 37.33d {+02h 29m 19s} +11.09d {+11d 05' 08"}
MOON_ILLUM: 100 [%]
GAL_COORDS: 13.71, -0.26 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 273.91, 6.22 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

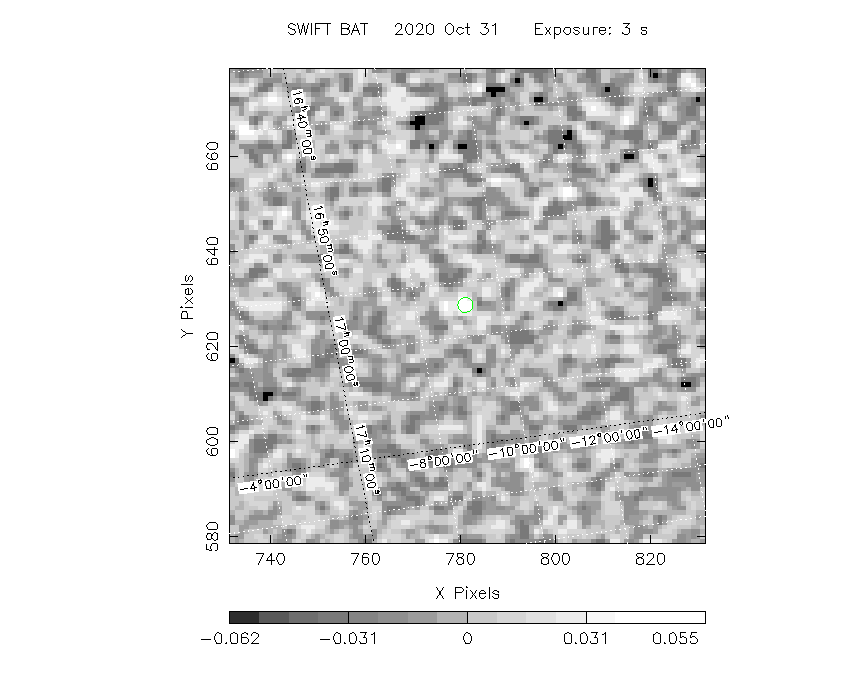

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (254.277, -9.140).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 254.277 -9.140 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
228.4838 -59.1356 0.0 53.4 -140.0 0.0204 0.3 0.0 PSR B1509-58
231.2913 -65.3390 0.0 55.9 -147.1 0.0241 0.4 0.0 Circinus AGN
235.5971 -52.3861 0.0 46.4 -135.5 0.0502 1.1 0.0 H 1538-522
243.1792 -52.4231 0.0 42.8 -139.7 -0.0029 -0.1 0.0 4U 1608-522
243.1792 -57.1669 0.0 46.2 -144.4 -0.0272 -0.9 0.0 Cir X-1
244.9795 -15.6402 0.0 27.9 -78.3 0.0237 1.0 0.0 Sco X-1
248.0700 -67.4619 0.0 53.0 -155.0 0.0265 1.0 0.0 4U 1626-67
250.2312 -53.7514 0.0 41.0 -145.8 -0.0006 -0.0 0.0 4U 1636-536
251.4487 -45.6111 0.0 34.1 -138.5 -0.0025 -0.1 0.0 GX 340+0
253.5006 -39.8458 0.0 28.9 -133.2 -0.0111 -0.6 0.0 GRO J1655-40
254.4576 35.3425 0.0 55.7 -6.5 0.0133 0.4 0.0 Her X-1
255.1996 -41.6731 0.0 29.4 -137.6 0.0025 0.1 0.0 OAO 1657-415
255.9866 -37.8441 0.0 26.1 -133.2 -0.0043 -0.2 0.0 4U 1700-377
256.4354 -36.4231 0.0 24.8 -131.6 -0.0127 -0.7 0.0 GX 349+2
256.5638 -43.0361 0.0 29.8 -140.9 -0.0125 -0.7 0.0 4U 1702-429
257.2292 -44.1000 0.0 30.5 -142.9 0.0061 0.3 0.0 4U 1705-440
257.2333 -32.2833 0.0 21.5 -125.1 0.0030 0.2 0.0 4U 1705-32
257.2750 -36.4108 0.0 24.3 -132.8 -0.0229 -1.4 0.0 IGR J17091-3624
257.4500 -36.4700 0.0 24.3 -133.1 -0.0007 -0.0 0.0 IGR J17098-3628
257.5517 -28.1317 0.0 18.7 -115.9 0.0502 3.0 0.0 XTE J1710-281
261.3000 -36.2667 0.0 22.2 -139.0 0.0018 0.1 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 19.5 -133.6 0.0322 2.0 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 17.6 -130.3 -0.0090 -0.6 0.0 4U 1722-30
262.9342 -16.9617 0.0 10.6 -77.7 -0.0089 -0.6 0.0 GX 9+9
262.9892 -33.8347 0.0 19.4 -138.4 0.0153 1.0 0.0 4U 1728-34
263.0090 -24.7456 0.0 12.8 -115.3 -0.0230 -1.6 0.0 GX 1+4
263.3504 -33.3878 0.0 18.9 -138.5 -0.0003 -0.0 0.0 4U 1730-335
264.5667 -27.0044 0.0 13.2 -127.0 -0.0312 -2.2 0.0 SLX 1735-269
264.7429 -44.4500 0.0 28.4 -153.1 0.0315 1.9 0.0 4U 1735-44
265.7500 -36.3447 0.0 20.6 -147.7 0.0109 0.7 0.0 XTE J1743-363
265.9761 -29.7395 0.0 14.6 -138.1 -0.0047 -0.3 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 13.8 -137.1 -0.0465 -3.2 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 13.8 -137.9 0.0237 1.6 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 14.2 -139.3 -0.0098 -0.7 0.0 1A 1742-294
266.8579 -29.9994 0.0 14.4 -141.3 -0.0152 -1.0 0.0 SLX 1744-299
266.9833 -26.5636 0.0 11.5 -133.4 0.0029 0.2 0.0 GX 3+1
270.2842 -25.0792 0.0 8.7 -143.8 -0.0066 -0.5 0.0 GX 5-1
270.3025 -25.7431 0.0 9.3 -145.6 0.0124 0.9 0.0 GRS 1758-258
270.3846 -20.5289 0.0 4.9 -121.8 0.0085 0.6 0.0 GX 9+1
270.6663 -20.2871 0.0 4.5 -121.9 0.0170 1.2 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 0.4 -77.7 -0.0152 -1.1 0.0 GX 13+1
273.8000 -12.0833 0.0 5.1 9.9 0.0256 1.9 0.0 4U 1812-12
274.0058 -14.0364 0.0 3.1 11.8 -0.0069 -0.5 0.0 GX 17+2
275.9185 -30.3611 0.0 13.3 -174.1 0.0276 2.0 0.0 4U 1820-30
276.4450 -37.1053 0.0 20.1 -172.7 -0.0091 -0.6 0.0 3A 1822-371
277.3675 -23.7969 0.0 7.3 168.5 0.0274 1.9 0.0 GS 1826-24
278.7590 32.6973 0.0 50.1 18.0 0.0238 0.8 0.0 3C 382
278.9337 -32.9914 0.0 16.4 178.3 0.0200 1.5 0.0 XB 1832-330
279.5847 -65.4276 0.0 48.4 -170.2 0.0225 0.9 0.0 ESO 103-035
279.9896 5.0358 0.0 22.9 28.2 -0.0005 -0.0 0.0 Ser X-1
283.8804 -2.6067 0.0 17.5 47.5 -0.0246 -2.1 0.0 XTE J1855-026
287.4138 9.8292 0.0 30.0 39.9 0.0051 0.3 0.0 4U 1907+09
287.7208 7.6667 0.0 28.3 42.5 -0.0110 -0.7 0.0 4U 1909+07
287.9565 4.9827 0.0 26.0 45.9 0.0131 0.9 0.0 SS 433
288.5083 9.8883 0.0 30.6 41.8 -0.0037 -0.2 0.0 IGR J19140+0951
288.7983 10.9456 0.0 31.6 41.3 -0.0155 -0.9 0.0 GRS 1915+105
299.2063 -14.2721 2.9 24.4 99.6 0.0604 4.0 ------ UNKNOWN
294.7007 -6.8926 2.6 22.6 78.4 0.0641 4.3 ------ UNKNOWN
290.6980 1.8483 3.0 25.1 55.3 0.0555 3.8 ------ UNKNOWN
284.6430 10.2562 2.3 29.3 34.5 0.0726 4.9 ------ UNKNOWN
275.7023 17.1417 2.7 34.3 15.6 0.0635 4.3 ------ UNKNOWN
255.2299 34.6392 2.3 54.8 -6.1 0.1458 5.1 ------ UNKNOWN
241.9994 9.4593 2.9 41.4 -39.5 0.1197 3.9 ------ UNKNOWN
241.3710 1.3465 2.4 37.2 -50.5 0.1450 4.8 ------ UNKNOWN
228.2239 -42.9112 2.2 46.5 -120.7 1.0606 5.4 ------ UNKNOWN
228.9636 -28.5580 1.6 42.8 -100.9 1.4186 7.1 ------ UNKNOWN
228.5411 -35.3824 2.0 44.2 -110.6 1.1125 5.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 27.9 -78.3 0.0237 1.0 0.0 Sco X-1
254.4576 35.3425 0.0 55.7 -6.5 0.0133 0.4 0.0 Her X-1
255.9866 -37.8441 0.0 26.1 -133.2 -0.0043 -0.2 0.0 4U 1700-377
256.4354 -36.4231 0.0 24.8 -131.6 -0.0124 -0.7 0.0 GX 349+2
263.0090 -24.7456 0.0 12.8 -115.3 -0.0230 -1.6 0.0 GX 1+4
264.7429 -44.4500 0.0 28.4 -153.1 0.0315 1.9 0.0 4U 1735-44
268.3680 -1.4526 0.0 16.7 -7.4 -0.0065 -0.5 0.0 SW J1753.5-0127
270.2842 -25.0792 0.0 8.7 -143.8 -0.0066 -0.5 0.0 GX 5-1
270.3025 -25.7431 0.0 9.3 -145.6 0.0124 0.9 0.0 GRS 1758-258
274.0058 -14.0364 0.0 3.1 11.8 -0.0070 -0.5 0.0 GX 17+2
275.9250 -30.3670 0.0 13.3 -174.1 0.0265 1.9 0.0 H1820-303
285.0360 -24.9205 0.0 12.8 141.9 -0.0200 -1.4 0.0 HT1900.1-2455
288.7983 10.9456 0.0 31.6 41.3 -0.0155 -0.9 0.0 GRS 1915+105
262.9891 -33.8347 0.0 19.4 -138.4 0.0155 1.0 0.0 GX 354-0
299.2063 -14.2721 2.9 24.4 99.6 0.0604 4.0 ------ UNKNOWN
294.7007 -6.8926 2.6 22.6 78.4 0.0641 4.3 ------ UNKNOWN
290.6980 1.8483 3.0 25.1 55.3 0.0555 3.8 ------ UNKNOWN
284.6430 10.2562 2.3 29.3 34.5 0.0726 4.9 ------ UNKNOWN
275.7023 17.1417 2.7 34.3 15.6 0.0635 4.3 ------ UNKNOWN
255.2299 34.6392 2.3 54.8 -6.1 0.1458 5.1 ------ UNKNOWN
241.9994 9.4593 2.9 41.4 -39.5 0.1197 3.9 ------ UNKNOWN
241.3710 1.3465 2.4 37.2 -50.5 0.1450 4.8 ------ UNKNOWN
228.2239 -42.9112 2.2 46.5 -120.7 1.0606 5.4 ------ UNKNOWN
228.9636 -28.5580 1.6 42.8 -100.9 1.4186 7.1 ------ UNKNOWN
228.5411 -35.3824 2.0 44.2 -110.6 1.1125 5.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 228.2239 Dec. = -42.9112 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 228.5411 Dec. = -35.3824 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 228.9636 Dec. = -28.5580 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 241.3710 Dec. = +1.3465 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 241.9994 Dec. = +9.4593 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 255.2299 Dec. = +34.6392 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 275.7023 Dec. = +17.1417 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 284.6430 Dec. = +10.2562 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 290.6980 Dec. = +1.8483 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 294.7007 Dec. = -6.8926 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 299.2063 Dec. = -14.2721 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map

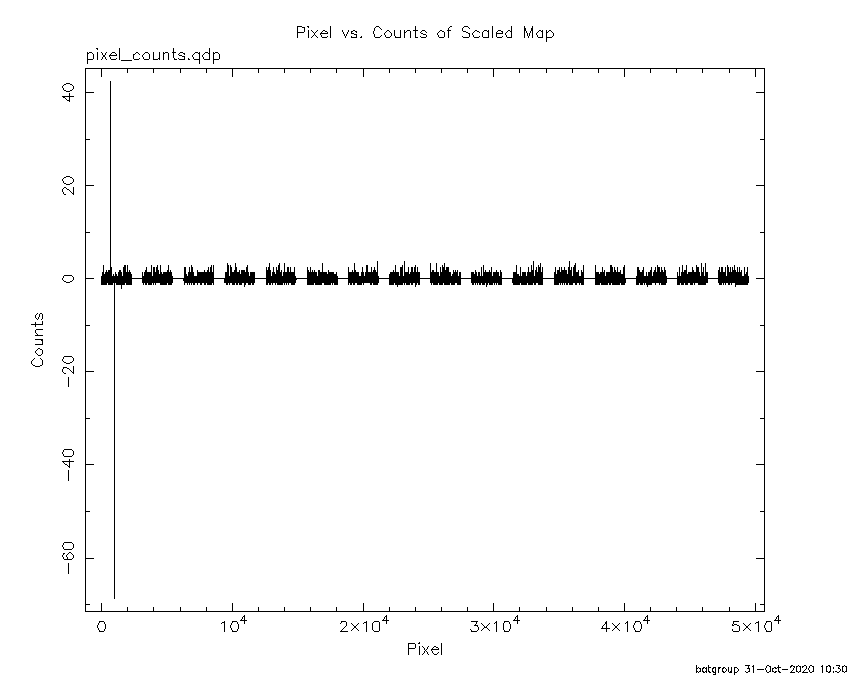

Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1003313/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sat Oct 31 10:30:23 EDT 2020
