batgrbproduct analysis for trigger=1005428

batgrbproduct Analysis for Trigger=1005428

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Nov 12 10:58:28 EST 2020
             Host Name: bat1
   Current Working Dir: /local/data/bat1/prebascript/trigger1005428/GCN5_download_cron
======================================================================

  Trigger: 01005428      Segment: 000

  BAT Trigger Time: 626780732.392   [s; MET]
      Trigger Stop: 626780732.4   [s; MET]
               UTC: 2020-11-11T09:45:06.429280    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 277.701086911644   Dec: -6.74101176954741  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    10.59
     Image Trigger?:     NO
     Rate S/N Ratio:     73.5391052434009  [ if not an image trigger ]
     Image S/N Ratio:    10.59

  Flight Position:   [ source = BAT ]
    RA: 277.701086911644   Dec: -6.74101176954741  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 277.6740353515   Dec: -6.74648886318678  [deg; J2000]
        { 18h 30m 41.8s , -06d 44' 47.4" }
         +/- 1.70076699442543 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.469795988352011 [arcmin] (formal 1-sigma fit error)
    SNR: 14.2437971818499

  Angular difference between Flight and Ground position is 1.645023 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.0119999647140503 +/- 0.00565686571406321
        Measured from: 1.19209289550781e-07
                   to: 0.0120000839233398     [s; relative to TRIGTIME]
     T50: 0.00800001621246338 +/- 0.004
        Measured from: 1.19209289550781e-07
                   to: 0.00800013542175293     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.491999983787537
                   to: 0.508000016212463     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0120000839233398     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.021356   0.020652   0.008709   0.001375
           0.002353   0.002425   0.001548   0.000557 [error]
 Peak      0.024503   0.028587   0.010091   0.003337
           0.006957   0.006601   0.005543   0.004517 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.63e-09 7.10e-09 6.52e-09 1.05e-08 2.28e-08 2.97e-08   erg/cm2
              Error 9.84e-10 9.21e-10 1.37e-09 4.23e-09 3.33e-09 5.93e-09   erg/cm2
Peak flux Power-law 2.34e-01 1.75e-01 8.75e-02 6.24e-02 5.26e-01 5.59e-01   ph/cm2/s
              Error 8.74e-02 5.00e-02 4.02e-02 5.39e-02 1.49e-01 1.61e-01   ph/cm2/s

Fluence   Cutoff-PL 5.41e-09 7.78e-09 6.45e-09 3.77e-09 2.19e-08 2.34e-08   erg/cm2
              Error 1.07e-09 1.40e-09 1.53e-09 8.88e-09 3.47e-09 7.60e-09   erg/cm2
Peak flux Cutoff-PL 2.01e-01 2.17e-01 8.05e-02 7.61e-03 5.05e-01 5.06e-01   ph/cm2/s
              Error 1.00e-01 7.22e-02 5.39e-02 4.31e-02 1.48e-01 1.50e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 2.04e-01 2.15e-01 8.19e-02 8.02e-03 5.08e-01 5.08e-01   ph/cm2/s
              Error 9.93e-02 -------- -------- -------- 1.49e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.123    0.223    -      -           2.04e-01 3.24e-02   36.000  0
CPL   1.477    0.929      33.8   -0.3      4.89e-01 1.14e+00   34.780  0


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.001    0.502    -      -           3.50e-03 1.26e-03   55.270  0
CPL   0.091    3.179      39.9    0.0      4.76e-02 9.56e+00   53.100  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.012    0.000    0.012
T90     0.012    0.000    0.012
T50     0.008    0.000    0.008
Peak    1.000   -0.492    0.508

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

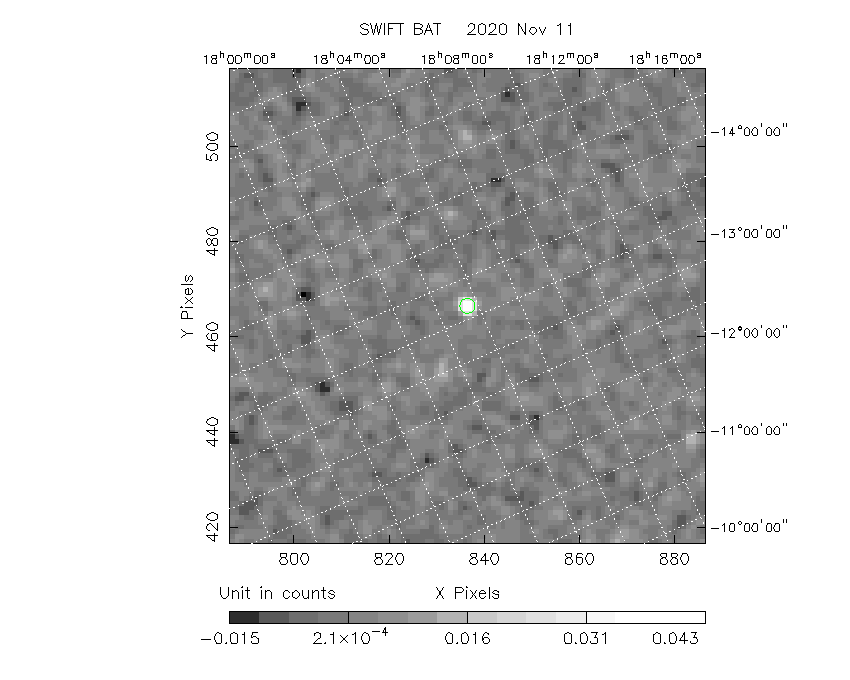

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  277.6740  -6.7465 0.0135    5.3   13.2       0.0546    14.2  TRIG_01005428
------------------------------------------

Foreground time interval of the image:
  0.000   0.012 (delta_t =   0.012 [sec])
Background time interval of the image:
-150.091   0.000 (delta_t = 150.091 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

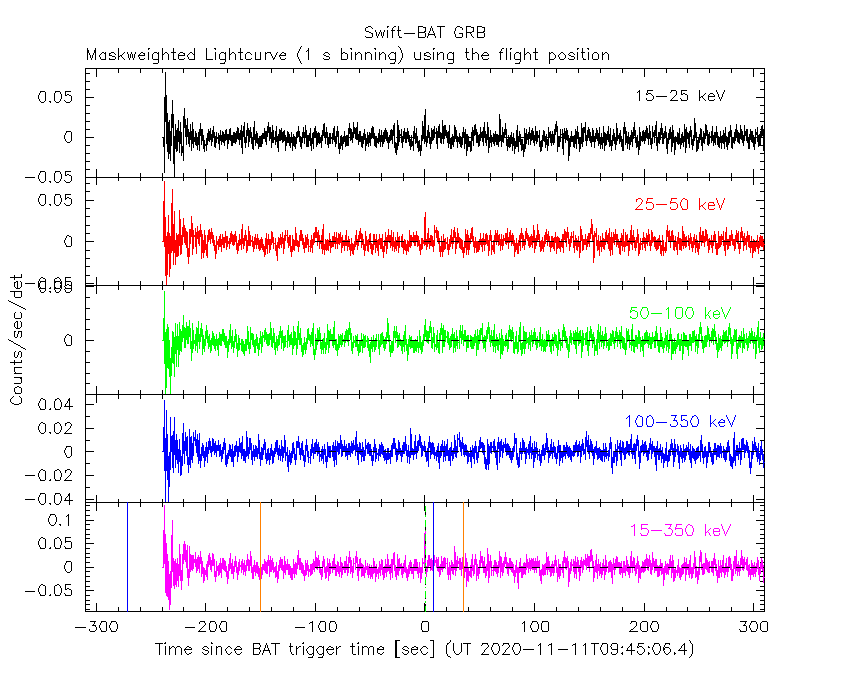

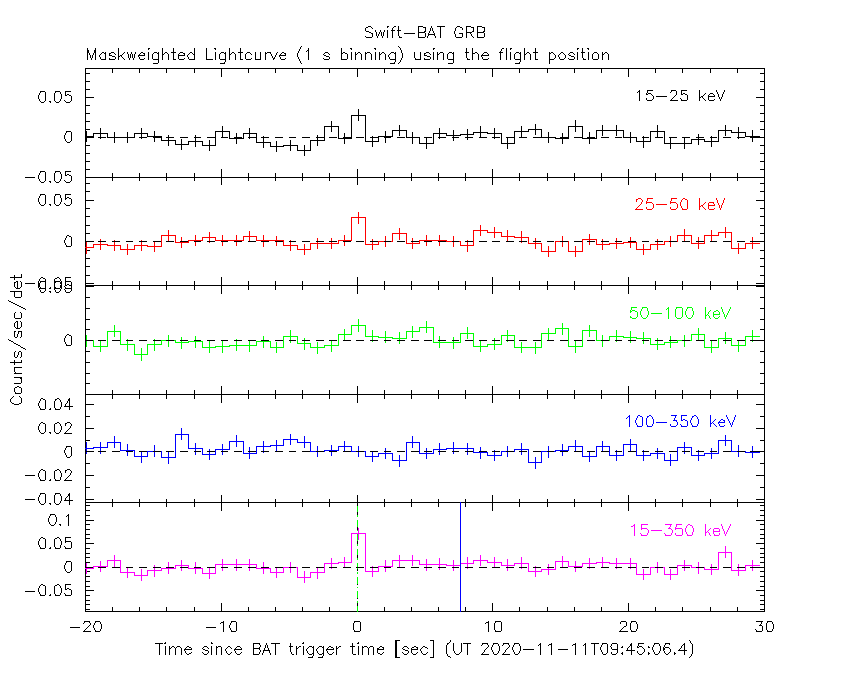

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

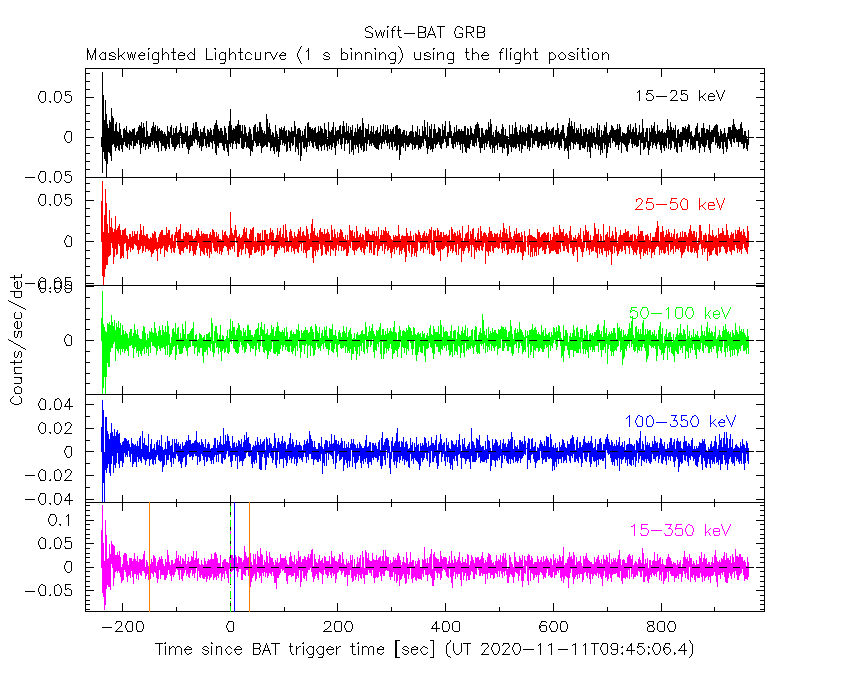

Full time interval

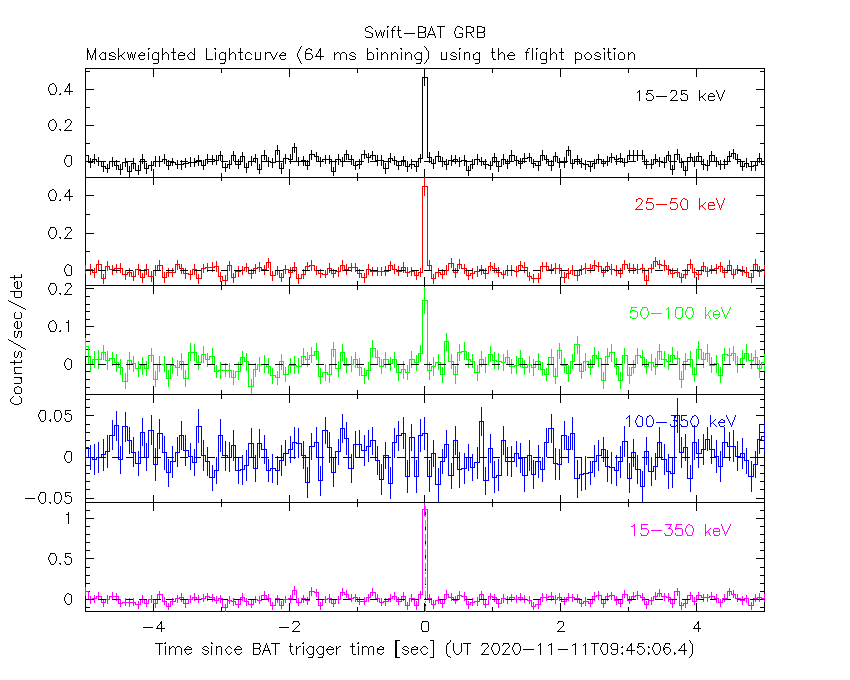

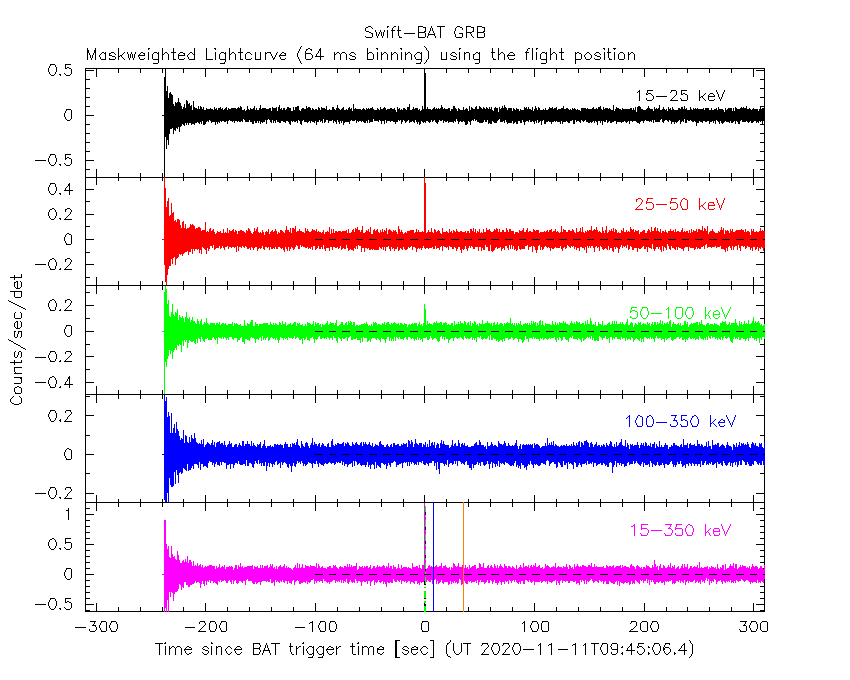

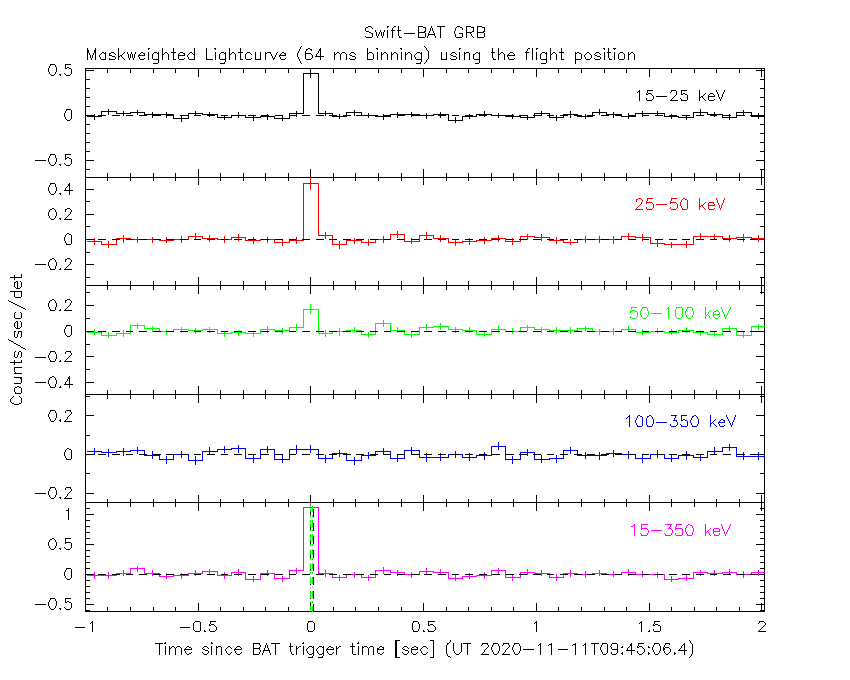

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

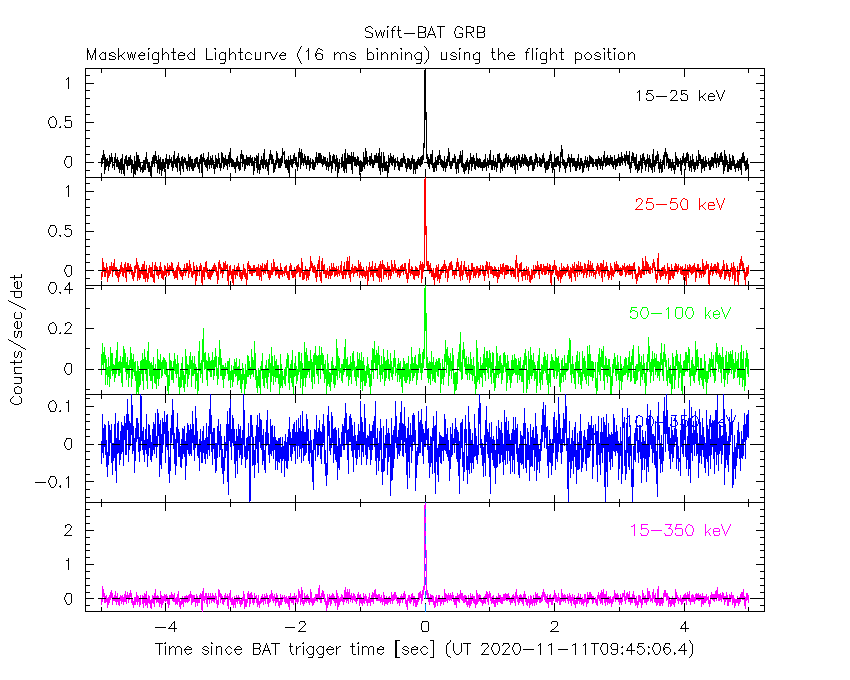

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

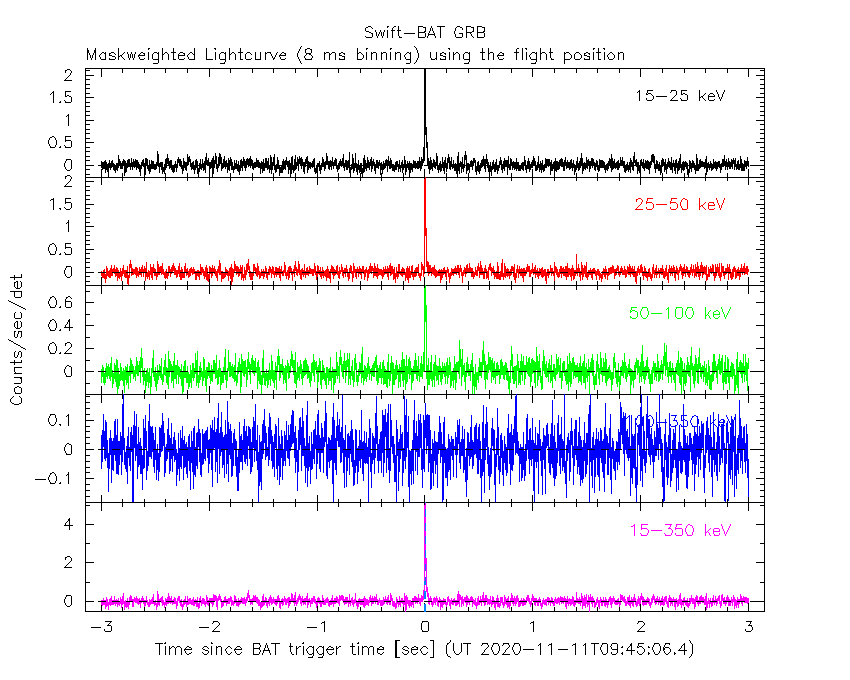

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

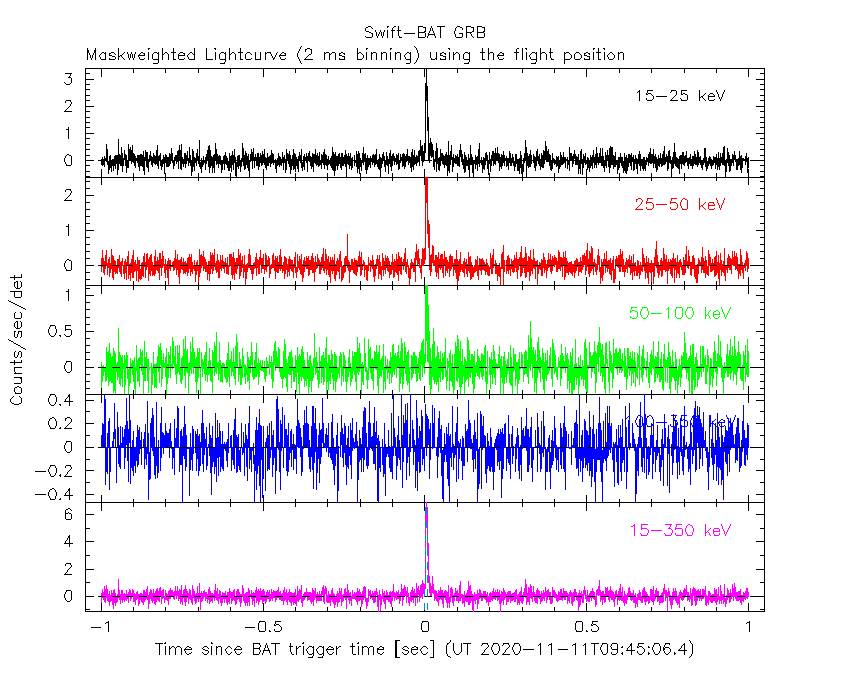

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

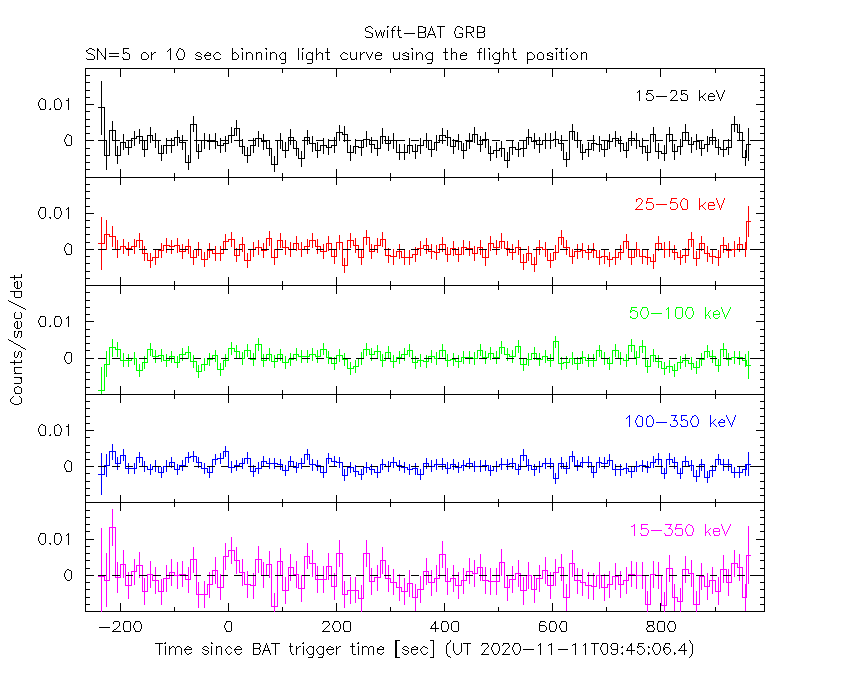

SN=5 or 10 sec. binning (whichever binning is satisfied first)

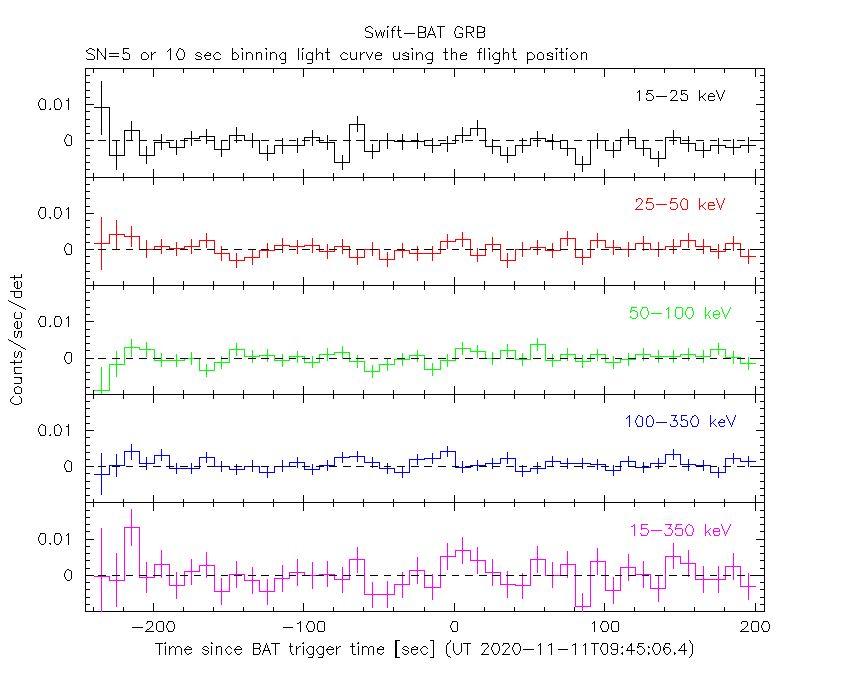

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

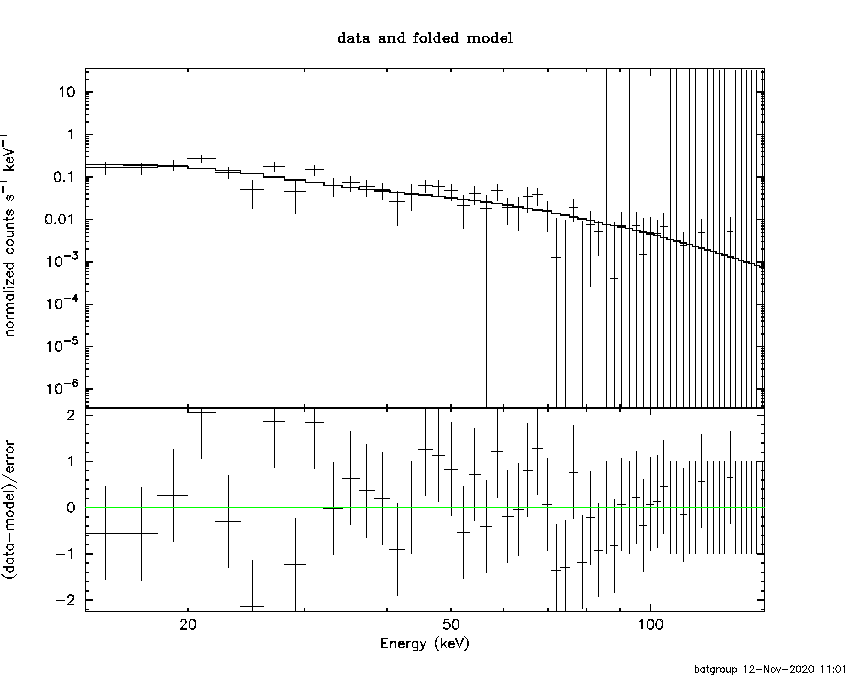

Power-law model

Time interval is from    0.000 sec. to    0.012 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12275     ( -0.2165   0.230151 )
Norm@50keV  : 0.204057    ( -0.0327978   0.031929 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   36.00     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.87e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.012 sec: 32.4687 ( -4.22954  4.23077 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.28037e-08 ( -3.30955e-09  3.3423e-09 ) ergs/cm2

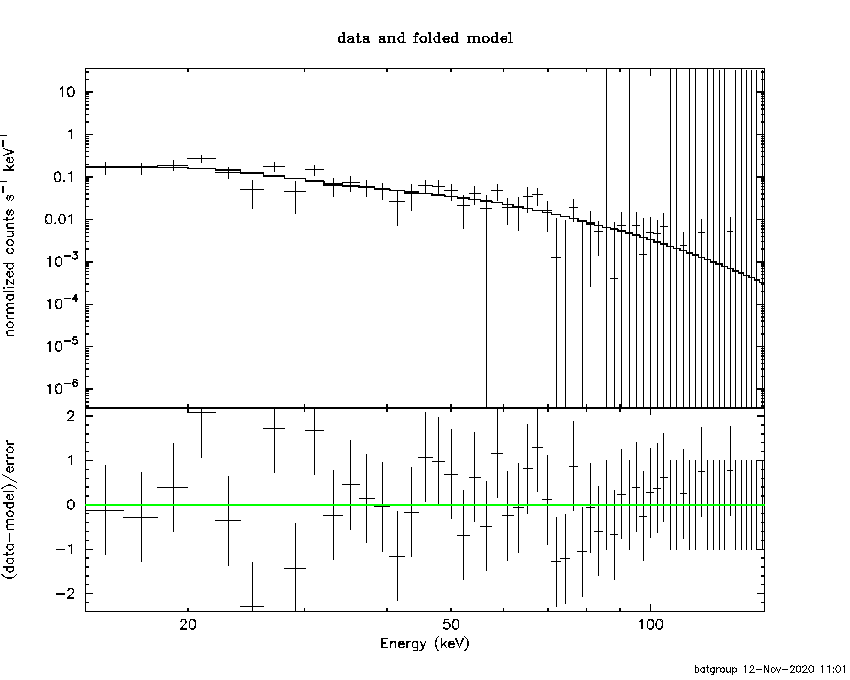

Cutoff power-law model

Time interval is from    0.000 sec. to    0.012 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47669     ( -1.15617   0.701253 )
Epeak [keV] : 33.8377      ( -33.2093 -33.8386 )
Norm@50keV  : 0.489178    ( -0.489232   1.80008 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   34.78     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.88e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.012 sec: 32.2315 ( -4.2642  4.2527 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.19305e-08 ( 0  0 ) ergs/cm2

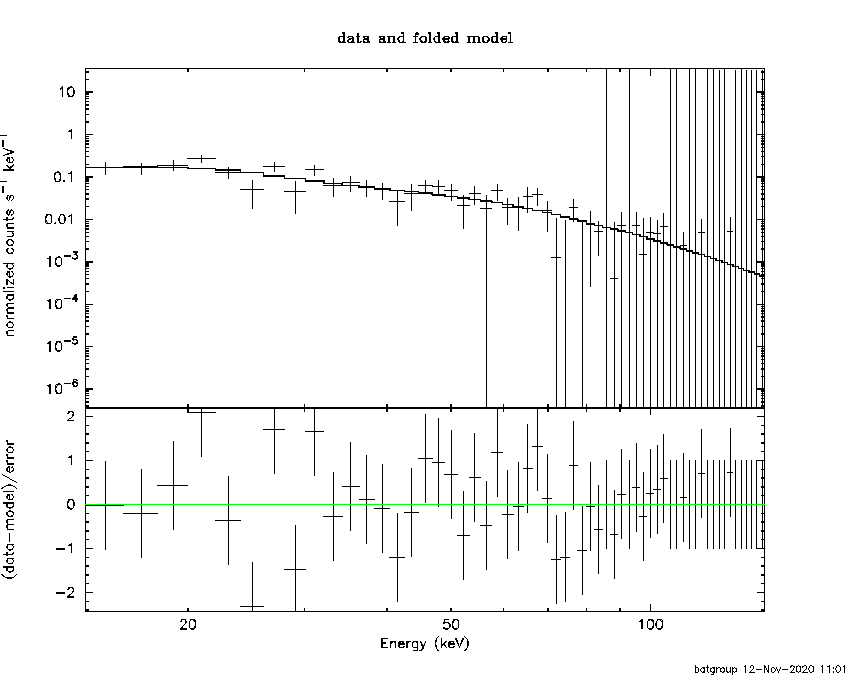

Band function

Time interval is from    0.000 sec. to    0.012 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.26865   ( 1.29053   5.97572 )
beta        : -2.72573    ( 2.70779   0.734884 )
Epeak [keV] : 34.6031      ( -34.569 19.723 )
Norm@50keV   : 0.657451    ( -0.620221   60808.8 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.012 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

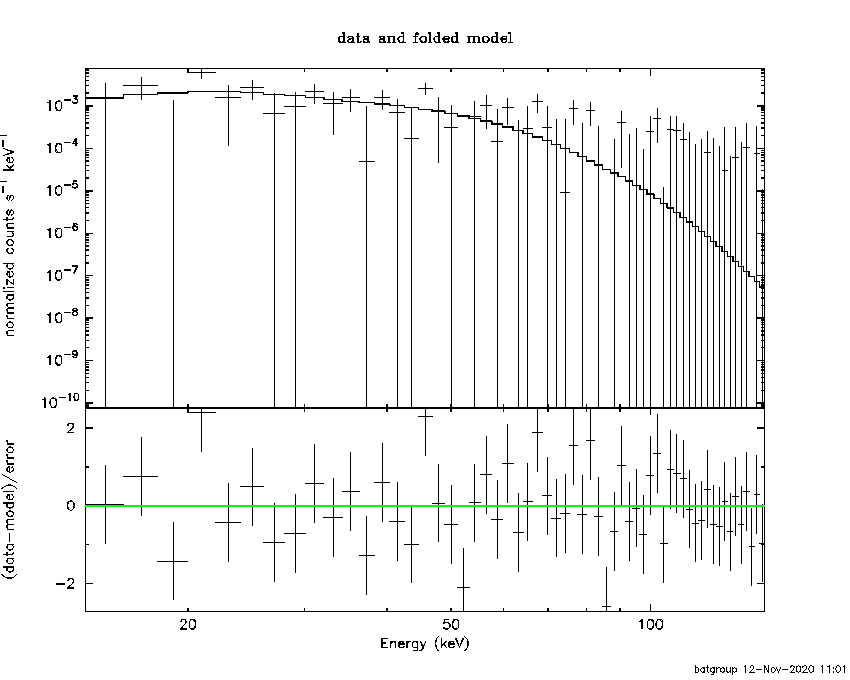

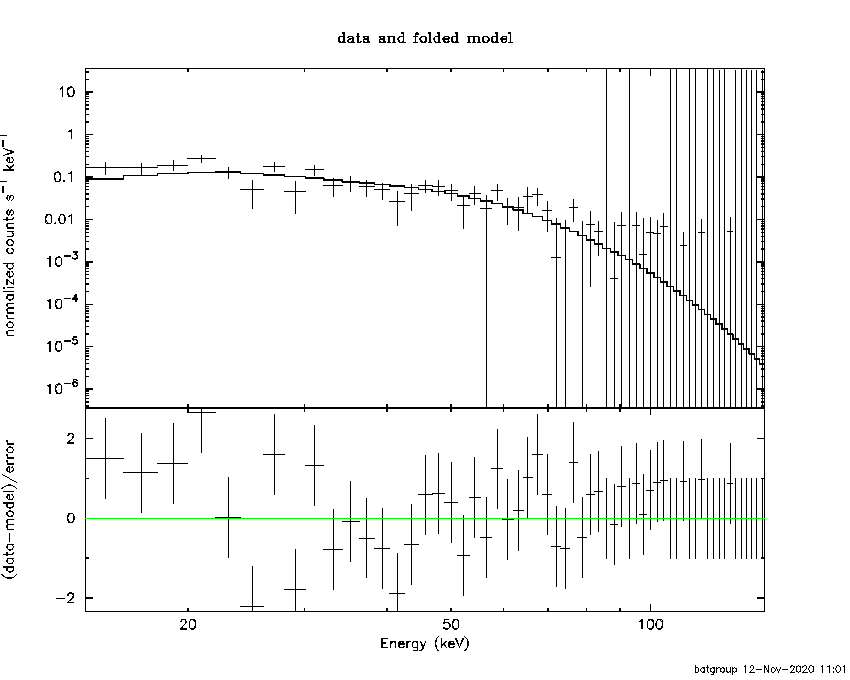

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.0490  (-1.37419  1.51669)
R^2/D10^2   : 15.3853  (-6.61949   11.9502)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.27     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.88e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.803e-09   9.654e-10
25- 50  9.522e-09   1.640e-09
50-150  5.040e-09   1.639e-09
15-150  1.836e-08   3.144e-09

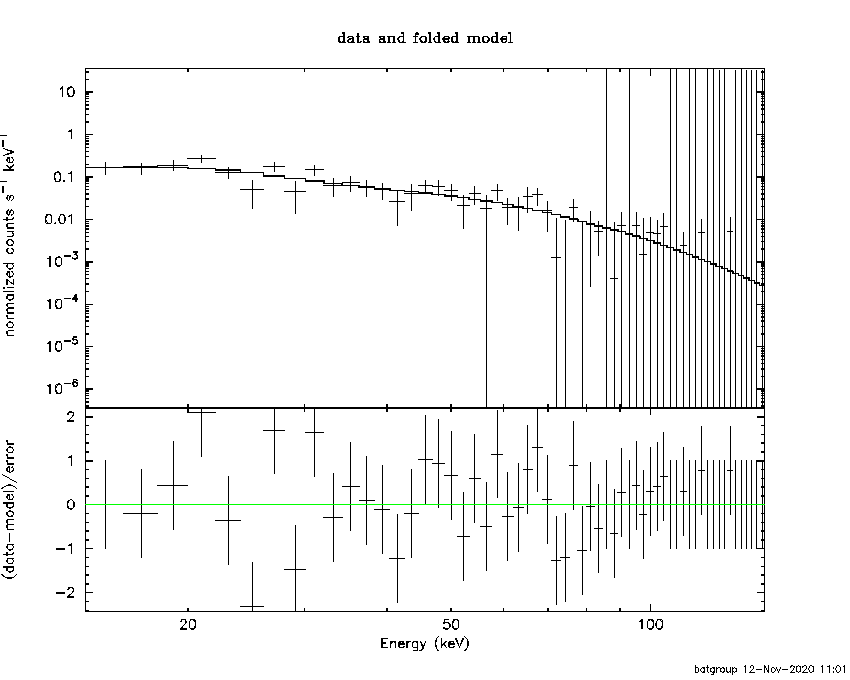

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 56.0583       (-15.2819      24.4497)
Norm        : 178.609       (-36.048     42.4119)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   34.85     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.91e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.323e-09   8.940e-10
25- 50  7.929e-09   1.147e-09
50-150  8.515e-09   2.483e-09
15-150  2.177e-08   3.648e-09

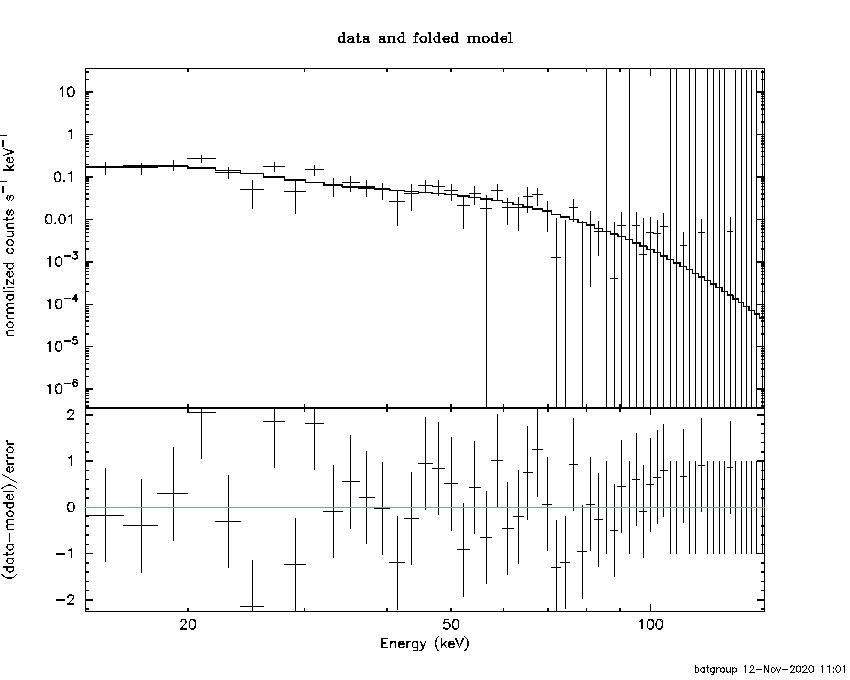

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.02119        (-1.53694      2.67645)
R1^2/D10^2  : 338.197        (-284.102      1289.8)
kT2 [keV]   : 13.7195        (-2.70668      7.29125)
R2^2/D10^2  : 3.56454    (-3.07758   4.9013)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   35.09     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.83e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.490e-09   2.767e-09
25- 50  7.596e-09   4.019e-09
50-150  7.631e-09   4.387e-09
15-150  2.072e-08   9.023e-09

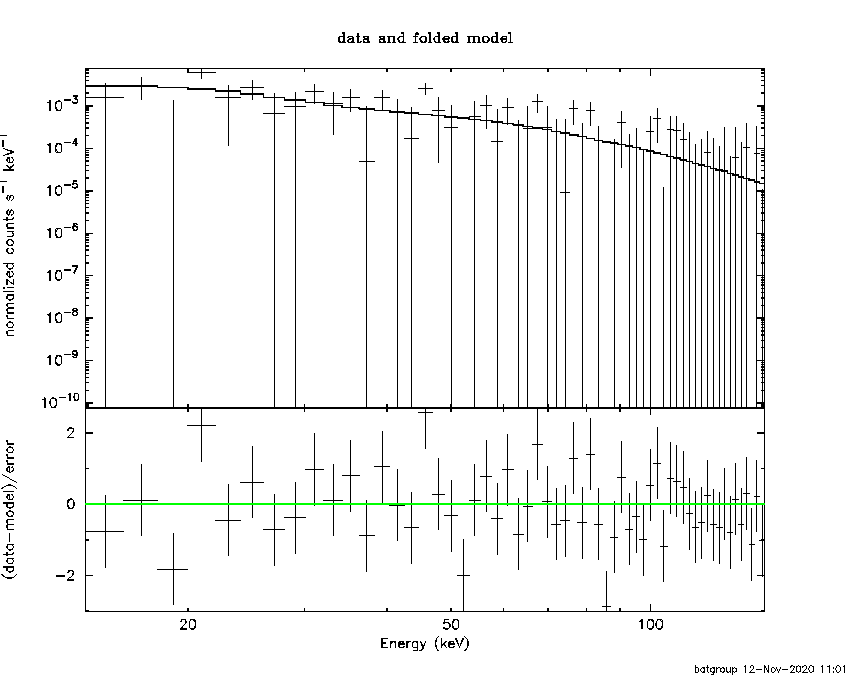

Peak spectrum fit

Power-law model

Time interval is from   -0.492 sec. to    0.508 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.00107     ( -0.465208   0.539298 )
Norm@50keV  : 3.50245E-03    ( -0.0012815   0.00123777 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.27     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.40e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.525626 ( -0.14898  0.148981 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.22982e-08 ( -1.0745e-08  1.13996e-08 ) ergs/cm2

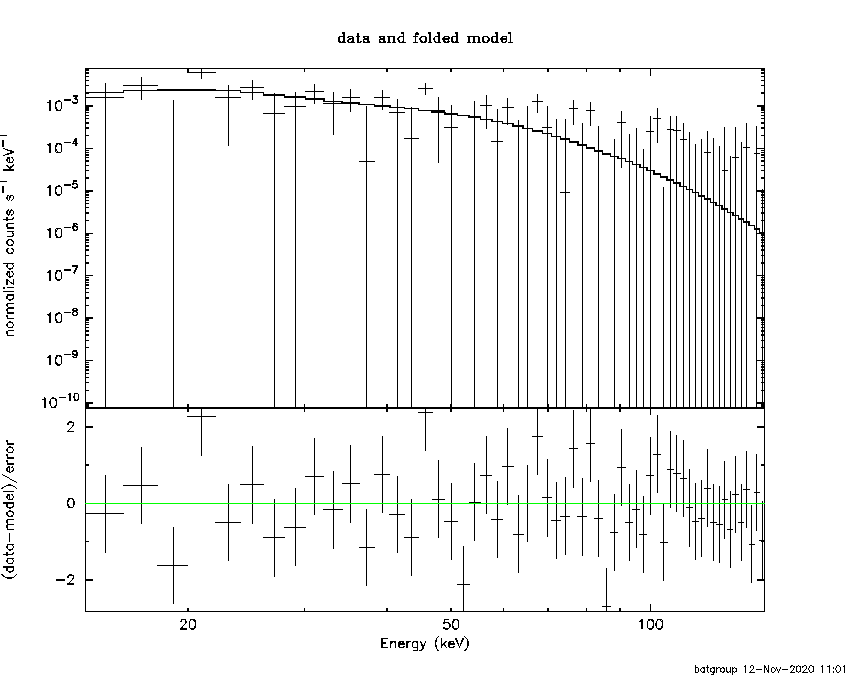

Cutoff power-law model

Time interval is from   -0.492 sec. to    0.508 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 9.06962E-02     ( -4.14083   2.21787 )
Epeak [keV] : 39.8734      ( -39.8697 -39.8697 )
Norm@50keV  : 4.75899E-02    ( -0.0479479   19.0695 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.10     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.85e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.505287 ( -0.146187  0.149487 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.82077e-08 ( -9.6037e-09  1.18379e-08 ) ergs/cm2

Band function

Time interval is from   -0.492 sec. to    0.508 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.49291E-02   ( -1.92054   3.51785 )
beta        : -10.0000    ( 10   3.55271e-15 )
Epeak [keV] : 39.8604      ( -18.4435 153.723 )
Norm@50keV   : 4.79966E-02    ( -0.0479966   19.2606 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec: 0.508261 ( 6.49174  -0.150574 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.82644e-08 ( -2.82574e-08  -9.4783e-09 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.89813  (-2.62111  3.54262)
R^2/D10^2   : 0.271433  (-0.271449   0.603622)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.82     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.95e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.397e-09   3.199e-09
25- 50  1.322e-08   7.995e-09
50-150  6.700e-09   4.590e-09
15-150  2.532e-08   1.587e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 60.6620       (-30.8635      109.228)
Norm        : 2.80886       (-1.01369     1.61185)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.82     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.95e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.072e-09   3.269e-09
25- 50  1.080e-08   6.440e-09
50-150  1.240e-08   9.825e-09
15-150  3.027e-08   1.815e-08

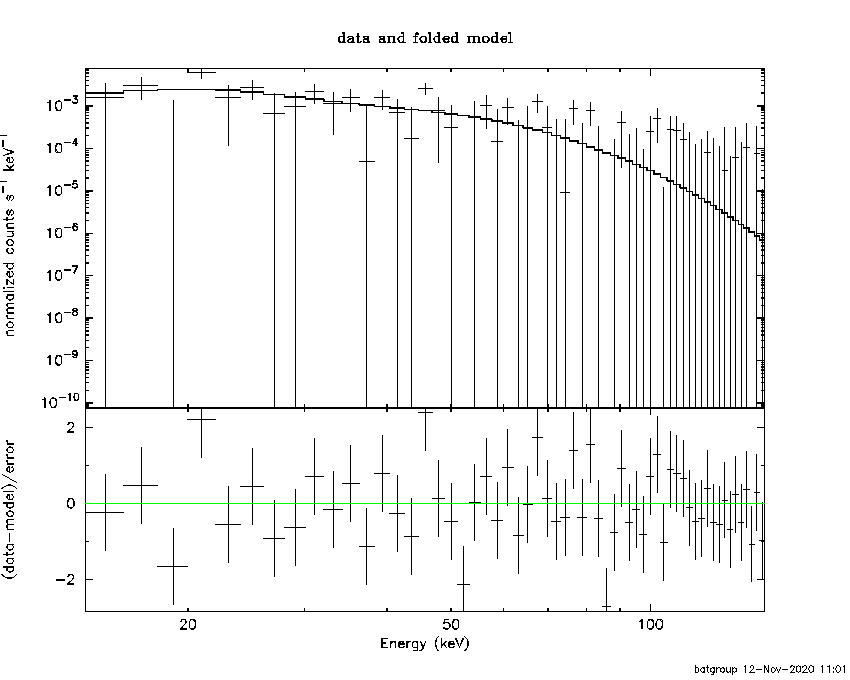

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.85989        (-5.85991      -5.85991)
R1^2/D10^2  : 0.955115        (-0.955107      -0.955107)
kT2 [keV]   : 13.6379        (-13.6379      -13.6379)
R2^2/D10^2  : 5.59365E-02    (-0.0559362   0.664711)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.02     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.51e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.411e-09   3.717e-09
25- 50  1.196e-08   7.375e-09
50-150  9.967e-09   7.270e-09
15-150  2.834e-08   1.779e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12275     ( -0.2165   0.230151 )
Norm@50keV  : 0.204057    ( -0.0327978   0.031929 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   36.00     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.87e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.012 sec: 32.4687 ( -4.22954  4.23077 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.28037e-08 ( -3.30955e-09  3.3423e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47669     ( -1.15617   0.701253 )
Epeak [keV] : 33.8377      ( -33.0672 -33.8386 )
Norm@50keV  : 0.489178    ( -0.489232   1.80008 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   34.78     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.88e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.012 sec: 32.2315 ( -4.2642  4.2527 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.19305e-08 ( 0  0 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.26865   ( 1.29053   5.97572 )
beta        : -2.72573    ( 2.70779   0.734884 )
Epeak [keV] : 34.6031      ( -34.569 19.6896 )
Norm@50keV   : 0.657451    ( -0.620221   60808.8 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.012 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.10e-09
S(50-100 keV) = 6.52e-09

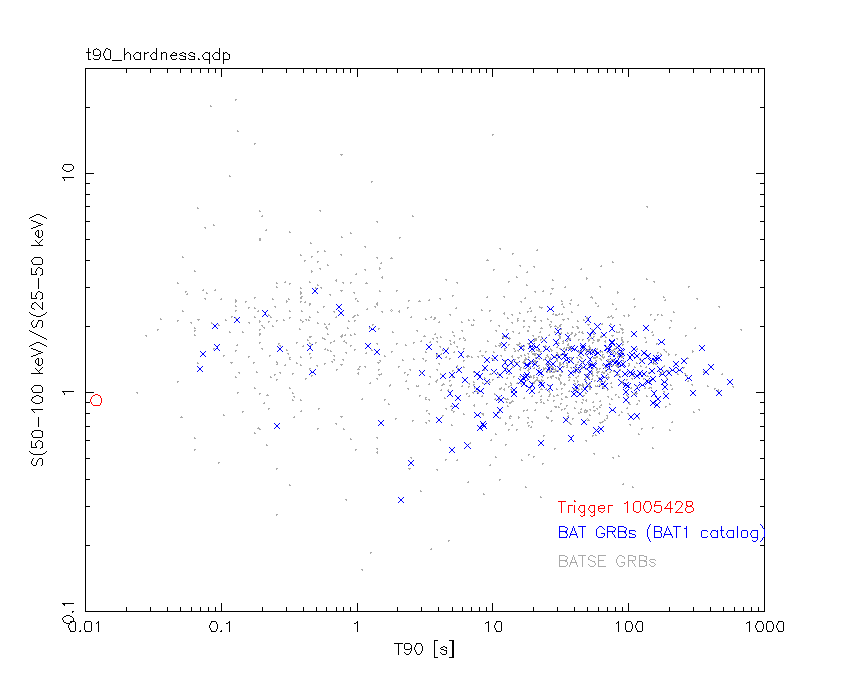

T90 vs. Hardness ratio plot

T90                                   = 0.0119999647140503 sec.
Hardness ratio (energy fluence ratio) = 0.91831

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.967035
Count Ratio (50-100 keV) / (15-25 keV) = 0.407801

Mask shadow pattern

IMX = 9.067166654181338E-02, IMY = -2.122206873180670E-02

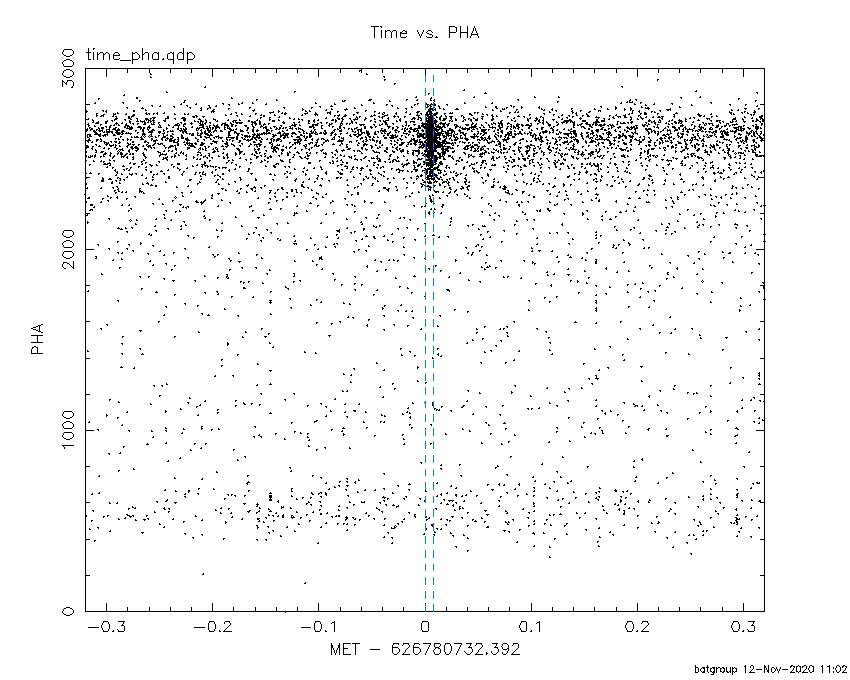

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

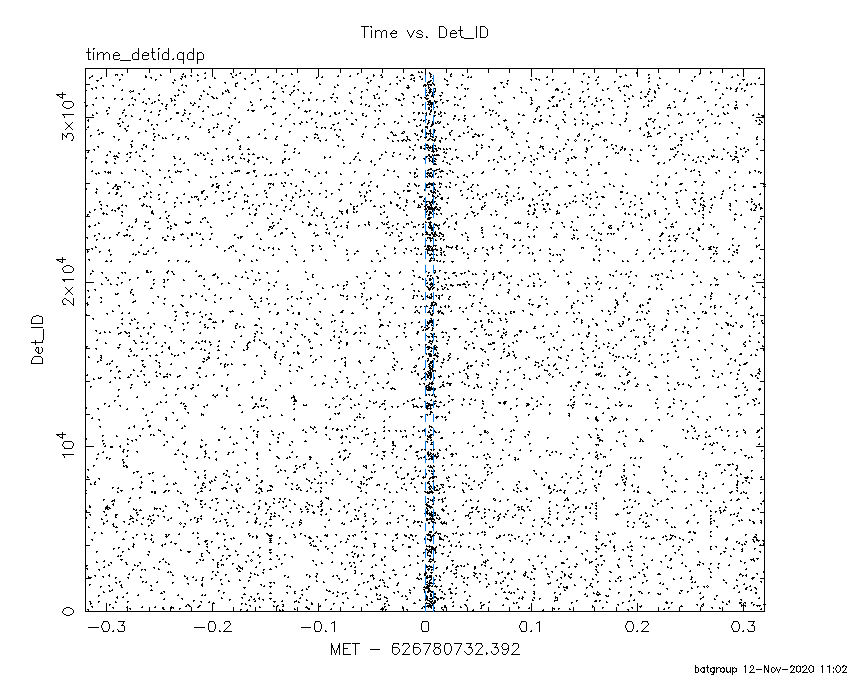

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

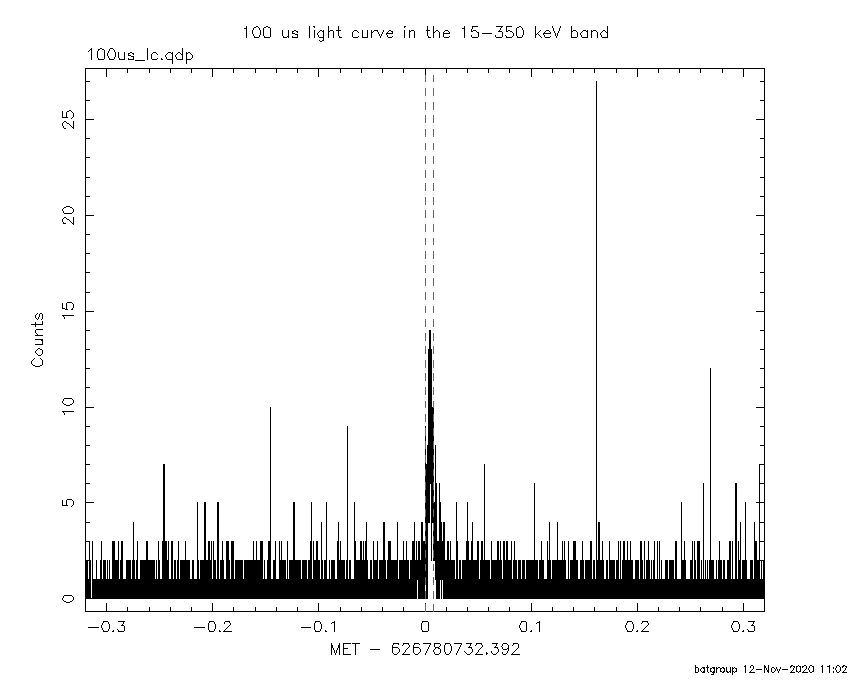

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

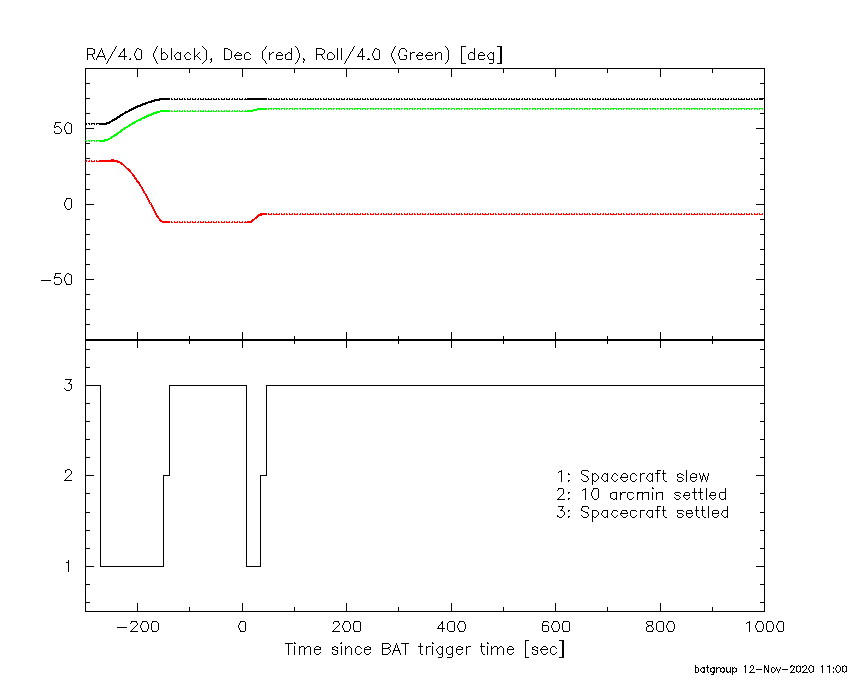

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-150.091400 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0005 -15.6325    0.8  32.8  -77.1   4.8314  13.5    1.3	Sco X-1
254.3760  35.2727    4.5  52.5   -1.8   1.1017   2.6    5.8	Her X-1
255.9690 -37.7877    1.8  32.8 -122.6   1.9242   6.4    3.5	4U 1700-377
256.5975 -36.4078    5.1  31.4 -121.5   0.6109   2.2    7.9	GX 349+2
262.9611 -24.9079    3.5  19.6 -110.1   0.7036   3.2   10.1	GX 1+4
264.7445 -44.5008   40.6  34.6 -139.3  -0.0771  -0.3    3.1	4U 1735-44
268.4654  -1.5738    5.7  14.5  -21.6  -0.3637  -2.0    9.3	SW J1753.5-0127
270.3111 -25.0479    2.2  15.2 -127.0   0.9270   5.2    2.4	GX 5-1
270.2627 -25.8454    3.7  15.9 -128.4   0.5644   3.1    6.5	GRS 1758-258
274.0705 -14.0162    3.2   4.9  -92.0   0.6327   3.7    4.0	GX 17+2
275.9393 -30.2783    3.9  18.5 -149.5   0.5718   3.0    5.4	H1820-303
284.8887 -24.8882    8.1  14.2  179.3  -0.2533  -1.4    8.2	HT1900.1-2455
288.7248  10.7664    0.0  24.9   47.4   0.0520   0.2   11.6	GRS 1915+105
263.0524 -33.8812    7.1  26.1 -126.4   0.3478   1.6    4.2	GX 354-0
303.4727  17.7065    3.1  38.5   63.2   1.7615   3.8 ------	UNKNOWN
314.4438 -37.9634    2.8  41.2  158.7   1.5573   4.1 ------	UNKNOWN
282.7919 -21.0332    2.4   9.9  179.8   0.8319   4.8 ------	UNKNOWN
302.6596 -63.3615    2.8  54.1 -169.8   2.4901   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.012000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0622 -15.5161    6.5  32.7  -76.9   0.0126   1.8    8.9	Sco X-1
254.5728  35.3596    7.0  52.5   -1.5   0.0166   1.7    5.7	Her X-1
255.8397 -37.8219    5.6  32.9 -122.5  -0.0127  -2.1    7.1	4U 1700-377
256.2942 -36.5421    3.8  31.7 -121.3   0.0176   3.0    9.9	GX 349+2
263.1263 -24.8618   11.3  19.5 -110.3  -0.0047  -1.0    9.5	GX 1+4
264.5659 -44.3340    4.2  34.5 -139.0   0.0151   2.7   10.3	4U 1735-44
268.4027  -1.5999    6.5  14.5  -21.8   0.0068   1.8    9.1	SW J1753.5-0127
270.2440 -25.1760  139.2  15.4 -127.0   0.0003   0.1    6.2	GX 5-1
270.2376 -25.6673    5.2  15.8 -128.0   0.0110   2.8    5.7	GRS 1758-258
274.1622 -14.0133    4.4   4.8  -92.4  -0.0099  -2.6    9.2	GX 17+2
276.1042 -30.4664    4.0  18.6 -150.0   0.0108   2.9   11.0	H1820-303
285.2138 -24.9216    4.6  14.4  178.3  -0.0097  -2.5    9.7	HT1900.1-2455
288.7220  11.0697    7.5  25.2   47.1  -0.0069  -1.5    8.7	GRS 1915+105
263.2002 -33.8933   14.7  26.0 -126.6   0.0039   0.8   11.1	GX 354-0
277.6740  -6.7465    0.8   5.3   13.2   0.0546  14.3 ------	UNKNOWN
296.9046 -50.8503    2.5  41.6 -174.2   0.0267   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
34.908610 549.518000
550.608000 962.729400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9887 -15.6282    0.7  33.2  -90.9  27.2337  17.5    0.9	Sco X-1
254.3273  35.3345    5.1  47.5   -8.6   2.9367   2.2    6.4	Her X-1
255.9625 -37.8264    1.6  36.8 -133.3   9.7998   7.2    1.6	4U 1700-377
256.4078 -36.2886    7.2  35.4 -132.2   2.0676   1.6    8.2	GX 349+2
263.0222 -24.7839    2.8  22.9 -126.3   3.5298   4.1    2.4	GX 1+4
264.7922 -44.4655    4.4  39.4 -148.0   3.6417   2.6    2.3	4U 1735-44
268.4454  -1.5843   13.2  10.6  -43.8  -0.6086  -0.9    9.2	SW J1753.5-0127
270.3043 -25.0208    3.0  19.6 -142.2   3.1505   3.9    3.7	GX 5-1
270.1664 -25.8348    4.8  20.4 -142.8   1.8781   2.4    9.2	GRS 1758-258
273.8919 -13.9550    4.3   8.1 -135.4   2.2824   2.7    8.2	GX 17+2
275.8606 -30.4614    4.6  23.8 -158.6   2.0059   2.5    6.6	H1820-303
285.0300 -25.0085   43.0  19.6  177.3  -0.2250  -0.3    5.3	HT1900.1-2455
288.8264  10.8035  165.2  20.7   49.8   0.0672   0.1    8.7	GRS 1915+105
299.5980  35.2207    3.2  46.8   42.2   9.1569   3.6    1.2	Cyg X-1
263.0961 -33.8647    3.1  30.3 -138.0   3.7892   3.7    5.6	GX 354-0
305.9980  19.9250    3.4  38.5   63.1   6.5040   3.5 ------	UNKNOWN
298.2612  36.0442    5.6  46.9   40.3   4.8537   2.0 ------	UNKNOWN
300.1422  -4.9416    3.8  22.4  104.1   3.0046   3.1 ------	UNKNOWN

Plot creation:
Thu Nov 12 11:02:09 EST 2020
