TDRSS lightcurve for Trigger=1006917
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 17 Nov 20 00:12:54 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1006917, Seg_Num: 0
GRB_RA: 85.826d {+05h 43m 18s} (J2000),
86.149d {+05h 44m 36s} (current),
85.053d {+05h 40m 13s} (1950)
GRB_DEC: +25.597d {+25d 35' 48"} (J2000),
+25.605d {+25d 36' 18"} (current),
+25.575d {+25d 34' 29"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 4770 [cnts] Image_Peak=215 [image_cnts]
TRIGGER_DUR: 0.512 [sec]
TRIGGER_INDEX: 201 E_range: 15-50 keV
BKG_INTEN: 60338 [cnts]
BKG_TIME: 742.00 SOD {00:12:22.00} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19170 TJD; 322 DOY; 20/11/17
GRB_TIME: 755.82 SOD {00:12:35.82} UT
GRB_PHI: -165.33 [deg]
GRB_THETA: 0.38 [deg]
SOLN_STATUS: 0x403
RATE_SIGNIF: 16.40 [sigma]
IMAGE_SIGNIF: 7.99 [sigma]
MERIT_PARAMS: +1 +0 +0 -1 +1 -2 +0 +1 +85 +0
SUN_POSTN: 232.76d {+15h 31m 03s} -19.04d {-19d 02' 23"}
SUN_DIST: 148.51 [deg] Sun_angle= 9.8 [hr] (West of Sun)
MOON_POSTN: 259.04d {+17h 16m 11s} -23.00d {-22d 59' 49"}
MOON_DIST: 173.02 [deg]
MOON_ILLUM: 5 [%]
GAL_COORDS: 182.58, -2.18 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 86.23, 2.21 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 331.78,-2.00 [deg].
COMMENTS:
COMMENTS: This trigger occured while the StarTracker had lost lock, so it is possibly bogus.
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 17 Nov 20 00:29:29 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 1006917, Seg_Num: 0
GRB_RA: 85.826d {+05h 43m 18s} (J2000),
86.149d {+05h 44m 36s} (current),
85.053d {+05h 40m 13s} (1950)
GRB_DEC: +25.597d {+25d 35' 48"} (J2000),
+25.605d {+25d 36' 18"} (current),
+25.575d {+25d 34' 29"} (1950)
GRB_DATE: 19170 TJD; 322 DOY; 20/11/17
GRB_TIME: 755.82 SOD {00:12:35.82} UT
TRIGGER_INDEX: 201
GRB_PHI: -165.33 [deg]
GRB_THETA: 0.38 [deg]
DELTA_TIME: 58.00 [sec]
TRIGGER_DUR: 0.512 [sec]
SOLN_STATUS: 0x403
RATE_SIGNIF: 16.40 [sigma]
IMAGE_SIGNIF: 7.99 [sigma]
LC_URL: sw01006917000msb.lc
GCN template for BAT paragraph
Click here!
At 00:12:35 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 201117 ***A*** (trigger=1006917). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 85.826, +25.597 which is
RA(J2000) = 05h 43m 18s
Dec(J2000) = +25d 35' 48"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~6828 counts/sec (15-350 keV), at ~0 sec after the trigger.
Test version of draft template

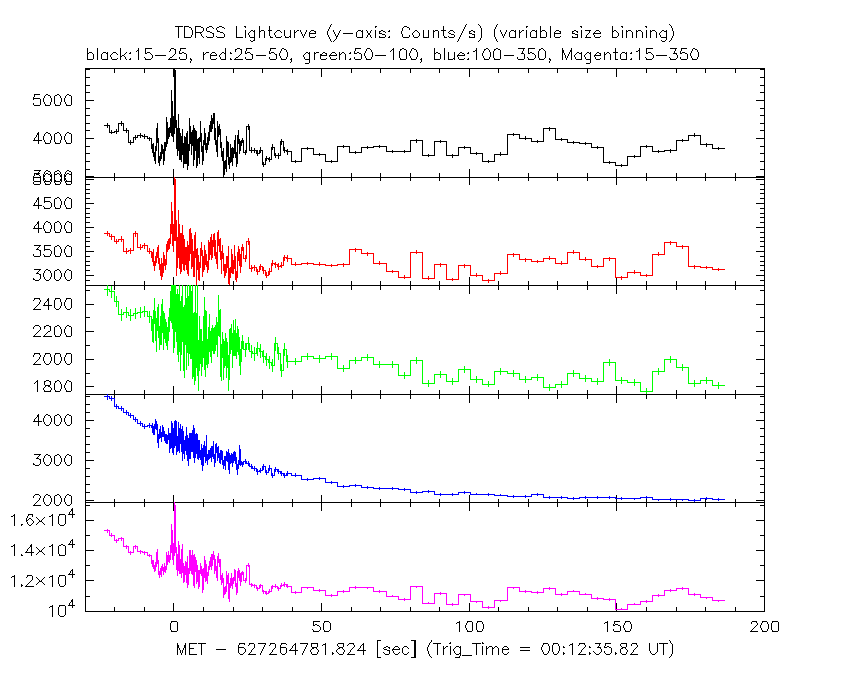

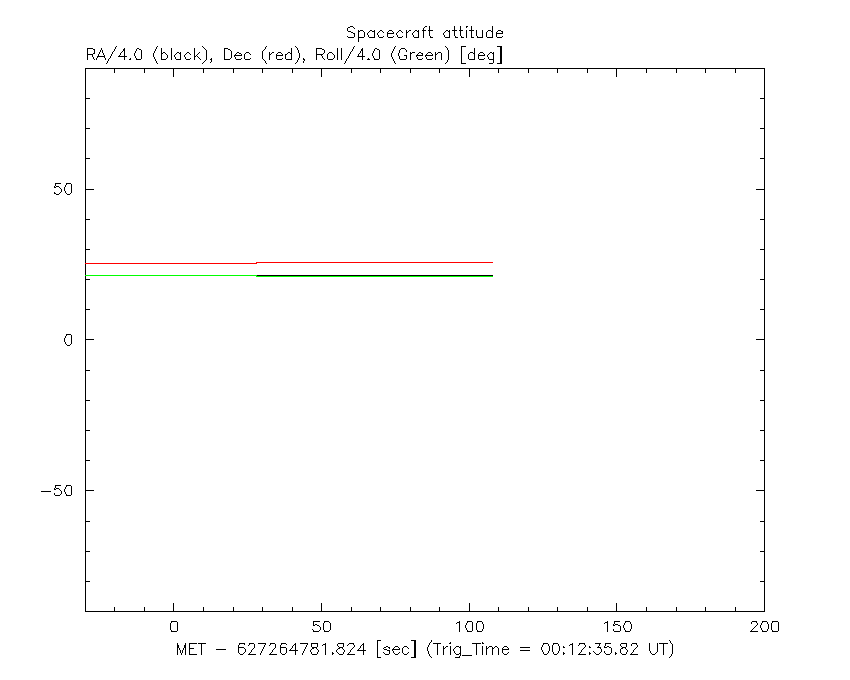

Initial TDRSS lightcurve and spacecraft attitude plot
TDRSS lightcurve from T0-30 to T0+50 (zoom in)
TDRSS light curve from T0-1 to T0+2 (More zoom in)
1.6s binned TDRSS light curve

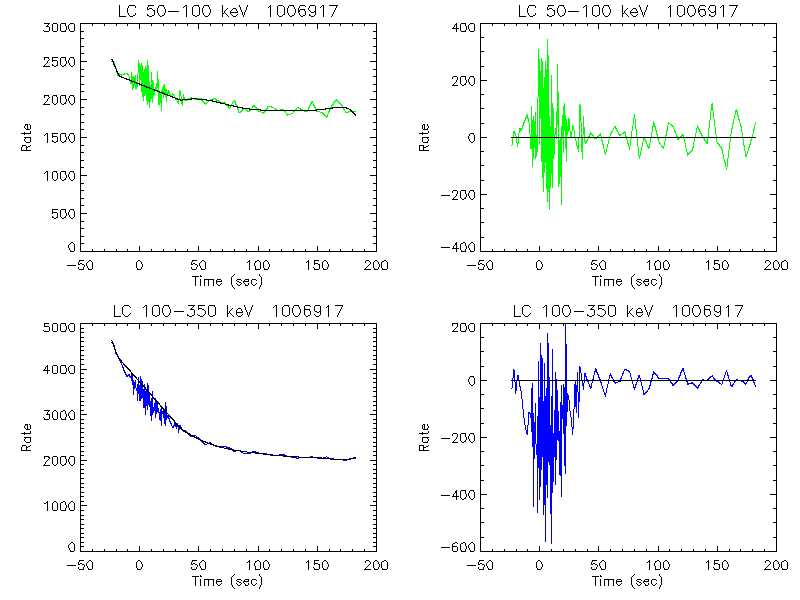

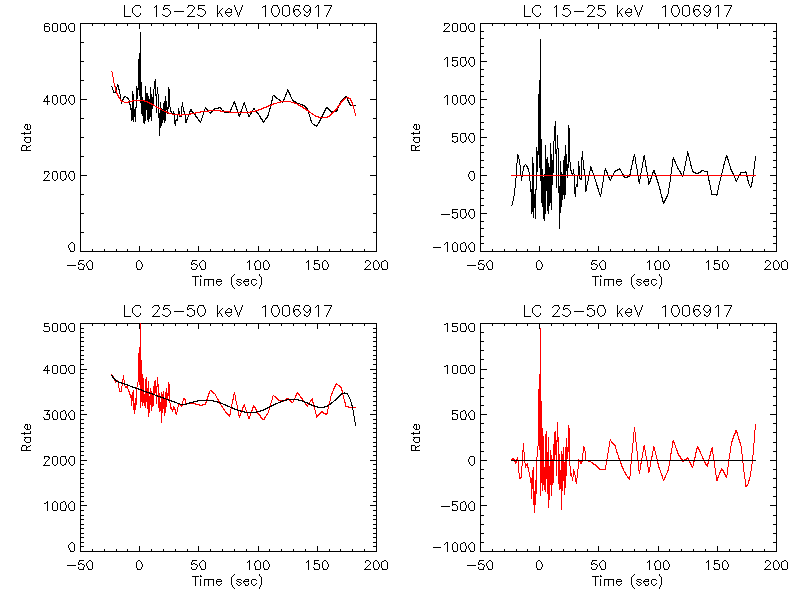

Tilan's background subtracted TDRSS light curves

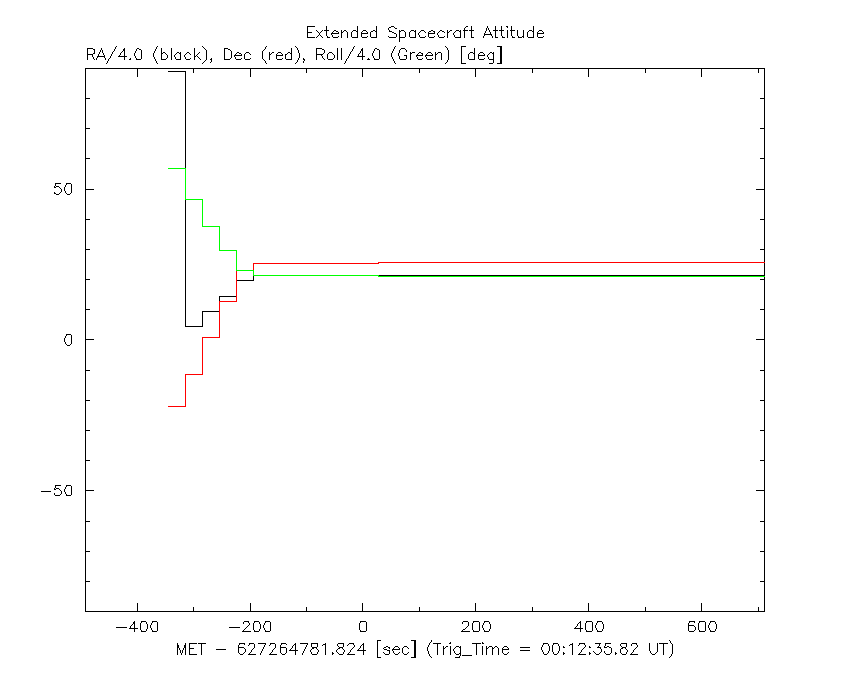

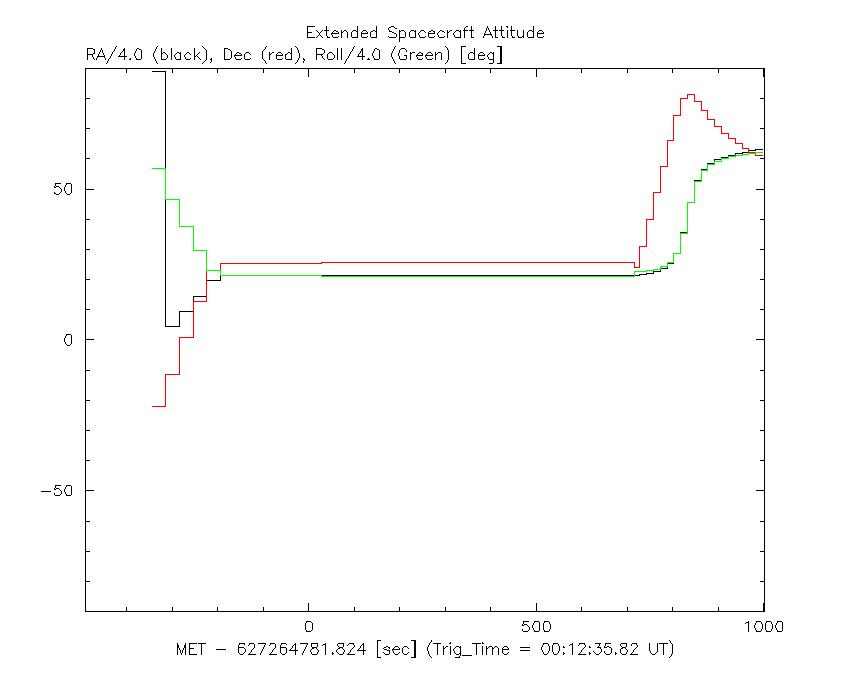

Extended TDRSS light curve and spacecraft attitude plot(s)

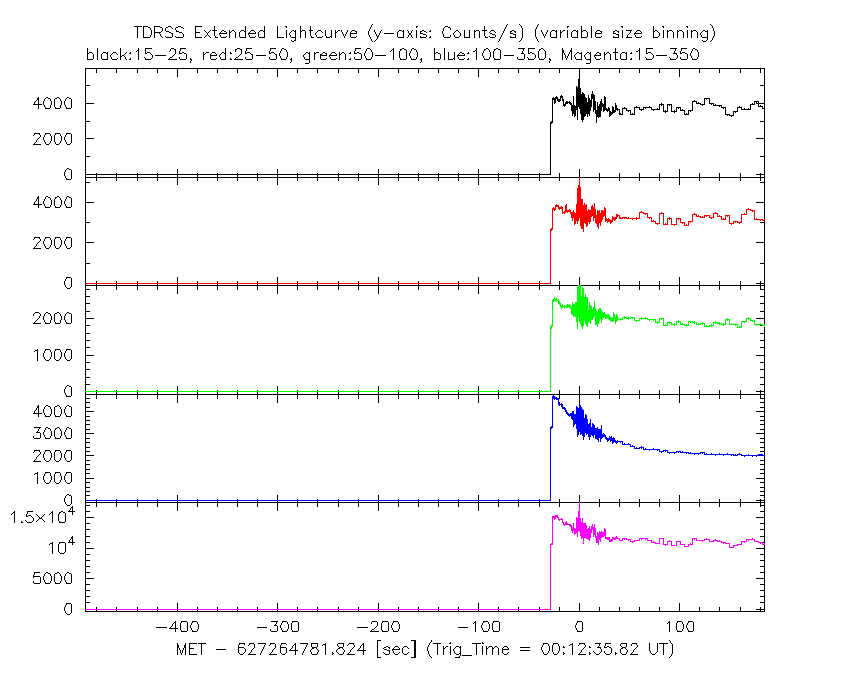

Extended TDRSS lc No.1
Extended TDRSS lc No.2
Extended TDRSS lc No.3

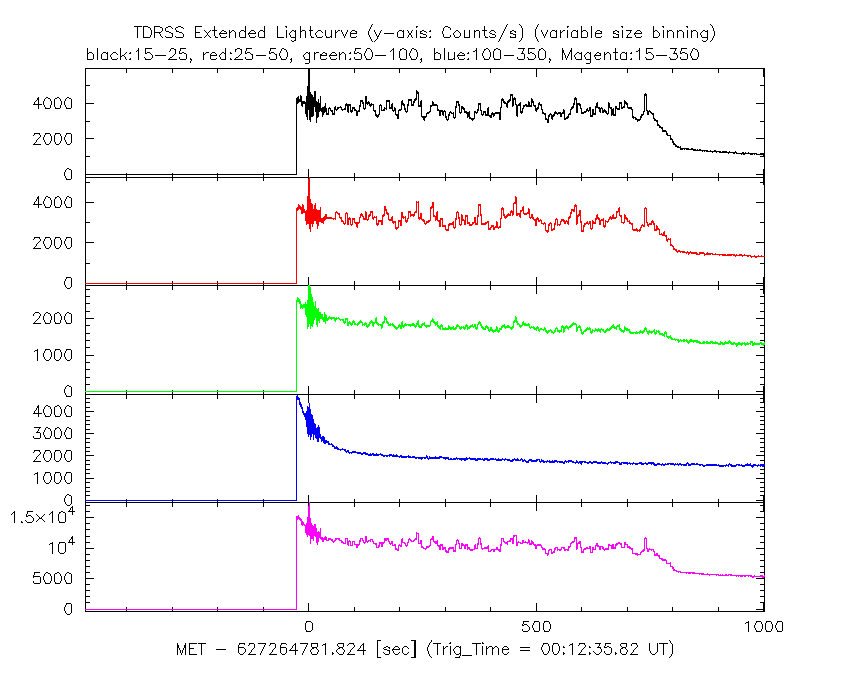

Extended TDRSS lc No.4
TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 198.528 s +/- 43.8587 s
Estimated T50 duration: 198.528 s +/- 102.235 s
Estimated Peak Interval: MET 627264953.98399997 +/- 0.500000 s
Estimated background rate 1: 15158.750 near MET 627264760.000000 s
Estimated background rate 2: 10788.452 near MET 627264964.224000 s
Estimated total duration: 198.528 s (for data selection)
(from MET 627264761.600000 to MET 627264960.128000)
Estimated total fluence: -281646.086440 count
Created GTI with 38 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 85.826 25.597 0.083
No match
Search for this GRB position to the source locations in BAT transient monitor (search radius within 12 arcmin)
python compare_catalog.py 85.826 25.597
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 84.594990 -24.400303
Obj: 2020 11 17 0 239.800529 3.803557
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 64.590803 4.093431
Obj: 2020 11 17 0 217.631472 -21.715426
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 60.973825 7.819704
Obj: 2020 11 17 0 212.308850 -23.243314
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 36.734411 42.490110
Obj: 2020 11 17 0 172.952075 -44.261576
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 250.448526 62.223422
Obj: 2020 11 17 0 100.250407 -36.708543
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 314.633993 21.925276
Obj: 2020 11 17 0 117.840832 4.862080
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 122.825043 -73.519608
Obj: 2020 11 17 0 262.463352 47.434117
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2020 11 17 0 62.121419 -8.345651
Obj: 2020 11 17 0 252.134800 -21.642643
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger1006917/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
Plot creation:
Mon Nov 16 19:30:03 EST 2020
