TDRSS scaled map for 1011980
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 09 Dec 20 05:45:06 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1011980, Seg_Num: 0
GRB_RA: 23.106d {+01h 32m 25s} (J2000),
23.373d {+01h 33m 29s} (current),
22.469d {+01h 29m 52s} (1950)
GRB_DEC: -1.763d {-01d 45' 47"} (J2000),
-1.656d {-01d 39' 21"} (current),
-2.020d {-02d 01' 11"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 5077 [cnts] Image_Peak=195 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 155 E_range: 50-350 keV
BKG_INTEN: 20977 [cnts]
BKG_TIME: 20677.87 SOD {05:44:37.87} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19192 TJD; 344 DOY; 20/12/09
GRB_TIME: 20692.53 SOD {05:44:52.53} UT
GRB_PHI: 169.30 [deg]
GRB_THETA: 50.83 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 43.24 [sigma]
IMAGE_SIGNIF: 10.19 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +3 +0 +0 +0 +53 +0
SUN_POSTN: 256.54d {+17h 06m 10s} -22.86d {-22d 51' 32"}
SUN_DIST: 122.75 [deg] Sun_angle= -8.5 [hr] (East of Sun)
MOON_POSTN: 185.21d {+12h 20m 51s} +3.32d {+03d 19' 13"}
MOON_DIST: 161.78 [deg]
MOON_ILLUM: 37 [%]
GAL_COORDS: 145.82,-62.80 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 20.71,-10.62 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 178.88,19.98 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 09 Dec 20 05:56:07 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1011980, Seg_Num: 0
POINT_RA: 50.679d {+03h 22m 43s} (J2000)
POINT_DEC: +42.572d {+42d 34' 18"} (J2000)
MAP_DATE: 19192 TJD; 344 DOY; 20/12/09
MAP_TIME: 20692.53 SOD {05:44:52.53} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 43.24 [sigma]
IMAGE_SIGNIF: 10.19 [sigma]
MAP_URL: sw01011980000msbsm.fits
SUN_POSTN: 256.55d {+17h 06m 12s} -22.86d {-22d 51' 35"}
MOON_POSTN: 185.31d {+12h 21m 15s} +3.27d {+03d 16' 28"}
MOON_ILLUM: 36 [%]
GAL_COORDS: 150.43,-12.08 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 59.49, 23.21 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

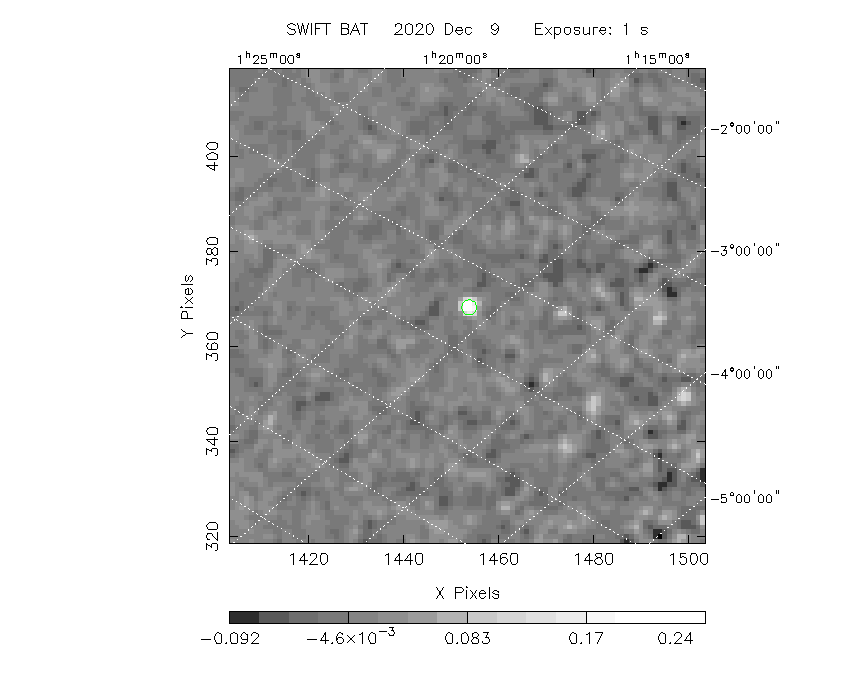

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (23.106, -1.763).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 23.106 -1.763 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 31.3 -89.9 0.0062 0.6 0.0 V709 Cas
19.5112 65.2916 0.0 28.6 -74.2 -0.0016 -0.2 0.0 4U 0114+65
52.8001 43.9046 0.0 2.0 1.2 -0.0035 -0.5 0.0 GK Per
53.7495 53.1732 0.0 10.8 -37.5 -0.0104 -1.6 0.0 V0332+53
58.8458 31.0497 0.0 13.2 100.6 0.0002 0.0 0.0 X Per
83.6332 22.0145 0.0 34.3 69.1 0.0140 1.1 0.0 Crab
93.9015 71.0375 0.0 35.5 -24.8 0.0103 1.3 0.0 Mkn 3
166.6979 72.5686 0.0 56.7 -28.6 -0.0270 -0.8 0.0 NGC 3516
350.9671 42.1830 0.0 43.2 -116.7 0.0452 1.6 0.0 1ES 2321+419
23.0876 -1.7654 0.9 50.8 169.3 0.2843 12.8 ------ UNKNOWN
114.2346 54.6901 2.7 42.1 3.2 0.0425 4.3 ------ UNKNOWN
25.4017 69.5343 2.5 29.9 -64.8 0.0415 4.6 ------ UNKNOWN
327.2104 82.3806 2.1 47.0 -57.7 0.2441 5.6 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.6332 22.0145 0.0 34.3 69.1 0.0140 1.1 0.0 Crab
23.0876 -1.7654 0.9 50.8 169.3 0.2843 12.8 ------ UNKNOWN
114.2346 54.6901 2.7 42.1 3.2 0.0425 4.3 ------ UNKNOWN
25.4017 69.5343 2.5 29.9 -64.8 0.0415 4.6 ------ UNKNOWN
327.2104 82.3806 2.1 47.0 -57.7 0.2441 5.6 ------ UNKNOWN
Search for UNKNOWN source R.A. = 23.0876 Dec. = -1.7654 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 25.4017 Dec. = +69.5343 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 114.2346 Dec. = +54.6901 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 327.2104 Dec. = +82.3806 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1011980/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Wed Dec 9 00:57:13 EST 2020
