                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Jan  3 12:45:05 EST 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1015615/GCN5_download_cron
======================================================================

  Trigger: 01015615      Segment: 000

  BAT Trigger Time: 631239458.88   [s; MET]
      Trigger Stop: 631239459.904   [s; MET]
               UTC: 2021-01-02T00:17:12.622860    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 234.702708235065   Dec: -84.1885874751111  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.5
     Image Trigger?:     NO
     Rate S/N Ratio:     30.0665927567458  [ if not an image trigger ]
     Image S/N Ratio:    6.5

  Flight Position:   [ source = BAT ]
    RA: 234.702708235065   Dec: -84.1885874751111  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 233.491327613577   Dec: -84.1227525420591  [deg; J2000]
        { 15h 33m 57.9s , -84d 07' 21.9" }
         +/- 4.38609183495855 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.34506990937341 [arcmin] (formal 1-sigma fit error)
    SNR: 3.68014129644817

  Angular difference between Flight and Ground position is 8.388943 arcmin

  Partial Coding Fraction: 0.6484375    [ including projection effects ]

  Duration
     T90: 42 +/- 5
        Measured from: -2.87999987602234
                   to: 39.1200001239777     [s; relative to TRIGTIME]
     T50: 26 +/- 6.70820393249937
        Measured from: 6.12000012397766
                   to: 32.1200001239777     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 32.1200000047684
                   to: 33.1200000047684     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -4.87999999523163
                   to: 41.1200000047684     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.903350   1.549570   0.429458   0.452152
           0.113384   0.141848   0.130744   0.169318 [error]
 Peak      0.053003   0.081348   0.045917   0.026377
           0.018363   0.023074   0.021273   0.027565 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.11e-07 4.88e-07 5.78e-07 1.33e-06 1.76e-06 2.70e-06   erg/cm2
              Error 5.20e-08 6.19e-08 1.25e-07 5.58e-07 2.92e-07 6.98e-07   erg/cm2
Peak flux Power-law 5.57e-01 5.25e-01 3.44e-01 3.49e-01 1.57e+00 1.77e+00   ph/cm2/s
              Error 2.54e-01 1.72e-01 1.74e-01 4.02e-01 5.17e-01 6.44e-01   ph/cm2/s

Fluence   Cutoff-PL 2.60e-07 6.87e-07 2.87e-07 7.15e-09 1.24e-06 1.24e-06   erg/cm2
              Error 6.30e-08 1.11e-07 1.62e-07 3.89e-08 2.15e-07 2.17e-07   erg/cm2
Peak flux Cutoff-PL 5.08e-01 6.05e-01 3.38e-01 8.59e-02 1.52e+00 1.54e+00   ph/cm2/s
              Error 2.83e-01 2.46e-01 2.70e-01 3.64e-01 5.17e-01 6.62e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.757    0.224    -      -           4.31e-03 6.82e-04  100.100 57
CPL  -2.127    2.456      37.9    4.9      1.16e+00 3.60e+01   89.230 56

The chi2 of BB fit is 89.49 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.611    0.597    -      -           1.22e-02 4.80e-03   55.540 57
CPL   0.485    3.217      56.2    0.0      5.49e-02 1.21e+01   54.900 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.896000 sec.
T50 in the 50-300 keV band: 0.512000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   46.000   -4.880   41.120
T90    42.000   -2.880   39.120
T50    26.000    6.120   32.120
Peak    1.000   32.120   33.120

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  233.4913 -84.1228 0.0523   25.6 -120.7       3.1077     3.7  TRIG_01015615
------------------------------------------

Foreground time interval of the image:
 -4.880  17.500 (delta_t =  22.380 [sec])
 19.120  36.621 (delta_t =  17.501 [sec])
Background time interval of the image:
-10.880  -4.880 (delta_t =   6.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

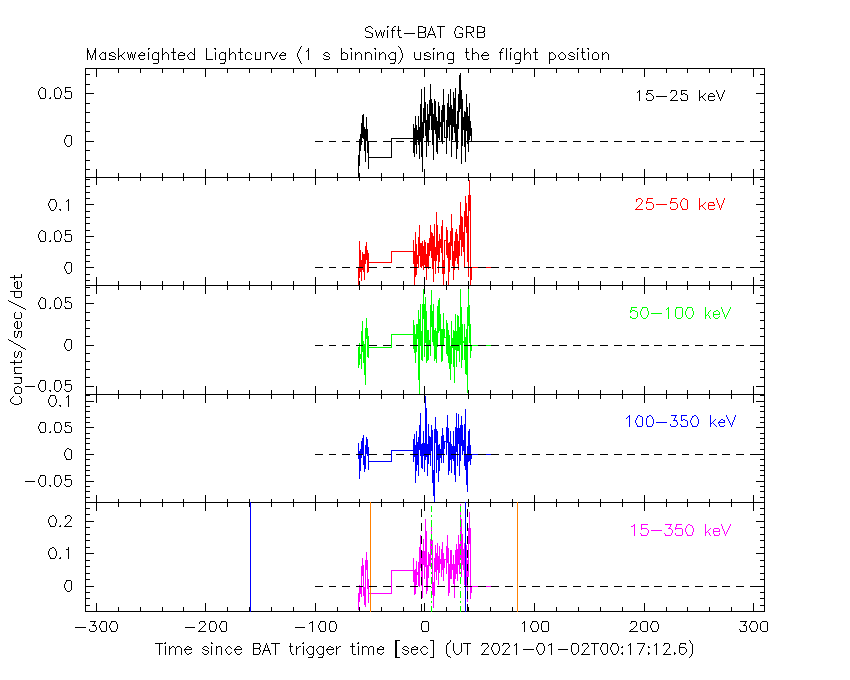

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

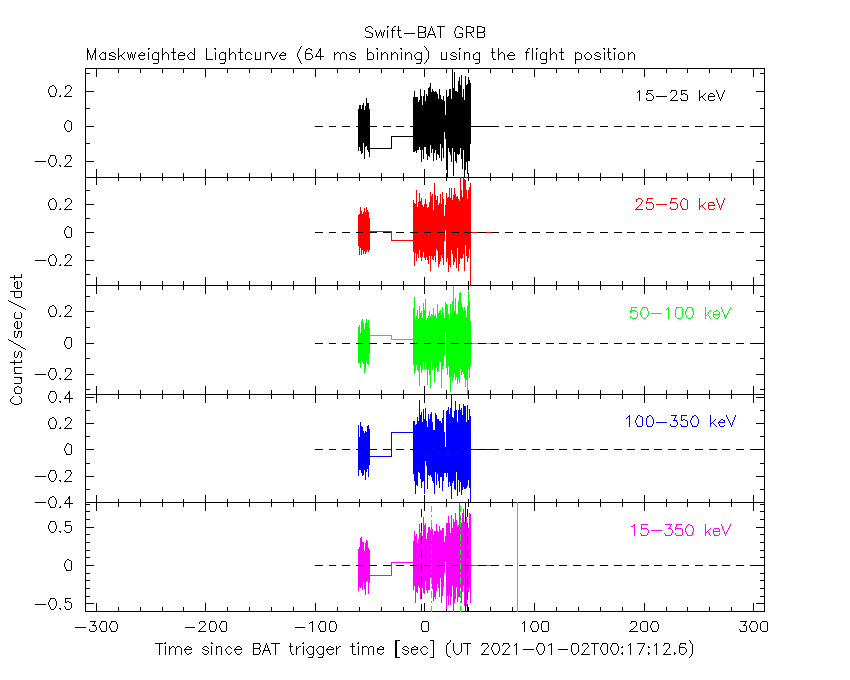

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

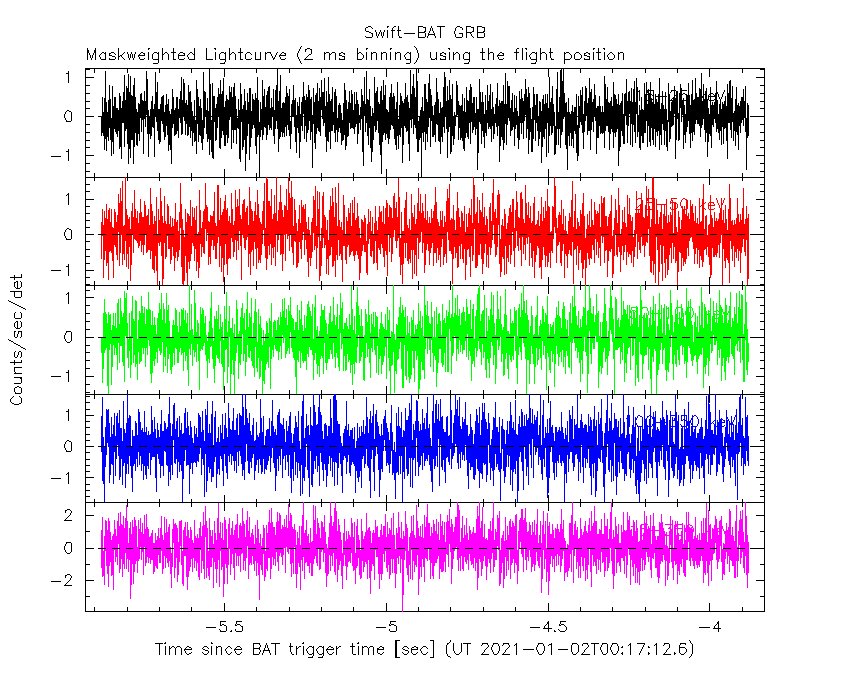

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

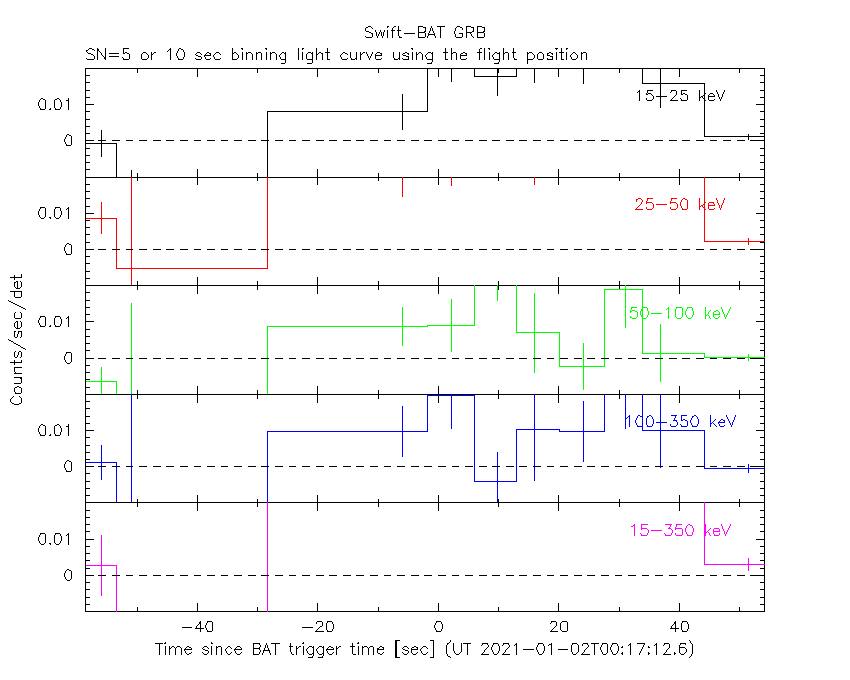

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

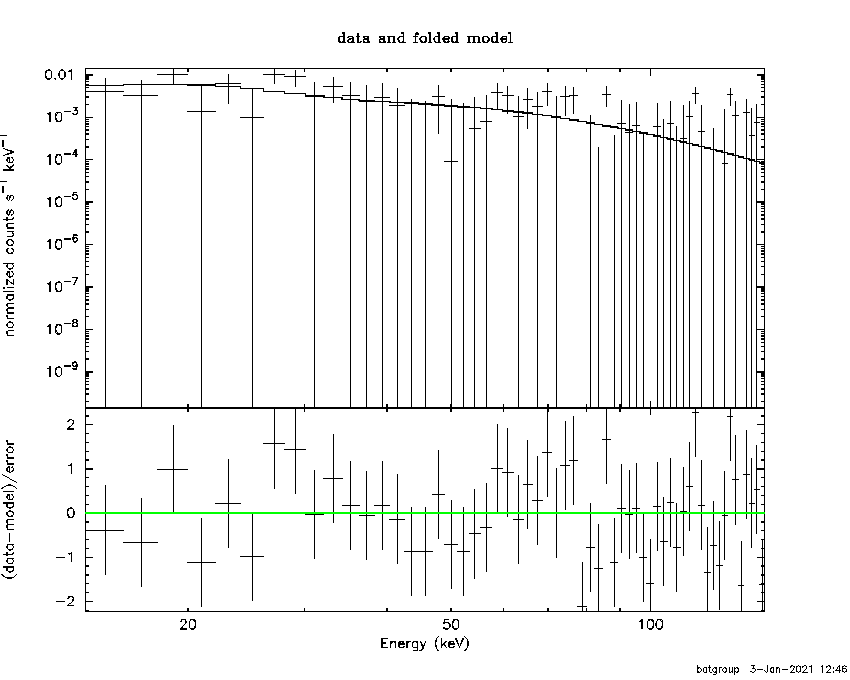

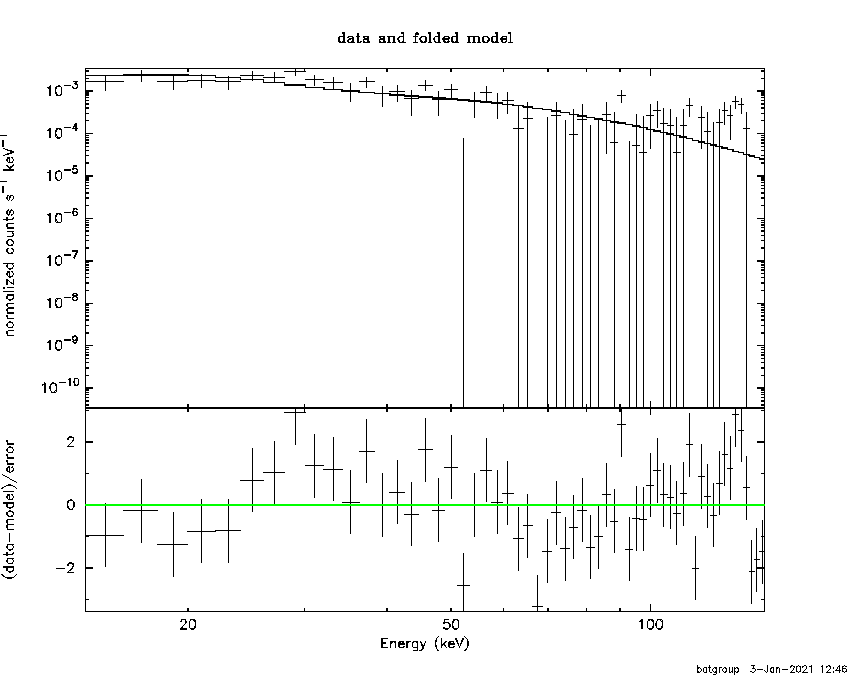

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-4.880000 17.500000
19.120000 41.120000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.75669     ( -0.217521   0.230535 )
Norm@50keV  : 4.30538E-03    ( -0.000688829   0.000674487 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  100.10     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.67e-04 with 57 degrees of freedom

Photon flux (15-150 keV)    in 44.38 sec: 0.583602 ( -0.0732566  0.0733048 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.76248e-06 ( -2.86136e-07  2.97914e-07 ) ergs/cm2

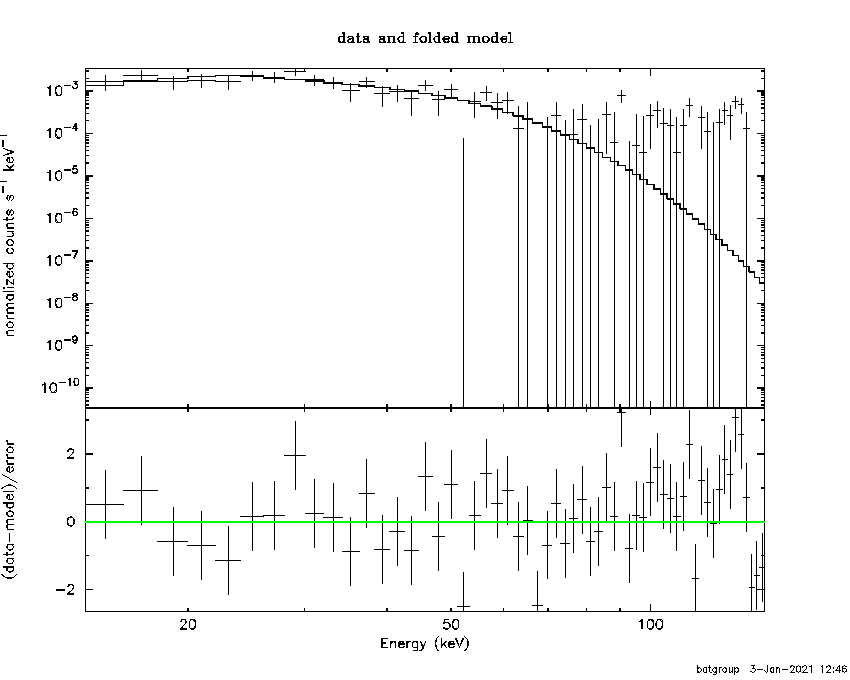

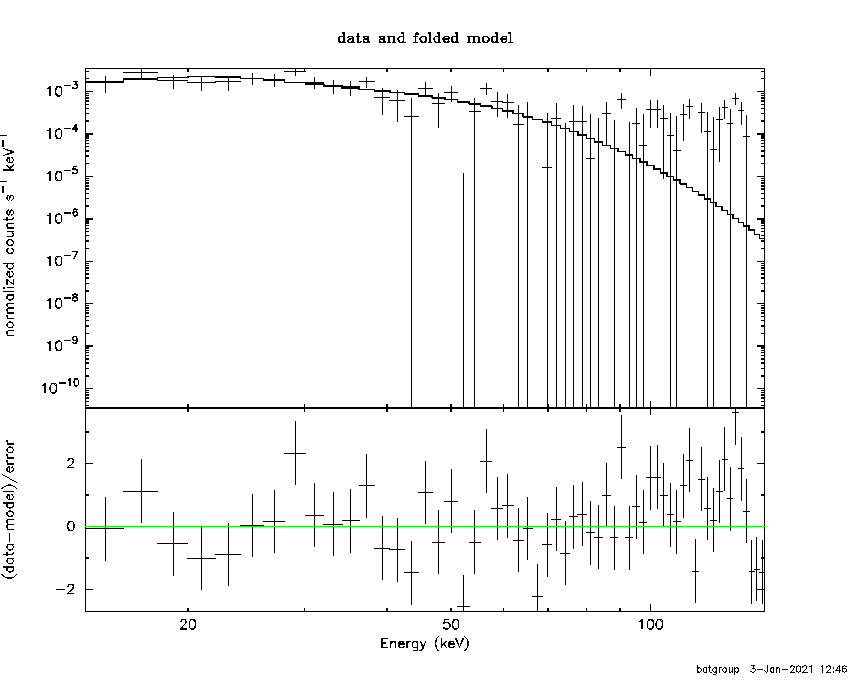

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-4.880000 17.500000
19.120000 41.120000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.12705     ( -3.05493   1.85729 )
Epeak [keV] : 37.9005      ( -3.95371 5.8442 )
Norm@50keV  : 1.16238    ( -1.26151   70.6606 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   89.23     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.14e-03 with 56 degrees of freedom

Photon flux (15-150 keV)    in 44.38 sec: 0.525033 ( -0.068232  0.070727 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.24139e-06 ( -1.92396e-07  2.38325e-07 ) ergs/cm2

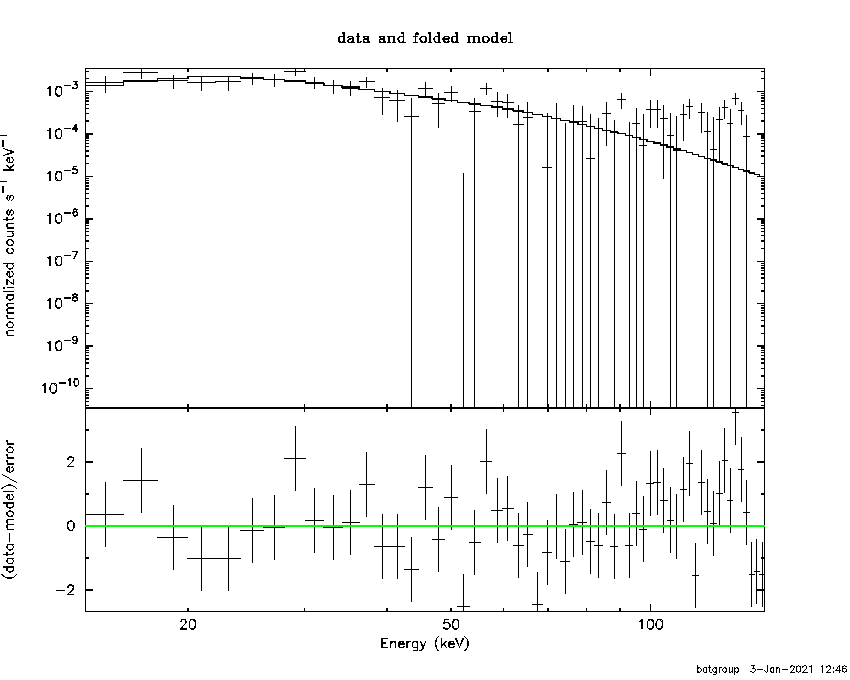

Band function

Multiple GTIs in the spectrum
tstart tstop
-4.880000 17.500000
19.120000 41.120000
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.37891   ( -4.14675   -4.40345 )
beta        : -2.96417    ( -1.25818   0.623847 )
Epeak [keV] : 34.8196      ( -3.29304 3.47984 )
Norm@50keV   : 9.03134    ( -8.91511   41.8497 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 44.38 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

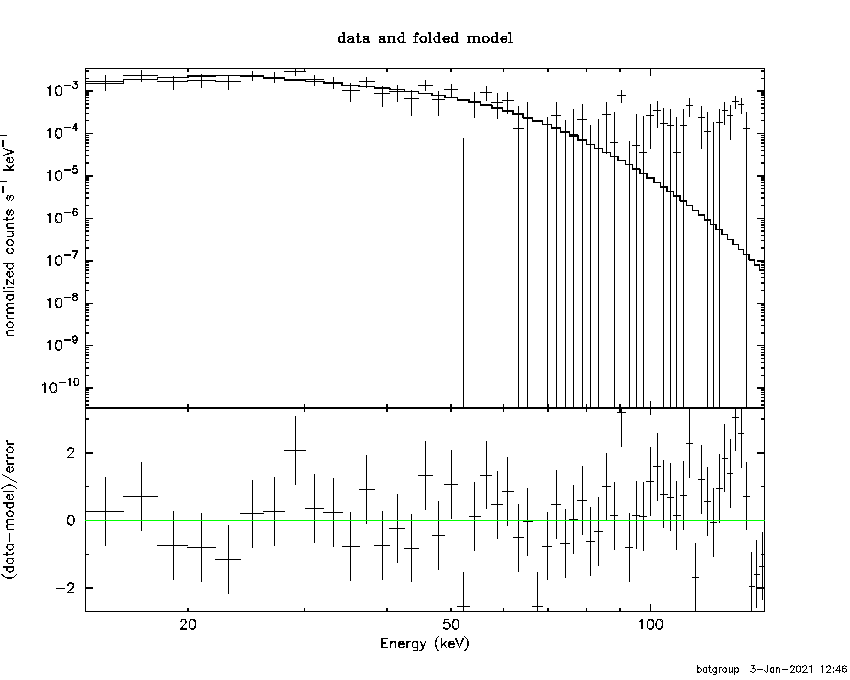

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.85319  (-1.05957  1.19181)
R^2/D10^2   : 0.312506  (-0.108488   0.16157)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   89.49     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.86e-03 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.728e-07   5.541e-08
25- 50  6.641e-07   1.076e-07
50-150  3.320e-07   1.148e-07
15-150  1.269e-06   2.312e-07

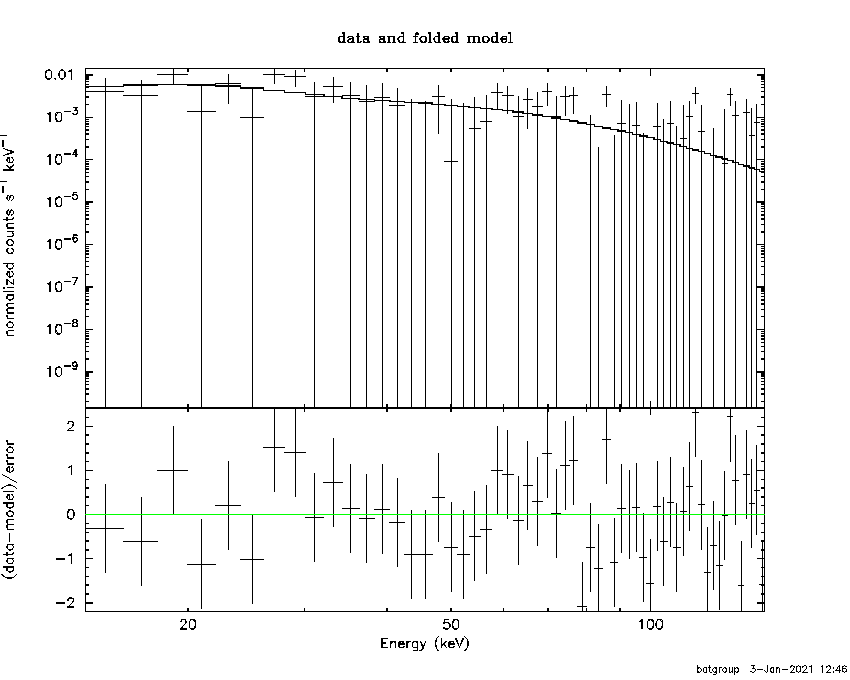

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 85.4739       (-30.5549      69.7385)
Norm        : 2.70451       (-0.432146     0.544019)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   97.13     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.31e-04 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.126e-07   5.144e-08
25- 50  5.226e-07   9.049e-08
50-150  7.704e-07   4.362e-07
15-150  1.606e-06   5.332e-07

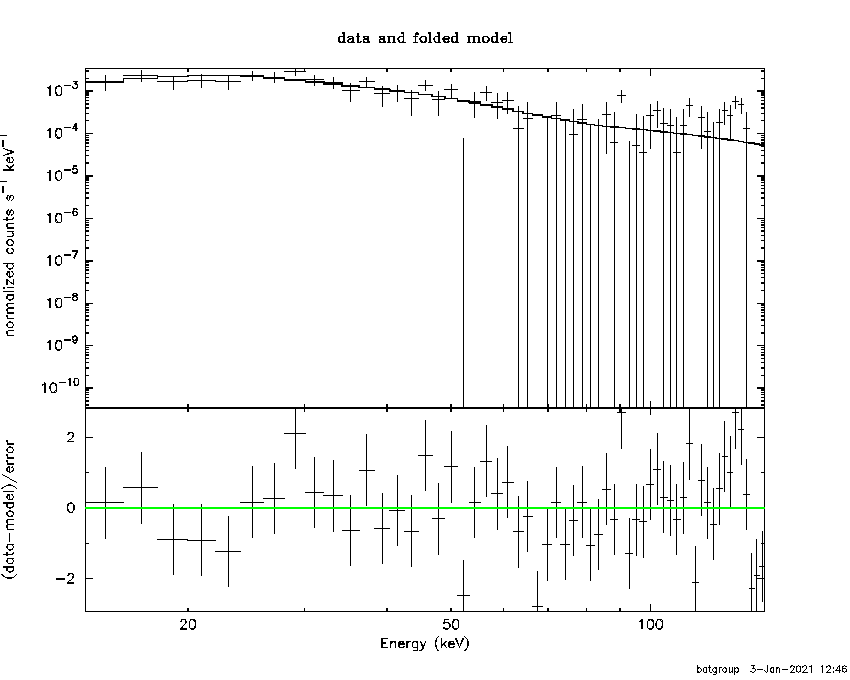

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 200.000        (-200      -200)
R1^2/D10^2  : 5.38720E-05        (-3.11872e-05      0.000355254)
kT2 [keV]   : 9.05229        (-1.06238      1.17564)
R2^2/D10^2  : 0.397248    (-0.143094   0.226832)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   82.91     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.87e-03 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Peak spectrum fit

Power-law model

Time interval is from   32.120 sec. to   33.120 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.61076     ( -0.554096   0.638986 )
Norm@50keV  : 1.21605E-02    ( -0.00493529   0.0046707 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.54     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.30e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.56793 ( -0.516696  0.517553 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.13582e-07 ( -4.65498e-08  5.08228e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   32.120 sec. to   33.120 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.485341     ( -4.09137   2.34192 )
Epeak [keV] : 56.1858      ( -56.1858 -56.1858 )
Norm@50keV  : 5.49085E-02    ( -0.0549085   24.2082 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.90     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.17e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.51749 ( -0.50923  0.52432 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.00015e-07 ( -4.3894e-08  5.7758e-08 ) ergs/cm2

Band function

Time interval is from   32.120 sec. to   33.120 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.72368   ( -1.426   2.57391 )
beta        : -2.12384    ( 9.37164   19.3716 )
Epeak [keV] : 33.3176      ( -32.6284 396.697 )
Norm@50keV   : 10.3322    ( -10.3449   200.417 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.00249e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.5340  (-3.97447  5.89554)
R^2/D10^2   : 0.466818  (-0.465347   1.55568)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.01     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.12e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.308e-08   8.035e-09
25- 50  3.925e-08   2.402e-08
50-150  3.055e-08   2.313e-08
15-150  8.288e-08   5.495e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 149.543       (-104.172      -143.751)
Norm        : 6.48489       (-2.18249     3.43111)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.19     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.43e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.624e-08   1.000e-08
25- 50  3.101e-08   1.848e-08
50-150  6.664e-08   4.203e-08
15-150  1.139e-07   7.015e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.74467        (-6.73653      -6.73653)
R1^2/D10^2  : 1.89718        (-1.90296      -1.90296)
kT2 [keV]   : 20.2796        (-20.2437      -20.2437)
R2^2/D10^2  : 4.17750E-02    (-0.04209   1.16829)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.51     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.93e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.661e-08   9.920e-09
25- 50  3.351e-08   1.901e-08
50-150  5.302e-08   3.317e-08
15-150  1.031e-07   5.580e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.76425     ( -0.243767   0.260024 )
Norm@50keV  : 4.15187E-03    ( -0.00073104   0.000710738 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   90.04     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.45e-03 with 57 degrees of freedom

Photon flux (15-150 keV)    in 39.88 sec: 0.564381 ( -0.0763128  0.0763606 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.52666e-06 ( -2.7095e-07  2.83175e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.510838     ( -3.28991   2.46322 )
Epeak [keV] : 38.8883      ( -5.96445 -38.7164 )
Norm@50keV  : 0.116095    ( -0.13358   15.8437 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   88.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.76e-03 with 56 degrees of freedom

Photon flux (15-150 keV)    in 39.88 sec: 0.514852 ( -0.077398  0.097605 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.11179e-06 ( -2.26032e-07  5.76174e-07 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.51796   ( -2.32103   -1.45486 )
beta        : -2.54257    ( -1.84386   0.608635 )
Epeak [keV] : 33.2952      ( -7.34599 12.3016 )
Norm@50keV   : 2.95008    ( -2.94592   66.5993 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 39.88 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.88e-07
S(50-100 keV) = 5.78e-07

T90 vs. Hardness ratio plot

T90                                   = 42 sec.
Hardness ratio (energy fluence ratio) = 1.18443

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.71536
Count Ratio (50-100 keV) / (15-25 keV) = 0.475406

Mask shadow pattern

IMX = -2.451129535055485E-01, IMY = 4.124330246909272E-01

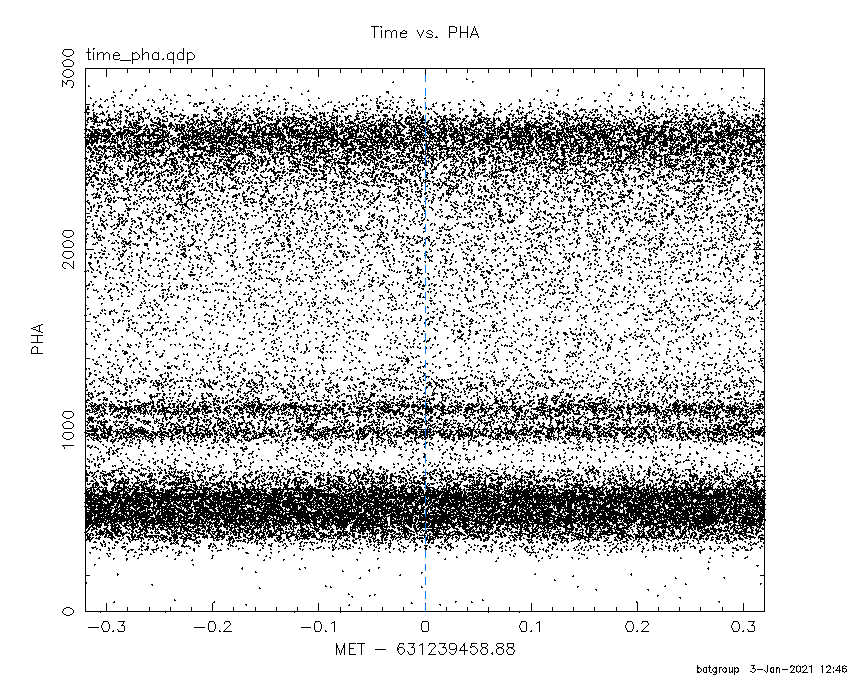

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

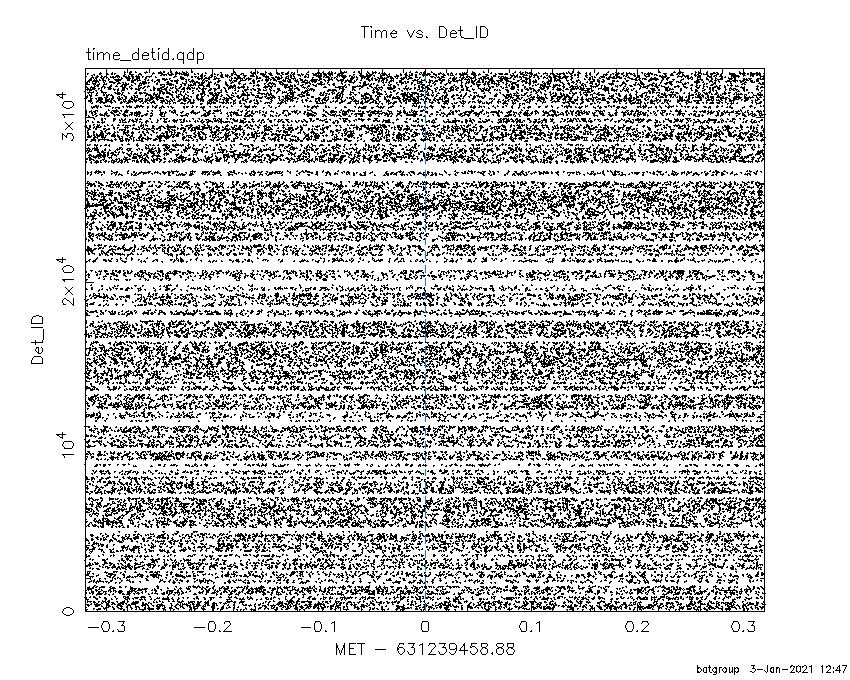

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

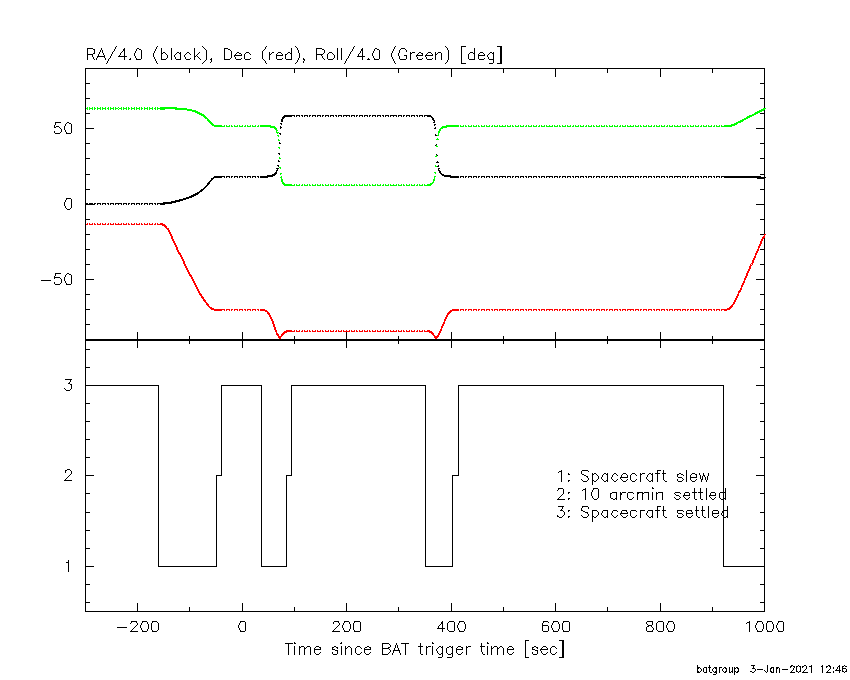

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-10.880000 -4.880000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5861 -40.6655  115.8  42.9  144.9  -0.0522  -0.1    7.1	Vela X-1
170.1180 -60.6335   19.3  37.0 -170.1  -0.1474  -0.6    5.9	Cen X-3
186.3827 -62.8926    0.0  39.2 -157.6   0.2185   0.8   10.5	GX 301-2
 33.3267 -25.4672    2.3  50.1   15.0   2.0651   4.9 ------	UNKNOWN
 26.3453 -23.5903    2.8  53.8    8.0   2.1050   4.1 ------	UNKNOWN
355.1819 -38.1261    2.6  50.5  -30.3   2.2371   4.4 ------	UNKNOWN
202.7558 -46.9072    2.6  57.5 -154.7   4.1733   4.5 ------	UNKNOWN
227.2323 -59.5341    3.4  49.2 -133.1   2.8941   3.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-4.880000 17.500000
19.120000 36.620600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5548 -40.5417    7.7  43.0  144.8   3.0759   1.5    1.4	Vela X-1
170.3115 -60.6268   16.6  37.1 -169.9  -0.6864  -0.7    0.3	Cen X-3
186.6589 -62.7674 2515.8  39.4 -157.5  -0.0039  -0.0    0.2	GX 301-2
 10.6244 -39.3207    2.5  44.1  -16.3   5.2497   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Sun Jan  3 12:47:03 EST 2021
