batgrbproduct analysis for trigger=1015919

batgrbproduct Analysis for Trigger=1015919

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Jul 30 00:31:11 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1015919
======================================================================

  Trigger: 01015919      Segment: 000

  BAT Trigger Time: 631487437.12   [s; MET]
      Trigger Stop: 631487438.144   [s; MET]
               UTC: 2021-01-04T21:10:10.846460    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 53.6011737701449   Dec: 37.9308387655033  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.88
     Image Trigger?:     NO
     Rate S/N Ratio:     11.5325625946708  [ if not an image trigger ]
     Image S/N Ratio:    7.88

  Flight Position:   [ source = BAT ]
    RA: 53.6011737701449   Dec: 37.9308387655033  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 53.5615447871282   Dec: 37.9486321886368  [deg; J2000]
        { 03h 34m 14.8s , +37d 56' 55.1" }
         +/- 1.57761719479648 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.545469646542714 [arcmin] (formal 1-sigma fit error)
    SNR: 15.8583831676958

  Angular difference between Flight and Ground position is 2.157832 arcmin

  Partial Coding Fraction: 0.59375    [ including projection effects ]

  Duration
     T90: 19.944000005722 +/- 2.39839021478798
        Measured from: 0.371999979019165
                   to: 20.3159999847412     [s; relative to TRIGTIME]
     T50: 7.63199996948242 +/- 3.4077329369124
        Measured from: 6.42799997329712
                   to: 14.0599999427795     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 10.8320000171661
                   to: 11.8320000171661     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.148000001907349
                   to: 22.7639999389648     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.744909   0.781686   0.503680   0.084162
           0.047175   0.049069   0.043959   0.042007 [error]
 Peak      0.069112   0.082681   0.061705   0.008709
           0.010705   0.011577   0.009718   0.008867 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.24e-07 3.37e-07 3.78e-07 8.02e-07 1.18e-06 1.74e-06   erg/cm2
              Error 2.51e-08 2.36e-08 4.38e-08 1.93e-07 9.91e-08 2.33e-07   erg/cm2
Peak flux Power-law 7.21e-01 6.29e-01 3.77e-01 3.40e-01 1.87e+00 2.07e+00   ph/cm2/s
              Error 1.53e-01 8.99e-02 7.97e-02 1.39e-01 2.67e-01 3.01e-01   ph/cm2/s

Fluence   Cutoff-PL 2.23e-07 3.39e-07 3.78e-07 7.24e-07 1.17e-06 1.66e-06   erg/cm2
              Error 2.82e-08 2.77e-08 4.41e-08 2.67e-07 1.11e-07 4.51e-07   erg/cm2
Peak flux Cutoff-PL 6.83e-01 6.70e-01 3.83e-01 1.77e-01 1.85e+00 1.91e+00   ph/cm2/s
              Error 1.71e-01 1.18e-01 8.72e-02 1.93e-01 2.72e-01 3.40e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.834    0.139    -      -           5.60e-03 4.62e-04   55.120 57
CPL   1.778    0.514     179.3  -24.8      6.01e-03 3.90e-03   55.080 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.740    0.250    -      -           1.39e-02 2.26e-03   34.770 57
CPL   1.238    1.007      67.3   -6.3      2.66e-02 5.69e-02   33.950 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 14.080000 sec.
T50 in the 50-300 keV band: 10.176000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   22.912   -0.148   22.764
T90    19.944    0.372   20.316
T50     7.632    6.428   14.060
Peak    1.000   10.832   11.832

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   53.5615    37.9486   0.0122    25.7252  -108.9616         1.1051554     15.858 TRIG_01015919

Foreground time interval of the image:
 -0.148  11.381 (delta_t =  11.529 [sec])
Background time interval of the image:
-239.120  -0.148 (delta_t = 238.972 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

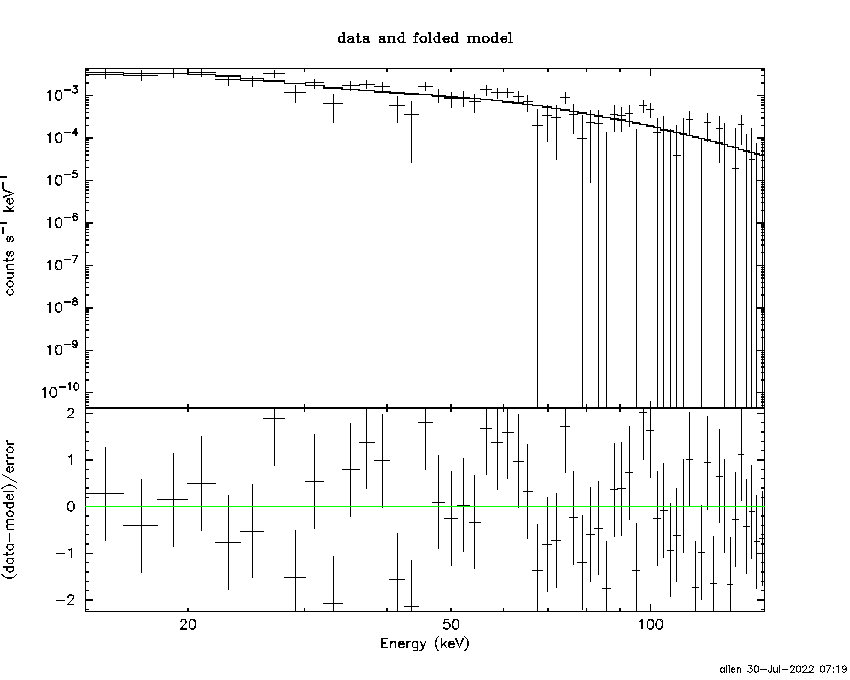

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.148 sec. to   22.764 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.83384     ( -0.13723   0.141038 )
Norm@50keV  : 5.59898E-03    ( -0.00046601   0.00045856 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.12     using 59 bins.
 Reduced chi-squared = 0.967018
# Null hypothesis probability of 5.46e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 22.91 sec: 0.781925 ( -0.055599  0.055668 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17995e-06 ( -9.83584e-08  9.98251e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.148 sec. to   22.764 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.77767     ( -0.53141   0.497468 )
Epeak [keV] : 179.309      ( -129.808 -179.337 )
Norm@50keV  : 6.00710E-03    ( -0.0022793   0.00551084 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.08     using 59 bins.
 Reduced chi-squared = 0.983571
# Null hypothesis probability of 5.10e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 22.91 sec: 0.779489 ( -0.059374  0.057605 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17275e-06 ( -1.15798e-07  1.0544e-07 ) ergs/cm2

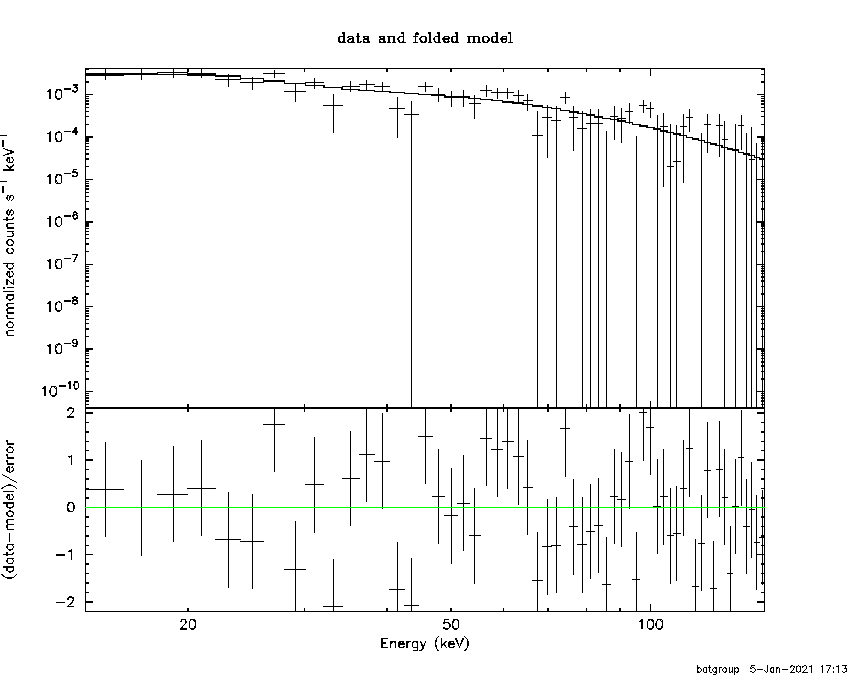

Band function

Time interval is from   -0.148 sec. to   22.764 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.3884  (-1.07789  1.2057)
R^2/D10^2   : 0.216923  (-0.0675477   0.0976686)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  109.90     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.26e-05 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.355e-07   1.713e-08
25- 50  4.003e-07   3.368e-08
50-150  3.010e-07   5.395e-08
15-150  8.368e-07   6.827e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 97.2302       (-23.9667      38.9567)
Norm        : 3.43359       (-0.346547     0.410104)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.61e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.056e-07   2.487e-08
25- 50  3.534e-07   2.910e-08
50-150  5.636e-07   1.960e-07
15-150  1.123e-06   2.157e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.54636        (-1.15034      1.30945)
R1^2/D10^2  : 2.27928        (-1.22333      3.52291)
kT2 [keV]   : 21.4119        (-4.1655      6.89326)
R2^2/D10^2  : 1.66314E-02    (-0.0105632   0.0213923)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.25     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.28e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.217e-07   6.881e-08
25- 50  3.283e-07   8.227e-08
50-150  5.929e-07   2.030e-07
15-150  1.143e-06   3.705e-07

Peak spectrum fit

Power-law model

Time interval is from   10.832 sec. to   11.832 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73958     ( -0.243651   0.255462 )
Norm@50keV  : 1.39035E-02    ( -0.00229202   0.0022371 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   34.77     using 59 bins.
 Reduced chi-squared = 0.61
# Null hypothesis probability of 9.91e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.87290 ( -0.26689  0.26695 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.28396e-07 ( -2.1643e-08  2.20844e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   10.832 sec. to   11.832 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.23818     ( -1.13246   0.882495 )
Epeak [keV] : 67.2517      ( -54.733 -67.2526 )
Norm@50keV  : 2.65635E-02    ( -0.026563   0.0872649 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   33.95     using 59 bins.
 Reduced chi-squared = 0.60625
# Null hypothesis probability of 9.91e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.84501 ( -0.27192  0.27193 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.22535e-07 ( -2.36e-08  2.45235e-08 ) ergs/cm2

Band function

Time interval is from   10.832 sec. to   11.832 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.6928  (-2.04961  2.49233)
R^2/D10^2   : 0.505014  (-0.255811   0.51897)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.54     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.62e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.457e-08   4.042e-09
25- 50  4.445e-08   8.480e-09
50-150  3.590e-08   1.265e-08
15-150  9.491e-08   2.045e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 113.693       (-47.32      -112.386)
Norm        : 8.06062       (-1.23839     1.84747)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   33.96     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.93e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.103e-08   4.475e-09
25- 50  3.727e-08   9.705e-09
50-150  6.473e-08   3.846e-08
15-150  1.230e-07   4.575e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.87837        (-1.85756      2.43962)
R1^2/D10^2  : 4.11844        (-2.84585      13.0767)
kT2 [keV]   : 20.8708        (-6.01439      15.3053)
R2^2/D10^2  : 4.52893E-02    (-0.0390038   0.126616)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   32.60     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.93e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.209e-08   1.239e-08
25- 50  3.663e-08   1.939e-08
50-150  6.356e-08   3.669e-08
15-150  1.223e-07   6.400e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.69208     ( -0.168312   0.173269 )
Norm@50keV  : 6.15859E-03    ( -0.000638624   0.000628265 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   70.46     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.09e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 11.53 sec: 0.815678 ( -0.075142  0.0751819 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.57876e-07 ( -7.16745e-08  7.28064e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40076     ( -0.712287   0.333889 )
Epeak [keV] : 96.3991      ( -43.8423 -96.3991 )
Norm@50keV  : 8.79992E-03    ( -0.00319326   0.0118413 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   69.84     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.01e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 11.53 sec: 0.804346 ( -0.078975  0.078794 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.40516e-07 ( -8.03214e-08  8.15194e-08 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.37e-07
S(50-100 keV) = 3.78e-07

T90 vs. Hardness ratio plot

T90                                   = 19.944000005722 sec.
Hardness ratio (energy fluence ratio) = 1.12166

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.04937
Count Ratio (50-100 keV) / (15-25 keV) = 0.676163

Mask shadow pattern

IMX = -1.565562409960690E-01, IMY = 4.556650039485672E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.120000 -0.148000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6341  22.0055    0.4   9.9  141.8   9.2685  26.7    0.5	Crab
120.3684  14.1168    2.3  37.5   68.6   4.0325   5.0 ------	UNKNOWN
147.9431  55.4088    2.3  49.6    0.7   3.1285   5.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.148000 11.380600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.4729  21.9574    7.0   9.9  142.7   0.0836   1.7    9.6	Crab
 48.8956 -12.5655    2.6  55.8 -178.2   0.9110   4.4 ------	UNKNOWN
 53.5615  37.9486    0.7  25.7 -109.0   1.1048  15.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
64.380600 752.080600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6561  22.0217    0.5  30.3  109.9  27.7541  21.8    1.3	Crab
 72.1922  16.5759    2.8  26.9  134.4   4.5671   4.1 ------	UNKNOWN
307.2871  77.3895    3.3  56.5  -17.7   9.3773   3.5 ------	UNKNOWN
  5.6034  28.4166    3.8  40.8  -92.0  12.6842   3.1 ------	UNKNOWN
 16.4857   3.9104    2.3  48.0 -129.0  17.9718   4.9 ------	UNKNOWN

Plot creation:
Sat Jul 30 07:19:56 EDT 2022
