TDRSS scaled map for 1015919
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 04 Jan 21 21:10:23 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1015919, Seg_Num: 0
GRB_RA: 53.601d {+03h 34m 24s} (J2000),
53.944d {+03h 35m 47s} (current),
52.787d {+03h 31m 09s} (1950)
GRB_DEC: +37.931d {+37d 55' 51"} (J2000),
+38.000d {+37d 59' 60"} (current),
+37.764d {+37d 45' 50"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3485 [cnts] Image_Peak=159 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 137 E_range: 15-50 keV
BKG_INTEN: 22116 [cnts]
BKG_TIME: 76197.72 SOD {21:09:57.72} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19218 TJD; 4 DOY; 21/01/04
GRB_TIME: 76210.84 SOD {21:10:10.84} UT
GRB_PHI: -108.99 [deg]
GRB_THETA: 25.69 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 11.53 [sigma]
IMAGE_SIGNIF: 7.88 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +1 -2 +0 +0 +67 +0
SUN_POSTN: 286.00d {+19h 04m 00s} -22.62d {-22d 37' 14"}
SUN_DIST: 133.16 [deg] Sun_angle= -8.5 [hr] (East of Sun)
MOON_POSTN: 177.53d {+11h 50m 06s} +6.78d {+06d 46' 47"}
MOON_DIST: 111.11 [deg]
MOON_ILLUM: 67 [%]
GAL_COORDS: 155.06,-14.57 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 60.49, 18.15 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 39.59,15.46 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 04 Jan 21 21:21:22 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1015919, Seg_Num: 0
POINT_RA: 84.185d {+05h 36m 44s} (J2000)
POINT_DEC: +31.848d {+31d 50' 52"} (J2000)
MAP_DATE: 19218 TJD; 4 DOY; 21/01/04
MAP_TIME: 76210.84 SOD {21:10:10.84} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 11.53 [sigma]
IMAGE_SIGNIF: 7.88 [sigma]
MAP_URL: sw01015919000msbsm.fits
SUN_POSTN: 286.01d {+19h 04m 02s} -22.62d {-22d 37' 10"}
MOON_POSTN: 177.62d {+11h 50m 30s} +6.74d {+06d 44' 13"}
MOON_ILLUM: 67 [%]
GAL_COORDS: 176.52, -0.08 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 85.01, 8.51 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

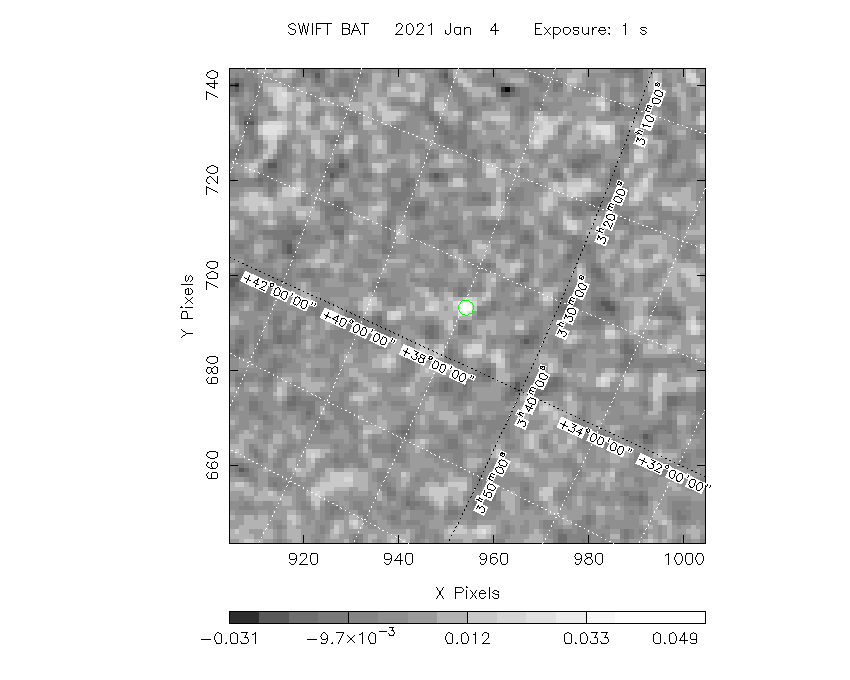

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (53.601, +37.931).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 53.601 +37.931 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
52.8001 43.9046 0.0 27.3 -96.0 -0.0016 -0.2 0.0 GK Per
53.7495 53.1732 0.0 30.5 -77.9 -0.0160 -1.9 0.0 V0332+53
58.8458 31.0497 0.0 21.6 -126.6 -0.0021 -0.4 0.0 X Per
83.6332 22.0145 0.0 9.9 141.8 -0.0024 -0.5 0.0 Crab
88.0474 -7.4562 0.0 39.5 132.8 0.0140 1.2 0.0 NGC 2110
93.9015 71.0375 0.0 39.5 -36.3 -0.0125 -1.6 0.0 Mkn 3
94.2804 9.1369 0.0 24.6 114.2 -0.0170 -2.6 0.0 4U 0614+091
133.6934 39.5386 0.0 40.4 23.6 0.0017 0.2 0.0 NGC 2691
166.6979 72.5686 0.0 57.5 -20.6 0.0404 1.6 0.0 NGC 3516
53.6103 37.9572 1.4 25.7 -108.9 0.0581 8.3 ------ UNKNOWN
38.5012 -0.6030 2.1 54.0 -159.0 0.1006 5.5 ------ UNKNOWN
36.1237 14.7587 2.1 46.9 -141.0 0.0842 5.6 ------ UNKNOWN
109.3880 80.1538 2.1 49.3 -35.7 0.0870 5.5 ------ UNKNOWN
46.6858 79.9100 1.9 50.4 -49.2 0.2576 6.1 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.6332 22.0145 0.0 9.9 141.8 -0.0024 -0.5 0.0 Crab
53.6103 37.9572 1.4 25.7 -108.9 0.0581 8.3 ------ UNKNOWN
38.5012 -0.6030 2.1 54.0 -159.0 0.1006 5.5 ------ UNKNOWN
36.1237 14.7587 2.1 46.9 -141.0 0.0842 5.6 ------ UNKNOWN
109.3880 80.1538 2.1 49.3 -35.7 0.0870 5.5 ------ UNKNOWN
46.6858 79.9100 1.9 50.4 -49.2 0.2576 6.1 ------ UNKNOWN
Search for UNKNOWN source R.A. = 36.1237 Dec. = +14.7587 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 38.5012 Dec. = -0.6030 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 46.6858 Dec. = +79.9100 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 53.6103 Dec. = +37.9572 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 109.3880 Dec. = +80.1538 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1015919/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Mon Jan 4 16:23:12 EST 2021
