batgrbproduct analysis for trigger=1016010

batgrbproduct Analysis for Trigger=1016010

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Jan  6 16:39:48 EST 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1016010/GCN5_download_cron
======================================================================

  Trigger: 01016010      Segment: 000

  BAT Trigger Time: 631540528   [s; MET]
      Trigger Stop: 631540592   [s; MET]
               UTC: 2021-01-05T11:55:01.722940    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.97820193306   Dec: -15.8442266359617  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    13.54
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    13.54

  Flight Position:   [ source = BAT ]
    RA: 244.97820193306   Dec: -15.8442266359617  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.959006390117   Dec: -15.8460704491278  [deg; J2000]
        { 16h 19m 50.2s , -15d 50' 45.9" }
         +/- 6.96254864131404 [arcmin] (estimated 90% radius based on SNR)
         +/- 4.78795136815329 [arcmin] (formal 1-sigma fit error)
    SNR: 1.90179520565395

  Angular difference between Flight and Ground position is 1.113480 arcmin

  Partial Coding Fraction: 0.4179688    [ including projection effects ]

  Duration
     T90: 601.131999969482 +/- 92.4990079299742
        Measured from: -82.691999912262
                   to: 518.44000005722     [s; relative to TRIGTIME]
     T50: 306.987999916077 +/- 42.2664639104217
        Measured from: 124.804000139236
                   to: 431.792000055313     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 201.804000020027
                   to: 202.804000020027     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -173.179999947548
                   to: 545.667999982834     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    22.916082   2.421371   0.183360   0.519415
           0.289469   0.271868   0.232363   0.205861 [error]
 Peak      0.051010   0.027171   0.015215   0.012699
           0.011024   0.010584   0.008943   0.007165 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.15e-06 1.18e-06 7.66e-08 5.30e-09 9.40e-06 9.41e-06   erg/cm2
              Error 7.16e-07 1.47e-07 2.52e-08 3.02e-09 6.99e-07 6.98e-07   erg/cm2
Peak flux Power-law 4.84e-01 2.52e-01 8.14e-02 3.38e-02 8.37e-01 8.52e-01   ph/cm2/s
              Error 2.03e-01 1.05e-01 7.08e-02 6.38e-02 2.66e-01 2.75e-01   ph/cm2/s

Fluence   Cutoff-PL 8.00e-06 9.47e-07 4.97e-09 2.14e-13 8.96e-06 8.96e-06   erg/cm2
              Error 7.80e-07 1.99e-07 1.60e-08 9.59e-11 7.94e-07 7.94e-07   erg/cm2
Peak flux Cutoff-PL 4.94e-01 2.47e-01 7.56e-02 2.92e-02 8.34e-01 8.46e-01   ph/cm2/s
              Error 1.99e-01 1.03e-01 7.62e-02 6.34e-02 2.65e-01 2.73e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.939    0.305    -      -           1.12e-04 2.98e-05   52.390 57
CPL   1.554    0.000       2.2    0.0      3.75e-01 0.00e+00   46.070 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.630    1.003    -      -           3.92e-03 3.24e-03   65.190 57
CPL   3.891    0.000     472.7 -192.7      9.79e-04 2.37e-03   62.740 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  718.848 -173.180  545.668
T90   601.132  -82.692  518.440
T50   306.988  124.804  431.792
Peak    1.000  201.804  202.804

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.9590 -15.8461 0.1012   32.1 -115.5       3.6015     1.9  TRIG_01016010
------------------------------------------

Foreground time interval of the image:
-173.180 130.132 (delta_t = 303.312 [sec])
131.000 452.501 (delta_t = 321.501 [sec])
Background time interval of the image:
-219.899 -209.930 (delta_t =   9.969 [sec])
-209.000 -173.180 (delta_t =  35.820 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

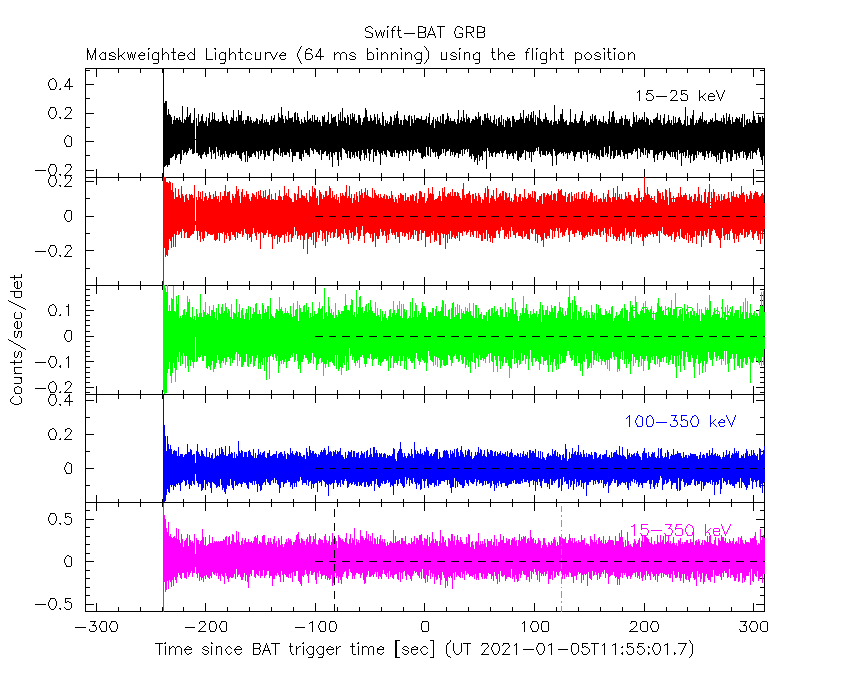

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

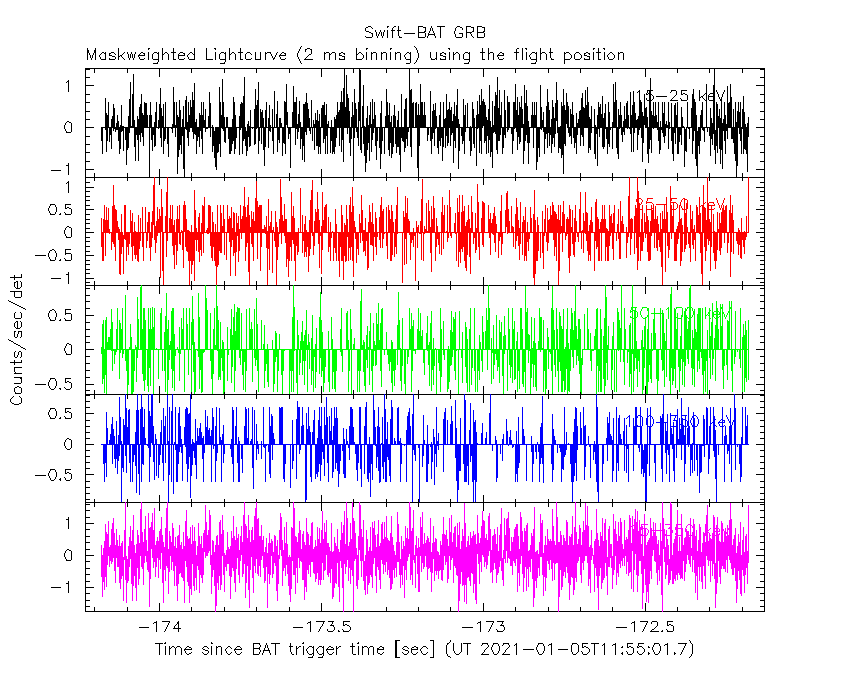

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

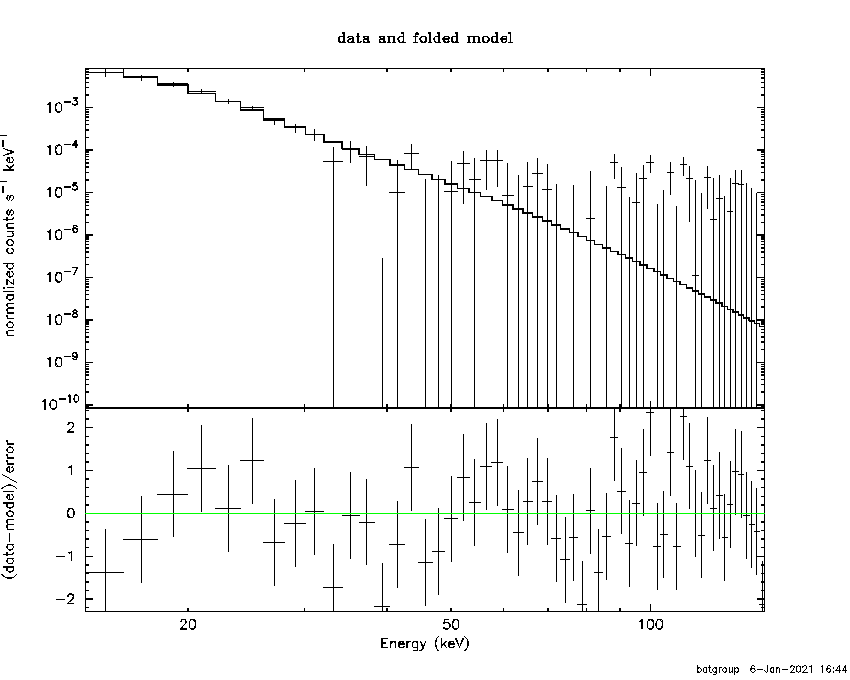

Time averaged spectrum fit using the pre-slew DRM

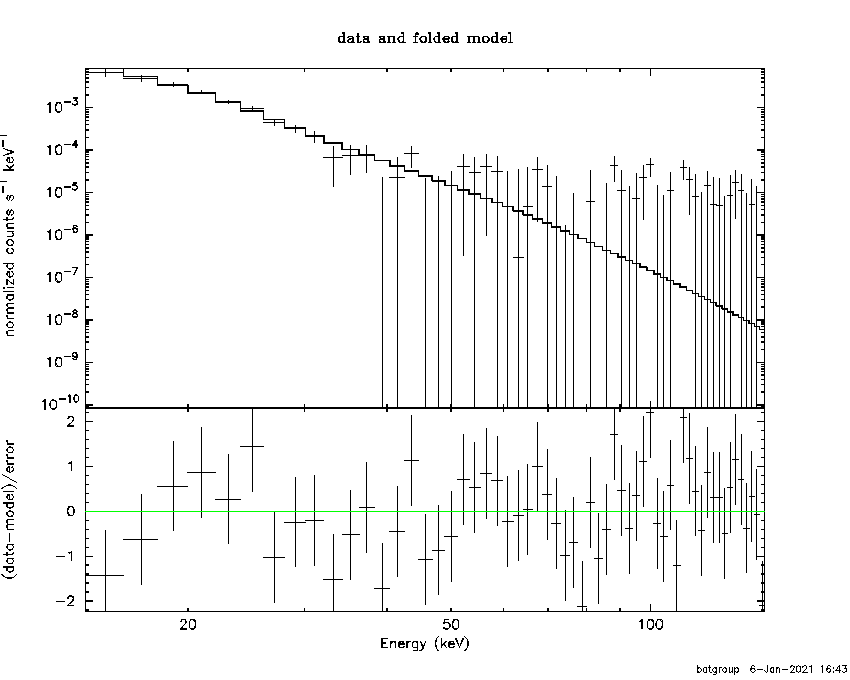

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-173.180000 130.132300
131.000000 545.668000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.93907     ( -0.303872   0.305174 )
Norm@50keV  : 1.12296E-04    ( -2.65699e-05   3.29356e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   52.39     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.48e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 718 sec: 0.434743 ( -0.0356997  0.0361057 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.40401e-06 ( -6.95238e-07  7.01856e-07 ) ergs/cm2

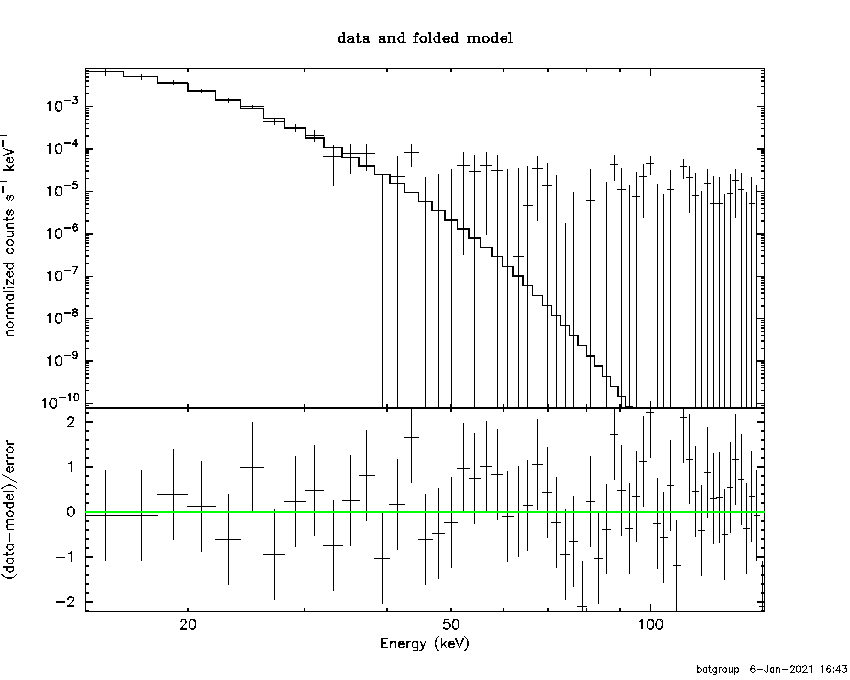

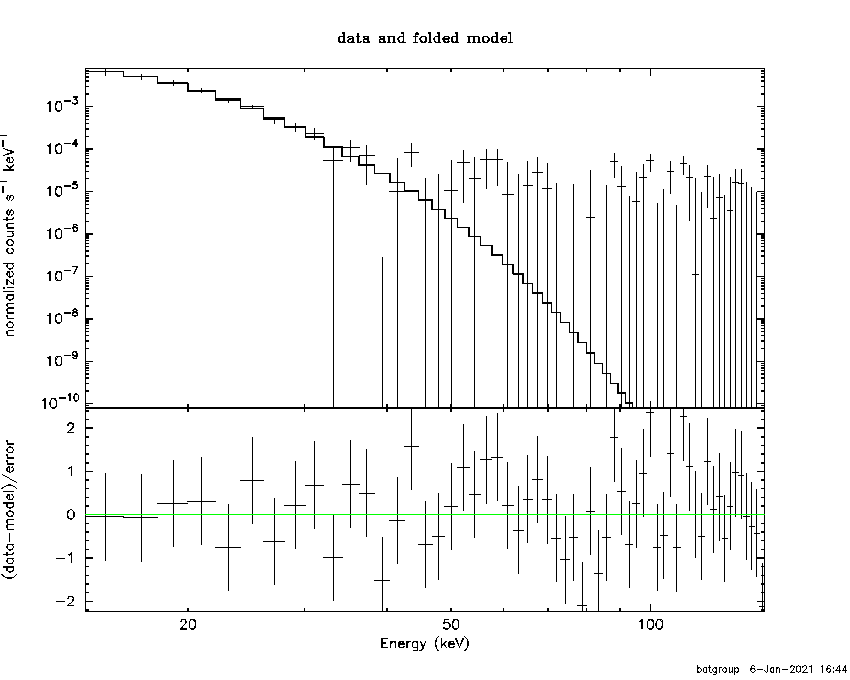

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-173.180000 130.132300
131.000000 545.668000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55448     (     )
Epeak [keV] : 2.21558      (   )
Norm@50keV  : 0.374695    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.07     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.26e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 718 sec: 0.417193 ( -0.040829  0.039977 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.95626e-06 ( -8.02868e-07  7.85851e-07 ) ergs/cm2

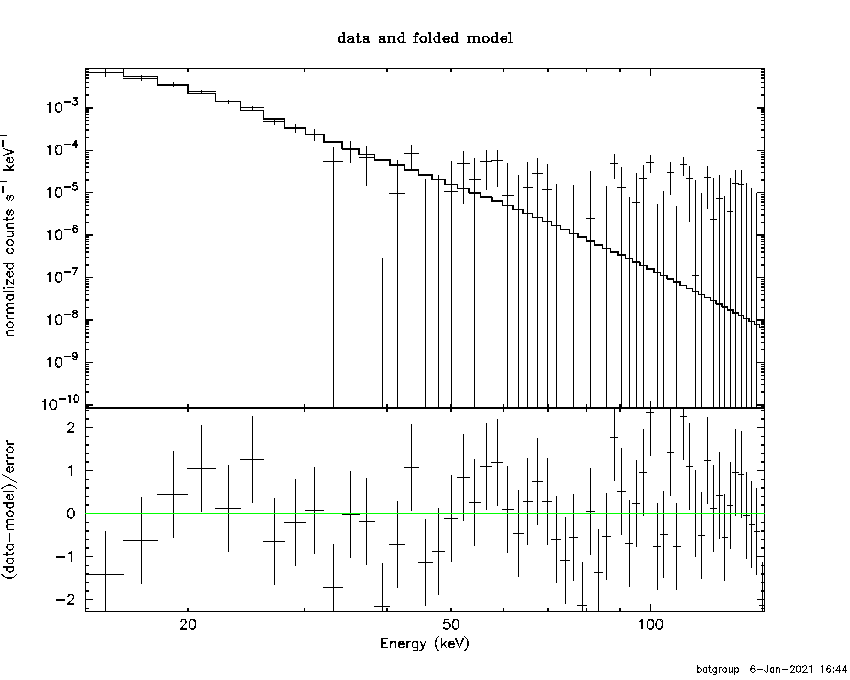

Band function

Multiple GTIs in the spectrum
tstart tstop
-173.180000 130.132300
131.000000 545.668000
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.61528   ( 4.42896   7.61528 )
beta        : -5.96832    ( -0.284435   0.326809 )
Epeak [keV] : 315.990      ( -315.99 -315.99 )
Norm@50keV   : 1.48654E-02    ( -0.00339608   0.00470667 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 718 sec: 0.380885 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

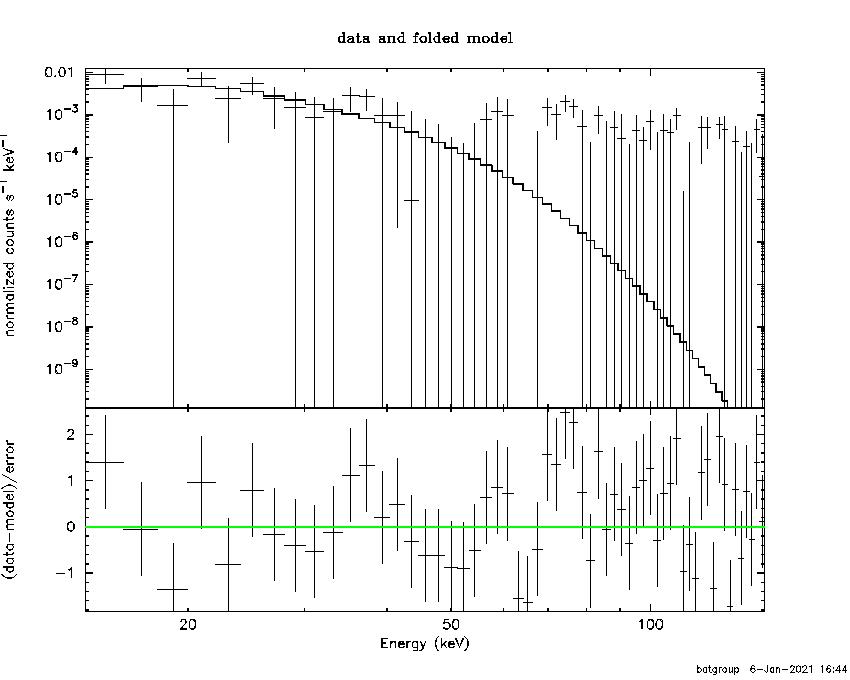

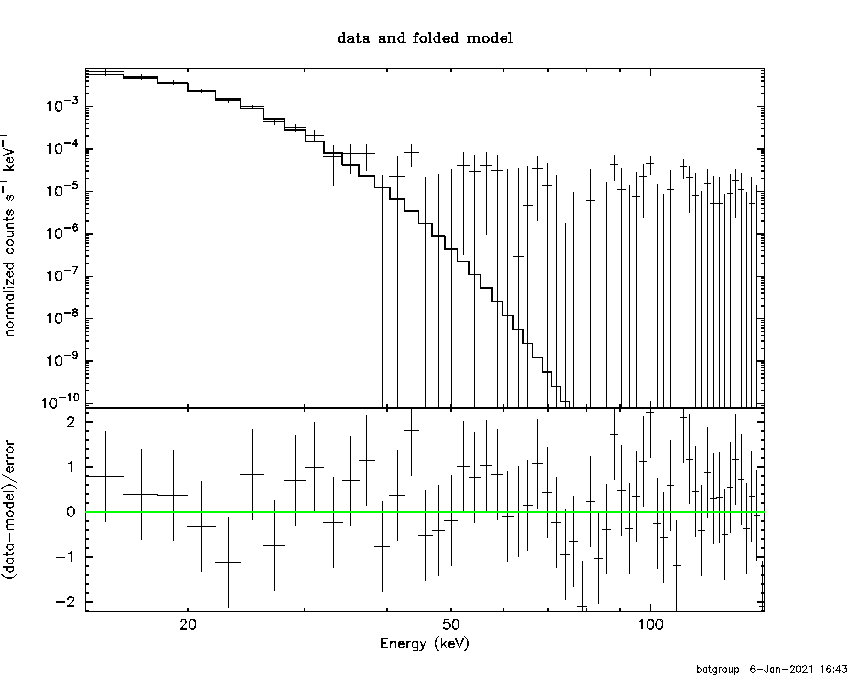

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.73486  (-0.155397  0.172746)
R^2/D10^2   : 105.271  (-40.7093   64.9208)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.90     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.69e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.768e-06   1.087e-06
25- 50  8.100e-07   1.305e-07
50-150  5.931e-10   3.107e-10
15-150  8.579e-06   1.218e-06

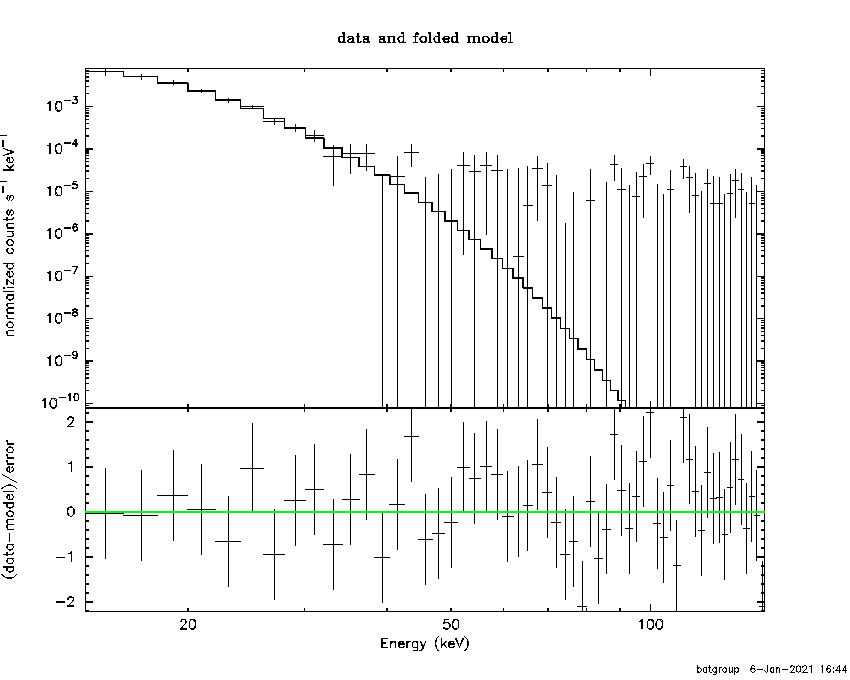

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.83069       (-0.397992      0.464213)
Norm        : 109.042       (-35.8639     52.8355)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.08     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.49e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.993e-06   9.912e-07
25- 50  9.335e-07   1.422e-07
50-150  4.055e-09   2.187e-09
15-150  8.930e-06   1.116e-06

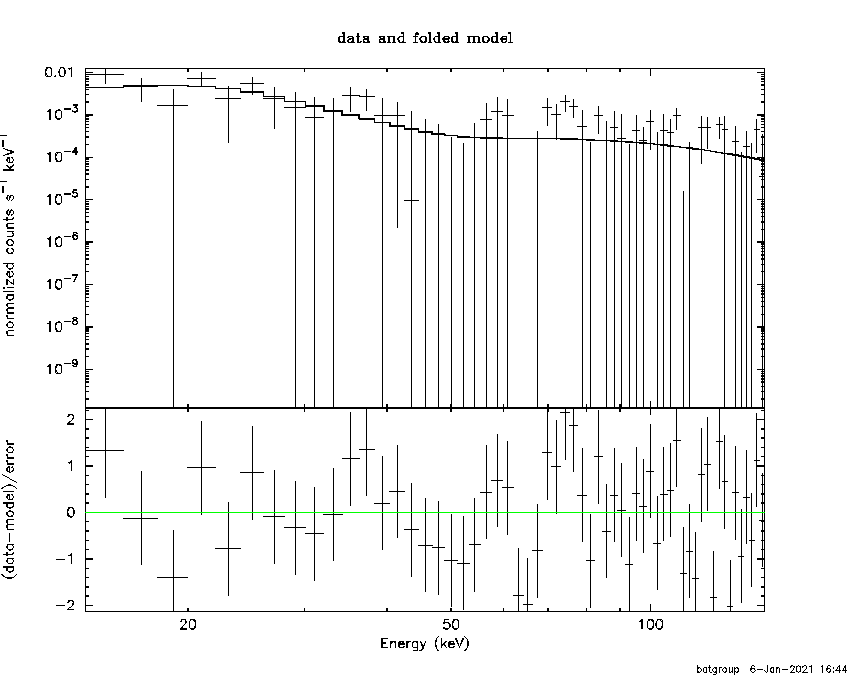

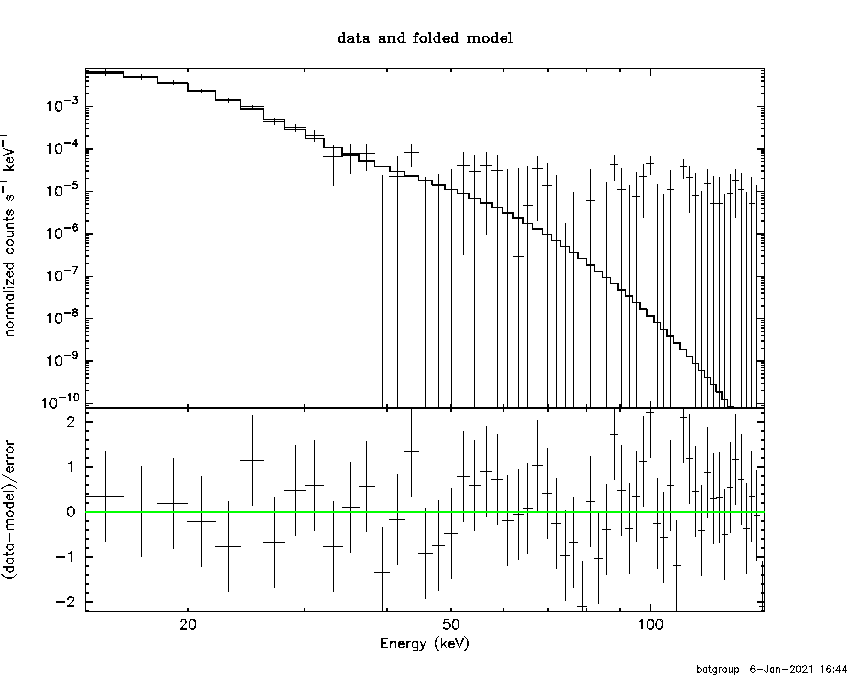

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.55886        (-2.345      0.304743)
R1^2/D10^2  : 165.715        (-84.3319      -167.759)
kT2 [keV]   : 6.78619        (-6.24652      -6.61929)
R2^2/D10^2  : 5.41748E-02    (-0.0654655   99.1137)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.90     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.04e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.797e-06   1.009e-06
25- 50  8.366e-07   1.234e-07
50-150  4.743e-07   3.416e-07
15-150  9.107e-06   1.135e-06

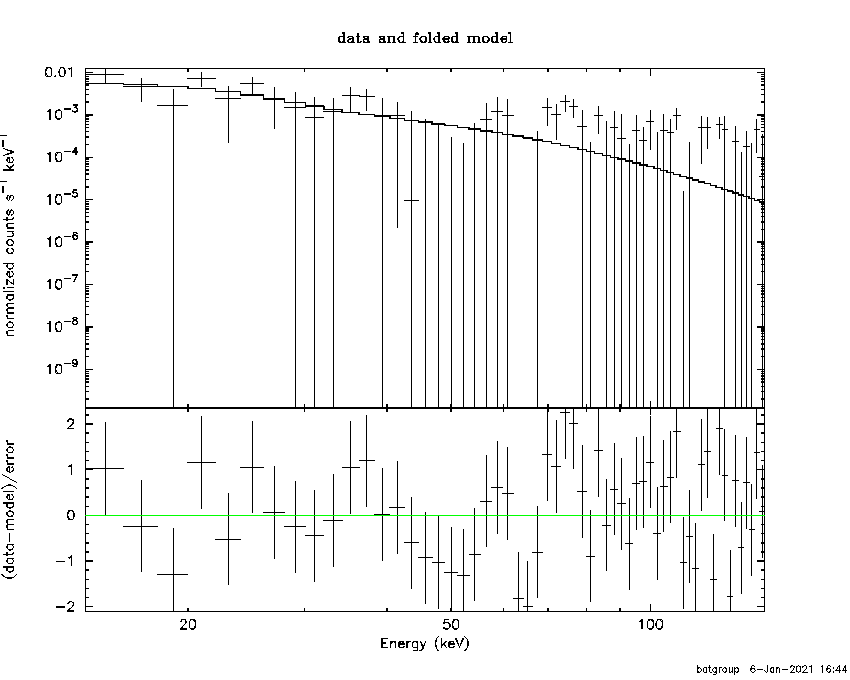

Peak spectrum fit

Power-law model

Time interval is from  201.804 sec. to  202.804 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.63028     ( -0.806434   1.19962 )
Norm@50keV  : 3.92378E-03    ( -0.00392187   0.0025484 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   65.19     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.13e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.836659 ( -0.266483  0.266019 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.07668e-08 ( -1.71445e-08  1.92422e-08 ) ergs/cm2

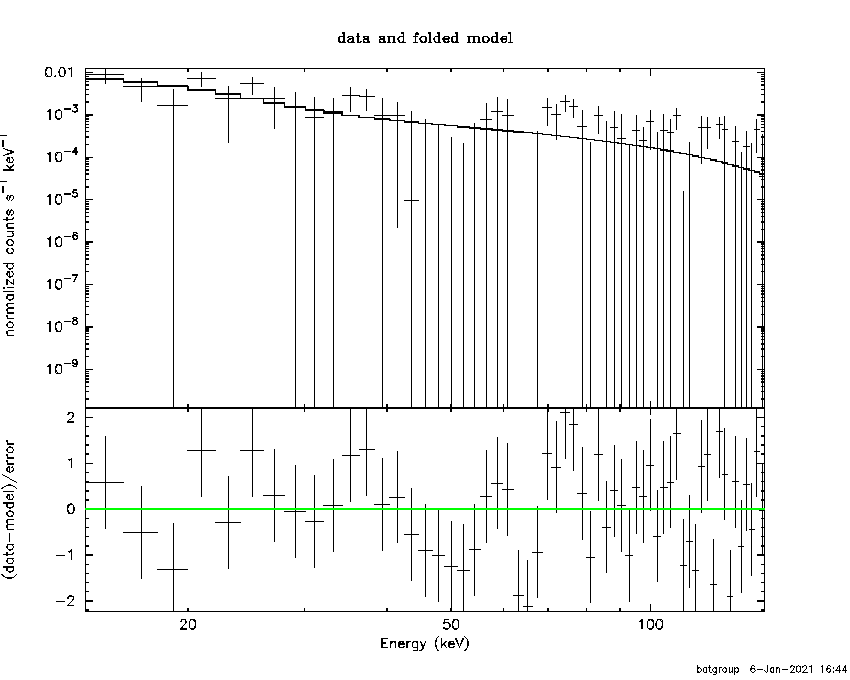

Cutoff power-law model

Time interval is from  201.804 sec. to  202.804 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.89149     ( -1.98688   -1.98688 )
Epeak [keV] : 472.666      ( -86.1533 -471.583 )
Norm@50keV  : 9.78537E-04    ( -0.000989837   0.00374909 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   62.74     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.50e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.833995 ( -0.264659  0.264595 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.13153e-08 ( -1.77231e-08  1.48355e-08 ) ergs/cm2

Band function

Time interval is from  201.804 sec. to  202.804 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.87408   ( 1.87412   1.87412 )
beta        : -2.62999    ( -1.19978   0.806544 )
Epeak [keV] : 0.674660      ( -0.674909 -0.674909 )
Norm@50keV   : 5.58661E-02    ( 0.822496   -0.0558933 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.50349  (-1.65775  1.98705)
R^2/D10^2   : 4.34227  (-4.34228   18.7488)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   66.97     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.72e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.527e-08   9.140e-09
25- 50  1.254e-08   7.980e-09
50-150  7.951e-10   7.280e-10
15-150  2.861e-08   1.772e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 18.3312       (-9.86826      63.214)
Norm        : 10.7472       (-7.44019     24.3851)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   66.72     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.78e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.542e-08   9.170e-09
25- 50  1.260e-08   8.585e-09
50-150  3.246e-09   3.080e-09
15-150  3.126e-08   2.004e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.10273        (-1.83132      1.48569)
R1^2/D10^2  : 5.80786        (-3.7188      35.0783)
kT2 [keV]   : 89.7064        (-71.4519      -95.0957)
R2^2/D10^2  : 3.20444E-04    (-0.00025054   0.00819273)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   60.91     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.72e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.529e-08   9.485e-09
25- 50  1.232e-08   7.490e-09
50-150  2.623e-08   8.450e-09
15-150  5.384e-08   2.009e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.87482     ( -0.310554   0.312792 )
Norm@50keV  : 1.21736E-04    ( -2.9593e-05   3.68439e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.88     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.07e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 624.8 sec: 0.441951 ( -0.0365816  0.0369869 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.34689e-06 ( -6.22645e-07  6.28043e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.53526     (     )
Epeak [keV] : 2.33305      (   )
Norm@50keV  : 0.375715    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   52.67     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.02e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 624.8 sec: 0.424272 ( -0.041705  0.040857 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.94427e-06 ( -7.15896e-07  7.01338e-07 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.59802   ( 4.47755   7.59802 )
beta        : -5.90397    ( -0.292041   0.333432 )
Epeak [keV] : 319.089      ( -319.089 -319.089 )
Norm@50keV   : 1.61141E-02    ( -0.00378751   0.00525804 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 624.8 sec: 0.380885 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.18e-06
S(50-100 keV) = 7.66e-08

T90 vs. Hardness ratio plot

T90                                   = 601.131999969482 sec.
Hardness ratio (energy fluence ratio) = 0.0649153

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.105663
Count Ratio (50-100 keV) / (15-25 keV) = 0.00800137

Mask shadow pattern

IMX = -2.699272863648293E-01, IMY = 5.662455991203250E-01

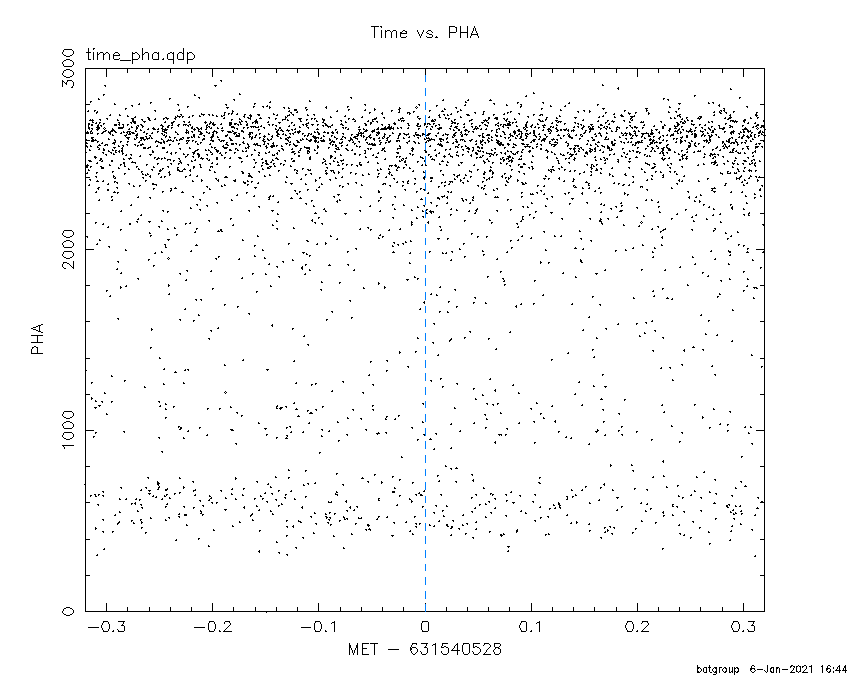

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-219.899410 -209.930000
-209.000000 -173.180000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3915 -60.6184    7.8  43.8   17.0  -0.2620  -1.5    2.2	Cen X-3
186.7913 -62.9002    6.2  39.4    6.8  -0.2534  -1.9    8.6	GX 301-2
245.0012 -15.7732    1.3  32.2 -115.6   1.3149   8.9    8.1	Sco X-1
255.8446 -37.9577    5.9  37.6  -73.7   0.4476   1.9    9.6	4U 1700-377
256.5540 -36.2704    3.7  38.1  -76.5  -0.8145  -3.1   10.8	GX 349+2
182.8905 -29.7370    4.0  26.1   66.1   0.3606   2.9 ------	UNKNOWN
191.7485 -21.7449    2.2  19.7   90.3   0.5532   5.1 ------	UNKNOWN
219.2464  18.7039    2.5  46.4  177.3   0.9321   4.6 ------	UNKNOWN
223.2047  24.6254    2.6  52.9 -179.3   1.4316   4.5 ------	UNKNOWN
237.8370  26.7033    3.0  59.2 -165.0   2.5555   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-173.180000 130.132300
131.000000 452.500600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1584 -60.5536    4.2  43.8   17.2   6.2592   2.7    6.2	Cen X-3
186.8003 -62.8926    6.2  39.4    6.8   3.3119   1.9    8.3	GX 301-2
244.9360 -15.7698    7.7  32.1 -115.6   2.8293   1.5    8.2	Sco X-1
255.8680 -37.9506    3.5  37.7  -73.7  -9.6574  -3.3    8.5	4U 1700-377
256.5525 -36.2708    4.3  38.1  -76.5   8.8539   2.7   10.7	GX 349+2
272.8346 -65.7321    2.3  53.2  -37.9  31.2123   4.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
616.500600 667.260000
668.000000 723.130000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6179  35.4092    7.2  42.6  -12.0  -6.5628  -1.6    8.8	Her X-1
288.8075  10.8956    4.5  35.7  -75.9 -18.0556  -2.5    3.0	GRS 1915+105
299.8116  35.2951    6.2   9.8  -59.3  -5.4854  -1.9   12.2	Cyg X-1
307.9977  41.1470    0.0   1.2  -45.8  -3.5881  -1.3   12.7	Cyg X-3
326.1046  38.1813   10.7  13.2  167.3  -2.8714  -1.1    9.0	Cyg X-2
355.5220  28.7767    3.0  39.3  161.7  15.7294   3.8 ------	UNKNOWN

Plot creation:
Wed Jan  6 16:45:03 EST 2021
