batgrbproduct analysis for trigger=1016013

batgrbproduct Analysis for Trigger=1016013

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Jan  6 16:33:31 EST 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1016013/GCN5_download_cron
======================================================================

  Trigger: 01016013      Segment: 000

  BAT Trigger Time: 631542024   [s; MET]
      Trigger Stop: 631542088   [s; MET]
               UTC: 2021-01-05T12:19:57.722840    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 307.718918893235   Dec: 41.0679019583078  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.12
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.12

  Flight Position:   [ source = BAT ]
    RA: 307.718918893235   Dec: 41.0679019583078  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 307.752594289253   Dec: 40.9973515025286  [deg; J2000]
        { 20h 31m 00.6s , +40d 59' 50.5" }
         +/- 4.25417573752443 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.86350416696046 [arcmin] (formal 1-sigma fit error)
    SNR: 3.84424119224523

  Angular difference between Flight and Ground position is 4.499063 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.0640000104904175 +/- 0.0357770535203468
        Measured from: -115.159999847412
                   to: -115.095999836922     [s; relative to TRIGTIME]
     T50: 0.0640000104904175 +/- 0.0452548414138629
        Measured from: -115.159999847412
                   to: -115.095999836922     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -115.611999988556
                   to: -114.611999988556     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -115.159999966621
                   to: -115.080000042915     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.004591   0.006055   0.002186   0.004158
           0.001866   0.002056   0.001955   0.001748 [error]
 Peak      0.015123   0.007256  -0.003990   0.001109
           0.006626   0.006960   0.006091   0.006046 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.53e-09 1.31e-09 7.74e-10 6.60e-10 3.89e-09 4.19e-09   erg/cm2
              Error 7.45e-10 7.22e-10 7.76e-10 1.13e-09 2.13e-09 2.66e-09   erg/cm2
Peak flux Power-law 1.27e-01 4.80e-02 1.06e-02 2.79e-03 1.87e-01 1.89e-01   ph/cm2/s
              Error 8.85e-02 5.15e-02 2.40e-02 2.08e-02 1.40e-01 1.43e-01   ph/cm2/s

Fluence   Cutoff-PL 1.46e-09 2.27e-09 4.82e-11 1.08e-16 3.78e-09 3.78e-09   erg/cm2
              Error 8.51e-10 1.15e-09 4.87e-10 3.17e-11 1.57e-09 1.57e-09   erg/cm2
Peak flux Cutoff-PL 1.52e-01 3.74e-02 1.35e-05 6.03e-15 1.90e-01 1.90e-01   ph/cm2/s
              Error 1.27e-01 6.54e-02 1.93e-02 0.00e+00 1.28e-01 1.28e-01   ph/cm2/s

Fluence        Band 1.25e-10 1.30e-10 2.89e-11 1.48e-12 2.90e-10 2.88e-10   erg/cm2
              Error -------- -------- 3.78e-11 -------- -------- --------   erg/cm2
Peak flux      Band 5.14e-02 3.06e-02 3.52e-03 4.10e-05 8.54e-02 8.54e-02   ph/cm2/s
              Error -------- -------- 4.50e-03 -------- 1.76e-02 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.786    0.845    -      -           4.42e-03 3.21e-03   47.320 57
CPL  -8.441    0.000      27.6    0.0      2.64e+05 0.00e+00   40.870 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.187    2.727    -      -           5.92e-04 9.54e-04   51.840 57
CPL  -9.993    1.020      20.8    7.7      1.61e+07 7.71e+08   50.830 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.080 -115.160 -115.080
T90     0.064 -115.160 -115.096
T50     0.064 -115.160 -115.096
Peak    1.000 -115.612 -114.612

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  307.7526 +40.9974 0.0500    1.4  -48.2       0.0143     3.8  TRIG_01016013
------------------------------------------

Foreground time interval of the image:
-115.160 -115.080 (delta_t =   0.080 [sec])
Background time interval of the image:
-239.000 -115.160 (delta_t = 123.840 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from -115.160 sec. to -115.080 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.78607     ( -0.655893   1.03468 )
Norm@50keV  : 4.41733E-03    ( -0.00302641   0.00340001 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.32     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.16e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.08 sec: 1.04428 ( -0.490948  0.492095 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.893e-09 ( -2.00614e-09  2.25452e-09 ) ergs/cm2

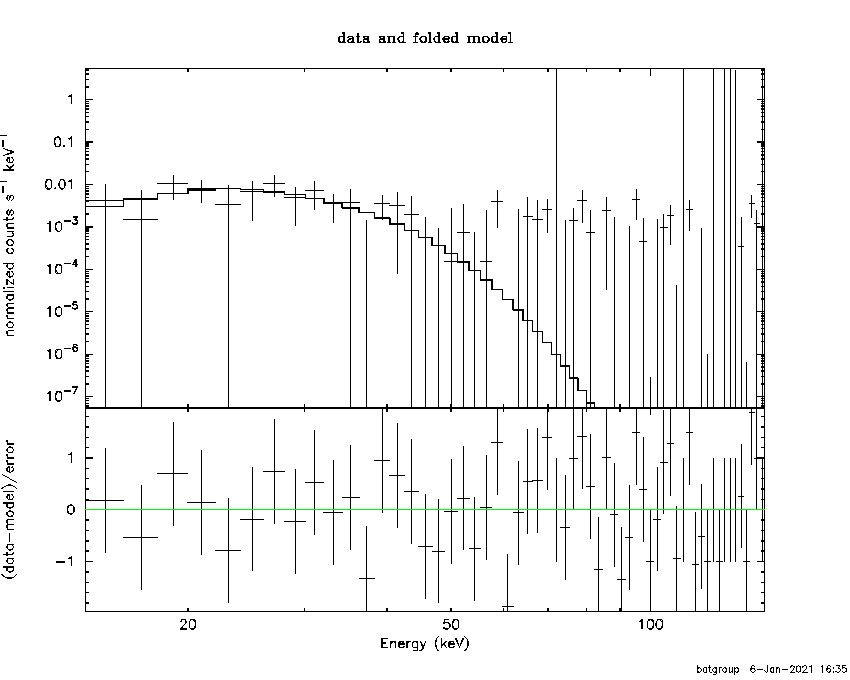

Cutoff power-law model

Time interval is from -115.160 sec. to -115.080 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -8.44127     (     )
Epeak [keV] : 27.6416      (   )
Norm@50keV  : 2.64072E+05    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.87     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.36e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.08 sec: 1.12423 ( -0.438524  0.47155 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.78178e-09 ( -1.45662e-09  1.68717e-09 ) ergs/cm2

Band function

Time interval is from -115.160 sec. to -115.080 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5.54344   -5 )
beta        : -9.35543    ( 9.33453   6.1826 )
Epeak [keV] : 27.5526      ( -5.43881 7.00018 )
Norm@50keV   : 1005.45    ( -383.537   3570.38 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.08 sec: 8.53803E-02 ( 6.91462  -0.0175186 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.9008e-10 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.90198  (-1.89293  2.79777)
R^2/D10^2   : 2.66997  (-2.6726   7.44007)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.12     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.30e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.611e-09   1.016e-09
25- 50  2.146e-09   1.442e-09
50-150  3.378e-10   2.984e-10
15-150  4.094e-09   2.670e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 25.8776       (-12.9322      28.1556)
Norm        : 10.9520       (-5.96124     13.533)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.48     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.86e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.640e-09   1.055e-09
25- 50  1.718e-09   1.170e-09
50-150  7.681e-10   7.280e-10
15-150  4.127e-09   2.692e-09

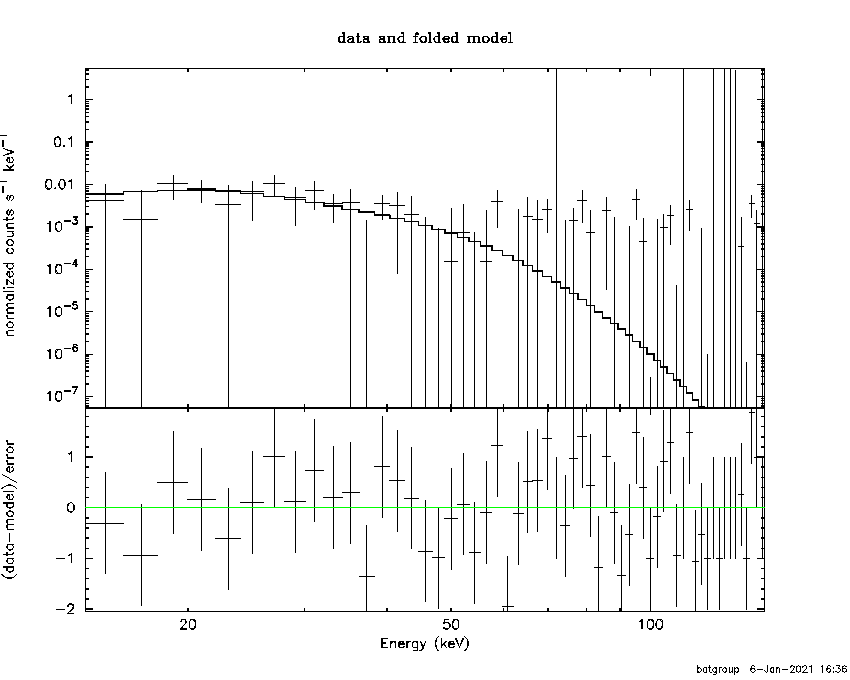

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.96905        (-6.96435      -6.96435)
R1^2/D10^2  : 2.47526        (-2.49042      -2.49042)
kT2 [keV]   : 6.74830        (-7.02284      -7.02284)
R2^2/D10^2  : 0.104293    (-0.127235   -0.127235)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.12     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.99e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.597e-09   1.730e-03
25- 50  2.163e-09   1.394e-02
50-150  3.514e-10   3.156e-01
15-150  4.111e-09   3.383e-01

Peak spectrum fit

Power-law model

Time interval is from -115.612 sec. to -114.612 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.18694     ( -1.56676   3.88786 )
Norm@50keV  : 5.91712E-04    ( -0.000593779   0.00131435 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.84     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.69e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.186986 ( -0.135013  0.144115 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.80005e-09 ( -7.81812e-09  9.88751e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from -115.612 sec. to -114.612 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.99319     ( 9.99379   12.0329 )
Epeak [keV] : 20.7780      ( -6.43372 9.05761 )
Norm@50keV  : 1.61197E+07    ( -1.61649e+07   1.5257e+09 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   50.83     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.70e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.190029 0.189789 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.19987e-17 ( 0  0 ) ergs/cm2

Band function

Time interval is from -115.612 sec. to -114.612 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.41637   ( 9.41637   9.41637 )
beta        : -3.20376    ( -3.87877   1.57294 )
Epeak [keV] : 12.3752      ( -12.3752 -12.3752 )
Norm@50keV   : 7.90925E-02    ( -0.0808266   0.178515 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec: 8.53803E-02 ( 6.91462  -0.0175186 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.626e-09 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.95120  (-2.58439  4.46574)
R^2/D10^2   : 1.84549  (-1.84549   80.1696)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.05     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.97e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.315e-09   2.959e-09
25- 50  2.750e-09   2.046e-09
50-150  1.066e-10   1.434e-10
15-150  7.172e-09   4.815e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 14.5833       (-14.6843      69.6889)
Norm        : 3.64104       (-3.63139     63.6989)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.36     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.86e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.091e-09   2.759e-09
25- 50  2.712e-09   2.263e-09
50-150  4.511e-10   6.250e-10
15-150  7.254e-09   5.235e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.12064E-04        (5.15641      -0.000112064)
R1^2/D10^2  : 12.9463        (-12.9463      -12.9463)
kT2 [keV]   : 4.95121        (-2.58439      4.46573)
R2^2/D10^2  : 1.84548    (-1.84549   80.1712)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.05     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.26e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.342e-09   4.227e-06
25- 50  2.639e-09   3.845e-05
50-150  1.236e-10   4.627e-04
15-150  7.105e-09   4.991e-04

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.78607     ( -0.655893   1.03468 )
Norm@50keV  : 4.41733E-03    ( -0.00302641   0.00340001 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.32     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.16e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.08 sec: 1.04428 ( -0.490948  0.492095 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.893e-09 ( -2.00614e-09  2.25452e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -8.44127     (     )
Epeak [keV] : 27.6416      (   )
Norm@50keV  : 2.64072E+05    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.87     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.36e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.08 sec: 1.12423 ( -0.438524  0.47155 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.78178e-09 ( -1.45662e-09  1.68717e-09 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5.54344   -5 )
beta        : -9.35543    ( 9.33453   19.2581 )
Epeak [keV] : 27.5526      ( -5.43881 7.00018 )
Norm@50keV   : 1005.45    ( -383.537   3570.38 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.08 sec: 8.53803E-02 ( 6.91462  -0.0175186 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.9008e-10 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.31e-09
S(50-100 keV) = 7.74e-10

T90 vs. Hardness ratio plot

T90                                   = 0.0640000104904175 sec.
Hardness ratio (energy fluence ratio) = 0.59084

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.31888
Count Ratio (50-100 keV) / (15-25 keV) = 0.476149

Mask shadow pattern

IMX = 1.639911731029169E-02, IMY = 1.836322048521403E-02

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -115.160000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4656  35.4155    4.0  42.7  -11.9  -1.3023  -2.9    4.4	Her X-1
288.8034  10.9712    4.6  35.6  -75.8  -1.7824  -2.5    1.6	GRS 1915+105
299.3669  35.0999    0.0  10.2  -58.7   1.1599   3.5   12.5	Cyg X-1
307.8765  40.9127    4.8   1.4  -53.2   0.7360   2.4   10.9	Cyg X-3
326.2211  38.4714    4.6  13.2  166.0   0.7123   2.5    9.3	Cyg X-2
316.1424  -2.8360    2.7  44.9 -121.8   5.8783   4.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-115.160000 -115.080000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3617  35.2219    3.6  42.9  -12.1   0.0197   3.2    8.6	Her X-1
288.9276  10.9535   10.3  35.6  -76.0   0.0086   1.1    7.6	GRS 1915+105
299.4119  35.0890    7.4  10.2  -58.9   0.0061   1.6   11.1	Cyg X-1
307.9044  40.9668    4.5   1.3  -51.7   0.0095   2.6    9.4	Cyg X-3
326.1293  38.2348    6.7  13.2  167.0   0.0065   1.7    5.6	Cyg X-2
245.8940  38.5699    2.1  47.6   -3.8   0.0421   5.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
84.000600 143.760000
145.000000 663.110000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4014  35.3906   89.4  41.6  -10.9   0.1349   0.1    4.0	Her X-1
288.8892  10.9411    4.6  34.4  -76.9   4.0415   2.5    5.4	GRS 1915+105
299.8148  35.3039    0.0   8.5  -61.4  -1.5189  -2.0   12.6	Cyg X-1
307.9007  40.9592    2.5   0.2 -164.6   3.2334   4.7    9.5	Cyg X-3
326.2870  38.1850    5.1  14.6  164.4  -1.5018  -2.3    9.8	Cyg X-2
225.0402  66.0120    3.4  50.3   37.4   8.9500   3.4 ------	UNKNOWN
299.2770  61.1898    4.1  20.8   57.5   2.2498   2.9 ------	UNKNOWN
310.8320  31.2082    2.9  10.2 -126.3   2.5159   3.9 ------	UNKNOWN
307.0718  23.9811    2.4  17.1 -109.0   3.6202   4.9 ------	UNKNOWN
347.7133   1.3083    3.9  53.7 -163.9   6.0376   3.0 ------	UNKNOWN
271.6215  15.3453    2.6  40.4  -49.8   6.4194   4.4 ------	UNKNOWN
321.0487  -5.3253    2.1  48.0 -129.0  16.4071   5.4 ------	UNKNOWN
299.7017   0.5230    4.2  41.2  -98.8   8.8879   2.8 ------	UNKNOWN

Plot creation:
Wed Jan  6 16:37:14 EST 2021
