batgrbproduct analysis for trigger=1031728

batgrbproduct Analysis for Trigger=1031728

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Jul 30 00:15:44 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1031728
======================================================================

  Trigger: 01031728      Segment: 000

  BAT Trigger Time: 634615254.4   [s; MET]
      Trigger Stop: 634615254.528   [s; MET]
               UTC: 2021-02-10T02:00:27.919820    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 262.810959176437   Dec: 14.6481728923598  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.51
     Image Trigger?:     NO
     Rate S/N Ratio:     16.2480768092719  [ if not an image trigger ]
     Image S/N Ratio:    7.51

  Flight Position:   [ source = BAT ]
    RA: 262.810959176437   Dec: 14.6481728923598  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 262.764483447191   Dec: 14.6573039152744  [deg; J2000]
        { 17h 31m 03.5s , +14d 39' 26.3" }
         +/- 1.04144996993177 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.32826136979716 [arcmin] (formal 1-sigma fit error)
    SNR: 28.7025610186316

  Angular difference between Flight and Ground position is 2.752917 arcmin

  Partial Coding Fraction: 0.4335938    [ including projection effects ]

  Duration
     T90: 6.60399997234344 +/- 0.589318239671799
        Measured from: -0.407999992370605
                   to: 6.19599997997284     [s; relative to TRIGTIME]
     T50: 4.34799993038177 +/- 0.216333035530084
        Measured from: 0.476000070571899
                   to: 4.82400000095367     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 4.21200001239777
                   to: 5.21200001239777     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.751999974250793
                   to: 6.92799997329712     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.936207   0.809704   0.275279   0.017331
           0.039703   0.037204   0.030143   0.027126 [error]
 Peak      0.287070   0.298754   0.126939   0.010200
           0.017441   0.017456   0.012911   0.009981 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.39e-07 3.49e-07 2.53e-07 2.94e-07 1.05e-06 1.24e-06   erg/cm2
              Error 2.80e-08 2.04e-08 2.83e-08 6.39e-08 6.63e-08 9.95e-08   erg/cm2
Peak flux Power-law 3.41e+00 2.28e+00 9.96e-01 5.99e-01 6.98e+00 7.29e+00   ph/cm2/s
              Error 3.45e-01 1.56e-01 1.10e-01 1.24e-01 4.94e-01 5.02e-01   ph/cm2/s

Fluence   Cutoff-PL -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Cutoff-PL 3.11e+00 2.48e+00 9.99e-01 2.41e-01 6.77e+00 6.83e+00   ph/cm2/s
              Error 4.04e-01 2.13e-01 1.25e-01 1.67e-01 5.16e-01 5.46e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.464    0.121    -      -           1.39e-02 1.12e-03   53.970 57
CPL   1.530    0.580      19.9   13.9      4.91e-02 4.34e-02   44.350 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.196    0.127    -      -           4.23e-02 3.55e-03   47.520 57
CPL   1.405    0.611      32.3   17.8      1.18e-01 1.10e-01   41.540 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 4.672000 sec.
T50 in the 50-300 keV band: 4.160000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    7.680   -0.752    6.928
T90     6.604   -0.408    6.196
T50     4.348    0.476    4.824
Peak    1.000    4.212    5.212

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  262.7645    14.6573   0.0067    35.4797   153.9452         2.1914406     28.703 TRIG_01031728

Foreground time interval of the image:
 -0.752   6.928 (delta_t =   7.680 [sec])
Background time interval of the image:
-239.400  -0.752 (delta_t = 238.648 [sec])

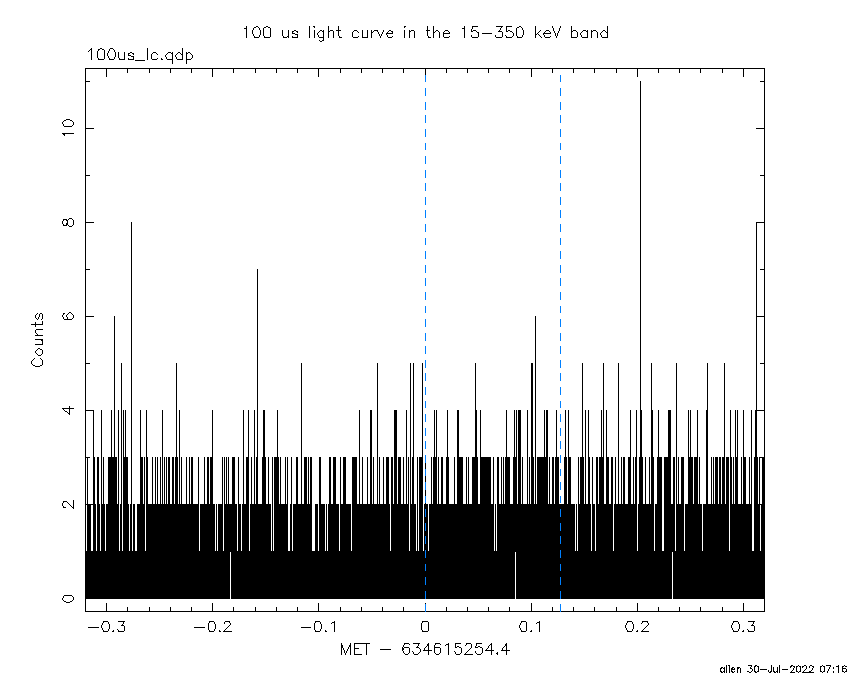

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.752 sec. to    6.928 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.46429     ( -0.119037   0.123576 )
Norm@50keV  : 1.38734E-02    ( -0.00112208   0.00111038 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.97     using 59 bins.
 Reduced chi-squared = 0.946842
# Null hypothesis probability of 5.89e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 7.68 sec: 2.66722 ( -0.15878  0.15919 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.05578e-06 ( -6.59687e-08  6.65544e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.752 sec. to    6.928 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52961     ( -0.613248   0.545883 )
Epeak [keV] : 19.9070      ( -18.9993 8.71249 )
Norm@50keV  : 4.90931E-02    ( -0.0234213   0.0633336 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.35     using 59 bins.
 Reduced chi-squared = 0.791964
# Null hypothesis probability of 8.69e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 7.68 sec: 2.54303 ( -0.17208  0.17255 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from   -0.752 sec. to    6.928 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.59383  (-0.556506  0.585304)
R^2/D10^2   : 2.03279  (-0.489031   0.65804)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   89.23     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.08e-03 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.188e-07   2.431e-08
25- 50  4.319e-07   2.769e-08
50-150  1.428e-07   2.458e-08
15-150  7.935e-07   5.111e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 36.8598       (-4.75339      5.7178)
Norm        : 17.7485       (-2.11023     2.44762)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.71     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.81e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.040e-07   2.423e-08
25- 50  3.855e-07   2.346e-08
50-150  2.721e-07   4.270e-08
15-150  9.615e-07   6.566e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.94834        (-0.698577      0.837695)
R1^2/D10^2  : 34.8029        (-19.8561      55.0789)
kT2 [keV]   : 11.9557        (-1.37006      1.88929)
R2^2/D10^2  : 0.403657    (-0.203626   0.311791)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.20     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.16e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.219e-07   1.252e-07
25- 50  3.730e-07   7.772e-08
50-150  2.526e-07   7.269e-08
15-150  9.474e-07   2.253e-07

Peak spectrum fit

Power-law model

Time interval is from    4.212 sec. to    5.212 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.19601     ( -0.12416   0.128978 )
Norm@50keV  : 4.22615E-02    ( -0.00357381   0.00352174 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.52     using 59 bins.
 Reduced chi-squared = 0.833684
# Null hypothesis probability of 8.10e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 6.98260 ( -0.49407  0.49485 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.97201e-07 ( -2.97326e-08  2.99388e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    4.212 sec. to    5.212 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.40528     ( -0.657351   0.565406 )
Epeak [keV] : 32.2900      ( -27.3208 8.22665 )
Norm@50keV  : 0.118216    ( -0.0607465   0.159942 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.54     using 59 bins.
 Reduced chi-squared = 0.741786
# Null hypothesis probability of 9.25e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 6.77266 ( -0.51632  0.51643 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.75803e-07 ( -3.25929e-08  3.32221e-08 ) ergs/cm2

Band function

Time interval is from    4.212 sec. to    5.212 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.83523  (-0.718239  0.767741)
R^2/D10^2   : 3.37956  (-0.884751   1.19938)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   76.26     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.51e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.619e-08   8.085e-09
25- 50  1.607e-07   1.230e-08
50-150  7.992e-08   1.512e-08
15-150  3.068e-07   2.440e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 52.3802       (-8.40318      11.1214)
Norm        : 38.4241       (-4.35262     5.2506)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.57     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.38e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.492e-08   9.045e-09
25- 50  1.386e-07   1.020e-08
50-150  1.405e-07   2.380e-08
15-150  3.739e-07   2.950e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.78838        (-1.36695      1.88044)
R1^2/D10^2  : 35.0965        (-23.9264      115.302)
kT2 [keV]   : 14.3101        (-2.42112      5.42154)
R2^2/D10^2  : 0.568400    (-0.44278   0.778344)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.29     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.49e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.609e-08   3.467e-08
25- 50  1.352e-07   3.628e-08
50-150  1.285e-07   4.915e-08
15-150  3.597e-07   1.072e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.46429     ( -0.119037   0.123576 )
Norm@50keV  : 1.38734E-02    ( -0.00112208   0.00111038 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.97     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.89e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 7.68 sec: 2.66686 ( -0.158746  0.159157 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.05553e-06 ( -6.60059e-08  6.65503e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52969     ( -0.61328   0.54585 )
Epeak [keV] : 19.9053      ( -19.4697 8.70301 )
Norm@50keV  : 4.90882E-02    ( -0.023421   0.0633343 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.35     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.69e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 7.68 sec: 2.54228 ( -0.17197  0.1724 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.74861e-07 ( -7.33824e-08  7.68154e-08 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.49e-07
S(50-100 keV) = 2.53e-07

T90 vs. Hardness ratio plot

T90                                   = 6.60399997234344 sec.
Hardness ratio (energy fluence ratio) = 0.724928

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.864877
Count Ratio (50-100 keV) / (15-25 keV) = 0.294036

Mask shadow pattern

IMX = -6.403252999875310E-01, IMY = -3.130657203826239E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.400000 -0.752000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9772 -15.6563    0.6  26.7   84.4   8.4299  19.3    1.0	Sco X-1
255.9964 -37.8403    2.3  23.5   25.6   1.6187   5.1    0.5	4U 1700-377
256.2959 -36.2976    5.1  22.2   27.9   0.7275   2.3   10.1	GX 349+2
263.0022 -24.7876    3.0  10.5   48.3   1.1198   3.8    2.5	GX 1+4
264.8881 -44.5999   27.4  26.0    3.6  -0.1381  -0.4   10.9	4U 1735-44
268.3560  -1.4511   18.3  18.5  156.8   0.2039   0.6    0.7	SW J1753.5-0127
270.2006 -25.2178    9.4   6.2   12.5  -0.4165  -1.2    9.5	GX 5-1
270.3448 -25.8217    4.2   6.8    9.5   1.0301   2.9    5.2	GRS 1758-258
274.1603 -14.0348   49.7   5.6 -175.0  -0.0669  -0.2    9.0	GX 17+2
275.8695 -30.4096    6.0  11.3  -23.0   0.6045   1.9    3.8	H1820-303
285.1866 -25.0774    0.0  12.8  -70.8   0.5153   1.8   12.5	HT1900.1-2455
288.9316  10.9890    9.0  34.3 -160.2   0.4794   1.3    8.3	GRS 1915+105
262.9940 -33.8379   33.2  16.8   19.9   0.0989   0.3    0.3	GX 354-0
219.5291 -51.0835    3.1  52.2   30.3   5.3816   3.7 ------	UNKNOWN
254.7570  28.5362    2.9  51.0  150.3   5.2152   4.0 ------	UNKNOWN
255.7003 -48.7837    1.9  32.4   11.9   2.6056   6.1 ------	UNKNOWN
304.4290  29.6344    3.7  57.8 -156.6   6.4835   3.1 ------	UNKNOWN
314.1931 -35.8089    3.2  39.8  -66.2   3.3410   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.752000 6.928000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0860 -15.8159    0.0  26.6   84.1   0.1415   2.1   12.2	Sco X-1
256.1986 -37.7461    5.4  23.3   25.5  -0.0993  -2.1   11.6	4U 1700-377
256.3568 -36.3459    9.4  22.2   27.8   0.0545   1.2    6.0	GX 349+2
262.9053 -24.8758   18.6  10.6   48.1   0.0293   0.6    9.6	GX 1+4
264.8818 -44.6192    4.7  26.0    3.6   0.1247   2.5   11.8	4U 1735-44
268.3838  -1.6034   18.4  18.3  156.7   0.0270   0.6    9.1	SW J1753.5-0127
270.2717 -25.2074    6.5   6.2   12.0   0.0738   1.8    7.7	GX 5-1
270.1506 -25.8066    8.3   6.8   10.9  -0.0614  -1.5    9.0	GRS 1758-258
273.8671 -13.9312    7.4   5.6 -178.1   0.0656   1.5   10.3	GX 17+2
276.0830 -30.4549    5.4  11.4  -23.9  -0.0896  -2.2    9.7	H1820-303
285.0726 -24.9002  102.5  12.6  -71.4   0.0049   0.1    2.3	HT1900.1-2455
288.9094  10.8258   16.0  34.2 -160.1   0.0415   0.7    9.7	GRS 1915+105
263.0173 -33.8189    4.9  16.8   19.9   0.0997   2.3    1.7	GX 354-0
225.8723 -28.9597    2.5  43.5   58.8   1.0067   4.7 ------	UNKNOWN
262.7645  14.6573    0.4  35.5  153.9   2.1915  28.7 ------	UNKNOWN
273.9007  20.2528    2.3  39.7  172.4   0.3468   5.0 ------	UNKNOWN
275.3513   8.5928    1.9  28.1  176.2   0.3036   5.9 ------	UNKNOWN
285.0481  36.5263    2.4  57.2 -177.5   1.0857   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
65.700590 962.653700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9655 -15.6267    0.4  35.0    8.3  30.4578  28.6    1.1	Sco X-1
254.2558  35.3160   47.6  22.1  138.5  -0.2639  -0.2   10.0	Her X-1
255.9856 -37.8598    4.2  52.9  -15.9   6.8066   2.8    0.9	4U 1700-377
256.3072 -36.4005   22.3  51.4  -16.0  -1.1491  -0.5    6.3	GX 349+2
263.0106 -24.7463   43.2  39.4  -23.0   0.3614   0.3    0.1	GX 1+4
268.3854  -1.5079   14.7  17.1  -42.0  -0.6541  -0.8    3.5	SW J1753.5-0127
270.3025 -25.0935   65.5  40.4  -33.2   0.2453   0.2    1.3	GX 5-1
270.3008 -25.7434    3.8  41.0  -33.0   4.0091   3.0    0.1	GRS 1758-258
274.0328 -14.1927    6.1  30.9  -44.2   2.6160   1.9    9.5	GX 17+2
275.9354 -30.3135    5.0  46.7  -38.3   4.5380   2.3    3.3	H1820-303
284.9537 -24.7794    0.0  44.9  -51.6  -5.3636  -2.1    9.6	HT1900.1-2455
288.7404  11.1373   34.1  25.5 -107.9   0.3800   0.3   12.0	GRS 1915+105
299.5408  35.1757    2.3  38.8 -151.4   7.4952   5.0    2.9	Cyg X-1
308.0819  40.9488    3.0  47.2 -155.6   7.2552   3.9    1.3	Cyg X-3
263.0805 -33.8476    7.5  48.5  -23.0  -2.9152  -1.5    4.6	GX 354-0
221.4292  13.4344    3.7  40.1   70.9  10.0167   3.2 ------	UNKNOWN
221.6696  -8.6001    3.5  46.9   40.2   8.8168   3.3 ------	UNKNOWN
298.9760  66.1540    2.7  56.8  173.9  21.4826   4.3 ------	UNKNOWN
287.0224  17.3901    3.0  23.4 -122.7   3.5550   3.9 ------	UNKNOWN
287.8043  -2.9700    2.7  30.4  -79.2   5.5330   4.3 ------	UNKNOWN

Plot creation:
Sat Jul 30 07:16:39 EDT 2022
