batgrbproduct analysis for trigger=1032350

batgrbproduct Analysis for Trigger=1032350

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Feb 14 03:12:47 EST 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1032350/GCN5_download_cron
======================================================================

  Trigger: 01032350      Segment: 000

  BAT Trigger Time: 634867840.404   [s; MET]
      Trigger Stop: 634867840.436   [s; MET]
               UTC: 2021-02-13T00:10:13.907080    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 277.660026005282   Dec: -6.74816858168261  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    12.8
     Image Trigger?:     NO
     Rate S/N Ratio:     40.4474968323134  [ if not an image trigger ]
     Image S/N Ratio:    12.8

  Flight Position:   [ source = BAT ]
    RA: 277.660026005282   Dec: -6.74816858168261  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 277.65277077436   Dec: -6.75427691567116  [deg; J2000]
        { 18h 30m 36.7s , -06d 45' 15.4" }
         +/- 1.72448130404571 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.943897544045132 [arcmin] (formal 1-sigma fit error)
    SNR: 13.9648032843056

  Angular difference between Flight and Ground position is 0.566746 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.0279998779296875 +/- 0.00894431669225064
        Measured from: 1.19209289550781e-07
                   to: 0.0279999971389771     [s; relative to TRIGTIME]
     T50: 0.00799989700317383 +/- 0.00565686571406321
        Measured from: 0.00400006771087646
                   to: 0.0119999647140503     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.48199999332428
                   to: 0.51800000667572     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.031999945640564     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.026722   0.028062   0.005590  -0.002148
           0.002842   0.002756   0.001696   0.000822 [error]
 Peak      0.032804   0.040973  -0.003524  -0.005463
           0.007991   0.007327   0.005977   0.005706 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.91e-09 6.37e-09 3.01e-09 2.00e-09 1.93e-08 2.03e-08   erg/cm2
              Error 1.33e-09 9.32e-10 7.53e-10 8.57e-10 2.67e-09 2.97e-09   erg/cm2
Peak flux Power-law 3.59e-01 1.88e-01 6.13e-02 2.57e-02 6.22e-01 6.33e-01   ph/cm2/s
              Error 1.10e-01 5.98e-02 3.63e-02 3.12e-02 1.70e-01 1.76e-01   ph/cm2/s

Fluence   Cutoff-PL 8.06e-09 1.04e-08 2.51e-09 4.95e-11 2.10e-08 2.10e-08   erg/cm2
              Error 1.50e-09 1.76e-09 1.05e-09 1.02e-10 2.70e-09 2.70e-09   erg/cm2
Peak flux Cutoff-PL 2.84e-01 2.92e-01 2.62e-02 3.93e-05 6.03e-01 6.04e-01   ph/cm2/s
              Error 1.54e-01 9.68e-02 3.32e-02 1.67e-03 1.70e-01 1.70e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.082    0.222    -      -           4.82e-02 9.51e-03   60.020 57
CPL  -0.458    1.617      26.0    4.7      7.90e+00 7.09e+01   36.360 56

The chi2 of BB fit is 37.47 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.617    0.562    -      -           2.94e-03 1.37e-03   65.160 57
CPL  -3.165    0.510      30.0    7.6      1.64e+01 1.56e+05   58.400 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.032    0.000    0.032
T90     0.028    0.000    0.028
T50     0.008    0.004    0.012
Peak    1.000   -0.482    0.518

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

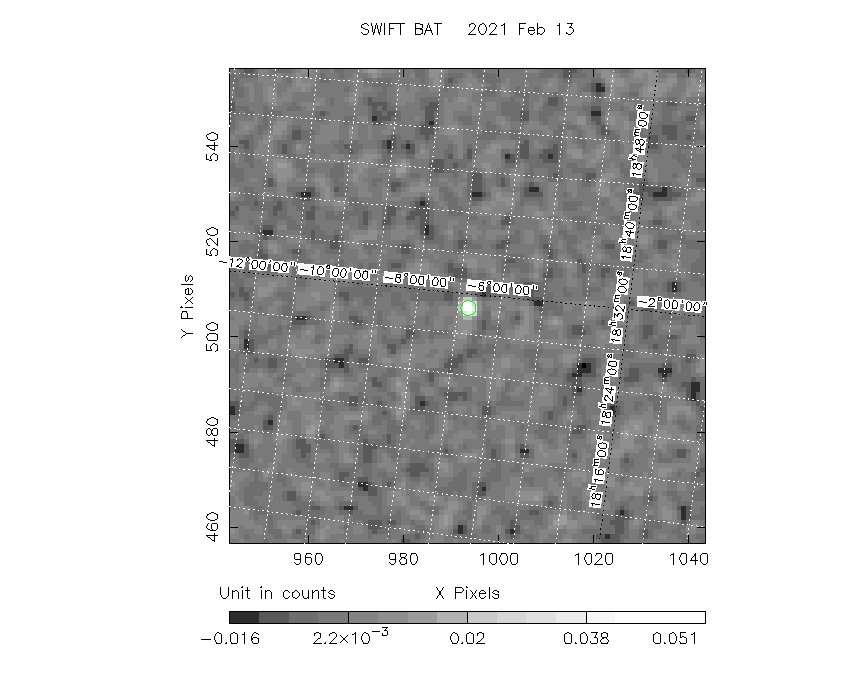

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  277.6528  -6.7543 0.0138   13.9 -165.5       0.0607    14.0  TRIG_01032350
------------------------------------------

Foreground time interval of the image:
  0.000   0.032 (delta_t =   0.032 [sec])
Background time interval of the image:
-239.404   0.000 (delta_t = 239.404 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

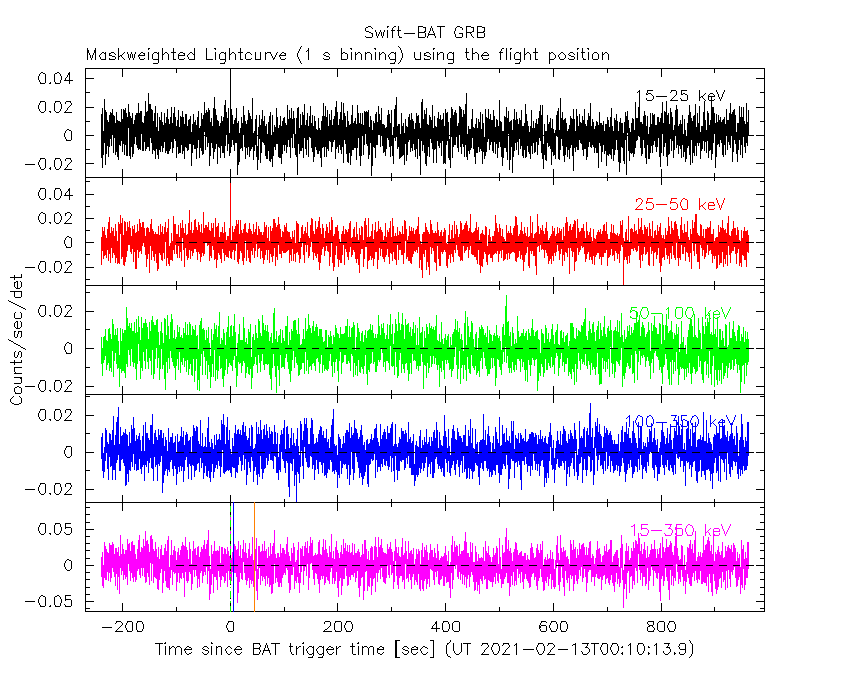

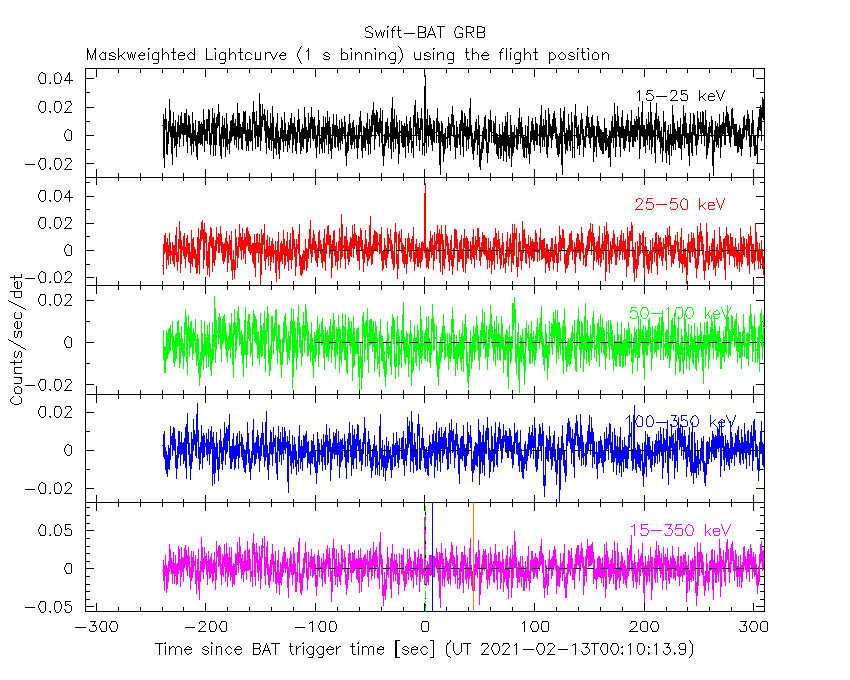

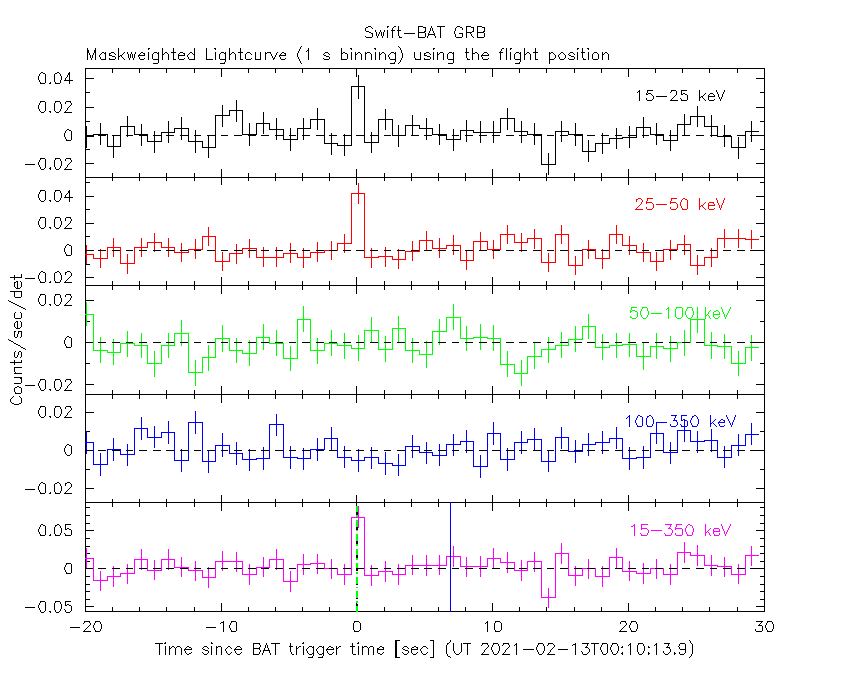

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

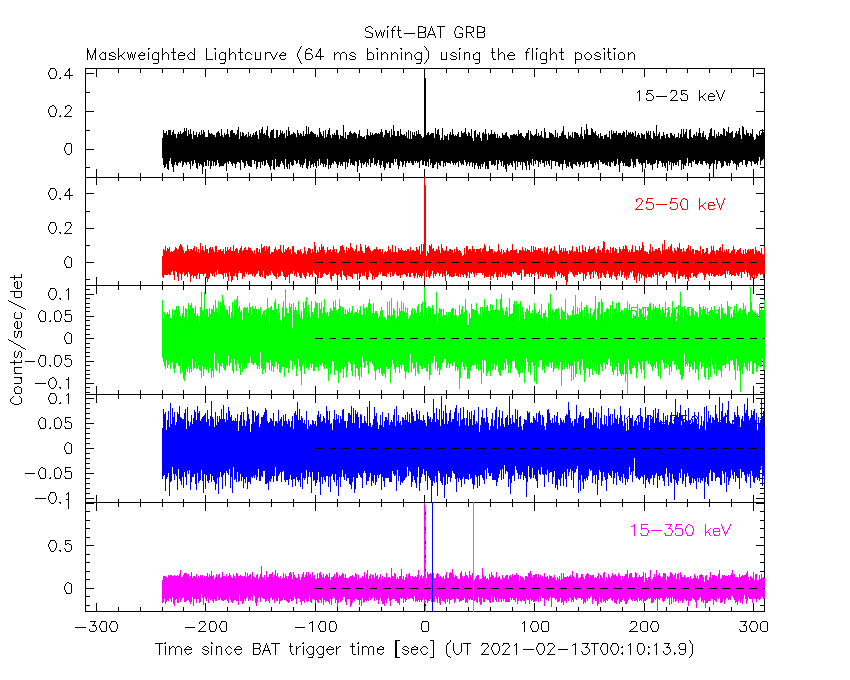

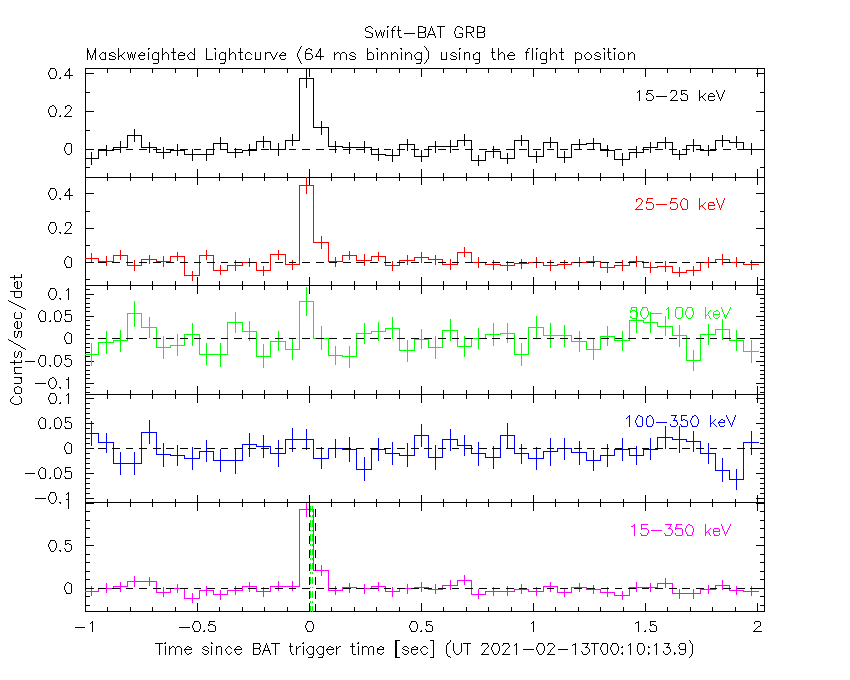

64 ms binning

Full time interval

From T100_start to T100_end

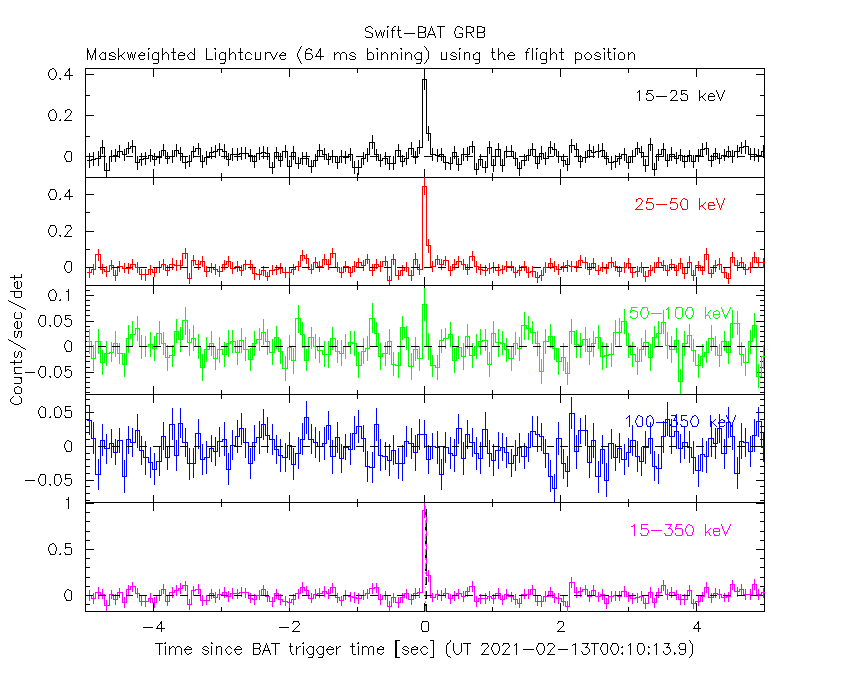

From T0-5 sec to T0+5 sec

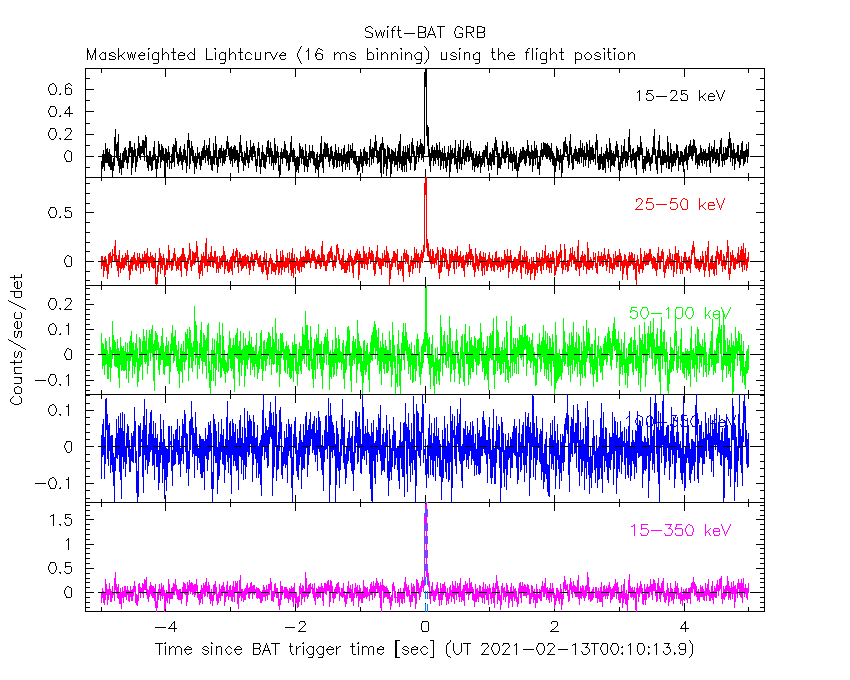

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

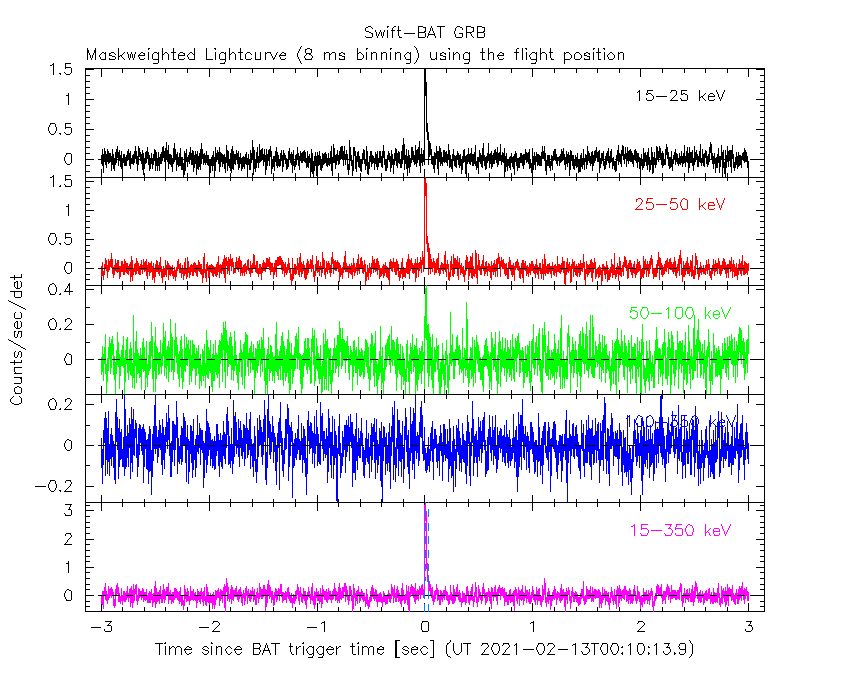

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

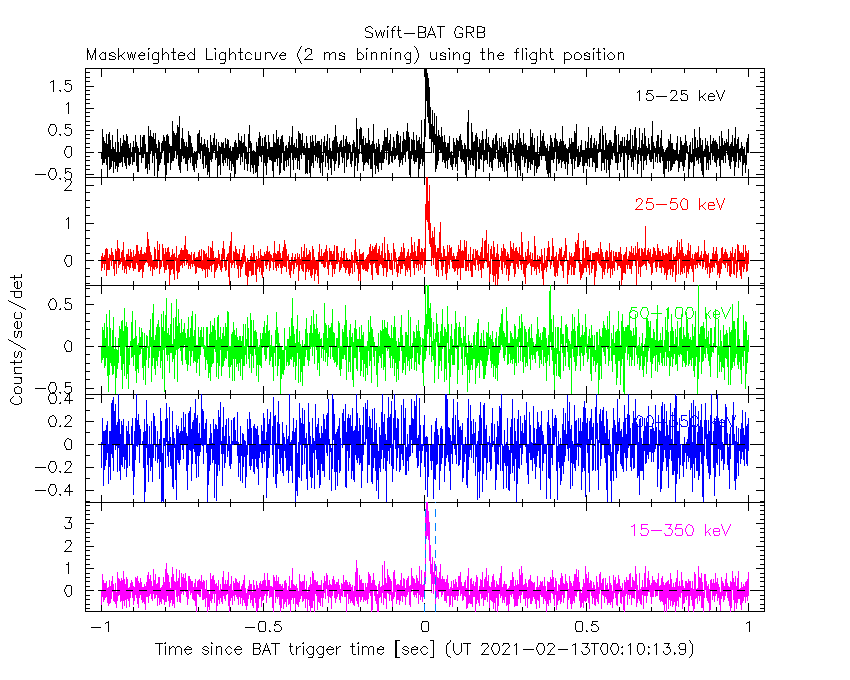

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

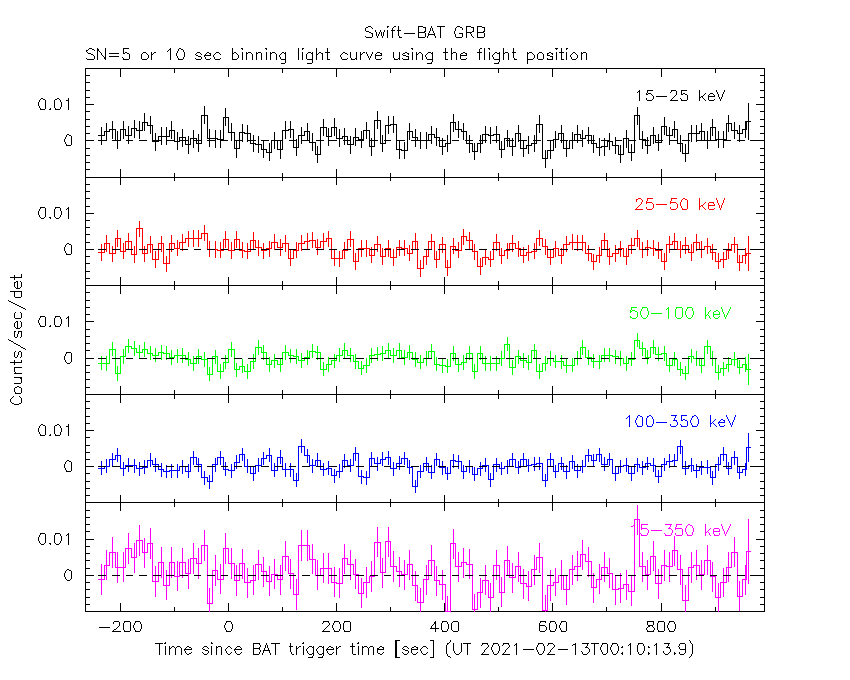

SN=5 or 10 sec. binning (whichever binning is satisfied first)

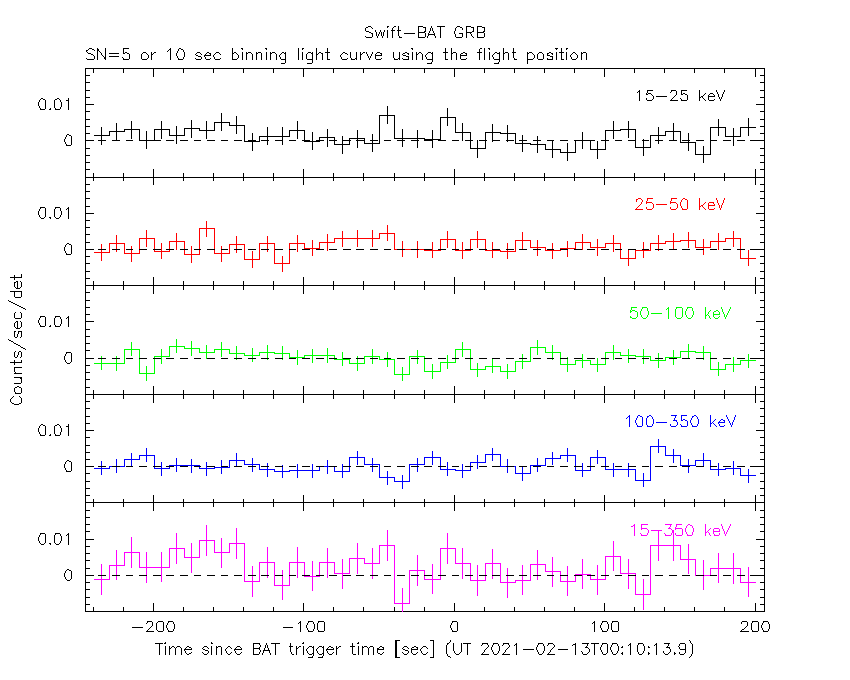

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

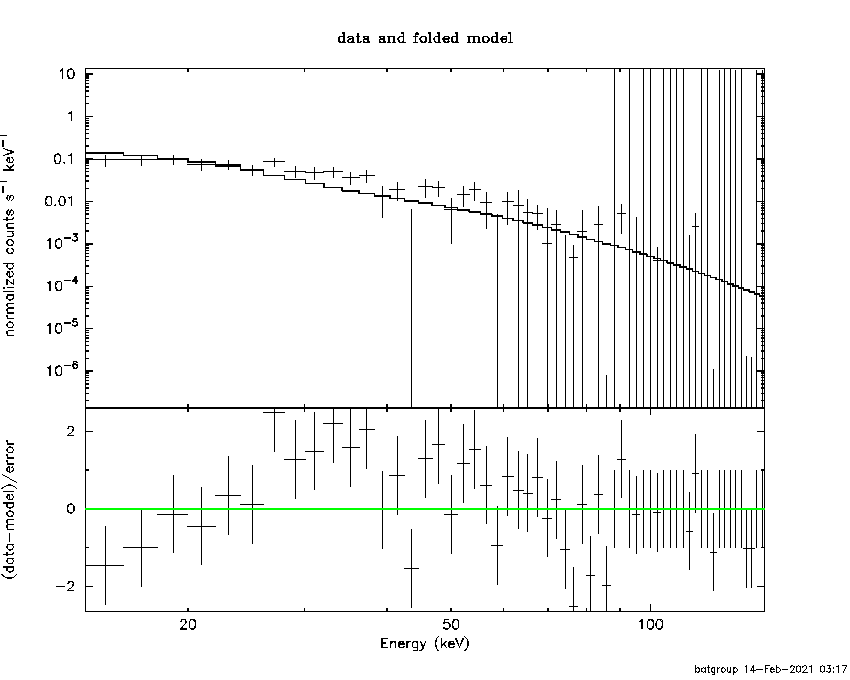

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.08172     ( -0.208605   0.235622 )
Norm@50keV  : 4.81839E-02    ( -0.00958634   0.00943799 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   60.02     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.67e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.032 sec: 14.0707 ( -1.88324  1.88384 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92573e-08 ( -2.66261e-09  2.66994e-09 ) ergs/cm2

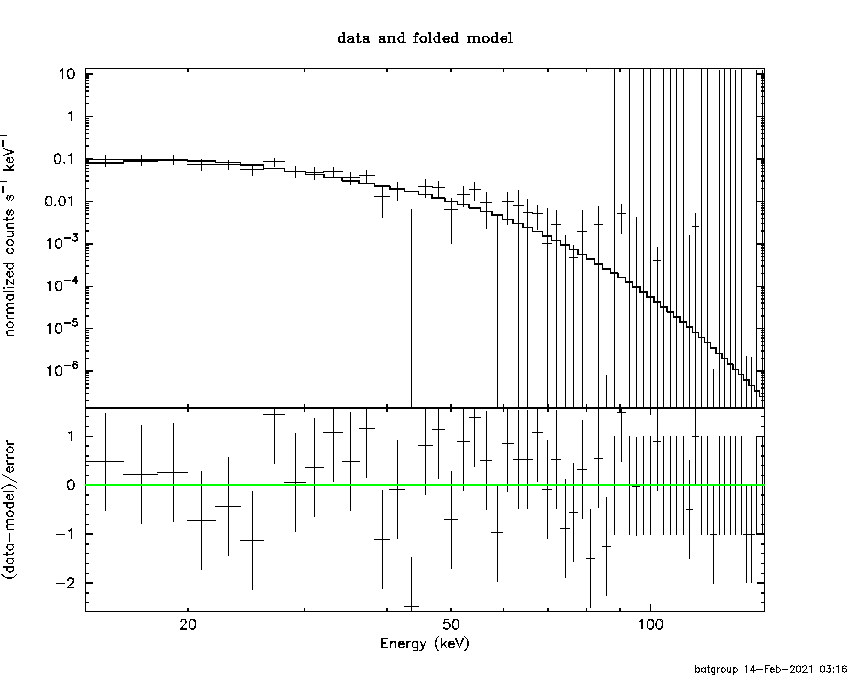

Cutoff power-law model

Time interval is from    0.000 sec. to    0.032 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.457631     ( -1.83768   1.39588 )
Epeak [keV] : 26.0401      ( -5.29349 4.08588 )
Norm@50keV  : 7.90180    ( -9.55099   132.3 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   36.36     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.81e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.032 sec: 14.9621 ( -1.9219  1.9231 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.1043e-08 ( -2.6983e-09  2.69917e-09 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.032 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.577743   ( -1.14998   2.94564 )
beta        : -9.99607    ( 9.99607   19.9771 )
Epeak [keV] : 26.3419      ( -2.90648 4.05436 )
Norm@50keV   : 9.59308    ( -1.18566   91.4286 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.032 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

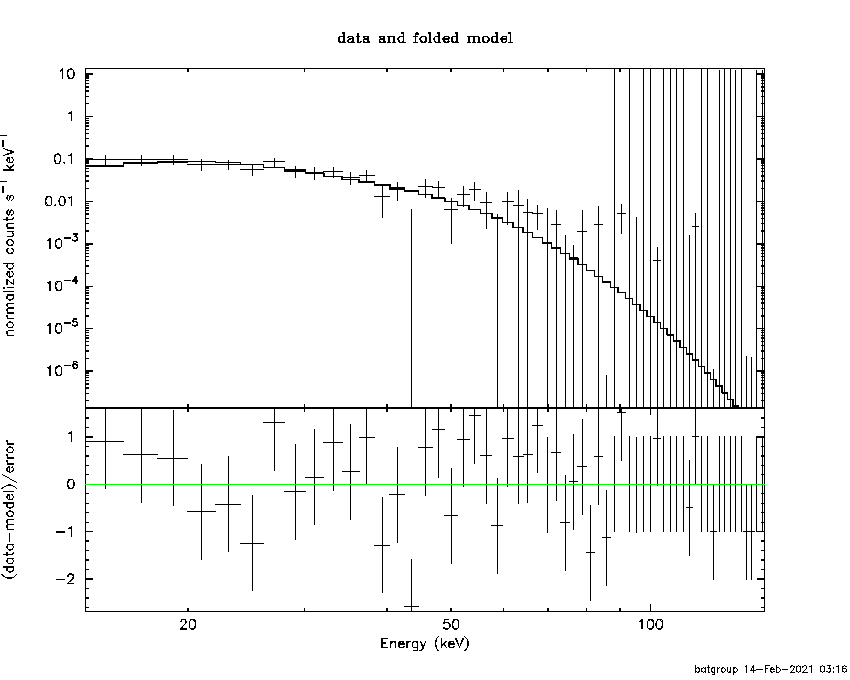

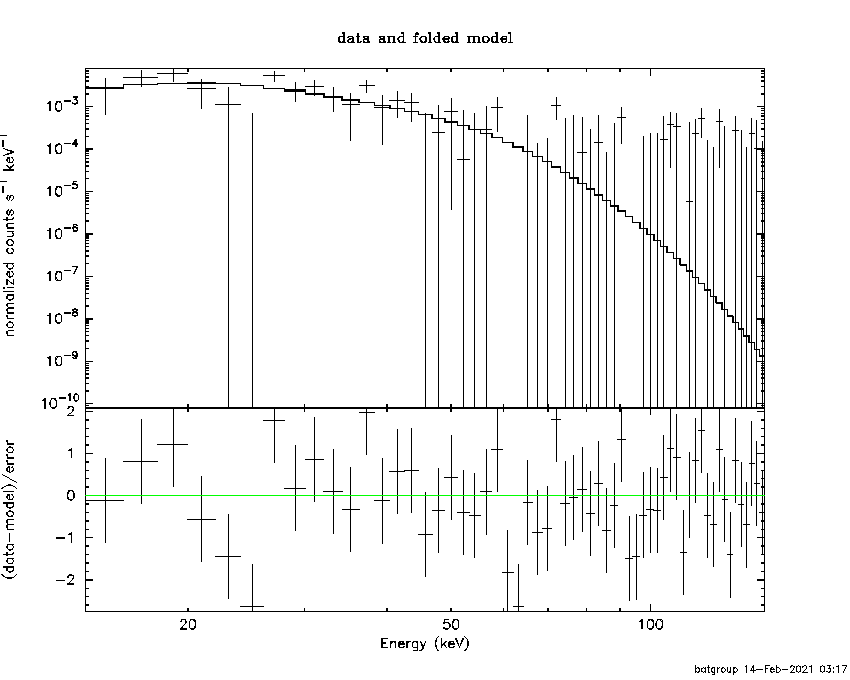

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.25820  (-0.755319  0.760472)
R^2/D10^2   : 26.8352  (-9.60626   16.0935)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   37.47     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.79e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.534e-09   1.485e-09
25- 50  1.106e-08   1.894e-09
50-150  2.085e-09   8.205e-10
15-150  2.068e-08   3.238e-09

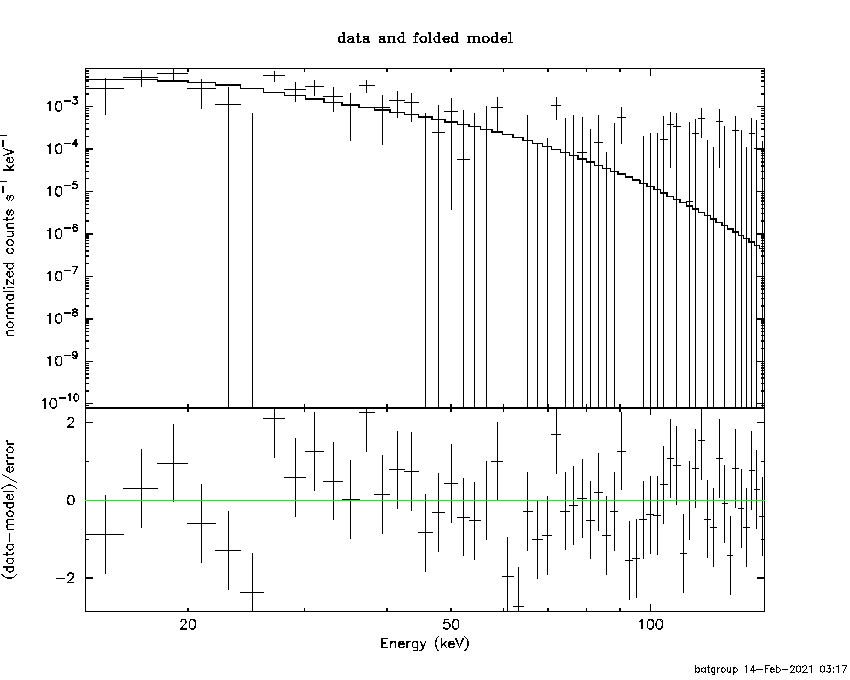

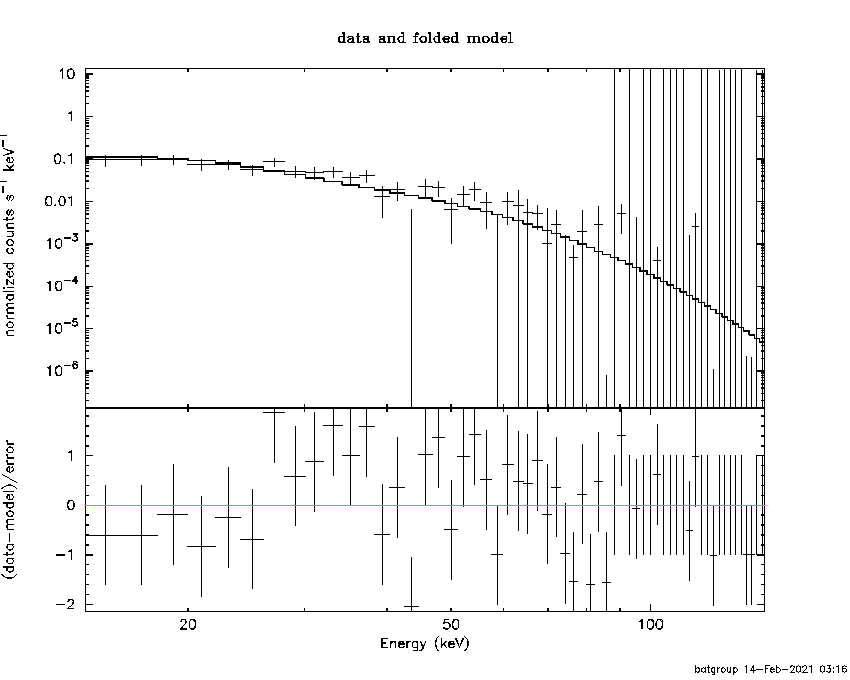

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 22.5224       (-3.56157      3.99489)
Norm        : 164.411       (-34.3371     43.2832)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.96     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.32e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.964e-09   1.285e-09
25- 50  8.566e-09   1.256e-09
50-150  3.110e-09   1.042e-09
15-150  2.064e-08   2.902e-09

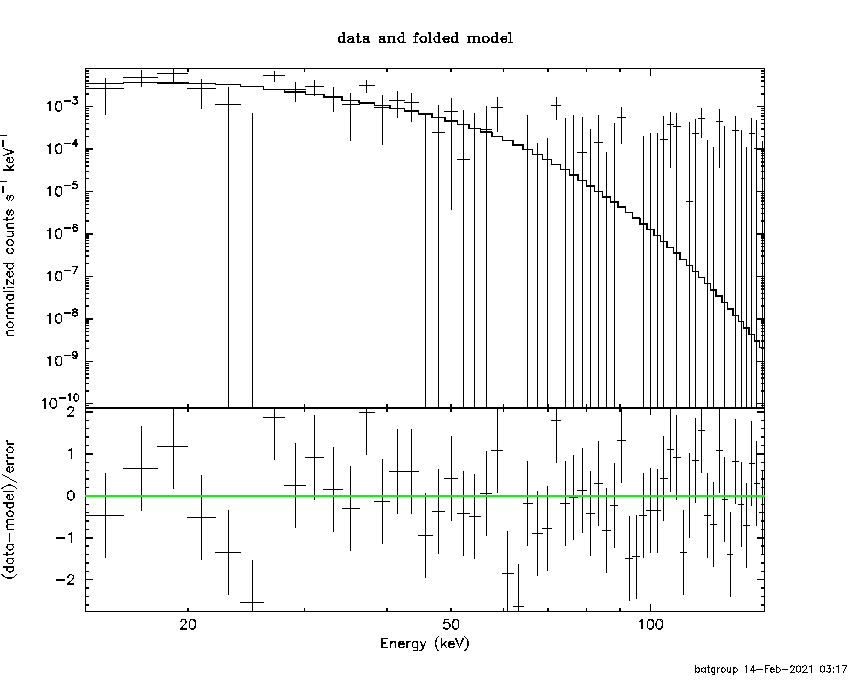

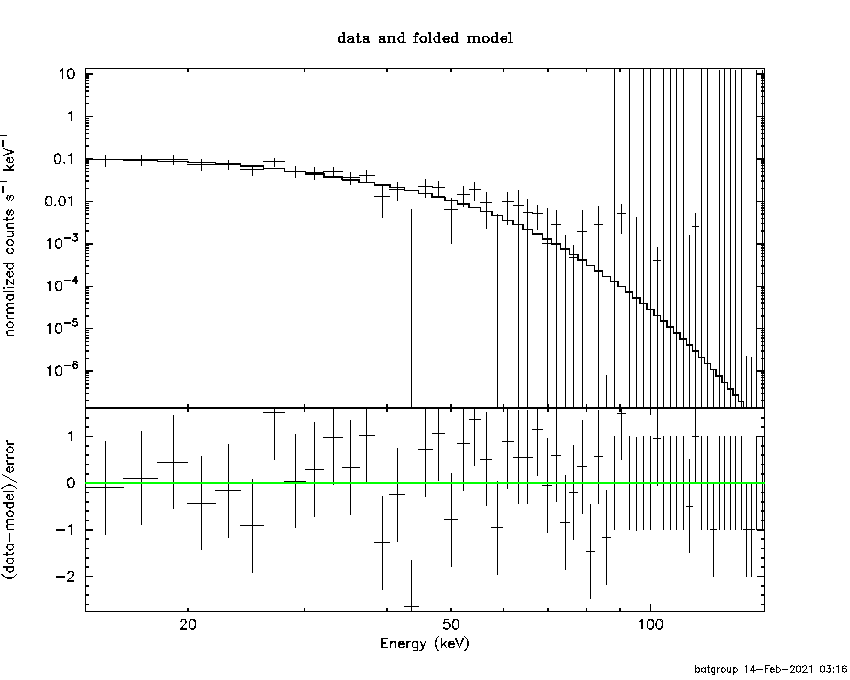

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.92368        (-1.90197      6.09429)
R1^2/D10^2  : 5630.63        (-6609.06      -6609.06)
kT2 [keV]   : 7.61905        (-0.902716      -7.60921)
R2^2/D10^2  : 20.6695    (-20.9051   14.3673)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   35.71     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.80e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.849e-09   2.532e-09
25- 50  1.075e-08   3.016e-09
50-150  2.391e-09   1.049e-09
15-150  2.099e-08   5.843e-09

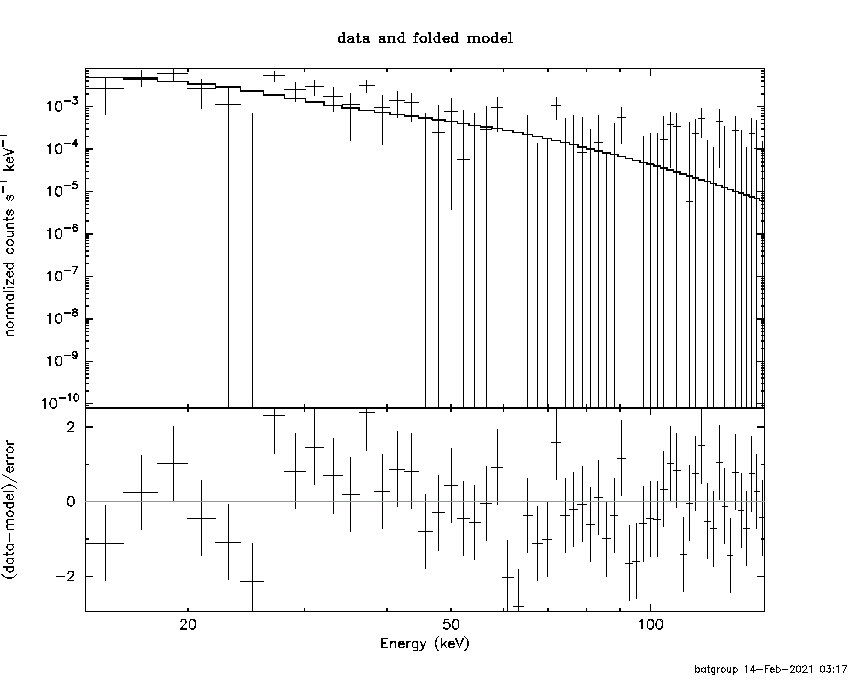

Peak spectrum fit

Power-law model

Time interval is from   -0.482 sec. to    0.518 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.61676     ( -0.501498   0.622494 )
Norm@50keV  : 2.94373E-03    ( -0.00132831   0.00140256 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   65.16     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.14e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.622188 ( -0.169997  0.170815 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.04406e-08 ( -9.98209e-09  1.09917e-08 ) ergs/cm2

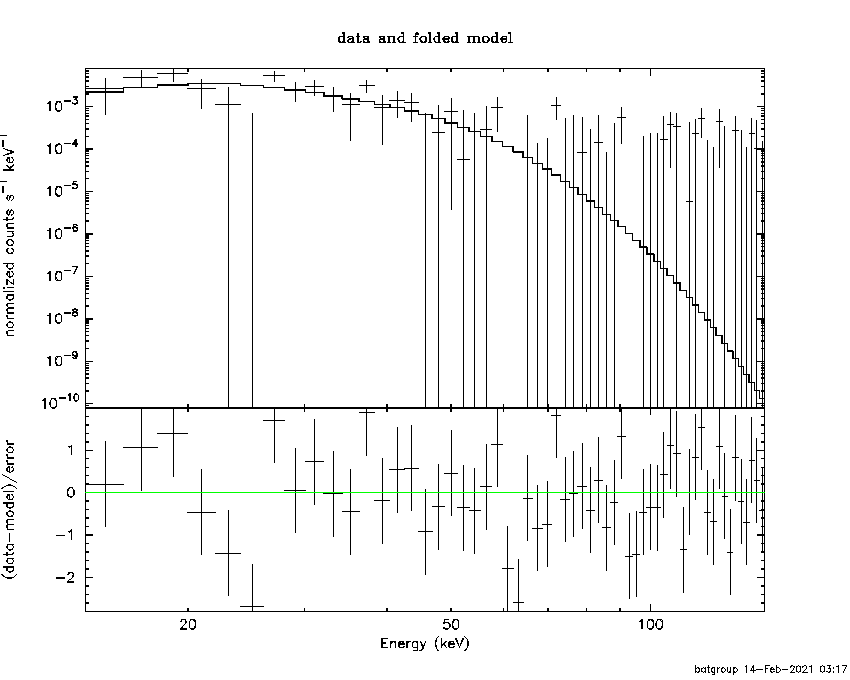

Cutoff power-law model

Time interval is from   -0.482 sec. to    0.518 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.16496     ( 2.2598   3.2806 )
Epeak [keV] : 30.0094      ( -8.93608 6.28103 )
Norm@50keV  : 16.4419    ( -15.7908   312650 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.40     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.87e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.603367 ( -0.172765  0.167487 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.72435e-08 ( -7.3087e-09  7.8221e-09 ) ergs/cm2

Band function

Time interval is from   -0.482 sec. to    0.518 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.27282   ( -5.42211   -4.35295 )
beta        : -9.37167    ( 9.37166   19.3205 )
Epeak [keV] : 30.3072      ( -5.14591 4.97232 )
Norm@50keV   : 18.5497    ( -18.5523   104.057 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.38200  (-1.42588  1.66399)
R^2/D10^2   : 1.06879  (-0.619887   1.5252)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.50     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.20e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.854e-09   5.386e-09
25- 50  1.493e-08   7.465e-09
50-150  2.987e-09   2.360e-09
15-150  2.777e-08   1.687e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 26.1920       (-10.1316      19.1055)
Norm        : 5.92114       (-2.40597     4.19599)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   61.79     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.09e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.117e-08   4.907e-09
25- 50  1.179e-08   6.314e-09
50-150  5.361e-09   4.583e-09
15-150  2.831e-08   1.400e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.03997        (-2.01605      11.5993)
R1^2/D10^2  : 92.2868        (-108.824      -108.824)
kT2 [keV]   : 7.63597        (-1.60826      -7.62271)
R2^2/D10^2  : 0.893105    (-0.901784   1.59181)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.28     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.56e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.008e-08   5.805e-09
25- 50  1.466e-08   9.055e-09
50-150  3.287e-09   2.440e-09
15-150  2.803e-08   1.660e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.08172     ( -0.208605   0.235622 )
Norm@50keV  : 4.81839E-02    ( -0.00958634   0.00943799 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   60.02     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.67e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.032 sec: 14.0707 ( -1.88324  1.88384 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92573e-08 ( -2.66261e-09  2.66994e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.457631     ( -1.83768   1.39588 )
Epeak [keV] : 26.0401      ( -5.29349 4.08588 )
Norm@50keV  : 7.90180    ( -9.55099   132.3 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   36.36     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.81e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.032 sec: 14.9621 ( -1.9219  1.9231 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.1043e-08 ( -2.6983e-09  2.69917e-09 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.577743   ( -1.14998   2.94564 )
beta        : -9.99607    ( 9.99607   19.9771 )
Epeak [keV] : 26.3419      ( -2.90648 4.05436 )
Norm@50keV   : 9.59308    ( -1.18566   91.4286 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.032 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.37e-09
S(50-100 keV) = 3.01e-09

T90 vs. Hardness ratio plot

T90                                   = 0.0279998779296875 sec.
Hardness ratio (energy fluence ratio) = 0.472527

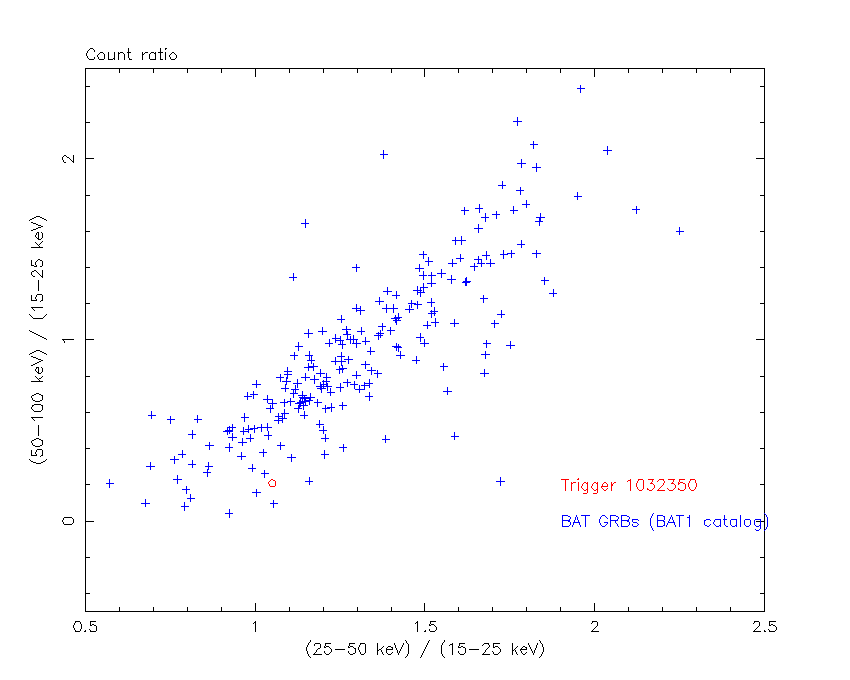

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.05015
Count Ratio (50-100 keV) / (15-25 keV) = 0.209191

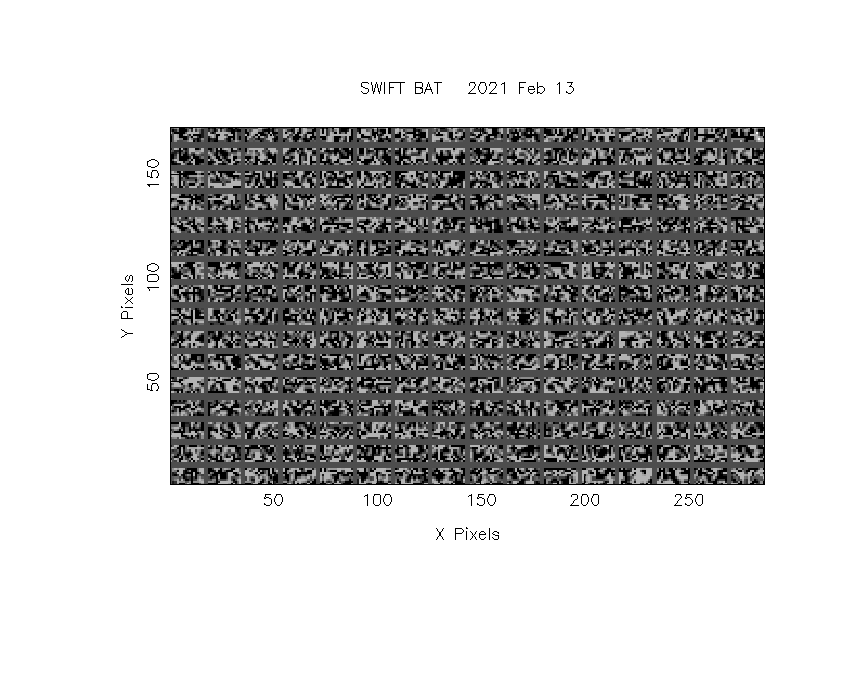

Mask shadow pattern

IMX = -2.395436999374217E-01, IMY = 6.185366479874393E-02

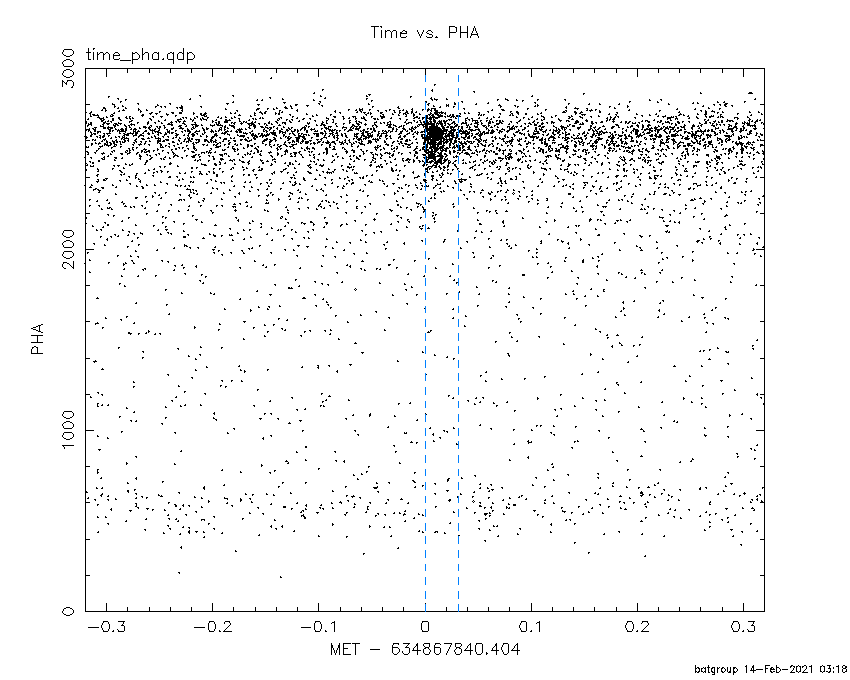

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

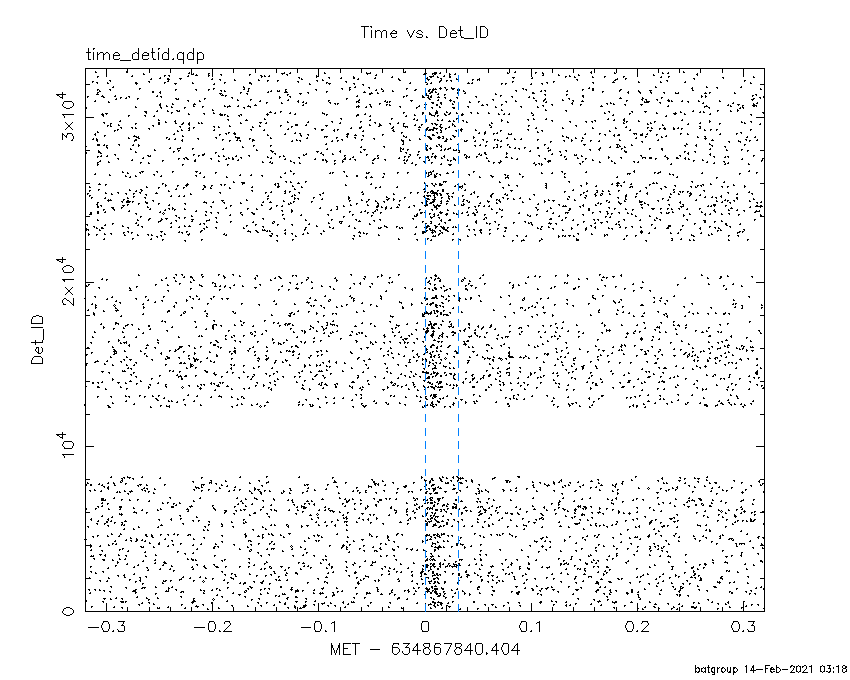

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

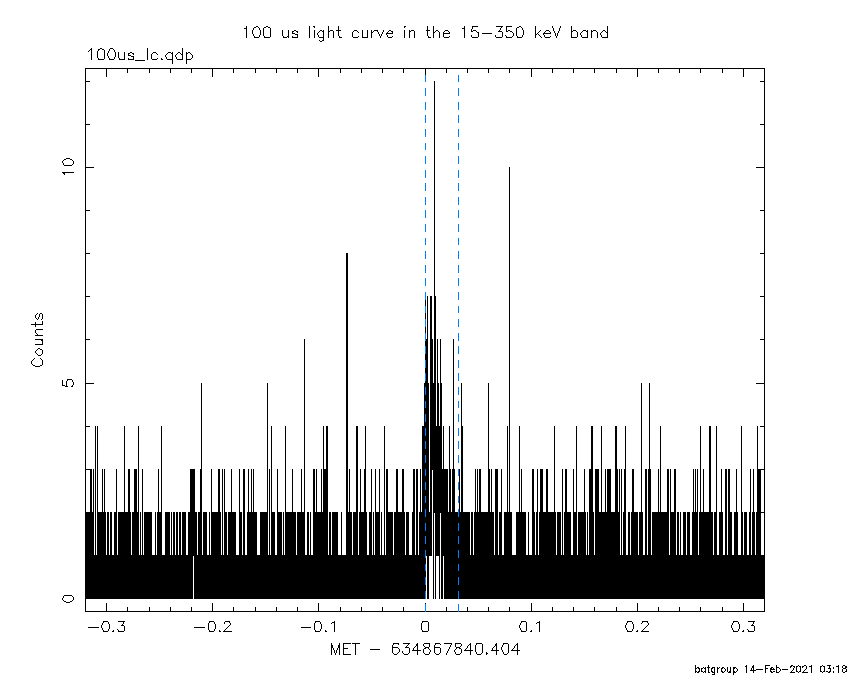

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

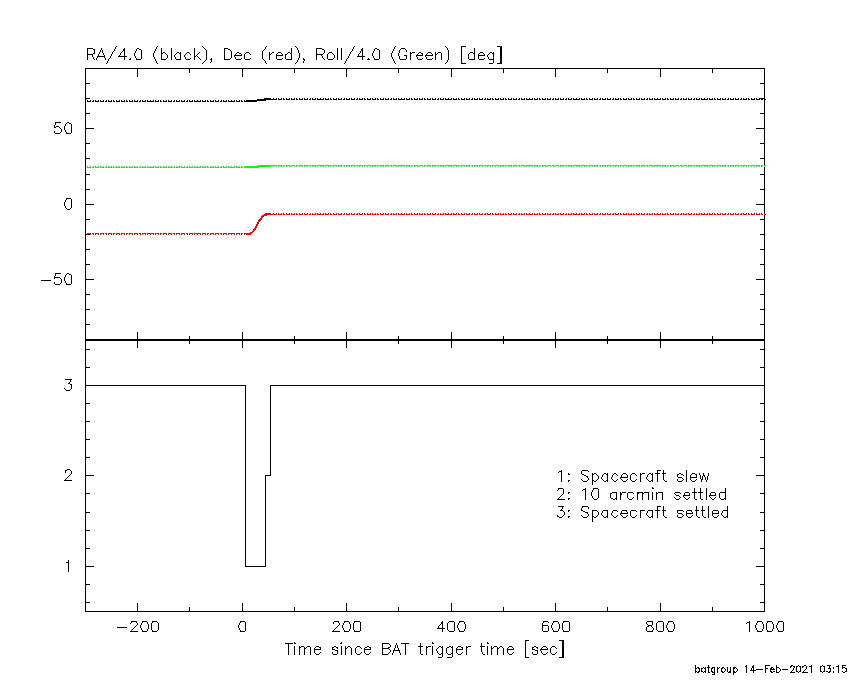

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.404000 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9848 -15.6287    0.3  26.5   87.1  17.9115  34.2    0.8	Sco X-1
255.8606 -37.9675   38.3  23.3   27.5   0.1211   0.3    9.5	4U 1700-377
256.5423 -36.4994    4.5  21.8   29.1   0.9735   2.6    6.9	GX 349+2
263.0399 -24.7660    5.3  10.1   50.9   0.7592   2.1    2.1	GX 1+4
264.7438 -44.4560   62.9  25.6    5.6   0.0745   0.2    0.4	4U 1735-44
268.4661  -1.4897   11.6  18.6  160.0   0.3688   1.0    6.3	SW J1753.5-0127
270.1418 -25.0540   18.5   5.8   14.4   0.2317   0.6    7.9	GX 5-1
270.3200 -25.7726    5.0   6.4   10.6   0.9205   2.3    2.0	GRS 1758-258
273.9791 -14.0279    3.3   5.9 -173.1   1.1457   3.5    1.6	GX 17+2
275.7946 -30.5064   15.1  11.2  -22.1   0.2540   0.8   10.7	H1820-303
285.0358 -24.9213   20.0  12.7  -70.9   0.1896   0.6    0.0	HT1900.1-2455
288.8883  10.8487    6.7  34.6 -158.1   0.7626   1.7    7.9	GRS 1915+105
262.9942 -33.8238    3.1  16.4   21.6   1.3323   3.7    0.7	GX 354-0
224.3091 -54.4717    3.1  50.3   26.9   5.4441   3.8 ------	UNKNOWN
250.9675 -12.6056    3.2  21.8   98.4   1.6904   3.6 ------	UNKNOWN
255.6792 -48.7908    2.2  32.1   13.7   2.7658   5.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.032000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1497 -15.5478    8.6  26.4   87.4   0.0094   1.3   11.3	Sco X-1
255.9690 -37.6869    9.4  23.0   27.8   0.0064   1.2    9.5	4U 1700-377
256.6097 -36.4376  315.4  21.8   29.1   0.0002   0.0    8.5	GX 349+2
263.1496 -24.8751   10.2  10.1   50.1  -0.0051  -1.1   10.9	GX 1+4
264.5834 -44.3403   10.2  25.5    5.9   0.0056   1.1    9.5	4U 1735-44
268.4636  -1.3143   32.7  18.8  160.1   0.0016   0.4   10.1	SW J1753.5-0127
270.4705 -24.9521    0.0   5.6   12.0   0.0081   1.9   12.7	GX 5-1
270.2920 -25.5902    7.9   6.2   11.3  -0.0064  -1.5    9.2	GRS 1758-258
274.1555 -14.0793    6.0   5.9 -171.4  -0.0082  -1.9    9.1	GX 17+2
275.8211 -30.2080    8.5  10.9  -22.7   0.0058   1.4   11.0	H1820-303
284.9797 -24.8558   11.0  12.6  -71.1   0.0047   1.0    4.9	HT1900.1-2455
288.8286  11.0210   17.3  34.7 -158.3  -0.0037  -0.7    4.9	GRS 1915+105
262.8573 -33.9632    6.0  16.6   21.7  -0.0089  -1.9   10.1	GX 354-0
262.4490  10.6902    2.4  32.0  153.8   0.0297   4.9 ------	UNKNOWN
253.9701 -42.5010    2.1  27.6   23.0   0.0319   5.6 ------	UNKNOWN
277.6528  -6.7543    0.8  13.9 -165.5   0.0606  14.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
44.496590 962.638100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9859 -15.6442    0.5  33.2   60.0  62.7767  24.8    0.4	Sco X-1
254.3802  35.2028   11.0  47.3  142.3   5.0215   1.0    9.2	Her X-1
255.9744 -37.8583  117.0  36.8   17.5   0.1881   0.1    1.0	4U 1700-377
256.4338 -36.3060    3.9  35.3   18.6   5.1445   2.9    7.0	GX 349+2
263.1116 -24.7072    2.6  22.7   24.5   5.0765   4.4    6.0	GX 1+4
264.7429 -44.4500   18.4  39.3    2.9   1.1016   0.6    0.0	4U 1735-44
268.1893  -1.5654    0.0  10.8  106.8  -1.6517  -1.6   12.7	SW J1753.5-0127
270.4733 -24.9679    0.0  19.5    8.2   1.0063   0.9   12.3	GX 5-1
270.3364 -25.7491    3.7  20.2    7.7   3.5970   3.1    1.9	GRS 1758-258
274.0182 -13.9556    4.2   8.0   14.4   3.2467   2.7    4.9	GX 17+2
275.9120 -30.2466    5.5  23.5   -7.9   2.2291   2.1    7.3	H1820-303
284.9445 -24.8220   46.9  19.4  -32.0  -0.2987  -0.2    7.7	HT1900.1-2455
288.8041  10.9532   87.0  20.9 -159.5  -0.1598  -0.1    0.6	GRS 1915+105
299.4937  35.2423    8.1  46.8 -167.0   3.2124   1.4    5.3	Cyg X-1
308.0502  40.9710    8.1  55.3 -163.9   5.0109   1.4    2.9	Cyg X-3
262.8439 -33.7804    7.0  30.3   13.2   2.5564   1.7    7.9	GX 354-0
272.0591  20.5777    3.6  27.9  157.1   4.2667   3.2 ------	UNKNOWN
246.8597 -57.4303    4.3  56.1    7.8  23.6534   2.7 ------	UNKNOWN
255.7534 -48.8230    2.1  46.0    8.3  11.9312   5.4 ------	UNKNOWN
292.8542  49.7322    3.2  58.0  179.9  22.1888   3.8 ------	UNKNOWN
293.1793  49.7719    3.8  58.1 -179.9  20.9624   3.6 ------	UNKNOWN
	UNKNOWN

Plot creation:
Sun Feb 14 03:18:16 EST 2021
