TDRSS scaled map for 1034325
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 22 Feb 21 22:37:59 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1034325, Seg_Num: 0
GRB_RA: 154.621d {+10h 18m 29s} (J2000),
154.879d {+10h 19m 31s} (current),
154.013d {+10h 16m 03s} (1950)
GRB_DEC: -14.898d {-14d 53' 52"} (J2000),
-15.005d {-15d 00' 15"} (current),
-14.647d {-14d 38' 49"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 5534 [cnts] Image_Peak=167 [image_cnts]
TRIGGER_DUR: 2.048 [sec]
TRIGGER_INDEX: 444 E_range: 15-50 keV
BKG_INTEN: 58294 [cnts]
BKG_TIME: 81413.44 SOD {22:36:53.44} UT
BKG_DUR: 24 [sec]
GRB_DATE: 19267 TJD; 53 DOY; 21/02/22
GRB_TIME: 81446.27 SOD {22:37:26.27} UT
GRB_PHI: 82.77 [deg]
GRB_THETA: 28.46 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 10.34 [sigma]
IMAGE_SIGNIF: 7.45 [sigma]
MERIT_PARAMS: +1 +0 +0 +1 +1 -2 +0 +0 +90 +0
SUN_POSTN: 336.40d {+22h 25m 35s} -9.85d {-09d 50' 48"}
SUN_DIST: 155.10 [deg] Sun_angle= -11.9 [hr] (East of Sun)
MOON_POSTN: 100.72d {+06h 42m 54s} +25.03d {+25d 01' 54"}
MOON_DIST: 66.24 [deg]
MOON_ILLUM: 79 [%]
GAL_COORDS: 256.80, 33.94 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 162.35,-23.62 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 351.11,16.70 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 22 Feb 21 22:49:32 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1034325, Seg_Num: 0
POINT_RA: 163.738d {+10h 54m 57s} (J2000)
POINT_DEC: -42.261d {-42d 15' 39"} (J2000)
MAP_DATE: 19267 TJD; 53 DOY; 21/02/22
MAP_TIME: 81446.27 SOD {22:37:26.27} UT
TRIGGER_DUR: 2.048 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 10.34 [sigma]
IMAGE_SIGNIF: 7.45 [sigma]
MAP_URL: sw01034325000msbsm.fits
SUN_POSTN: 336.40d {+22h 25m 37s} -9.84d {-09d 50' 37"}
MOON_POSTN: 100.84d {+06h 43m 21s} +25.03d {+25d 01' 56"}
MOON_ILLUM: 79 [%]
GAL_COORDS: 280.97, 15.59 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 186.21,-44.38 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

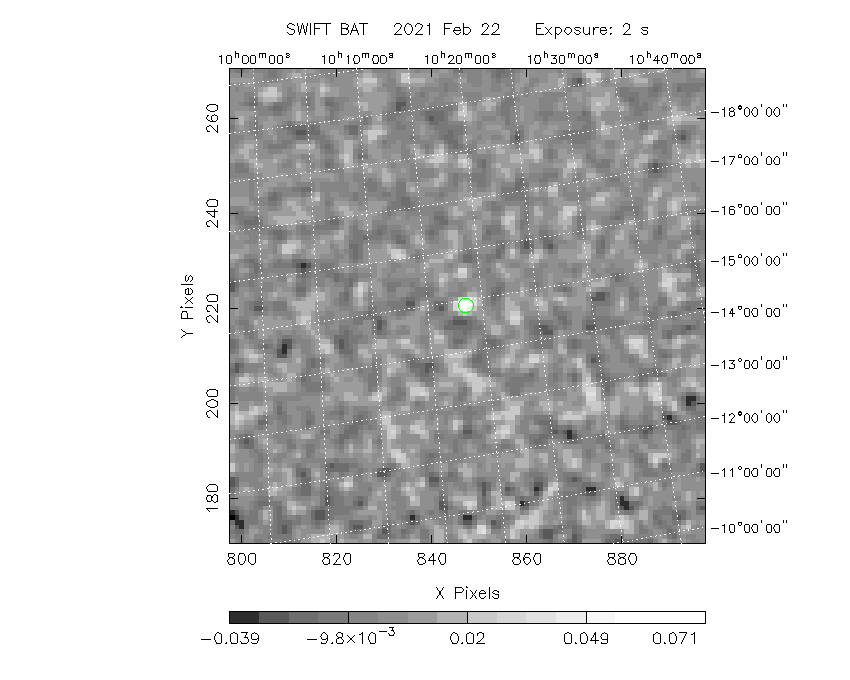

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (154.621, -14.898).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 154.621 -14.898 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.1921 -66.3675 0.0 48.3 -46.6 0.0351 1.4 0.0 LMC X-4
128.8361 -45.1764 0.0 25.2 -7.2 -0.0094 -1.4 0.0 PSR B0833-45
135.5286 -40.5547 0.0 21.1 6.6 0.0006 0.1 0.0 Vela X-1
141.1092 -55.2067 0.0 19.6 -37.6 0.0004 0.1 0.0 4U 0919-54
146.4116 -31.1911 0.0 17.7 44.6 0.0013 0.2 0.0 NGC 2997
146.9173 -30.9489 0.0 17.5 46.2 0.0138 2.1 0.0 MCG -5-23-016
152.4417 -58.2933 0.0 17.5 -58.5 -0.0060 -0.8 0.0 GRO J1008-57
170.3158 -60.6230 0.0 18.8 -88.6 -0.0054 -0.6 0.0 Cen X-3
172.6417 -62.9308 0.0 21.3 -89.7 -0.0145 -1.4 0.0 IGR J11305-6256
174.7572 -37.7386 0.0 9.6 167.0 -0.0007 -0.1 0.0 NGC 3783
176.8692 -61.9539 0.0 21.2 -95.7 0.0117 1.1 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 21.4 -95.6 0.0289 2.8 0.0 4U 1145-61
177.1387 -67.7500 0.0 26.5 -89.9 0.0024 0.2 0.0 EXO 0748-676
186.6567 -62.7703 0.0 24.5 -104.0 0.0313 2.6 0.0 GX 301-2
187.2779 2.0524 0.0 49.2 133.3 -0.0115 -0.2 0.0 3C 273
188.9026 -39.9093 0.0 19.1 -167.1 -0.0069 -1.1 0.0 NGC 4507
195.6985 -63.8358 0.0 28.3 -108.0 -0.0217 -1.7 0.0 PSR B1259-63
196.3645 -49.4682 0.0 23.6 -139.5 -0.0125 -1.8 0.0 NGC 4945
201.3651 -43.0191 0.0 27.5 -154.0 0.0070 1.0 0.0 Cen A
201.6504 -62.1361 0.0 29.8 -113.8 -0.0063 -0.5 0.0 4U 1323-619
207.3302 -30.3094 0.0 36.7 -173.0 0.0090 1.1 0.0 IC 4329A
213.2913 -65.3390 0.0 35.8 -111.4 0.0057 0.4 0.0 Cir Galaxy
228.4837 -59.1356 0.0 42.3 -122.1 0.0164 0.8 0.0 PSR B1509-58
231.2913 -65.3390 0.0 43.2 -112.8 -0.0044 -0.1 0.0 Circinus AGN
235.5971 -52.3861 0.0 47.7 -130.2 0.0330 1.2 0.0 H 1538-522
154.6229 -14.9225 1.5 28.4 82.8 0.0854 7.9 ------ UNKNOWN
109.3134 -27.2061 2.6 46.3 12.3 0.0706 4.5 ------ UNKNOWN
94.5217 -45.4463 2.2 48.4 -17.3 0.0768 5.2 ------ UNKNOWN
217.9933 -40.9648 2.2 39.9 -151.4 0.0729 5.3 ------ UNKNOWN
221.6906 -38.2818 3.5 43.5 -153.5 0.0489 3.3 ------ UNKNOWN
94.1239 -51.7358 2.6 46.5 -25.4 0.0673 4.5 ------ UNKNOWN
225.5054 -38.7985 3.4 46.0 -151.1 0.0507 3.4 ------ UNKNOWN
124.9608 -67.4175 2.3 32.6 -52.0 0.0669 5.0 ------ UNKNOWN
117.5685 -67.4063 2.4 35.1 -49.7 0.0680 4.8 ------ UNKNOWN
96.6871 -59.3566 3.0 43.5 -35.5 0.0601 3.9 ------ UNKNOWN
220.0395 -50.1619 3.1 38.8 -136.8 0.0572 3.7 ------ UNKNOWN
99.1652 -62.0100 3.3 42.0 -39.2 0.0530 3.5 ------ UNKNOWN
202.4370 -64.6908 2.8 31.3 -109.5 0.0592 4.1 ------ UNKNOWN
223.7612 -48.7568 2.5 41.5 -138.1 0.0689 4.6 ------ UNKNOWN
223.7521 -49.2758 2.1 41.3 -137.4 0.0807 5.5 ------ UNKNOWN
143.6403 -74.1224 2.1 33.2 -68.6 0.0859 5.4 ------ UNKNOWN
222.3551 -53.3497 2.7 39.7 -131.5 0.0658 4.3 ------ UNKNOWN
117.4278 -72.1855 2.6 37.2 -57.1 0.0680 4.4 ------ UNKNOWN
193.4867 -71.5218 2.3 32.7 -95.4 0.0717 5.0 ------ UNKNOWN
233.2111 -67.9123 1.7 43.9 -109.1 0.3096 6.8 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.5286 -40.5547 0.0 21.1 6.6 0.0006 0.1 0.0 Vela X-1
170.3158 -60.6230 0.0 18.8 -88.6 -0.0054 -0.6 0.0 Cen X-3
186.6567 -62.7703 0.0 24.5 -104.0 0.0313 2.6 0.0 GX 301-2
154.6229 -14.9225 1.5 28.4 82.8 0.0854 7.9 ------ UNKNOWN
109.3134 -27.2061 2.6 46.3 12.3 0.0706 4.5 ------ UNKNOWN
94.5217 -45.4463 2.2 48.4 -17.3 0.0768 5.2 ------ UNKNOWN
217.9933 -40.9648 2.2 39.9 -151.4 0.0729 5.3 ------ UNKNOWN
221.6906 -38.2818 3.5 43.5 -153.5 0.0489 3.3 ------ UNKNOWN
94.1239 -51.7358 2.6 46.5 -25.4 0.0673 4.5 ------ UNKNOWN
225.5054 -38.7985 3.4 46.0 -151.1 0.0507 3.4 ------ UNKNOWN
124.9608 -67.4175 2.3 32.6 -52.0 0.0669 5.0 ------ UNKNOWN
117.5685 -67.4063 2.4 35.1 -49.7 0.0680 4.8 ------ UNKNOWN
96.6871 -59.3566 3.0 43.5 -35.5 0.0601 3.9 ------ UNKNOWN
220.0395 -50.1619 3.1 38.8 -136.8 0.0572 3.7 ------ UNKNOWN
99.1652 -62.0100 3.3 42.0 -39.2 0.0530 3.5 ------ UNKNOWN
202.4360 -64.6908 2.8 31.3 -109.5 0.0593 4.1 ------ UNKNOWN
223.7612 -48.7568 2.5 41.5 -138.1 0.0689 4.6 ------ UNKNOWN
223.7521 -49.2758 2.1 41.3 -137.4 0.0807 5.5 ------ UNKNOWN
143.6403 -74.1224 2.1 33.2 -68.6 0.0859 5.4 ------ UNKNOWN
222.3551 -53.3497 2.7 39.7 -131.5 0.0658 4.3 ------ UNKNOWN
117.4278 -72.1855 2.6 37.2 -57.1 0.0680 4.4 ------ UNKNOWN
193.4867 -71.5218 2.3 32.7 -95.4 0.0717 5.0 ------ UNKNOWN
233.2107 -67.9122 1.7 43.9 -109.1 0.3091 6.8 ------ UNKNOWN
Search for UNKNOWN source R.A. = 94.1239 Dec. = -51.7358 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 94.5217 Dec. = -45.4463 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 96.6871 Dec. = -59.3566 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 99.1652 Dec. = -62.0100 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 109.3134 Dec. = -27.2061 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 117.4278 Dec. = -72.1855 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 117.5685 Dec. = -67.4063 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 124.9608 Dec. = -67.4175 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 143.6403 Dec. = -74.1224 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 154.6229 Dec. = -14.9225 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 193.4867 Dec. = -71.5218 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 202.4360 Dec. = -64.6908 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 217.9933 Dec. = -40.9648 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 220.0395 Dec. = -50.1619 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 221.6906 Dec. = -38.2818 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 222.3551 Dec. = -53.3497 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 223.7521 Dec. = -49.2758 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 223.7612 Dec. = -48.7568 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 225.5054 Dec. = -38.7985 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 233.2107 Dec. = -67.9122 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1034325/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Mon Feb 22 17:50:18 EST 2021
