batgrbproduct analysis for trigger=1035744

batgrbproduct Analysis for Trigger=1035744

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Mar  6 04:05:26 EST 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1035744/GCN5_download_cron
======================================================================

  Trigger: 01035744      Segment: 000

  BAT Trigger Time: 636599408   [s; MET]
      Trigger Stop: 636599472   [s; MET]
               UTC: 2021-03-05T01:09:41.388320    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.830942961012   Dec: -15.7857939410824  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    14.28
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    14.28

  Flight Position:   [ source = BAT ]
    RA: 244.830942961012   Dec: -15.7857939410824  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.941446278628   Dec: -15.7340178286285  [deg; J2000]
        { 16h 19m 45.9s , -15d 44' 02.5" }
         +/- 3.37151455062933 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.0909768115778 [arcmin] (formal 1-sigma fit error)
    SNR: 5.3589858577451

  Angular difference between Flight and Ground position is 7.096998 arcmin

  Partial Coding Fraction: 0.5859375    [ including projection effects ]

  Duration
     T90: 448.94000005722 +/- 62.0816309681782
        Measured from: 416.560000061989
                   to: 865.500000119209     [s; relative to TRIGTIME]
     T50: 242.859999895096 +/- 27.3751373580596
        Measured from: 548.556000113487
                   to: 791.416000008583     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 765.223999977112
                   to: 766.223999977112     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 382.136000037193
                   to: 952.863999962807     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    24.289620   2.633703   0.419792   0.238257
           0.260166   0.229798   0.192214   0.170829 [error]
 Peak      0.071456   0.020827   0.020102   0.003247
           0.011145   0.009677   0.007997   0.006801 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.11e-06 1.21e-06 8.30e-08 6.04e-09 9.41e-06 9.41e-06   erg/cm2
              Error 6.82e-07 1.29e-07 2.36e-08 2.99e-09 6.63e-07 6.62e-07   erg/cm2
Peak flux Power-law 7.49e-01 1.96e-01 2.70e-02 4.21e-03 9.75e-01 9.77e-01   ph/cm2/s
              Error 2.13e-01 1.65e-01 5.00e-02 2.05e-02 2.61e-01 2.63e-01   ph/cm2/s

Fluence   Cutoff-PL 7.91e-06 9.80e-07 4.54e-09 1.14e-13 8.89e-06 8.89e-06   erg/cm2
              Error 7.54e-07 1.74e-07 1.34e-08 4.17e-11 7.72e-07 7.72e-07   erg/cm2
Peak flux Cutoff-PL 7.52e-01 1.91e-01 2.53e-02 3.76e-03 9.70e-01 9.71e-01   ph/cm2/s
              Error 2.13e-01 1.65e-01 -------- -------- 2.61e-01 2.63e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.870    0.270    -      -           1.53e-04 3.48e-05   61.290 57
CPL   1.513    0.000       2.5    0.0      4.64e-01 0.00e+00   53.770 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.835    1.493    -      -           1.83e-03 2.30e-03   71.600 57
CPL   1.947    0.000       0.5    0.0      8.61e-02 0.00e+00   74.280 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  570.728  382.136  952.864
T90   448.940  416.560  865.500
T50   242.860  548.556  791.416
Peak    1.000  765.224  766.224

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.9414 -15.7340 0.0356   23.8  117.6       2.7079     5.4  TRIG_01035744
------------------------------------------

Foreground time interval of the image:
382.136 683.980 (delta_t = 301.844 [sec])
685.000 745.790 (delta_t =  60.790 [sec])
747.000 761.680 (delta_t =  14.680 [sec])
763.000 807.720 (delta_t =  44.720 [sec])
809.000 822.190 (delta_t =  13.190 [sec])
823.000 833.001 (delta_t =  10.001 [sec])
Background time interval of the image:
-208.599 382.136 (delta_t = 590.735 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

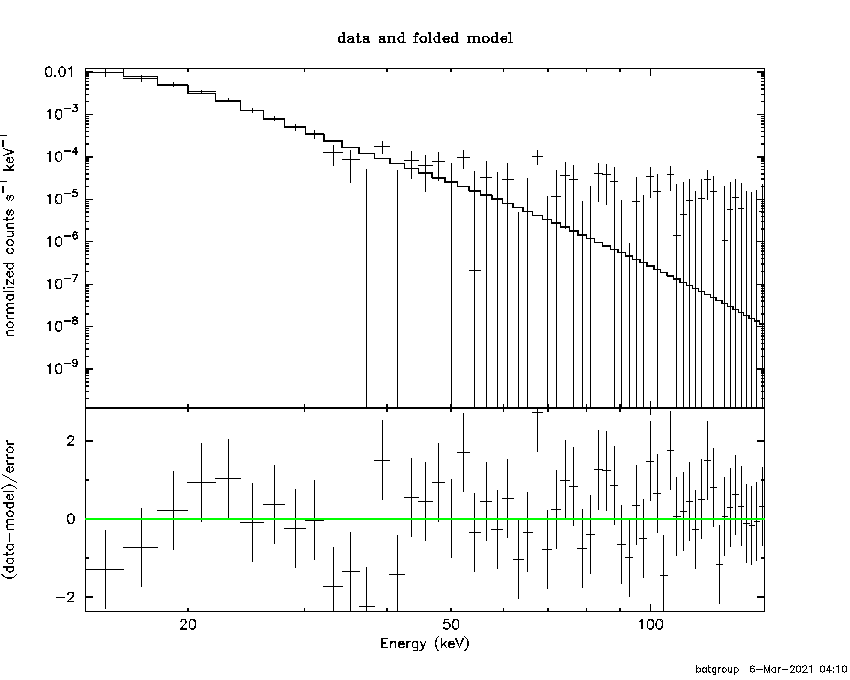

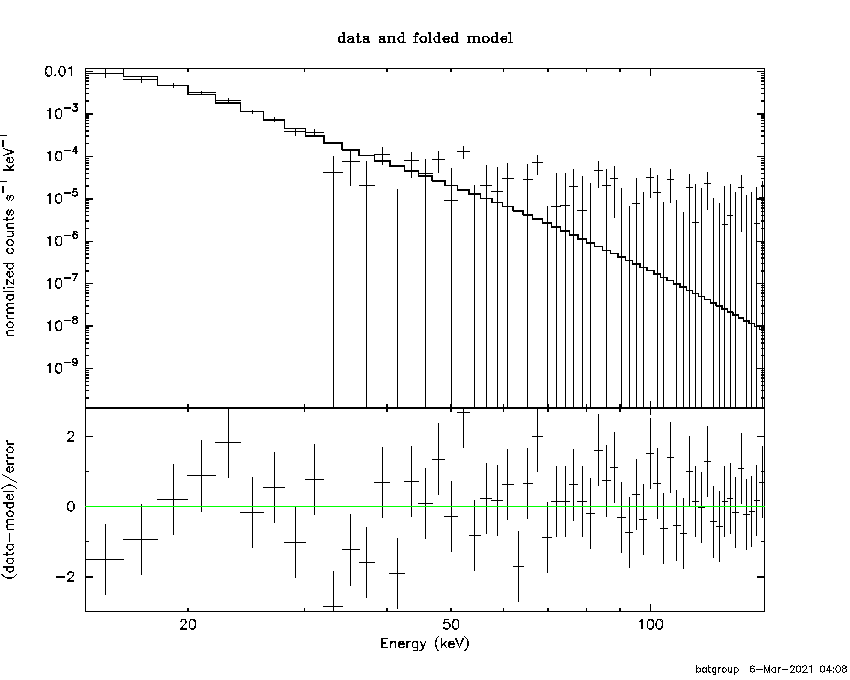

Power-law model

Multiple GTIs in the spectrum
tstart tstop
382.136000 683.980000
685.000000 745.790000
747.000000 761.680000
763.000000 807.720000
809.000000 822.190000
823.000000 888.030000
889.000000 894.230000
895.000000 952.864000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.87043     ( -0.270433   0.270462 )
Norm@50keV  : 1.52847E-04    ( -3.16695e-05   3.80249e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   61.29     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.25e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 563.3 sec: 0.552487 ( -0.0432616  0.0438034 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.40948e-06 ( -6.59112e-07  6.66412e-07 ) ergs/cm2

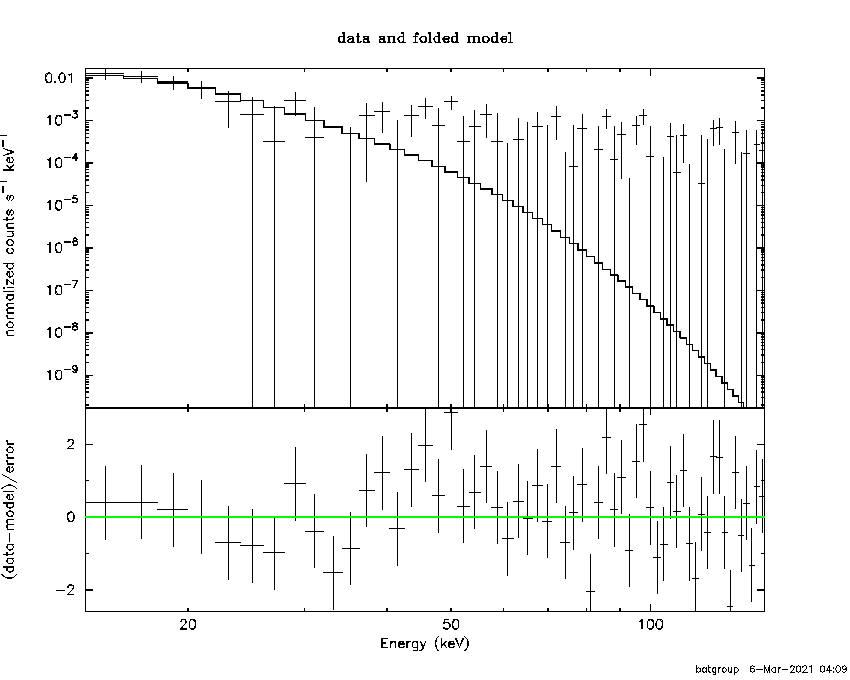

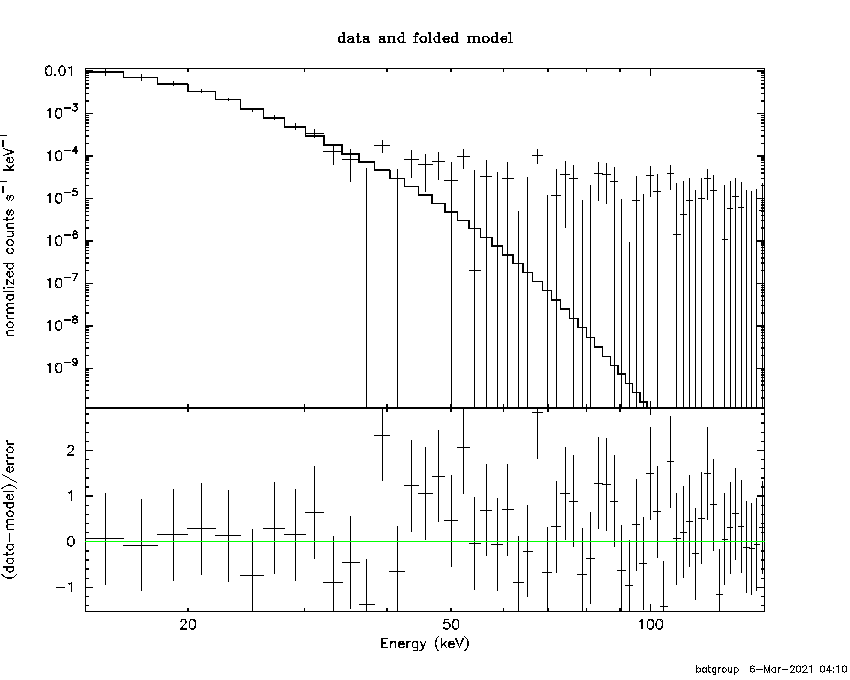

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
382.136000 683.980000
685.000000 745.790000
747.000000 761.680000
763.000000 807.720000
809.000000 822.190000
823.000000 888.030000
889.000000 894.230000
895.000000 952.864000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.51346     (     )
Epeak [keV] : 2.46403      (   )
Norm@50keV  : 0.463618    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.77     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.60e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 563.3 sec: 0.525610 ( -0.050675  0.049489 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.89377e-06 ( -7.8141e-07  7.63103e-07 ) ergs/cm2

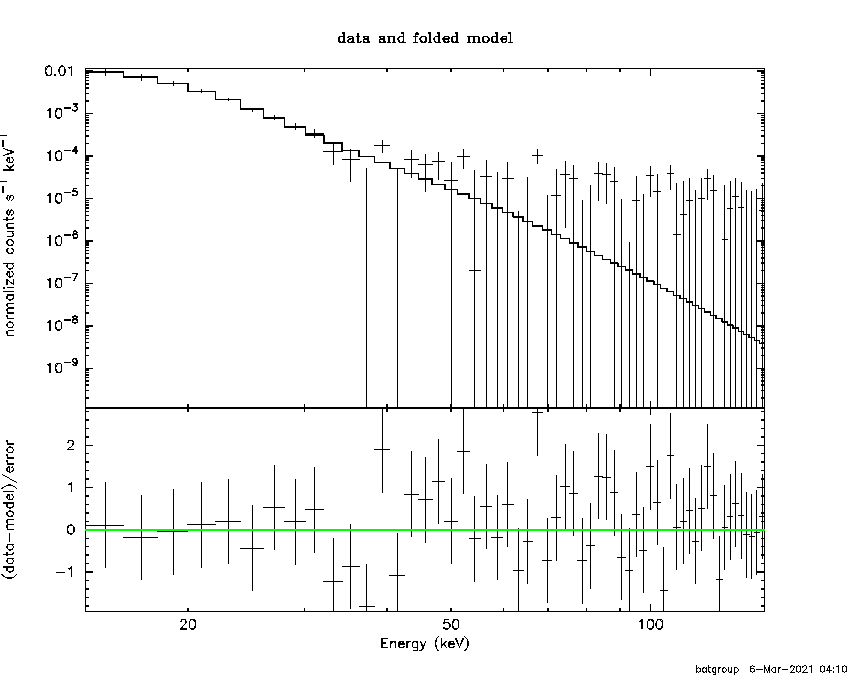

Band function

Multiple GTIs in the spectrum
tstart tstop
382.136000 683.980000
685.000000 745.790000
747.000000 761.680000
763.000000 807.720000
809.000000 822.190000
823.000000 888.030000
889.000000 894.230000
895.000000 952.864000
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -6.54338   ( 4.16871   6.54338 )
beta        : -5.89337    ( -0.254677   0.287678 )
Epeak [keV] : 287.446      ( -287.446 -287.446 )
Norm@50keV   : 2.03599E-02    ( -0.00409383   0.00539075 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 563.3 sec: 0.391029 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

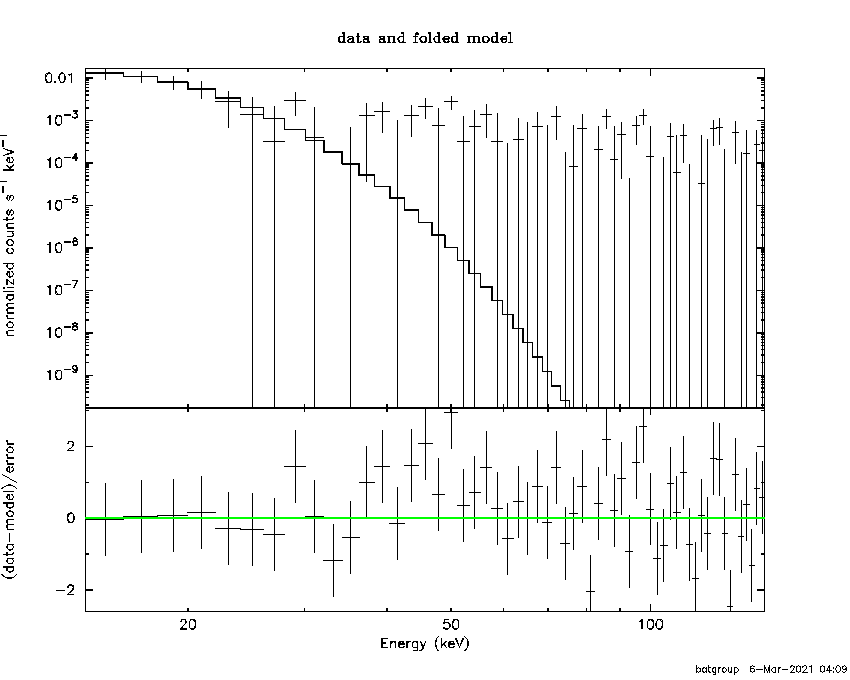

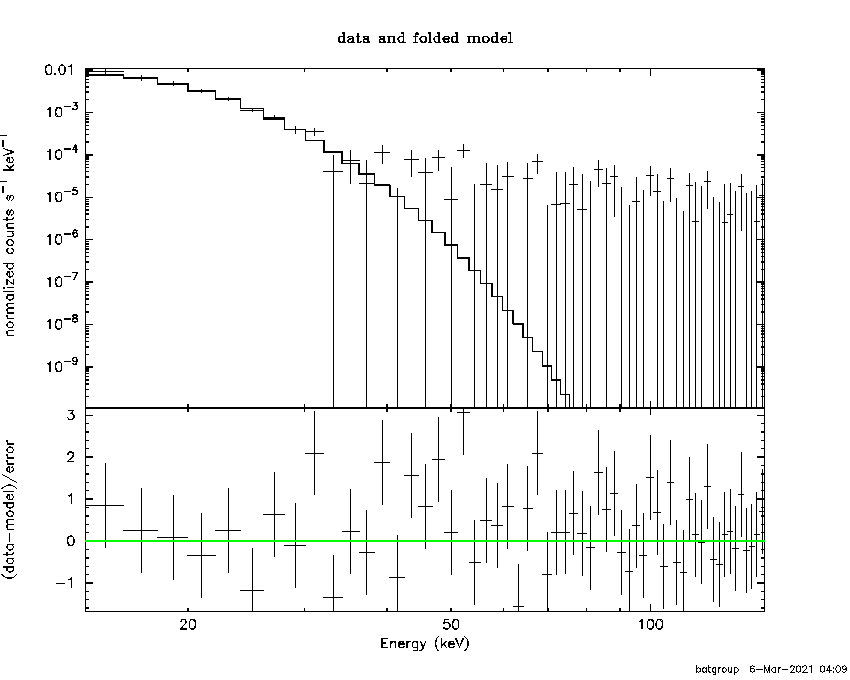

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.80338  (-0.140926  0.154922)
R^2/D10^2   : 112.128  (-39.2243   59.023)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.10     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.09e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.654e-06   1.011e-06
25- 50  8.750e-07   1.146e-07
50-150  7.970e-10   3.678e-10
15-150  8.529e-06   9.632e-07

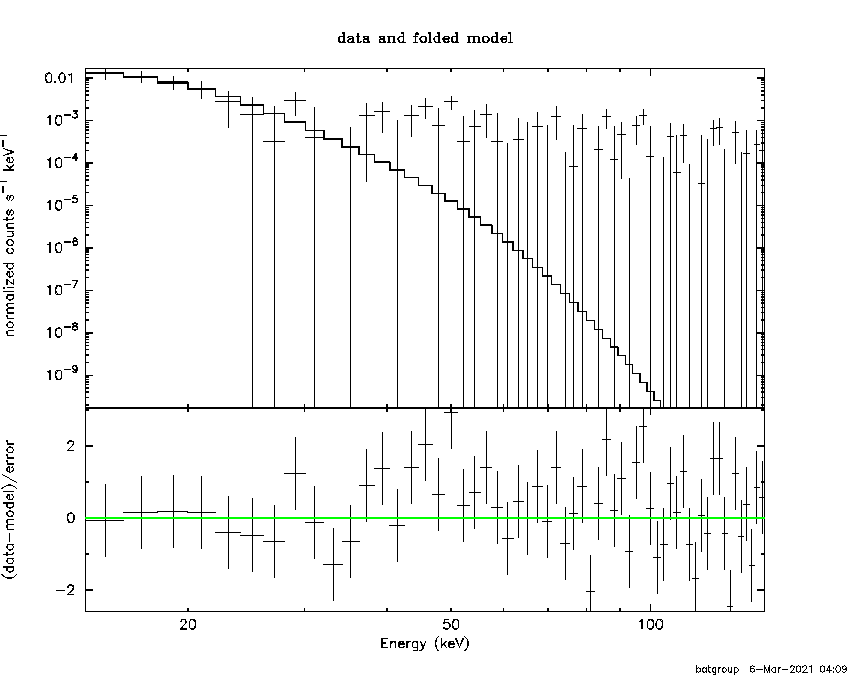

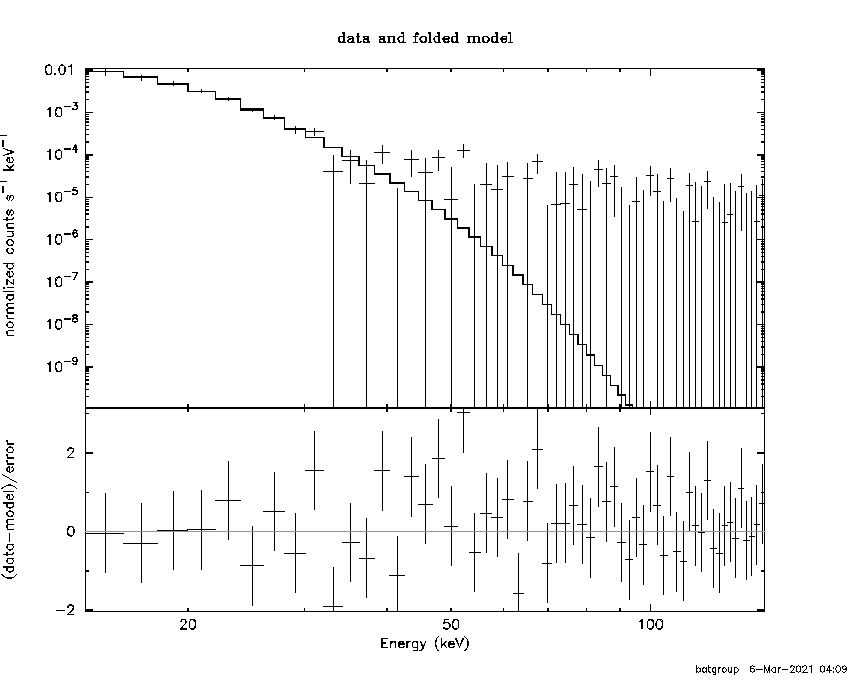

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.97050       (-0.36608      0.419704)
Norm        : 124.436       (-36.953     52)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.74     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.98e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.926e-06   8.450e-07
25- 50  9.884e-07   1.301e-07
50-150  4.972e-09   2.288e-09
15-150  8.919e-06   9.632e-07

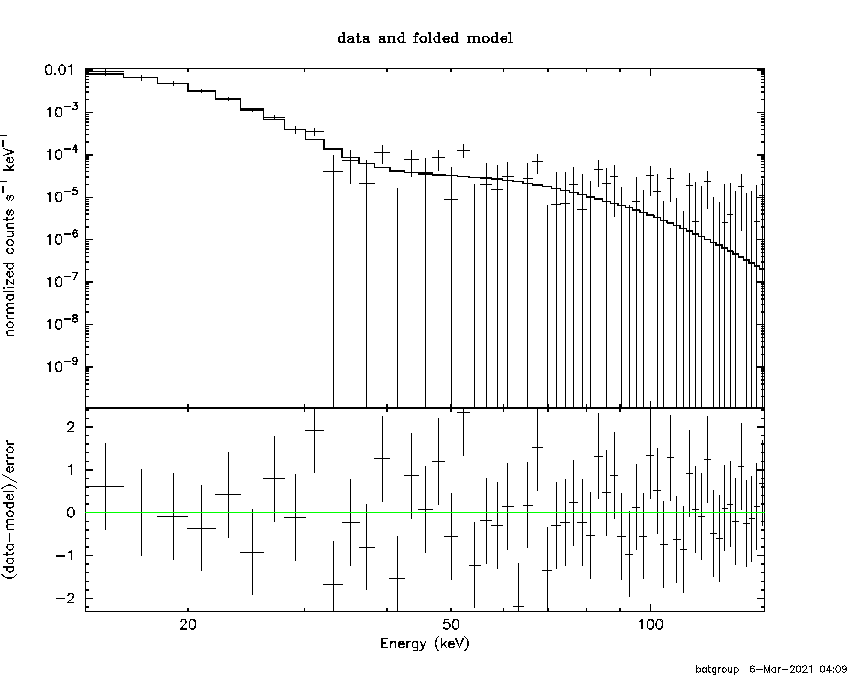

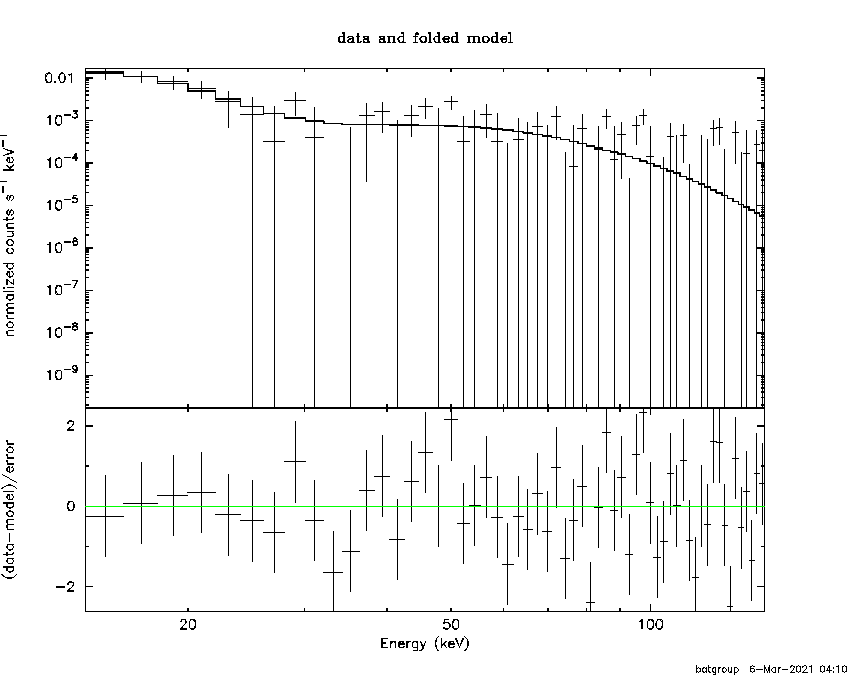

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.71946        (-0.171198      0.167209)
R1^2/D10^2  : 139.373        (-52.5147      92.0055)
kT2 [keV]   : 17.6885        (-9.51156      41.7318)
R2^2/D10^2  : 1.27737E-03    (-0.00125695   0.023927)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.89     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.73e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.813e-06   1.065e-06
25- 50  9.998e-07   1.780e-07
50-150  4.682e-07   3.279e-07
15-150  9.281e-06   1.186e-06

Peak spectrum fit

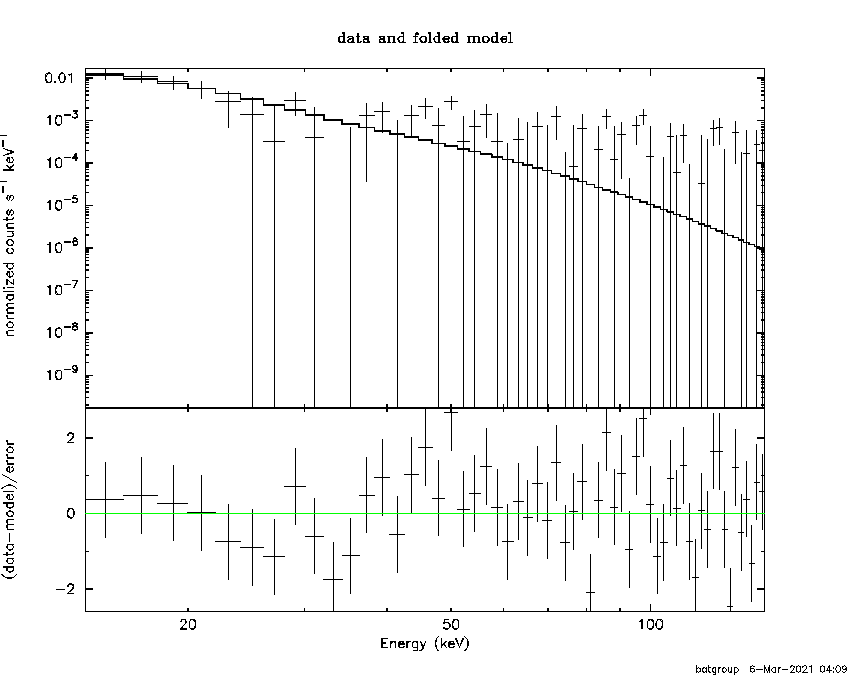

Power-law model

Time interval is from  765.224 sec. to  766.224 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.83453     ( -1.2189   1.7664 )
Norm@50keV  : 1.82582E-03    ( -0.00151455   0.00307571 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   71.60     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.23e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.974707 ( -0.2639  0.257808 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.55994e-08 ( -1.2885e-08  1.71474e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  765.224 sec. to  766.224 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.94683     (     )
Epeak [keV] : 0.508180      (   )
Norm@50keV  : 8.61381E-02    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   74.28     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.15e-02 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.970405 ( -0.26063  0.261305 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.60001e-08 ( 0  0 ) ergs/cm2

Band function

Time interval is from  765.224 sec. to  766.224 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -2.15081   ( 2.14822   2.14822 )
beta        : -3.86926    ( -1.754   1.23377 )
Epeak [keV] : 41.5913      ( -41.5913 -41.5913 )
Norm@50keV   : 3.23132    ( -3.1954   136.375 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.74510  (-0.656496  0.891344)
R^2/D10^2   : 220.354  (-220.354   1294.43)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   74.33     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.14e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.322e-08   1.354e-08
25- 50  2.456e-09   1.568e-09
50-150  1.859e-12   2.166e-12
15-150  2.568e-08   1.452e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.81656       (-2.20787      7.16704)
Norm        : 120.635       (-120.689     547.934)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   74.08     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.37e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.281e-08   1.281e-08
25- 50  3.987e-09   2.674e-09
50-150  4.205e-11   4.939e-11
15-150  2.684e-08   1.510e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.41488        (-0.652295      0.784535)
R1^2/D10^2  : 474.795        (-396.651      4846.87)
kT2 [keV]   : 18.1937        (-7.66021      22.8558)
R2^2/D10^2  : 2.74654E-02    (-0.0254902   0.103714)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   63.71     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.97e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.199e-08   1.236e-08
25- 50  9.743e-09   5.890e-09
50-150  2.037e-08   1.445e-08
15-150  5.210e-08   2.761e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.74160     ( -0.273305   0.273101 )
Norm@50keV  : 1.84632E-04    ( -3.82012e-05   4.58846e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.92     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.91e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 445.2 sec: 0.586978 ( -0.0462315  0.0468962 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.95657e-06 ( -5.55009e-07  5.62158e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.78224     (     )
Epeak [keV] : 1.22690      (   )
Norm@50keV  : 0.257141    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.08     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.61e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 445.2 sec: 0.566116 ( -0.053209  0.051991 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.61942e-06 ( -6.56893e-07  6.43982e-07 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.391255   ( -7.62391   4.61166 )
beta        : -6.36473    ( -2.29549   0.595805 )
Epeak [keV] : 6.35863      ( -1.33282 1.10849 )
Norm@50keV   : 4.24899    ( -2.6475   60507 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 445.2 sec: 0.480006 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.21e-06
S(50-100 keV) = 8.30e-08

T90 vs. Hardness ratio plot

T90                                   = 448.94000005722 sec.
Hardness ratio (energy fluence ratio) = 0.068595

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.108429
Count Ratio (50-100 keV) / (15-25 keV) = 0.0172828

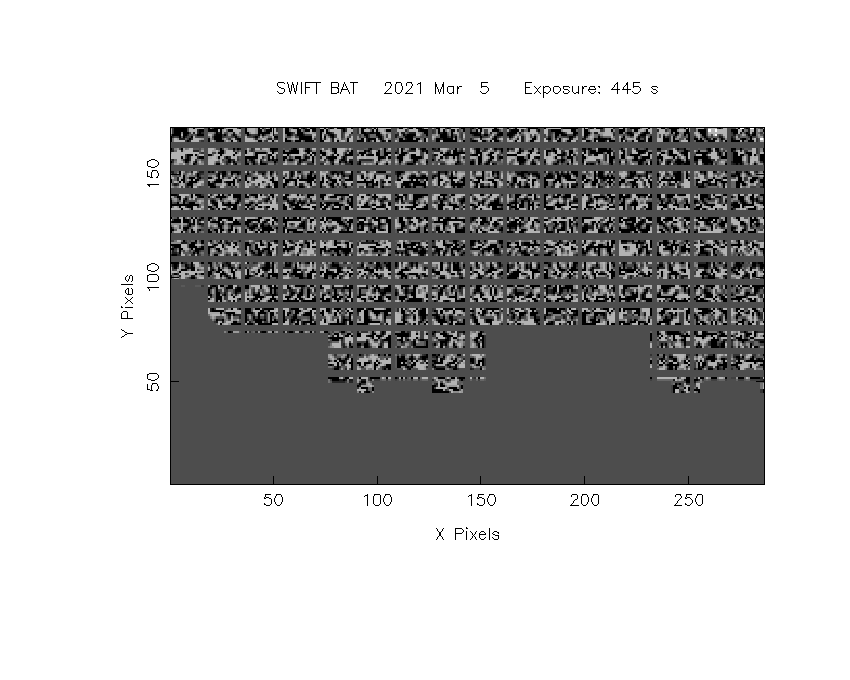

Mask shadow pattern

IMX = -2.041979380236950E-01, IMY = -3.913246388335264E-01

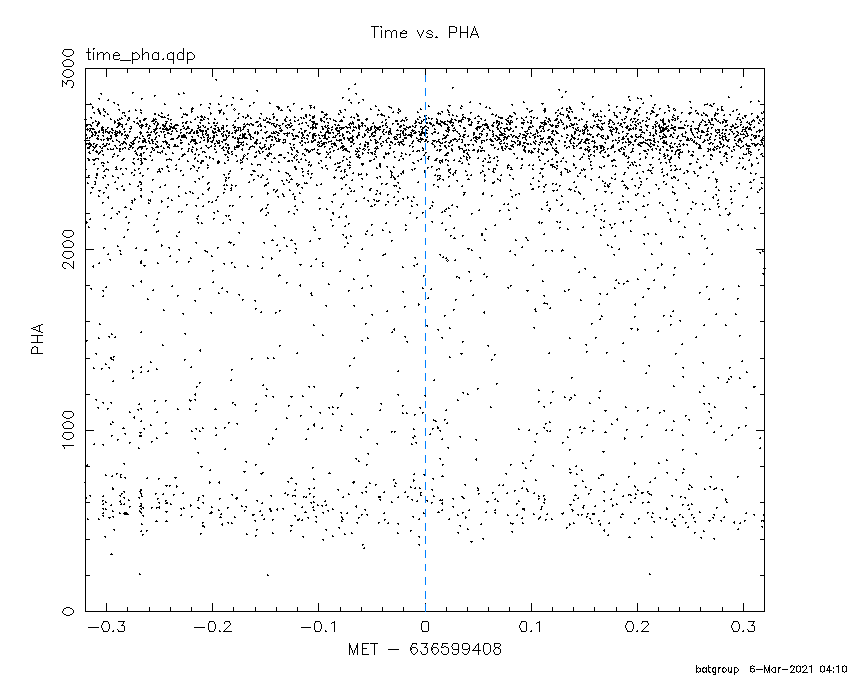

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-208.599400 382.136000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8846 -15.7552    0.4  23.8  117.4  30.6480  26.4    8.8	Sco X-1
256.0641 -37.7222    5.2  12.3   40.4   1.7293   2.2    8.2	4U 1700-377
256.2391 -36.4962    7.4  11.4   44.5   1.1937   1.5   10.4	GX 349+2
262.8361 -24.8658    4.1   5.2  139.8   1.9514   2.8   11.9	GX 1+4
264.8944 -44.4183    7.1  15.5    2.4  -1.3050  -1.6    6.8	4U 1735-44
268.2782  -1.4866    6.8  27.6 -177.6  -1.4877  -1.7    5.8	SW J1753.5-0127
270.1784 -25.2213    5.1   5.0 -139.3   1.5559   2.3   10.3	GX 5-1
270.1625 -25.8424    2.5   4.6 -134.3   3.4562   5.0    9.6	GRS 1758-258
273.9677 -13.9909    6.6  16.6 -155.1   1.2684   1.7    3.5	GX 17+2
275.8221 -30.5205   13.5   8.3  -78.8   0.6211   0.9   10.6	H1820-303
285.0660 -25.0122    6.9  17.1 -100.8  -1.3297  -1.7    5.7	HT1900.1-2455
288.6856  10.8972    7.1  45.3 -150.1   2.6597   1.6    7.2	GRS 1915+105
262.8854 -33.8068   10.7   5.7   29.6  -0.8603  -1.1    5.4	GX 354-0
226.2352 -11.7524    2.8  41.2  104.6   9.9547   4.1 ------	UNKNOWN
237.1151   6.7239    2.2  45.5  135.4  14.7163   5.1 ------	UNKNOWN
206.2049 -77.7339    3.9  55.5   11.3  11.6947   3.0 ------	UNKNOWN
257.3173  15.8406    2.9  45.7  166.1   7.0807   4.0 ------	UNKNOWN
255.5728 -48.8878    1.0  21.6   18.0   9.0894  11.2 ------	UNKNOWN
280.6864  -3.8196    3.0  28.6 -150.7   3.2177   3.8 ------	UNKNOWN
284.5951 -13.9001    2.7  22.6 -129.7   3.7245   4.2 ------	UNKNOWN
346.1708 -75.8916    3.9  59.5  -17.8  12.9362   3.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
382.136000 683.980000
685.000000 745.790000
747.000000 761.680000
763.000000 807.720000
809.000000 822.190000
823.000000 833.000620

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9433 -15.7235    2.3  23.8  117.6   2.5558   5.0    5.4	Sco X-1
255.8983 -37.9842    2.0  12.5   39.9   2.1518   5.6    9.4	4U 1700-377
256.6050 -36.4311    4.8  11.1   43.8   0.9065   2.4    8.2	GX 349+2
262.8491 -24.6673    3.7   5.4  141.2  -1.1583  -3.1    9.9	GX 1+4
264.8110 -44.3778    5.0  15.4    2.7   0.8375   2.3    5.2	4U 1735-44
268.2522  -1.4861    4.5  27.6 -177.7  -1.1204  -2.6    7.2	SW J1753.5-0127
270.2920 -25.0956    8.5   5.2 -139.3  -0.5008  -1.4    1.1	GX 5-1
270.4564 -25.8926    7.1   4.7 -131.7   0.6118   1.6   12.2	GRS 1758-258
274.0889 -14.1401    3.5  16.5 -154.5   1.2388   3.3    7.9	GX 17+2
275.7514 -30.3740    3.4   8.2  -79.7  -1.2261  -3.4    9.0	H1820-303
285.0529 -24.8986   18.1  17.1 -101.1  -0.2513  -0.6    1.6	HT1900.1-2455
288.7392  10.9203    7.8  45.4 -150.1   1.0563   1.5    3.8	GRS 1915+105
263.0644 -33.9887    5.8   5.8   27.3  -0.7473  -2.0   10.0	GX 354-0
229.5430 -56.2199    2.1  37.6   31.5   3.9617   5.6 ------	UNKNOWN
274.2154 -26.1338    2.2   7.5 -112.3   1.8138   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
869.200630 888.030000
889.000000 894.230000
895.000000 956.820000
958.000000 963.132200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9793 -15.6454    0.6  26.9  100.2   5.6040  20.9    0.3	Sco X-1
254.4564  35.2666    7.0  56.0  171.3   1.4937   1.6    4.6	Her X-1
256.0087 -37.8386    2.3  24.8   42.9   1.0578   5.0    1.1	4U 1700-377
256.2538 -36.3962   10.5  23.6   44.9   0.2326   1.1    8.9	GX 349+2
262.9602 -24.7113    4.3  11.5   61.9   0.4106   2.7    3.4	GX 1+4
264.5346 -44.3604    6.9  27.4   22.8   0.3297   1.7   10.4	4U 1735-44
268.3404  -1.3052    5.4  17.3  173.6   0.3483   2.1    9.0	SW J1753.5-0127
270.2158 -25.0240    7.8   7.5   29.2   0.2618   1.5    5.0	GX 5-1
270.4015 -25.7674    4.5   8.2   26.2   0.4586   2.6    5.5	GRS 1758-258
273.9108 -13.9881    4.3   4.0 -158.0   0.3927   2.7    6.2	GX 17+2
276.0593 -30.1922    0.0  12.6   -2.7   0.2932   1.5   12.6	H1820-303
284.9150 -25.1021    0.0  13.2  -45.5   0.0209   0.1   12.7	HT1900.1-2455
288.8625  11.0936   37.8  33.0 -141.0  -0.0730  -0.3    9.7	GRS 1915+105
263.0319 -33.9720   11.3  18.3   36.7  -0.1834  -1.0    8.5	GX 354-0
255.5437 -48.7142    2.4  33.9   30.3   1.3259   4.9 ------	UNKNOWN
316.9734 -70.3380    3.5  58.6   -6.4   3.8879   3.3 ------	UNKNOWN
283.7672 -16.6543    2.2  10.3  -86.0   0.8598   5.3 ------	UNKNOWN
293.0522  30.9575    2.9  52.6 -148.8   2.0685   4.0 ------	UNKNOWN

Plot creation:
Sat Mar  6 04:11:10 EST 2021
