Special notes of this burst
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
119.2312 -66.9681 0.0190 29.9679 -8.0631 2.4328422 10.061 TRIG_01036139
Foreground time interval of the image:
-116.323 28.077 (delta_t = 144.400 [sec])
Background time interval of the image:
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.
1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval

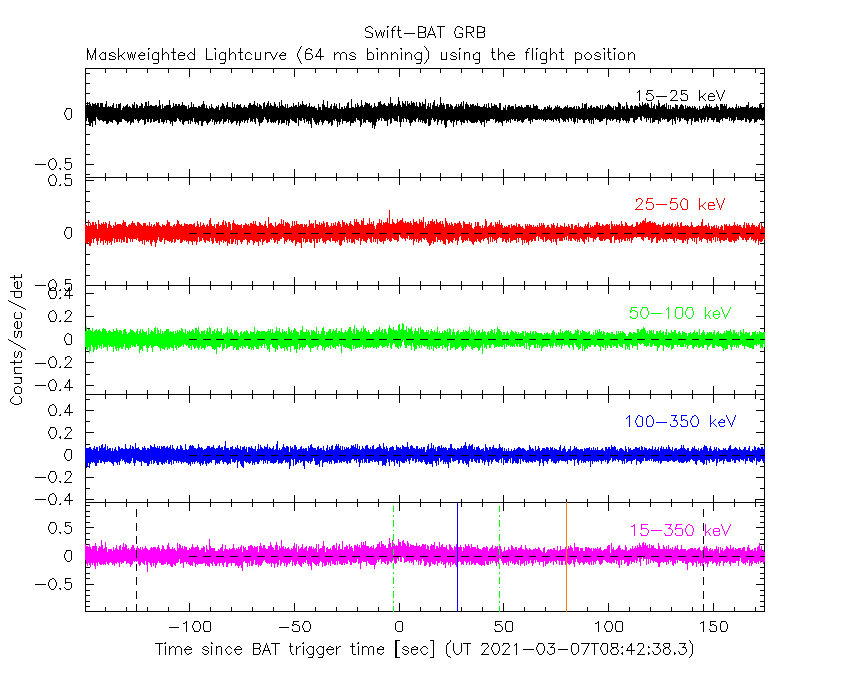

From T100_start to T100_end

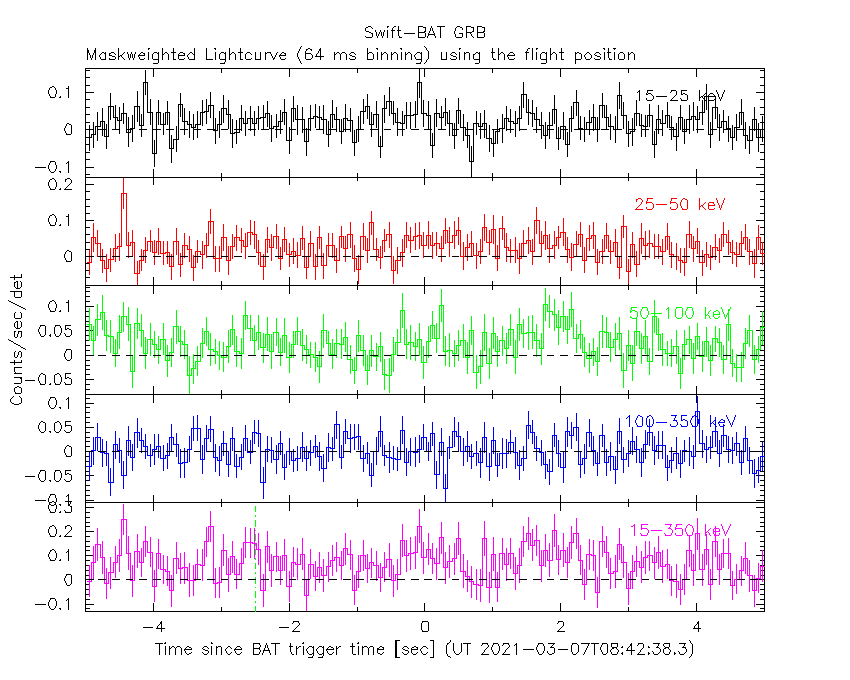

From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM
Power-law model
Time interval is from -149.812 sec. to 174.532 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.54082 ( -0.162288 0.163285 )
Norm@50keV : 8.91777E-04 ( -8.54146e-05 8.47099e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 44.14 using 59 bins.
Reduced chi-squared = 0.774386
# Null hypothesis probability of 8.93e-01 with 57 degrees of freedom
Photon flux (15-150 keV) in 324.3 sec: 0.112599 ( -0.010371 0.01038 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.72657e-06 ( -2.84452e-07 2.88217e-07 ) ergs/cm2
Cutoff power-law model
Time interval is from -149.812 sec. to 174.532 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.53858 ( -0.583427 0.299894 )
Epeak [keV] : 9977.59 ( -9971.93 -9971.93 )
Norm@50keV : 8.94242E-04 ( -0.000198069 0.00105498 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 44.14 using 59 bins.
Reduced chi-squared = 0.788214
# Null hypothesis probability of 8.74e-01 with 56 degrees of freedom
Photon flux (15-150 keV) in 324.3 sec: 0.112419 ( -0.010705 0.010525 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.71617e-06 ( -3.25185e-07 2.95357e-07 ) ergs/cm2
Band function
Time interval is from -149.812 sec. to 174.532 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 13.3582 (-1.72884 2.05857)
R^2/D10^2 : 1.84870E-02 (-0.00735704 0.0119535)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared 80.60 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 2.15e-02 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.267e-07 3.978e-08
25- 50 8.038e-07 9.632e-08
50-150 9.210e-07 1.861e-07
15-150 1.951e-06 2.408e-07
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 199.061 (-73.6644 -199.155)
Norm : 0.457867 (-0.0412576 0.0419173)
------------------------------------------------------------
#Fit statistic : Chi-Squared 44.57 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 8.84e-01 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 3.698e-07 6.906e-08
25- 50 7.113e-07 2.615e-07
50-150 1.559e-06 8.199e-07
15-150 2.640e-06 1.148e-06
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 31.9704 (-8.81717 22.1638)
R1^2/D10^2 : 7.19702E-04 (-0.00055654 0.00140217)
kT2 [keV] : 7.07554 (-1.34243 1.60201)
R2^2/D10^2 : 0.132935 (-0.0666078 0.145533)
------------------------------------------------------------
#Fit statistic : Chi-Squared 39.84 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 9.38e-01 with 55 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 3.864e-07 1.391e-07
25- 50 7.170e-07 2.066e-07
50-150 1.678e-06 8.607e-07
15-150 2.781e-06 1.009e-06
Peak spectrum fit
Power-law model
Time interval is from 1.272 sec. to 2.272 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.27577 ( -0.326771 0.327471 )
Norm@50keV : 8.36634E-03 ( -0.00173602 0.00173554 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 79.96 using 59 bins.
Reduced chi-squared = 1.40281
# Null hypothesis probability of 2.41e-02 with 57 degrees of freedom
Photon flux (15-150 keV) in 1 sec: 0.993843 ( -0.211149 0.212027 ) ph/cm2/s
Energy fluence (15-150 keV) : 8.31802e-08 ( -1.86237e-08 1.88151e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 1.272 sec. to 2.272 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: -2.31447 ( 2.35283 2.62634 )
Epeak [keV] : 71.0055 ( -10.6594 31.1087 )
Norm@50keV : 0.259488 ( -0.278709 119.323 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 72.84 using 59 bins.
Reduced chi-squared = 1.30071
# Null hypothesis probability of 6.47e-02 with 56 degrees of freedom
Photon flux (15-150 keV) in 1 sec: 0.841271 ( -0.262513 0.250609 ) ph/cm2/s
Energy fluence (15-150 keV) : 7.49722e-08 ( -1.9084e-08 1.96101e-08 ) ergs/cm2
Band function
Time interval is from 1.272 sec. to 2.272 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 18.8146 (-3.11344 4.0166)
R^2/D10^2 : 6.10390E-02 (-0.0298674 0.0520797)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared 72.68 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 7.88e-02 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 4.262e-09 1.596e-09
25- 50 2.036e-08 8.118e-09
50-150 5.286e-08 2.234e-08
15-150 7.748e-08 2.689e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 200.000 (-77.7098 -200)
Norm : 4.15967 (-0.868165 0.868165)
------------------------------------------------------------
#Fit statistic : Chi-Squared 80.73 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 2.10e-02 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.036e-08 6.175e-09
25- 50 1.993e-08 1.154e-08
50-150 4.372e-08 2.567e-08
15-150 7.401e-08 4.301e-08
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 2.12619 (-2.12872 12.9814)
R1^2/D10^2 : 203.216 (-204.217 -204.217)
kT2 [keV] : 19.5814 (-3.38584 4.642)
R2^2/D10^2 : 5.18506E-02 (-0.0273856 0.0482828)
------------------------------------------------------------
#Fit statistic : Chi-Squared 70.31 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 8.00e-02 with 55 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 7.019e-09 2.739e-09
25- 50 1.909e-08 8.948e-09
50-150 5.377e-08 2.496e-08
15-150 7.988e-08 2.854e-08
Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.42181 ( -0.199691 0.198726 )
Norm@50keV : 1.16782E-03 ( -0.000134949 0.000134501 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 49.80 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 7.39e-01 with 57 degrees of freedom
Photon flux (15-150 keV) in 144.4 sec: 0.142939 ( -0.0166781 0.0167092 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.62235e-06 ( -2.06069e-07 2.08288e-07 ) ergs/cm2
Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.17901 ( -0.856755 0.41951 )
Epeak [keV] : 167.143 ( -167.153 -167.153 )
Norm@50keV : 1.55632E-03 ( -0.000677698 0.00262236 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 49.49 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 7.18e-01 with 56 degrees of freedom
Photon flux (15-150 keV) in 144.4 sec: 0.141492 ( -0.017279 0.017246 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.58999e-06 ( -2.32565e-07 3.41159e-07 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 6.88e-07
S(50-100 keV) = 9.47e-07
T90 vs. Hardness ratio plot
T90 = 270.81199991703 sec.
Hardness ratio (energy fluence ratio) = 1.37645
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 1.22478
Count Ratio (50-100 keV) / (15-25 keV) = 0.942662
Mask shadow pattern
IMX = 5.709029961973128E-01, IMY = 8.087606207230236E-02
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

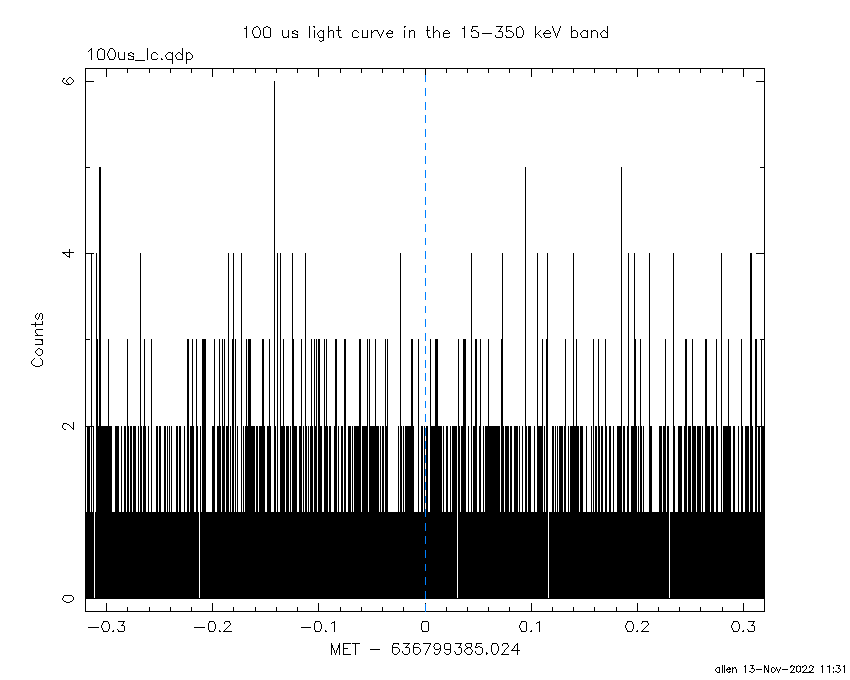

100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-116.323400 28.076600
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.6105 -40.5650 11.5 41.3 37.0 0.4591 1.0 3.8 Vela X-1
170.3799 -60.6332 14.1 12.1 36.0 0.1534 0.8 2.0 Cen X-3
186.2969 -62.6801 7.4 4.4 43.2 0.2944 1.6 11.3 GX 301-2
256.0288 -37.9237 3.6 43.6 -154.3 1.2579 3.2 5.2 4U 1700-377
256.4758 -36.3507 8.1 45.1 -155.1 -0.5448 -1.4 4.8 GX 349+2
262.9749 -24.6743 5.1 58.0 -156.5 -2.7988 -2.3 4.7 GX 1+4
264.7898 -44.4994 8.9 42.2 -140.7 0.5005 1.3 3.6 4U 1735-44
263.1011 -33.7127 0.0 50.3 -150.8 -1.1413 -2.1 9.2 GX 354-0
225.4429 -14.0626 3.5 53.9 158.9 3.4872 3.3 ------ UNKNOWN
110.2688 -38.5203 3.3 54.1 16.7 3.6790 3.5 ------ UNKNOWN
118.1990 -45.1893 3.2 45.3 18.0 1.5097 3.6 ------ UNKNOWN
119.2311 -66.9680 1.1 30.0 -8.1 2.4333 10.1 ------ UNKNOWN
255.6782 -48.7797 1.5 34.9 -144.0 2.1945 7.7 ------ UNKNOWN
262.7901 -27.0765 3.7 55.9 -155.3 2.6824 3.1 ------ UNKNOWN
17.1784 -70.3439 2.5 45.8 -57.0 3.7723 4.5 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
80.076590 716.754500
720.976000 903.306000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.5664 -40.4819 4.0 28.0 67.8 4.3158 2.9 4.7 Vela X-1
170.6002 -60.7792 8.0 22.7 139.7 1.8078 1.4 12.6 Cen X-3
186.6844 -62.6295 6.7 27.6 154.2 -2.0586 -1.7 8.5 GX 301-2
119.0015 -20.1227 4.1 46.8 40.4 8.0255 2.8 ------ UNKNOWN
99.4570 -14.4418 4.0 54.1 16.8 13.8616 2.9 ------ UNKNOWN
161.8976 -63.8000 4.2 17.7 140.6 3.2089 2.8 ------ UNKNOWN
71.4319 -17.9645 3.1 57.7 -15.8 15.9261 3.8 ------ UNKNOWN
65.4401 -34.3580 3.6 44.7 -30.5 6.3562 3.2 ------ UNKNOWN
Plot creation:
Sun Nov 13 11:31:08 EST 2022
