batgrbproduct Analysis for Trigger=1036990

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Mar 16 14:33:37 EDT 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1036990/GCN5_download_cron
======================================================================

  Trigger: 01036990      Segment: 000

  BAT Trigger Time: 637478536   [s; MET]
      Trigger Stop: 637478600   [s; MET]
               UTC: 2021-03-15T05:21:49.330060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 299.739886824737   Dec: 35.4025492781499  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.67
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    12.67

  Flight Position:   [ source = BAT ]
    RA: 299.739886824737   Dec: 35.4025492781499  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 299.761263943127   Dec: 35.4112302169269  [deg; J2000]
        { 19h 59m 02.7s , +35d 24' 40.4" }
         +/- 6.55135405084824 [arcmin] (estimated 90% radius based on SNR)
         +/- 5.39418126034636 [arcmin] (formal 1-sigma fit error)
    SNR: 2.07458453722879

  Angular difference between Flight and Ground position is 1.167983 arcmin

  Partial Coding Fraction: 0.859375    [ including projection effects ]

  Duration
     T90: 140 +/- 13.0384048104053
        Measured from: -0.99999988079071
                   to: 139.000000119209     [s; relative to TRIGTIME]
     T50: 79 +/- 21.540659228538
        Measured from: 33.0000001192093
                   to: 112.000000119209     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 139
                   to: 140     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -6
                   to: 145     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.964232   1.549120   0.595433  -0.029250
           0.093475   0.096490   0.087651   0.091025 [error]
 Peak      0.035350   0.016778   0.016331  -0.005537
           0.007221   0.007681   0.006799   0.006706 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 6.14e-07 6.41e-07 4.73e-07 5.62e-07 1.94e-06 2.29e-06   erg/cm2
              Error 5.98e-08 4.98e-08 7.56e-08 1.72e-07 1.70e-07 2.69e-07   erg/cm2
Peak flux Power-law 2.76e-01 1.75e-01 7.14e-02 3.96e-02 5.42e-01 5.62e-01   ph/cm2/s
              Error 1.06e-01 6.25e-02 4.78e-02 5.54e-02 1.74e-01 1.87e-01   ph/cm2/s

Fluence   Cutoff-PL 5.99e-07 6.72e-07 4.28e-07 1.98e-07 1.82e-06 1.90e-06   erg/cm2
              Error 6.41e-08 6.38e-08 1.02e-07 3.23e-07 2.16e-07 3.99e-07   erg/cm2
Peak flux Cutoff-PL 2.76e-01 1.91e-01 5.67e-02 7.47e-03 5.29e-01 5.30e-01   ph/cm2/s
              Error 1.15e-01 9.68e-02 6.06e-02 5.24e-02 2.07e-01 1.97e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.440    0.163    -      -           1.31e-03 1.50e-04   49.310 57
CPL   1.910    0.430       6.1   11.8      2.81e-03 3.29e-03   47.550 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.291    0.690    -      -           3.12e-03 1.61e-03   42.110 57
CPL -10.000   -0.164      22.8    3.3      1.28e+07 3.70e+07   40.540 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  151.000   -6.000  145.000
T90   140.000   -1.000  139.000
T50    79.000   33.000  112.000
Peak    1.000  139.000  140.000

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  299.7613 +35.4112 0.0928   23.7   12.1       0.8229     2.1  TRIG_01036990
------------------------------------------

Foreground time interval of the image:
 -6.000  71.801 (delta_t =  77.801 [sec])
Background time interval of the image:
-15.899  -6.000 (delta_t =   9.899 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

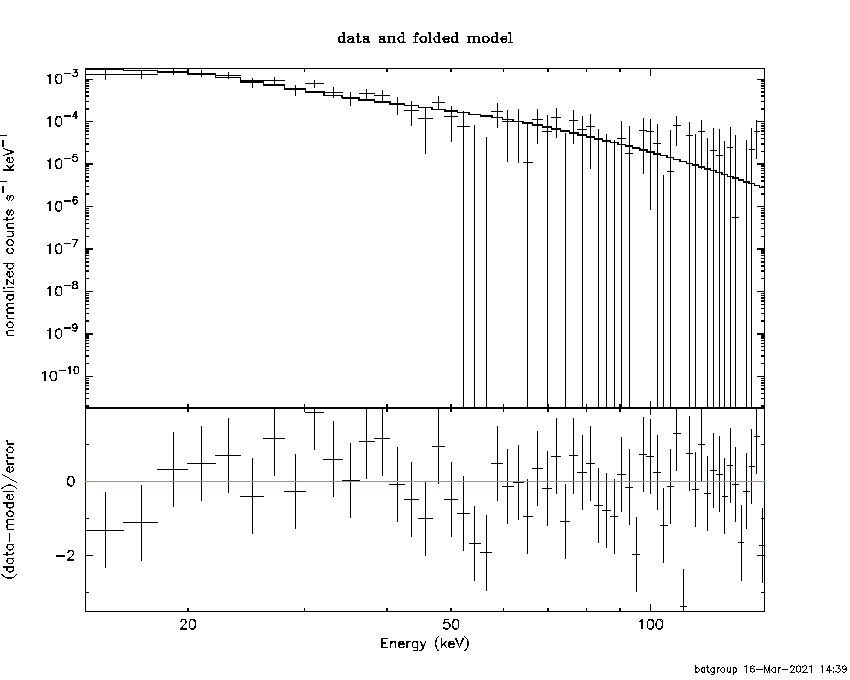

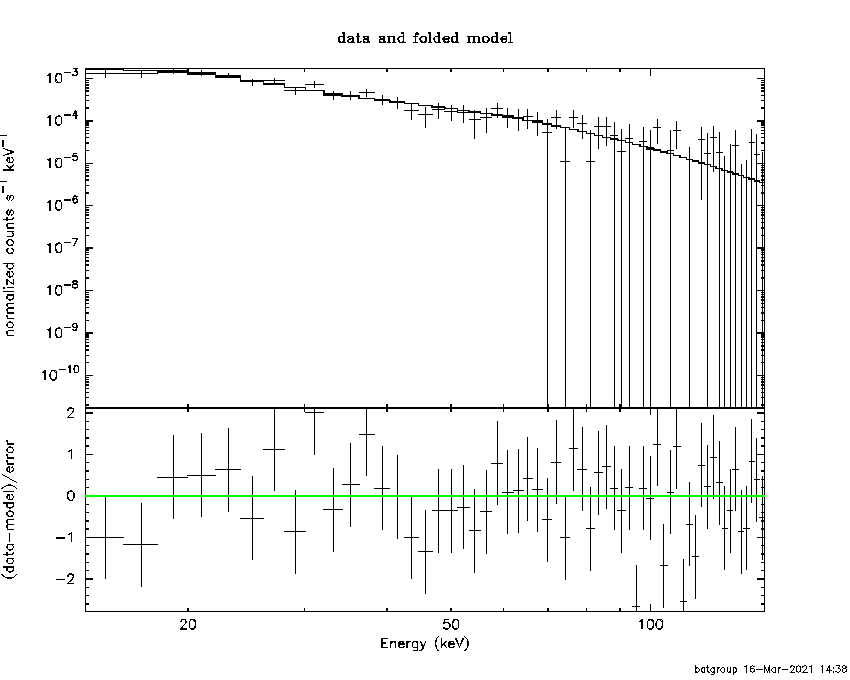

Power-law model

Time interval is from   -6.000 sec. to  145.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.43958     ( -0.15923   0.167332 )
Norm@50keV  : 1.30813E-03    ( -0.000150512   0.00014955 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.31     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.56e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 151 sec: 0.247760 ( -0.0177631  0.0177699 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.9449e-06 ( -1.67634e-07  1.71636e-07 ) ergs/cm2

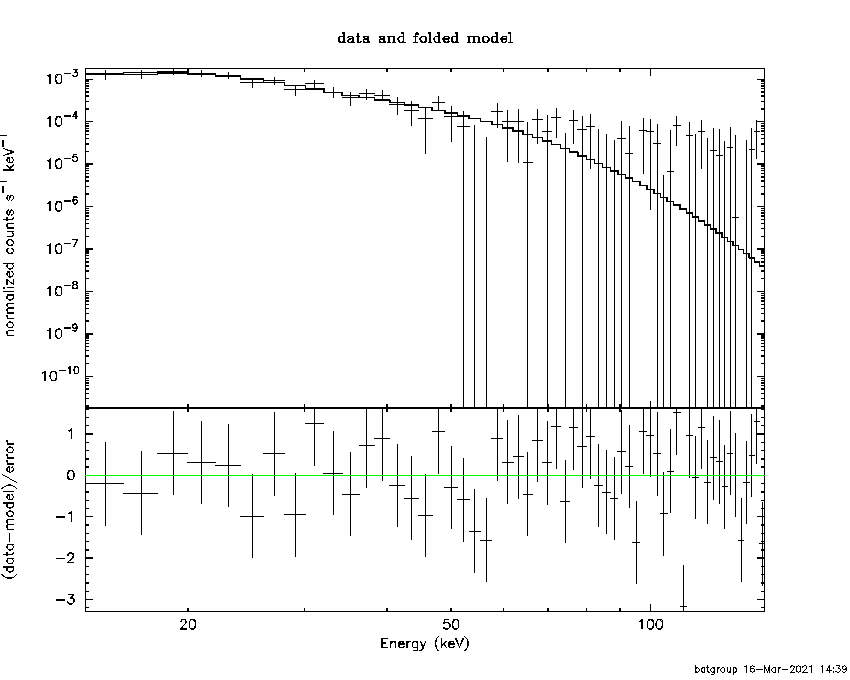

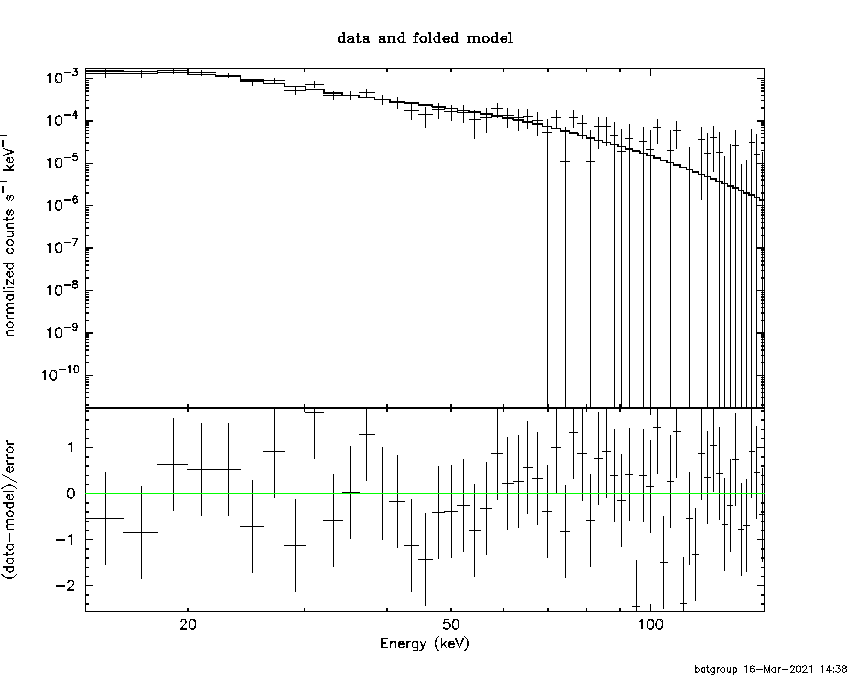

Cutoff power-law model

Time interval is from   -6.000 sec. to  145.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.90962     ( -0.774371   0.0849042 )
Epeak [keV] : 6.11277      ( -4.69317 18.9751 )
Norm@50keV  : 2.81366E-03    ( -0.000646559   0.0059372 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.55     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.82e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 151 sec: 0.241995 ( -0.019032  0.019101 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82491e-06 ( -2.05707e-07  2.25549e-07 ) ergs/cm2

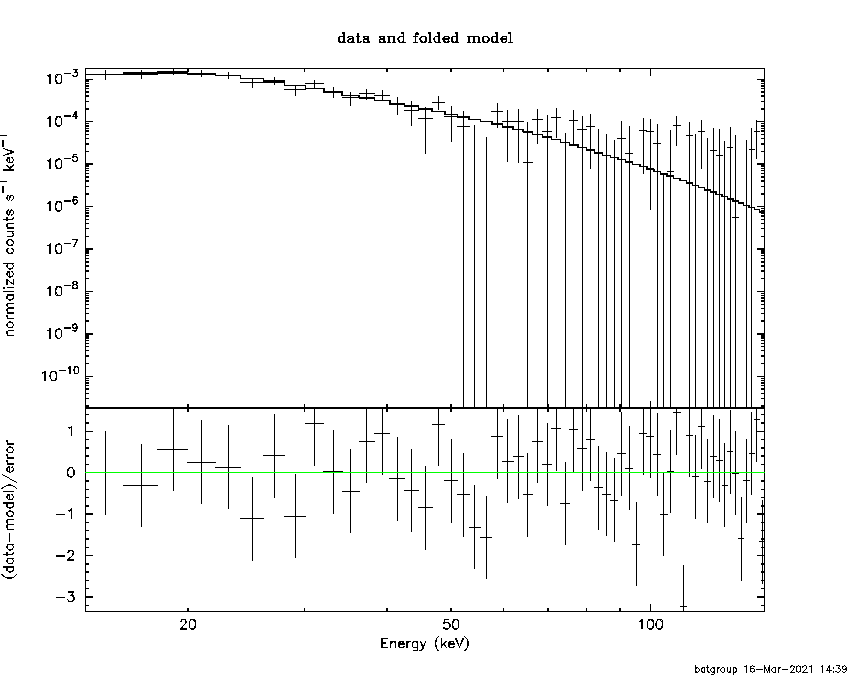

Band function

Time interval is from   -6.000 sec. to  145.000 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.82364   ( -2.8744   1.89646 )
beta        : -2.58737    ( 9.37155   19.3715 )
Epeak [keV] : 20.3739      ( -1.51703 15.4254 )
Norm@50keV   : 19.6157    ( -19.6136   440.948 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 151 sec: 0.242164 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

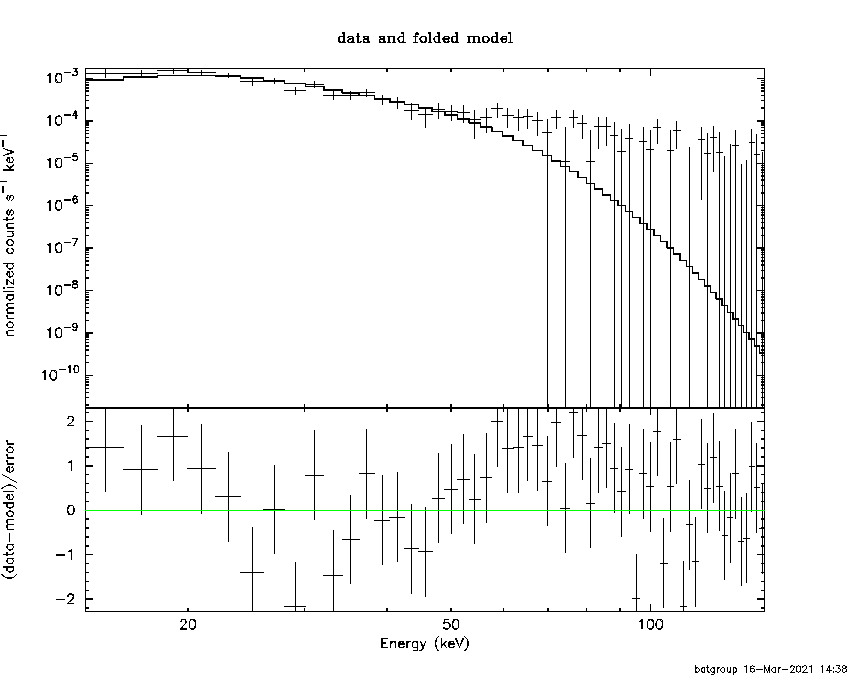

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.24414  (-0.596244  0.657148)
R^2/D10^2   : 0.386607  (-0.118686   0.171741)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   75.81     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.86e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.093e-07   5.965e-08
25- 50  7.447e-07   6.984e-08
50-150  1.395e-07   3.922e-08
15-150  1.393e-06   1.314e-07

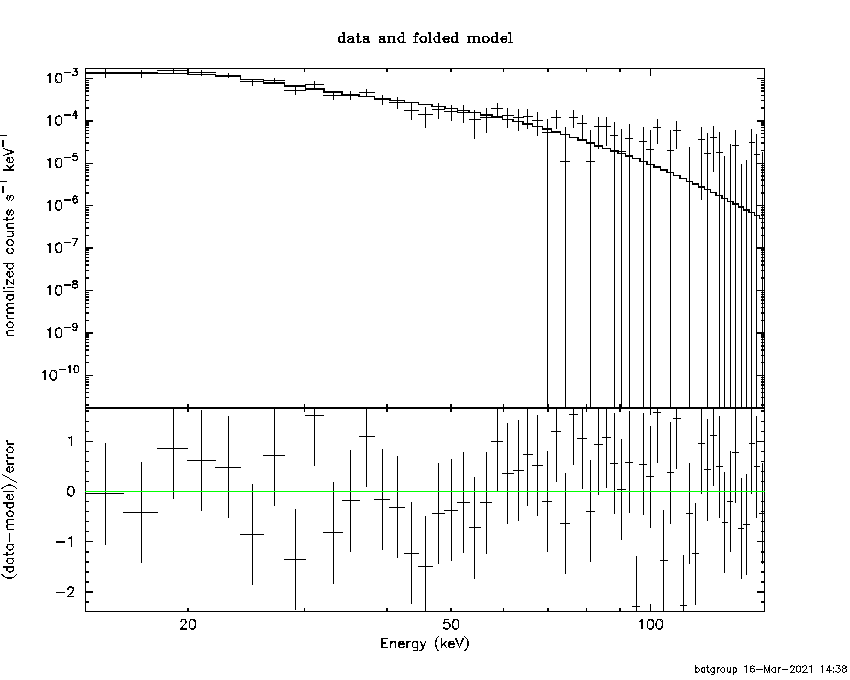

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 33.7848       (-5.88766      7.6799)
Norm        : 1.77174       (-0.276833     0.343216)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.10     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.62e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.758e-07   5.919e-08
25- 50  7.004e-07   6.183e-08
50-150  4.457e-07   1.140e-07
15-150  1.722e-06   1.623e-07

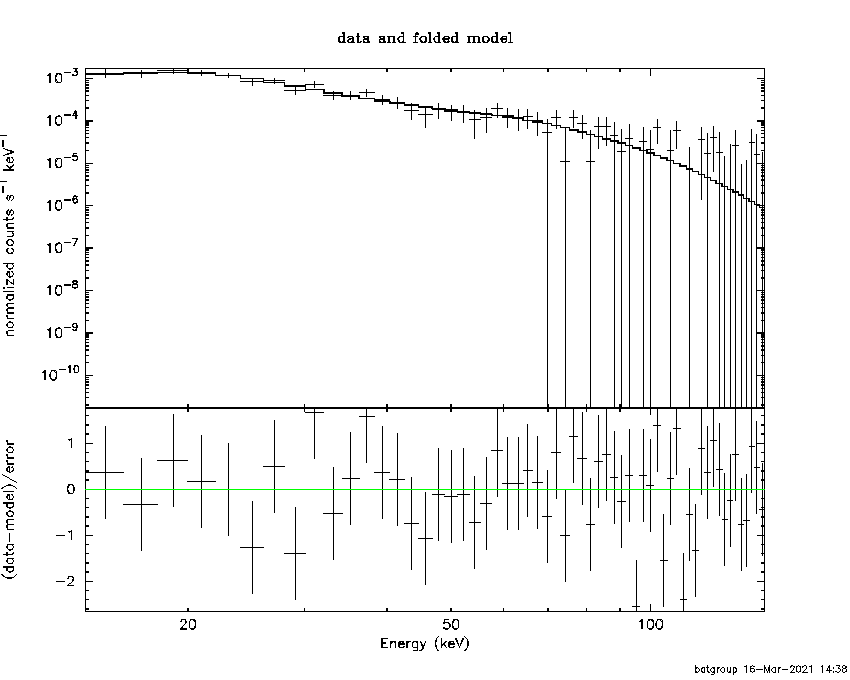

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.20802        (-0.868755      0.843344)
R1^2/D10^2  : 1.24804        (-0.55143      0.76954)
kT2 [keV]   : 17.4293        (-4.59832      7.74991)
R2^2/D10^2  : 6.31434E-03    (-0.00482108   0.017048)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.10     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.27e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.966e-07   1.405e-07
25- 50  6.523e-07   1.641e-07
50-150  5.968e-07   3.386e-07
15-150  1.846e-06   5.854e-07

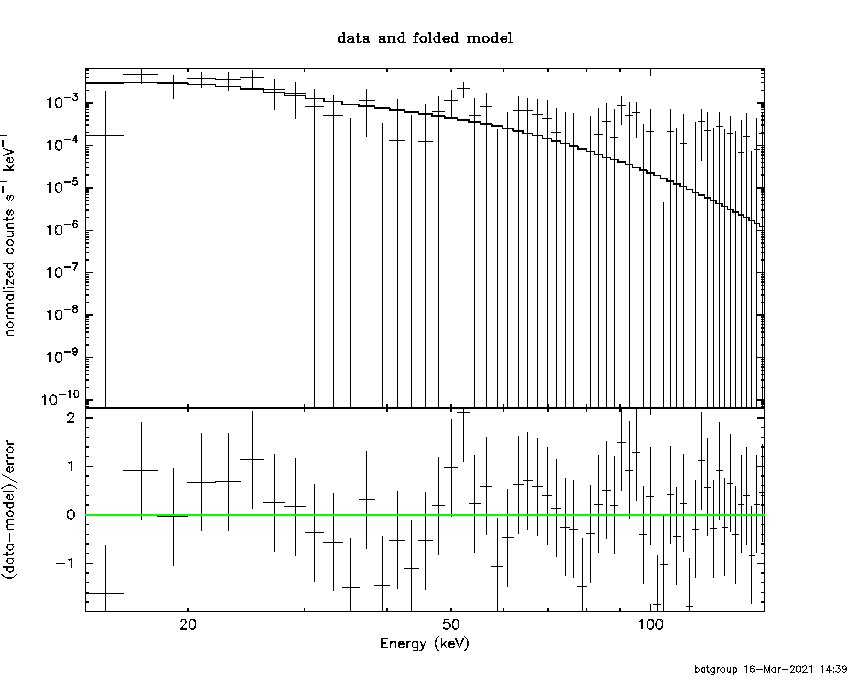

Peak spectrum fit

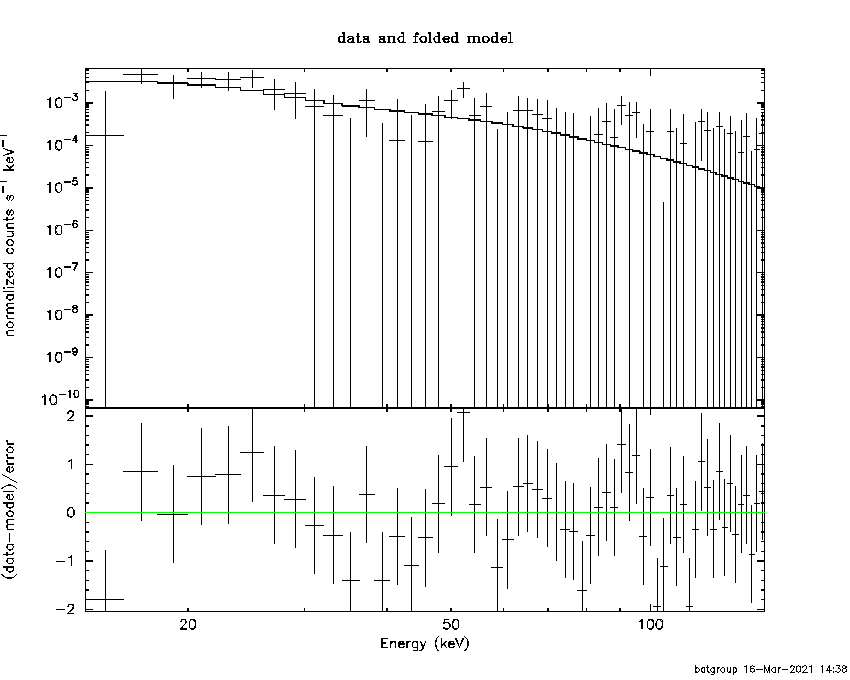

Power-law model

Time interval is from  139.000 sec. to  140.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.29129     ( -0.608797   0.771776 )
Norm@50keV  : 3.11856E-03    ( -0.00159627   0.00161465 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.11     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.30e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.542367 ( -0.174123  0.174792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.97544e-08 ( -1.2036e-08  1.37728e-08 ) ergs/cm2

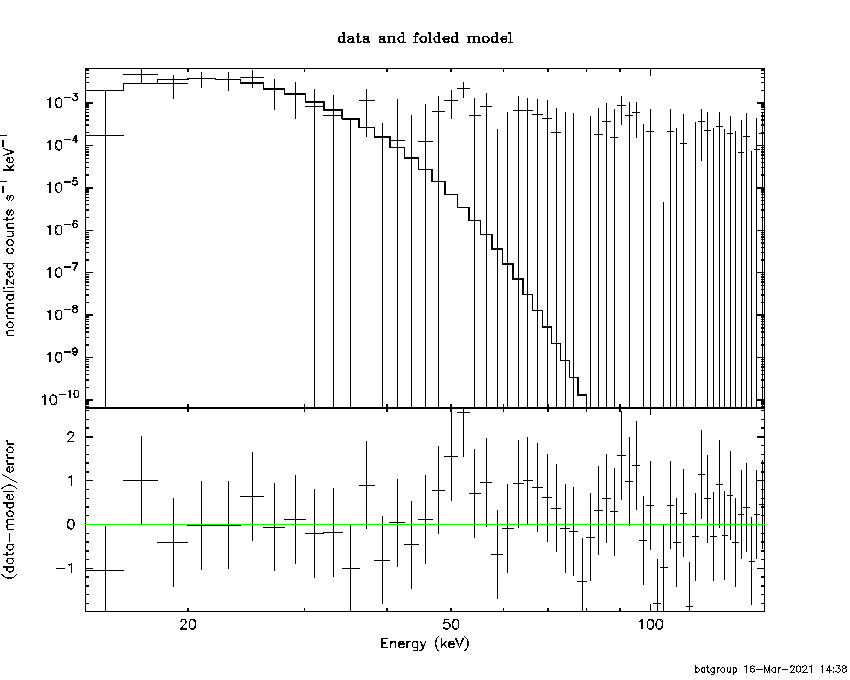

Cutoff power-law model

Time interval is from  139.000 sec. to  140.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -10.0000     ( 10   9.6712 )
Epeak [keV] : 22.8304      ( -3.13507 3.48042 )
Norm@50keV  : 1.27669E+07    ( -1.2766e+07   6.12159e+07 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.54     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.40e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.529183 0.464480 0.463949 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.42532e-16 ( 0  0 ) ergs/cm2

Band function

Time interval is from  139.000 sec. to  140.000 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.95248   ( -4.95248   -4.95248 )
beta        : -3.15074    ( 3.15074   1.14799 )
Epeak [keV] : 22.9871      ( -22.9871 5.46484 )
Norm@50keV   : 1243.23    ( -376.101   6.96744e+06 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.58273e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.95665  (-1.67152  2.97195)
R^2/D10^2   : 2.01137  (-2.01136   6.42019)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   42.28     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.27e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.384e-09   5.450e-09
25- 50  9.211e-09   5.515e-09
50-150  8.187e-10   8.435e-10
15-150  1.941e-08   1.213e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 34.7585       (-19.7596      75.5289)
Norm        : 3.89439       (-1.86434     4.83485)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.81     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.34e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.484e-09   4.871e-09
25- 50  1.046e-08   6.461e-09
50-150  6.892e-09   6.210e-09
15-150  2.584e-08   1.722e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.02214        (-2.59821      2.47314)
R1^2/D10^2  : 3.53600        (-3.54459      16.8011)
kT2 [keV]   : 20.4945        (-20.4636      -20.4636)
R2^2/D10^2  : 8.27708E-03    (-0.00832663   3.62395)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.03     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.35e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.416e-09   5.750e-09
25- 50  9.137e-09   4.992e-09
50-150  1.073e-08   8.730e-09
15-150  2.928e-08   1.628e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.55075     ( -0.208395   0.224258 )
Norm@50keV  : 1.21594E-03    ( -0.000204402   0.000206263 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.00     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.13e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 77.8 sec: 0.246490 ( -0.0236226  0.0236267 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.59461e-07 ( -1.15566e-07  1.20274e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.596629     ( -1.85163   1.3395 )
Epeak [keV] : 22.7056      ( -19.2912 5.0311 )
Norm@50keV  : 2.51777E-02    ( -0.0257864   0.467839 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.79     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.42e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 77.8 sec: 0.234543 ( -0.023862  0.024106 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.07891e-07 ( -1.04238e-07  1.29062e-07 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.45516E-02   ( -2.18422   -0.447518 )
beta        : -3.60165    ( 3.59229   0.86228 )
Epeak [keV] : 23.7303      ( -5.06054 3.54193 )
Norm@50keV   : 7.28495E-02    ( -0.0709858   300.361 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 77.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.47997e-07 ( -8.47452e-07  -1.23499e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.41e-07
S(50-100 keV) = 4.73e-07

T90 vs. Hardness ratio plot

T90                                   = 140 sec.
Hardness ratio (energy fluence ratio) = 0.73791

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.788664
Count Ratio (50-100 keV) / (15-25 keV) = 0.303138

Mask shadow pattern

IMX = 4.295798609889926E-01, IMY = -9.206330443351421E-02

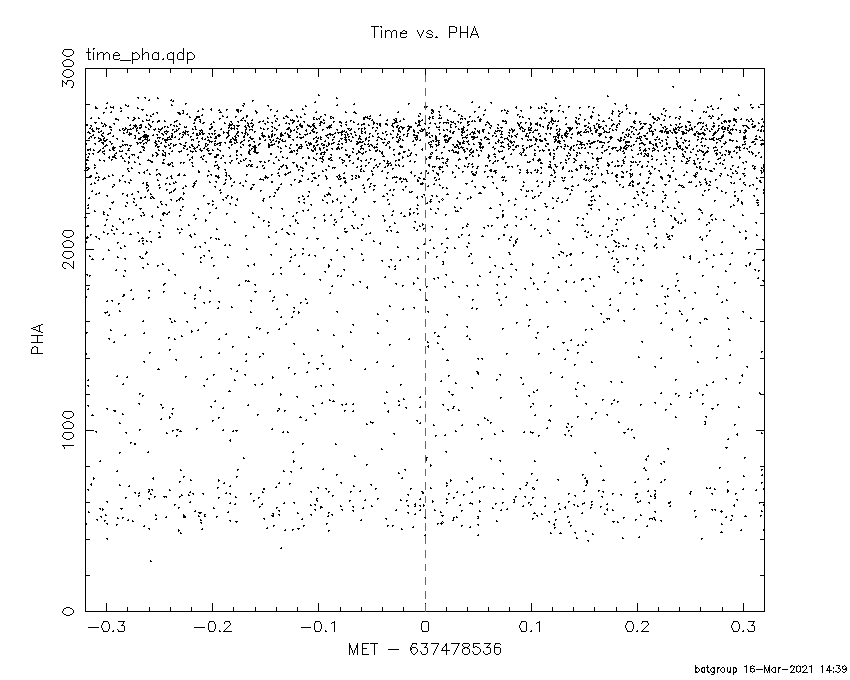

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-15.899400 -6.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.8550  10.8209    6.6  49.9    4.4   0.2041   1.7    8.2	GRS 1915+105
299.5665  35.2689    3.3  23.9   12.2   0.1709   3.5    4.2	Cyg X-1
308.2656  41.0566    7.0  15.2    6.6   0.0725   1.6    9.4	Cyg X-3
326.1677  38.5278    0.0  13.7  -51.4   0.0630   1.4   12.4	Cyg X-2
294.4275  71.9005    2.3  23.5  115.4   0.3029   5.0 ------	UNKNOWN
281.1980  11.3964    2.0  53.0   13.2   1.0228   5.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-6.000000 71.800600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.7601  11.1266    0.0  49.6    4.7   0.8107   0.8   11.1	GRS 1915+105
299.8173  35.2757    0.0  23.8   11.8   0.6157   1.5   12.0	Cyg X-1
308.3317  41.0260    9.0  15.2    6.4  -0.4541  -1.3   11.0	Cyg X-3
326.1723  38.2541   29.7  14.0  -51.3  -0.1468  -0.4    4.1	Cyg X-2
339.8580  53.5430    2.2  10.0 -146.9   1.8633   5.2 ------	UNKNOWN
 10.3557  47.9640    2.2  29.9 -143.3   2.4073   5.2 ------	UNKNOWN
 43.5447  42.0657    2.1  52.6 -155.4   5.7487   5.6 ------	UNKNOWN
 29.4371  31.9280    2.2  51.0 -136.2   8.6140   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
118.400600 963.060000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2896  35.2173    0.0  36.7   80.1  -2.2699  -1.1   11.1	Her X-1
268.4706  -1.5487   12.4  47.1   21.9   2.4393   0.9    8.4	SW J1753.5-0127
273.9732 -14.0234   16.3  55.1    7.7   5.1468   0.7    2.1	GX 17+2
288.9768  11.0439    0.0  26.2    1.3  -1.0747  -1.1   12.1	GRS 1915+105
299.6881  35.3305    0.6   0.1    6.5  15.2298  18.4    9.1	Cyg X-1
308.1184  41.1199    3.7   8.7 -156.8   2.6458   3.1   10.0	Cyg X-3
326.2006  38.1104    0.0  21.3 -128.4  -0.5829  -0.5   12.7	Cyg X-2
267.8273  -9.6001    4.0  54.1   16.8  15.9650   2.9 ------	UNKNOWN
 24.8637  81.4728    3.0  54.3  167.3  12.8786   3.9 ------	UNKNOWN
270.9999 -13.0072    4.0  55.5   11.4  19.0465   2.9 ------	UNKNOWN
279.0586   0.6172    3.0  39.7   10.3   5.9206   3.8 ------	UNKNOWN
297.9006  21.7166    3.5  13.8  -16.0   3.0118   3.3 ------	UNKNOWN
294.7156 -20.8454    3.7  56.4  -17.6  11.5426   3.1 ------	UNKNOWN
 25.6239  54.6413    3.7  59.6 -161.2  33.8762   3.2 ------	UNKNOWN
 17.1706  51.0095    3.6  55.8 -155.3  13.4333   3.2 ------	UNKNOWN

Plot creation:
Tue Mar 16 14:40:02 EDT 2021
