Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Jul 29 23:47:42 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1037339
======================================================================

  Trigger: 01037339      Segment: 000

  BAT Trigger Time: 637732498.368   [s; MET]
      Trigger Stop: 637732501.44   [s; MET]
               UTC: 2021-03-18T03:54:31.681240    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 33.9302682502313   Dec: -37.7895119002422  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.72
     Image Trigger?:     NO
     Rate S/N Ratio:     11.2694276695846  [ if not an image trigger ]
     Image S/N Ratio:    7.72

  Flight Position:   [ source = BAT ]
    RA: 33.9302682502313   Dec: -37.7895119002422  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 33.9037670566305   Dec: -37.7724157060411  [deg; J2000]
        { 02h 15m 36.9s , -37d 46' 20.7" }
         +/- 2.51594833469396 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.990562315218269 [arcmin] (formal 1-sigma fit error)
    SNR: 8.14117993309832

  Angular difference between Flight and Ground position is 1.622211 arcmin

  Partial Coding Fraction: 0.7578125    [ including projection effects ]

  Duration
     T90: 80 +/- 50.5964425626941
        Measured from: 0.631999969482422
                   to: 80.6319999694824     [s; relative to TRIGTIME]
     T50: 16 +/- 48
        Measured from: 0.631999969482422
                   to: 16.6319999694824     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 8.13199996948242
                   to: 9.13199996948242     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.631999969482422
                   to: 96.6319999694824     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.187743   0.492939   0.398730   0.139290
           0.073311   0.076115   0.068829   0.065786 [error]
 Peak      0.005030   0.028501  -0.000319   0.013767
           0.008531   0.008490   0.007735   0.007178 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.38e-08 1.77e-07 2.90e-07 1.08e-06 8.01e-07 1.63e-06   erg/cm2
              Error 2.90e-08 3.65e-08 6.76e-08 5.75e-07 1.69e-07 6.18e-07   erg/cm2
Peak flux Power-law 1.18e-01 1.07e-01 6.65e-02 6.34e-02 3.17e-01 3.54e-01   ph/cm2/s
              Error 1.19e-01 8.83e-02 5.80e-02 1.45e-01 2.08e-01 4.31e-01   ph/cm2/s

Fluence   Cutoff-PL 8.16e-08 1.79e-07 2.94e-07 8.79e-07 7.93e-07 1.43e-06   erg/cm2
              Error 3.06e-08 4.04e-08 7.33e-08 6.31e-07 1.78e-07 5.56e-07   erg/cm2
Peak flux Cutoff-PL 6.38e-02 2.18e-01 1.43e-02 3.72e-07 2.92e-01 2.90e-01   ph/cm2/s
              Error 9.67e-02 1.60e-01 3.10e-02 9.60e-04 1.62e-01 1.63e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.280    0.338    -      -           8.40e-04 1.57e-04   59.760 57
CPL   1.043    1.523     212.7    0.0      1.09e-03 1.64e-03   59.740 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.678    1.372    -      -           2.41e-03 1.74e-03   57.900 57
CPL  -9.803    0.000      34.8    0.0      5.10e+04 0.00e+00   53.690 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 7.424000 sec.
T50 in the 50-300 keV band: 5.120000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   96.000    0.632   96.632
T90    80.000    0.632   80.632
T50    16.000    0.632   16.632
Peak    1.000    8.132    9.132

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   33.9038   -37.7724   0.0236    30.4678  -152.3846         0.9503037      8.141 TRIG_01037339

Foreground time interval of the image:
  0.632  44.133 (delta_t =  43.501 [sec])
Background time interval of the image:
-239.368   0.632 (delta_t = 240.000 [sec])

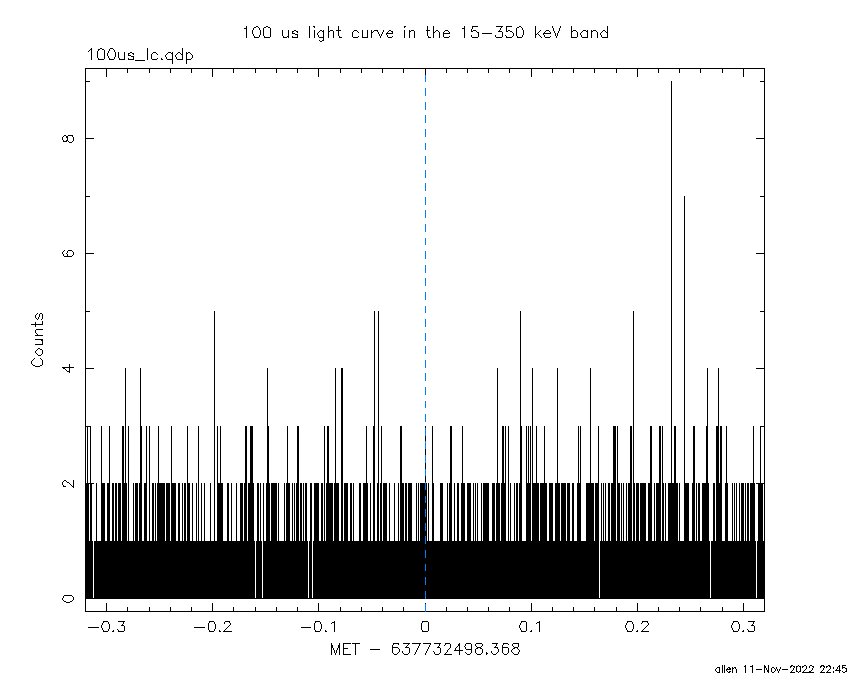

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.632 sec. to   96.632 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27997     ( -0.341553   0.335135 )
Norm@50keV  : 8.39768E-04    ( -0.000157072   0.000156812 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   59.76     using 59 bins.
 Reduced chi-squared = 1.04842
# Null hypothesis probability of 3.76e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 96 sec: 9.98271E-02 ( -0.0190271  0.0191009 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.00702e-07 ( -1.67356e-07  1.70235e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.632 sec. to   96.632 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04314     ( -1.29935   1.74586 )
Epeak [keV] : 212.681      ( -293.15 -293.15 )
Norm@50keV  : 1.09387E-03    ( -0.000284849   0.00299583 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   59.74     using 59 bins.
 Reduced chi-squared = 1.06679
# Null hypothesis probability of 3.42e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 96 sec: 9.92000E-02 ( -0.0197226  0.019525 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.93051e-07 ( -1.79782e-07  1.75586e-07 ) ergs/cm2

Band function

Time interval is from    0.632 sec. to   96.632 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

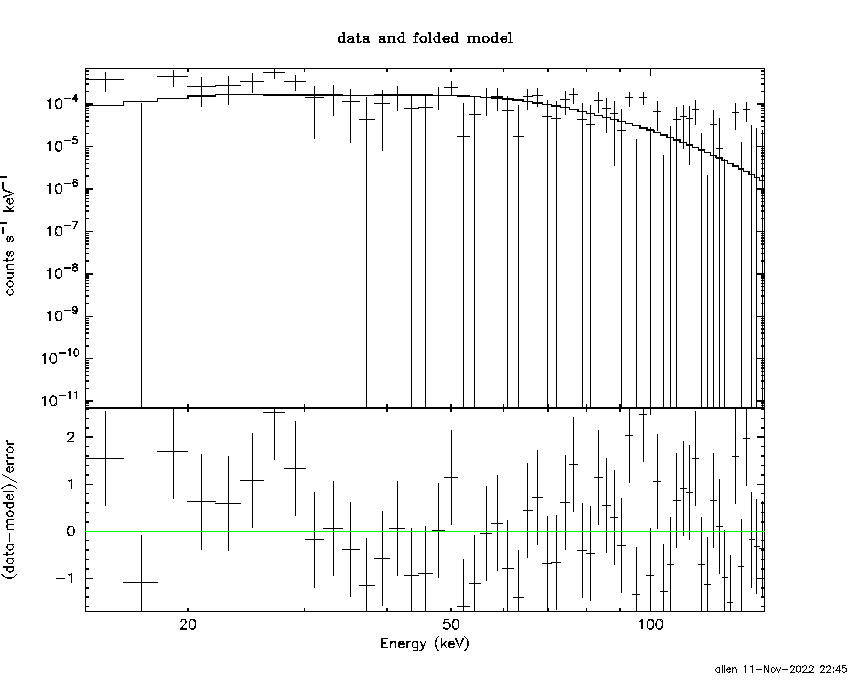

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 19.0578  (-4.70362  6.43689)
R^2/D10^2   : 5.17251E-03  (-0.00314016   0.00809698)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   67.18     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.68e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.541e-08   1.588e-08
25- 50  1.707e-07   6.928e-08
50-150  4.559e-07   1.858e-07
15-150  6.620e-07   2.549e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-77.8895      -200)
Norm        : 0.411969       (-0.0776271     0.0776271)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   61.59     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.15e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.852e-08   5.851e-08
25- 50  1.895e-07   1.092e-07
50-150  4.156e-07   2.379e-07
15-150  7.037e-07   4.061e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.34521        (-2.36164      4.20652)
R1^2/D10^2  : 0.135164        (-0.107953      0.678226)
kT2 [keV]   : 29.4207        (-9.33487      27.7418)
R2^2/D10^2  : 1.08880E-03    (-0.000922453   0.00275372)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.02     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.65e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.923e-08   5.198e-08
25- 50  1.718e-07   9.350e-08
50-150  5.495e-07   3.166e-07
15-150  8.105e-07   4.237e-07

Peak spectrum fit

Power-law model

Time interval is from    8.132 sec. to    9.132 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.67846     ( -1.39518   1.34937 )
Norm@50keV  : 2.40740E-03    ( -0.00176941   0.00170942 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.90     using 59 bins.
 Reduced chi-squared = 1.01579
# Null hypothesis probability of 4.42e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.317387 ( -0.207242  0.20798 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.23254e-08 ( -1.57058e-08  1.79463e-08 ) ergs/cm2

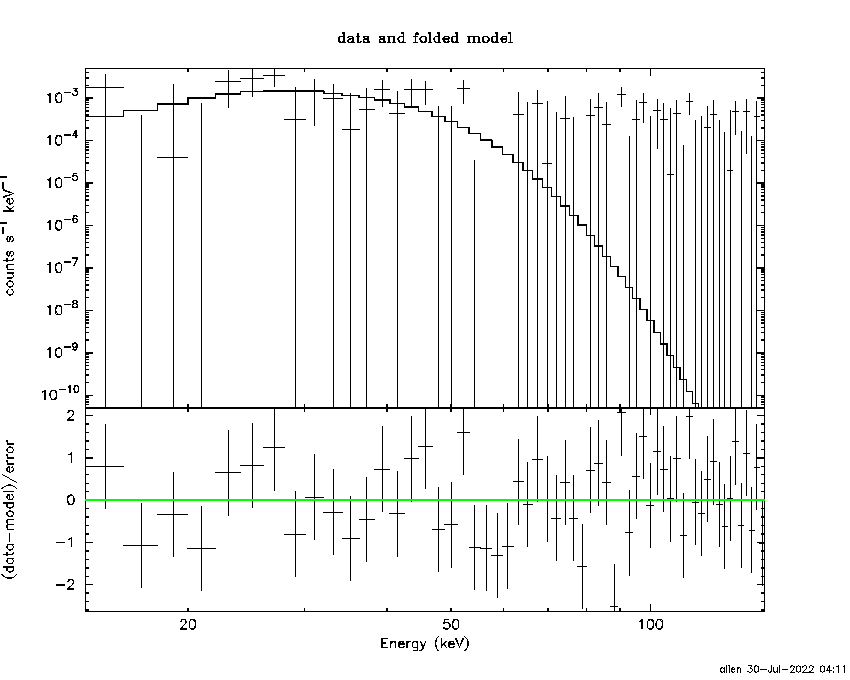

Cutoff power-law model

Time interval is from    8.132 sec. to    9.132 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.80268     (     )
Epeak [keV] : 34.7778      (   )
Norm@50keV  : 5.10085E+04    (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   53.69     using 59 bins.
 Reduced chi-squared = 0.95875
# Null hypothesis probability of 5.63e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.291972 ( -0.145799  0.178887 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.5056e-08 ( -7.46987e-09  8.87936e-09 ) ergs/cm2

Band function

Time interval is from    8.132 sec. to    9.132 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.12549  (-3.05059  6.19807)
R^2/D10^2   : 0.248371  (-0.252597   0.991617)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.03     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.12e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.055e-09   2.753e-09
25- 50  8.807e-09   6.365e-09
50-150  3.504e-09   3.034e-09
15-150  1.637e-08   1.166e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 85.2524       (-85.2523      -85.2523)
Norm        : 1.49078       (-1.02045     2.83908)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.75     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.47e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.882e-09   2.637e-09
25- 50  6.486e-09   4.695e-09
50-150  9.547e-09   9.345e-09
15-150  1.991e-08   1.625e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 200.000        (-200      -200)
R1^2/D10^2  : 3.73967E-05        (-3.76857e-05      -3.76857e-05)
kT2 [keV]   : 8.66262        (-3.18725      5.30259)
R2^2/D10^2  : 0.280318    (-0.238175   1.28179)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.27     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.64e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42439     ( -0.301367   0.303761 )
Norm@50keV  : 1.49345E-03    ( -0.000256884   0.000254452 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.29     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.88e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 43.5 sec: 0.182906 ( -0.0309682  0.0310419 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.24686e-07 ( -1.19078e-07  1.21356e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29314     ( -1.30443   1.84015 )
Epeak [keV] : 264.801      ( -275.714 -275.714 )
Norm@50keV  : 1.73736E-03    ( -0.000492356   0.00576423 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.26     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.55e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 43.5 sec: 0.181821 ( -0.032345  0.031764 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.18627e-07 ( -1.30004e-07  1.25989e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.77e-07
S(50-100 keV) = 2.90e-07

T90 vs. Hardness ratio plot

T90                                   = 80 sec.
Hardness ratio (energy fluence ratio) = 1.63842

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.62561
Count Ratio (50-100 keV) / (15-25 keV) = 2.12381

Mask shadow pattern

IMX = -5.212699673120080E-01, IMY = 2.726921884670455E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 3.072000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.368000 0.632000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6588  22.0042    1.3  46.5   45.9   8.6095   8.8    1.5	Crab
 83.0543   4.9080    2.6  36.3   66.9   3.3219   4.5 ------	UNKNOWN
 31.9226  -3.5251    3.5  19.8  -67.4   1.1316   3.3 ------	UNKNOWN
 13.0256 -64.8367    3.6  59.6 -161.2   8.7980   3.2 ------	UNKNOWN
 11.3393  10.8393    3.4  44.6  -60.4   4.4144   3.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.632000 44.132600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.7743  22.0153   21.9  46.6   46.0   0.2248   0.5    7.8	Crab
 82.5412   1.4740    2.3  34.4   71.9   1.0867   4.9 ------	UNKNOWN
 86.2932 -58.0217    2.1  54.2  158.9   2.7167   5.4 ------	UNKNOWN
 66.2725  28.3881    1.9  42.4   22.4   1.0937   6.0 ------	UNKNOWN
 69.3896  -5.3811    2.0  19.7   76.0   0.6730   5.9 ------	UNKNOWN
 33.9038 -37.7724    1.4  30.5 -152.4   0.9504   8.1 ------	UNKNOWN
 30.7655  29.0728    2.3  44.4  -23.4   0.8845   5.0 ------	UNKNOWN
 25.9835  43.3478    2.0  58.8  -19.1   3.2508   5.7 ------	UNKNOWN
  5.4105 -54.7449    2.1  56.1 -149.2   2.6894   5.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
107.132590 962.693000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 60.3509 -60.0300    2.4  27.8  112.4   5.8876   4.8 ------	UNKNOWN
 48.3304 -52.7171    3.3  17.9  111.6   3.3746   3.5 ------	UNKNOWN
312.6231 -66.6092    3.0  52.4  170.4  10.3584   3.9 ------	UNKNOWN
  0.7909 -21.8439    3.4  32.7 -109.5   4.8983   3.4 ------	UNKNOWN
 40.9225  17.4499    2.9  55.6  -31.2  15.8921   4.0 ------	UNKNOWN

Plot creation:
Fri Nov 11 22:45:48 EST 2022
