Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri Jul 29 23:34:54 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1044032
======================================================================

  Trigger: 01044032      Segment: 000

  BAT Trigger Time: 640508048   [s; MET]
      Trigger Stop: 640508112   [s; MET]
               UTC: 2021-04-19T06:53:41.128920    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 86.8619158317771   Dec: -65.5391081568672  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.15
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.15

  Flight Position:   [ source = BAT ]
    RA: 86.8619158317771   Dec: -65.5391081568672  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 86.9191773348288   Dec: -65.4532058391007  [deg; J2000]
        { 05h 47m 40.6s , -65d 27' 11.5" }
         +/- 2.69991093185425 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.55537845599141 [arcmin] (formal 1-sigma fit error)
    SNR: 7.36045900335675

  Angular difference between Flight and Ground position is 5.347492 arcmin

  Partial Coding Fraction: 0.6171875    [ including projection effects ]

  Duration
     T90: 71.0759999752045 +/- 13.780151681585
        Measured from: 27.8159999847412
                   to: 98.8919999599457     [s; relative to TRIGTIME]
     T50: 35.8959999084473 +/- 10.7951324586934
        Measured from: 41.3680000305176
                   to: 77.2639999389648     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 41.8200000524521
                   to: 42.8200000524521     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 22.7920000553131
                   to: 111.424000024796     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.704768   0.657641   0.249905   0.025083
           0.069778   0.071562   0.061949   0.055520 [error]
 Peak      0.024392   0.026597   0.020512   0.007078
           0.007874   0.008506   0.006866   0.006082 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.11e-07 2.63e-07 2.38e-07 3.74e-07 8.40e-07 1.09e-06   erg/cm2
              Error 3.29e-08 3.30e-08 5.56e-08 1.67e-07 1.28e-07 2.37e-07   erg/cm2
Peak flux Power-law 2.19e-01 2.00e-01 1.26e-01 1.21e-01 5.96e-01 6.66e-01   ph/cm2/s
              Error 1.01e-01 6.34e-02 5.42e-02 1.02e-01 1.88e-01 2.14e-01   ph/cm2/s

Fluence   Cutoff-PL 2.02e-07 2.91e-07 2.12e-07 7.83e-08 7.61e-07 7.83e-07   erg/cm2
              Error 3.57e-08 4.69e-08 7.30e-08 2.13e-07 1.45e-07 2.94e-07   erg/cm2
Peak flux Cutoff-PL 1.89e-01 2.31e-01 1.34e-01 3.60e-02 5.81e-01 5.90e-01   ph/cm2/s
              Error 1.16e-01 8.55e-02 6.62e-02 7.95e-02 1.89e-01 2.15e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.144    0.236    -      -           1.02e-03 1.73e-04   57.680 57
CPL   1.256    1.037      31.5   12.5      3.59e-03 1.31e-02   55.560 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.668    0.524    -      -           4.54e-03 1.57e-03   45.820 57
CPL   0.455    2.480      58.5    0.0      2.08e-02 5.40e-01   44.800 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   88.632   22.792  111.424
T90    71.076   27.816   98.892
T50    35.896   41.368   77.264
Peak    1.000   41.820   42.820

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   86.9192   -65.4532   0.0260    21.1227    98.4774         1.0856255      7.360 TRIG_01044032

Foreground time interval of the image:
 22.792  73.901 (delta_t =  51.109 [sec])
Background time interval of the image:
-15.699  22.792 (delta_t =  38.491 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

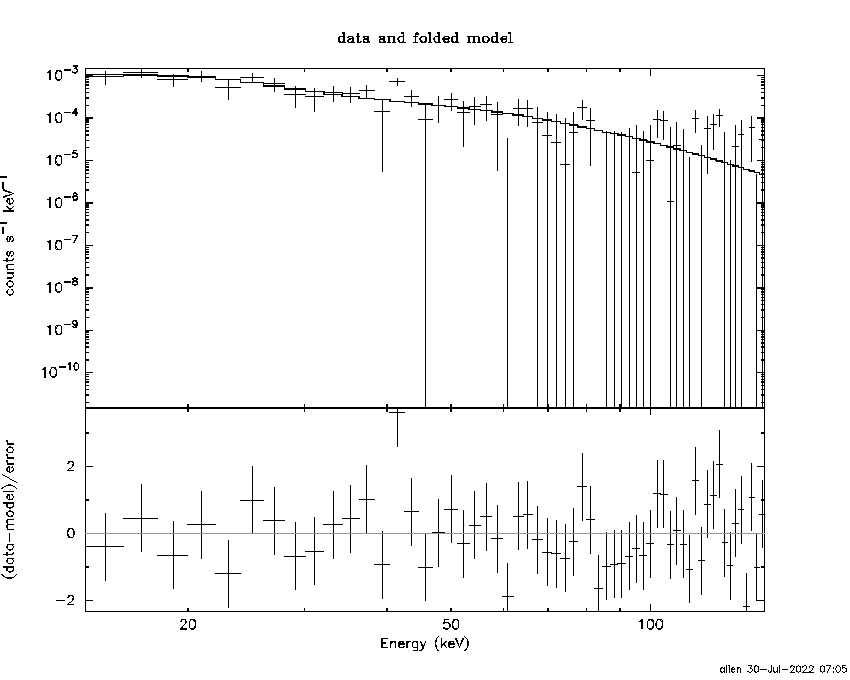

Power-law model

Time interval is from   22.792 sec. to  111.424 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.14412     ( -0.227071   0.245514 )
Norm@50keV  : 1.01565E-03    ( -0.000175342   0.000171597 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.68     using 59 bins.
 Reduced chi-squared = 1.01193
# Null hypothesis probability of 4.50e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 88.63 sec: 0.163372 ( -0.019444  0.019445 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.40448e-07 ( -1.25868e-07  1.30175e-07 ) ergs/cm2

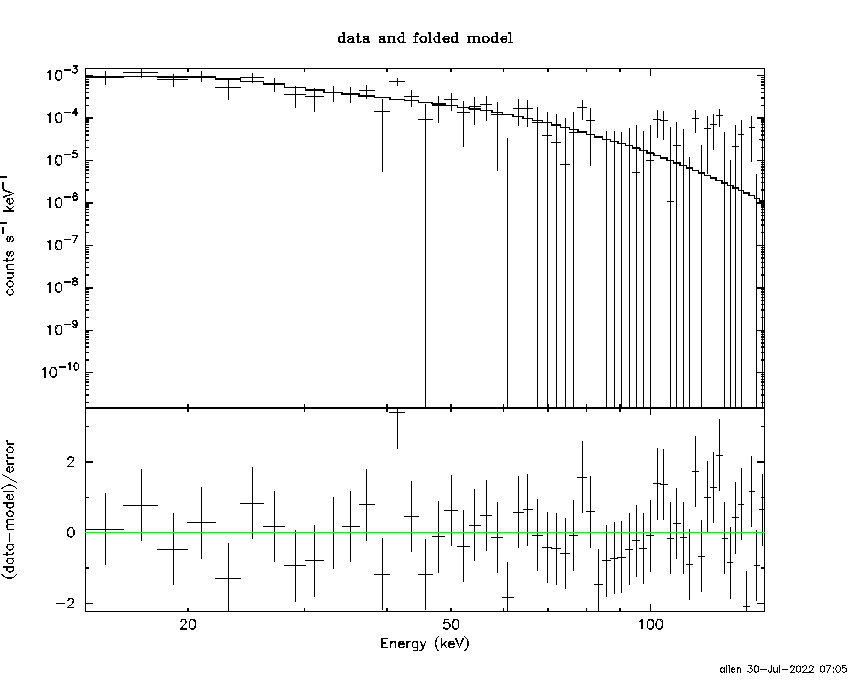

Cutoff power-law model

Time interval is from   22.792 sec. to  111.424 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.25578     ( -1.36938   0.70541 )
Epeak [keV] : 31.4925      ( -9.37503 15.6438 )
Norm@50keV  : 3.58696E-03    ( -0.00358731   0.0226514 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.56     using 59 bins.
 Reduced chi-squared = 0.992143
# Null hypothesis probability of 4.92e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 88.63 sec: 0.158870 ( -0.019907  0.02004 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.60993e-07 ( -1.34249e-07  1.55609e-07 ) ergs/cm2

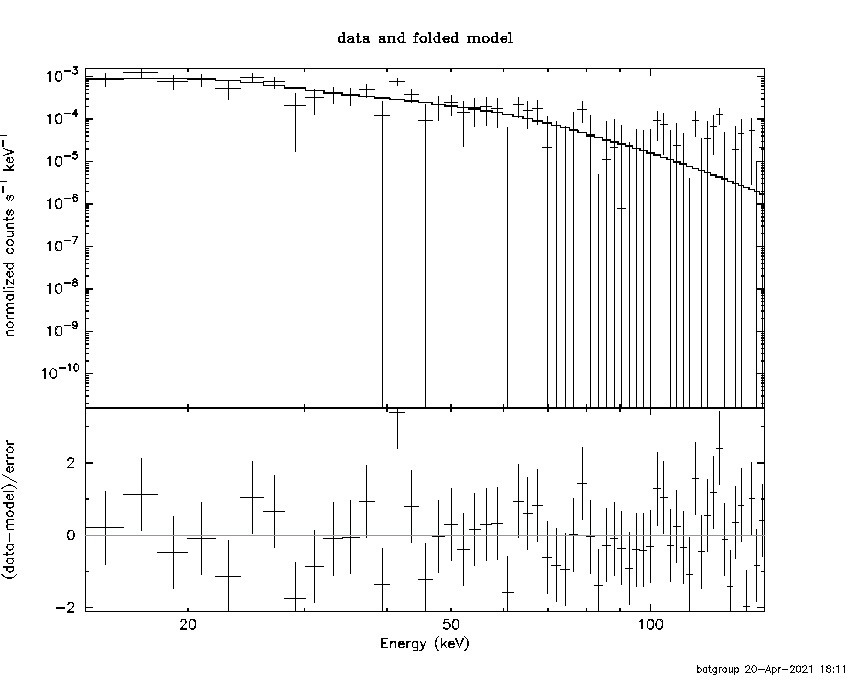

Band function

Time interval is from   22.792 sec. to  111.424 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.60625  (-1.11761  1.27273)
R^2/D10^2   : 0.136028  (-0.056856   0.099089)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   64.58     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.29e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.696e-07   3.532e-08
25- 50  3.356e-07   5.389e-08
50-150  1.114e-07   4.166e-08
15-150  6.166e-07   1.027e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 48.7150       (-13.7333      22.8779)
Norm        : 0.943588       (-0.180148     0.241766)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.55     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.30e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.032e-07   3.310e-08
25- 50  2.892e-07   4.321e-08
50-150  2.739e-07   1.020e-07
15-150  7.663e-07   1.353e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.87380        (-2.16891      2.77949)
R1^2/D10^2  : 0.784909        (-0.592311      8.74656)
kT2 [keV]   : 13.7930        (-4.13309      23.7617)
R2^2/D10^2  : 1.47625E-02    (-0.0144773   0.0609213)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.75     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.47e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.052e-07   1.124e-07
25- 50  2.864e-07   1.448e-07
50-150  2.431e-07   1.450e-07
15-150  7.348e-07   3.677e-07

Peak spectrum fit

Power-law model

Time interval is from   41.820 sec. to   42.820 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66756     ( -0.502535   0.546093 )
Norm@50keV  : 4.53626E-03    ( -0.0015954   0.00154077 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.82     using 59 bins.
 Reduced chi-squared = 0.80386
# Null hypothesis probability of 8.56e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.595821 ( -0.187587  0.187722 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.2124e-08 ( -1.50252e-08  1.56045e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   41.820 sec. to   42.820 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.455432     ( -3.21205   1.7488 )
Epeak [keV] : 58.4775      ( -58.4782 -58.4782 )
Norm@50keV  : 2.07820E-02    ( -0.0207811   1.05877 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.80     using 59 bins.
 Reduced chi-squared = 0.8
# Null hypothesis probability of 8.59e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.581422 ( -0.18912  0.189239 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.904e-08 ( -1.44686e-08  1.62632e-08 ) ergs/cm2

Band function

Time interval is from   41.820 sec. to   42.820 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.1503  (-4.03416  5.70566)
R^2/D10^2   : 0.111901  (-0.11175   0.303721)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   46.09     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.49e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.103e-09   2.589e-09
25- 50  1.431e-08   8.559e-09
50-150  1.575e-08   1.075e-08
15-150  3.416e-08   2.213e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 142.990       (-86.9237      -131.981)
Norm        : 2.43544       (-0.838588     1.28881)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   45.27     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.69e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.279e-09   3.774e-09
25- 50  1.156e-08   7.065e-09
50-150  2.236e-08   1.457e-08
15-150  4.019e-08   2.555e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.10739        (-5.07681      178.607)
R1^2/D10^2  : 1.58257        (-1.59216      -1.59216)
kT2 [keV]   : 17.1162        (-17.0887      -17.0887)
R2^2/D10^2  : 3.57911E-02    (-0.0359271   0.217457)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   44.48     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.44e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.319e-09   3.614e-09
25- 50  1.236e-08   6.800e-09
50-150  2.001e-08   1.381e-08
15-150  3.869e-08   2.125e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.10867     ( -0.261203   0.286146 )
Norm@50keV  : 1.22667E-03    ( -0.000243163   0.000236376 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   58.38     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.24e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 51.11 sec: 0.193817 ( -0.0267387  0.0267401 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.83002e-07 ( -1.01163e-07  1.0515e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.17750     ( -1.72828   0.93285 )
Epeak [keV] : 33.7868      ( -31.7279 -33.7912 )
Norm@50keV  : 4.53767E-03    ( -0.00454528   0.0484911 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.93     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.40e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 51.11 sec: 0.188129 ( -0.027565  0.027747 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.27333e-07 ( -1.05481e-07  1.28726e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.63e-07
S(50-100 keV) = 2.38e-07

T90 vs. Hardness ratio plot

T90                                   = 71.0759999752045 sec.
Hardness ratio (energy fluence ratio) = 0.904943

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.933131
Count Ratio (50-100 keV) / (15-25 keV) = 0.354592

Mask shadow pattern

IMX = -5.695155266419270E-02, IMY = -3.821016374942349E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-15.699400 22.792000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
22.792000 73.900600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 86.9193 -65.4532    1.6  21.1   98.5   1.0858   7.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
117.300600 963.147900

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4526 -40.5070    3.8  36.9   39.6   3.4563   3.0    4.5	Vela X-1
170.3418 -60.6207   26.6  35.3   90.4   0.6311   0.4    0.8	Cen X-3
186.3189 -62.8209   10.5  38.9  102.0  -2.1218  -1.1    9.8	GX 301-2
183.1067 -59.0897    2.5  40.8   96.4  11.0182   4.7 ------	UNKNOWN
157.0866 -76.5499    3.9  23.4  114.4   2.5945   3.0 ------	UNKNOWN
128.7830 -63.4427    3.0  17.9   70.7   2.8374   3.8 ------	UNKNOWN
 57.4225 -77.6226    4.1  14.9  172.0   1.5553   2.8 ------	UNKNOWN
330.0819 -45.0329    2.9  59.2 -164.9  20.4140   3.9 ------	UNKNOWN

Plot creation:
Sat Jul 30 07:05:58 EDT 2022
