batgrbproduct analysis for trigger=1047857

batgrbproduct Analysis for Trigger=1047857

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue May 11 19:36:26 EDT 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1047857/GCN5_download_cron
======================================================================

  Trigger: 01047857      Segment: 000

  BAT Trigger Time: 642369672   [s; MET]
      Trigger Stop: 642370048   [s; MET]
               UTC: 2021-05-10T20:00:45.004980    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 255.995206002325   Dec: -37.8395263580605  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    12.96
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    12.96

  Flight Position:   [ source = BAT ]
    RA: 255.995206002325   Dec: -37.8395263580605  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 255.982700869288   Dec: -37.8614366936334  [deg; J2000]
        { 17h 03m 55.8s , -37d 51' 41.2" }
         +/- 1.80037758452169 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.586538763210091 [arcmin] (formal 1-sigma fit error)
    SNR: 13.1314668366537

  Angular difference between Flight and Ground position is 1.441953 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 451.507999897003 +/- 585.16199884301
        Measured from: 427.480000138283
                   to: 878.988000035286     [s; relative to TRIGTIME]
     T50: 242.455999970436 +/- 614.923995511825
        Measured from: 498.732000112534
                   to: 741.18800008297     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -69.2799999713898
                   to: -68.2799999713898     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -70.6560000181198
                   to: 883.983999967575     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     9.874395   7.756799   1.910734   0.175503
           0.276282   0.254986   0.212873   0.190754 [error]
 Peak      0.018708   0.026752   0.018437  -0.000262
           0.010459   0.010144   0.008569   0.008011 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.24e-06 2.88e-06 1.76e-06 1.62e-06 8.56e-06 9.50e-06   erg/cm2
              Error 2.10e-07 1.38e-07 1.72e-07 3.04e-07 4.16e-07 5.50e-07   erg/cm2
Peak flux Power-law 2.46e-01 1.80e-01 8.73e-02 6.01e-02 5.41e-01 5.73e-01   ph/cm2/s
              Error 1.33e-01 7.54e-02 5.97e-02 8.48e-02 2.23e-01 2.40e-01   ph/cm2/s

Fluence   Cutoff-PL 2.93e-06 3.20e-06 1.24e-06 1.28e-07 7.48e-06 7.49e-06   erg/cm2
              Error 2.43e-07 1.78e-07 2.60e-07 1.26e-07 4.79e-07 4.98e-07   erg/cm2
Peak flux Cutoff-PL 2.18e-01 2.06e-01 9.05e-02 1.88e-02 5.30e-01 5.34e-01   ph/cm2/s
              Error 1.86e-01 9.97e-02 7.08e-02 4.29e-02 2.23e-01 2.40e-01   ph/cm2/s

Fluence        Band 2.01e-06 2.15e-06 7.40e-07 2.74e-07 5.08e-06 5.19e-06   erg/cm2
              Error 2.29e-07 2.26e-07 -------- -------- 5.70e-07 7.37e-07   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.712    0.104    -      -           8.42e-04 5.92e-05   64.640 57
CPL   1.122    0.656      19.1    7.3      8.48e-03 1.03e-02   38.820 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.042    0.814    -      -           3.54e-03 2.69e-03   40.670 57
CPL   0.918    3.316      42.1    0.0      1.52e-02 2.60e+00   40.240 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.

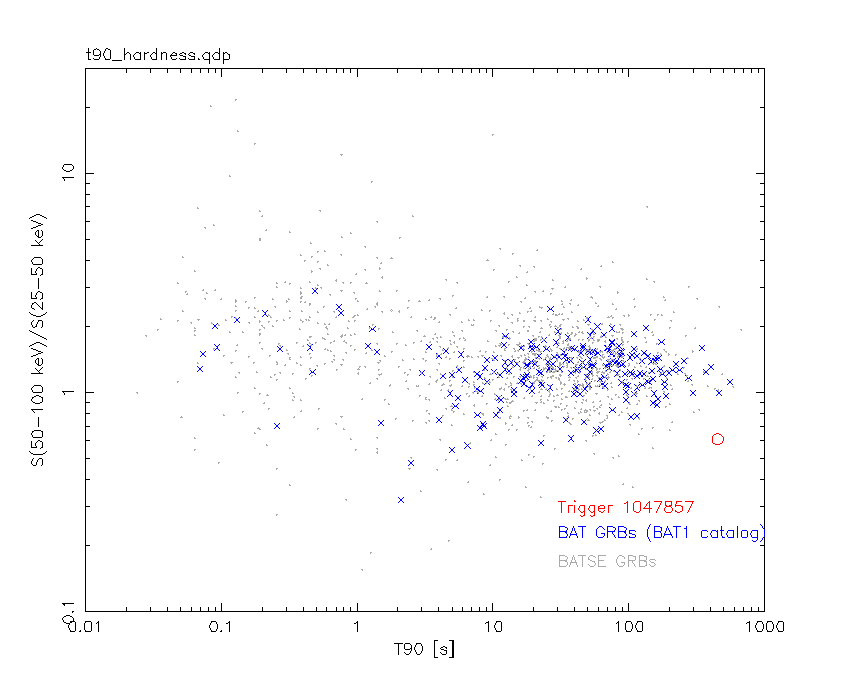

=== Table of the duration information ==

        Value   tstart    tstop
T100  954.640  -70.656  883.984
T90   451.508  427.480  878.988
T50   242.456  498.732  741.188
Peak    1.000  -69.280  -68.280

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  255.9827 -37.8614 0.0147    2.1  105.4       6.0961    13.1  TRIG_01047857
------------------------------------------

Foreground time interval of the image:
-14.599 373.690 (delta_t = 388.289 [sec])
375.000 408.301 (delta_t =  33.301 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

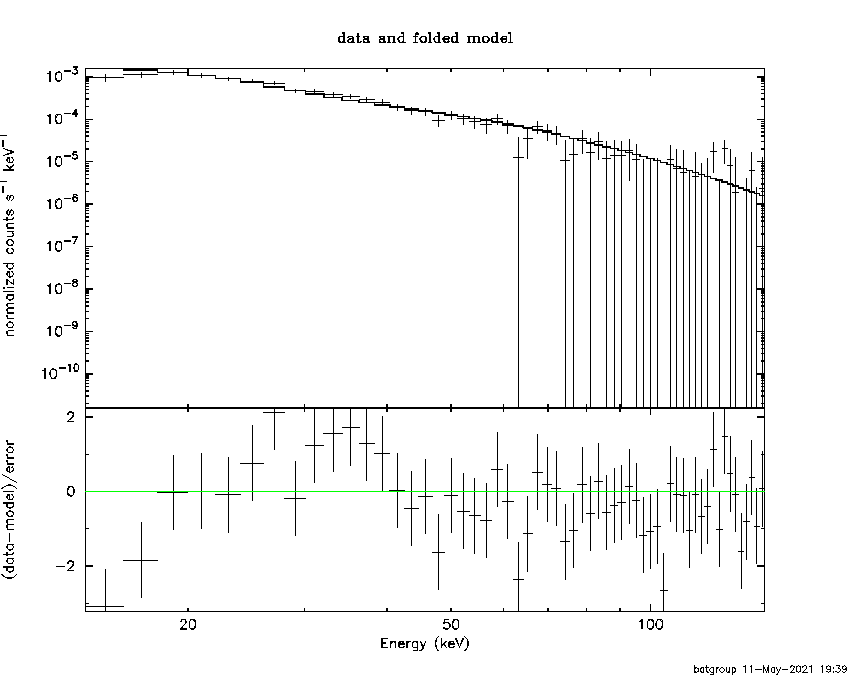

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-70.656000 -26.290000
-25.000000 373.690000
375.000000 883.984000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.71217     ( -0.102323   0.105032 )
Norm@50keV  : 8.41828E-04    ( -5.92163e-05   5.92089e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   64.64     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.27e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 952 sec: 0.189409 ( -0.00909376  0.00912078 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.56221e-06 ( -4.14983e-07  4.17551e-07 ) ergs/cm2

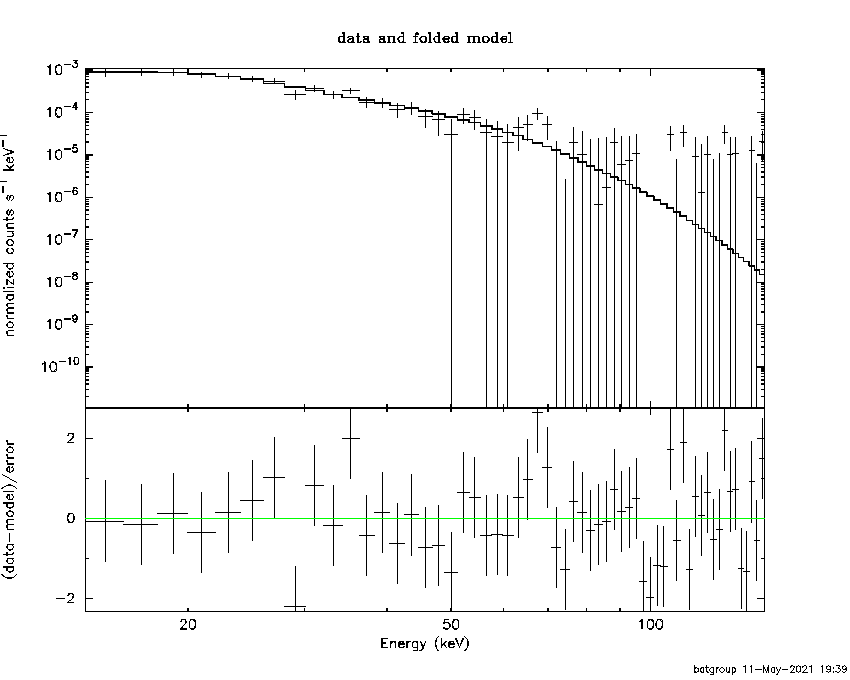

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-70.656000 -26.290000
-25.000000 373.690000
375.000000 883.984000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12196     ( -0.706138   0.605845 )
Epeak [keV] : 19.1295      ( -9.61712 4.91962 )
Norm@50keV  : 8.48461E-03    ( -0.00497044   0.0156187 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   38.82     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.61e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 952 sec: 0.175730 ( -0.010125  0.010159 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.47648e-06 ( -4.64662e-07  4.92917e-07 ) ergs/cm2

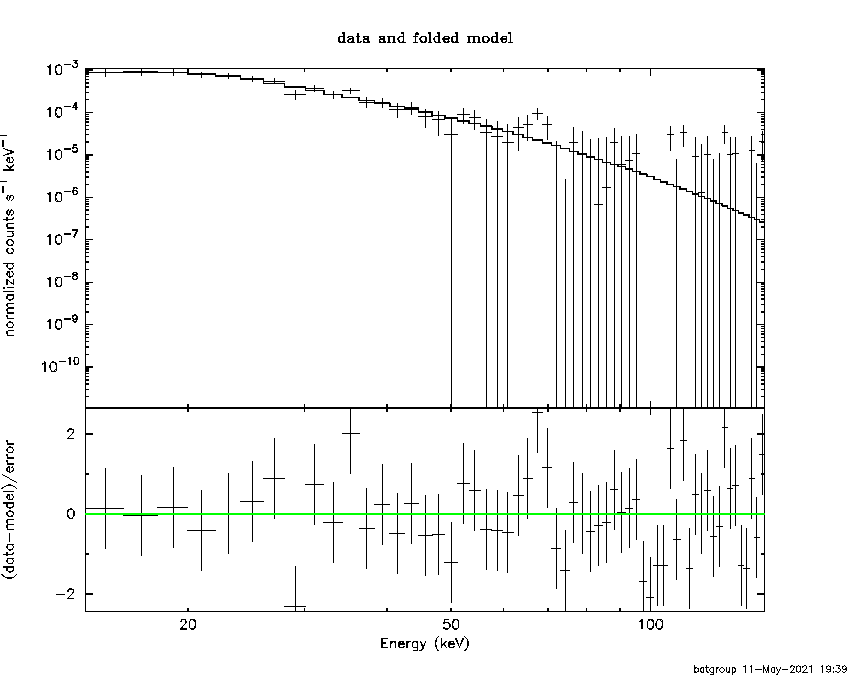

Band function

Multiple GTIs in the spectrum
tstart tstop
-70.656000 -26.290000
-25.000000 373.690000
375.000000 883.984000
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.12142   ( -0.352822   0.140694 )
beta        : -9.99999    ( 9.99999   3.57092e-05 )
Epeak [keV] : 19.1299      ( -1.64474 4.91396 )
Norm@50keV   : 8.49101E-03    ( -0.000383201   0.0156619 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 952 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.0775e-06 ( -5.07084e-06  -5.48571e-07 ) ergs/cm2

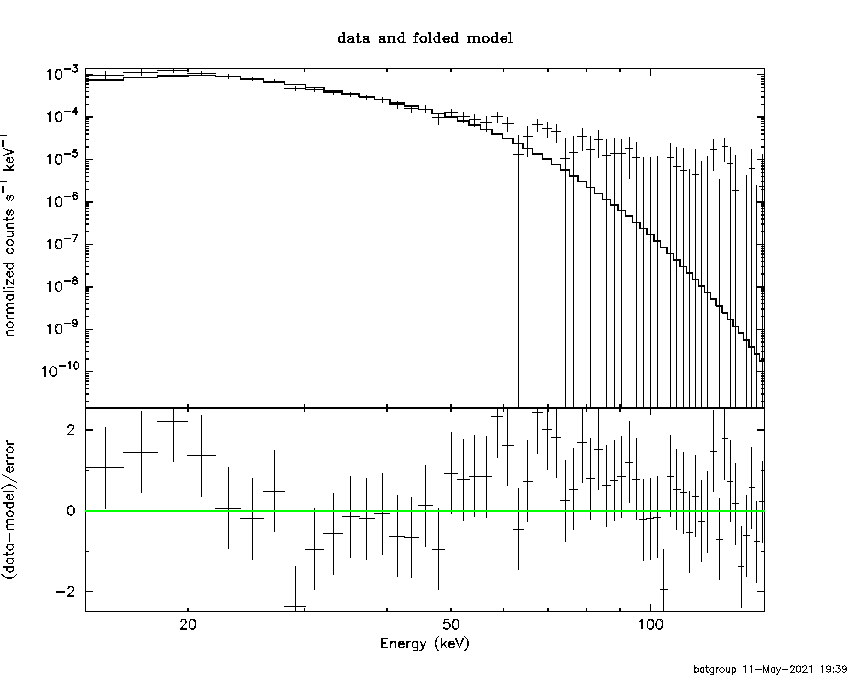

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.10410  (-0.335037  0.351819)
R^2/D10^2   : 0.309161  (-0.0606574   0.0758762)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   69.02     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.32e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.422e-06   1.952e-07
25- 50  3.413e-06   1.723e-07
50-150  5.965e-07   1.001e-07
15-150  6.432e-06   3.237e-07

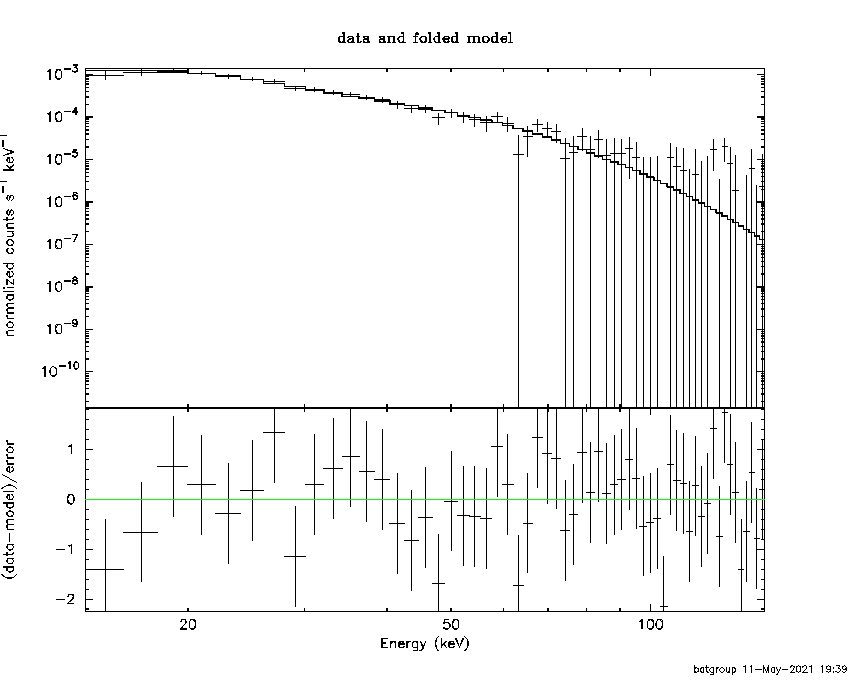

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 26.4647       (-2.52671      2.89566)
Norm        : 1.64721       (-0.184141     0.210858)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   39.06     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.67e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.976e-06   1.942e-07
25- 50  3.161e-06   1.552e-07
50-150  1.459e-06   2.390e-07
15-150  7.597e-06   3.689e-07

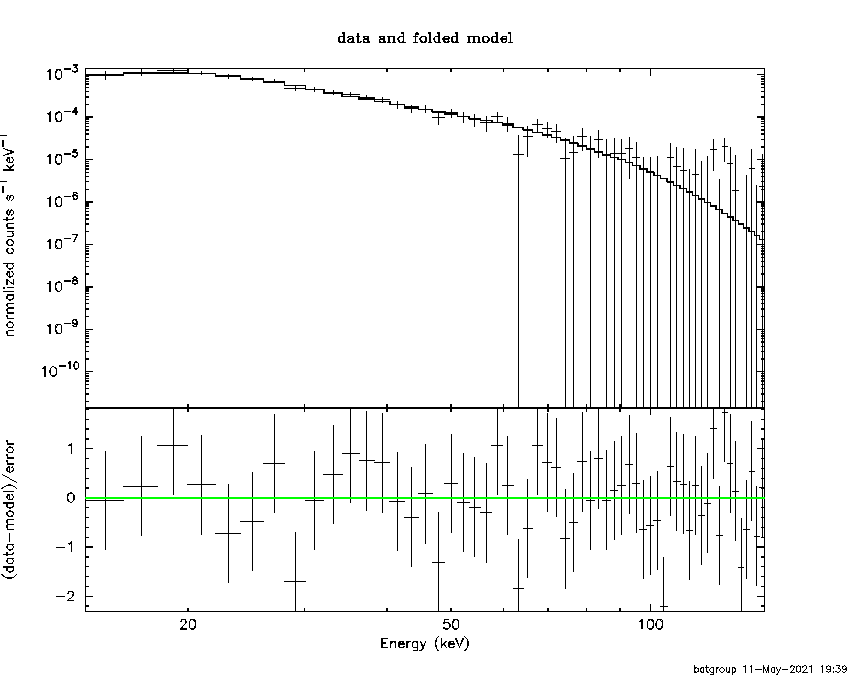

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.45944        (-0.883129      0.701569)
R1^2/D10^2  : 0.778044        (-0.278323      0.653665)
kT2 [keV]   : 14.0659        (-3.54037      5.79212)
R2^2/D10^2  : 7.51483E-03    (-0.0060025   0.0267488)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   35.86     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.79e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.827e-06   4.593e-07
25- 50  3.155e-06   6.531e-07
50-150  1.583e-06   7.586e-07
15-150  7.565e-06   1.742e-06

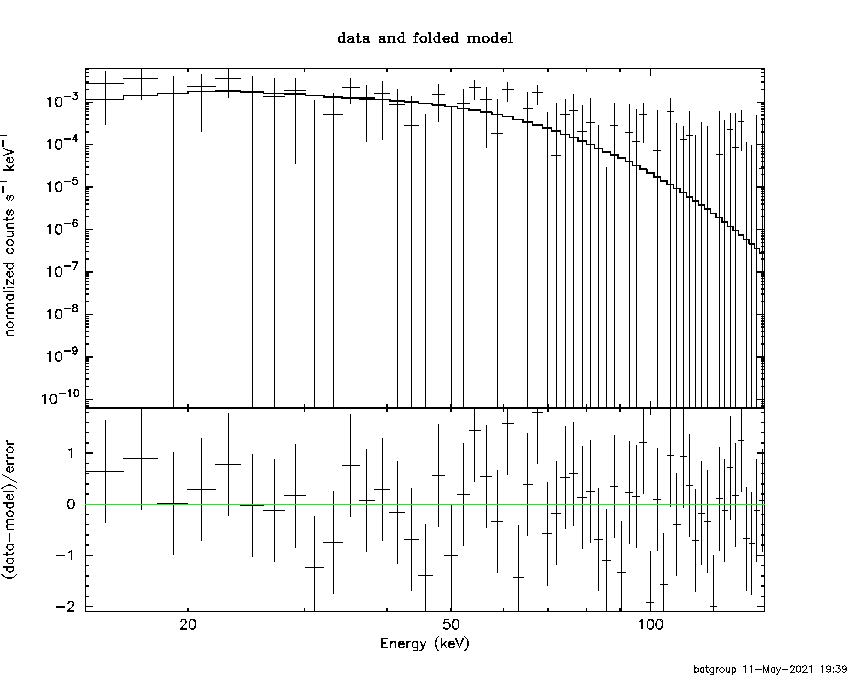

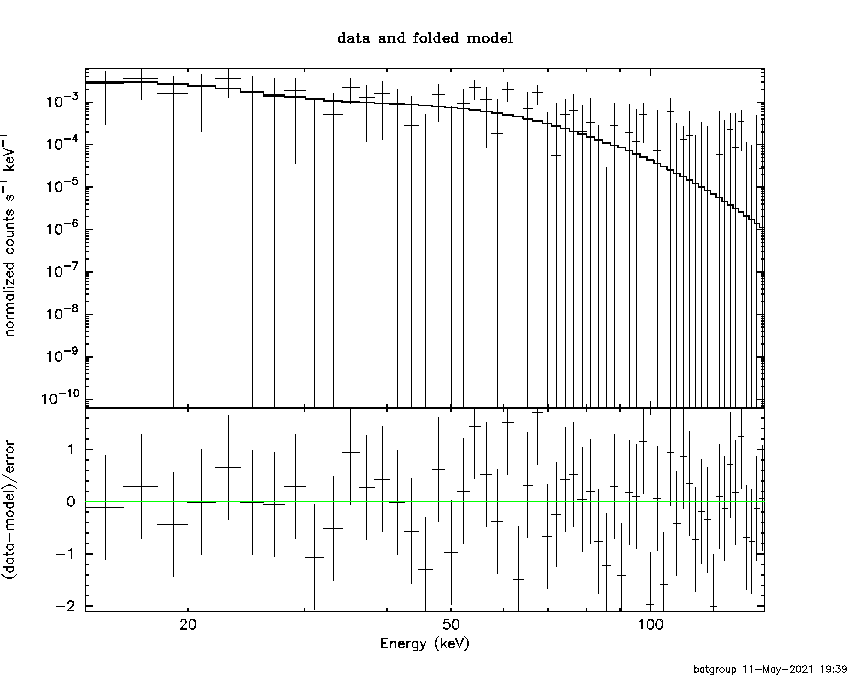

Peak spectrum fit

Power-law model

Time interval is from  -69.280 sec. to  -68.280 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.04237     ( -0.695089   0.93341 )
Norm@50keV  : 3.53716E-03    ( -0.00353721   0.00184321 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.67     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.50e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.541181 ( -0.222785  0.222784 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.27026e-08 ( -1.58158e-08  1.70214e-08 ) ergs/cm2

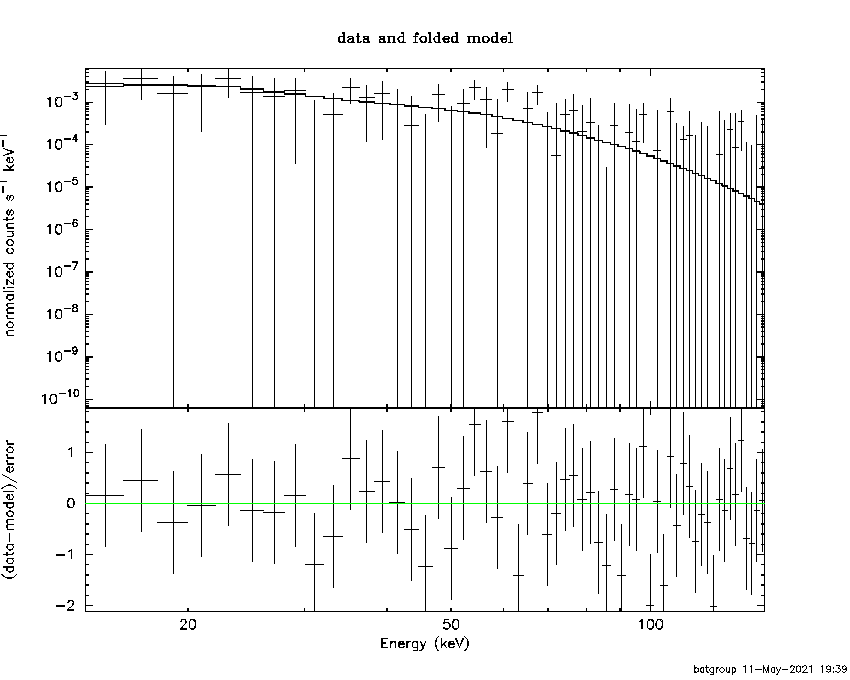

Cutoff power-law model

Time interval is from  -69.280 sec. to  -68.280 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.918420     ( -4.95579   1.67571 )
Epeak [keV] : 42.1049      ( -42.1362 -42.1362 )
Norm@50keV  : 1.52479E-02    ( -0.0151978   5.1819 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.24     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.44e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.530048 ( -0.221961  0.224376 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.09082e-08 ( -1.4627e-08  1.72767e-08 ) ergs/cm2

Band function

Time interval is from  -69.280 sec. to  -68.280 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.934524   ( -1.06121   4.83766 )
beta        : -9.36574    ( 9.37129   19.3713 )
Epeak [keV] : 43.1287      ( -33.0445 -42.9598 )
Norm@50keV   : 1.46493E-02    ( -0.0145599   1.61157e+06 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.6130  (-5.17535  6.31935)
R^2/D10^2   : 0.150772  (-0.150505   1.19517)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.24     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.42e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.286e-09   2.834e-09
25- 50  1.297e-08   8.375e-09
50-150  1.028e-08   7.635e-09
15-150  2.754e-08   1.942e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 63.3133       (-63.3206      -63.3206)
Norm        : 2.82209       (-1.35733     2.9663)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.29     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.54e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.151e-09   4.569e-09
25- 50  1.106e-08   6.990e-09
50-150  1.315e-08   1.142e-08
15-150  3.136e-08   2.384e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.29191        (-3.25689      19.6264)
R1^2/D10^2  : 13.4325        (-13.8231      -13.8231)
kT2 [keV]   : 14.1017        (-5.5546      -14.0538)
R2^2/D10^2  : 6.34974E-02    (-0.0642034   0.476623)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   39.51     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.43e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.036e-09   3.730e-09
25- 50  1.086e-08   6.880e-09
50-150  1.313e-08   8.885e-09
15-150  3.102e-08   1.819e-08

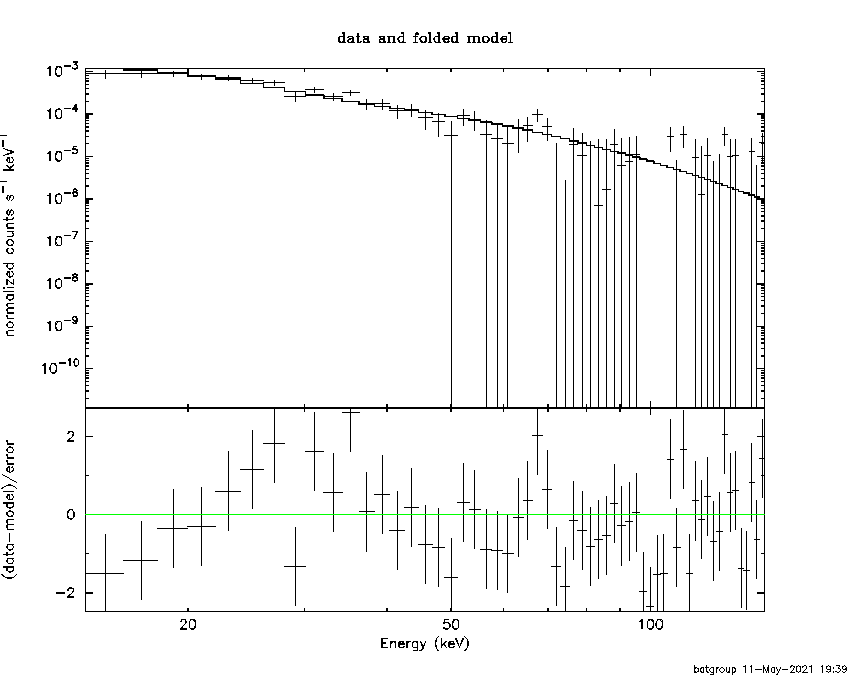

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.79128     ( -0.163824   0.172592 )
Norm@50keV  : 5.77445E-04    ( -7.34998e-05   7.43496e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   73.72     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.74e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 421.6 sec: 0.137044 ( -0.00985945  0.00986451 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.67808e-06 ( -2.19676e-07  2.2417e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.836397     ( -1.2914   1.00643 )
Epeak [keV] : 19.0543      ( -13.7181 5.24704 )
Norm@50keV  : 1.14990E-02    ( -0.011656   0.0770167 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   60.19     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.27e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 421.6 sec: 0.129150 ( -0.010324  0.010382 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.32143e-06 ( -2.12432e-07  2.34296e-07 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.358882   ( -0.948376   2.55537 )
beta        : -3.82912    ( 3.83252   0.686821 )
Epeak [keV] : 20.6220      ( -9.10121 3.90829 )
Norm@50keV   : 2.58843E-02    ( -0.029076   2.44035 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 421.6 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.88e-06
S(50-100 keV) = 1.76e-06

T90 vs. Hardness ratio plot

T90                                   = 451.507999897003 sec.
Hardness ratio (energy fluence ratio) = 0.611111

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.785547
Count Ratio (50-100 keV) / (15-25 keV) = 0.193504

Mask shadow pattern

IMX = -9.572132646437937E-03, IMY = -3.463341983893006E-02

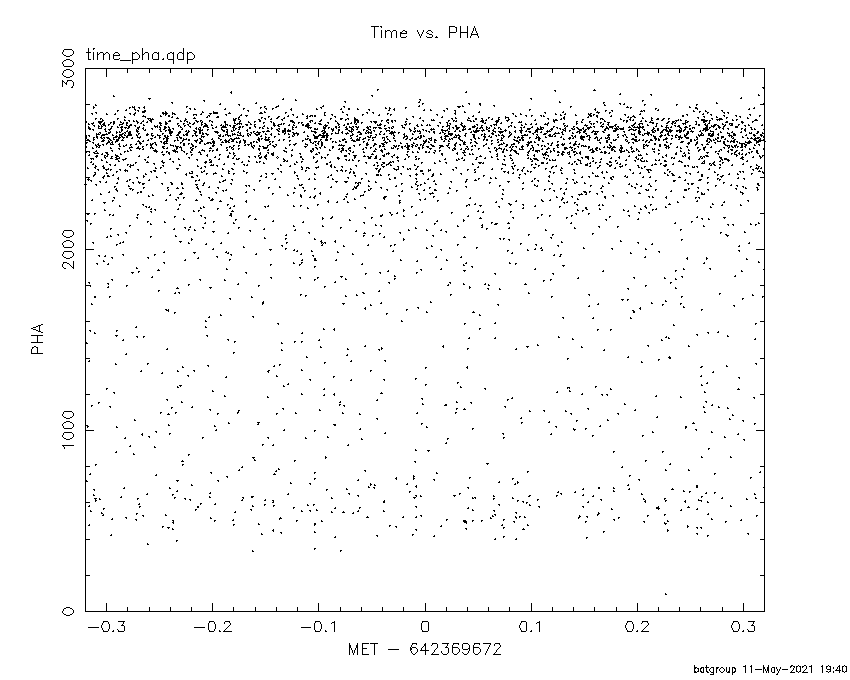

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-14.599400 373.690000
375.000000 408.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1950 -60.6893    5.0  54.9   -7.9  -4.0895  -2.3    5.3	Cen X-3
186.9897 -62.7670   16.6  46.7   -8.3   0.6538   0.7    9.1	GX 301-2
244.9721 -15.6435    0.8  26.3  107.8  10.5963  15.2    0.5	Sco X-1
255.9827 -37.8614    0.9   2.1  105.5   6.0954  13.2    1.1	4U 1700-377
256.4883 -36.2540    6.1   3.5  124.7   0.9029   1.9   10.5	GX 349+2
262.9782 -24.7396    4.0  15.7  154.9   1.3465   2.9    1.7	GX 1+4
264.6260 -44.3992    5.9   7.2  -91.2   0.9519   2.0    5.9	4U 1735-44
268.3644  -1.6254    0.0  39.3  153.0   1.3338   1.3   10.4	SW J1753.5-0127
270.3192 -25.0970    3.2  18.2  176.2   1.7315   3.6    2.2	GX 5-1
270.2908 -25.8189    3.0  17.6  177.5   1.9044   3.9    4.6	GRS 1758-258
273.9900 -14.0197  317.8  29.5  169.8   0.0211   0.0    1.4	GX 17+2
275.9245 -30.3668   19.8  17.8 -160.3   0.2833   0.6    0.0	H1820-303
284.9601 -24.7579    6.6  27.6 -159.0  -1.0147  -1.7   10.6	HT1900.1-2455
263.0759 -33.9783    7.5   7.3  176.4  -0.6742  -1.5    9.6	GX 354-0
215.3698 -50.8622    2.9  31.1   10.2   2.5210   4.1 ------	UNKNOWN
181.1426 -52.7832    3.2  51.7    3.8   4.8360   3.7 ------	UNKNOWN
270.7449 -29.8446    2.5  14.8 -172.2   2.2769   4.6 ------	UNKNOWN
221.7716 -66.8478    2.9  33.6  -20.2   2.3808   4.0 ------	UNKNOWN
128.6489 -89.7334    3.3  50.5  -44.4   8.1282   3.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
472.300590 963.040000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9749 -15.6625    0.7  28.4   87.2  14.6646  16.3    1.4	Sco X-1
254.3598  35.3219    4.4  54.9  160.3  -7.3371  -2.6    4.9	Her X-1
255.9802 -37.8545    0.5  27.2   33.8  16.4333  21.5    0.7	4U 1700-377
256.3672 -36.2651    9.4  25.8   35.7   0.8428   1.2   10.0	GX 349+2
262.9388 -24.7275    3.2  13.8   50.2   2.1353   3.6    4.0	GX 1+4
264.7140 -44.4418    7.9  29.5   14.7   1.1364   1.4    1.3	4U 1735-44
268.3148  -1.6019    7.1  15.8  156.9   0.9766   1.6    9.5	SW J1753.5-0127
270.2925 -25.0359    3.3   9.7   23.7   2.0672   3.5    2.6	GX 5-1
270.2229 -25.7579    7.3  10.4   22.4   0.9620   1.6    4.4	GRS 1758-258
274.1610 -14.1857    0.0   2.0  170.0   1.1444   2.1   12.7	GX 17+2
275.7596 -30.5189   42.2  14.4   -3.9  -0.1797  -0.3   12.5	H1820-303
285.0377 -24.9152    9.7  13.2  -46.2  -0.6989  -1.2    0.3	HT1900.1-2455
288.9236  11.0859    0.0  30.7 -151.1   0.6767   0.8   11.2	GRS 1915+105
299.6391  35.1920    5.9  56.6 -155.1   6.9121   1.9    2.5	Cyg X-1
262.8263 -33.6890   62.4  20.5   29.2  -0.1155  -0.2   11.9	GX 354-0
245.6962 -59.4632    2.6  48.2   19.6   7.0313   4.4 ------	UNKNOWN
264.3818 -36.4389    2.6  22.2   22.4   2.5860   4.4 ------	UNKNOWN
313.9832 -68.1537    3.6  57.7  -15.9   8.3824   3.3 ------	UNKNOWN
296.0899  34.2566    2.6  54.4 -157.7   8.1199   4.4 ------	UNKNOWN
307.1510  29.3816    5.4  55.4 -144.8   9.0453   2.2 ------	UNKNOWN
324.4858 -44.5975    4.2  50.6  -44.5   8.4220   2.7 ------	UNKNOWN
	UNKNOWN

Plot creation:
Tue May 11 19:40:08 EDT 2021
