batgrbproduct Analysis for Trigger=1053220

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Jun  3 13:51:48 EDT 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1053220/batgroup_hand_proc
======================================================================

  Trigger: 01053220      Segment: 000

  BAT Trigger Time: 644406373.792   [s; MET]
      Trigger Stop: 644406373.8   [s; MET]
               UTC: 2021-06-03T09:45:46.661040    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 238.818949031945   Dec: -54.0464837942575  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.9
     Image Trigger?:     NO
     Rate S/N Ratio:     29.2232783924049  [ if not an image trigger ]
     Image S/N Ratio:    9.9

  Flight Position:   [ source = BAT ]
    RA: 238.818949031945   Dec: -54.0464837942575  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 238.781616415474   Dec: -54.06545780194  [deg; J2000]
        { 15h 55m 07.6s , -54d 03' 55.6" }
         +/- 2.19758972362758 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.05905853907777 [arcmin] (formal 1-sigma fit error)
    SNR: 9.87695817911247

  Angular difference between Flight and Ground position is 1.739212 arcmin

  Partial Coding Fraction: 0.8984375    [ including projection effects ]

  Duration
     T90: 0.00799989700317383 +/- 0.0905096828275688
        Measured from: 0
                   to: 0.00799989700317383     [s; relative to TRIGTIME]
     T50: 0.00799989700317383 +/- 0.064
        Measured from: 0
                   to: 0.00799989700317383     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.00799989700317383 second)
        Measured from: 0
                   to: 0.00799989700317383     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.00799989700317383     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.013467   0.010085   0.002487   0.000022
           0.001870   0.001705   0.000886   0.000464 [error]
 Peak      0.013467   0.010085   0.002487   0.000022
           0.001870   0.001705   0.000886   0.000464 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.01e-09 3.13e-09 2.30e-09 2.71e-09 9.48e-09 1.11e-08   erg/cm2
              Error 6.69e-10 6.12e-10 7.47e-10 1.60e-09 1.98e-09 2.84e-09   erg/cm2
Peak flux Power-law 1.24e+01 7.17e+00 2.63e+00 1.27e+00 2.29e+01 2.35e+01   ph/cm2/s
              Error 2.80e+00 1.38e+00 8.30e-01 7.05e-01 4.27e+00 4.37e+00   ph/cm2/s

Fluence   Cutoff-PL 3.15e-09 4.00e-09 1.45e-09 9.34e-11 8.69e-09 8.70e-09   erg/cm2
              Error 7.65e-10 9.90e-10 1.32e-09 8.52e-10 1.81e-09 1.92e-09   erg/cm2
Peak flux Cutoff-PL 1.27e+01 9.22e+00 1.80e+00 6.32e-02 2.38e+01 2.38e+01   ph/cm2/s
              Error 3.13e+00 2.31e+00 1.55e+00 4.47e-01 4.40e+00 4.40e+00   ph/cm2/s

Fluence        Band 3.55e-09 3.86e-09 1.70e-09 1.02e-09 9.66e-09 1.02e-08   erg/cm2
              Error 8.35e-10 8.90e-10 -------- -------- 1.95e-09 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.447    0.309    -      -           1.20e-01 3.02e-02   25.370 57
CPL   0.442    2.415      25.4   14.8      2.80e+00 3.22e+02   21.560 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.447    0.309    -      -           1.20e-01 3.02e-02   25.370 57
CPL   0.442    2.415      25.4   14.7      2.80e+00 3.22e+02   21.560 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.008    0.000    0.008
T90     0.008    0.000    0.008
T50     0.008    0.000    0.008
Peak    0.008    0.000    0.008

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  238.7816 -54.0655 0.0195   21.0  160.5       0.0274     9.9  TRIG_01053220
------------------------------------------

Foreground time interval of the image:
  0.000   0.008 (delta_t =   0.008 [sec])
Background time interval of the image:
-239.792  -5.792 (delta_t = 234.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

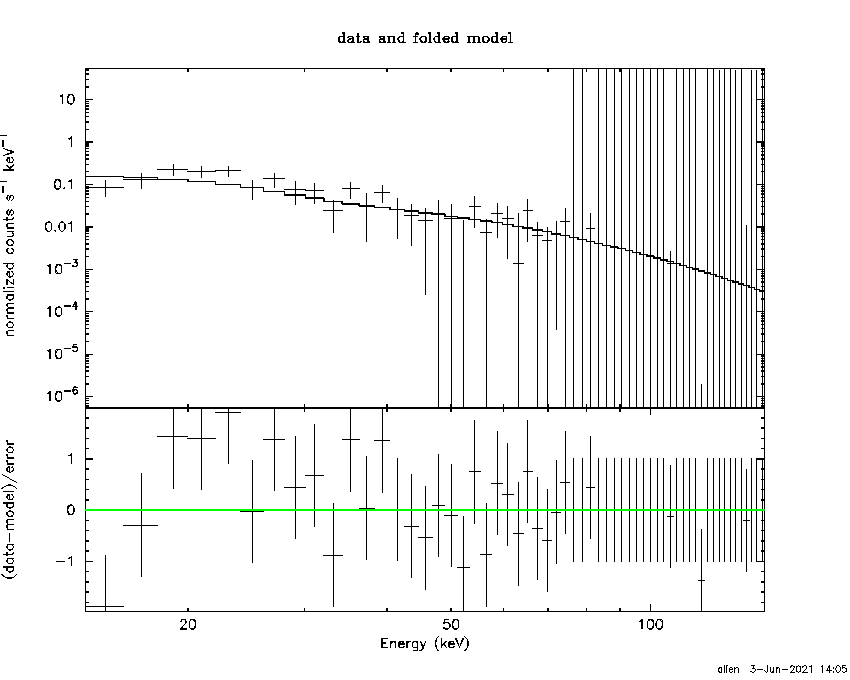

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.44674     ( -0.296163   0.321524 )
Norm@50keV  : 0.120187    ( -0.0304639   0.0299467 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   25.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.008 sec: 22.8612 ( -4.26811  4.26813 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.4836e-09 ( -1.96299e-09  1.99337e-09 ) ergs/cm2

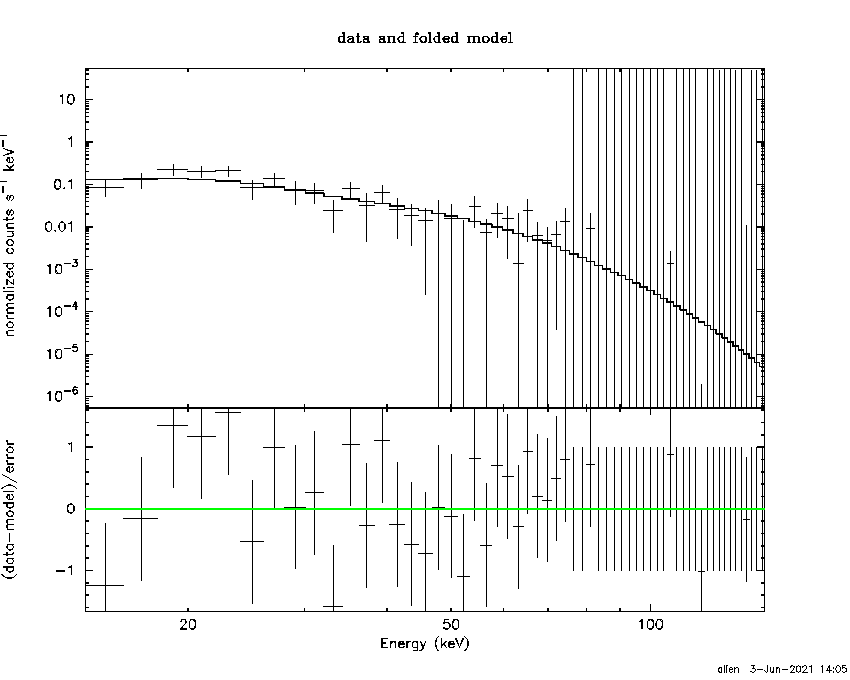

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.442226     ( -3.20576   1.62478 )
Epeak [keV] : 25.3696      ( -22.6551 6.92358 )
Norm@50keV  : 2.79677    ( -2.9504   641.91 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   21.56     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.008 sec: 23.8084 ( -4.3895  4.4141 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.69424e-09 ( -1.7308e-09  1.8868e-09 ) ergs/cm2

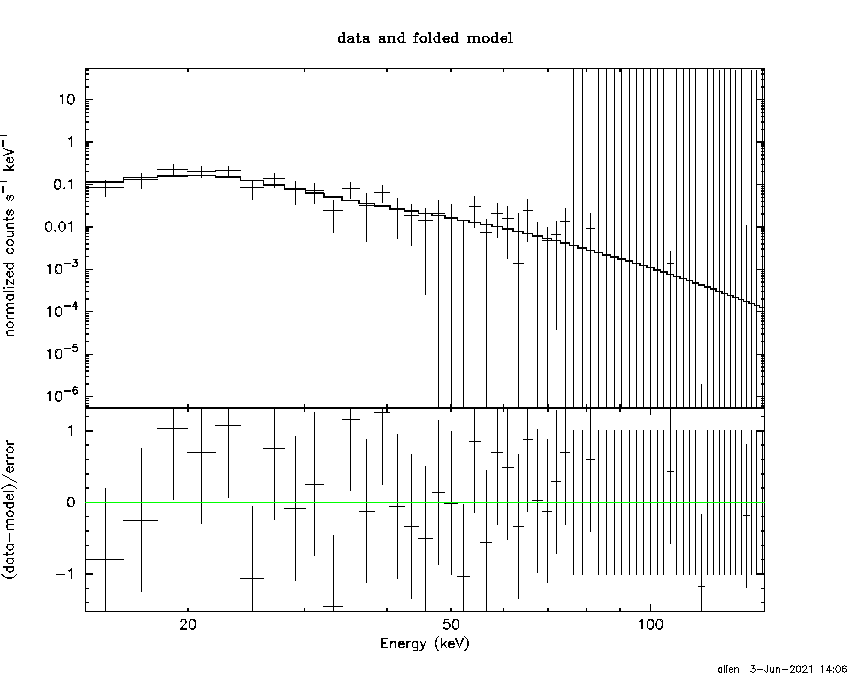

Band function

Time interval is from    0.000 sec. to    0.008 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98057   ( -4.58872   -4.98057 )
beta        : -3.18110    ( -0.995958   0.545255 )
Epeak [keV] : 23.0310      ( -3.58514 3.27419 )
Norm@50keV   : 6.17177E+04    ( -10916.2   134376 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.66152e-09 ( -9.66144e-09  -1.91181e-09 ) ergs/cm2

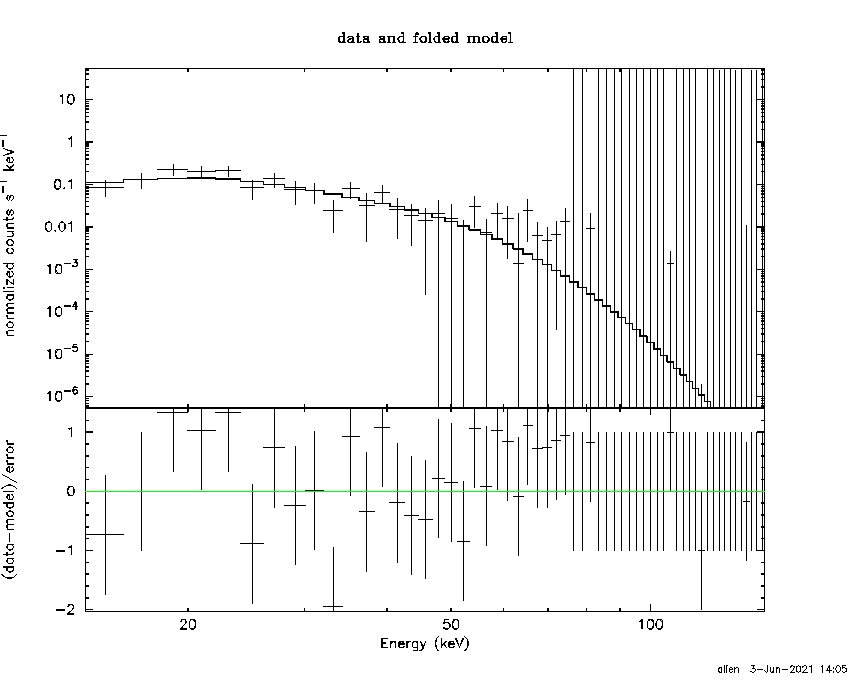

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.90762  (-1.05752  1.28316)
R^2/D10^2   : 53.0882  (-28.2628   55.2676)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   23.26     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.210e-09   1.047e-09
25- 50  4.284e-09   1.232e-09
50-150  6.765e-10   3.656e-10
15-150  8.171e-09   2.142e-09

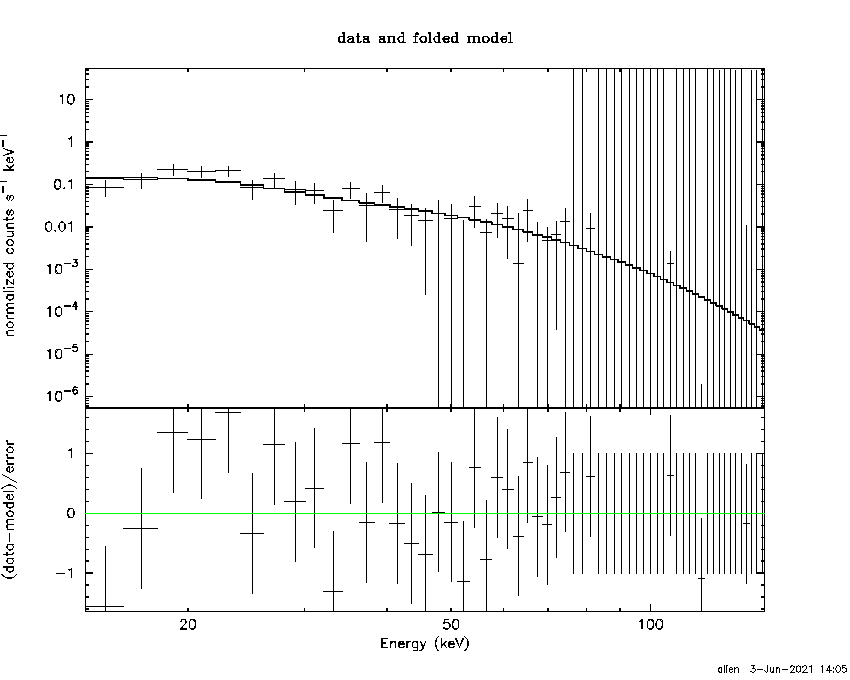

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 31.5468       (-8.99197      14.6074)
Norm        : 187.722       (-57.9936     78.977)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   22.08     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.133e-09   7.024e-10
25- 50  3.679e-09   9.500e-10
50-150  2.150e-09   1.048e-09
15-150  8.962e-09   2.274e-09

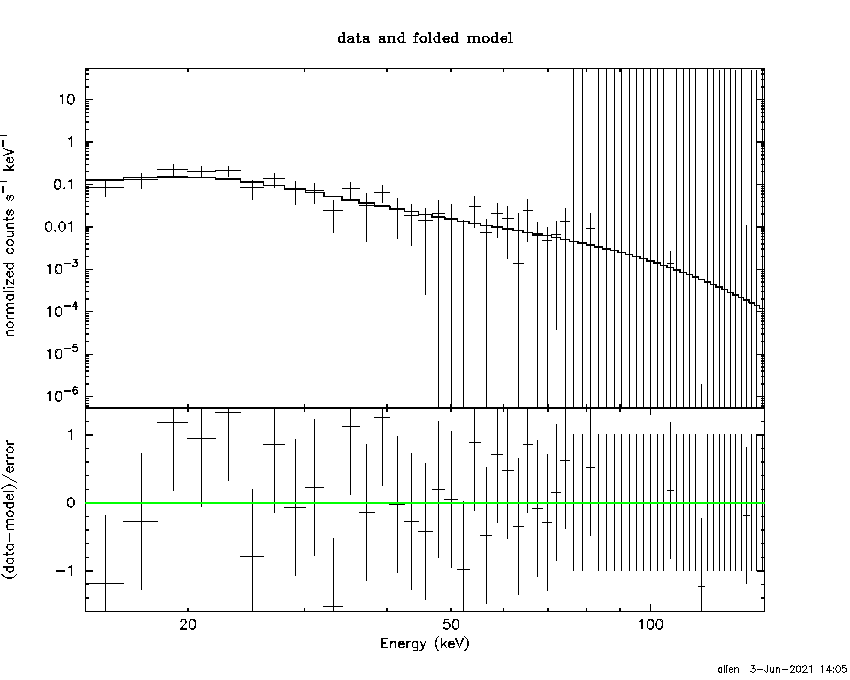

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.82062        (-1.42668      1.35104)
R1^2/D10^2  : 95.1280        (-47.5613      88.6903)
kT2 [keV]   : 20.4473        (-10.4984      132.656)
R2^2/D10^2  : 0.229813    (-0.222108   1.61504)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   18.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.422e-09   1.736e-09
25- 50  3.797e-09   1.946e-09
50-150  2.553e-09   1.663e-09
15-150  9.773e-09   4.138e-09

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.44674     ( -0.296163   0.321524 )
Norm@50keV  : 0.120187    ( -0.0304639   0.0299467 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   25.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.008 sec: 22.8612 ( -4.26811  4.26813 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.4836e-09 ( -1.96299e-09  1.99337e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.442226     ( -3.20576   1.62478 )
Epeak [keV] : 25.3696      ( -22.4916 6.92157 )
Norm@50keV  : 2.79677    ( -2.9504   641.91 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   21.56     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.008 sec: 23.8084 ( -4.3895  4.4141 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.69424e-09 ( -1.7308e-09  1.8868e-09 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.008 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98057   ( -4.58459   -4.98057 )
beta        : -3.18110    ( -0.995958   0.545255 )
Epeak [keV] : 23.0310      ( -3.58514 3.27419 )
Norm@50keV   : 6.17177E+04    ( -10916.2   134376 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.66152e-09 ( -9.66144e-09  -1.91181e-09 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.90762  (-1.05752  1.28316)
R^2/D10^2   : 53.0882  (-28.2628   55.2676)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   23.26     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.210e-09   1.003e-09
25- 50  4.284e-09   1.352e-09
50-150  6.765e-10   3.745e-10
15-150  8.171e-09   2.152e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 31.5468       (-8.99197      14.6074)
Norm        : 187.722       (-57.9936     78.977)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   22.08     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.133e-09   7.144e-10
25- 50  3.679e-09   8.700e-10
50-150  2.150e-09   9.904e-10
15-150  8.962e-09   2.081e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.82062        (-1.42668      1.35104)
R1^2/D10^2  : 95.1280        (-47.5613      88.6886)
kT2 [keV]   : 20.4473        (-10.4984      132.656)
R2^2/D10^2  : 0.229813    (-0.222108   1.48391)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   18.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.422e-09   1.807e-09
25- 50  3.797e-09   1.983e-09
50-150  2.553e-09   1.609e-09
15-150  9.773e-09   4.387e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.44674     ( -0.296163   0.321524 )
Norm@50keV  : 0.120187    ( -0.0304639   0.0299467 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   25.37     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 57 degrees of freedom

Photon flux (15-150 keV)    in 0.008 sec: 22.8612 ( -4.26811  4.26813 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.4836e-09 ( -1.96299e-09  1.99337e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.442226     ( -3.20576   1.62478 )
Epeak [keV] : 25.3696      ( -23.5443 6.93215 )
Norm@50keV  : 2.79677    ( -2.9504   641.91 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   21.56     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.00e+00 with 56 degrees of freedom

Photon flux (15-150 keV)    in 0.008 sec: 23.8084 ( -4.3895  4.4141 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.69424e-09 ( -1.7308e-09  1.8868e-09 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98057   ( -4.58219   -4.98057 )
beta        : -3.18110    ( -0.995958   0.545255 )
Epeak [keV] : 23.0310      ( -3.58514 3.27419 )
Norm@50keV   : 6.17177E+04    ( -10916.2   134376 )
------------------------------------------------------------

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.66152e-09 ( -9.66144e-09  -1.91181e-09 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.13e-09
S(50-100 keV) = 2.30e-09

T90 vs. Hardness ratio plot

T90                                   = 0.00799989700317383 sec.
Hardness ratio (energy fluence ratio) = 0.734824

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.748868
Count Ratio (50-100 keV) / (15-25 keV) = 0.184674

Mask shadow pattern

IMX = -3.617116157841450E-01, IMY = -1.282943263317289E-01

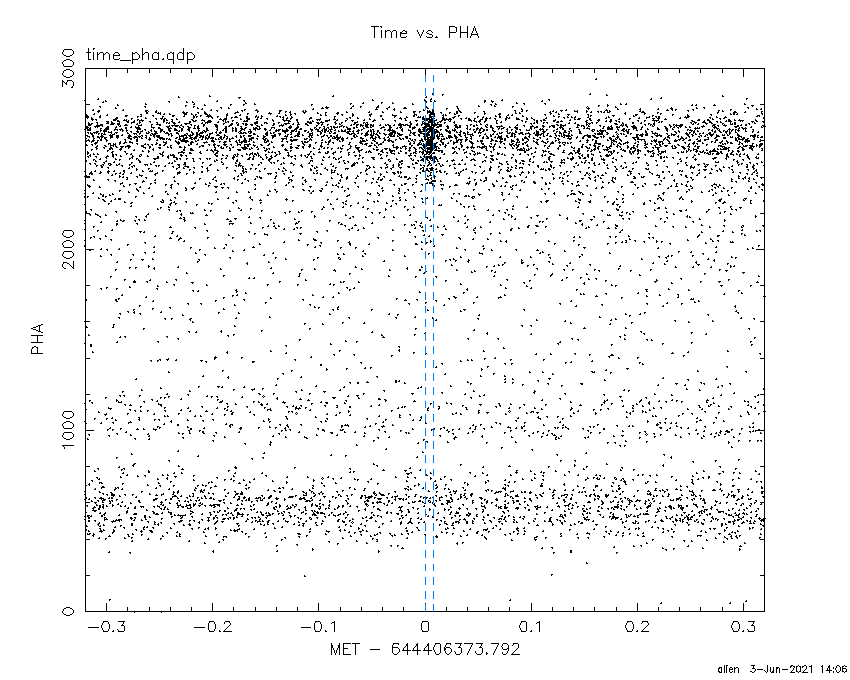

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.792000 -5.792000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3030 -60.8110    6.3  42.1 -139.4   1.1686   1.8   11.3	Cen X-3
186.6993 -62.7209    9.3  35.6 -146.7   0.5667   1.2    3.2	GX 301-2
244.9924 -15.6525    0.6  27.2   52.6   8.5414  19.1    1.1	Sco X-1
255.9910 -37.8258    0.8  25.4  109.0   6.4103  14.3    1.1	4U 1700-377
256.4081 -36.4664    6.0  25.8  106.0   0.8650   1.9    2.9	GX 349+2
262.8419 -24.7752  422.5  34.8   87.2  -0.0180  -0.0    9.3	GX 1+4
264.7444 -44.6153    5.4  31.8  123.5  -1.0567  -2.1    9.9	4U 1735-44
263.0064 -33.8446 2501.2  31.6  102.8   0.0020   0.0    1.0	GX 354-0
237.6375 -12.9446    2.8  25.7   35.8   1.4804   4.1 ------	UNKNOWN
262.6636 -80.7174    3.4  47.3  176.8   2.4869   3.4 ------	UNKNOWN
205.3778 -70.1901    2.4  36.0 -164.6   1.8680   4.8 ------	UNKNOWN
206.0962  19.4206    2.8  57.7  -15.8   5.2079   4.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1670 -60.6155    7.0  42.2 -139.1   0.0087   1.6    4.4	Cen X-3
186.5987 -62.6755    6.0  35.6 -146.6  -0.0070  -1.9    5.9	GX 301-2
244.8202 -15.6310    4.7  27.1   52.3   0.0082   2.4    9.2	Sco X-1
255.9920 -37.6899   19.1  25.4  108.7   0.0020   0.6    9.3	4U 1700-377
256.6561 -36.4632    6.7  26.0  106.1   0.0059   1.7   10.9	GX 349+2
263.0087 -24.6110    4.6  35.0   87.1  -0.0144  -2.5    8.1	GX 1+4
264.6542 -44.3796    7.5  31.8  123.1  -0.0068  -1.5    5.7	4U 1735-44
263.0576 -33.8488    5.2  31.7  102.8   0.0095   2.2    3.5	GX 354-0
238.7817 -54.0655    1.2  21.0  160.5   0.0274   9.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
78.508590 180.609900
181.208000 181.940500
182.208000 182.235900
183.208000 183.664200
185.208000 185.832700
187.208000 187.761800
189.208000 189.659500
191.208000 191.372900
192.208000 242.338000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2464 -60.6275    7.4  35.8  -60.6  -0.4735  -1.5    2.1	Cen X-3
186.6899 -62.8225    4.4  27.7  -61.2  -0.5520  -2.6    3.3	GX 301-2
245.0780 -15.5227    5.4  38.8   77.9  -1.2043  -2.1    9.1	Sco X-1
256.0774 -37.8889    5.3  20.0  111.4   0.4302   2.2    5.1	4U 1700-377
256.2885 -36.2499    0.0  21.5  109.6  -0.3252  -1.5   12.6	GX 349+2
262.9807 -24.8907    9.8  34.3  109.5   0.4497   1.2    8.8	GX 1+4
264.9102 -44.3120    7.7  19.5  138.9  -0.3432  -1.5   11.0	4U 1735-44
270.4177 -24.9998   38.3  37.3  119.8  -0.1336  -0.3    8.7	GX 5-1
270.2764 -25.5968    8.2  36.8  120.1   0.5980   1.4    8.9	GRS 1758-258
275.7557 -30.3158    9.1  35.6  131.4  -0.4692  -1.3    9.3	H1820-303
284.9960 -24.8759   15.0  44.9  136.4   0.6522   0.8    3.4	HT1900.1-2455
262.9894 -33.6869    6.0  26.6  117.9  -0.4870  -1.9    8.9	GX 354-0
236.2887 -13.0577    3.1  41.0   64.5   2.1235   3.7 ------	UNKNOWN
224.0417  -9.0565    3.0  46.5   47.9   2.7978   3.9 ------	UNKNOWN
223.7525 -21.9914    2.1  34.0   42.7   1.5954   5.6 ------	UNKNOWN
251.0548 -49.6916    2.5   8.7  133.3   0.7030   4.6 ------	UNKNOWN
169.3182 -43.0145    2.2  45.3  -37.6   1.9054   5.2 ------	UNKNOWN

Plot creation:
Thu Jun  3 14:06:22 EDT 2021
