TDRSS scaled map for 1057131
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 21 Jun 21 17:05:41 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1057131, Seg_Num: 0
GRB_RA: 238.812d {+15h 55m 15s} (J2000),
239.228d {+15h 56m 55s} (current),
237.845d {+15h 51m 23s} (1950)
GRB_DEC: -54.063d {-54d 03' 45"} (J2000),
-54.124d {-54d 07' 27"} (current),
-53.917d {-53d 55' 00"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 112 [cnts] Image_Peak=25 [image_cnts]
TRIGGER_DUR: 0.008 [sec]
TRIGGER_INDEX: 10109 E_range: 15-50 keV
BKG_INTEN: 21886 [cnts]
BKG_TIME: 61460.76 SOD {17:04:20.76} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19386 TJD; 172 DOY; 21/06/21
GRB_TIME: 61476.76 SOD {17:04:36.76} UT
GRB_PHI: 103.72 [deg]
GRB_THETA: 0.03 [deg]
SOLN_STATUS: 0x83
RATE_SIGNIF: 18.60 [sigma]
IMAGE_SIGNIF: 6.63 [sigma]
MERIT_PARAMS: +1 +0 +0 -7 +1 -4 +0 +1 +77 +0
SUN_POSTN: 90.59d {+06h 02m 22s} +23.43d {+23d 26' 05"}
SUN_DIST: 141.39 [deg] Sun_angle= -9.9 [hr] (East of Sun)
MOON_POSTN: 225.90d {+15h 03m 35s} -15.31d {-15d 18' 35"}
MOON_DIST: 40.19 [deg]
MOON_ILLUM: 87 [%]
GAL_COORDS: 327.88, -0.35 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 248.78,-32.90 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS: probably due to it occurring during a Malindi downlink session.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: Since the IMAGE_SIGNIF is less than 7 sigma, this is a questionable detection.
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 21 Jun 21 17:16:05 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1057131, Seg_Num: 0
POINT_RA: 238.771d {+15h 55m 05s} (J2000)
POINT_DEC: -54.088d {-54d 05' 16"} (J2000)
MAP_DATE: 19386 TJD; 172 DOY; 21/06/21
MAP_TIME: 61476.95 SOD {17:04:36.95} UT
TRIGGER_DUR: 0.008 [sec]
SOLN_STATUS: 0x83
RATE_SIGNIF: 18.60 [sigma]
IMAGE_SIGNIF: 6.63 [sigma]
MAP_URL: sw01057131000msbsm.fits
SUN_POSTN: 90.60d {+06h 02m 24s} +23.43d {+23d 26' 05"}
MOON_POSTN: 226.00d {+15h 04m 00s} -15.35d {-15d 20' 53"}
MOON_ILLUM: 87 [%]
GAL_COORDS: 327.85, -0.35 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 248.76,-32.93 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

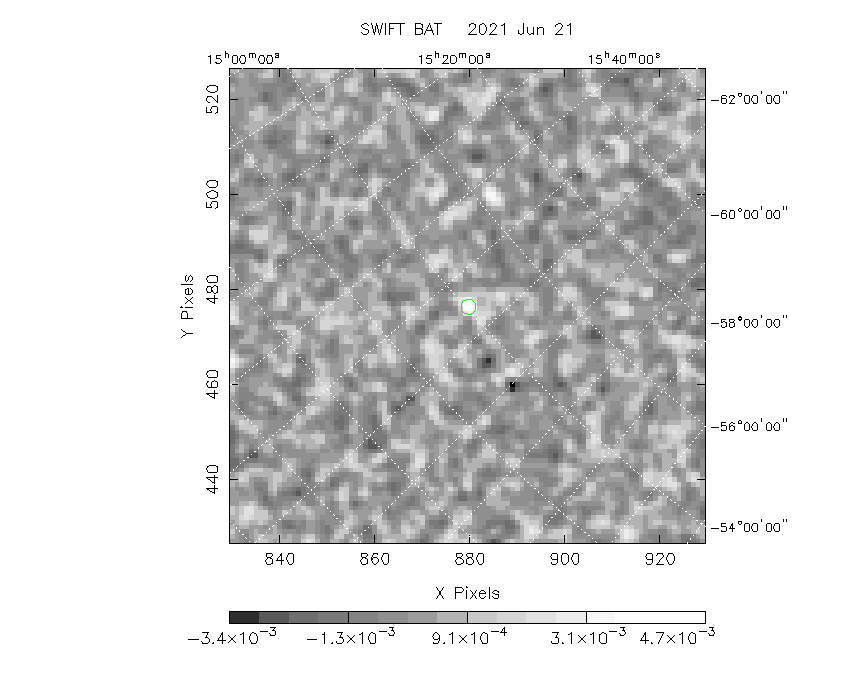

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (238.812, -54.063).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 238.812 -54.063 1.0
AXJ1549.0-5420 ( 237.271 , -54.342 ) delta= 0.944
AXJ1549.8-5416 ( 237.467 , -54.273 ) delta= 0.815
AXJ1550.5-5408 ( 237.650 , -54.145 ) delta= 0.686
AXJ1550.8-5418 ( 237.721 , -54.302 ) delta= 0.682
AXJ1553.5-5347 ( 238.383 , -53.793 ) delta= 0.369
AXJ1556.7-5325 ( 239.183 , -53.418 ) delta= 0.681
AXJ1558.5-5334 ( 239.651 , -53.570 ) delta= 0.699
H1553-542 ( 239.455 , -54.414 ) delta= 0.515
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
19.2729 -73.4422 0.0 49.7 -151.8 -0.0060 -2.2 0.0 SMC X-1
170.3158 -60.6230 0.0 35.8 -86.8 -0.0015 -0.7 0.0 Cen X-3
172.6417 -62.9308 0.0 34.0 -90.0 0.0002 0.1 0.0 IGR J11305-6256
174.7572 -37.7386 0.0 45.7 -54.4 -0.0042 -0.7 0.0 NGC 3783
176.8692 -61.9539 0.0 32.4 -87.3 -0.0021 -1.3 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 32.2 -87.7 0.0034 2.2 0.0 4U 1145-61
177.1387 -67.7500 0.0 31.2 -98.1 -0.0011 -0.7 0.0 EXO 0748-676
186.6567 -62.7703 0.0 27.8 -87.2 -0.0027 -2.2 0.0 GX 301-2
188.9026 -39.9093 0.0 35.9 -45.7 -0.0002 -0.2 0.0 NGC 4507
195.6985 -63.8358 0.0 23.7 -89.5 -0.0012 -1.2 0.0 PSR B1259-63
196.3645 -49.4682 0.0 26.2 -55.5 0.0021 2.1 0.0 NGC 4945
201.3651 -43.0191 0.0 26.7 -39.1 -0.0008 -0.8 0.0 Cen A
201.6504 -62.1361 0.0 20.8 -85.6 -0.0008 -0.9 0.0 4U 1323-619
207.3302 -30.3094 0.0 32.8 -14.4 0.0011 1.1 0.0 IC 4329A
213.2913 -65.3390 0.0 16.9 -99.9 -0.0010 -1.1 0.0 Cir Galaxy
213.3119 -3.2075 0.0 55.0 10.3 0.0154 2.7 0.0 NGC 5506
228.4837 -59.1356 0.0 7.6 -94.1 -0.0000 -0.0 0.0 PSR B1509-58
231.2913 -65.3390 0.0 11.9 -122.8 -0.0002 -0.2 0.0 Circinus AGN
235.5971 -52.3861 0.0 2.5 -7.5 -0.0001 -0.2 0.0 H 1538-522
243.1792 -52.4231 0.0 3.1 101.6 -0.0009 -1.0 0.0 4U 1608-522
243.1792 -57.1669 0.0 4.0 -175.2 0.0005 0.5 0.0 Cir X-1
244.9795 -15.6402 0.0 38.7 51.5 -0.0033 -1.3 0.0 Sco X-1
248.0700 -67.4619 0.0 14.1 -152.8 0.0004 0.4 0.0 4U 1626-67
250.2312 -53.7514 0.0 6.8 133.8 -0.0008 -0.9 0.0 4U 1636-536
251.4487 -45.6111 0.0 11.7 90.9 -0.0022 -2.4 0.0 GX 340+0
253.5006 -39.8458 0.0 17.4 82.8 -0.0009 -0.9 0.0 GRO J1655-40
255.1996 -41.6731 0.0 16.5 89.9 -0.0015 -1.5 0.0 OAO 1657-415
255.9866 -37.8441 0.0 20.1 84.9 0.0010 0.9 0.0 4U 1700-377
256.4354 -36.4231 0.0 21.5 83.8 -0.0007 -0.6 0.0 GX 349+2
256.5638 -43.0361 0.0 16.1 95.8 -0.0004 -0.4 0.0 4U 1702-429
257.2292 -44.1000 0.0 15.6 99.7 -0.0012 -1.2 0.0 4U 1705-440
257.2333 -32.2833 0.0 25.5 80.5 -0.0020 -1.6 0.0 4U 1705-32
257.2750 -36.4108 0.0 21.8 85.4 -0.0014 -1.3 0.0 IGR J17091-3624
257.4500 -36.4700 0.0 21.8 85.8 -0.0007 -0.6 0.0 IGR J17098-3628
257.5517 -28.1317 0.0 29.4 77.3 -0.0037 -2.4 0.0 XTE J1710-281
261.3000 -36.2667 0.0 23.7 92.3 -0.0017 -1.5 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 26.5 88.2 -0.0013 -1.0 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 28.6 86.8 -0.0009 -0.6 0.0 4U 1722-30
262.9342 -16.9617 0.0 41.6 78.1 -0.0028 -0.9 0.0 GX 9+9
262.9892 -33.8347 0.0 26.5 91.8 -0.0004 -0.3 0.0 4U 1728-34
263.0090 -24.7456 0.0 34.4 83.2 0.0019 0.9 0.0 GX 1+4
263.3504 -33.3878 0.0 27.0 91.9 0.0002 0.1 0.0 4U 1730-335
264.5667 -27.0044 0.0 33.0 87.3 0.0004 0.2 0.0 SLX 1735-269
264.7429 -44.4500 0.0 19.3 112.7 0.0011 1.1 0.0 4U 1735-44
265.7500 -36.3447 0.0 25.7 99.3 0.0018 1.5 0.0 XTE J1743-363
265.9761 -29.7395 0.0 31.3 91.8 -0.0030 -1.8 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 32.1 91.4 0.0002 0.1 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 32.1 91.7 -0.0007 -0.4 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 31.7 92.4 0.0010 0.6 0.0 1A 1742-294
266.8579 -29.9994 0.0 31.5 93.3 0.0041 2.4 0.0 SLX 1744-299
266.9833 -26.5636 0.0 34.5 90.3 -0.0010 -0.5 0.0 GX 3+1
270.2842 -25.0792 0.0 37.2 93.4 0.0035 1.1 0.0 GX 5-1
270.3025 -25.7431 0.0 36.7 94.0 0.0018 0.6 0.0 GRS 1758-258
270.3846 -20.5289 0.0 41.3 90.0 -0.0092 -1.1 0.0 GX 9+1
270.6663 -20.2871 0.0 41.6 90.2 0.0060 0.7 0.0 IGR J18027-2016
275.9185 -30.3611 0.0 35.6 105.4 -0.0033 -1.3 0.0 4U 1820-30
276.4450 -37.1053 0.0 30.8 114.0 0.0008 0.5 0.0 3A 1822-371
277.3675 -23.7969 0.0 41.7 101.0 -0.0028 -0.3 0.0 GS 1826-24
278.9337 -32.9914 0.0 35.2 111.7 -0.0003 -0.2 0.0 XB 1832-330
279.5847 -65.4276 0.0 22.9 177.6 0.0009 1.0 0.0 ESO 103-035
238.7834 -54.0911 2.0 0.0 170.8 0.0051 5.8 ------ UNKNOWN
353.9272 -60.9716 2.5 54.1 -170.9 0.0108 4.7 ------ UNKNOWN
111.9694 -74.7039 2.0 46.5 -121.2 0.0714 5.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
170.3158 -60.6230 0.0 35.8 -86.8 -0.0015 -0.7 0.0 Cen X-3
186.6567 -62.7703 0.0 27.8 -87.2 -0.0027 -2.2 0.0 GX 301-2
244.9795 -15.6402 0.0 38.7 51.5 -0.0033 -1.3 0.0 Sco X-1
255.9866 -37.8441 0.0 20.1 84.9 0.0010 0.9 0.0 4U 1700-377
256.4354 -36.4231 0.0 21.5 83.8 -0.0007 -0.6 0.0 GX 349+2
263.0090 -24.7456 0.0 34.4 83.2 0.0019 0.9 0.0 GX 1+4
264.7429 -44.4500 0.0 19.3 112.7 0.0011 1.1 0.0 4U 1735-44
270.2842 -25.0792 0.0 37.2 93.4 0.0035 1.1 0.0 GX 5-1
270.3025 -25.7431 0.0 36.7 94.0 0.0018 0.6 0.0 GRS 1758-258
275.9250 -30.3670 0.0 35.6 105.4 -0.0032 -1.3 0.0 H1820-303
262.9891 -33.8347 0.0 26.5 91.8 -0.0004 -0.3 0.0 GX 354-0
238.7833 -54.0911 2.0 0.0 170.9 0.0051 5.8 ------ UNKNOWN
353.9272 -60.9716 2.5 54.1 -170.9 0.0108 4.7 ------ UNKNOWN
111.9694 -74.7039 2.0 46.5 -121.2 0.0714 5.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 111.9694 Dec. = -74.7039 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 238.7833 Dec. = -54.0912 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 353.9272 Dec. = -60.9716 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1057131/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Mon Jun 21 13:17:15 EDT 2021
