TDRSS scaled map for 1059494
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 08 Jul 21 13:35:00 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1059494, Seg_Num: 0
GRB_RA: 142.579d {+09h 30m 19s} (J2000),
142.873d {+09h 31m 30s} (current),
141.894d {+09h 27m 35s} (1950)
GRB_DEC: +14.471d {+14d 28' 16"} (J2000),
+14.376d {+14d 22' 33"} (current),
+14.691d {+14d 41' 29"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=1813 [image_cnts]
TRIGGER_DUR: 64.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 19403 TJD; 189 DOY; 21/07/08
GRB_TIME: 48204.66 SOD {13:23:24.66} UT
GRB_PHI: -72.95 [deg]
GRB_THETA: 19.85 [deg]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 10.51 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 +0 -100 +0 -83 +0
SUN_POSTN: 108.02d {+07h 12m 04s} +22.40d {+22d 24' 10"}
SUN_DIST: 33.95 [deg] Sun_angle= -2.3 [hr] (East of Sun)
MOON_POSTN: 89.94d {+05h 59m 45s} +25.08d {+25d 04' 47"}
MOON_DIST: 50.65 [deg]
MOON_ILLUM: 2 [%]
GAL_COORDS: 217.52, 41.65 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 140.26, -0.27 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This Notice was delayed by more than 60 sec past the end of the trigger integration interval;
COMMENTS: probably due to it occurring during a Malindi downlink session.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 14.64,-17.83 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 08 Jul 21 13:38:19 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1059494, Seg_Num: 0
POINT_RA: 157.202d {+10h 28m 48s} (J2000)
POINT_DEC: +0.860d {+00d 51' 36"} (J2000)
MAP_DATE: 19403 TJD; 189 DOY; 21/07/08
MAP_TIME: 48204.66 SOD {13:23:24.66} UT
TRIGGER_DUR: 64.000 [sec]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 10.51 [sigma]
MAP_URL: sw01059494000msbsm.fits
SUN_POSTN: 108.02d {+07h 12m 04s} +22.40d {+22d 24' 09"}
MOON_POSTN: 89.97d {+05h 59m 53s} +25.08d {+25d 04' 55"}
MOON_ILLUM: 2 [%]
GAL_COORDS: 244.43, 46.88 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 158.59, -8.07 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

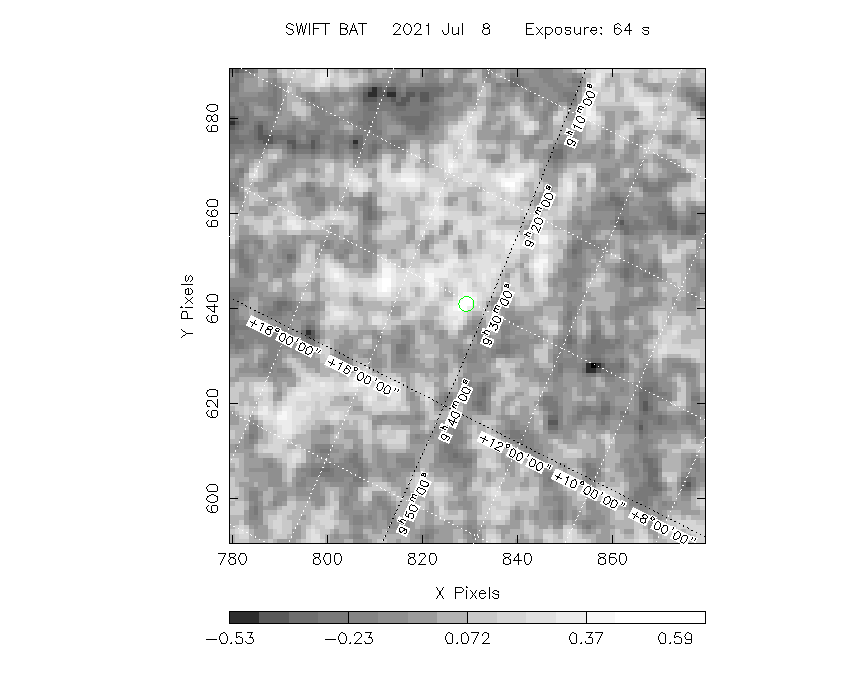

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (142.579, +14.471).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 142.579 +14.471 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
128.8361 -45.1764 0.0 52.5 178.1 0.3721 0.9 0.0 PSR B0833-45
133.6934 39.5386 0.0 44.2 -53.1 -0.3084 -0.8 0.0 NGC 2691
135.5286 -40.5547 0.0 45.9 176.1 0.3244 1.3 0.0 Vela X-1
141.1092 -55.2067 0.0 57.6 163.9 1.3724 1.0 0.0 4U 0919-54
146.4116 -31.1911 0.0 33.7 169.9 -0.1029 -0.6 0.0 NGC 2997
146.9173 -30.9489 0.0 33.3 169.3 -0.2225 -1.5 0.0 MCG -5-23-016
169.5454 48.0369 0.0 48.4 -15.9 -0.2663 -1.1 0.0 XTE J1118+480
174.7572 -37.7386 0.0 41.9 132.2 -0.2013 -0.5 0.0 NGC 3783
182.6357 39.4057 0.0 45.0 1.1 -0.0039 -0.0 0.0 NGC 4151
186.4448 12.6621 0.0 31.3 39.7 -0.1646 -1.2 0.0 NGC 4388
187.2779 2.0524 0.0 30.1 60.5 -0.1330 -0.7 0.0 3C 273
175.7541 -5.2443 3.2 19.5 81.6 0.4594 3.6 ------ UNKNOWN
171.1803 -10.5151 3.4 18.0 102.8 0.4211 3.5 ------ UNKNOWN
125.2230 -38.7957 3.1 49.3 -173.9 0.9676 3.7 ------ UNKNOWN
117.1240 16.3507 4.6 42.4 -93.3 2.3031 2.6 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.5286 -40.5547 0.0 45.9 176.1 0.3244 1.3 0.0 Vela X-1
175.7541 -5.2443 3.2 19.5 81.6 0.4594 3.6 ------ UNKNOWN
171.1803 -10.5151 3.4 18.0 102.8 0.4211 3.5 ------ UNKNOWN
125.2230 -38.7957 3.1 49.3 -173.9 0.9676 3.7 ------ UNKNOWN
117.1240 16.3507 4.6 42.4 -93.3 2.3031 2.6 ------ UNKNOWN
Search for UNKNOWN source R.A. = 117.1240 Dec. = +16.3507 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 125.2230 Dec. = -38.7957 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 171.1802 Dec. = -10.5151 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 175.7541 Dec. = -5.2443 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
128.8361 -45.1764 0.0 52.5 178.1 -0.0173 -0.1 0.0 PSR B0833-45
133.6934 39.5386 0.0 44.2 -53.1 -0.3559 -1.2 0.0 NGC 2691
135.5286 -40.5547 0.0 45.9 176.1 0.3822 2.0 0.0 Vela X-1
141.1092 -55.2067 0.0 57.6 163.9 0.8645 0.7 0.0 4U 0919-54
146.4116 -31.1911 0.0 33.7 169.9 -0.1214 -1.1 0.0 NGC 2997
146.9173 -30.9489 0.0 33.3 169.3 -0.2768 -2.5 0.0 MCG -5-23-016
169.5454 48.0369 0.0 48.4 -15.9 -0.1875 -1.1 0.0 XTE J1118+480
174.7572 -37.7386 0.0 41.9 132.2 -0.1634 -0.8 0.0 NGC 3783
182.6357 39.4057 0.0 45.0 1.1 -0.1801 -1.2 0.0 NGC 4151
186.4448 12.6621 0.0 31.3 39.7 -0.1361 -1.2 0.0 NGC 4388
187.2779 2.0524 0.0 30.1 60.5 -0.2355 -1.9 0.0 3C 273
170.7206 25.8424 2.5 28.2 -0.4 0.4431 4.6 ------ UNKNOWN
170.0180 34.7420 2.5 35.9 -8.8 0.4826 4.5 ------ UNKNOWN
142.6011 14.4922 2.2 19.9 -72.9 0.5241 5.2 ------ UNKNOWN
117.1014 16.3202 3.0 42.4 -93.3 2.5416 3.8 ------ UNKNOWN
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1059494/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Thu Jul 8 09:39:17 EDT 2021
