batgrbproduct analysis for trigger=1064377

batgrbproduct Analysis for Trigger=1064377

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Aug  8 21:27:43 EDT 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1064377/GCN5_download_cron
======================================================================

  Trigger: 01064377      Segment: 000

  BAT Trigger Time: 650054528   [s; MET]
      Trigger Stop: 650054648   [s; MET]
               UTC: 2021-08-07T18:41:40.491980    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.132360352423   Dec: -15.8976942043072  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    16.39
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    16.39

  Flight Position:   [ source = BAT ]
    RA: 245.132360352423   Dec: -15.8976942043072  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 245.13564629211   Dec: -15.9137893085912  [deg; J2000]
        { 16h 20m 32.6s , -15d 54' 49.6" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 8.52082747691415 [arcmin] (formal 1-sigma fit error)
    SNR: -1.41800496246451

  Angular difference between Flight and Ground position is 0.984144 arcmin

  Partial Coding Fraction: 0.4375    [ including projection effects ]

  Duration
     T90: 5.65199995040894 +/- 2.29026188941654
        Measured from: 40.2840001583099
                   to: 45.9360001087189     [s; relative to TRIGTIME]
     T50: 3.87199997901917 +/- 1.57344469500173
        Measured from: 41.296000123024
                   to: 45.1680001020432     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 40.0440000295639
                   to: 41.0440000295639     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 39.404000043869
                   to: 47.0119999647141     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.181557  -0.017031  -0.015778  -0.027668
           0.028257   0.026478   0.022987   0.021174 [error]
 Peak      0.032941   0.027242   0.003474  -0.001768
           0.010812   0.010459   0.009100   0.008487 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 6.09e-08 9.73e-09 7.24e-10 5.76e-11 7.14e-08 7.14e-08   erg/cm2
              Error 1.78e-08 1.11e-08 2.18e-09 5.14e-10 2.60e-08 2.61e-08   erg/cm2
Peak flux Power-law 5.82e-01 1.63e-01 2.45e-02 4.19e-03 7.72e-01 7.74e-01   ph/cm2/s
              Error 2.20e-01 1.44e-01 4.50e-02 1.99e-02 2.92e-01 2.94e-01   ph/cm2/s

Fluence   Cutoff-PL 6.36e-08 8.56e-09 4.46e-10 1.12e-11 7.14e-08 7.09e-08   erg/cm2
              Error 1.97e-08 1.09e-08 2.04e-09 4.62e-10 2.48e-08 2.56e-08   erg/cm2
Peak flux Cutoff-PL 5.90e-01 1.47e-01 1.89e-02 2.94e-03 7.59e-01 7.65e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.749    1.879    -      -           1.10e-04 2.38e-04   61.170 57
CPL   1.000    0.000      50.0    0.0      3.20e-03 0.00e+00   90.230 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.731    1.983    -      -           1.58e-03 2.16e-03   52.370 57
CPL   1.930    0.000       1.1    0.0      2.85e-02 0.00e+00   53.240 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    7.608   39.404   47.012
T90     5.652   40.284   45.936
T50     3.872   41.296   45.168
Peak    1.000   40.044   41.044

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  245.1356 -15.9138 0.1356   41.9 -154.8      -0.0787    -1.4  TRIG_01064377
------------------------------------------

Foreground time interval of the image:
 39.404  46.020 (delta_t =   6.616 [sec])
 47.000  47.012 (delta_t =   0.012 [sec])
Background time interval of the image:
-17.999  39.404 (delta_t =  57.403 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

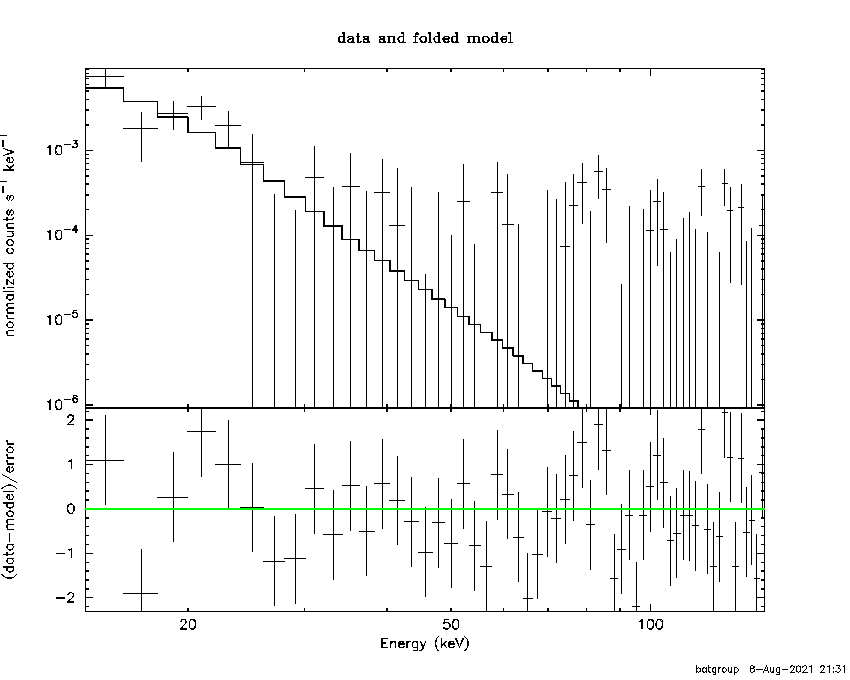

Power-law model

Multiple GTIs in the spectrum
tstart tstop
39.404000 46.020000
47.000000 47.012000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.74945     ( -1.44204   2.31642 )
Norm@50keV  : 1.10429E-04    ( -0.000110428   0.00036638 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.17 using 59 PHA bins.
# Reduced chi-squared =          1.073 for     57 degrees of freedom
# Null hypothesis probability =   3.288340e-01

Photon flux (15-150 keV)    in 6.628 sec: 0.353820 ( -0.110182  0.109921 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.1371e-08 ( -2.50218e-08  2.69804e-08 ) ergs/cm2

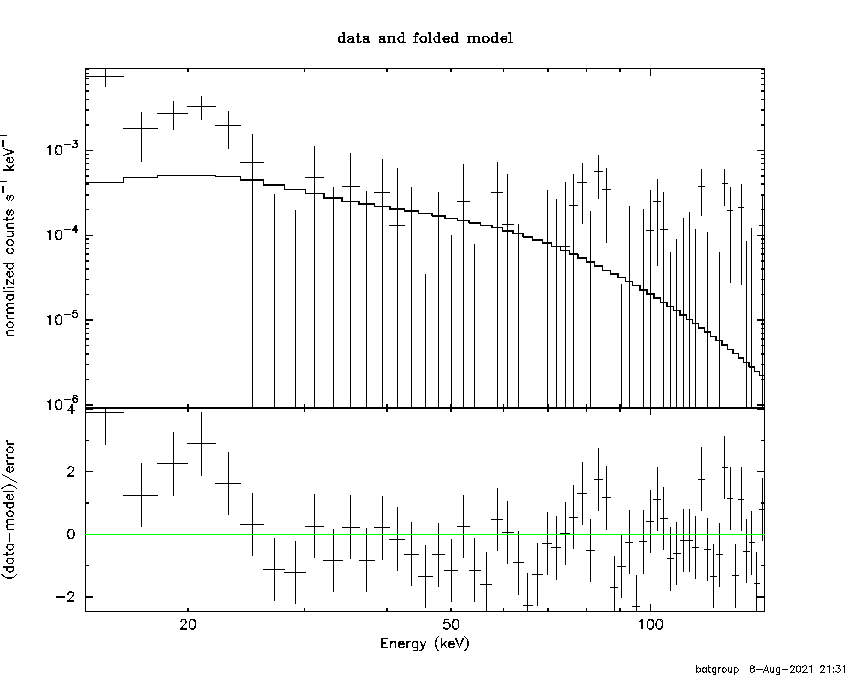

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
39.404000 46.020000
47.000000 47.012000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.19556E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          90.23 using 59 PHA bins.
# Reduced chi-squared =          1.611 for     56 degrees of freedom
# Null hypothesis probability =   2.540296e-03

Photon flux (15-150 keV)    in 6.628 sec: 0.354022 ( -0.108746  0.114797 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.13783e-08 ( -2.39875e-08  2.57027e-08 ) ergs/cm2

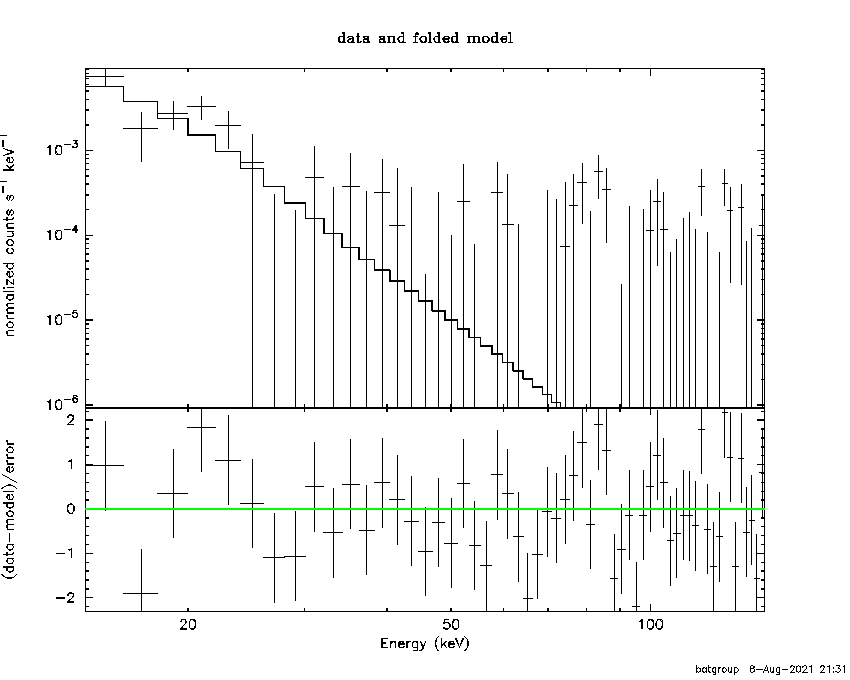

Band function

Multiple GTIs in the spectrum
tstart tstop
39.404000 46.020000
47.000000 47.012000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -10.00000   ( 3.19293e-06   10 )
beta        : -6.10909    ( -2.04962   1.79538 )
Epeak [keV] : 568.213      ( -568.213 -568.213 )
Norm@50keV   : 1.00856E-02    ( -0.0107688   0.0552565 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.27 using 59 PHA bins.
# Reduced chi-squared =          1.114 for     55 degrees of freedom
# Null hypothesis probability =   2.611433e-01

Photon flux (15-150 keV)    in 6.628 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

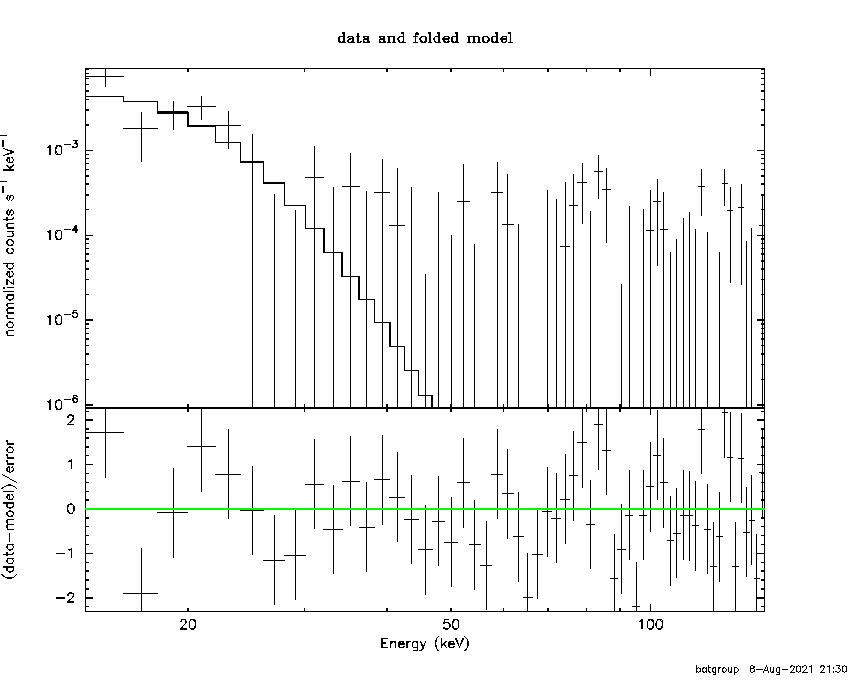

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.68605  (-0.77746  0.90626)
R^2/D10^2   : 108.157  (-108.157   1303.07)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.05 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     57 degrees of freedom
# Null hypothesis probability =   3.326318e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.521e-08   3.682e-08
25- 50  6.353e-09   3.960e-09
50-150  3.954e-12   4.597e-12
15-150  7.157e-08   4.186e-08

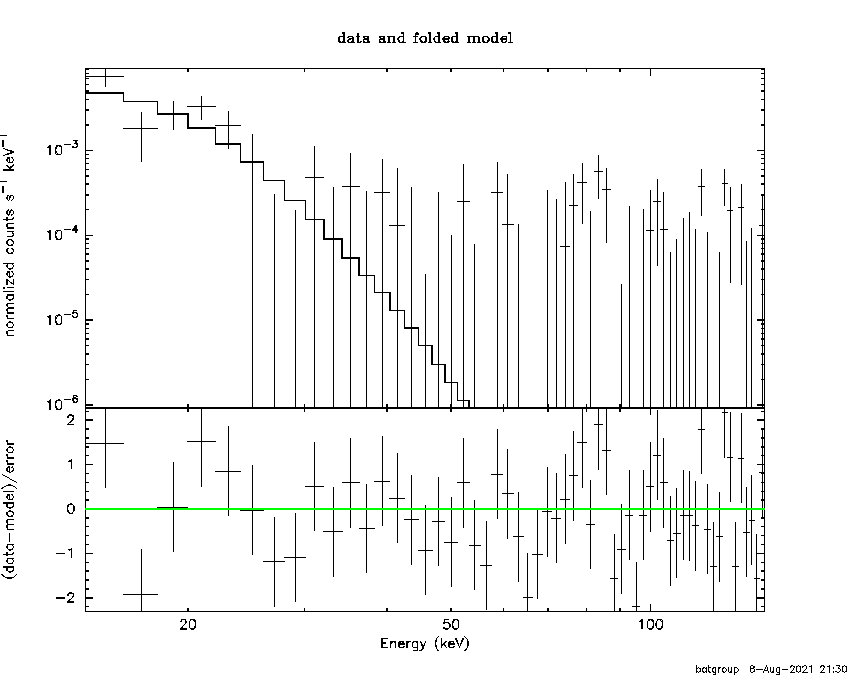

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.89966       (-1.99326      3.15113)
Norm        : 89.8606       (-89.8606     778.059)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.400e-08   3.659e-08
25- 50  7.722e-09   5.233e-09
50-150  3.610e-11   4.229e-11
15-150  7.175e-08   4.143e-08

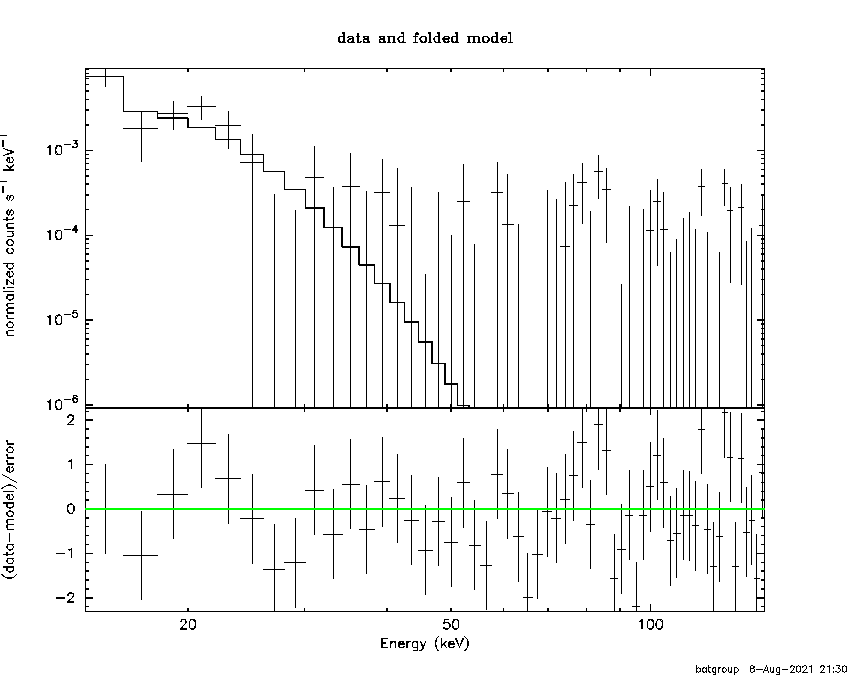

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.219750        (-2.6888      -2.6888)
R1^2/D10^2  : 8.02796E+23        (-8.83861e+23      -8.84057e+23)
kT2 [keV]   : 3.21606        (-0.895063      1.19093)
R2^2/D10^2  : 29.1482    (-24.6083   58.4546)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.528e-08   7.897e+01
25- 50  6.370e-09   6.293e+02
50-150  3.981e-12   1.443e+04
15-150  7.165e-08   1.605e+04

Peak spectrum fit

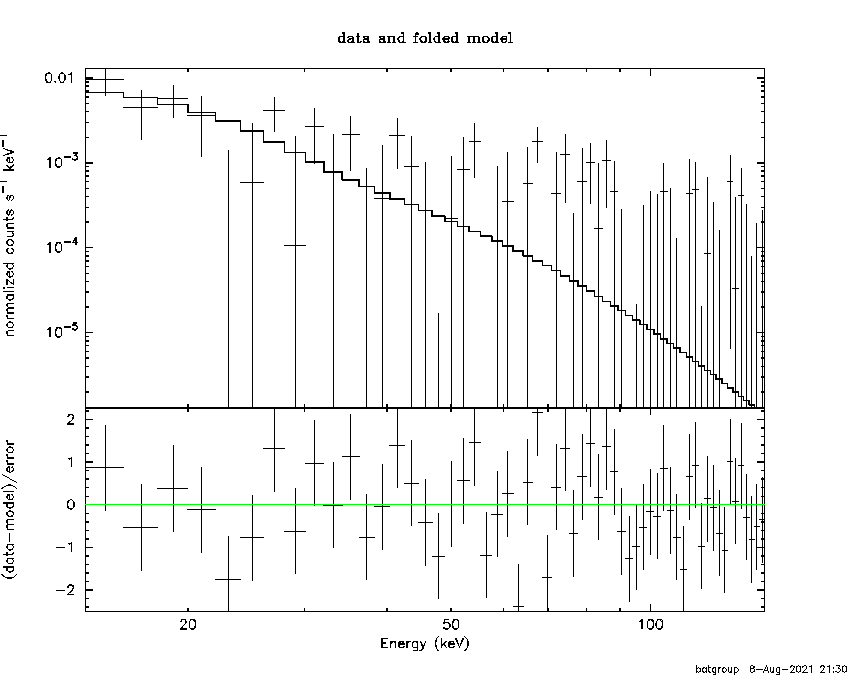

Power-law model

Time interval is from   40.044 sec. to   41.044 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.73123     ( -1.21937   2.74755 )
Norm@50keV  : 1.57751E-03    ( -0.00157487   0.00273624 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.37 using 59 PHA bins.
# Reduced chi-squared =         0.9187 for     57 degrees of freedom
# Null hypothesis probability =   6.492891e-01

Photon flux (15-150 keV)    in 1 sec: 0.772358 ( -0.2945  0.289002 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.87803e-08 ( -1.41003e-08  1.71296e-08 ) ergs/cm2

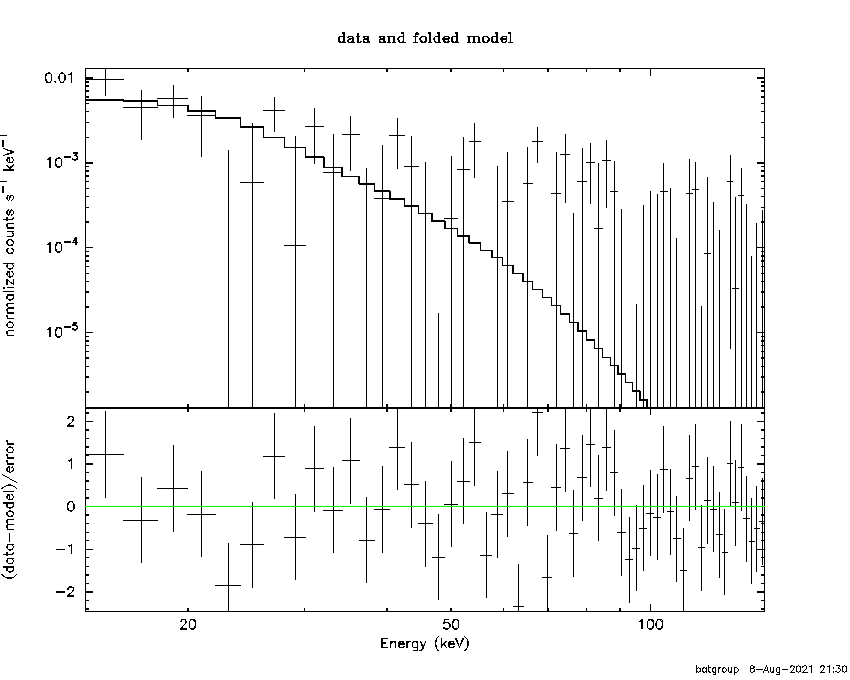

Cutoff power-law model

Time interval is from   40.044 sec. to   41.044 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.93004     (     )
Epeak [keV] : 1.14426      (   )
Norm@50keV  : 2.85021E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.24 using 59 PHA bins.
# Reduced chi-squared =         0.9507 for     56 degrees of freedom
# Null hypothesis probability =   5.799483e-01

Photon flux (15-150 keV)    in 1 sec: 0.758713 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.75723e-08 ( -1.29618e-08  1.84444e-08 ) ergs/cm2

Band function

Time interval is from   40.044 sec. to   41.044 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.69502   ( 8.69502   8.69502 )
beta        : -3.73339    ( -2.75198   1.22099 )
Epeak [keV] : 2.11976      ( -2.11976 -2.11976 )
Norm@50keV   : 0.213980    ( -0.213999   0.371942 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.37 using 59 PHA bins.
# Reduced chi-squared =         0.9521 for     55 degrees of freedom
# Null hypothesis probability =   5.758746e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.60861  (-1.99212  3.7382)
R^2/D10^2   : 32.1473  (-35.4965   12119.1)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.735e-08   1.039e-08
25- 50  4.623e-09   3.337e-09
50-150  2.917e-11   3.945e-11
15-150  2.201e-08   1.353e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 11.4598       (-8.36094      23.6688)
Norm        : 20.1184       (-19.8862     921.456)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.691e-08   1.011e-08
25- 50  8.661e-09   5.580e-09
50-150  8.447e-10   8.650e-10
15-150  2.642e-08   1.706e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.81509        (-1.399      1.9909)
R1^2/D10^2  : 2395.20        (-7104.66      -7135.63)
kT2 [keV]   : 8.19115        (-4.05006      13.3619)
R2^2/D10^2  : 0.471192    (-0.625117   3.00993)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.485e-08   7.290e-09
25- 50  1.075e-08   7.065e-09
50-150  3.006e-09   3.096e-09
15-150  2.861e-08   1.575e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.74945     ( -1.44204   2.31642 )
Norm@50keV  : 1.10429E-04    ( -0.000110428   0.00036638 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.17 using 59 PHA bins.
# Reduced chi-squared =          1.073 for     57 degrees of freedom
# Null hypothesis probability =   3.288340e-01

Photon flux (15-150 keV)    in 6.628 sec: 0.353820 ( -0.110182  0.109921 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.1371e-08 ( -2.50218e-08  2.69804e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.19556E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          90.23 using 59 PHA bins.
# Reduced chi-squared =          1.611 for     56 degrees of freedom
# Null hypothesis probability =   2.540296e-03

Photon flux (15-150 keV)    in 6.628 sec: 0.354022 ( -0.108746  0.114797 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.13783e-08 ( -2.39875e-08  2.57027e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -10.00000   ( 3.19293e-06   10 )
beta        : -6.10909    ( -2.04962   1.79538 )
Epeak [keV] : 568.213      ( -568.213 -568.213 )
Norm@50keV   : 1.00856E-02    ( -0.0107688   0.0552565 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.27 using 59 PHA bins.
# Reduced chi-squared =          1.114 for     55 degrees of freedom
# Null hypothesis probability =   2.611433e-01

Photon flux (15-150 keV)    in 6.628 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.73e-09
S(50-100 keV) = 7.24e-10

T90 vs. Hardness ratio plot

T90                                   = 5.65199995040894 sec.
Hardness ratio (energy fluence ratio) = 0.074409

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = -0.0938053
Count Ratio (50-100 keV) / (15-25 keV) = -0.0869038

Mask shadow pattern

IMX = -8.118025870492027E-01, IMY = 3.817985987456825E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-17.999410 39.404000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8896 -15.5556   12.8  42.0 -154.2  -0.1711  -0.9    7.3	Sco X-1
255.9069 -37.7852    3.3  47.2  171.7   0.9987   3.5    5.2	4U 1700-377
256.5075 -36.4303    5.5  45.8  172.4   0.4929   2.1    3.5	GX 349+2
262.9989 -24.9392    0.0  33.4  177.1  -0.0401  -0.3   11.6	GX 1+4
264.6222 -44.3931  368.3  49.3  159.6  -0.0114  -0.0    6.2	4U 1735-44
268.4944  -1.5288   18.4  15.4 -140.9   0.0634   0.6    8.9	SW J1753.5-0127
270.4349 -25.0349    5.6  29.8  166.2   0.2607   2.1    8.6	GX 5-1
270.2678 -25.8036    9.7  30.5  165.8   0.1530   1.2    4.1	GRS 1758-258
274.1221 -13.9529   31.5  18.4  172.0  -0.0404  -0.4    8.4	GX 17+2
275.7913 -30.3407   54.5  33.1  154.1  -0.0335  -0.2    7.1	H1820-303
285.1195 -25.0483   16.1  27.0  138.6  -0.0944  -0.7    8.9	HT1900.1-2455
288.8206  10.7379   11.0  10.3   -7.7  -0.1170  -1.0   12.5	GRS 1915+105
299.5569  35.1057    0.8  36.4  -15.8   2.1221  14.5    6.0	Cyg X-1
308.2029  41.0920   85.8  45.1  -11.8  -0.0240  -0.1    9.4	Cyg X-3
326.2134  38.3434    8.1  53.4    3.3  -0.4193  -1.4    2.4	Cyg X-2
263.0945 -33.9113    3.8  40.6  168.2   0.5342   3.0    7.0	GX 354-0
242.7508 -16.0734    2.8  44.1 -153.8   0.7953   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
39.404000 46.020000
47.000000 47.012000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0431 -15.7598   12.7  41.9 -154.5  -0.0507  -0.9    8.1	Sco X-1
255.9817 -37.8235   25.6  47.2  171.6   0.0344   0.5    1.3	4U 1700-377
256.5173 -36.4200    3.4  45.8  172.4  -0.2297  -3.4    4.0	GX 349+2
263.0117 -24.7312 1061.6  33.2  177.3   0.0004   0.0    0.9	GX 1+4
264.8344 -44.4199   11.3  49.2  159.4  -0.1092  -1.0    4.3	4U 1735-44
268.2624  -1.5572    5.7  15.6 -140.9   0.0645   2.0    8.9	SW J1753.5-0127
270.2985 -25.2410   66.4  30.0  166.2   0.0070   0.2    9.7	GX 5-1
270.2575 -25.5952    7.5  30.3  166.0   0.0718   1.9    9.2	GRS 1758-258
274.1448 -13.9981   10.8  18.4  171.8   0.0348   1.1    8.4	GX 17+2
276.0991 -30.3222    3.8  33.0  153.6  -0.1356  -3.0    9.4	H1820-303
285.1753 -24.9904    4.1  26.9  138.5   0.1224   2.8    8.7	HT1900.1-2455
288.9592  10.9062    8.5  10.5   -7.6  -0.0440  -1.4    9.8	GRS 1915+105
299.5027  35.3030   21.1  36.6  -16.1   0.0238   0.5    7.4	Cyg X-1
308.0354  41.0458    6.8  45.0  -11.9   0.0873   1.7    6.5	Cyg X-3
326.1696  38.2064    8.3  53.3    3.4   0.1330   1.4    6.9	Cyg X-2
263.1178 -33.7307    4.2  40.5  168.3  -0.1446  -2.7    9.0	GX 354-0
322.3723  29.1163    2.2  45.9   11.5   0.3169   5.3 ------	UNKNOWN
242.2889  -2.1669    2.2  41.4 -133.6   0.3374   5.4 ------	UNKNOWN
229.2132 -19.1511    2.1  57.3 -152.5   0.9190   5.4 ------	UNKNOWN
233.2011  -3.6487    2.1  50.6 -134.5   0.8685   5.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
199.000600 243.038800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1009 -15.8172    0.0   0.1  -24.5   1.8385  21.4   12.7	Sco X-1
254.3115  35.2509    3.9  51.9   -2.0   0.6602   2.9    9.0	Her X-1
255.8188 -37.7789   10.1  23.8  147.2   0.1153   1.1    8.9	4U 1700-377
256.2759 -36.4274    6.0  22.8  144.8   0.1961   1.9    7.7	GX 349+2
262.9782 -24.7572  149.7  18.9  109.3   0.0080   0.1    1.8	GX 1+4
264.7974 -44.3059    7.0  32.9  142.2  -0.2277  -1.6    9.0	4U 1735-44
268.5015  -1.5416   11.3  27.1   48.9   0.1187   1.0    9.6	SW J1753.5-0127
270.3774 -25.2173    7.1  25.4  104.2   0.2048   1.6    9.7	GX 5-1
270.3057 -25.8796    4.7  25.5  105.7   0.3068   2.4    8.2	GRS 1758-258
274.1210 -14.0467    7.1  28.1   78.6  -0.2197  -1.6    6.7	GX 17+2
275.7592 -30.2461    0.0  31.5  111.0  -0.1706  -1.1   11.2	H1820-303
284.8780 -25.0529   93.2  38.2   99.0  -0.0353  -0.1   11.7	HT1900.1-2455
262.9693 -33.6918    5.6  24.0  129.6  -0.2422  -2.0    8.6	GX 354-0
246.6646  42.8236    2.2  58.7  -10.2   2.9241   5.2 ------	UNKNOWN
235.1476  30.1147    2.6  47.0  -23.4   0.7889   4.5 ------	UNKNOWN
219.2324  28.9876    3.6  51.4  -40.8   1.2948   3.2 ------	UNKNOWN
195.8308 -29.4933    2.7  47.1 -127.3   1.6656   4.3 ------	UNKNOWN
199.0213 -21.5915    2.3  43.9 -116.4   1.8675   5.0 ------	UNKNOWN
195.2385 -30.3810    2.7  47.7 -128.4   1.7530   4.2 ------	UNKNOWN
203.1075 -10.0906    2.8  41.3  -98.8   1.7007   4.2 ------	UNKNOWN

Plot creation:
Sun Aug  8 21:31:51 EDT 2021
