Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Oct 24 00:39:55 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1069788
======================================================================

  Trigger: 01069788      Segment: 000

  BAT Trigger Time: 651316725.76   [s; MET]
      Trigger Stop: 651316725.888   [s; MET]
               UTC: 2021-08-22T09:18:18.167540    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 304.47624416316   Dec: 5.26505347483776  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    18.75
     Image Trigger?:     NO
     Rate S/N Ratio:     157.565859246221  [ if not an image trigger ]
     Image S/N Ratio:    18.75

  Flight Position:   [ source = BAT ]
    RA: 304.47624416316   Dec: 5.26505347483776  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 304.461317380082   Dec: 5.26528435689814  [deg; J2000]
        { 20h 17m 50.7s , +05d 15' 55.0" }
         +/- 0.528399845286337 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.129632829285487 [arcmin] (formal 1-sigma fit error)
    SNR: 75.6634217164567

  Angular difference between Flight and Ground position is 0.891936 arcmin

  Partial Coding Fraction: 0.640625    [ including projection effects ]

  Duration
     T90: 185.675999879837 +/- 46.6320496684671
        Measured from: 0.25600004196167
                   to: 185.931999921799     [s; relative to TRIGTIME]
     T50: 8.49199998378754 +/- 0.488262233614078
        Measured from: 2.53999996185303
                   to: 11.0319999456406     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.00400006771087646
                   to: 1.00400006771088     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.363999962806702
                   to: 402.603999972343     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     7.394147  10.328298   9.027857   2.958630
           0.146039   0.150357   0.133026   0.110703 [error]
 Peak      0.579425   1.182879   1.284664   0.423638
           0.018473   0.024564   0.026957   0.020274 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.10e-06 4.38e-06 7.12e-06 2.61e-05 1.97e-05 3.97e-05   erg/cm2
              Error 9.43e-08 1.11e-07 1.50e-07 1.38e-06 3.81e-07 1.41e-06   erg/cm2
Peak flux Power-law 6.10e+00 8.32e+00 8.37e+00 1.53e+01 2.77e+01 3.81e+01   ph/cm2/s
              Error 3.17e-01 2.61e-01 2.27e-01 9.05e-01 7.05e-01 1.05e+00   ph/cm2/s

Fluence   Cutoff-PL 2.10e-06 4.38e-06 7.08e-06 2.75e-05 1.98e-05 3.82e-05   erg/cm2
              Error 9.44e-08 1.11e-07 1.50e-07 -------- 3.81e-07 1.30e-06   erg/cm2
Peak flux Cutoff-PL 5.40e+00 8.46e+00 8.81e+00 1.03e+01 2.72e+01 3.29e+01   ph/cm2/s
              Error 4.13e-01 2.78e-01 2.92e-01 1.67e+00 7.34e-01 1.83e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.297    0.038    -      -           4.96e-03 9.62e-05   47.400 57
CPL   1.292    0.039    10000.0    0.0      4.98e-03 9.49e-05   47.700 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.991    0.044    -      -           2.41e-01 6.02e-03   68.220 57
CPL   0.562    0.186     198.2   70.7      3.69e-01 6.68e-02   51.200 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 120.832000 sec.
T50 in the 50-300 keV band: 7.680000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  402.968   -0.364  402.604
T90   185.676    0.256  185.932
T50     8.492    2.540   11.032
Peak    1.000    0.004    1.004

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

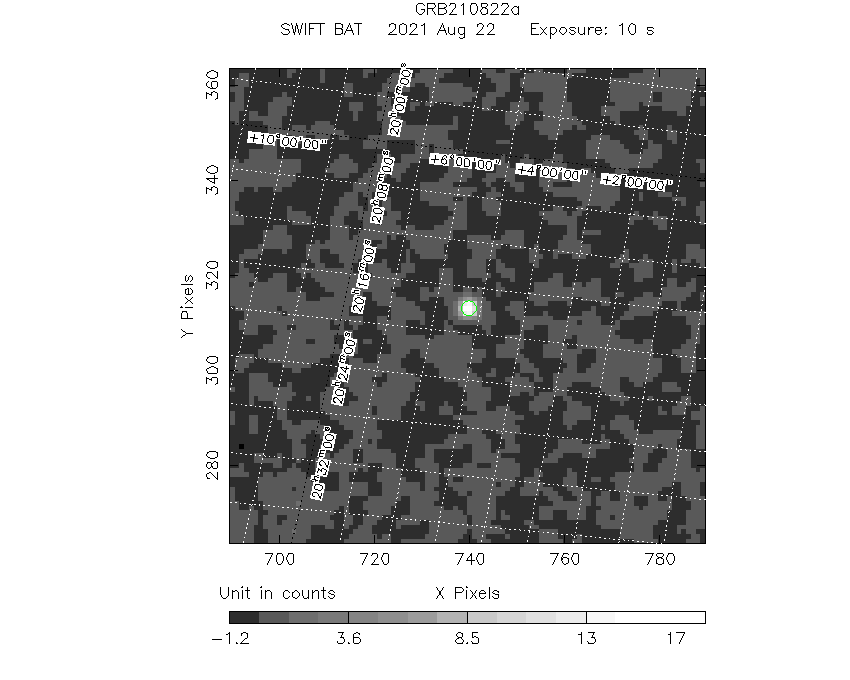

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  304.4613     5.2653   0.0025    24.3356    49.4761        18.9650989     75.663 TRIG_01069788

Foreground time interval of the image:
 -0.364   9.341 (delta_t =   9.705 [sec])
Background time interval of the image:
-239.760  -0.364 (delta_t = 239.396 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

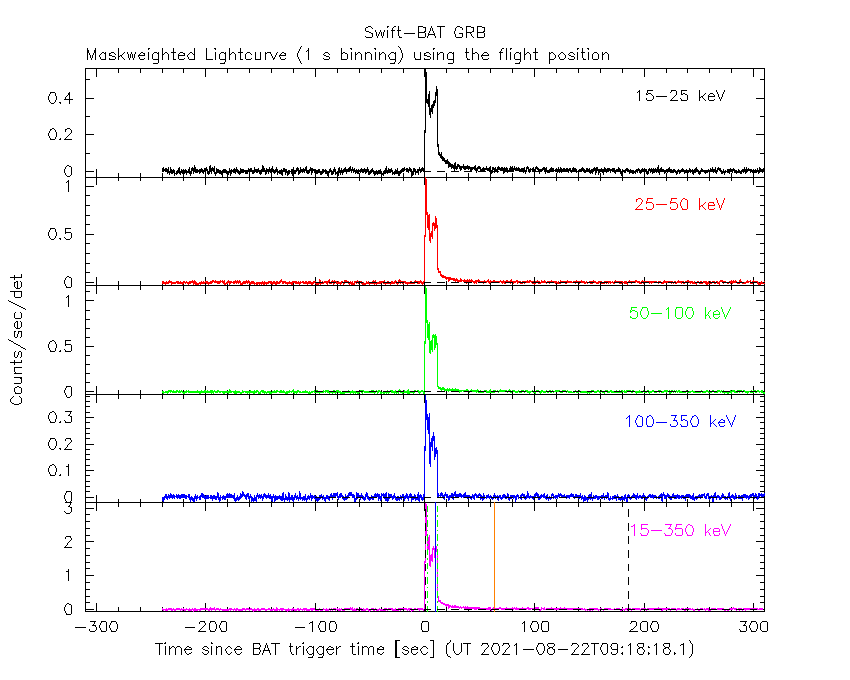

1 s binning

From T0-310 s to T0+310 s

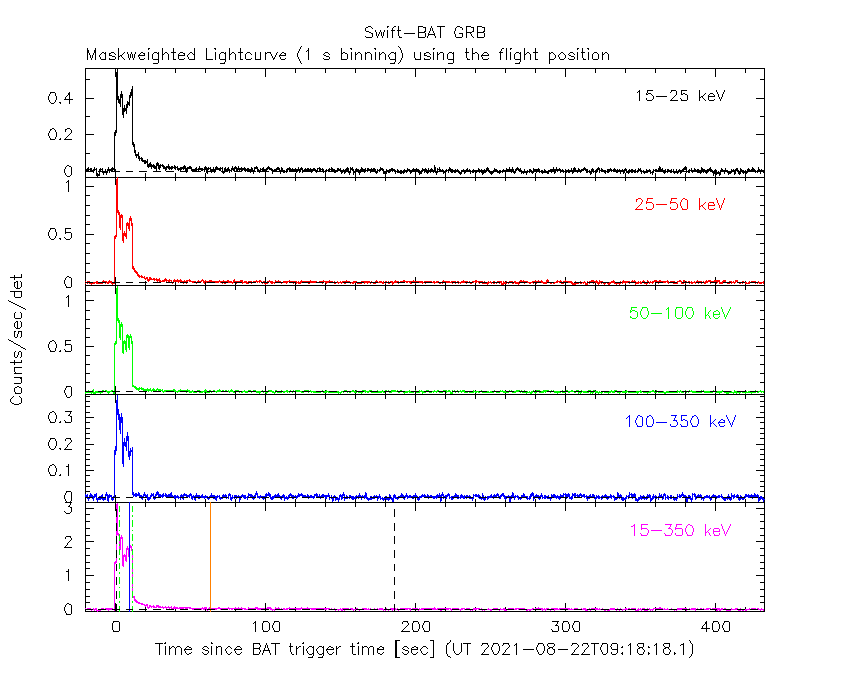

From T100_start - 20 s to T100_end + 30 s

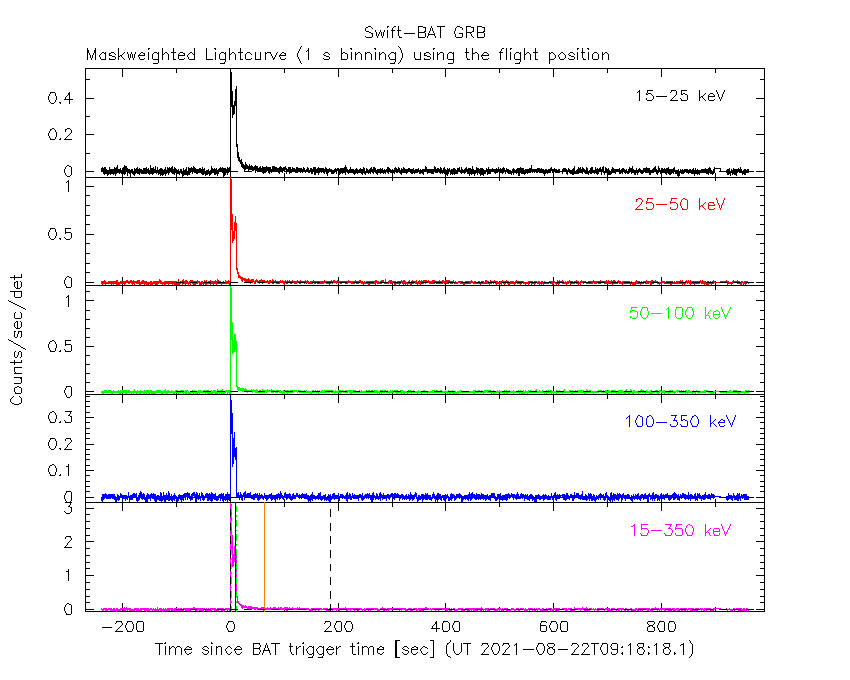

Full time interval

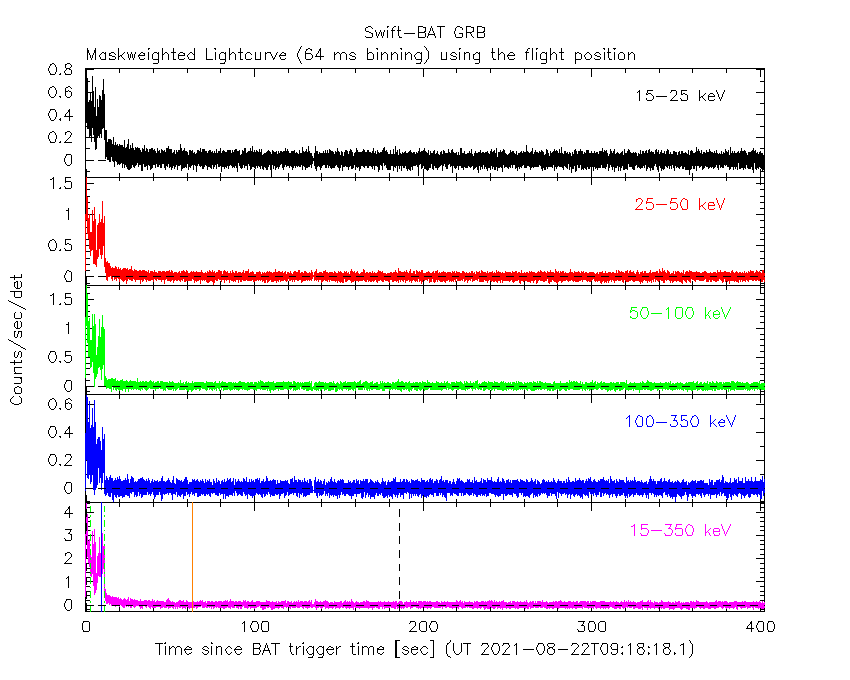

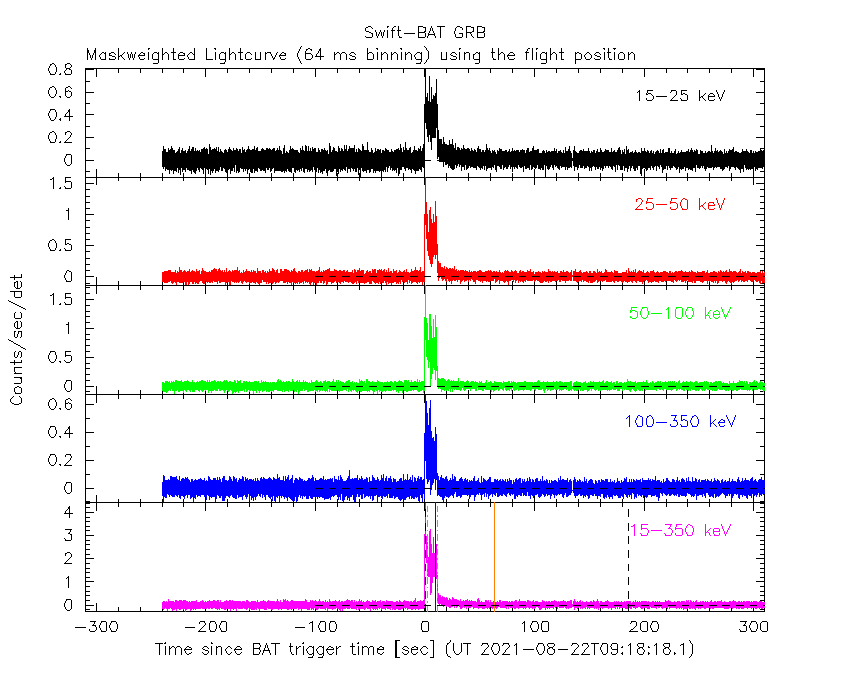

64 ms binning

Full time interval

From T100_start to T100_end

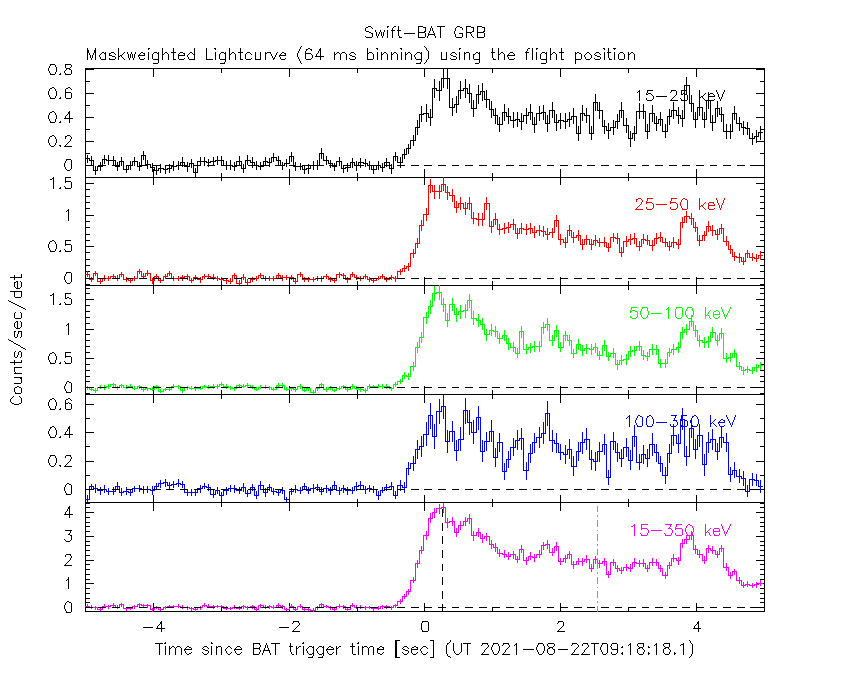

From T0-5 sec to T0+5 sec

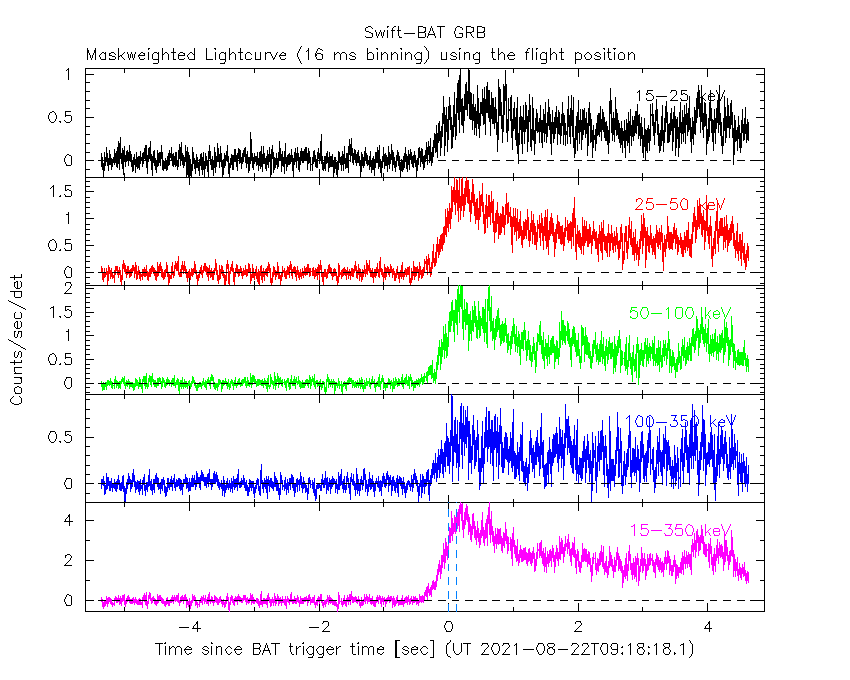

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

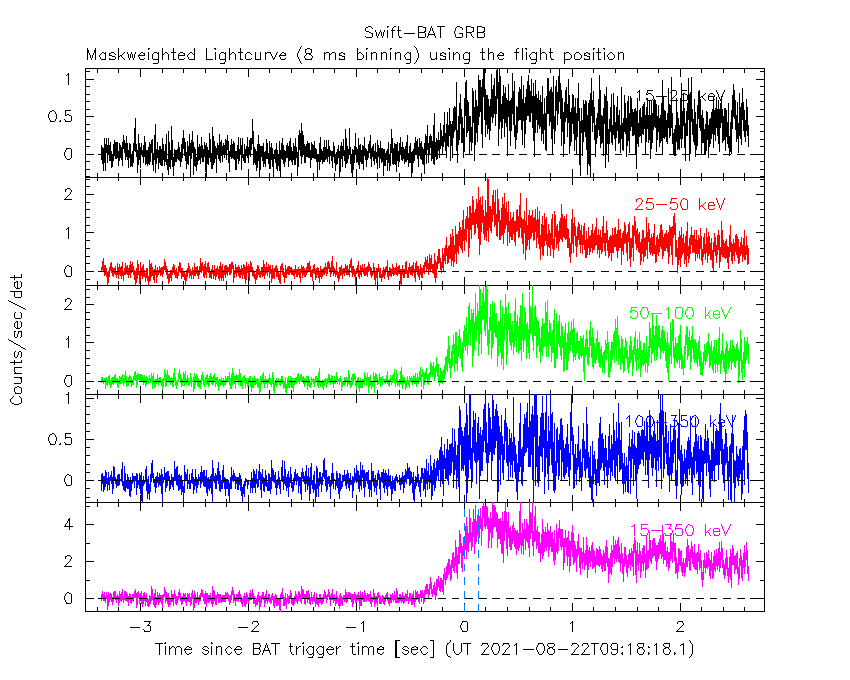

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

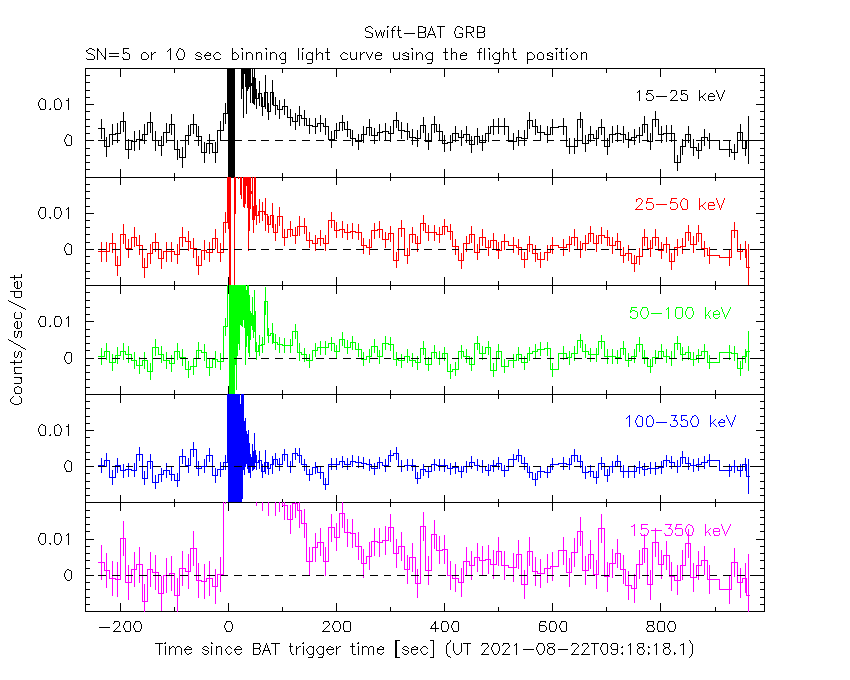

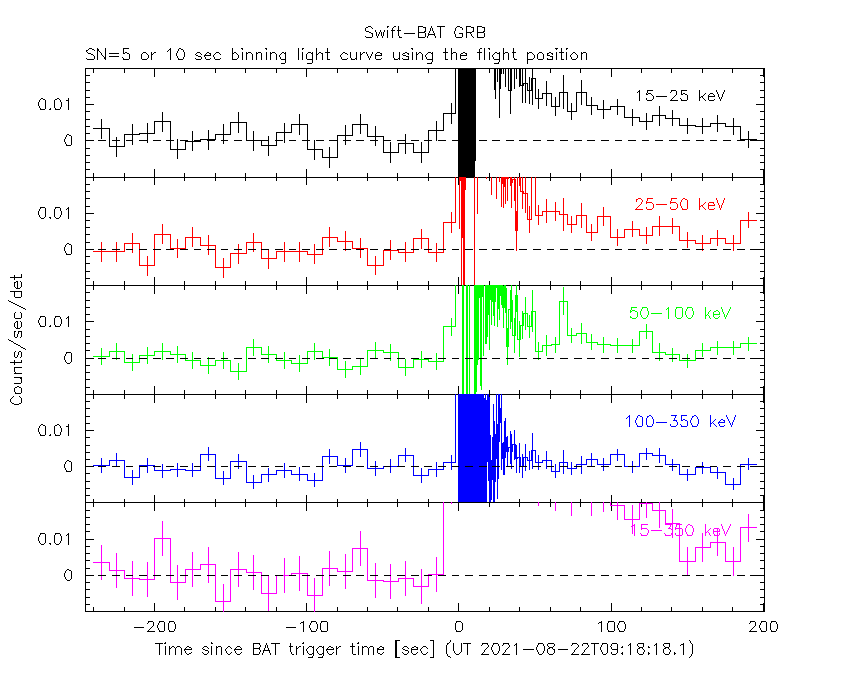

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-0.364000 134.234900
135.240000 402.604000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29656     ( -0.038475   0.0383534 )
Norm@50keV  : 4.95665E-03    ( -9.62896e-05   9.60239e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.40     using 59 bins.
 Reduced chi-squared = 0.831579
# Null hypothesis probability of 8.14e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 402 sec: 0.590975 ( -0.013108  0.01316 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.97091e-05 ( -3.80649e-07  3.80765e-07 ) ergs/cm2

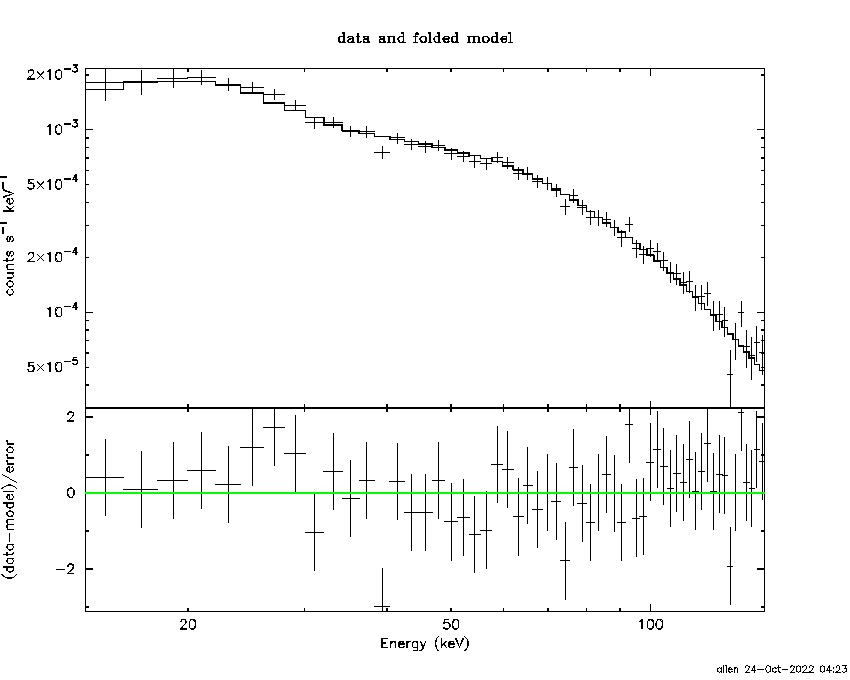

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-0.364000 134.234900
135.240000 402.604000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29239     ( -0.0386185   0.039136 )
Epeak [keV] : 1.00000E+04      ( -10000 -10000 )
Norm@50keV  : 4.97707E-03    ( -9.63281e-05   9.34535e-05 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.70     using 59 bins.
 Reduced chi-squared = 0.851786
# Null hypothesis probability of 7.77e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 402 sec: 0.590761 ( -0.013104  0.013168 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.9801e-05 ( -4.77886e-07  2.83318e-07 ) ergs/cm2

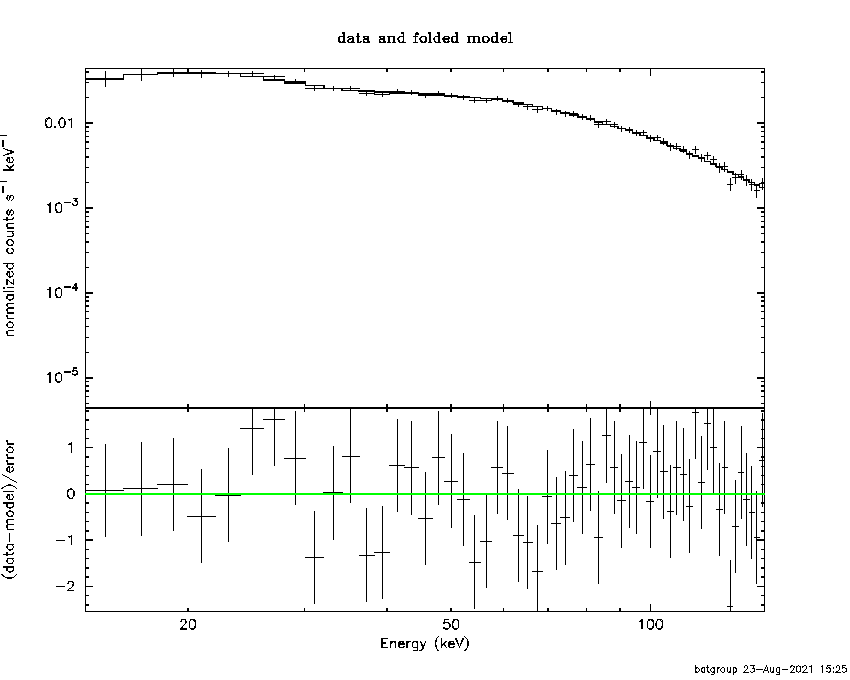

Band function

Multiple GTIs in the spectrum
tstart tstop
-0.364000 134.234900
135.240000 402.604000


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

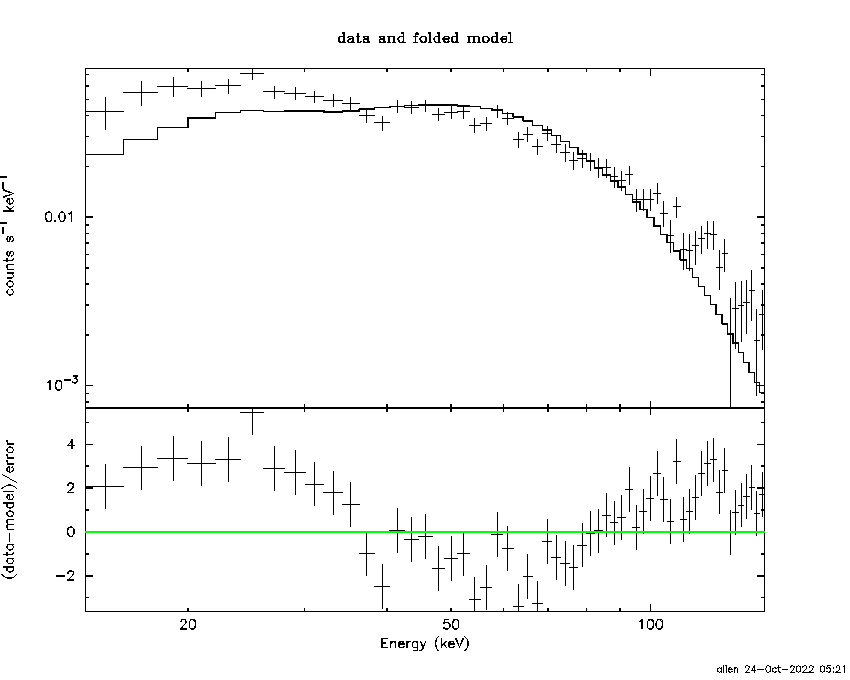

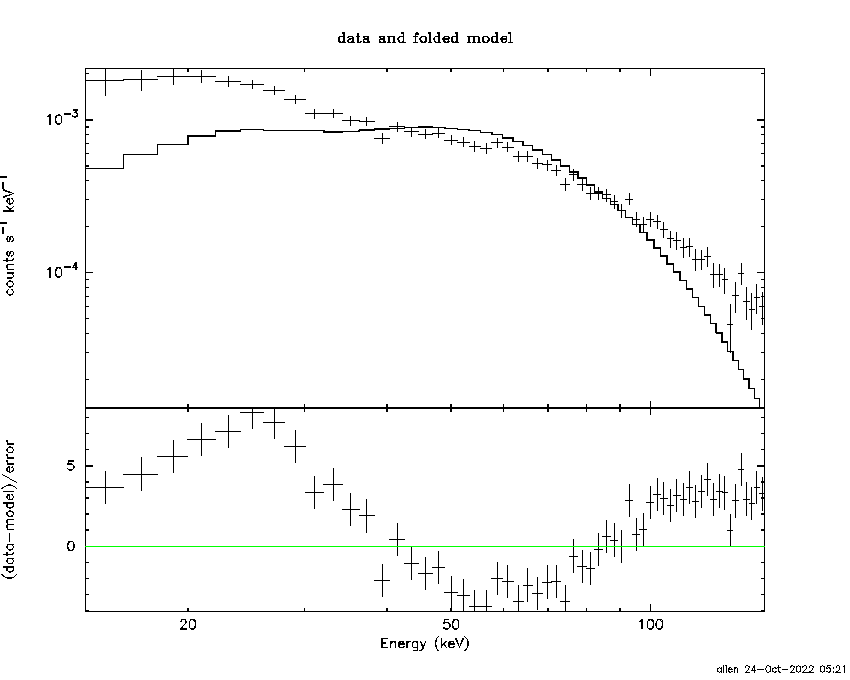

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.9456  (  )
R^2/D10^2   : 2.15602E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  691.14     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.02e-109 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.192e-07   3.035e-08
25- 50  3.691e-06   1.212e-07
50-150  1.207e-05   3.437e-07
15-150  1.648e-05   3.517e-07

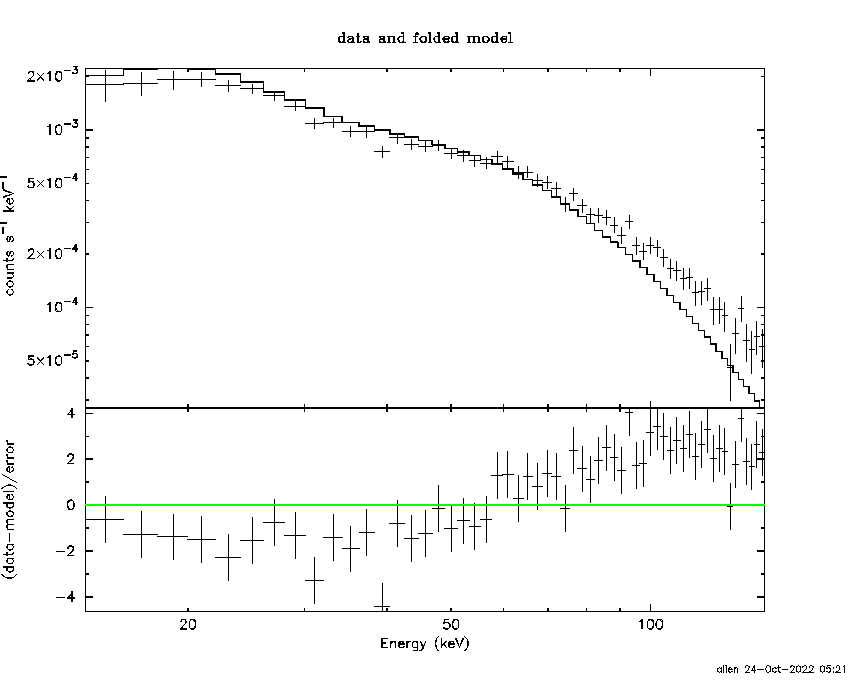

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 2.54516       (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  252.30     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.16e-26 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.548e-06   5.889e-08
25- 50  4.901e-06   1.126e-07
50-150  1.075e-05   2.452e-07
15-150  1.820e-05   4.301e-07

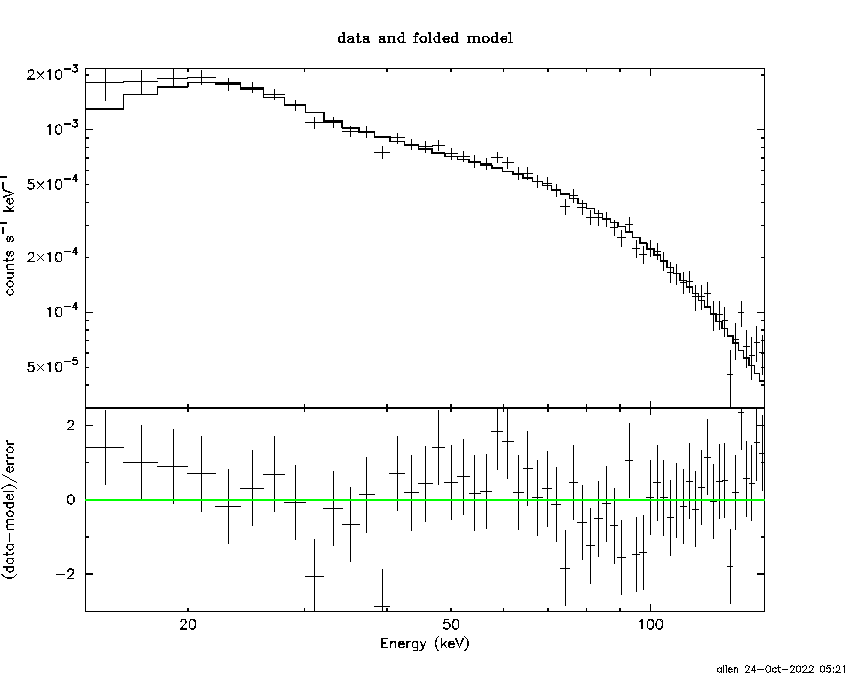

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.70309        (-0.577746      0.623277)
R1^2/D10^2  : 0.413724        (-0.0996406      0.137162)
kT2 [keV]   : 34.9675        (-2.49804      3.10775)
R2^2/D10^2  : 3.53060E-03    (-0.000827363   0.000953504)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.84     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.71e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.979e-06   1.437e-07
25- 50  4.444e-06   1.769e-07
50-150  1.353e-05   5.286e-07
15-150  1.995e-05   6.311e-07

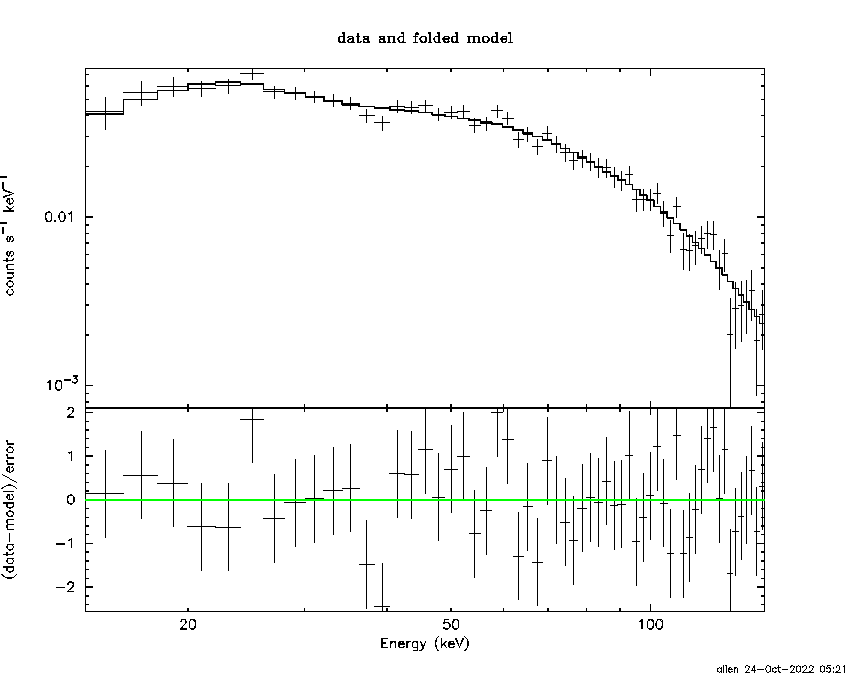

Peak spectrum fit

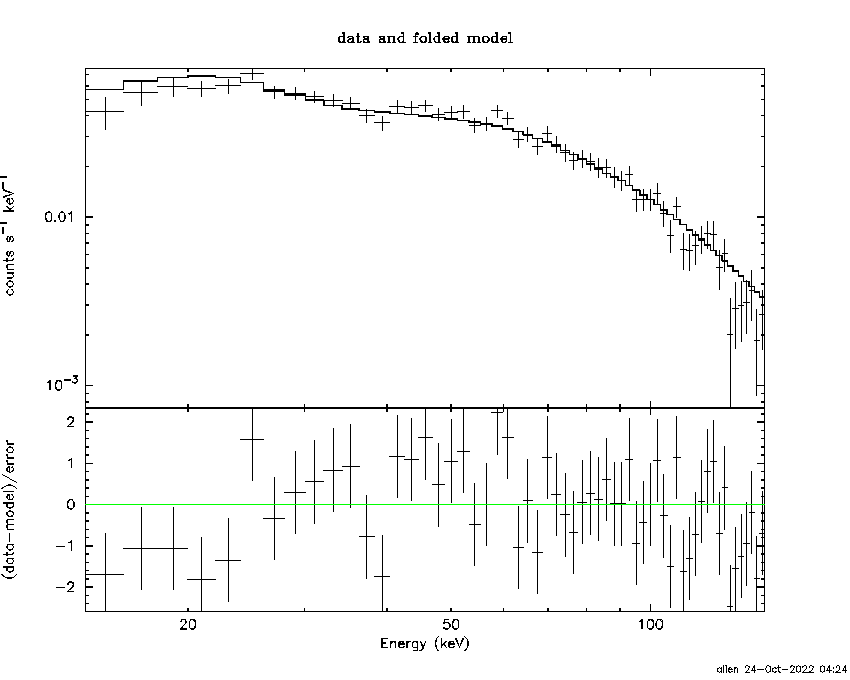

Power-law model

Time interval is from    0.004 sec. to    1.004 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.990991     ( -0.0440298   0.0438857 )
Norm@50keV  : 0.240860    ( -0.00602664   0.00602261 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   68.22     using 59 bins.
 Reduced chi-squared = 1.19684
# Null hypothesis probability of 1.47e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 27.7172 ( -0.7053  0.7057 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.61318e-06 ( -7.11539e-08  7.12371e-08 ) ergs/cm2

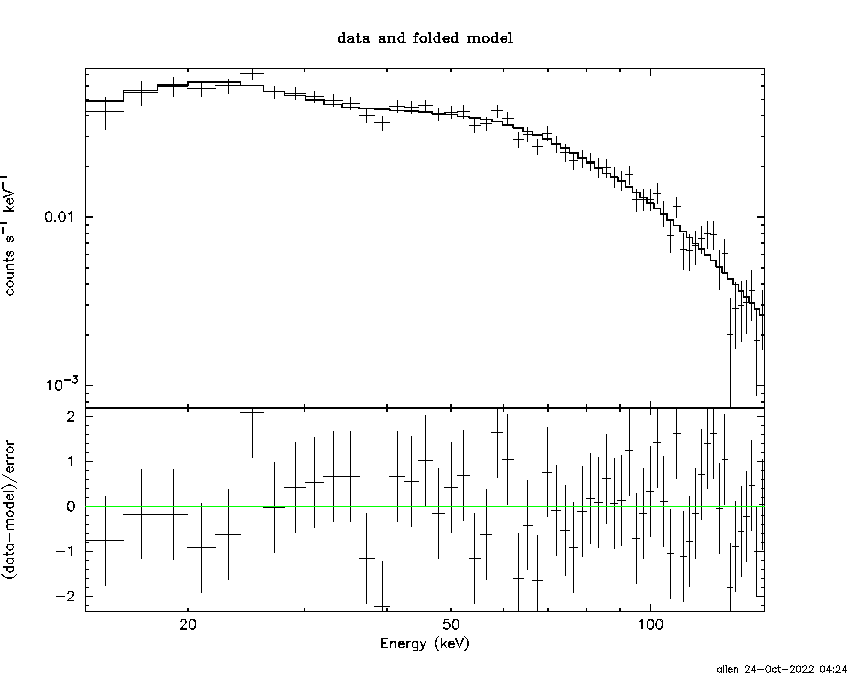

Cutoff power-law model

Time interval is from    0.004 sec. to    1.004 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.562384     ( -0.189764   0.181999 )
Epeak [keV] : 198.155      ( -42.8029 98.5218 )
Norm@50keV  : 0.368779    ( -0.0595513   0.0740188 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.20     using 59 bins.
 Reduced chi-squared = 0.914286
# Null hypothesis probability of 6.57e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 27.2032 ( -0.7339  0.7344 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.5672e-06 ( -7.51887e-08  7.49654e-08 ) ergs/cm2

Band function

Time interval is from    0.004 sec. to    1.004 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.3085  (  )
R^2/D10^2   : 0.961048  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  244.93     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.84e-25 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.794e-08   4.285e-09
25- 50  4.689e-07   1.720e-08
50-150  1.744e-06   6.500e-08
15-150  2.301e-06   6.500e-08

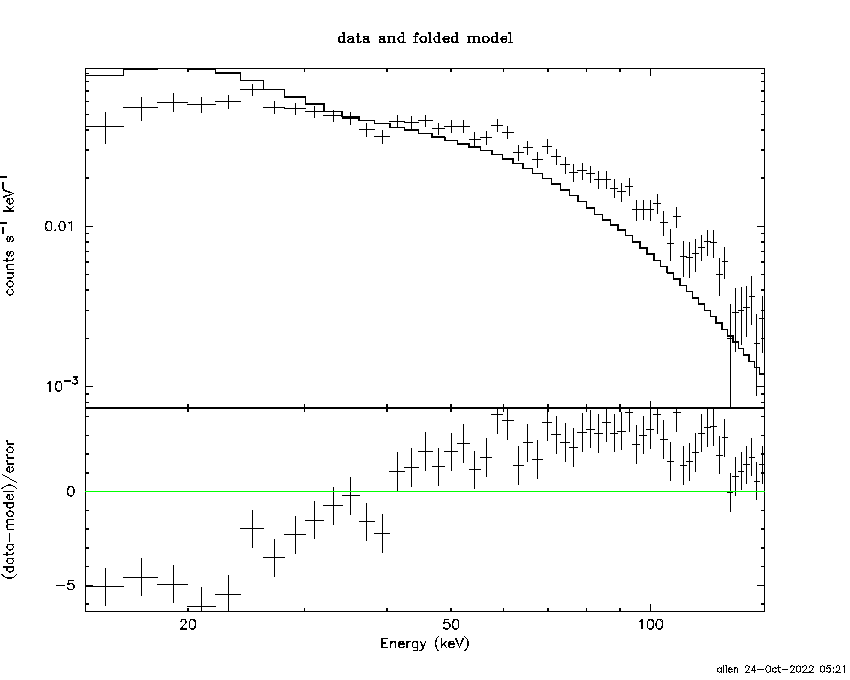

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 112.405       (     )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  490.69     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.88e-70 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.799e-07   7.300e-09
25- 50  5.384e-07   1.395e-08
50-150  1.181e-06   3.300e-08
15-150  1.999e-06   5.250e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.21054        (-1.18477      1.32592)
R1^2/D10^2  : 7.42687        (-2.24152      3.61494)
kT2 [keV]   : 34.5528        (-3.3508      4.80295)
R2^2/D10^2  : 0.207014    (-0.0717052   0.084349)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.84     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.72e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.594e-07   1.725e-08
25- 50  5.031e-07   3.455e-08
50-150  1.921e-06   1.690e-07
15-150  2.584e-06   1.715e-07

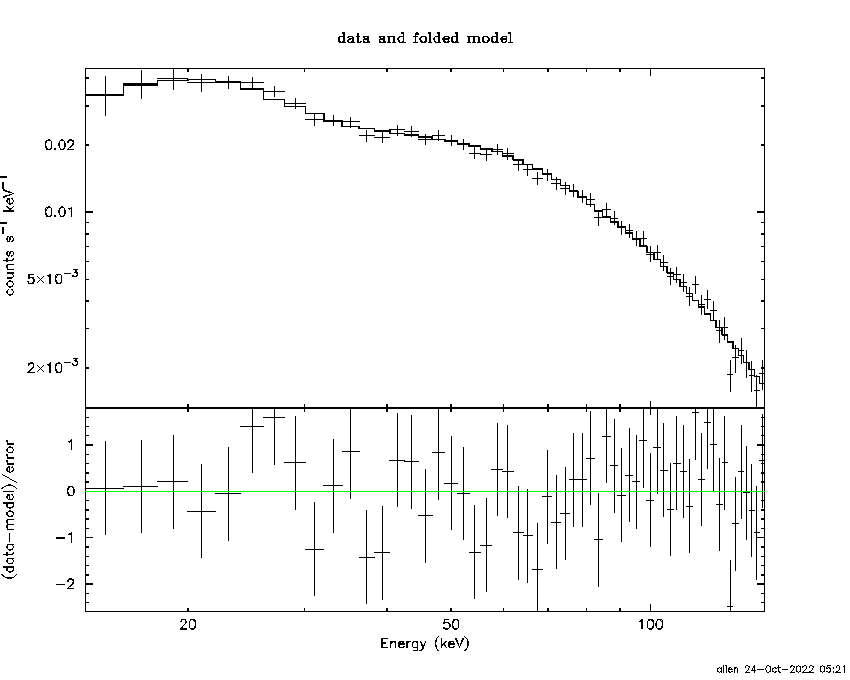

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05303     ( -0.0288243   0.0287234 )
Norm@50keV  : 0.131436    ( -0.00207803   0.00207085 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   43.46     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.07e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 9.705 sec: 15.1839 ( -0.253738  0.25492 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.35433e-05 ( -2.02163e-07  2.02248e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04856     ( -0.0306983   0.0274554 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 0.132147    ( -0.00197112   0.00414105 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   43.75     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.83e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 9.705 sec: 15.1755 ( -0.2539  0.2545 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.35408e-05 ( 0  0 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.38e-06
S(50-100 keV) = 7.12e-06

T90 vs. Hardness ratio plot

T90                                   = 185.675999879837 sec.
Hardness ratio (energy fluence ratio) = 1.62557

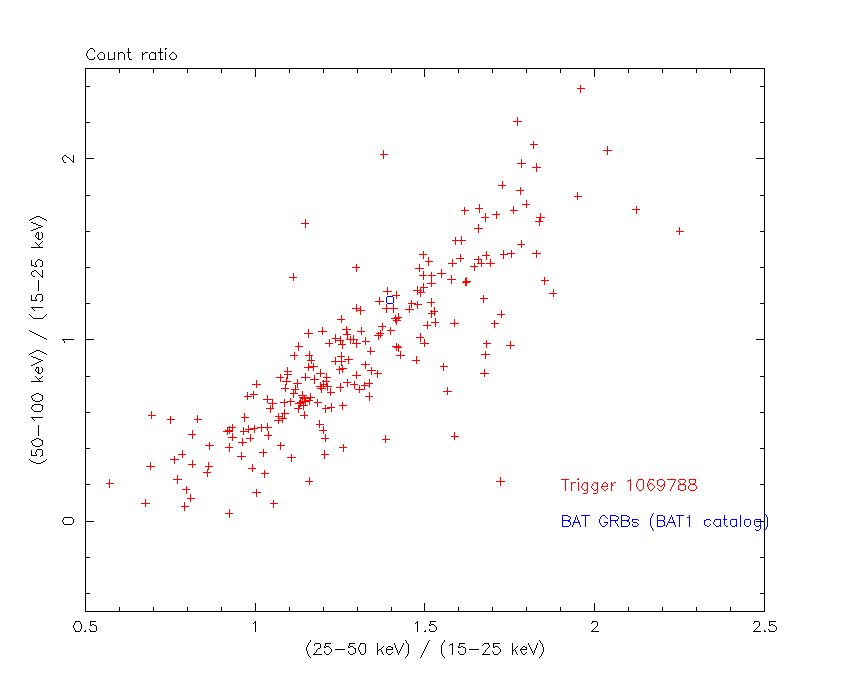

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.39682
Count Ratio (50-100 keV) / (15-25 keV) = 1.22095

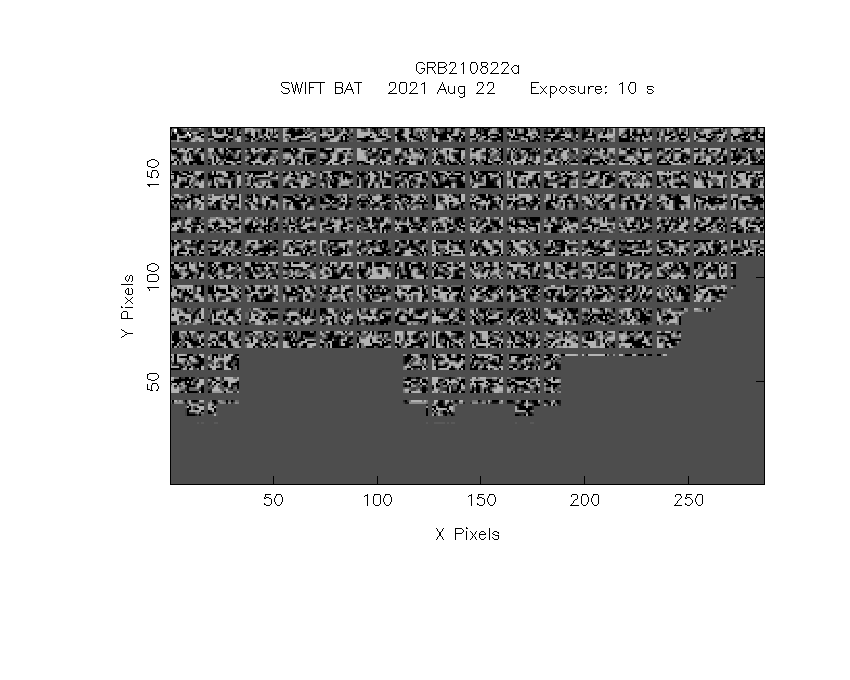

Mask shadow pattern

IMX = 2.938665141621376E-01, IMY = -3.437827128703871E-01

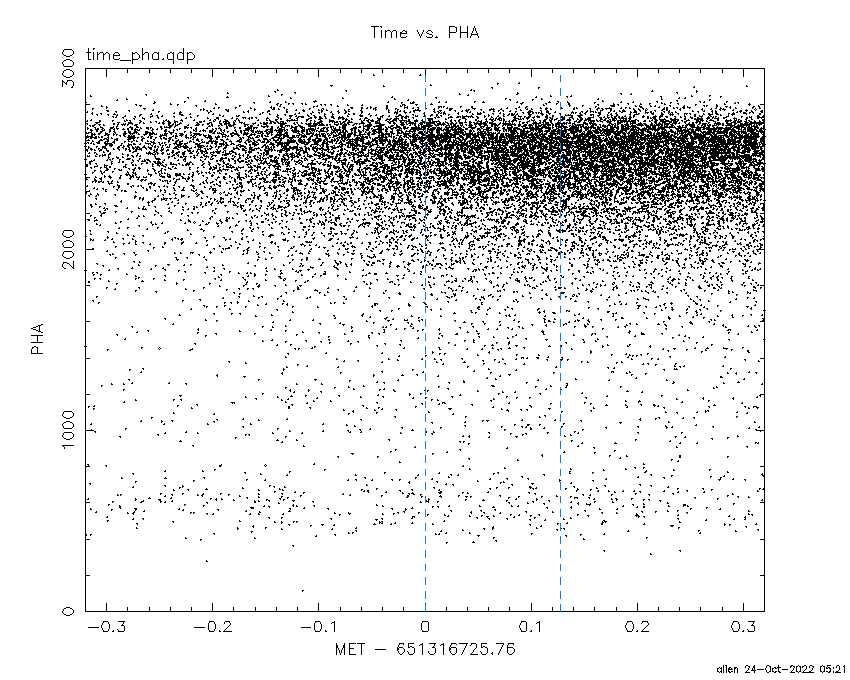

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

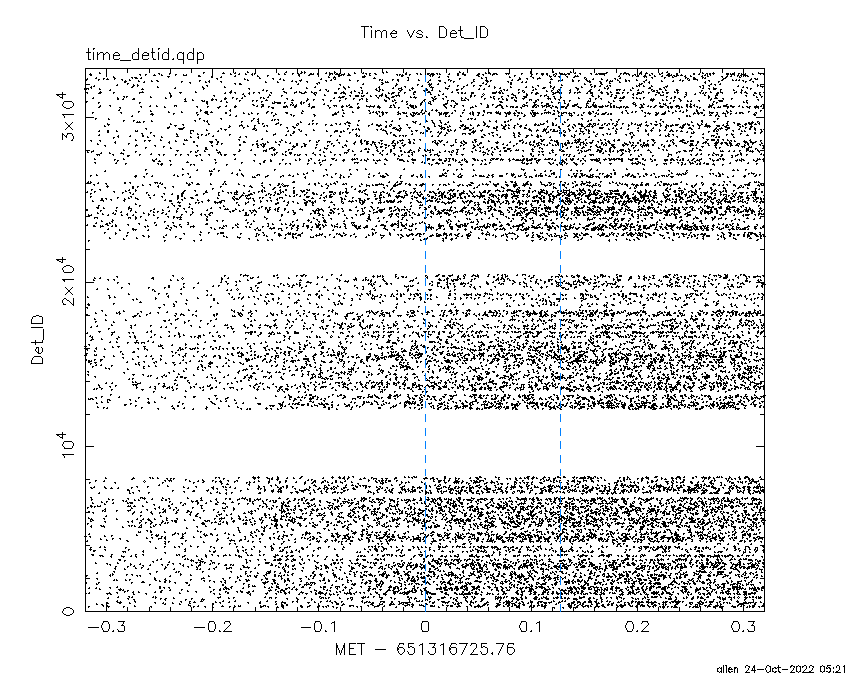

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

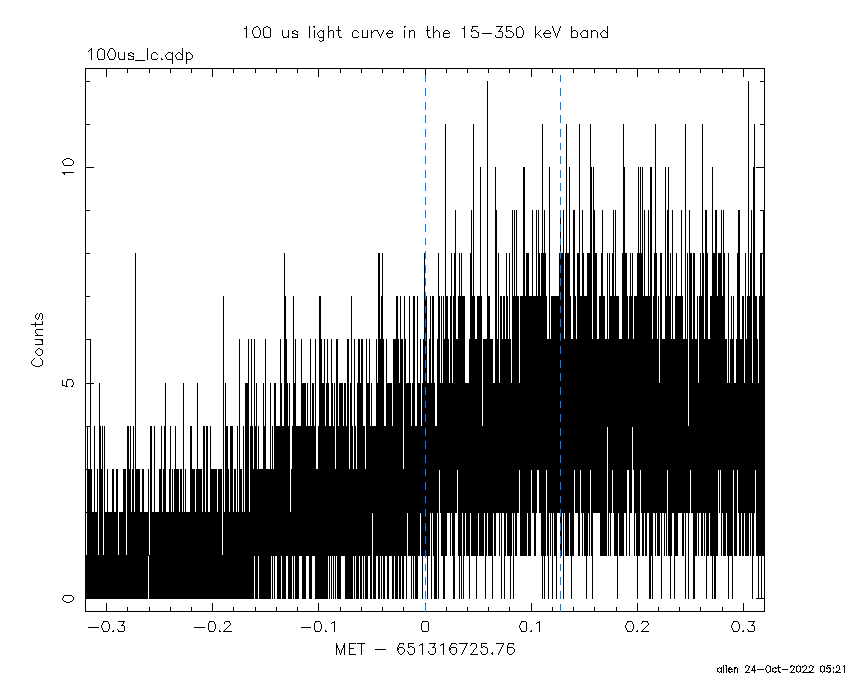

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

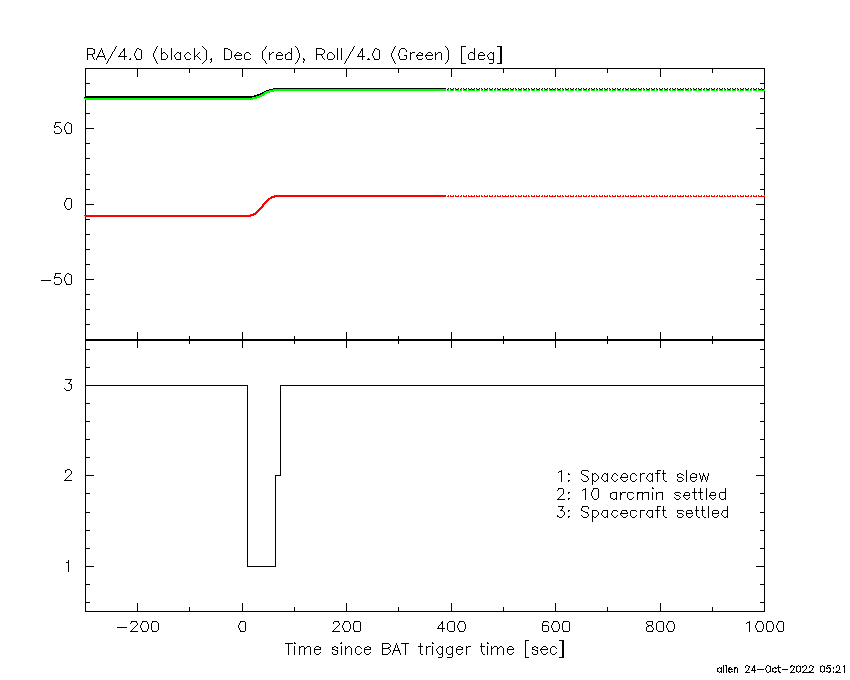

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.760000 -0.364000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9526 -15.6088    1.0  38.8 -114.5   6.9869  12.0    2.4	Sco X-1
254.5714  35.3469   10.4  51.1  -39.9   1.2700   1.1    5.6	Her X-1
255.9766 -37.8451    8.1  39.3 -153.5   0.6670   1.4    0.5	4U 1700-377
256.5812 -36.3192    7.4  37.9 -152.2   0.6595   1.5    9.4	GX 349+2
262.9210 -24.7710    6.6  26.3 -142.1   0.4747   1.8    5.0	GX 1+4
264.6492 -44.5837    5.5  40.5 -168.0   0.8122   2.1    9.0	4U 1735-44
268.4893  -1.6161   70.9  16.4  -78.2  -0.0467  -0.2   12.2	SW J1753.5-0127
270.1878 -25.1051   10.0  21.8 -154.0   0.3165   1.2    5.5	GX 5-1
270.3528 -25.6569    3.7  22.1 -155.2   0.8998   3.3    5.8	GRS 1758-258
274.1534 -14.0793    9.5  11.4 -134.1   0.2994   1.2    9.0	GX 17+2
275.7957 -30.3306    4.3  23.9 -171.8   0.6927   2.7    7.0	H1820-303
285.0351 -24.9216  524.1  17.3  167.1  -0.0059  -0.0    0.1	HT1900.1-2455
288.8021  11.0969    5.8  19.4    5.9  -0.5101  -2.0    9.1	GRS 1915+105
299.6435  35.1865    0.8  45.4    9.2   7.1053  15.0    2.8	Cyg X-1
308.0813  40.9973    5.4  53.5   13.6  -2.1579  -2.2    3.0	Cyg X-3
262.8313 -33.8210    5.1  32.5 -155.5  -0.7468  -2.3    7.9	GX 354-0
308.1132  37.6621    2.7  50.7   15.9   2.9985   4.2 ------	UNKNOWN
255.7205 -60.7931    3.2  57.1 -173.2   4.0976   3.6 ------	UNKNOWN
266.7868 -15.1125    3.4  18.2 -124.7   0.9629   3.5 ------	UNKNOWN
278.2124  42.6019    2.0  50.5  -14.4   3.1244   5.9 ------	UNKNOWN
238.6895 -55.4330    4.0  59.6 -161.3   7.0220   2.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.364000 9.340600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1210 -15.5663  224.1  38.6 -114.5   0.0222   0.1    9.3	Sco X-1
254.5060  35.4785   14.7  51.2  -39.8   0.7681   0.8    8.5	Her X-1
256.1138 -37.9514    5.7  39.3 -153.7  -0.6284  -2.0    8.8	4U 1700-377
256.3653 -36.4416    5.6  38.1 -152.2   0.6210   2.0    3.6	GX 349+2
263.1239 -24.9313    0.0  26.2 -142.7   0.5214   2.3   12.8	GX 1+4
264.9086 -44.4561    7.2  40.3 -168.2  -0.5085  -1.6    7.1	4U 1735-44
268.1984  -1.5420    7.5  16.7  -78.4   0.3373   1.5   11.5	SW J1753.5-0127
270.4281 -25.1491    9.1  21.7 -154.5   0.2755   1.3    8.9	GX 5-1
270.1719 -25.6129    8.2  22.2 -154.8  -0.3413  -1.6   10.5	GRS 1758-258
274.0115 -14.1890   11.7  11.6 -134.2  -0.1945  -1.0    9.2	GX 17+2
276.1040 -30.2921   11.1  23.8 -172.4   0.2409   1.0   10.3	H1820-303
284.8970 -24.8023   20.5  17.2  167.5   0.1204   0.6   10.4	HT1900.1-2455
288.8994  10.9743   20.5  19.3    6.3  -0.1230  -0.6    6.2	GRS 1915+105
299.6056  35.3530   12.3  45.5    9.1  -0.4011  -0.9    9.1	Cyg X-1
307.9804  40.9251    4.3  53.4   13.6   2.3164   2.7    6.1	Cyg X-3
262.8239 -33.8708   17.4  32.6 -155.6  -0.1674  -0.7    8.5	GX 354-0
310.0510  38.1361    2.0  51.9   17.2   3.9407   5.6 ------	UNKNOWN
304.4613   5.2653    0.2  24.3   49.5  18.9652  75.7 ------	UNKNOWN
238.8806 -21.1673    3.3  45.4 -121.4   2.9849   3.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
63.140600 134.234900
135.240000 520.099400
522.240000 584.215000
585.240000 612.852600
615.240000 899.653800
921.240000 962.360600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
263.0189 -24.7595    4.4  50.3 -160.5   6.3036   2.6    1.0	GX 1+4
268.3748  -1.4436  160.6  36.7 -131.5  -0.1027  -0.1    0.7	SW J1753.5-0127
270.3254 -25.0906    4.1  45.0 -165.9   4.7119   2.8    2.3	GX 5-1
270.3117 -25.8593    3.3  45.5 -166.8   6.2244   3.5    7.0	GRS 1758-258
274.0214 -13.9733    3.2  35.8 -154.7   3.8992   3.6    3.9	GX 17+2
275.8589 -30.2655    6.5  44.9 -176.0   2.7897   1.8    7.0	H1820-303
284.9950 -24.9339    7.3  35.7  179.3   1.7551   1.6    2.4	HT1900.1-2455
288.9791  10.9558    9.5  16.3 -100.6   1.0330   1.2   10.7	GRS 1915+105
299.5845  35.1982    0.4  30.2  -39.8  27.6428  26.3    0.3	Cyg X-1
308.3543  40.9782    7.1  35.9  -26.9   1.8685   1.6   11.2	Cyg X-3
326.1675  38.2217    6.1  38.4   -4.0   2.6629   1.9    6.0	Cyg X-2
262.9973 -33.8544 1867.9  55.4 -170.0   0.0177   0.0    1.2	GX 354-0
351.0870  11.0563    4.0  46.5   47.9  10.3643   2.9 ------	UNKNOWN
353.8351  19.5900    3.6  50.1   36.9  16.0074   3.2 ------	UNKNOWN
299.8488 -40.9831    3.7  46.5  152.9   8.6839   3.1 ------	UNKNOWN
304.4678   5.2787    1.8   0.0  114.4   5.6990   6.5 ------	UNKNOWN
272.0228 -31.2130    2.6  47.9 -173.7   7.5265   4.5 ------	UNKNOWN
298.4130  11.2799    4.7   8.5  -76.5   1.7928   2.5 ------	UNKNOWN
289.6963   7.8290    2.4  14.9 -111.3   3.7368   4.8 ------	UNKNOWN
308.0697  37.6346    0.8  32.5  -26.6  14.7214  14.0 ------	UNKNOWN
281.1001  -1.9721    2.6  24.4 -138.6   3.9042   4.4 ------	UNKNOWN

Plot creation:
Mon Oct 24 05:22:04 EDT 2022
