batgrbproduct analysis for trigger=1071488

batgrbproduct Analysis for Trigger=1071488

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Oct 24 00:34:24 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1071488
======================================================================

  Trigger: 01071488      Segment: 000

  BAT Trigger Time: 652201504   [s; MET]
      Trigger Stop: 652201568   [s; MET]
               UTC: 2021-09-01T15:04:36.348320    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 295.292036577501   Dec: -76.9321674594354  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.87
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    10.87

  Flight Position:   [ source = BAT ]
    RA: 295.292036577501   Dec: -76.9321674594354  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 295.225016721433   Dec: -76.9431579638429  [deg; J2000]
        { 19h 40m 54.0s , -76d 56' 35.4" }
         +/- 1.87929105104669 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.858856486823977 [arcmin] (formal 1-sigma fit error)
    SNR: 12.3508917315787

  Angular difference between Flight and Ground position is 1.122865 arcmin

  Partial Coding Fraction: 0.1201172    [ including projection effects ]

  Duration
     T90: 46.7840000391006 +/- 7.71633072634834
        Measured from: 31.1759999990463
                   to: 77.960000038147     [s; relative to TRIGTIME]
     T50: 23.055999994278 +/- 6.05163909134497
        Measured from: 40.055999994278
                   to: 63.1119999885559     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 60.6360000371933
                   to: 61.6360000371933     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 29.7359999418259
                   to: 84.6319999694824     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.733872   2.127971   1.056017   0.325746
           0.157234   0.162905   0.142937   0.131288 [error]
 Peak      0.061964   0.168540   0.048588   0.043663
           0.022745   0.026885   0.020225   0.019012 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.25e-07 9.44e-07 9.00e-07 1.53e-06 3.08e-06 4.10e-06   erg/cm2
              Error 9.64e-08 8.73e-08 1.41e-07 4.71e-07 3.27e-07 6.27e-07   erg/cm2
Peak flux Power-law 1.04e+00 7.30e-01 3.38e-01 2.19e-01 2.21e+00 2.33e+00   ph/cm2/s
              Error 3.72e-01 2.06e-01 1.23e-01 1.36e-01 6.33e-01 6.56e-01   ph/cm2/s

Fluence   Cutoff-PL -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Cutoff-PL 8.01e-01 1.38e+00 1.92e-01 4.16e-04 2.37e+00 2.37e+00   ph/cm2/s
              Error 4.07e-01 4.39e-01 2.35e-01 2.27e-02 6.27e-01 6.28e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.066    0.173    -      -           6.05e-03 6.92e-04   49.850 57
CPL   1.495    0.784      36.8   -2.5      1.30e-02 1.85e-02   47.910 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.106    0.373    -      -           1.40e-02 4.32e-03   70.900 57
CPL  -4.075    0.096      35.4    8.2      1.08e+02 6.71e+05   59.120 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 7.488000 sec.
T50 in the 50-300 keV band: 3.328000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   54.896   29.736   84.632
T90    46.784   31.176   77.960
T50    23.056   40.056   63.112
Peak    1.000   60.636   61.636

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  295.2250   -76.9432   0.0156    47.2375   -44.6527         4.1406216     12.351 TRIG_01071488

Foreground time interval of the image:
 29.736  73.301 (delta_t =  43.565 [sec])
Background time interval of the image:
-144.499  29.736 (delta_t = 174.235 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

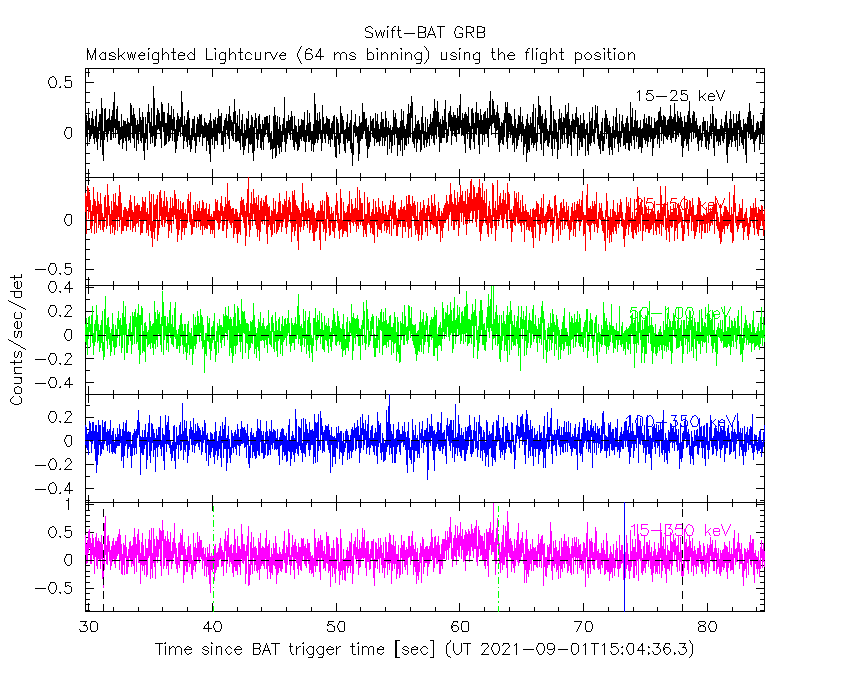

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   29.736 sec. to   84.632 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.06608     ( -0.168731   0.176853 )
Norm@50keV  : 6.05428E-03    ( -0.00069844   0.000684822 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.85     using 59 bins.
 Reduced chi-squared = 0.874561
# Null hypothesis probability of 7.38e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 54.9 sec: 0.936936 ( -0.087581  0.087664 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.07937e-06 ( -3.2494e-07  3.29825e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   29.736 sec. to   84.632 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.49451     ( -0.876315   0.691901 )
Epeak [keV] : 36.8144      ( -31.723 -36.8151 )
Norm@50keV  : 1.29630E-02    ( -0.00751068   0.0295694 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.91     using 59 bins.
 Reduced chi-squared = 0.855536
# Null hypothesis probability of 7.71e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 54.9 sec: 0.917088 ( -0.091054  0.090942 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from   29.736 sec. to   84.632 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.25752  (-0.951974  1.08328)
R^2/D10^2   : 0.580082  (-0.205579   0.31244)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   66.44     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.84e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.388e-07   8.534e-08
25- 50  1.196e-06   1.414e-07
50-150  4.971e-07   1.360e-07
15-150  2.232e-06   2.492e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 59.9096       (-14.3613      21.3402)
Norm        : 4.90101       (-0.752027     0.868059)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   47.96     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.98e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.761e-07   8.729e-08
25- 50  1.028e-06   1.054e-07
50-150  1.169e-06   2.959e-07
15-150  2.873e-06   3.475e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.01466        (-1.22027      1.17932)
R1^2/D10^2  : 1.42193        (-0.61967      1.32742)
kT2 [keV]   : 27.2549        (-9.3398      25.3191)
R2^2/D10^2  : 5.35074E-03    (-0.00465101   0.0193356)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   43.84     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.60e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.546e-07   1.746e-07
25- 50  1.064e-06   3.058e-07
50-150  1.299e-06   6.642e-07
15-150  3.018e-06   1.003e-06

Peak spectrum fit

Power-law model

Time interval is from   60.636 sec. to   61.636 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.10593     ( -0.357699   0.387491 )
Norm@50keV  : 1.40055E-02    ( -0.0043504   0.00428514 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   70.90     using 59 bins.
 Reduced chi-squared = 1.24386
# Null hypothesis probability of 1.02e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 2.21130 ( -0.63192  0.63472 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.30122e-07 ( -3.8183e-08  3.85877e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   60.636 sec. to   61.636 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.07470     ( 2.85343   3.04592 )
Epeak [keV] : 35.4349      ( -6.98901 9.39692 )
Norm@50keV  : 107.687    ( -114.624   1.34203e+06 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   59.12     using 59 bins.
 Reduced chi-squared = 1.05571
# Null hypothesis probability of 3.62e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 2.36947 ( -0.62646  0.62805 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20492e-07 ( -3.56599e-08  3.91621e-08 ) ergs/cm2

Band function

Time interval is from   60.636 sec. to   61.636 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.72307  (-1.78714  2.27899)
R^2/D10^2   : 1.49136  (-0.87575   1.82323)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   59.93     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.70e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.842e-08   1.179e-08
25- 50  6.788e-08   2.612e-08
50-150  3.264e-08   1.792e-08
15-150  1.289e-07   5.004e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 52.9720       (-19.7679      40.3572)
Norm        : 13.5894       (-4.64073     6.14534)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   65.83     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.98e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.365e-08   1.172e-08
25- 50  4.930e-08   1.655e-08
50-150  5.050e-08   3.010e-08
15-150  1.334e-07   4.937e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.81575        (-8.56888      -8.56888)
R1^2/D10^2  : 1.83113        (-0.755389      -0.755389)
kT2 [keV]   : 16.5362        (-10.3916      -10.3916)
R2^2/D10^2  : 3.97110E-02    (-0.0391108   3.16271)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   59.69     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.09e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.862e-08   4.866e-05
25- 50  6.754e-08   4.795e-04
50-150  3.344e-08   1.034e-02
15-150  1.296e-07   1.144e-02

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.01982     ( -0.16724   0.174753 )
Norm@50keV  : 6.97490E-03    ( -0.000789555   0.000774785 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.67     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.63e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 43.56 sec: 1.05589 ( -0.0993705  0.0994683 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.80502e-06 ( -2.96833e-07  3.00609e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.48115     ( -0.807804   0.647737 )
Epeak [keV] : 40.9121      ( -40.7455 -40.9121 )
Norm@50keV  : 1.41724E-02    ( -0.0079779   0.0275813 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   52.70     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.00e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 43.56 sec: 1.03493 ( -0.102519  0.10252 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.67079e-06 ( -3.39663e-07  3.41929e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.44e-07
S(50-100 keV) = 9.00e-07

T90 vs. Hardness ratio plot

T90                                   = 46.7840000391006 sec.
Hardness ratio (energy fluence ratio) = 0.95339

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.22729
Count Ratio (50-100 keV) / (15-25 keV) = 0.609051

Mask shadow pattern

IMX = 7.692286945106462E-01, IMY = 7.599590648781670E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

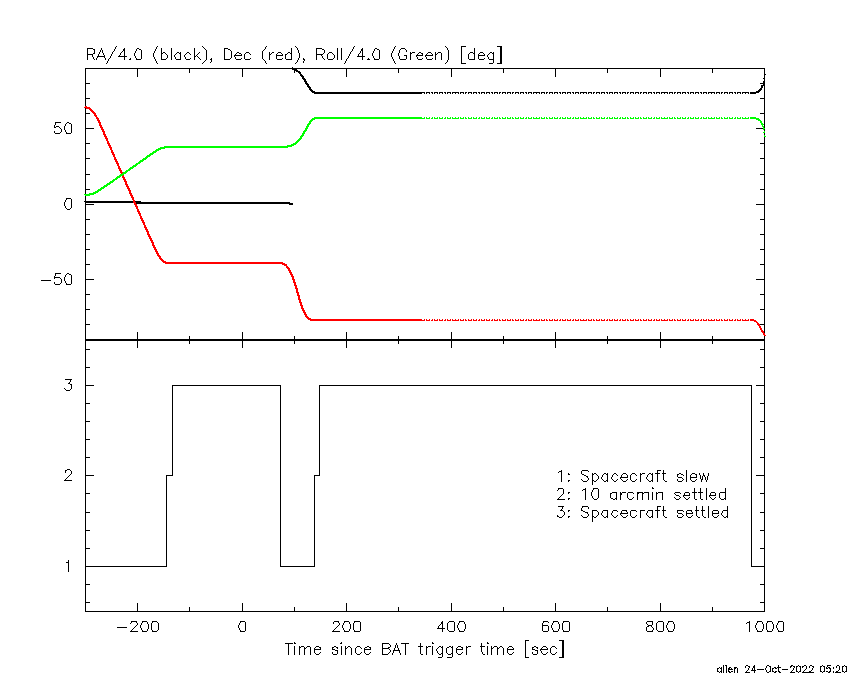

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-144.499400 29.736000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
  9.8549  -0.3670    3.3  39.2  128.2   1.8558   3.5  591.7	UNKNOWN
296.8341 -41.9883    2.4  49.7    2.6   2.1873   4.8 ------	UNKNOWN
 16.5283 -36.7909    2.5  10.3 -160.7   0.8687   4.6 ------	UNKNOWN
 60.2280 -10.2986    3.0  57.6 -165.4   3.7158   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
29.736000 73.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
317.6714 -66.0190    1.9  37.3  -32.4   0.8808   6.0 ------	UNKNOWN
295.2251 -76.9432    0.9  47.2  -44.7   4.1405  12.4 ------	UNKNOWN
 10.0043 -83.6700    2.9  44.6  -62.3   1.7438   3.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
137.900600 710.673600
721.000000 840.300000
841.000000 963.070000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2558 -60.6215   10.9  38.3  -97.2   2.3820   1.1    1.8	Cen X-3
186.6179 -62.7371    3.2  33.7  -86.0   4.8989   3.6    2.3	GX 301-2
255.9180 -37.9713   13.6  42.5   -5.4  -0.9300  -0.9    8.3	4U 1700-377
256.3659 -36.4342    5.1  43.9   -4.4   2.8556   2.3    3.4	GX 349+2
262.9194 -24.7800   12.1  54.4    5.7  -2.9541  -1.0    5.3	GX 1+4
264.7729 -44.4540   12.0  34.8    2.9   1.0011   1.0    1.3	4U 1735-44
270.3286 -25.2208   25.3  53.1   13.9   1.3102   0.5    8.8	GX 5-1
270.2098 -25.7894    7.1  52.5   13.6   4.4006   1.6    5.7	GRS 1758-258
276.1432 -30.4548    0.0  47.3   19.8  -1.5264  -0.9   12.5	H1820-303
284.9071 -24.9615   14.6  52.2   30.5   3.8831   0.8    7.4	HT1900.1-2455
262.8771 -33.8945    9.1  45.4    3.7  -1.6810  -1.3    6.6	GX 354-0
318.2809 -38.0192    6.0  40.1   70.9   6.4377   1.9 ------	UNKNOWN
294.1636 -39.3492    2.9  37.6   41.0   5.4675   4.0 ------	UNKNOWN
280.1840 -33.3432    3.4  44.1   24.2   4.7246   3.4 ------	UNKNOWN
288.9613 -51.4828    3.4  25.5   33.2   2.7543   3.4 ------	UNKNOWN
257.2214 -31.0889    2.5  49.0   -2.0   6.0577   4.7 ------	UNKNOWN
256.4327 -52.3724    2.7  28.5  -11.1   3.1895   4.4 ------	UNKNOWN
255.6378 -78.2979    3.7   8.5  -75.9   2.0038   3.1 ------	UNKNOWN
243.9805 -31.5515    3.0  50.9  -16.6   6.2399   3.9 ------	UNKNOWN
240.4027 -28.6784    3.8  54.4  -19.5   6.8424   3.1 ------	UNKNOWN
240.0567 -28.6165    4.1  54.6  -19.9   6.7151   3.1 ------	UNKNOWN

Plot creation:
Mon Oct 24 05:20:47 EDT 2022
