TDRSS scaled map for 1071762
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 03 Sep 21 13:47:27 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1071762, Seg_Num: 0
GRB_RA: 135.414d {+09h 01m 39s} (J2000),
135.620d {+09h 02m 29s} (current),
134.940d {+08h 59m 46s} (1950)
GRB_DEC: -40.309d {-40d 18' 31"} (J2000),
-40.395d {-40d 23' 41"} (current),
-40.111d {-40d 06' 40"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=1736 [image_cnts]
TRIGGER_DUR: 72.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 19460 TJD; 246 DOY; 21/09/03
GRB_TIME: 49564.33 SOD {13:46:04.33} UT
GRB_PHI: 14.94 [deg]
GRB_THETA: 16.87 [deg]
SOLN_STATUS: 0x513
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 8.30 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 -1 +0 +1 -58 +0
SUN_POSTN: 162.73d {+10h 50m 55s} +7.33d {+07d 19' 56"}
SUN_DIST: 53.87 [deg] Sun_angle= 1.8 [hr] (West of Sun)
MOON_POSTN: 121.79d {+08h 07m 11s} +24.29d {+24d 17' 27"}
MOON_DIST: 65.95 [deg]
MOON_ILLUM: 13 [%]
GAL_COORDS: 262.82, 4.03 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 156.71,-53.75 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This matches a source in the ground catalog: Vela_X-1, delta=0.261 [deg].
COMMENTS: This is not a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 335.81,1.62 [deg].
COMMENTS:
COMMENTS: This trigger occured while the StarTracker had lost lock, so it is possibly bogus.
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 03 Sep 21 13:58:56 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1071762, Seg_Num: 0
POINT_RA: 126.900d {+08h 27m 36s} (J2000)
POINT_DEC: -24.992d {-24d 59' 32"} (J2000)
MAP_DATE: 19460 TJD; 246 DOY; 21/09/03
MAP_TIME: 49564.33 SOD {13:46:04.33} UT
TRIGGER_DUR: 72.000 [sec]
SOLN_STATUS: 0x513
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 8.30 [sigma]
MAP_URL: sw01071762000msbsm.fits
SUN_POSTN: 162.74d {+10h 50m 57s} +7.33d {+07d 19' 45"}
MOON_POSTN: 121.90d {+08h 07m 37s} +24.27d {+24d 16' 29"}
MOON_ILLUM: 13 [%]
GAL_COORDS: 246.26, 7.81 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 137.60,-42.53 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

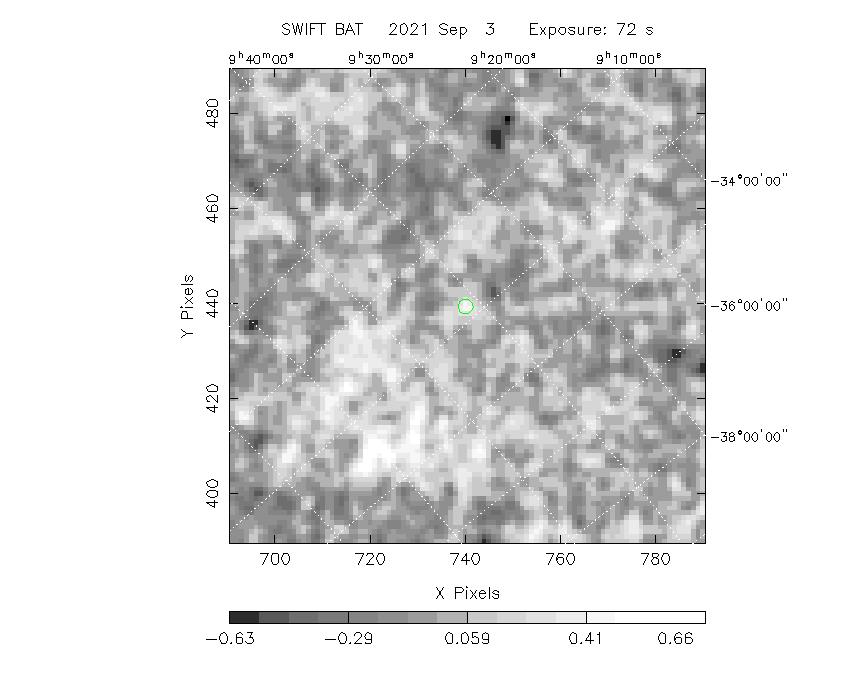

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (135.414, -40.309).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 135.414 -40.309 1.0
VelaX-1 ( 135.529 , -40.555 ) delta= 0.261
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
88.0474 -7.4562 0.0 41.0 146.4 -0.2075 -0.7 0.0 NGC 2110
94.2804 9.1369 0.0 46.6 170.7 0.5474 1.5 0.0 4U 0614+091
128.8361 -45.1764 0.0 20.2 33.9 0.1460 0.8 0.0 PSR B0833-45
135.5286 -40.5547 0.0 17.1 15.1 0.1852 1.1 0.0 Vela X-1
141.1092 -55.2067 0.0 32.0 22.5 -0.2415 -1.2 0.0 4U 0919-54
146.4116 -31.1911 0.0 18.3 -28.0 0.1033 0.6 0.0 NGC 2997
146.9173 -30.9489 0.0 18.6 -29.0 -0.1310 -0.7 0.0 MCG -5-23-016
152.4417 -58.2933 0.0 37.9 16.2 -0.0017 -0.0 0.0 GRO J1008-57
170.3158 -60.6230 0.0 46.3 10.0 -0.1978 -0.7 0.0 Cen X-3
172.6417 -62.9308 0.0 48.4 12.0 -0.1199 -0.4 0.0 IGR J11305-6256
174.7572 -37.7386 0.0 42.3 -22.8 0.2525 0.9 0.0 NGC 3783
176.8692 -61.9539 0.0 49.7 9.6 -0.4889 -1.5 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 49.8 9.9 0.4419 1.3 0.0 4U 1145-61
177.1387 -67.7500 0.0 52.4 16.2 0.0559 0.1 0.0 EXO 0748-676
186.6566 -62.7703 0.0 54.2 8.6 0.1224 0.3 0.0 GX 301-2
188.9026 -39.9093 0.0 53.3 -19.8 0.2171 0.4 0.0 NGC 4507
196.3645 -49.4682 0.0 58.1 -8.0 0.6649 0.6 0.0 NGC 4945
92.7559 -54.1541 3.8 38.6 69.6 0.7088 3.0 ------ UNKNOWN
86.3243 -3.2319 3.9 44.7 150.3 1.0984 2.9 ------ UNKNOWN
98.5273 -8.2108 2.2 31.8 154.7 0.9487 5.3 ------ UNKNOWN
104.2175 23.1202 3.7 52.9 -168.6 1.5652 3.1 ------ UNKNOWN
107.3892 23.1327 3.5 51.7 -165.2 1.7558 3.3 ------ UNKNOWN
122.7645 26.6478 3.4 51.8 -146.9 2.5179 3.4 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.5286 -40.5547 0.0 17.1 15.1 0.1852 1.1 0.0 Vela X-1
170.3158 -60.6230 0.0 46.3 10.0 -0.1978 -0.7 0.0 Cen X-3
186.6566 -62.7703 0.0 54.2 8.6 0.1224 0.3 0.0 GX 301-2
92.7559 -54.1541 3.8 38.6 69.6 0.7088 3.0 ------ UNKNOWN
86.3243 -3.2319 3.9 44.7 150.3 1.0984 2.9 ------ UNKNOWN
98.5273 -8.2108 2.2 31.8 154.7 0.9487 5.3 ------ UNKNOWN
104.2175 23.1202 3.7 52.9 -168.6 1.5652 3.1 ------ UNKNOWN
107.3892 23.1327 3.5 51.7 -165.2 1.7558 3.3 ------ UNKNOWN
122.7645 26.6478 3.4 51.8 -146.9 2.5179 3.4 ------ UNKNOWN
Search for UNKNOWN source R.A. = 86.3243 Dec. = -3.2319 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 92.7559 Dec. = -54.1541 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 98.5273 Dec. = -8.2108 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 104.2175 Dec. = +23.1202 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 107.3892 Dec. = +23.1327 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 122.7645 Dec. = +26.6478 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
88.0474 -7.4562 0.0 41.0 146.4 -0.2695 -0.5 0.0 NGC 2110
94.2804 9.1369 0.0 46.6 170.7 0.0464 0.1 0.0 4U 0614+091
128.8361 -45.1764 0.0 20.2 33.9 0.4958 1.9 0.0 PSR B0833-45
135.5286 -40.5547 0.0 17.1 15.1 0.3060 1.2 0.0 Vela X-1
141.1092 -55.2067 0.0 32.0 22.5 -0.2302 -0.9 0.0 4U 0919-54
146.4116 -31.1911 0.0 18.3 -28.0 0.0776 0.3 0.0 NGC 2997
146.9173 -30.9489 0.0 18.6 -29.0 0.2082 0.8 0.0 MCG -5-23-016
152.4417 -58.2933 0.0 37.9 16.2 -0.0851 -0.3 0.0 GRO J1008-57
170.3158 -60.6230 0.0 46.3 10.0 -0.6044 -1.6 0.0 Cen X-3
172.6417 -62.9308 0.0 48.4 12.0 0.6052 1.4 0.0 IGR J11305-6256
174.7572 -37.7386 0.0 42.3 -22.8 0.2019 0.5 0.0 NGC 3783
176.8692 -61.9539 0.0 49.7 9.6 -0.7786 -1.5 0.0 1E 1145.1-6141
177.0001 -62.2069 0.0 49.8 9.9 0.3178 0.6 0.0 4U 1145-61
177.1387 -67.7500 0.0 52.4 16.2 0.2335 0.4 0.0 EXO 0748-676
186.6566 -62.7703 0.0 54.2 8.6 0.6213 0.9 0.0 GX 301-2
188.9026 -39.9093 0.0 53.3 -19.8 0.1565 0.2 0.0 NGC 4507
196.3645 -49.4682 0.0 58.1 -8.0 -0.1194 -0.1 0.0 NGC 4945
121.2431 -73.3321 2.6 48.4 40.0 3.0279 4.4 ------ UNKNOWN
89.3029 -21.8769 2.5 34.5 125.1 1.5989 4.6 ------ UNKNOWN
89.3883 -18.6366 2.1 35.3 130.6 1.8148 5.4 ------ UNKNOWN
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1071762/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Fri Sep 3 10:00:32 EDT 2021
