batgrbproduct Analysis for Trigger=1072706

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Sep 11 16:46:41 EDT 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1072706/GCN5_download_cron
======================================================================

  Trigger: 01072706      Segment: 000

  BAT Trigger Time: 652961543.612   [s; MET]
      Trigger Stop: 652961543.616   [s; MET]
               UTC: 2021-09-10T10:11:55.909380    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 238.772886839478   Dec: -54.0546596608644  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.71
     Image Trigger?:     NO
     Rate S/N Ratio:     29.8328677803526  [ if not an image trigger ]
     Image S/N Ratio:    8.71

  Flight Position:   [ source = BAT ]
    RA: 238.772886839478   Dec: -54.0546596608644  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 238.765584380039   Dec: -54.0493957527308  [deg; J2000]
        { 15h 55m 03.7s , -54d 02' 57.8" }
         +/- 2.52275244928696 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.14690181545366 [arcmin] (formal 1-sigma fit error)
    SNR: 8.10983011003528

  Angular difference between Flight and Ground position is 0.407322 arcmin

  Partial Coding Fraction: 0.578125    [ including projection effects ]

  Duration
     T90: 0.00400006771087646 +/- 0.0226274628537407
        Measured from: 0
                   to: 0.00400006771087646     [s; relative to TRIGTIME]
     T50: 0.00400006771087646 +/- 0.0160000324249268
        Measured from: 0
                   to: 0.00400006771087646     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.00400006771087646 second)
        Measured from: 5.96046447753906e-08
                   to: 0.00400012731552124     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.00400006771087646     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.015710   0.012629   0.002553   0.001166
           0.002711   0.002397   0.001429   0.000685 [error]
 Peak      0.015710   0.012629   0.002553   0.001166
           0.002711   0.002397   0.001429   0.000685 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.24e-09 7.36e-10 1.36e-10 2.92e-11 3.13e-09 3.14e-09   erg/cm2
              Error 8.18e-10 3.22e-10 1.08e-10 4.52e-11 1.10e-09 1.11e-09   erg/cm2
Peak flux Power-law 1.92e+01 3.63e+00 3.34e-01 3.34e-02 2.31e+01 2.32e+01   ph/cm2/s
              Error 7.08e+00 1.54e+00 2.58e-01 4.93e-02 8.20e+00 8.20e+00   ph/cm2/s

Fluence   Cutoff-PL 5.34e-09 2.40e-09 2.71e-12 6.81e-21 7.74e-09 7.75e-09   erg/cm2
              Error 1.35e-09 7.07e-10 2.70e-12 1.18e-19 1.82e-09 1.82e-09   erg/cm2
Peak flux Cutoff-PL 4.24e+01 1.29e+01 8.26e-03 1.12e-11 5.53e+01 5.54e+01   ph/cm2/s
              Error 1.09e+01 3.67e+00 7.88e-03 1.78e-10 1.32e+01 1.32e+01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.441    0.701    -      -           2.53e-02 1.62e-02   60.330 57
CPL   1.000    0.000      50.0    0.0      9.37e-02 0.00e+00   76.920 56

The chi2 of BB fit is 46.77 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.441    0.701    -      -           2.53e-02 1.62e-02   60.330 57
CPL   1.000    0.000      50.0    0.0      9.37e-02 0.00e+00   76.920 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.004    0.000    0.004
T90     0.004    0.000    0.004
T50     0.004    0.000    0.004
Peak    0.004    0.000    0.004

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  238.7656 -54.0494 0.0236   33.6 -143.6       0.0302     8.1  TRIG_01072706
------------------------------------------

Foreground time interval of the image:
  0.000   0.004 (delta_t =   0.004 [sec])
Background time interval of the image:
-90.311  -7.612 (delta_t =  82.699 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

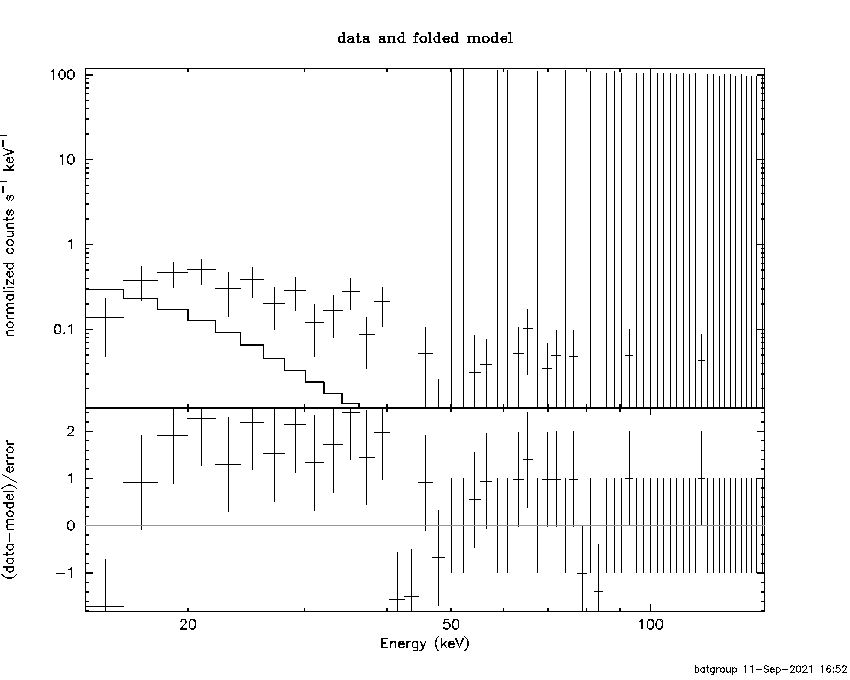

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.004 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.44136     ( -0.642892   0.758819 )
Norm@50keV  : 2.52932E-02    ( -0.0147509   0.0177152 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.33 using 59 PHA bins.
# Reduced chi-squared =          1.058 for     57 degrees of freedom
# Null hypothesis probability =   3.563238e-01

Photon flux (15-150 keV)    in 0.004 sec: 23.1469 ( -8.19939  8.19218 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.12608e-09 ( -1.10091e-09  1.10094e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.004 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 9.37409E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.92 using 59 PHA bins.
# Reduced chi-squared =          1.374 for     56 degrees of freedom
# Null hypothesis probability =   3.329609e-02

Photon flux (15-150 keV)    in 0.004 sec: 55.3324 55.7710 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.7923e-12 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.004 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.93831   ( 0.165595   9.93831 )
beta        : -4.44078    ( -0.756752   0.643636 )
Epeak [keV] : 79.3643      ( -79.3643 -79.3643 )
Norm@50keV   : 3.43937    ( -2.00349   2.40795 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.33 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     55 degrees of freedom
# Null hypothesis probability =   2.891494e-01

Photon flux (15-150 keV)    in 0.004 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.98012  (-0.402645  0.398907)
R^2/D10^2   : 1100.02  (-545.335   928.305)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.77 using 59 PHA bins.
# Reduced chi-squared =         0.8206 for     57 degrees of freedom
# Null hypothesis probability =   8.310570e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.906e-09   1.485e-09
25- 50  1.390e-09   5.984e-10
50-150  1.640e-11   1.322e-11
15-150  5.313e-09   2.128e-09

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 8.23246       (-1.59797      1.92909)
Norm        : 1657.97       (-830.159     1321.69)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.055e-09   1.270e-09
25- 50  9.925e-10   4.618e-10
50-150  3.836e-11   3.311e-11
15-150  4.086e-09   2.026e-09

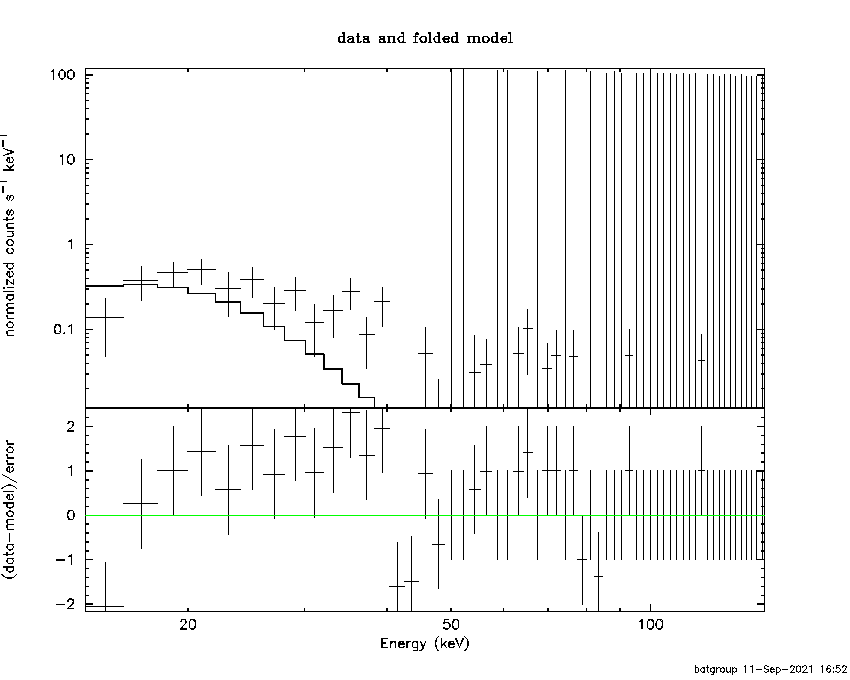

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.42985E-04        (0.000774972      -0.000142985)
R1^2/D10^2  : 1.52403E+05        (-152406      -152406)
kT2 [keV]   : 3.97853        (-0.403177      0.398386)
R2^2/D10^2  : 1102.56    (-545.544   928.111)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.632e-09   2.408e-06
25- 50  1.452e-09   2.620e-05
50-150  4.222e-11   7.378e-04
15-150  4.126e-09   1.069e-03

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.004 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.44136     ( -0.642892   0.758819 )
Norm@50keV  : 2.52932E-02    ( -0.0147509   0.0177152 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.33 using 59 PHA bins.
# Reduced chi-squared =          1.058 for     57 degrees of freedom
# Null hypothesis probability =   3.563238e-01

Photon flux (15-150 keV)    in 0.004 sec: 23.1469 ( -8.19939  8.19218 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.12608e-09 ( -1.10091e-09  1.10094e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.004 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 9.37409E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.92 using 59 PHA bins.
# Reduced chi-squared =          1.374 for     56 degrees of freedom
# Null hypothesis probability =   3.329609e-02

Photon flux (15-150 keV)    in 0.004 sec: 55.3324 55.7710 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.7923e-12 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.004 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.93831   ( 0.165595   9.93831 )
beta        : -4.44078    ( -0.756752   0.643636 )
Epeak [keV] : 79.3643      ( -79.3643 -79.3643 )
Norm@50keV   : 3.43937    ( -2.00349   2.40795 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.33 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     55 degrees of freedom
# Null hypothesis probability =   2.891494e-01

Photon flux (15-150 keV)    in 0.004 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.98012  (-0.402645  0.398907)
R^2/D10^2   : 1100.02  (-545.335   928.305)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.906e-09   1.600e-09
25- 50  1.390e-09   6.208e-10
50-150  1.640e-11   1.256e-11
15-150  5.313e-09   1.963e-09

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 8.23246       (-1.59797      1.92909)
Norm        : 1657.97       (-830.159     1321.69)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.055e-09   1.347e-09
25- 50  9.925e-10   4.949e-10
50-150  3.836e-11   3.257e-11
15-150  4.086e-09   1.609e-09

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.42985E-04        (0.000774972      -0.000142985)
R1^2/D10^2  : 1.52403E+05        (-152406      -152406)
kT2 [keV]   : 3.97853        (-0.403177      0.398386)
R2^2/D10^2  : 1102.56    (-545.544   928.111)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.632e-09   2.598e-06
25- 50  1.452e-09   2.422e-05
50-150  4.222e-11   5.738e-04
15-150  4.126e-09   9.504e-04

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.44136     ( -0.642892   0.758819 )
Norm@50keV  : 2.52932E-02    ( -0.0147509   0.0177152 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.33 using 59 PHA bins.
# Reduced chi-squared =          1.058 for     57 degrees of freedom
# Null hypothesis probability =   3.563238e-01

Photon flux (15-150 keV)    in 0.004 sec: 23.1469 ( -8.19939  8.19218 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.12608e-09 ( -1.10091e-09  1.10094e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 9.37409E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          76.92 using 59 PHA bins.
# Reduced chi-squared =          1.374 for     56 degrees of freedom
# Null hypothesis probability =   3.329609e-02

Photon flux (15-150 keV)    in 0.004 sec: 55.3324 55.7710 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.7923e-12 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.93831   ( 0.165595   9.93831 )
beta        : -4.44078    ( -0.756752   0.643636 )
Epeak [keV] : 79.3643      ( -79.3643 -79.3643 )
Norm@50keV   : 3.43937    ( -2.00349   2.40795 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.33 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     55 degrees of freedom
# Null hypothesis probability =   2.891494e-01

Photon flux (15-150 keV)    in 0.004 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.36e-10
S(50-100 keV) = 1.36e-10

T90 vs. Hardness ratio plot

T90                                   = 0.00400006771087646 sec.
Hardness ratio (energy fluence ratio) = 0.184783

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.803883
Count Ratio (50-100 keV) / (15-25 keV) = 0.162508

Mask shadow pattern

IMX = -5.343208759070230E-01, IMY = 3.938655313795908E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-90.311400 -7.612000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9727 -15.6306    0.5  22.3  -56.2   4.2933  22.5    0.7	Sco X-1
256.0368 -37.8609    3.2  13.6 -138.2   0.5282   3.5    2.6	4U 1700-377
256.2452 -36.3467    5.7  12.4 -134.3   0.2937   2.0   10.3	GX 349+2
262.8953 -24.6938    8.0   3.3  -41.5   0.2265   1.5    6.9	GX 1+4
264.5247 -44.3640   12.2  17.5 -169.6   0.1546   0.9   10.7	4U 1735-44
268.4149  -1.4975    5.5  25.5   14.0  -0.3517  -2.1    3.9	SW J1753.5-0127
270.2177 -25.1073    4.3   4.5   74.9   0.4360   2.8    4.0	GX 5-1
270.2148 -25.6848    6.3   4.2   82.0   0.3183   2.1    5.9	GRS 1758-258
273.9874 -14.0015    2.2  15.1   40.3   0.8525   5.2    2.3	GX 17+2
275.9728 -30.5098    9.4   9.7  121.9  -0.1947  -1.2    8.9	H1820-303
285.0835 -24.7586    9.2  17.6   95.0  -0.2228  -1.3   10.1	HT1900.1-2455
288.8926  10.9333    6.1  44.0   41.5   0.8440   1.9    5.6	GRS 1915+105
263.0330 -33.9552    8.2   7.4 -155.0   0.2149   1.4    7.6	GX 354-0
290.8228  16.9699    2.2  50.2   39.6   5.1657   5.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.004000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8317 -15.5162    4.3  22.5  -56.1  -0.0084  -2.7   11.3	Sco X-1
256.1845 -37.9878    0.0  13.7 -138.9   0.0030   1.3   12.7	4U 1700-377
256.3752 -36.4417    6.3  12.4 -135.0   0.0043   1.8    3.1	GX 349+2
263.0429 -24.6165    7.9   3.3  -39.0  -0.0034  -1.5    8.0	GX 1+4
264.9113 -44.5038    7.7  17.6 -170.5   0.0035   1.5    7.9	4U 1735-44
268.2564  -1.6077    5.2  25.4   13.7  -0.0058  -2.2   11.5	SW J1753.5-0127
270.1330 -24.9507    4.8   4.5   72.6  -0.0059  -2.4   11.3	GX 5-1
270.4210 -25.6472    4.7   4.4   82.2  -0.0059  -2.5    8.6	GRS 1758-258
274.0714 -14.1755    6.5  14.9   40.9  -0.0043  -1.8    9.2	GX 17+2
275.7199 -30.2552    0.0   9.4  120.8  -0.0017  -0.7   12.6	H1820-303
284.9546 -24.9198    6.7  17.4   95.4  -0.0047  -1.7    4.4	HT1900.1-2455
288.7331  11.0766    9.5  44.1   41.2   0.0056   1.2    8.8	GRS 1915+105
262.8308 -33.9992    0.0   7.5 -153.9   0.0026   1.1   12.6	GX 354-0
301.1228 -55.6210    2.3  38.4  155.9   0.0171   4.9 ------	UNKNOWN
238.7656 -54.0494    1.4  33.6 -143.6   0.0302   8.1 ------	UNKNOWN
198.8889 -69.3528    2.1  56.8 -149.5   0.0984   5.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
62.188600 329.468000
330.388000 883.638000
884.388000 962.458200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.4848 -60.4611    7.5  35.8 -147.4  -2.5347  -1.5   10.9	Cen X-3
186.6386 -62.8333    3.2  27.8 -148.3   4.3029   3.7    3.8	GX 301-2
244.9949 -15.6408    0.3  38.7   -9.5  44.8811  34.1    0.9	Sco X-1
256.0043 -37.8402    1.0  20.0   23.9  11.4572  11.3    0.9	4U 1700-377
256.5163 -36.4325    6.0  21.4   23.0   1.9985   1.9    3.9	GX 349+2
262.8661 -24.6291    9.1  34.4   21.9   1.7979   1.3   10.5	GX 1+4
264.8157 -44.4458    4.6  19.3   51.9   2.9377   2.5    3.1	4U 1735-44
270.3517 -24.9657    4.2  37.3   32.4   4.8795   2.7    7.7	GX 5-1
270.1581 -25.7509    7.6  36.5   32.9   2.6065   1.5    7.8	GRS 1758-258
274.1651 -14.1943    0.0  48.5   29.5  -2.6775  -0.8   13.3	GX 17+2
275.7871 -30.2320   23.4  35.6   44.1   0.8945   0.5   10.8	H1820-303
285.0744 -24.9572    7.8  44.8   49.4   3.9014   1.5    3.0	HT1900.1-2455
262.9770 -33.9804    9.5  26.3   31.0  -1.4002  -1.2    8.8	GX 354-0
282.1042 -16.4584    3.7  50.3   39.8  18.4440   3.1 ------	UNKNOWN
281.3300 -24.5691    3.2  43.1   45.1   9.7748   3.7 ------	UNKNOWN
267.4877 -14.1100    3.0  45.8   21.4   7.5722   3.8 ------	UNKNOWN
190.8461 -43.2725    3.0  32.8 -109.8   7.6114   3.8 ------	UNKNOWN
230.9758  -2.5886    2.4  51.9  -29.0  13.0058   4.9 ------	UNKNOWN

Plot creation:
Sat Sep 11 16:53:43 EDT 2021
