batgrbproduct Analysis for Trigger=1082569

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sat Nov  6 12:09:39 EDT 2021
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1082569/GCN5_download_cron
======================================================================

  Trigger: 01082569      Segment: 000

  BAT Trigger Time: 657800871.376   [s; MET]
      Trigger Stop: 657800871.408   [s; MET]
               UTC: 2021-11-05T10:27:23.348440    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 271.07719808787   Dec: 41.3987171816772  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.05
     Image Trigger?:     NO
     Rate S/N Ratio:     6.32455532033676  [ if not an image trigger ]
     Image S/N Ratio:    7.05

  Flight Position:   [ source = BAT ]
    RA: 271.07719808787   Dec: 41.3987171816772  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 270.968564752747   Dec: 41.4848585351206  [deg; J2000]
        { 18h 03m 52.5s , +41d 29' 05.5" }
         +/- 4.07558248574829 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.48421761390214 [arcmin] (formal 1-sigma fit error)
    SNR: 4.08713353065327

  Angular difference between Flight and Ground position is 7.112450 arcmin

  Partial Coding Fraction: 0.9921875    [ including projection effects ]

  Duration
     T90: 0.031999945640564 +/-
        Measured from: 0
                   to: 0.031999945640564     [s; relative to TRIGTIME]
     T50: 0.031999945640564 +/-
        Measured from: 0
                   to: 0.031999945640564     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.031999945640564 second)
        Measured from: -5.96046447753906e-08
                   to: 0.0319998860359192     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.031999945640564     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.006095   0.002580  -0.000725  -0.000547
           0.001353   0.001425   0.000827   0.000714 [error]
 Peak      0.006095   0.002580  -0.000725  -0.000547
           0.001353   0.001425   0.000827   0.000714 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 0.00e+002.54e-10 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 3.13e-10 1.72e-10 9.28e-11 6.93e-09 5.63e-10 7.01e-09   erg/cm2
Peak flux Power-law 0.00e+002.71e-01 0.00e+00 0.00e+00 0.00e+00 0.00e+003.40e-01 0.00e+003.40e-01   ph/cm2/s
              Error 3.33e-01 1.02e-01 2.34e-02 5.20e-01 4.23e-01 4.24e-01   ph/cm2/s

Fluence   Cutoff-PL 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 5.89e-10 3.63e-10 1.35e-10 -------- 9.13e-10 9.04e-10   erg/cm2
Peak flux Cutoff-PL 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 5.97e-01 2.48e-01 1.76e-02 -------- 7.79e-01 3.10e+01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.500    0.000    -      -           0.00e+00 1.20e-03   53.170 57
CPL   1.000    0.000      50.0    0.0      0.00e+00 0.00e+00   53.170 56

The chi2 of BB fit is 46.98 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.500    0.000    -      -           0.00e+00 1.20e-03   53.170 57
CPL   1.000    0.000      50.0    0.0      0.00e+00 0.00e+00   53.170 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.032    0.000    0.032
T90     0.032    0.000    0.032
T50     0.032    0.000    0.032
Peak    0.032   -0.000    0.032

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  270.9686 +41.4849 0.0469   20.5 -164.8       0.0089     4.1  TRIG_01082569
------------------------------------------

Foreground time interval of the image:
  0.000   0.032 (delta_t =   0.032 [sec])
Background time interval of the image:
-239.376 -221.226 (delta_t =  18.150 [sec])
-220.376 -163.746 (delta_t =  56.630 [sec])
-162.376 -149.816 (delta_t =  12.560 [sec])
-148.376 -21.170 (delta_t = 127.206 [sec])
-20.376  -7.376 (delta_t =  13.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

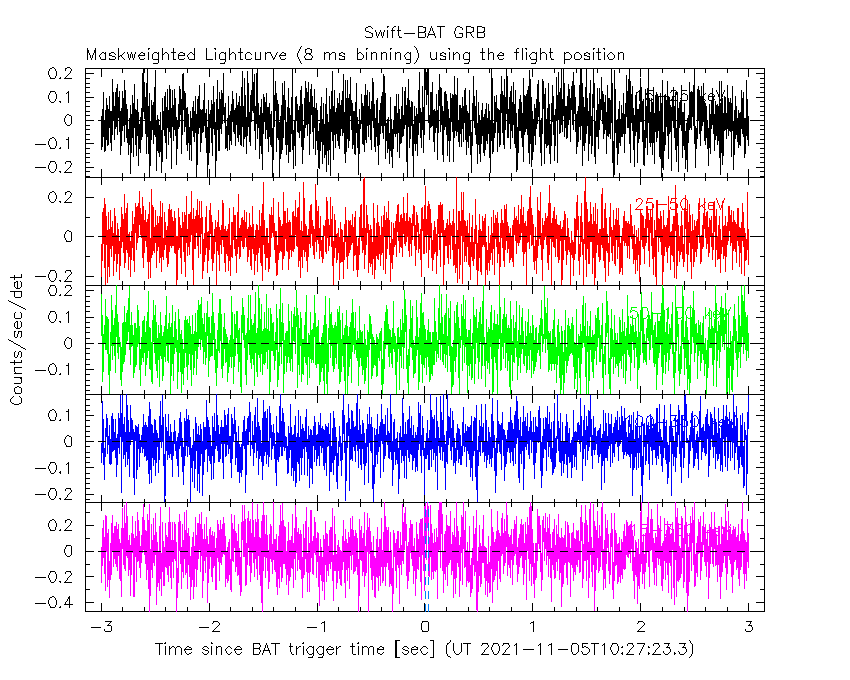

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

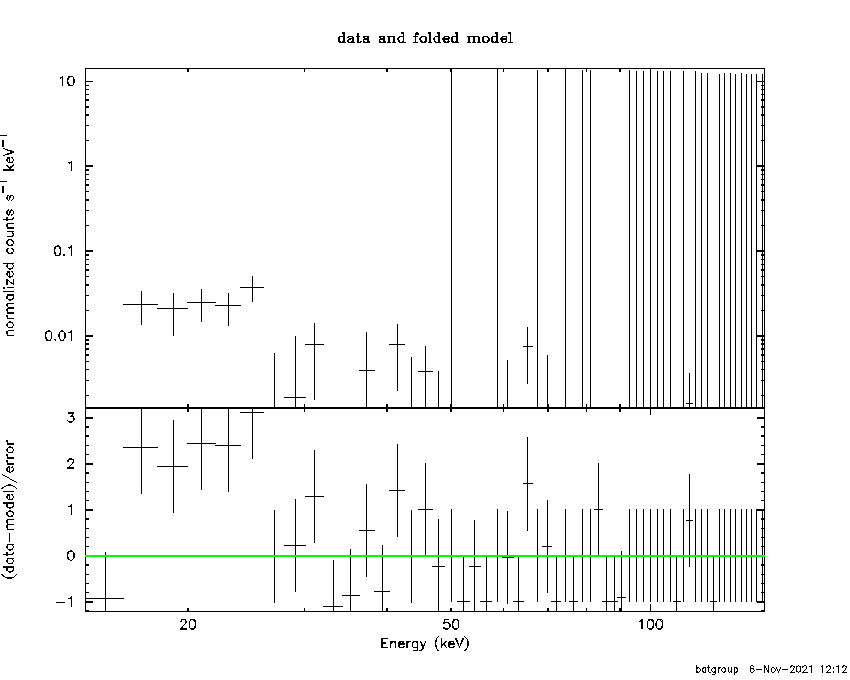

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50000     ( -1.5   -1.5 )
Norm@50keV  : 0.0    ( 0   0.00239358 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.17 using 59 PHA bins.
# Reduced chi-squared =         0.9329 for     57 degrees of freedom
# Null hypothesis probability =   6.193526e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 0.340108 ( -0.34  0.5067 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  1.12651e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.032 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.0    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.17 using 59 PHA bins.
# Reduced chi-squared =         0.9495 for     56 degrees of freedom
# Null hypothesis probability =   5.824980e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 1.70392 1.71365 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.38138   ( 0.98395   0.98395 )
beta        : -9.37167    ( 2.5   2.5 )
Epeak [keV] : 21.3691      ( -80 -80 )
Norm@50keV   : 2078.49    ( -2087.32   1581.84 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.69 using 59 PHA bins.
# Reduced chi-squared =         0.8125 for     55 degrees of freedom
# Null hypothesis probability =   8.383758e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.53358  (-1.30162  1.24747)
R^2/D10^2   : 14.7230  (-14.711   48.1272)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.98 using 59 PHA bins.
# Reduced chi-squared =         0.8242 for     57 degrees of freedom
# Null hypothesis probability =   8.255026e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.615e-10   5.254e-10
25- 50  3.875e-10   3.302e-10
50-150  9.583e-12   1.395e-11
15-150  1.159e-09   8.347e-10

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 9.52596       (-6.28022      11.4762)
Norm        : 23.6566       (-22.1064     116.382)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.665e-10   3.878e-10
25- 50  1.879e-10   2.019e-10
50-150  1.126e-11   2.845e-11
15-150  6.657e-10   5.946e-10

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.53265        (-1.3008      1.24836)
R1^2/D10^2  : 14.7251        (-11.9845      48.2298)
kT2 [keV]   : 0.289830        (-0.28983      -0.28983)
R2^2/D10^2  : 2.97388E-04    (-0.000297365   -0.000297365)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50000     ( -1.5   -1.5 )
Norm@50keV  : 0.0    ( 0   0.00239358 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.17 using 59 PHA bins.
# Reduced chi-squared =         0.9329 for     57 degrees of freedom
# Null hypothesis probability =   6.193526e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 0.340108 ( -0.34  0.5067 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  1.12651e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.032 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.0    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.17 using 59 PHA bins.
# Reduced chi-squared =         0.9495 for     56 degrees of freedom
# Null hypothesis probability =   5.824980e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 1.70392 1.71365 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.38138   ( 0.98395   0.98395 )
beta        : -9.37167    ( 2.5   2.5 )
Epeak [keV] : 21.3691      ( -80 -80 )
Norm@50keV   : 2078.49    ( -2087.32   1581.84 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.69 using 59 PHA bins.
# Reduced chi-squared =         0.8125 for     55 degrees of freedom
# Null hypothesis probability =   8.383758e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.53358  (-1.30162  1.24747)
R^2/D10^2   : 14.7230  (-14.711   48.1272)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.615e-10   5.302e-10
25- 50  3.875e-10   3.296e-10
50-150  9.583e-12   1.613e-11
15-150  1.159e-09   9.038e-10

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 9.52596       (-6.28022      11.4762)
Norm        : 23.6566       (-22.1064     116.382)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.665e-10   4.034e-10
25- 50  1.879e-10   2.243e-10
50-150  1.126e-11   1.968e-11
15-150  6.657e-10   5.938e-10

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.53265        (-1.3008      1.24836)
R1^2/D10^2  : 14.7251        (-11.9845      48.2298)
kT2 [keV]   : 0.289830        (-0.28983      -0.28983)
R2^2/D10^2  : 2.97388E-04    (-0.000297365   -0.000297365)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50000     ( -1.5   -1.5 )
Norm@50keV  : 0.0    ( 0   0.00239358 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.17 using 59 PHA bins.
# Reduced chi-squared =         0.9329 for     57 degrees of freedom
# Null hypothesis probability =   6.193526e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 0.340108 ( -0.34  0.5067 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  1.12651e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 0.0    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.17 using 59 PHA bins.
# Reduced chi-squared =         0.9495 for     56 degrees of freedom
# Null hypothesis probability =   5.824980e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 1.70392 1.71365 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.38138   ( 0.98395   0.98395 )
beta        : -9.37167    ( 2.5   2.5 )
Epeak [keV] : 21.3691      ( -80 -80 )
Norm@50keV   : 2078.49    ( -2087.32   1581.84 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.69 using 59 PHA bins.
# Reduced chi-squared =         0.8125 for     55 degrees of freedom
# Null hypothesis probability =   8.383758e-01

Photon flux (15-150 keV)    in 0.032 sec: 0.0 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 0.00e+00
S(50-100 keV) = 0.00e+00

T90 vs. Hardness ratio plot

T90                                   = 0.031999945640564 sec.
Hardness ratio (energy fluence ratio) =

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.423298
Count Ratio (50-100 keV) / (15-25 keV) = -0.11895

Mask shadow pattern

IMX = -3.601120012311139E-01, IMY = 9.792367184824767E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.376000 -221.226000
-220.376000 -163.746000
-162.376000 -149.816000
-148.376000 -21.170500
-20.376000 -7.376000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4952  35.3566    3.7  22.4 -125.4   0.9268   3.1    2.0	Her X-1
288.9181  10.9627    5.2  54.8 -165.6  -1.9899  -2.2    7.1	GRS 1915+105
299.6122  35.2075    0.5  39.0  165.4   8.7710  21.2    1.1	Cyg X-1
307.9486  40.9273    6.1  39.2  151.6   1.0905   1.9    7.5	Cyg X-3
328.4952  66.7410    2.7  34.7  104.4   2.3469   4.2 ------	UNKNOWN
303.1599  18.7233    2.1  54.3  175.0   5.5623   5.6 ------	UNKNOWN
208.1747  23.7474    3.7  45.7  -57.5   3.9778   3.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.032000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5223  35.1615    5.7  22.6 -125.4   0.0049   2.0   11.3	Her X-1
288.9432  10.9401   11.3  54.8 -165.6   0.0063   1.0    8.5	GRS 1915+105
299.5596  35.0619   49.0  39.1  165.6  -0.0007  -0.2    8.5	Cyg X-1
308.1605  40.9739   39.5  39.3  151.4   0.0011   0.3    2.6	Cyg X-3
284.9346  36.0816    2.4  31.0 -179.0   0.0121   4.8 ------	UNKNOWN
255.3750  16.6470    2.5  41.1 -124.4   0.0254   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
52.424590 646.344000
647.624000 696.094000
697.624000 712.074000
713.624000 962.725200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3692  35.3485    2.1  14.4  -69.7   5.3724   5.5    4.3	Her X-1
268.3737  -1.4395   13.2  42.9 -136.3   1.7514   0.9    0.9	SW J1753.5-0127
288.6981  10.9810   28.6  34.1 -172.2   0.4321   0.4    6.3	GRS 1915+105
299.6095  35.2194    0.4  23.1  135.9  35.4721  32.4    1.4	Cyg X-1
308.3258  40.8900   28.7  27.8  118.3  -0.5543  -0.4   10.5	Cyg X-3
308.0561  37.6786    1.6  28.5  124.9   8.8515   7.2 ------	UNKNOWN
253.8420  74.9248    2.4  34.4   31.9   6.8034   4.8 ------	UNKNOWN
294.6773  -0.9526    2.9  47.5 -173.2   6.6422   4.1 ------	UNKNOWN
294.6701  -8.0835    2.8  54.0 -169.6  11.6689   4.2 ------	UNKNOWN
268.6547   7.9270    4.1  33.5 -135.9   4.0949   2.8 ------	UNKNOWN
254.6922  11.9680    3.8  32.7 -109.6   6.1447   3.0 ------	UNKNOWN

Plot creation:
Sat Nov  6 12:15:29 EDT 2021
