batgrbproduct analysis for trigger=1090853

batgrbproduct Analysis for Trigger=1090853

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Oct 23 23:58:32 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1090853
======================================================================

  Trigger: 01090853      Segment: 000

  BAT Trigger Time: 662130767.424   [s; MET]
      Trigger Stop: 662130771.52   [s; MET]
               UTC: 2021-12-25T13:12:19.104820    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 258.568373830299   Dec: 17.2625625868679  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.17
     Image Trigger?:     NO
     Rate S/N Ratio:     13.7840487520902  [ if not an image trigger ]
     Image S/N Ratio:    9.17

  Flight Position:   [ source = BAT ]
    RA: 258.568373830299   Dec: 17.2625625868679  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 258.545136051457   Dec: 17.2768509449536  [deg; J2000]
        { 17h 14m 10.8s , +17d 16' 36.7" }
         +/- 0.514878835700222 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.128342795339958 [arcmin] (formal 1-sigma fit error)
    SNR: 78.5178361229359

  Angular difference between Flight and Ground position is 1.583546 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 121.519999980927 +/- 2.9694658728837
        Measured from: 4.61199998855591
                   to: 126.131999969482     [s; relative to TRIGTIME]
     T50: 27.8359999656677 +/- 0.81073800487038
        Measured from: 48.2559999227524
                   to: 76.0919998884201     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 50.1879999637604
                   to: 51.1879999637604     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -24.7760000228882
                   to: 139.815999984741     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     7.685955   9.997282   7.152638   1.496354
           0.101471   0.104583   0.091258   0.071521 [error]
 Peak      0.185817   0.291992   0.256508   0.053879
           0.009556   0.010872   0.010552   0.006634 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.34e-06 4.03e-06 5.32e-06 1.43e-05 1.56e-05 2.60e-05   erg/cm2
              Error 8.55e-08 8.47e-08 1.06e-07 6.70e-07 2.66e-07 7.07e-07   erg/cm2
Peak flux Power-law 1.78e+00 1.98e+00 1.57e+00 2.07e+00 6.10e+00 7.40e+00   ph/cm2/s
              Error 1.35e-01 9.33e-02 8.13e-02 2.19e-01 2.65e-01 3.28e-01   ph/cm2/s

Fluence   Cutoff-PL 2.16e-06 4.07e-06 5.45e-06 1.03e-05 1.53e-05 2.21e-05   erg/cm2
              Error 1.17e-07 8.83e-08 1.24e-07 1.61e-06 2.98e-07 1.64e-06   erg/cm2
Peak flux Cutoff-PL 1.52e+00 2.09e+00 1.69e+00 1.05e+00 5.92e+00 6.35e+00   ph/cm2/s
              Error 1.66e-01 1.08e-01 9.77e-02 2.90e-01 2.75e-01 4.00e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.599    0.033    -      -           1.01e-02 1.72e-04   62.800 57
CPL   1.320    0.140     139.8   52.6      1.34e-02 1.83e-03   50.610 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.331    0.072    -      -           5.08e-02 2.18e-03   72.330 57
CPL   0.611    0.318     102.5   27.0      1.13e-01 3.97e-02   54.600 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 91.136000 sec.
T50 in the 50-300 keV band: 29.504000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  164.592  -24.776  139.816
T90   121.520    4.612  126.132
T50    27.836   48.256   76.092
Peak    1.000   50.188   51.188

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

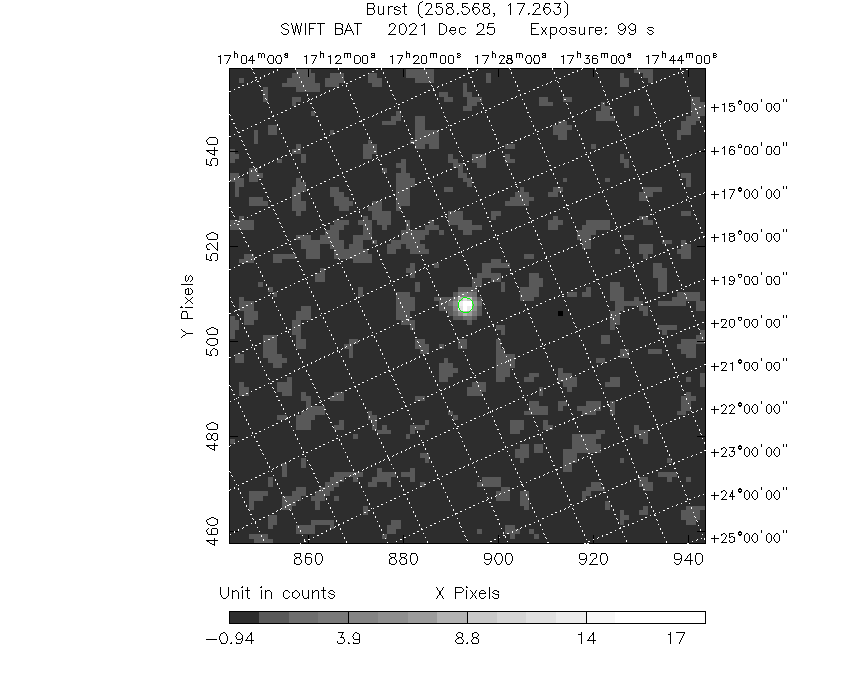

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  258.5451    17.2769   0.0024     4.0668  -113.4534        19.4940108     78.518 TRIG_01090853

Foreground time interval of the image:
-24.776  74.277 (delta_t =  99.053 [sec])
Background time interval of the image:
-239.424 -24.776 (delta_t = 214.648 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

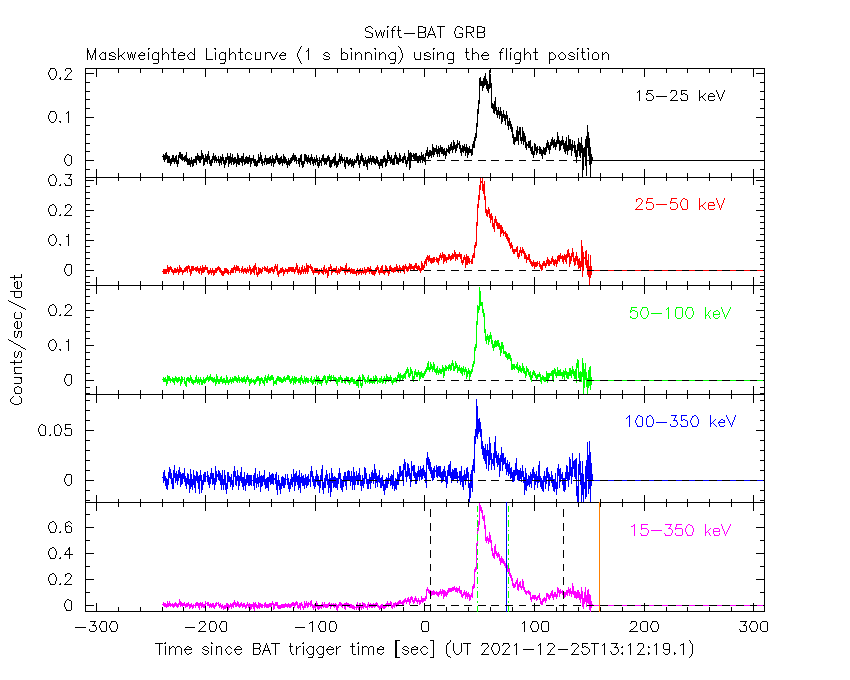

From T0-310 s to T0+310 s

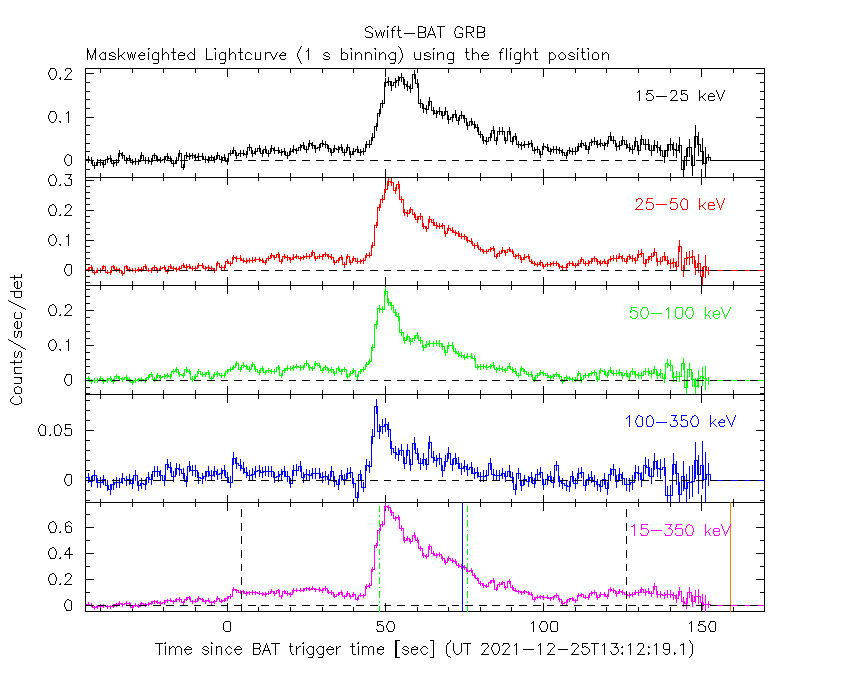

From T100_start - 20 s to T100_end + 30 s

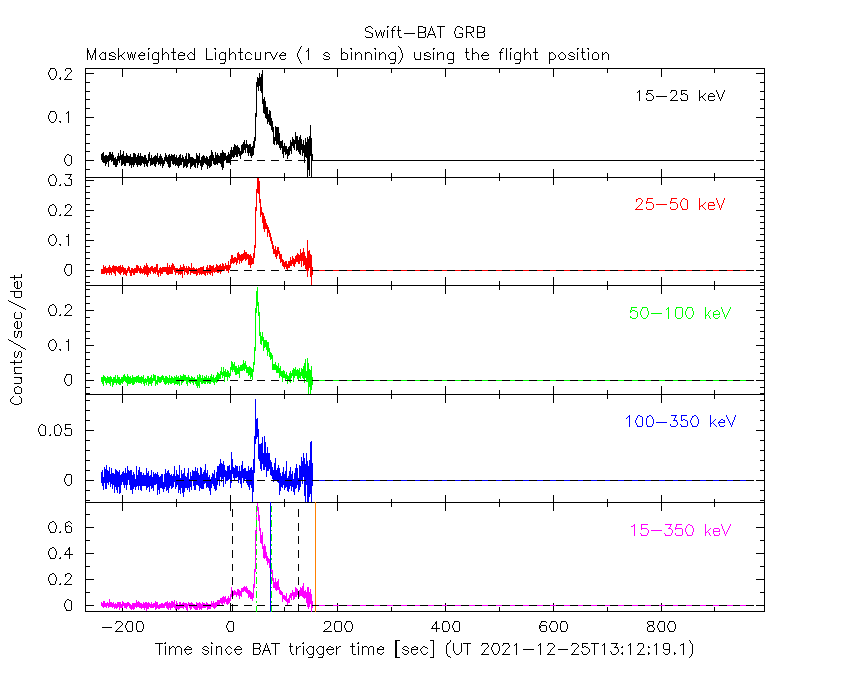

Full time interval

64 ms binning

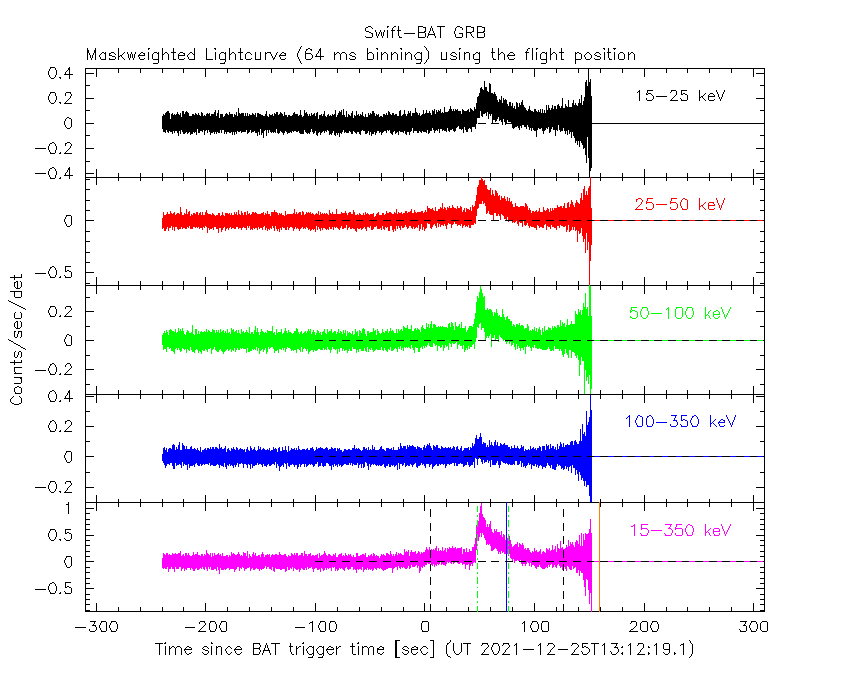

Full time interval

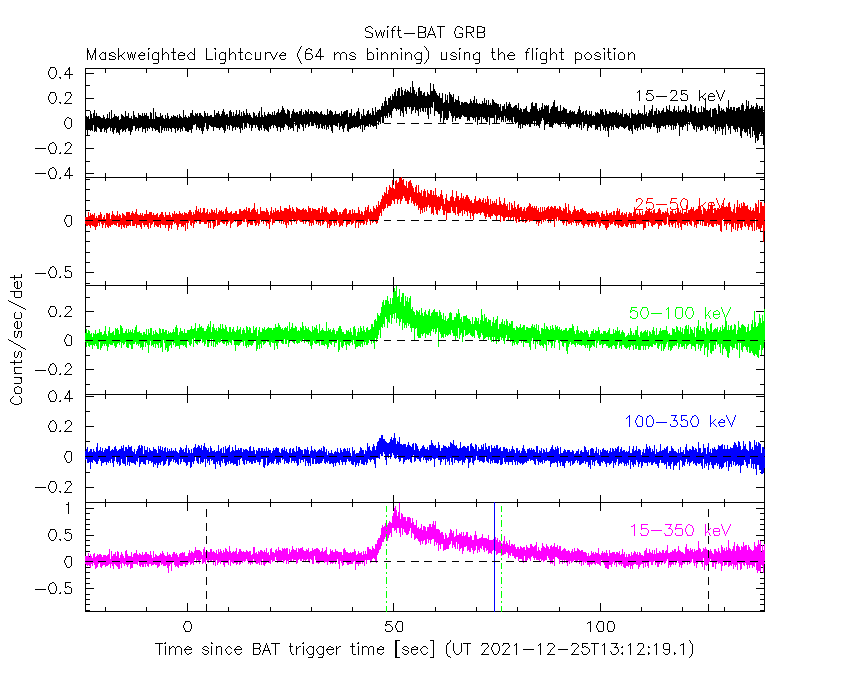

From T100_start to T100_end

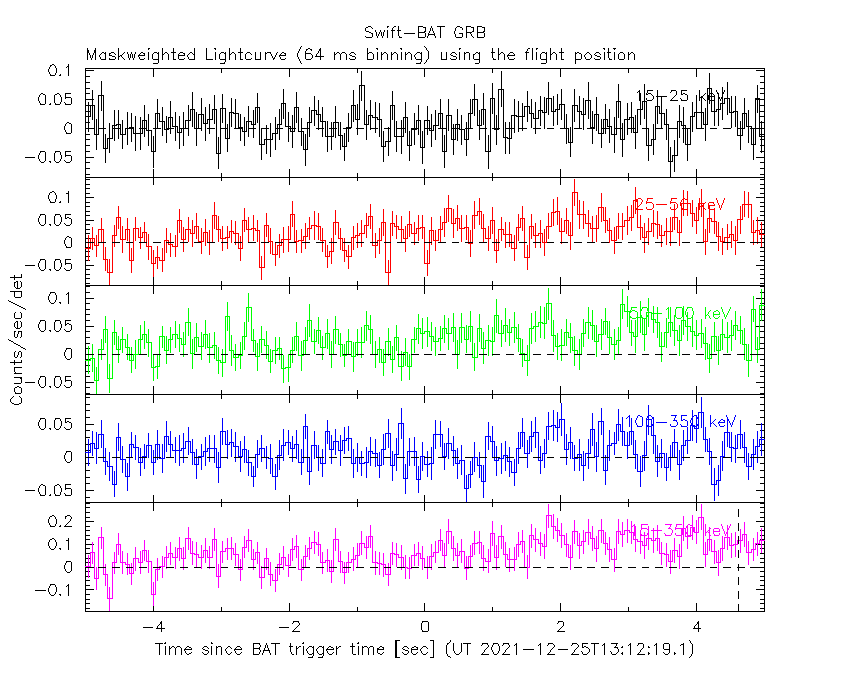

From T0-5 sec to T0+5 sec

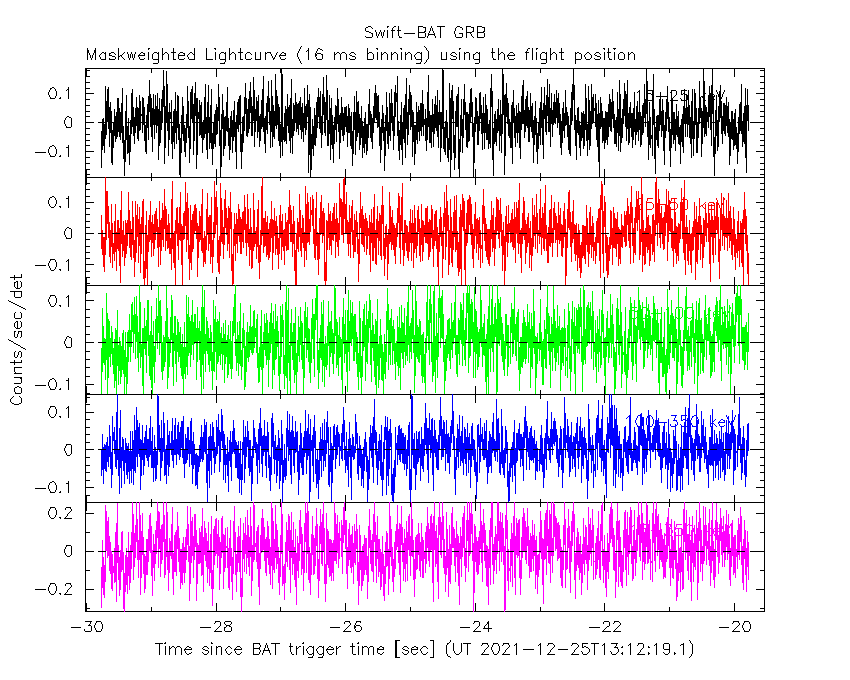

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

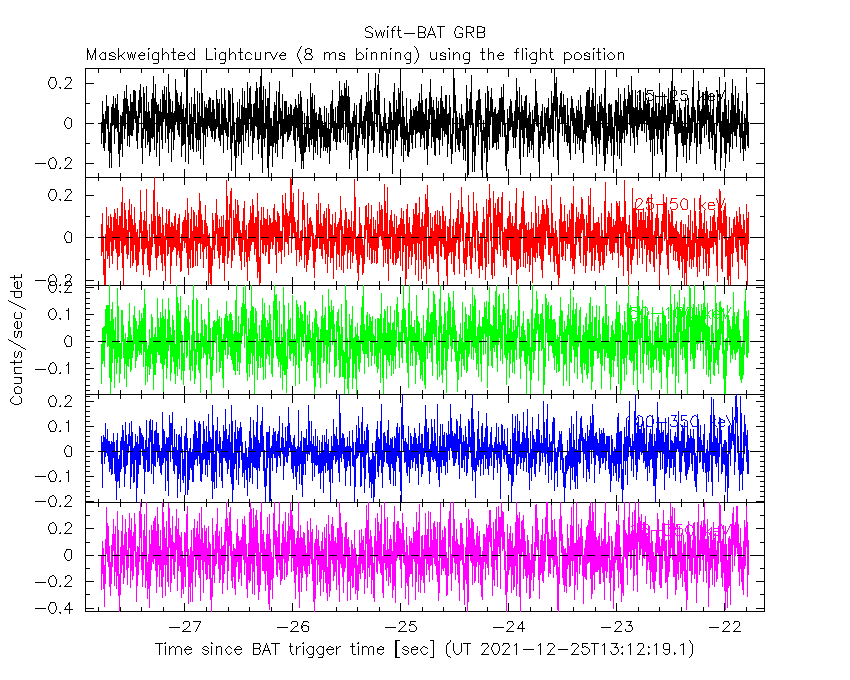

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

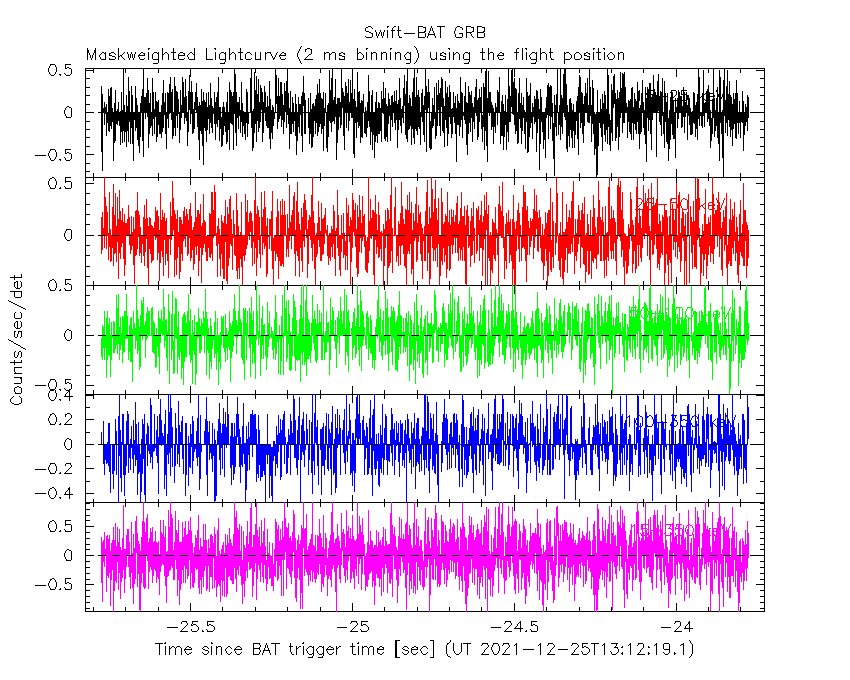

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

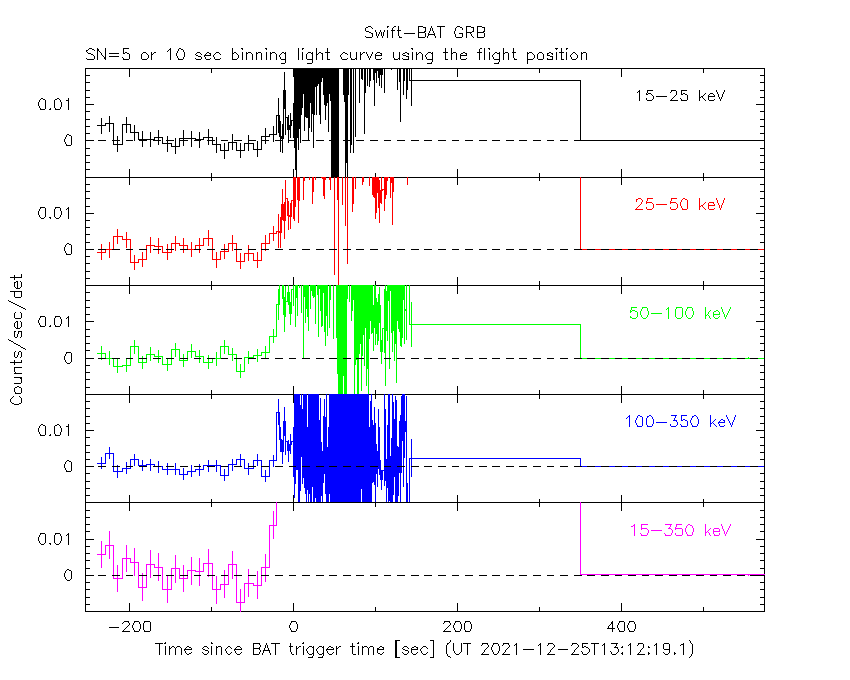

SN=5 or 10 sec. binning (whichever binning is satisfied first)

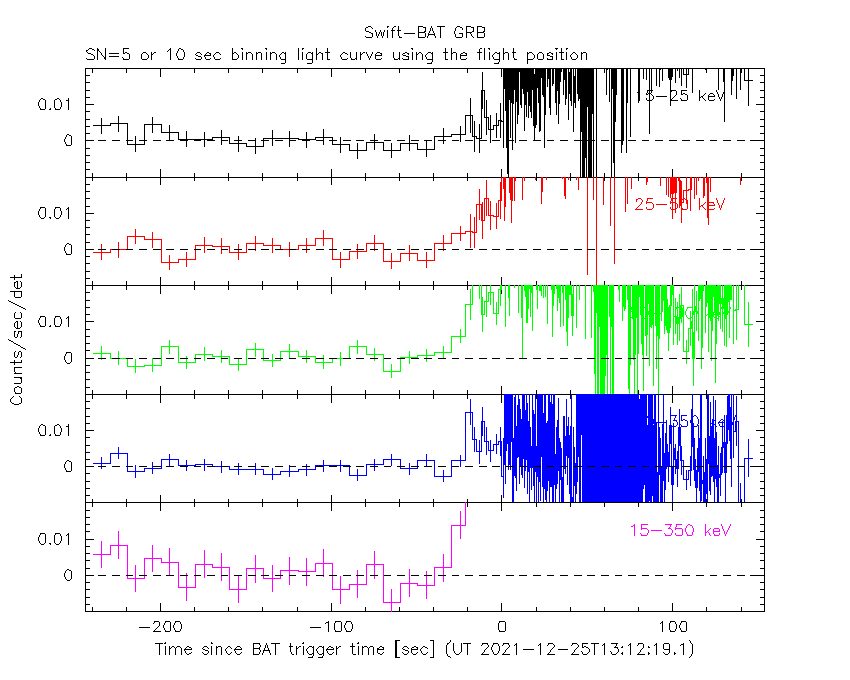

SN=5 or 10 sec. binning (T < 200 sec)

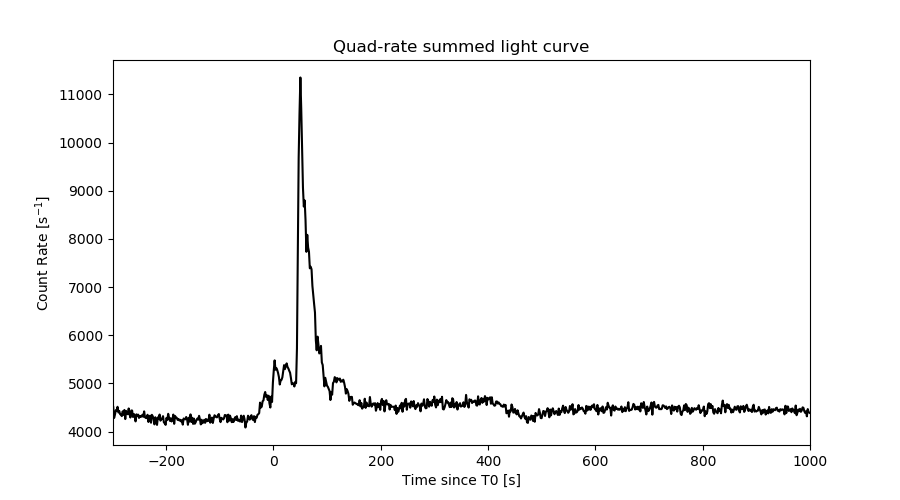

Quad-rate summed light curves (from T0-300s to T0+1000s)

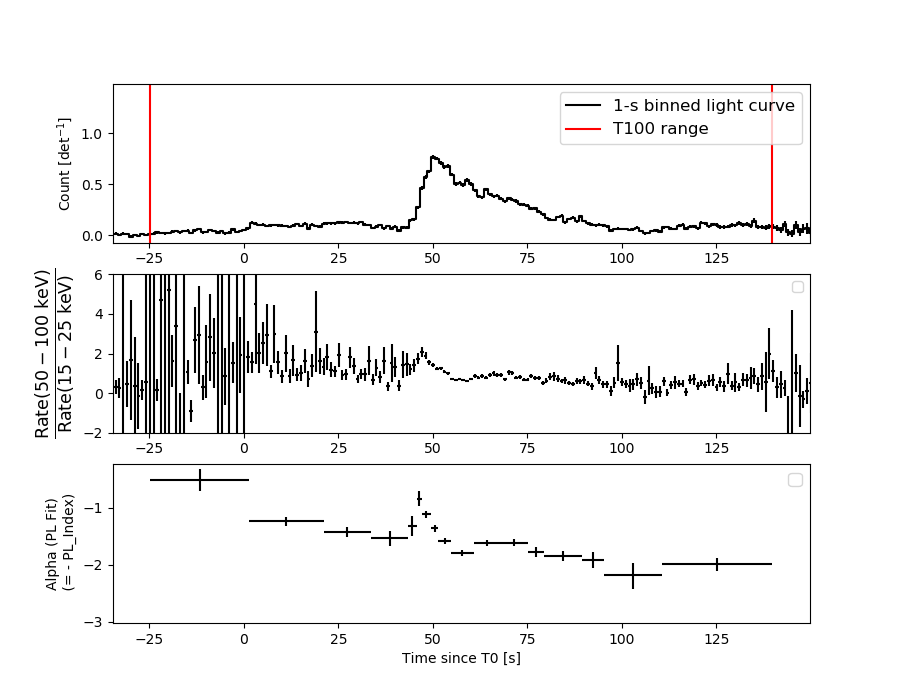

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -24.776 sec. to  139.816 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.59937     ( -0.0329704   0.032958 )
Norm@50keV  : 1.01026E-02    ( -0.000171658   0.000171632 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   62.80     using 59 bins.
 Reduced chi-squared = 1.10175
# Null hypothesis probability of 2.78e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 164.6 sec: 1.29802 ( -0.02669  0.02681 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.5555e-05 ( -2.65971e-07  2.65854e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -24.776 sec. to  139.816 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.32031     ( -0.141794   0.137782 )
Epeak [keV] : 139.775      ( -28.2586 76.9879 )
Norm@50keV  : 1.33576E-02    ( -0.00168251   0.00198321 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   50.61     using 59 bins.
 Reduced chi-squared = 0.90375
# Null hypothesis probability of 6.78e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 164.6 sec: 1.26382 ( -0.0308  0.03105 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.52781e-05 ( -2.98191e-07  2.97299e-07 ) ergs/cm2

Band function

Time interval is from  -24.776 sec. to  139.816 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

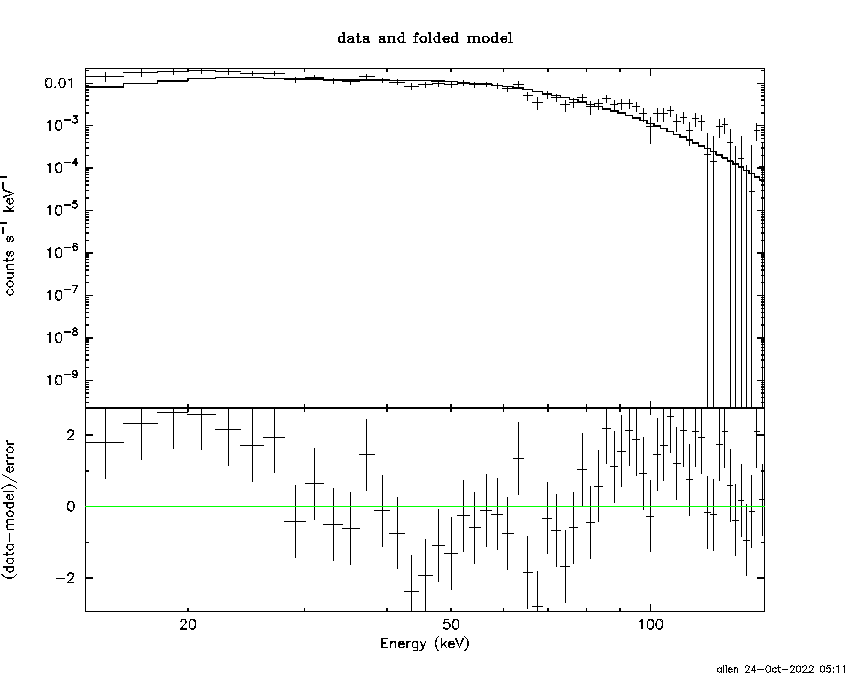

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.9988  (  )
R^2/D10^2   : 8.77781E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  687.78     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.77e-109 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.503e-07   3.160e-08
25- 50  3.762e-06   9.958e-08
50-150  7.761e-06   2.214e-07
15-150  1.237e-05   2.461e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-14.2768      -200)
Norm        : 5.18813       (-0.0877199     0.08772)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.14     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.93e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.127e-06   4.362e-08
25- 50  4.092e-06   8.477e-08
50-150  8.975e-06   1.918e-07
15-150  1.519e-05   3.078e-07

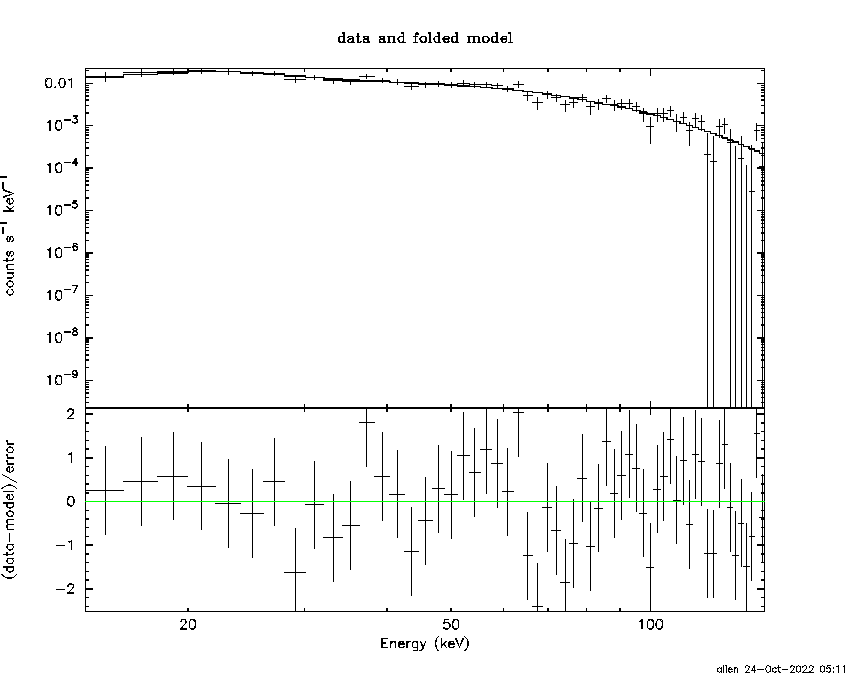

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.97268        (-0.541639      0.562)
R1^2/D10^2  : 0.827347        (-0.168838      0.228422)
kT2 [keV]   : 28.0416        (-1.7924      2.17211)
R2^2/D10^2  : 1.16088E-02    (-0.00281806   0.00331835)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   62.24     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 2.34e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.806e-06   1.136e-07
25- 50  4.183e-06   1.235e-07
50-150  9.045e-06   3.514e-07
15-150  1.504e-05   4.708e-07

Peak spectrum fit

Power-law model

Time interval is from   50.188 sec. to   51.188 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33133     ( -0.071686   0.0719705 )
Norm@50keV  : 5.08271E-02    ( -0.00217725   0.00217589 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   72.33     using 59 bins.
 Reduced chi-squared = 1.26895
# Null hypothesis probability of 8.30e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 6.10028 ( -0.26445  0.26461 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.98597e-07 ( -2.38196e-08  2.39075e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   50.188 sec. to   51.188 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.611207     ( -0.329429   0.306053 )
Epeak [keV] : 102.451      ( -17.1284 36.7916 )
Norm@50keV  : 0.112528    ( -0.0315361   0.0478343 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.60     using 59 bins.
 Reduced chi-squared = 0.975
# Null hypothesis probability of 5.28e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 5.91916 ( -0.27463  0.27464 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.78355e-07 ( -2.58014e-08  2.57604e-08 ) ergs/cm2

Band function

Time interval is from   50.188 sec. to   51.188 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.9688  (  )
R^2/D10^2   : 0.480239  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                  126.01     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.00e-07 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.818e-08   2.305e-09
25- 50  1.245e-07   6.850e-09
50-150  2.558e-07   2.020e-08
15-150  4.084e-07   2.070e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-9.15141      -200)
Norm        : 25.2193       (-1.07675     1.07675)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   87.86     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.40e-03 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.279e-08   2.930e-09
25- 50  1.208e-07   5.250e-09
50-150  2.649e-07   1.170e-08
15-150  4.485e-07   1.945e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.96936        (-1.68647      1.84605)
R1^2/D10^2  : 3.11410        (-1.35536      3.35438)
kT2 [keV]   : 25.9201        (-3.58202      5.81559)
R2^2/D10^2  : 9.01068E-02    (-0.0485615   0.0707777)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   55.79     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.45e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.598e-08   9.375e-09
25- 50  1.216e-07   1.730e-08
50-150  3.111e-07   6.255e-08
15-150  4.786e-07   6.615e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47951     ( -0.0319678   0.0319266 )
Norm@50keV  : 1.24830E-02    ( -0.000211173   0.0002111 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   61.41     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.21e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 99.05 sec: 1.54994 ( -0.0307664  0.0308736 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17698e-05 ( -2.00294e-07  2.00357e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.13397     ( -0.139328   0.135419 )
Epeak [keV] : 146.027      ( -25.5907 54.8627 )
Norm@50keV  : 1.75687E-02    ( -0.00215293   0.00252471 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   41.77     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.21e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 99.05 sec: 1.50411 ( -0.03469  0.03491 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.15452e-05 ( -2.20188e-07  2.19495e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.03e-06
S(50-100 keV) = 5.32e-06

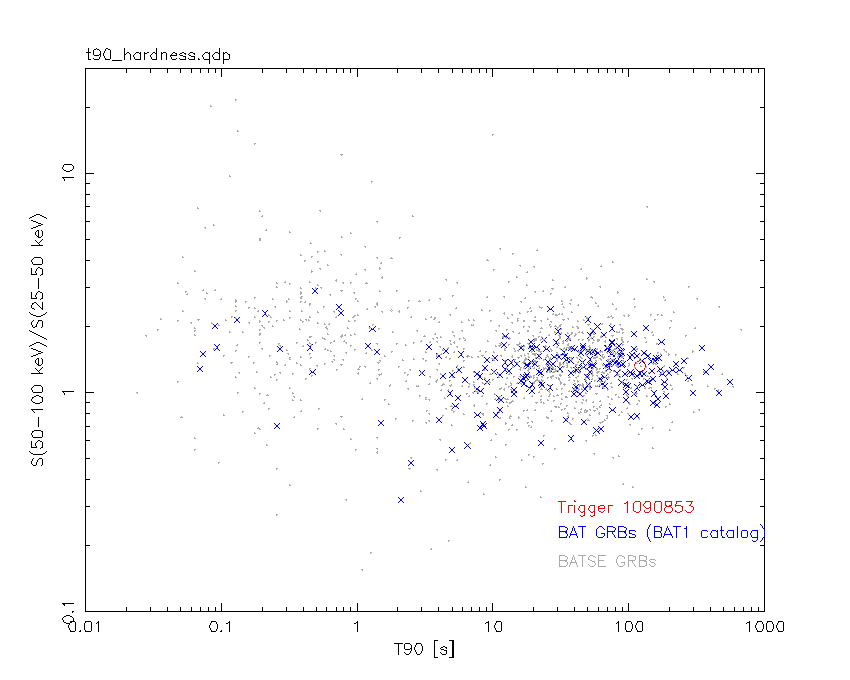

T90 vs. Hardness ratio plot

T90                                   = 121.519999980927 sec.
Hardness ratio (energy fluence ratio) = 1.3201

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.30072
Count Ratio (50-100 keV) / (15-25 keV) = 0.930611

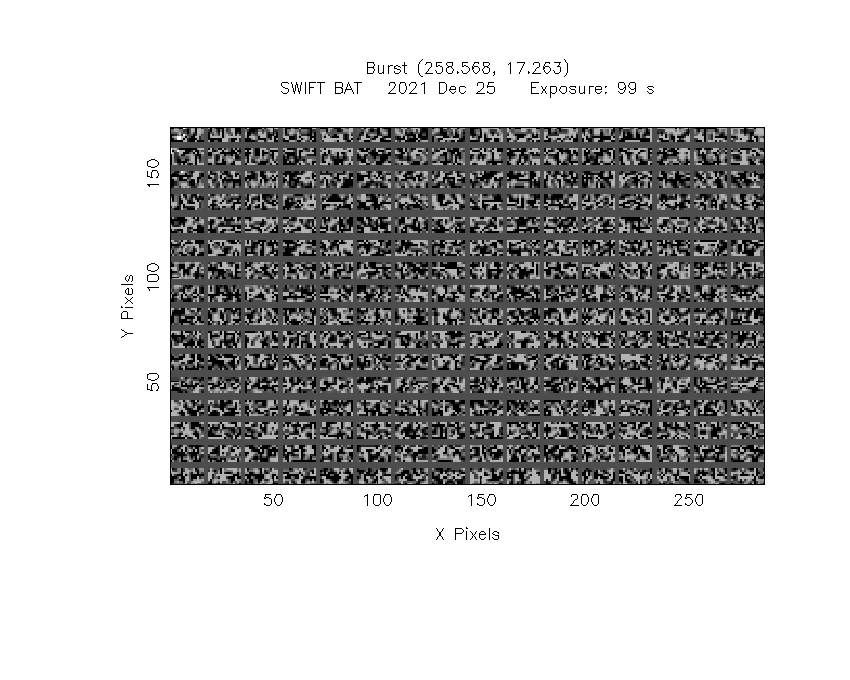

Mask shadow pattern

IMX = -2.829766426403050E-02, IMY = 6.522529208728120E-02

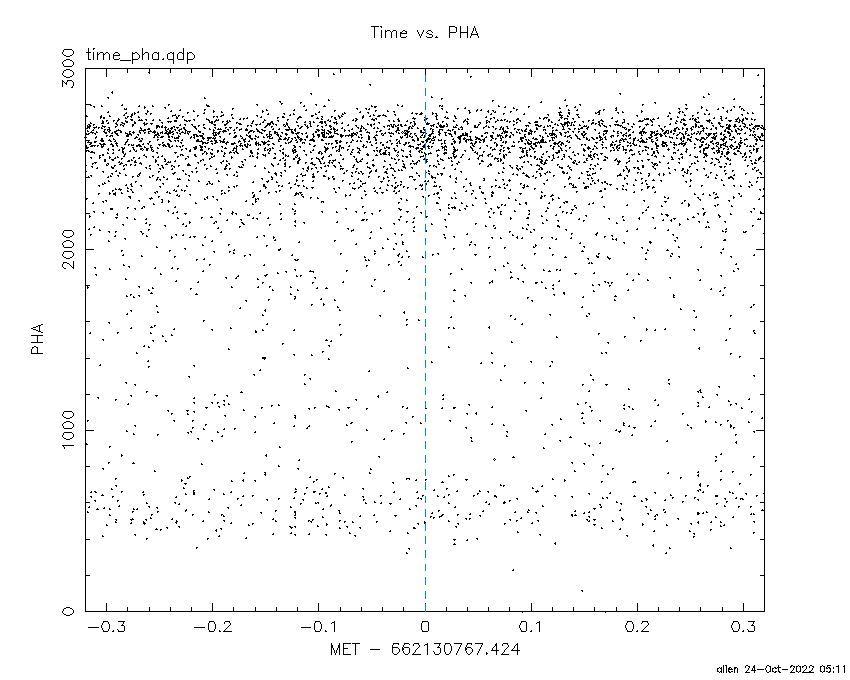

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

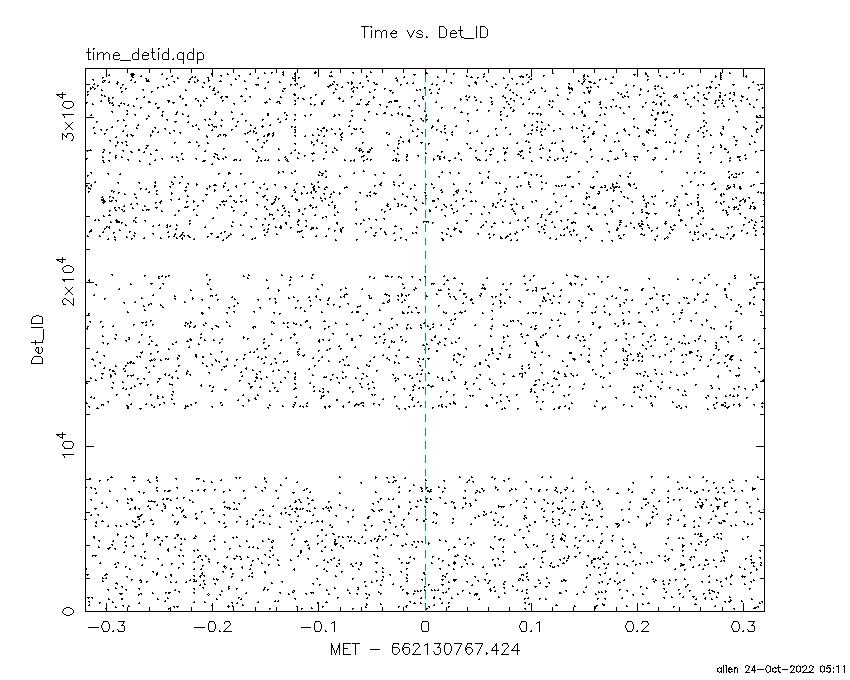

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

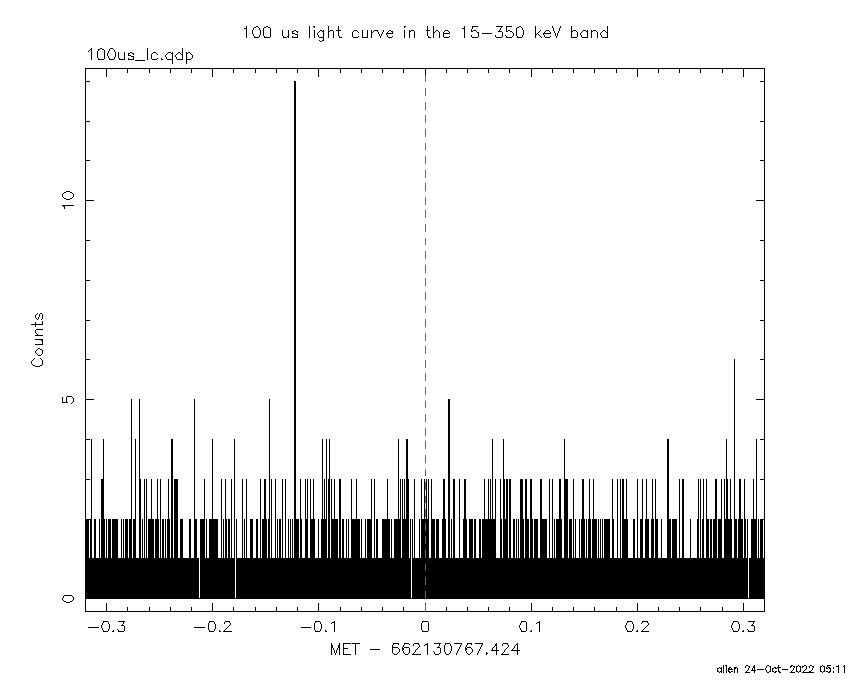

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.424000 -24.776000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0034 -15.6424    0.8  37.1  -48.6   6.4876  14.2    1.4	Sco X-1
254.6997  35.2682    0.0  15.3  112.6  -0.1150  -0.4   12.7	Her X-1
268.2452  -1.5124    5.4  25.0  -97.1   0.7001   2.1    8.2	SW J1753.5-0127
274.0513 -13.9486   49.8  38.6  -95.1  -0.1865  -0.2    5.9	GX 17+2
288.7678  10.7910   12.1  33.4 -144.3   0.3091   1.0    9.4	GRS 1915+105
299.5872  35.2028    0.6  41.6  173.8   8.4313  18.1    0.2	Cyg X-1
308.2594  41.0349    8.7  49.3  167.3  -1.0180  -1.3    8.4	Cyg X-3
201.0868  23.8959    4.1  50.2   39.7   4.4512   2.8 ------	UNKNOWN
292.0379  31.0118    3.4  34.7  178.8   1.0538   3.4 ------	UNKNOWN
239.5393  11.2696    2.8  17.6   -2.8   1.0119   4.2 ------	UNKNOWN
264.4962   4.3871    2.4  18.0  -96.1   1.3792   4.7 ------	UNKNOWN
291.7997   4.6883    4.0  38.6 -136.8   1.1815   2.9 ------	UNKNOWN
305.4723   0.2059    2.2  52.8 -139.5   6.3507   5.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-24.776000 74.276600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8780 -15.7367    9.1  37.2  -48.4  -0.5237  -1.3    8.2	Sco X-1
254.6572  35.2693    3.9  15.3  112.5  -0.7674  -3.0   10.7	Her X-1
268.4880  -1.3855   11.4  25.0  -97.8  -0.3302  -1.0    8.2	SW J1753.5-0127
273.9175 -13.9109    8.9  38.5  -95.0   1.0155   1.3    9.1	GX 17+2
288.8369  11.0479   19.4  33.4 -144.8  -0.2075  -0.6    6.5	GRS 1915+105
299.4081  35.1855   52.7  41.5  173.8  -0.0974  -0.2    9.0	Cyg X-1
308.1104  40.9511  236.2  49.2  167.3   0.0351   0.0    0.1	Cyg X-3
284.5499  42.7742    2.7  33.4  155.2   1.4628   4.2 ------	UNKNOWN
218.3143   4.4899    2.8  39.3    6.4   1.6226   4.2 ------	UNKNOWN
214.1954  -1.9292    2.1  45.9    1.0   2.4877   5.4 ------	UNKNOWN
311.8279  30.1089    2.5  51.6 -178.4   3.0836   4.6 ------	UNKNOWN
258.5451  17.2768    0.1   4.1 -113.5  19.4937  78.5 ------	UNKNOWN
263.1980   9.5585    2.4  12.9 -102.2   1.1551   4.7 ------	UNKNOWN
298.1424  11.6473    2.1  41.9 -150.4   2.3505   5.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
159.076590 372.276600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3651  35.3509    7.2  44.2  -28.9   0.8130   1.6    4.6	Her X-1
288.8072  10.8753   10.4  36.5  -91.1  -0.8423  -1.1    4.2	GRS 1915+105
299.5943  35.2130    0.4  11.2  -71.4   8.8655  32.4    0.7	Cyg X-1
308.0693  40.9286    1.8   2.5  -55.1   1.4851   6.3    2.3	Cyg X-3
326.0503  38.2055   41.4  11.8  151.7   0.0690   0.3    9.0	Cyg X-2
211.2200  82.1335    3.6  50.2   39.7   4.3933   3.2 ------	UNKNOWN
217.2366  63.0416    3.1  55.4   16.5   5.6510   3.8 ------	UNKNOWN
328.9899  14.7000    2.8  31.0 -165.1   1.2577   4.2 ------	UNKNOWN
336.1227   2.3251    3.0  45.2 -166.5   1.8594   3.8 ------	UNKNOWN
241.5910  42.1478    2.8  50.3  -14.8   2.4422   4.1 ------	UNKNOWN
266.1936  25.4233    3.2  40.4  -49.3   1.7671   3.6 ------	UNKNOWN
291.5470   4.3319    2.7  41.2  -99.5   4.6035   4.2 ------	UNKNOWN

Plot creation:
Mon Oct 24 05:11:39 EDT 2022
