batgrbproduct analysis for trigger=1093693

batgrbproduct Analysis for Trigger=1093693

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Jan 19 20:13:08 EST 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1093693/GCN5_download_cron
======================================================================

  Trigger: 01093693      Segment: 000

  BAT Trigger Time: 664200232   [s; MET]
      Trigger Stop: 664200296   [s; MET]
               UTC: 2022-01-18T12:03:23.541280    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.136249788404   Dec: -15.845955172471  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.23
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    10.23

  Flight Position:   [ source = BAT ]
    RA: 245.136249788404   Dec: -15.845955172471  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 245.107120405774   Dec: -15.8200930522447  [deg; J2000]
        { 16h 20m 25.7s , -15d 49' 12.3" }
         +/- 1.85405983411051 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.756516869804013 [arcmin] (formal 1-sigma fit error)
    SNR: 12.5917026030203

  Angular difference between Flight and Ground position is 2.288044 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 112 +/- 16
        Measured from: 4.00000011920929
                   to: 116.000000119209     [s; relative to TRIGTIME]
     T50: 64 +/- 16
        Measured from: 36.0000001192093
                   to: 100.000000119209     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 123.5
                   to: 124.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 4
                   to: 116     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     4.631726   0.583138   0.044445  -0.226906
           0.087571   0.084396   0.076363   0.085181 [error]
 Peak      0.052338   0.001984  -0.001195   0.006130
           0.008866   0.008132   0.007234   0.007885 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.40e-06 2.56e-07 2.27e-08 2.18e-09 1.68e-06 1.68e-06   erg/cm2
              Error 1.35e-07 4.23e-08 9.53e-09 1.60e-09 1.34e-07 1.34e-07   erg/cm2
Peak flux Power-law 4.62e-01 4.70e-02 1.95e-03 8.44e-05 5.11e-01 5.11e-01   ph/cm2/s
              Error 1.45e-01 5.54e-02 6.28e-03 8.10e-04 1.82e-01 1.82e-01   ph/cm2/s

Fluence   Cutoff-PL 1.38e-06 2.28e-07 5.45e-09 1.19e-11 1.62e-06 1.62e-06   erg/cm2
              Error 1.41e-07 5.59e-08 -------- 1.68e-09 1.52e-07 1.52e-07   erg/cm2
Peak flux Cutoff-PL 4.93e-01 3.03e-02 3.26e-05 1.21e-10 5.22e-01 5.21e-01   ph/cm2/s
              Error 2.10e-01 3.15e-02 5.35e-03 0.00e+00 1.77e-01 1.78e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 4.46e-01 6.42e-03 2.00e-05 6.23e-08 4.52e-01 4.52e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.495    0.374    -      -           2.46e-04 8.23e-05   49.410 57
CPL   1.000    0.000      50.0    0.0      3.99e-03 0.00e+00  353.990 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.589    1.875    -      -           1.87e-04 4.43e-04   42.690 57
CPL   1.000    0.000      50.0    0.0      7.25e-03 0.00e+00   65.520 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  112.000    4.000  116.000
T90   112.000    4.000  116.000
T50    64.000   36.000  100.000
Peak    1.000  123.500  124.500

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  245.1071 -15.8201 0.0152   14.5  166.5       2.5125    12.6  TRIG_01093693
------------------------------------------

Foreground time interval of the image:
  4.000  15.620 (delta_t =  11.620 [sec])
 31.000  39.290 (delta_t =   8.290 [sec])
 40.000  66.770 (delta_t =  26.770 [sec])
 69.000  72.201 (delta_t =   3.201 [sec])
Background time interval of the image:
-60.000 -31.250 (delta_t =  28.750 [sec])
-10.000   4.000 (delta_t =  14.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

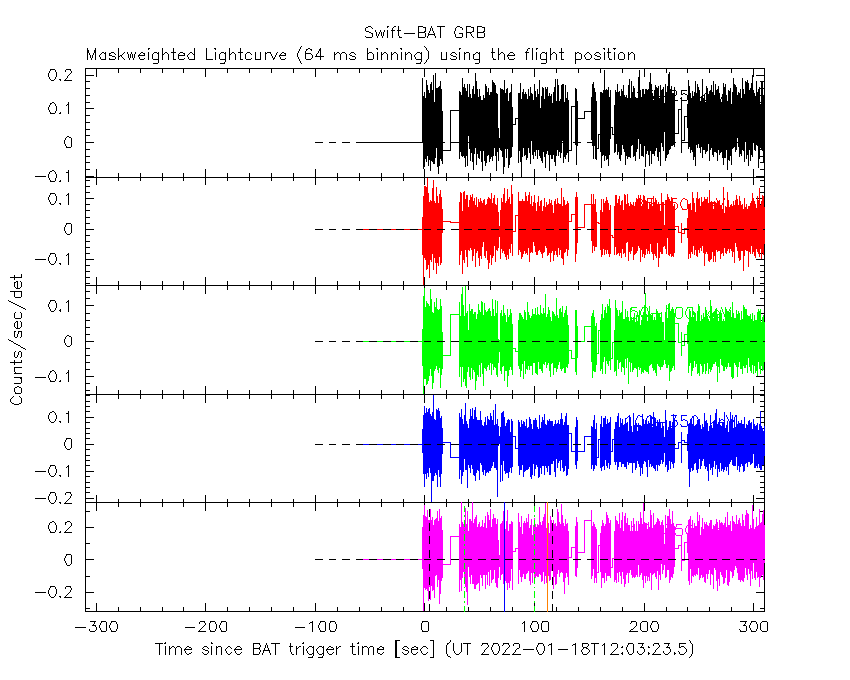

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

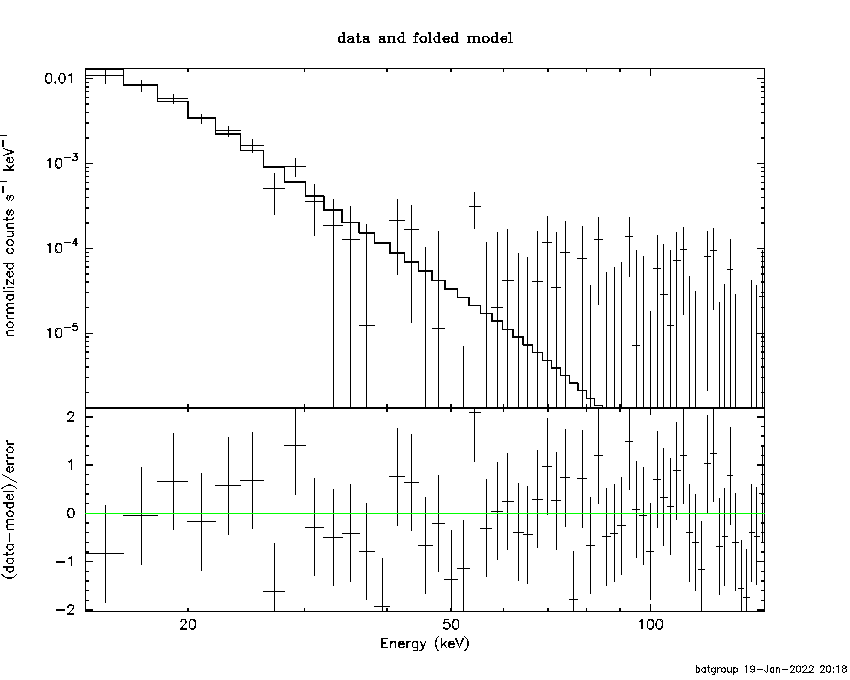

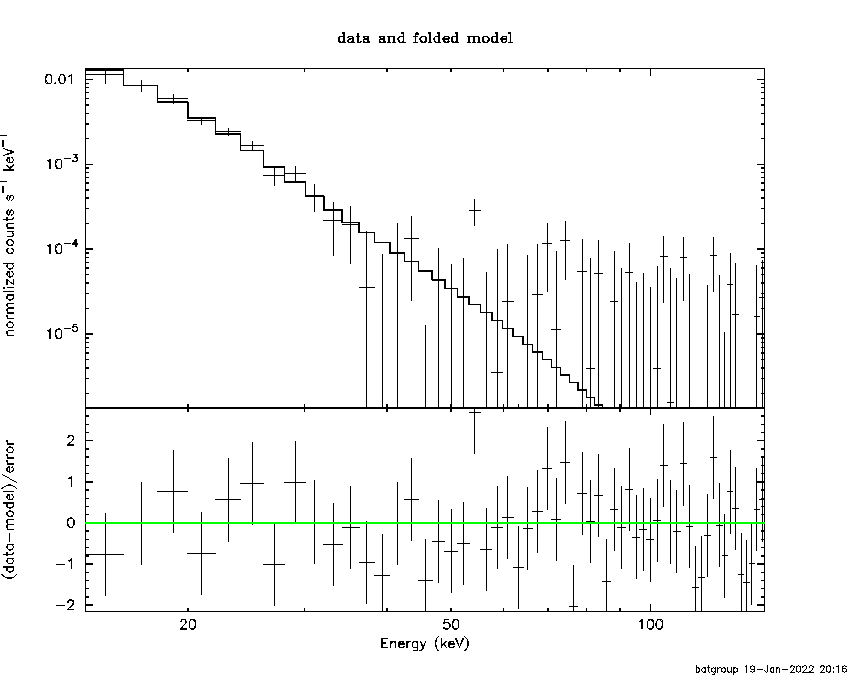

Power-law model

Multiple GTIs in the spectrum
tstart tstop
4.000000 15.620000
31.000000 39.290000
40.000000 66.770000
69.000000 79.800000
85.000000 116.000000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.49548     ( -0.368788   0.378266 )
Norm@50keV  : 2.45841E-04    ( -7.16949e-05   9.28768e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.41 using 59 PHA bins.
# Reduced chi-squared =         0.8669 for     57 degrees of freedom
# Null hypothesis probability =   7.522188e-01

Photon flux (15-150 keV)    in 88.48 sec: 0.612960 ( -0.0541688  0.0547047 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.6756e-06 ( -1.33865e-07  1.34473e-07 ) ergs/cm2

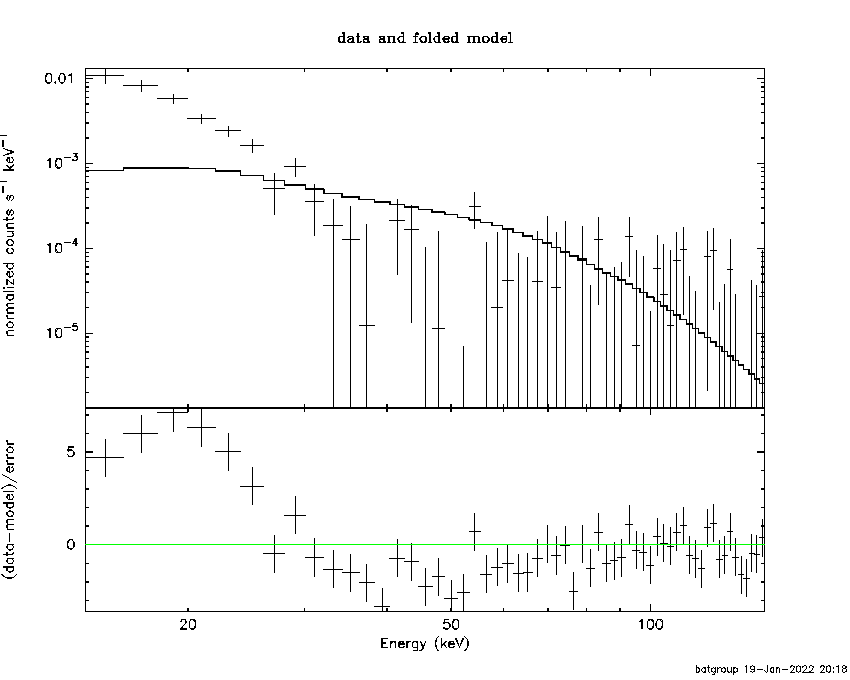

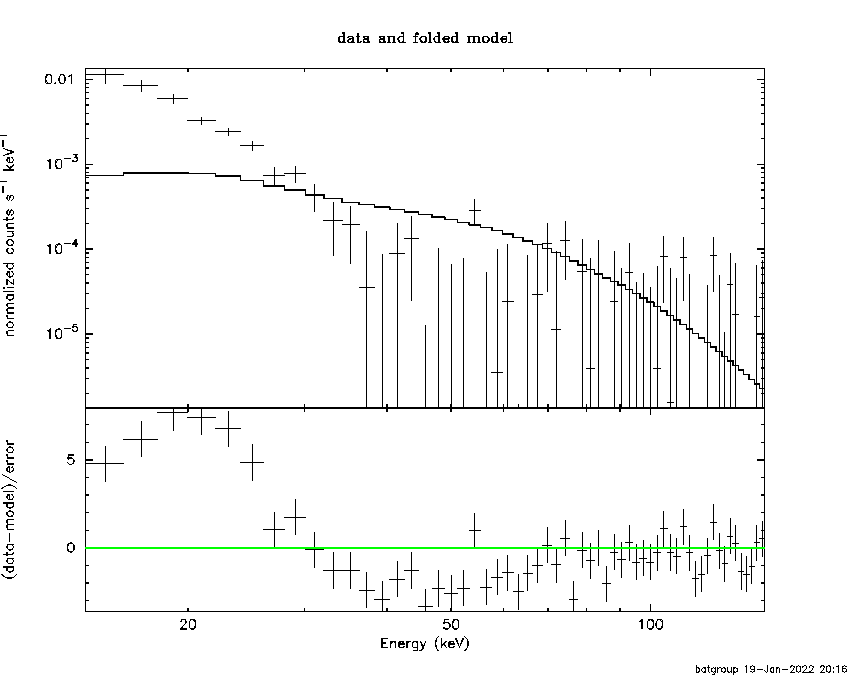

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
4.000000 15.620000
31.000000 39.290000
40.000000 66.770000
69.000000 79.800000
85.000000 116.000000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.98709E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         353.99 using 59 PHA bins.
# Reduced chi-squared =         6.3213 for     56 degrees of freedom
# Null hypothesis probability =   7.263642e-45

Photon flux (15-150 keV)    in 88.48 sec: 0.597876 ( -0.059943  0.058772 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.61664e-06 ( -1.5215e-07  1.5261e-07 ) ergs/cm2

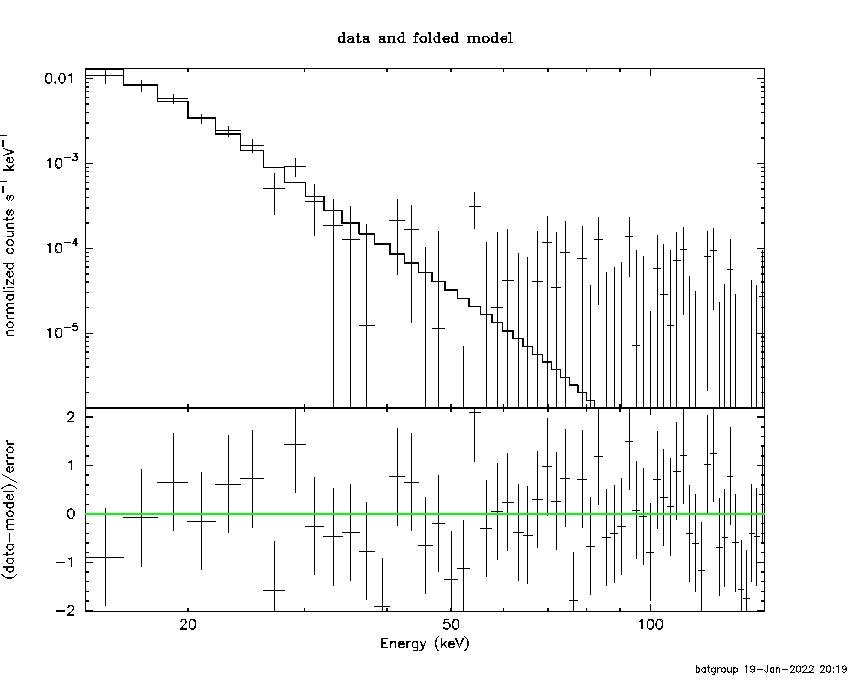

Band function

Multiple GTIs in the spectrum
tstart tstop
4.000000 15.620000
31.000000 39.290000
40.000000 66.770000
69.000000 79.800000
85.000000 116.000000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -5.73969   ( 3.67862   5.73969 )
beta        : -5.53425    ( -0.349765   0.400234 )
Epeak [keV] : 317.529      ( -317.529 -317.529 )
Norm@50keV   : 3.22408E-02    ( -0.00905616   0.0133603 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.44 using 59 PHA bins.
# Reduced chi-squared =         0.8990 for     55 degrees of freedom
# Null hypothesis probability =   6.859639e-01

Photon flux (15-150 keV)    in 88.48 sec: 0.452481 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

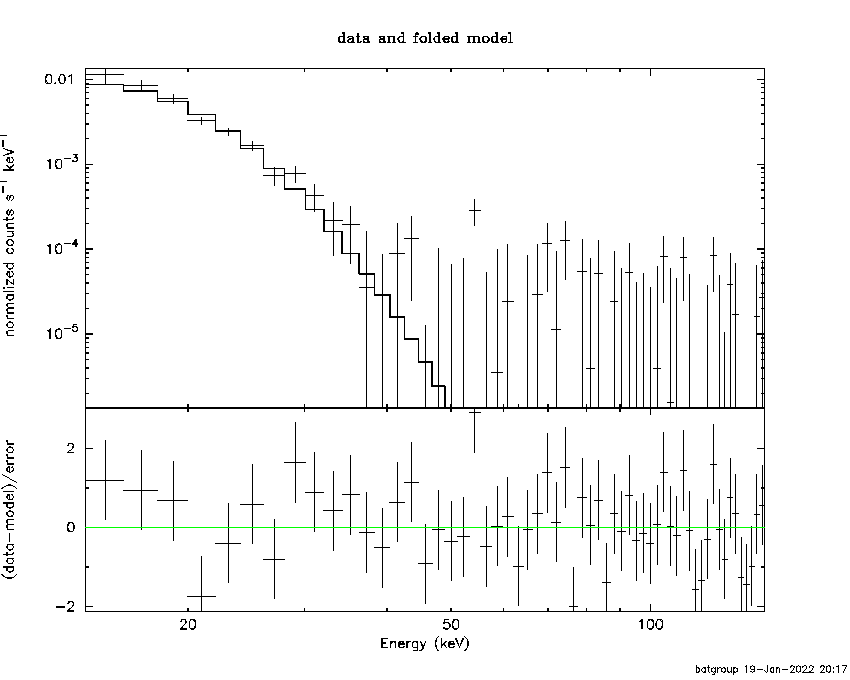

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.91281  (-0.224108  0.252564)
R^2/D10^2   : 96.5676  (-43.8162   80.6729)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.73 using 59 PHA bins.
# Reduced chi-squared =         0.9427 for     57 degrees of freedom
# Null hypothesis probability =   5.984627e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.327e-06   2.154e-07
25- 50  1.743e-07   3.460e-08
50-150  2.201e-10   1.385e-10
15-150  1.501e-06   2.495e-07

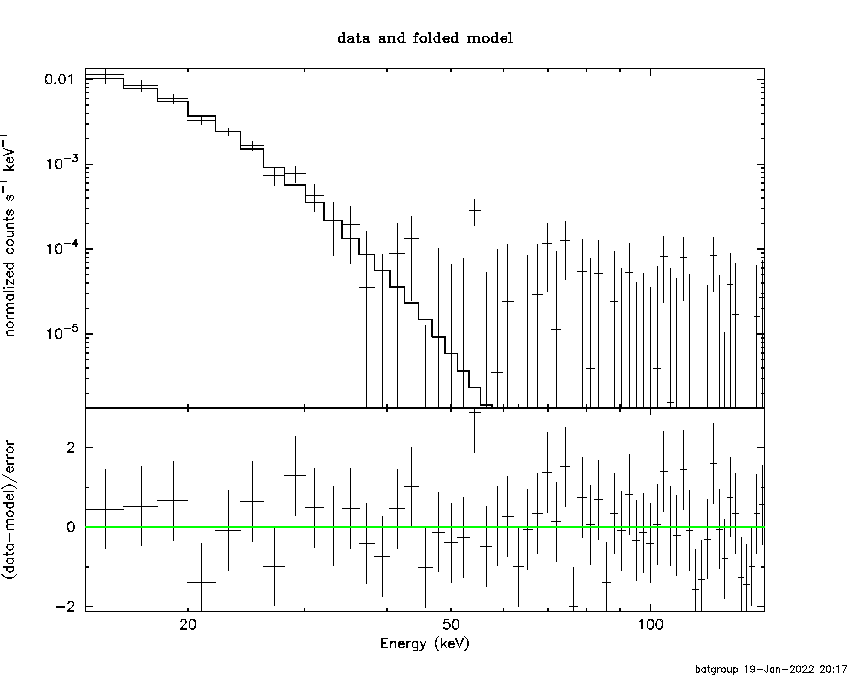

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.41093       (-0.607197      0.732834)
Norm        : 102.197       (-38.423     63.094)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.363e-06   2.000e-07
25- 50  2.050e-07   4.203e-08
50-150  1.560e-09   8.990e-10
15-150  1.570e-06   2.199e-07

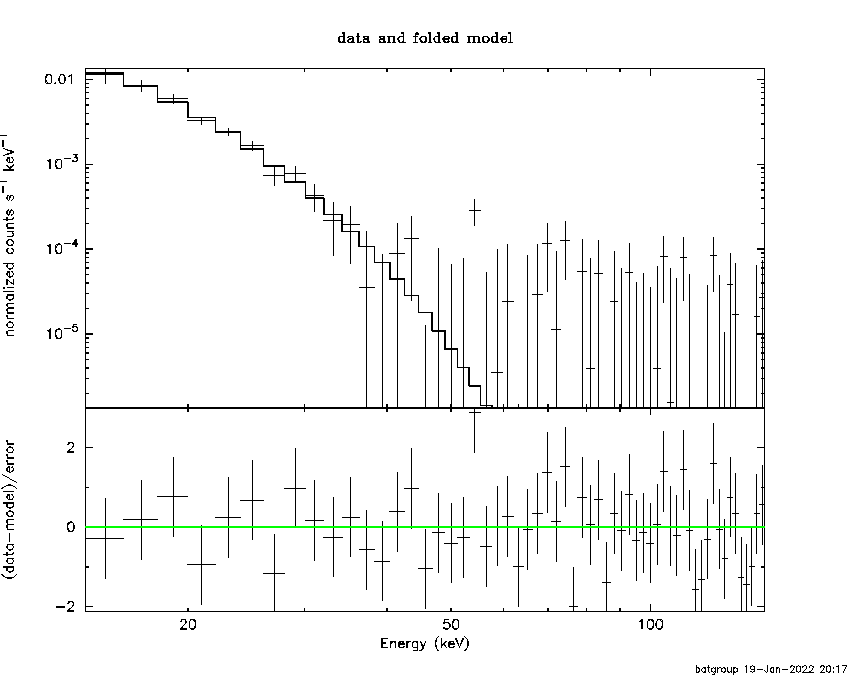

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.78883        (-1.03846      0.758209)
R1^2/D10^2  : 2191.60        (-2114.06      4.65336e+06)
kT2 [keV]   : 3.70656        (-0.695765      2.61161)
R2^2/D10^2  : 13.6398    (-12.9145   6.5128)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.337e-06   7.072e-07
25- 50  2.075e-07   1.011e-07
50-150  8.993e-09   1.139e-08
15-150  1.554e-06   8.047e-07

Peak spectrum fit

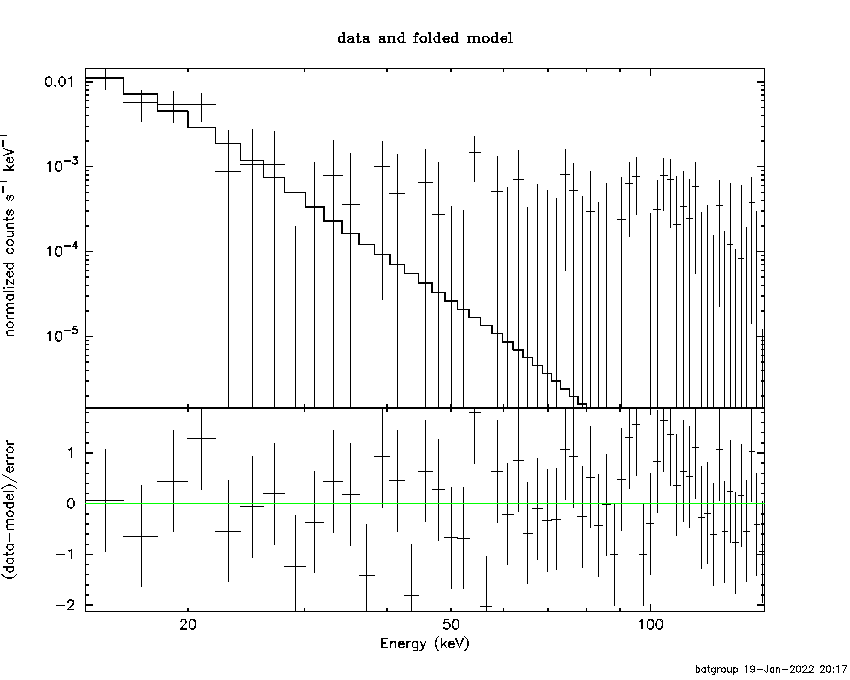

Power-law model

Time interval is from  123.500 sec. to  124.500 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.58875     ( -1.49857   2.25109 )
Norm@50keV  : 1.87015E-04    ( -0.000187017   0.000698146 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.69 using 59 PHA bins.
# Reduced chi-squared =         0.7489 for     57 degrees of freedom
# Null hypothesis probability =   9.205732e-01

Photon flux (15-150 keV)    in 1 sec: 0.511082 ( -0.180608  0.1825 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.56997e-08 ( -6.22768e-09  7.1807e-09 ) ergs/cm2

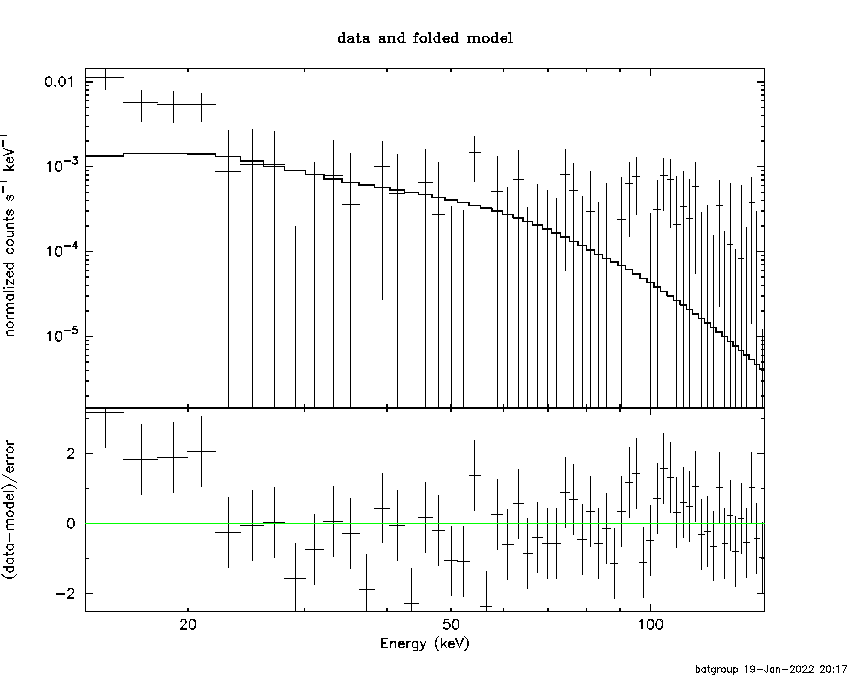

Cutoff power-law model

Time interval is from  123.500 sec. to  124.500 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 7.24897E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.52 using 59 PHA bins.
# Reduced chi-squared =          1.170 for     56 degrees of freedom
# Null hypothesis probability =   1.800110e-01

Photon flux (15-150 keV)    in 1 sec: 0.522293 ( -0.174737  0.178357 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.54623e-08 ( -5.57481e-09  3.5923e-09 ) ergs/cm2

Band function

Time interval is from  123.500 sec. to  124.500 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -3.66643   ( 1.33859   3.66676 )
beta        : -5.58681    ( -2.24804   1.50083 )
Epeak [keV] : 693.330      ( -693.33 -693.33 )
Norm@50keV   : 0.669767    ( 842.236   -0.669073 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.69 using 59 PHA bins.
# Reduced chi-squared =         0.7761 for     55 degrees of freedom
# Null hypothesis probability =   8.869393e-01

Photon flux (15-150 keV)    in 1 sec: 0.452481 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.52186  (-0.724495  0.890022)
R^2/D10^2   : 246.583  (-246.581   3023.52)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.441e-08   8.385e-09
25- 50  1.097e-09   7.295e-10
50-150  3.773e-13   4.946e-13
15-150  1.550e-08   8.675e-09

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.62792       (-1.86301      3.1723)
Norm        : 160.648       (-160.648     1371.23)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.399e-08   8.265e-09
25- 50  1.477e-09   1.004e-09
50-150  5.106e-12   6.090e-12
15-150  1.548e-08   9.090e-09

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.49771        (-0.399528      0.872782)
R1^2/D10^2  : 261.819        (-169.974      3320.16)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 4.40808E-05    (-4.51283e-05   -4.51283e-05)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.432e-08   8.060e-09
25- 50  1.524e-09   6.740e-10
50-150  1.167e-08   1.245e-09
15-150  2.752e-08   9.730e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.51419     ( -0.436792   0.454446 )
Norm@50keV  : 2.37749E-04    ( -8.4217e-05   0.000116325 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.53 using 59 PHA bins.
# Reduced chi-squared =         0.8163 for     57 degrees of freedom
# Null hypothesis probability =   8.375381e-01

Photon flux (15-150 keV)    in 49.88 sec: 0.603774 ( -0.0584742  0.0586862 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.29364e-07 ( -8.5625e-08  8.5633e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 4.47311E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         269.70 using 59 PHA bins.
# Reduced chi-squared =         4.8162 for     56 degrees of freedom
# Null hypothesis probability =   9.991820e-30

Photon flux (15-150 keV)    in 49.88 sec: 0.591779 ( -0.062105  0.061225 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.94249e-07 ( -9.03776e-08  9.1046e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -6.63306   ( 4.21648   6.63306 )
beta        : -5.56862    ( -0.413739   0.483442 )
Epeak [keV] : 388.733      ( -388.733 -388.733 )
Norm@50keV   : 3.06565E-02    ( -0.0104215   0.0169483 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.57 using 59 PHA bins.
# Reduced chi-squared =         0.8468 for     55 degrees of freedom
# Null hypothesis probability =   7.835029e-01

Photon flux (15-150 keV)    in 49.88 sec: 0.452481 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.56e-07
S(50-100 keV) = 2.27e-08

T90 vs. Hardness ratio plot

T90                                   = 112 sec.
Hardness ratio (energy fluence ratio) = 0.0886719

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.125901
Count Ratio (50-100 keV) / (15-25 keV) = 0.00959577

Mask shadow pattern

IMX = -2.512112927543421E-01, IMY = -6.012945459033720E-02

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-60.000000 -31.250000
-10.000000 4.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8528 -62.7257    7.6  50.6   30.2   0.5219   1.5    6.0	GX 301-2
245.0504 -15.7925    2.9  14.5  166.3   0.3043   4.0   10.0	Sco X-1
256.1685 -37.7402   24.5  10.1  -39.3  -0.0325  -0.5   10.6	4U 1700-377
256.6132 -36.3051    5.2   9.4  -46.9   0.1563   2.2   11.1	GX 349+2
262.8621 -24.9040    0.0  13.9 -109.2  -0.0992  -1.2   12.4	GX 1+4
264.7264 -44.5846    4.2  19.5  -38.3  -0.2138  -2.7    8.1	4U 1735-44
268.4870  -1.3569    5.3  34.5 -143.6  -0.2532  -2.2    9.2	SW J1753.5-0127
270.3021 -24.9341   10.9  20.2 -100.4   0.1002   1.1    8.8	GX 5-1
270.3929 -25.7341    3.8  20.0  -98.1  -0.2898  -3.0    4.9	GRS 1758-258
274.1668 -14.0709    4.2  28.7 -119.3  -0.2856  -2.7    9.6	GX 17+2
275.9169 -30.2309    7.1  23.8  -83.6  -0.1672  -1.6    8.2	H1820-303
285.1580 -24.8134   19.2  33.0  -91.1  -0.0956  -0.6    9.2	HT1900.1-2455
263.1687 -33.8228   17.0  13.2  -70.5  -0.0566  -0.7    9.0	GX 354-0
240.1690  12.6752    2.9  43.4  167.3   0.6121   4.0 ------	UNKNOWN
261.5280 -60.1564    2.7  31.4  -13.8   0.3877   4.3 ------	UNKNOWN
259.6579  -1.1336    3.0  30.8 -158.5   0.3702   3.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
4.000000 15.620000
31.000000 39.290000
40.000000 66.770000
69.000000 72.200600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6478 -62.9591   23.9  50.8   29.9  -0.4637  -0.5   11.3	GX 301-2
245.1106 -15.7945    0.9  14.5  166.6   2.5037  12.6   12.0	Sco X-1
255.8276 -38.0012    4.5  10.1  -37.2   0.5527   2.6   12.1	4U 1700-377
256.6170 -36.3633    4.9   9.4  -46.6   0.5074   2.4    9.5	GX 349+2
262.8397 -24.7138    5.2  14.0 -110.0  -0.4646  -2.2    9.4	GX 1+4
264.6747 -44.4704    5.5  19.4  -38.5  -0.4719  -2.1    3.2	4U 1735-44
268.2201  -1.3815   12.2  34.3 -144.0  -0.2828  -0.9    9.8	SW J1753.5-0127
270.1467 -25.2404    0.0  19.9  -99.7   0.1160   0.5   12.2	GX 5-1
270.3800 -25.7134    3.5  20.0  -98.2  -0.9699  -3.7    4.6	GRS 1758-258
274.1657 -14.0658    3.8  28.7 -119.3  -0.8930  -3.0    9.5	GX 17+2
275.9826 -30.4963    5.8  23.9  -83.0  -0.5885  -2.0    8.3	H1820-303
285.1393 -25.0245   24.1  32.9  -90.8   0.2030   0.5    8.4	HT1900.1-2455
262.9053 -33.9502    4.2  13.0  -69.8  -0.6414  -2.7    8.1	GX 354-0
229.0686 -63.4269    2.2  35.6   13.5   1.4694   5.3 ------	UNKNOWN
263.4396 -50.7724    2.6  23.7  -25.5   0.9327   4.4 ------	UNKNOWN
290.1251 -58.5420    2.3  40.2  -33.8   1.8776   5.1 ------	UNKNOWN
269.1237  24.8998    3.6  58.4 -158.9   3.6029   3.2 ------	UNKNOWN
323.1362 -70.2307    2.3  56.8  -24.1   5.9029   4.9 ------	UNKNOWN
312.5131 -58.4353    2.4  51.5  -38.2   4.4223   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
111.700630 131.110000
137.000000 138.970000
152.000000 156.490000
160.000000 169.450000
173.000000 217.690000
219.000000 228.040000
234.000000 234.200000
240.000000 957.800600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0937 -15.8216    0.0   0.1  116.9  51.4006  50.6   12.7	Sco X-1
254.4557  35.3421   13.2  52.0  175.9  -3.0779  -0.9    0.1	Her X-1
256.0561 -37.9804    6.2  24.1  -35.2  -2.2902  -1.8    8.8	4U 1700-377
256.6454 -36.2955   13.2  22.9  -38.2  -1.0690  -0.9   12.7	GX 349+2
263.1206 -24.9006    9.1  19.1  -72.6   1.8111   1.3   11.1	GX 1+4
264.9500 -44.3576   34.5  33.1  -40.1   0.5401   0.3   10.5	4U 1735-44
268.2163  -1.5199   11.6  26.9 -133.7   1.4380   1.0   10.0	SW J1753.5-0127
270.4552 -25.0340 2700.0  25.4  -78.4   0.0043   0.0    9.7	GX 5-1
270.3013 -25.7431   42.1  25.4  -76.8  -0.4609  -0.3    0.1	GRS 1758-258
273.8526 -14.0247    5.9  27.8 -103.7  -2.9732  -1.9    8.9	GX 17+2
275.8123 -30.2395    5.6  31.5  -71.2  -4.0500  -2.1    9.6	H1820-303
285.0975 -24.9265    3.9  38.4  -83.4   9.2530   3.0    3.4	HT1900.1-2455
262.7880 -33.9665    0.0  24.1  -51.8   2.1201   1.5   12.8	GX 354-0
240.3376  38.8203    2.7  54.9  161.7  25.7661   4.2 ------	UNKNOWN
197.8775 -56.0602    4.5  53.8   16.8  15.4396   2.6 ------	UNKNOWN
232.2487 -65.9241    3.1  50.8   -7.0   8.7288   3.7 ------	UNKNOWN
261.2811 -12.2779    3.0  16.1 -114.6   4.4220   3.8 ------	UNKNOWN
271.5556 -50.1510    2.7  40.4  -39.8   8.8347   4.3 ------	UNKNOWN
286.5279  21.6029    2.4  55.2 -145.3  27.9375   4.8 ------	UNKNOWN

Plot creation:
Wed Jan 19 20:20:08 EST 2022
