batgrbproduct analysis for trigger=1095215

batgrbproduct Analysis for Trigger=1095215

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Oct 23 23:38:29 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1095215
======================================================================

  Trigger: 01095215      Segment: 000

  BAT Trigger Time: 668189617.344   [s; MET]
      Trigger Stop: 668189618.368   [s; MET]
               UTC: 2022-03-05T16:13:08.615740    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 107.584441518432   Dec: -37.708465082534  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.18
     Image Trigger?:     NO
     Rate S/N Ratio:     14  [ if not an image trigger ]
     Image S/N Ratio:    7.18

  Flight Position:   [ source = BAT ]
    RA: 107.584441518432   Dec: -37.708465082534  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 107.608224012885   Dec: -37.7006078126076  [deg; J2000]
        { 07h 10m 26.0s , -37d 42' 02.2" }
         +/- 1.49808242785694 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.59284396395132 [arcmin] (formal 1-sigma fit error)
    SNR: 17.074699930472

  Angular difference between Flight and Ground position is 1.223445 arcmin

  Partial Coding Fraction: 0.2539062    [ including projection effects ]

  Duration
     T90: 28 +/- 5.3851648071345
        Measured from: -9.34399998188019
                   to: 18.6560000181198     [s; relative to TRIGTIME]
     T50: 11 +/- 3.60555127546399
        Measured from: -5.34399998188019
                   to: 5.65600001811981     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.343999981880188
                   to: 0.656000018119812     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -10.3439999818802
                   to: 21.6560000181198     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.964491   1.344452   0.891096   0.325929
           0.093715   0.099411   0.086990   0.075447 [error]
 Peak      0.052734   0.109153   0.063392   0.052349
           0.017919   0.019970   0.018125   0.015663 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.46e-07 5.79e-07 7.39e-07 1.89e-06 2.19e-06 3.55e-06   erg/cm2
              Error 4.79e-08 4.96e-08 8.71e-08 4.71e-07 2.06e-07 5.43e-07   erg/cm2
Peak flux Power-law 6.56e-01 6.29e-01 4.21e-01 4.38e-01 1.88e+00 2.14e+00   ph/cm2/s
              Error 2.46e-01 1.61e-01 1.34e-01 2.67e-01 4.72e-01 5.41e-01   ph/cm2/s

Fluence   Cutoff-PL 3.20e-07 4.38e-07 4.58e-07 1.08e-06 1.51e-06 2.29e-06   erg/cm2
              Error 6.17e-08 7.50e-08 5.49e-08 1.78e-07 2.03e-07 4.13e-07   erg/cm2
Peak flux Cutoff-PL 5.28e-01 7.44e-01 4.61e-01 1.09e-01 1.82e+00 1.84e+00   ph/cm2/s
              Error 2.75e-01 2.30e-01 1.92e-01 2.54e-01 4.77e-01 5.17e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.649    0.150    -      -           7.35e-03 6.49e-04   51.770 57
CPL   1.581    0.659     271.9    0.0      7.98e-03 6.24e-03   51.750 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.581    0.389    -      -           1.47e-02 3.85e-03   73.310 57
CPL   0.043    2.700      59.9  -20.3      9.71e-02 8.16e+00   70.750 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 12.416000 sec.
T50 in the 50-300 keV band: 7.168000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   32.000  -10.344   21.656
T90    28.000   -9.344   18.656
T50    11.000   -5.344    5.656
Peak    1.000   -0.344    0.656

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte

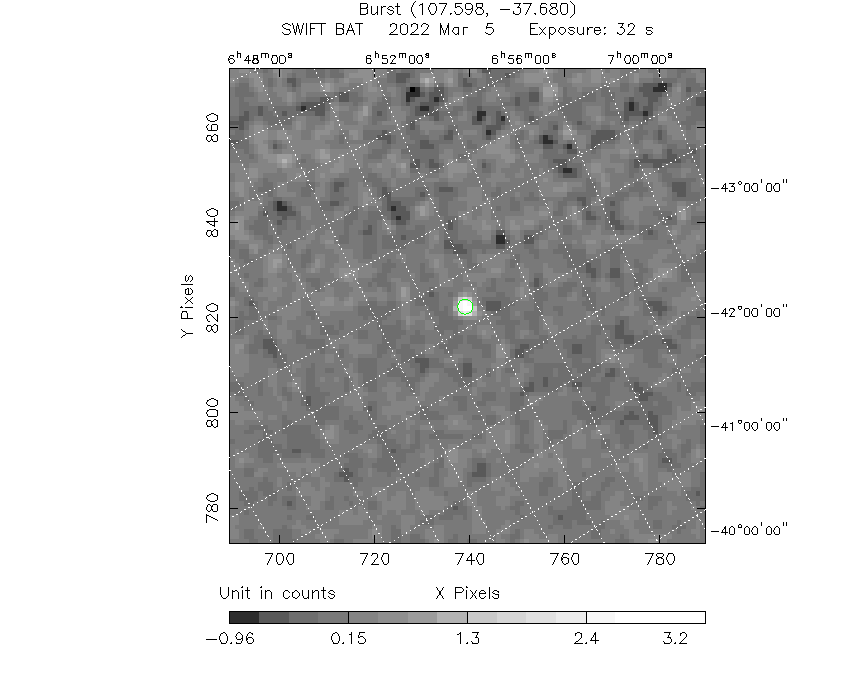

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  107.6082   -37.7006   0.0113    38.1023   -67.8705         3.7287540     17.075 TRIG_01095215

Foreground time interval of the image:
-10.344  21.656 (delta_t =  32.000 [sec])
Background time interval of the image:
-239.344 -10.344 (delta_t = 229.000 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

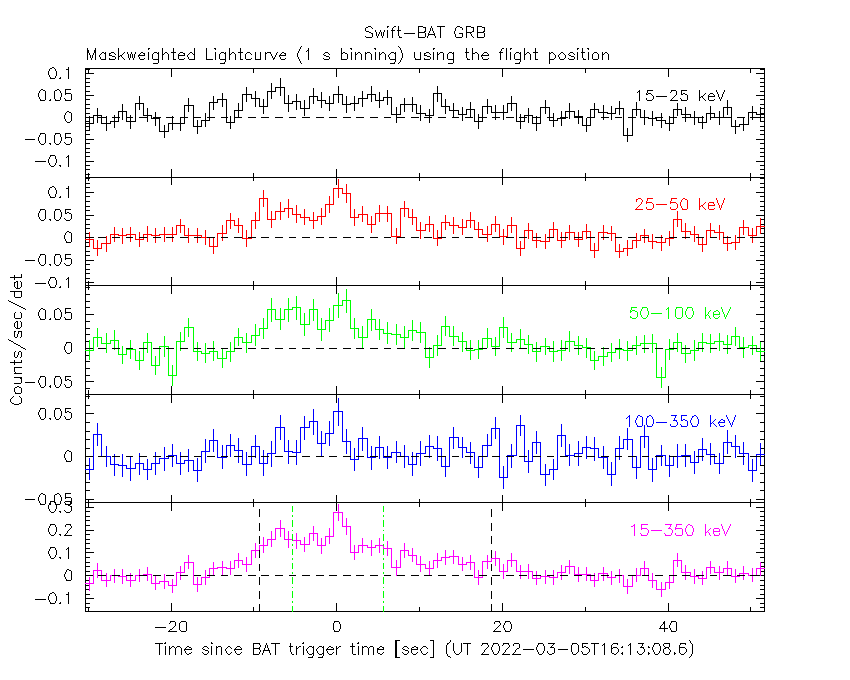

From T100_start - 20 s to T100_end + 30 s

Full time interval

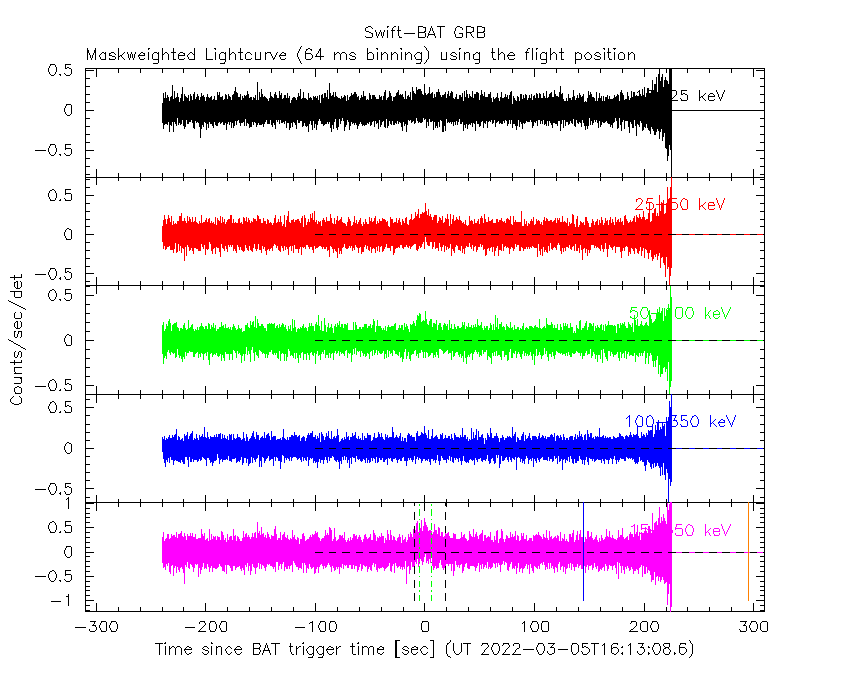

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

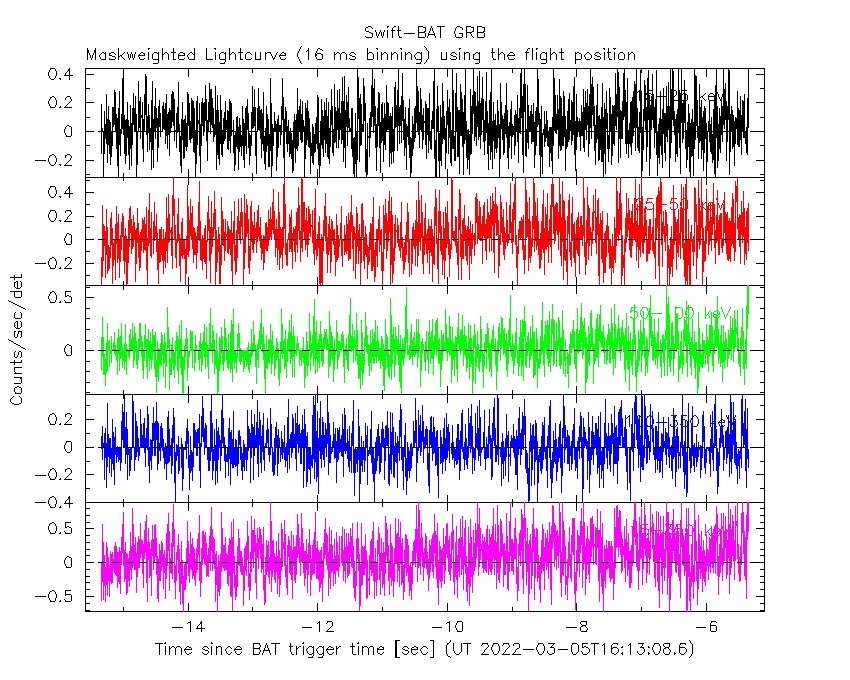

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

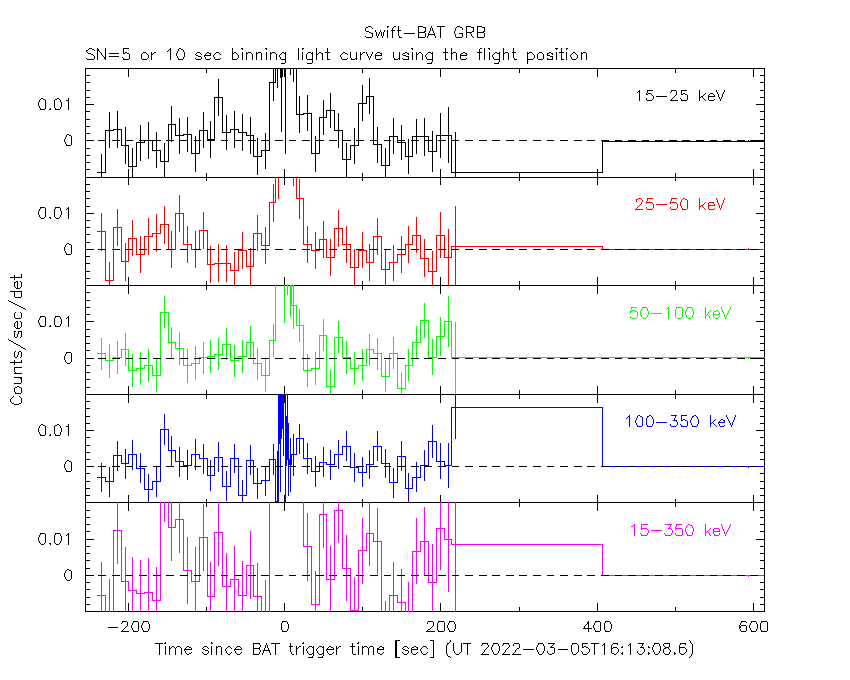

SN=5 or 10 sec. binning (whichever binning is satisfied first)

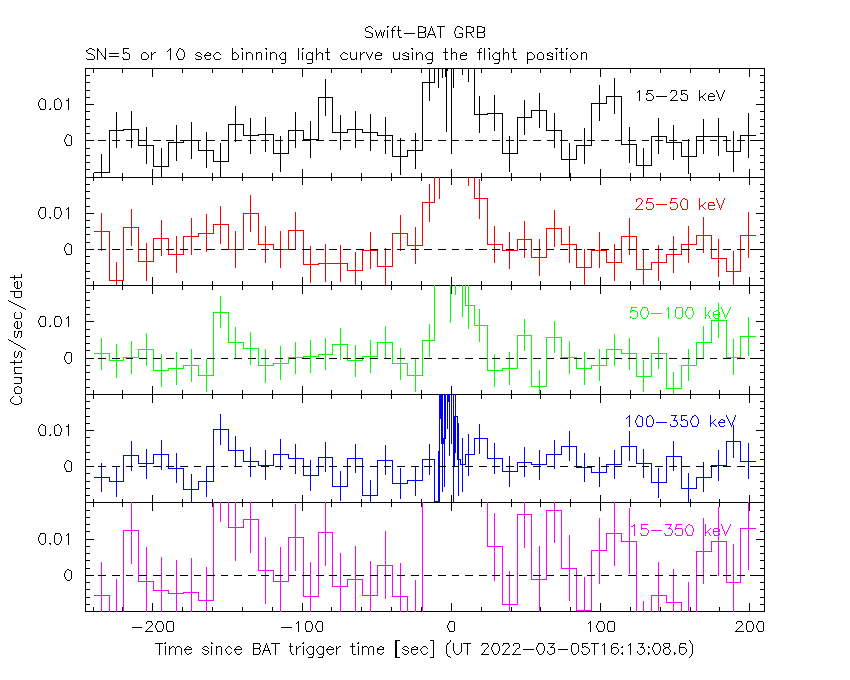

SN=5 or 10 sec. binning (T < 200 sec)

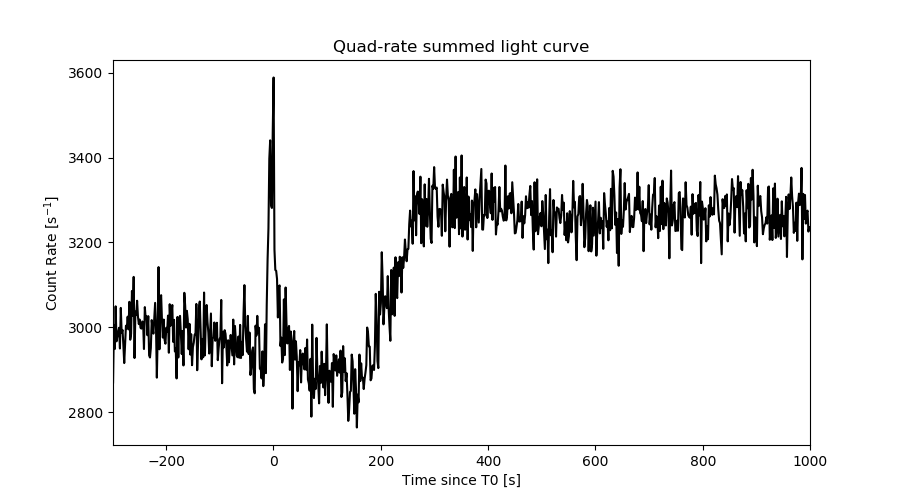

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -10.344 sec. to   21.656 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.64950     ( -0.148929   0.151307 )
Norm@50keV  : 7.35413E-03    ( -0.000652369   0.00064636 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.77     using 59 bins.
 Reduced chi-squared = 0.908246
# Null hypothesis probability of 6.71e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 32 sec: 0.960149 ( -0.081933  0.082081 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.18907e-06 ( -2.05354e-07  2.07332e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -10.344 sec. to   21.656 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.58113     ( -0.587016   0.731281 )
Epeak [keV] : 271.895      ( -306.414 -306.414 )
Norm@50keV  : 7.98460E-03    ( -0.00458791   0.00789829 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.75     using 59 bins.
 Reduced chi-squared = 0.924107
# Null hypothesis probability of 6.36e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 32 sec: 0.957452 ( -0.084819  0.083808 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.51109e-06 ( -2.22364e-07  1.84108e-07 ) ergs/cm2

Band function

Time interval is from  -10.344 sec. to   21.656 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.0601  (-1.44797  1.66723)
R^2/D10^2   : 0.169672  (-0.0600585   0.0910187)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   93.18     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 1.76e-03 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.964e-07   3.030e-08
25- 50  6.798e-07   7.024e-08
50-150  7.350e-07   1.277e-07
15-150  1.611e-06   1.629e-07

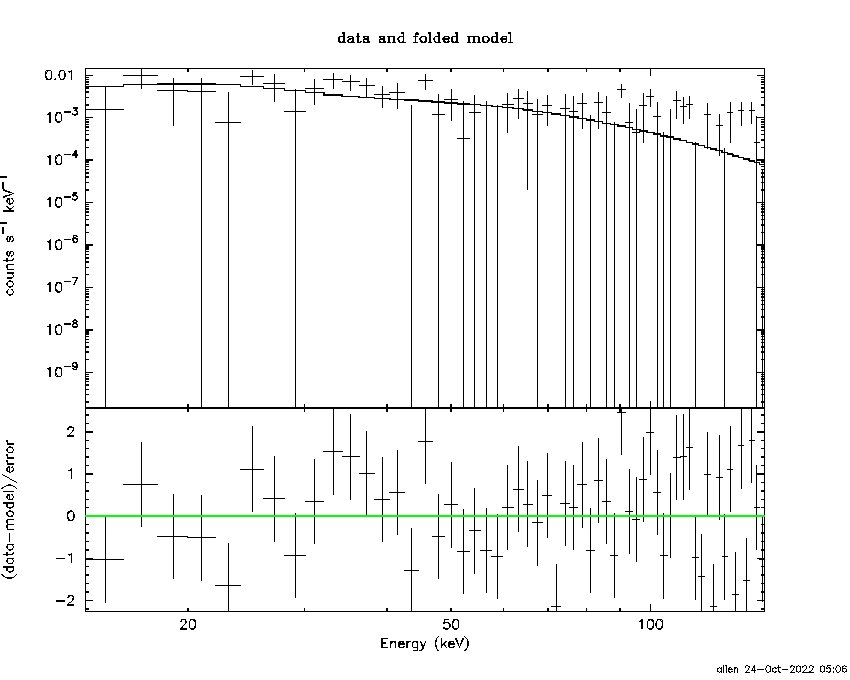

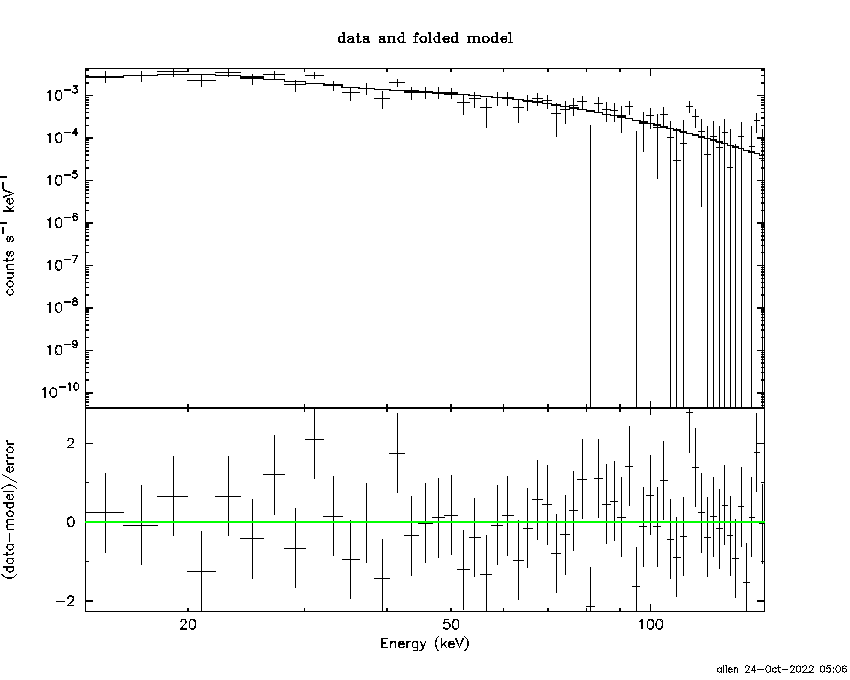

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 151.615       (-47.4293      -152.42)
Norm        : 3.96107       (-0.385764     0.426646)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   52.53     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.43e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.252e-07   3.712e-08
25- 50  6.038e-07   1.315e-07
50-150  1.197e-06   5.436e-07
15-150  2.126e-06   7.034e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.21188        (-1.48685      1.63246)
R1^2/D10^2  : 1.06096        (-0.526493      1.31694)
kT2 [keV]   : 29.7763        (-7.80107      17.8651)
R2^2/D10^2  : 6.87559E-03    (-0.00525176   0.00890807)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.07     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.25e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.229e-07   9.789e-08
25- 50  6.124e-07   1.469e-07
50-150  1.262e-06   6.242e-07
15-150  2.198e-06   7.531e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.344 sec. to    0.656 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.58127     ( -0.376793   0.400593 )
Norm@50keV  : 1.47471E-02    ( -0.00388297   0.00382088 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   73.31     using 59 bins.
 Reduced chi-squared = 1.28614
# Null hypothesis probability of 7.17e-02 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.88437 ( -0.47139  0.47223 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.38242e-07 ( -3.81222e-08  3.89606e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.344 sec. to    0.656 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.33042E-02     ( -3.77147   1.62907 )
Epeak [keV] : 59.9251      ( -19.4106 -59.9175 )
Norm@50keV  : 9.70587E-02    ( -0.0971181   16.2215 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   70.75     using 59 bins.
 Reduced chi-squared = 1.26339
# Null hypothesis probability of 8.87e-02 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.82230 ( -0.47638  0.47748 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.26567e-07 ( -4.19788e-08  4.22943e-08 ) ergs/cm2

Band function

Time interval is from   -0.344 sec. to    0.656 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.8621  (-3.03321  4.46722)
R^2/D10^2   : 0.391972  (-0.258951   0.632385)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   71.85     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.90e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.375e-08   6.687e-09
25- 50  4.682e-08   2.019e-08
50-150  4.867e-08   2.944e-08
15-150  1.093e-07   4.573e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 155.675       (-91.0168      -155.635)
Norm        : 7.95283       (-2.03842     2.61953)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   72.14     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.54e-02 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.977e-08   1.147e-08
25- 50  3.754e-08   2.120e-08
50-150  7.940e-08   4.643e-08
15-150  1.367e-07   7.985e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 25.4900        (-25.5531      -25.5531)
R1^2/D10^2  : 1.87745E-02        (-0.0185912      0.631049)
kT2 [keV]   : 9.17743        (-9.18222      -9.18222)
R2^2/D10^2  : 0.890210    (-0.890344   -0.890344)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   69.87     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 8.54e-02 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.694e-08   1.045e-08
25- 50  4.408e-08   2.914e-08
50-150  7.015e-08   4.309e-08
15-150  1.312e-07   7.315e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.64950     ( -0.148929   0.151307 )
Norm@50keV  : 7.35413E-03    ( -0.000652369   0.00064636 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.77     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.71e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 32 sec: 0.960112 ( -0.0819265  0.0820795 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.18877e-06 ( -2.05663e-07  2.07343e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.58129     ( -0.586718   0.730676 )
Epeak [keV] : 274.418      ( -306.579 -306.579 )
Norm@50keV  : 7.98329E-03    ( -0.00452293   0.00790054 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.75     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.36e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 32 sec: 0.957292 ( -0.042522  0.083788 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.17828e-06 ( -2.2791e-07  2.15949e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.79e-07
S(50-100 keV) = 7.39e-07

T90 vs. Hardness ratio plot

T90                                   = 28 sec.
Hardness ratio (energy fluence ratio) = 1.27634

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.39395
Count Ratio (50-100 keV) / (15-25 keV) = 0.923903

Mask shadow pattern

IMX = 2.953964282958187E-01, IMY = 7.263992495613288E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.344000 -10.344000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5348 -40.3591   55.0  19.1  -91.5   0.0749   0.2   11.7	Vela X-1
170.3072 -60.4836   86.9  36.9 -145.1   0.0642   0.1    8.4	Cen X-3
186.8894 -62.8966    0.0  43.8 -152.0   1.6260   2.7    9.9	GX 301-2
163.8102  11.5674    3.9  39.7   71.0   2.9821   3.0 ------	UNKNOWN
116.6887  19.1240    3.7  56.0   11.1   4.8555   3.1 ------	UNKNOWN
175.2085 -24.6262    2.8  22.1  142.5   1.4037   4.1 ------	UNKNOWN
133.3740 -20.2739    2.5  17.0  -23.0   1.3190   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-10.344000 21.656000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4021 -40.6720   14.2  19.4  -91.9   0.0825   0.8    9.1	Vela X-1
170.2022 -60.4733    4.5  36.9 -145.0   0.3585   2.5    9.6	Cen X-3
186.5769 -62.7286    6.7  43.6 -152.1   0.2940   1.7    3.3	GX 301-2
178.0365 -22.4955    2.0  25.1  138.5   0.5784   5.6 ------	UNKNOWN
214.9254 -64.0008    2.4  55.5 -157.8   1.7096   4.7 ------	UNKNOWN
107.6082 -37.7006    0.7  38.1  -67.9   3.7286  17.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
295.756590 962.782400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3269 -60.7456   30.1  47.0   33.1  -0.7511  -0.4    7.4	Cen X-3
186.3251 -62.7465    7.0  39.2   34.0  -2.6850  -1.6    9.2	GX 301-2
244.9756 -15.6419    0.7  34.3  152.7  23.0228  17.0    0.2	Sco X-1
255.7729 -37.9706    0.0  10.8  171.5   0.6017   0.7   12.6	4U 1700-377
256.4310 -36.4291    8.5  12.4  173.9   1.1065   1.3    0.4	GX 349+2
263.0779 -24.8894   14.4  24.6 -172.5  -0.7436  -0.8    9.4	GX 1+4
264.6276 -44.5887    3.9   7.4 -130.1   2.4283   3.0    9.7	4U 1735-44
268.4718  -1.5840   38.1  48.5 -171.6  -0.5731  -0.3   10.0	SW J1753.5-0127
270.1260 -24.9264    0.0  26.4 -158.3  -0.7359  -0.8   12.6	GX 5-1
270.4561 -25.7593    6.5  25.8 -156.9  -1.6639  -1.8    8.4	GRS 1758-258
274.1024 -13.8944    7.9  38.1 -159.0   1.8417   1.5   10.2	GX 17+2
275.9214 -30.3653  255.2  24.0 -141.6  -0.0431  -0.0    0.2	H1820-303
285.1902 -24.9070    5.7  33.2 -134.1  -2.7302  -2.0    8.4	HT1900.1-2455
262.8170 -33.8195    3.9  15.9 -166.7   2.5385   3.0    8.6	GX 354-0
287.1208 -19.4272    4.6  38.7 -136.9   4.0017   2.5 ------	UNKNOWN
 17.9931 -71.9524    3.9  52.7  -28.0  11.4302   3.0 ------	UNKNOWN
302.8447 -30.1332    4.6  40.1 -108.8   8.8600   2.5 ------	UNKNOWN

Plot creation:
Mon Oct 24 05:06:45 EDT 2022
