TDRSS scaled map for 1098132
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 19 Mar 22 17:40:52 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1098132, Seg_Num: 0
GRB_RA: 218.207d {+14h 32m 50s} (J2000),
218.352d {+14h 33m 25s} (current),
217.881d {+14h 31m 32s} (1950)
GRB_DEC: +61.289d {+61d 17' 20"} (J2000),
+61.192d {+61d 11' 30"} (current),
+61.508d {+61d 30' 29"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3694 [cnts] Image_Peak=160 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 139 E_range: 15-50 keV
BKG_INTEN: 23255 [cnts]
BKG_TIME: 63619.18 SOD {17:40:19.18} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19657 TJD; 78 DOY; 22/03/19
GRB_TIME: 63633.33 SOD {17:40:33.33} UT
GRB_PHI: -105.37 [deg]
GRB_THETA: 29.58 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 15.55 [sigma]
IMAGE_SIGNIF: 7.27 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +1 -3 +0 +0 +37 +0
SUN_POSTN: 359.18d {+23h 56m 42s} -0.36d {-00d 21' 25"}
SUN_DIST: 112.27 [deg] Sun_angle= 9.4 [hr] (West of Sun)
MOON_POSTN: 197.07d {+13h 08m 17s} -3.89d {-03d 53' 15"}
MOON_DIST: 67.13 [deg]
MOON_ILLUM: 98 [%]
GAL_COORDS: 103.49, 51.84 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 168.58, 67.35 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 122.75,-5.26 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 19 Mar 22 17:50:34 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1098132, Seg_Num: 0
POINT_RA: 203.662d {+13h 34m 39s} (J2000)
POINT_DEC: +33.239d {+33d 14' 21"} (J2000)
MAP_DATE: 19657 TJD; 78 DOY; 22/03/19
MAP_TIME: 63633.33 SOD {17:40:33.33} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 15.55 [sigma]
IMAGE_SIGNIF: 7.27 [sigma]
MAP_URL: sw01098132000msbsm.fits
SUN_POSTN: 359.18d {+23h 56m 44s} -0.35d {-00d 21' 16"}
MOON_POSTN: 197.15d {+13h 08m 37s} -3.93d {-03d 55' 44"}
MOON_ILLUM: 98 [%]
GAL_COORDS: 68.77, 78.85 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 186.70, 39.53 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

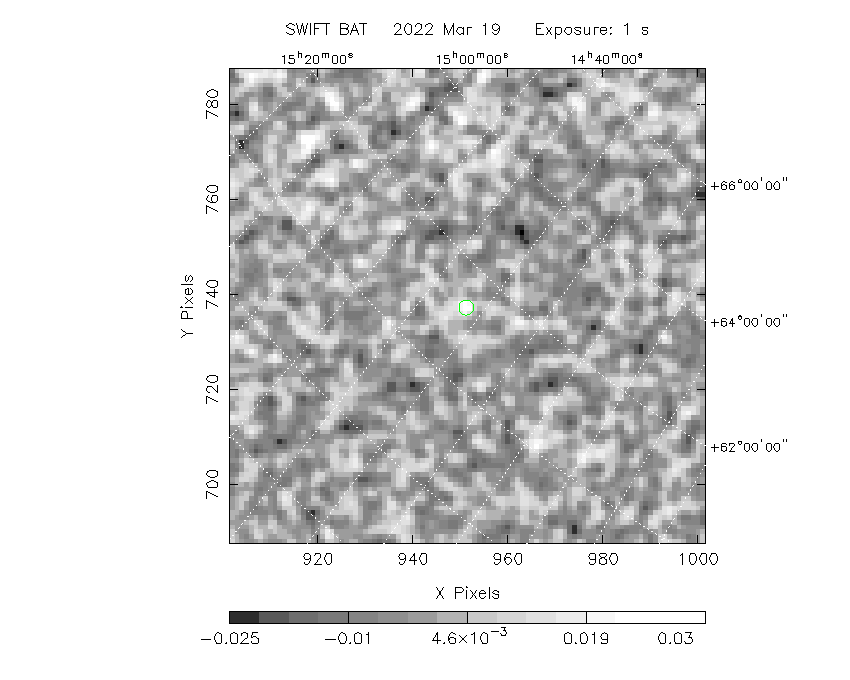

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (218.207, +61.289).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 218.207 +61.289 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
133.6934 39.5385 0.0 55.3 178.6 -0.0316 -0.9 0.0 NGC 2691
166.6979 72.5686 0.0 43.7 -134.6 0.0135 1.3 0.0 NGC 3516
169.5454 48.0369 0.0 29.5 -169.2 -0.0100 -1.2 0.0 XTE J1118+480
182.6357 39.4057 0.0 18.0 176.6 0.0032 0.4 0.0 NGC 4151
186.4448 12.6621 0.0 25.9 101.9 -0.0152 -1.0 0.0 NGC 4388
187.2779 2.0524 0.0 34.8 90.1 0.0341 1.8 0.0 3C 273
213.3119 -3.2075 0.0 37.6 44.6 -0.0030 -0.2 0.0 NGC 5506
254.4576 35.3425 0.0 41.5 -47.2 -0.0100 -1.2 0.0 Her X-1
146.2182 18.7939 2.4 52.9 149.8 0.2879 4.7 ------ UNKNOWN
215.3911 18.0335 2.6 18.5 23.0 0.0343 4.4 ------ UNKNOWN
235.7431 4.1632 2.8 41.7 7.7 0.0637 4.2 ------ UNKNOWN
185.4309 34.6448 2.8 15.2 160.9 0.0293 4.2 ------ UNKNOWN
220.9028 20.1542 3.2 20.1 6.7 0.0275 3.6 ------ UNKNOWN
241.9739 5.4836 2.7 45.1 -0.1 0.0626 4.2 ------ UNKNOWN
219.6838 27.2277 2.7 15.1 -10.2 0.0295 4.3 ------ UNKNOWN
144.2007 47.5607 3.1 46.3 -173.1 0.0552 3.7 ------ UNKNOWN
144.0470 48.7632 2.6 46.3 -171.4 0.0642 4.4 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4576 35.3425 0.0 41.5 -47.2 -0.0100 -1.2 0.0 Her X-1
146.2182 18.7939 2.4 52.9 149.8 0.2879 4.7 ------ UNKNOWN
215.3911 18.0335 2.6 18.5 23.0 0.0343 4.4 ------ UNKNOWN
235.7431 4.1632 2.8 41.7 7.7 0.0637 4.2 ------ UNKNOWN
185.4309 34.6448 2.8 15.2 160.9 0.0293 4.2 ------ UNKNOWN
220.9028 20.1542 3.2 20.1 6.7 0.0275 3.6 ------ UNKNOWN
241.9739 5.4836 2.7 45.1 -0.1 0.0626 4.2 ------ UNKNOWN
219.6838 27.2277 2.7 15.1 -10.2 0.0295 4.3 ------ UNKNOWN
144.2007 47.5607 3.1 46.3 -173.1 0.0552 3.7 ------ UNKNOWN
144.0470 48.7632 2.6 46.3 -171.4 0.0642 4.4 ------ UNKNOWN
Search for UNKNOWN source R.A. = 144.0470 Dec. = +48.7632 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 144.2007 Dec. = +47.5607 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 146.2182 Dec. = +18.7939 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 185.4309 Dec. = +34.6448 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 215.3911 Dec. = +18.0335 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 219.6838 Dec. = +27.2277 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 220.9028 Dec. = +20.1542 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 235.7431 Dec. = +4.1632 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 241.9739 Dec. = +5.4836 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1098132/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sat Mar 19 13:51:22 EDT 2022
