Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
269.4696 -7.0551 0.0109 38.4231 -25.4348 0.5910721 17.611 TRIG_01099310
Foreground time interval of the image:
-0.972 3.016 (delta_t = 3.988 [sec])
Background time interval of the image:
-239.904 -0.972 (delta_t = 238.932 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.
1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

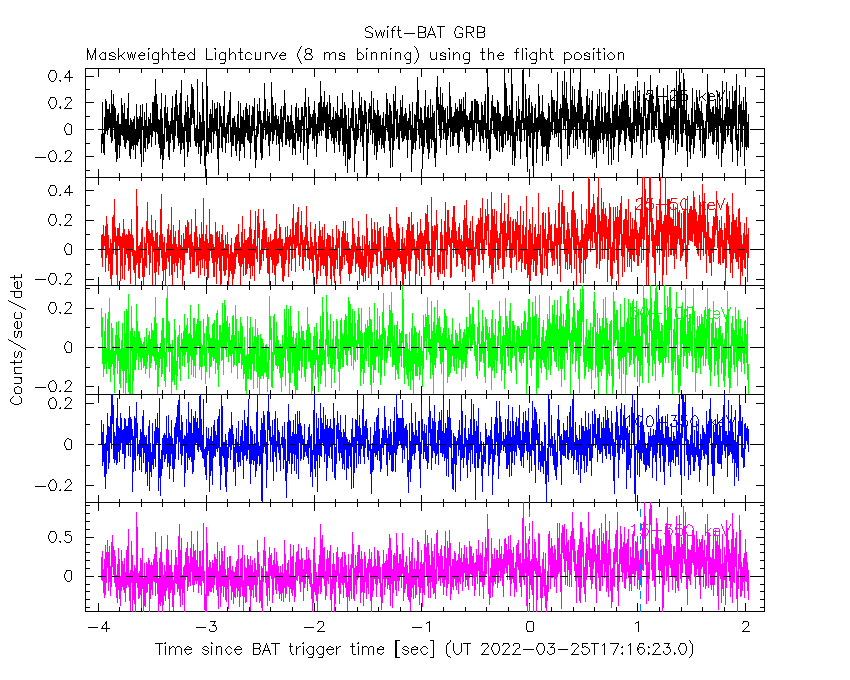

8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM

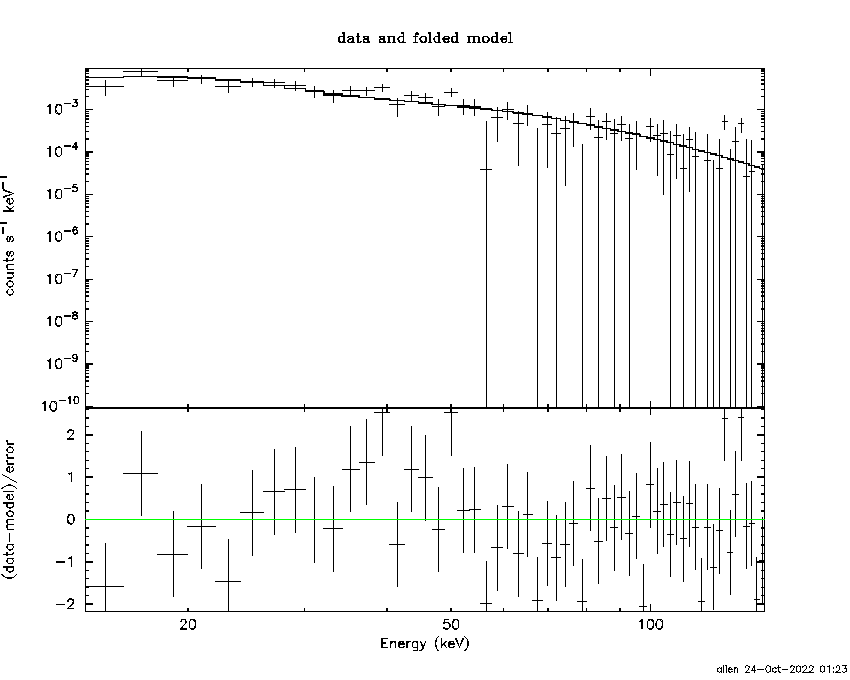

Power-law model
Time interval is from -0.972 sec. to 3.016 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.05882 ( -0.167354 0.175524 )
Norm@50keV : 8.85397E-03 ( -0.00103028 0.00101239 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 69.74 using 59 bins.
Reduced chi-squared = 1.22351
# Null hypothesis probability of 1.20e-01 with 57 degrees of freedom
Photon flux (15-150 keV) in 3.988 sec: 1.36543 ( -0.13143 0.13155 ) ph/cm2/s
Energy fluence (15-150 keV) : 3.26945e-07 ( -3.51522e-08 3.55772e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from -0.972 sec. to 3.016 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.700801 ( -1.2825 0.951991 )
Epeak [keV] : 39.2903 ( -9.31124 8.67474 )
Norm@50keV : 5.41372E-02 ( -0.0542169 0.254605 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 63.17 using 59 bins.
Reduced chi-squared = 1.12804
# Null hypothesis probability of 2.38e-01 with 56 degrees of freedom
Photon flux (15-150 keV) in 3.988 sec: 1.30149 ( -0.13976 0.13917 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.92284e-07 ( -3.86982e-08 4.16535e-08 ) ergs/cm2
Band function
Time interval is from -0.972 sec. to 3.016 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 9.89617 (-0.899036 0.995634)
R^2/D10^2 : 0.676039 (-0.213288 0.306611)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared 70.20 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 1.12e-01 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 5.358e-08 7.916e-09
25- 50 1.312e-07 1.561e-08
50-150 6.646e-08 1.643e-08
15-150 2.513e-07 2.991e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 59.5593 (-13.7838 20.1479)
Norm : 7.22432 (-1.09887 1.24922)
------------------------------------------------------------
#Fit statistic : Chi-Squared 64.15 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 2.40e-01 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 7.232e-08 9.252e-09
25- 50 1.098e-07 1.115e-08
50-150 1.242e-07 2.917e-08
15-150 3.063e-07 3.723e-08

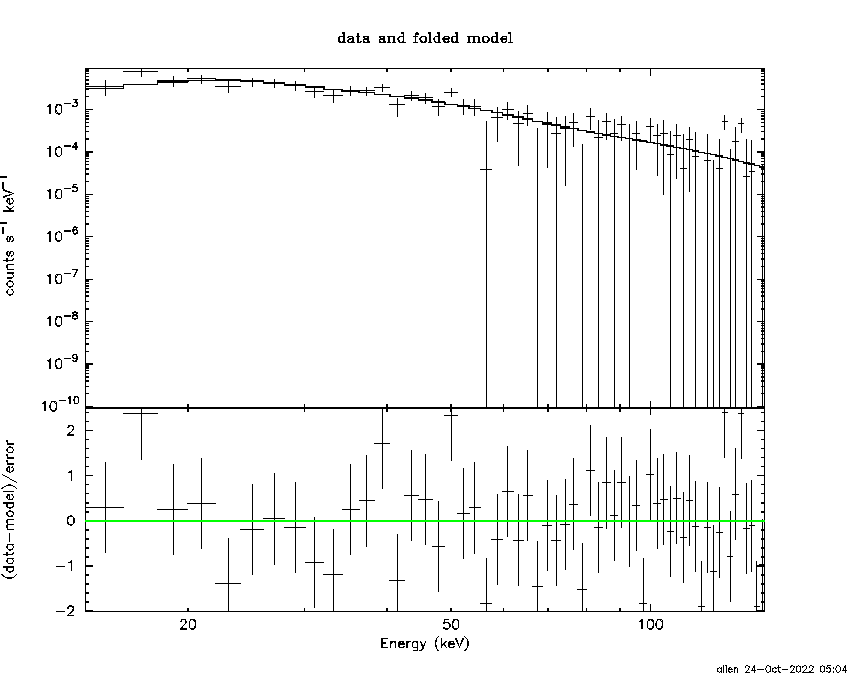

Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 8.59706 (-1.68341 1.30537)
R1^2/D10^2 : 1.04372 (-0.370792 0.578177)
kT2 [keV] : 37.7859 (-28.7508 -46.1479)
R2^2/D10^2 : 1.74048E-03 (-0.000978251 0.0355173)
------------------------------------------------------------
#Fit statistic : Chi-Squared 61.22 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 2.63e-01 with 55 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 6.624e-08 2.853e-08
25- 50 1.210e-07 3.490e-08
50-150 8.079e-08 2.684e-08
15-150 2.681e-07 6.341e-08
Peak spectrum fit

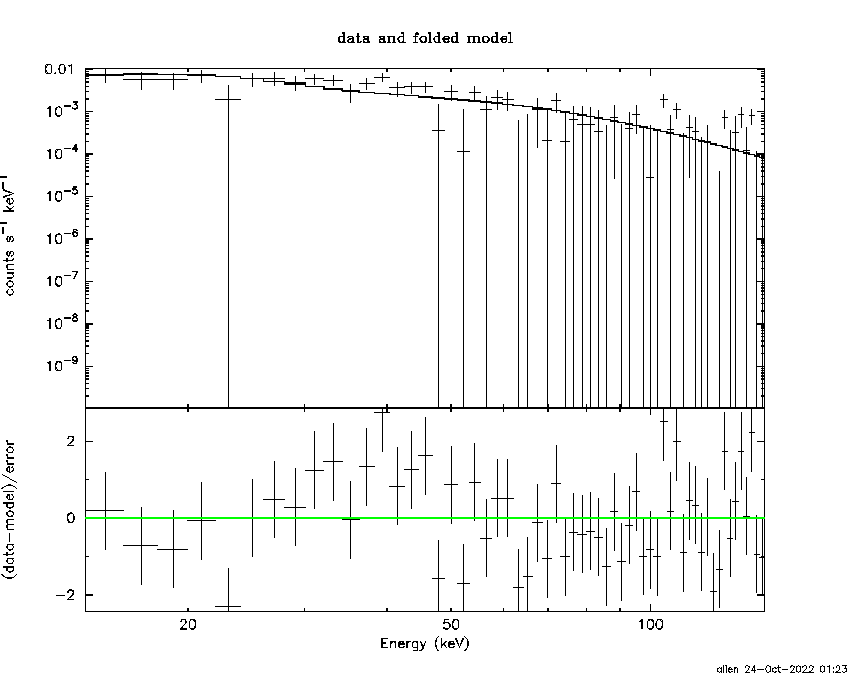

Power-law model
Time interval is from 0.532 sec. to 1.532 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.84901 ( -0.221014 0.232339 )
Norm@50keV : 1.41730E-02 ( -0.00215606 0.00211571 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 78.74 using 59 bins.
Reduced chi-squared = 1.3814
# Null hypothesis probability of 2.98e-02 with 57 degrees of freedom
Photon flux (15-150 keV) in 1 sec: 1.99147 ( -0.26961 0.26991 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.30341e-07 ( -1.96531e-08 1.99213e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 0.532 sec. to 1.532 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: -0.477153 ( -3.41005 1.88774 )
Epeak [keV] : 43.5052 ( -6.34818 19.8681 )
Norm@50keV : 0.312166 ( -0.33181 32.0057 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 73.58 using 59 bins.
Reduced chi-squared = 1.31393
# Null hypothesis probability of 5.76e-02 with 56 degrees of freedom
Photon flux (15-150 keV) in 1 sec: 1.84143 ( -0.31086 0.30455 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.07406e-07 ( -2.156e-08 2.69014e-08 ) ergs/cm2
Band function
Time interval is from 0.532 sec. to 1.532 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 10.6735 (-1.24565 1.46074)
R^2/D10^2 : 0.782113 (-0.306353 0.474905)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared 73.94 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 6.51e-02 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.849e-08 4.170e-09
25- 50 5.028e-08 8.305e-09
50-150 3.159e-08 9.975e-09
15-150 1.004e-07 1.754e-08

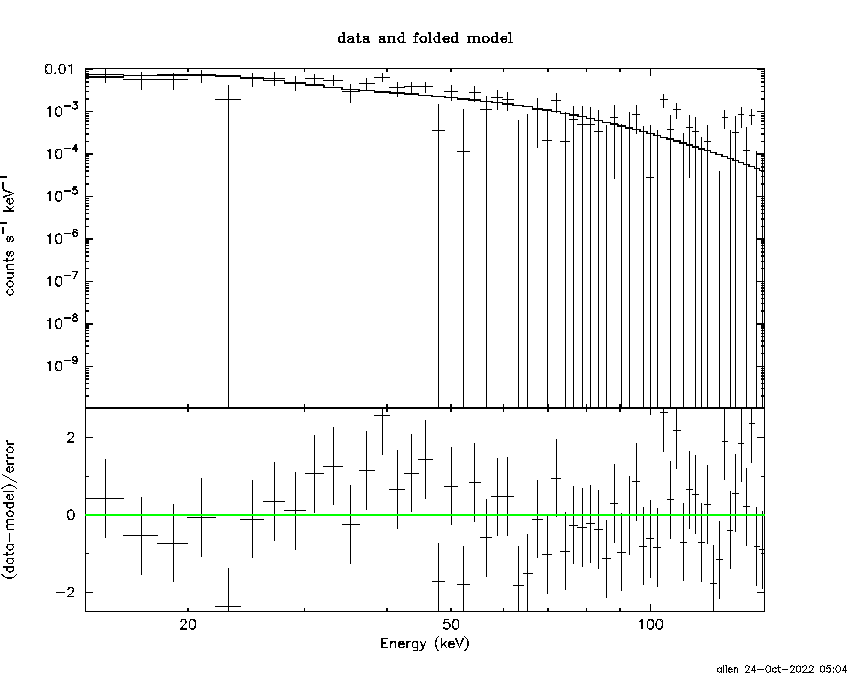

Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 83.6619 (-28.0203 57.6252)
Norm : 9.36619 (-1.71056 2.13357)
------------------------------------------------------------
#Fit statistic : Chi-Squared 75.89 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 4.79e-02 with 57 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.437e-08 4.460e-09
25- 50 4.054e-08 5.835e-09
50-150 5.894e-08 2.985e-08
15-150 1.238e-07 3.614e-08
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 9.77493 (-1.10085 1.46253)
R1^2/D10^2 : 1.02229 (-0.423809 0.480678)
kT2 [keV] : 200.000 (-200 -200)
R2^2/D10^2 : 1.23880E-04 (-7.0555e-05 0.000550089)
------------------------------------------------------------
#Fit statistic : Chi-Squared 66.92 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 1.30e-01 with 55 degrees of freedom
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.925e-08 4.580e-09
25- 50 4.897e-08 8.420e-09
50-150 3.319e-08 1.159e-08
15-150 1.014e-07 2.078e-08
Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.05882 ( -0.167354 0.175524 )
Norm@50keV : 8.85397E-03 ( -0.00103028 0.00101239 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 69.74 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 1.20e-01 with 57 degrees of freedom
Photon flux (15-150 keV) in 3.988 sec: 1.36531 ( -0.131407 0.131543 ) ph/cm2/s
Energy fluence (15-150 keV) : 3.26882e-07 ( -3.51408e-08 3.55852e-08 ) ergs/cm2

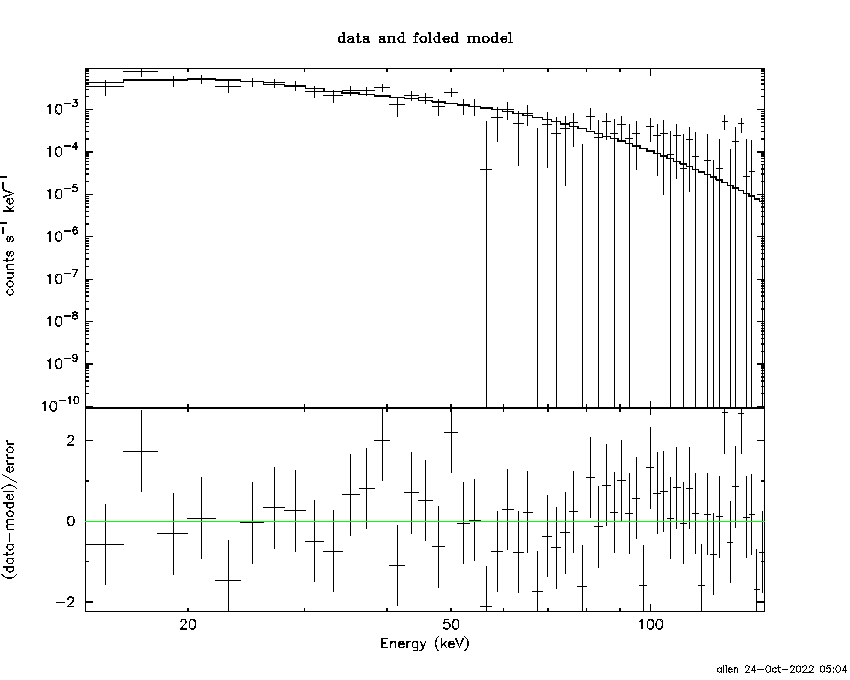

Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.701959 ( -1.28307 0.951425 )
Epeak [keV] : 39.2912 ( -9.31153 8.67454 )
Norm@50keV : 5.40513E-02 ( -0.0542068 0.254616 )
------------------------------------------------------------
#Fit statistic : Chi-Squared 63.17 using 59 bins.
Reduced chi-squared =
# Null hypothesis probability of 2.38e-01 with 56 degrees of freedom
Photon flux (15-150 keV) in 3.988 sec: 1.30125 ( -0.1397 0.1391 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.92361e-07 ( -3.87295e-08 4.16463e-08 ) ergs/cm2

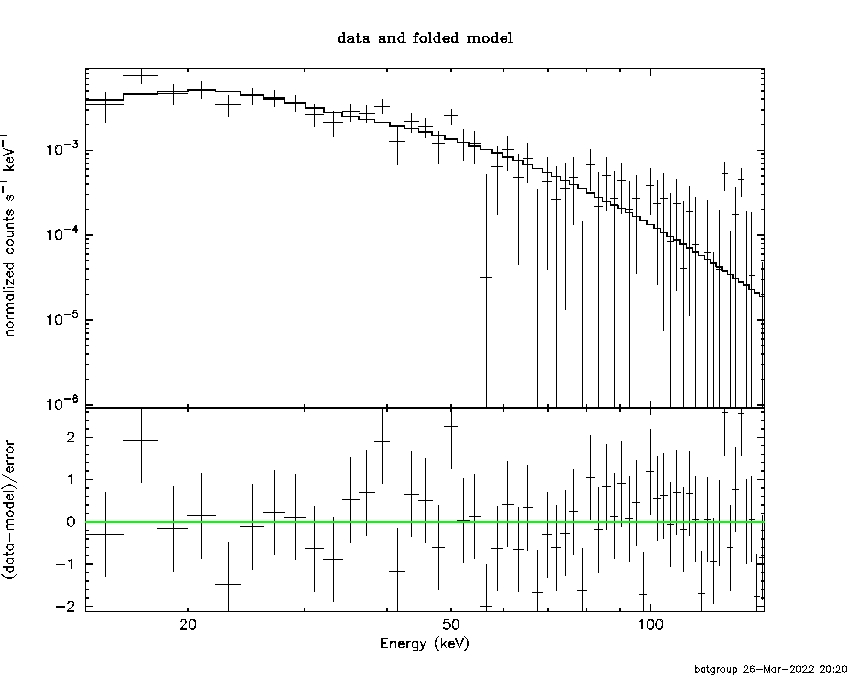

Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : ( )
beta : ( )
Epeak [keV] : ( )
Norm@50keV : ( )
------------------------------------------------------------
Photon flux (15-150 keV) in sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 1.00e-07
S(50-100 keV) = 9.61e-08
T90 vs. Hardness ratio plot
T90 = 3.50399994850159 sec.
Hardness ratio (energy fluence ratio) = 0.961
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 1.27181
Count Ratio (50-100 keV) / (15-25 keV) = 0.441267
Mask shadow pattern
IMX = 7.163621731427516E-01, IMY = 3.406869026124374E-01
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

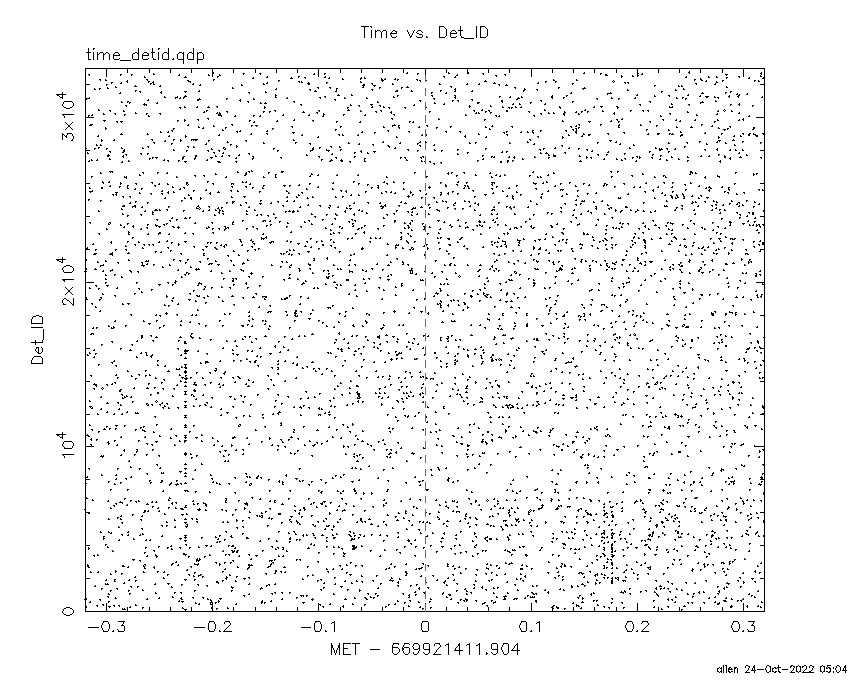

TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000
Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-239.904000 -0.972000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9543 -15.6469 0.6 37.9 16.4 8.6682 19.3 1.5 Sco X-1
254.5921 35.5146 0.0 16.2 -129.8 0.2091 0.7 12.2 Her X-1
263.1260 -24.7694 4.0 50.5 -4.8 1.6145 2.9 6.5 GX 1+4
268.2625 -1.6373 0.0 33.6 -30.0 0.5379 1.6 12.8 SW J1753.5-0127
270.3673 -24.9810 6.2 53.7 -12.1 1.2980 1.9 7.4 GX 5-1
270.3225 -25.6952 6.1 54.3 -11.6 1.3587 1.9 3.1 GRS 1758-258
274.0851 -13.9854 4.9 46.7 -24.1 1.2991 2.3 5.5 GX 17+2
186.6016 66.1629 2.5 56.8 173.8 6.2865 4.7 ------ UNKNOWN
251.2314 59.6020 2.7 37.7 -156.2 1.7744 4.3 ------ UNKNOWN
271.7056 -12.3798 3.5 43.9 -22.9 1.6273 3.3 ------ UNKNOWN
275.1228 -5.6985 2.2 41.3 -33.3 2.4173 5.3 ------ UNKNOWN
272.4614 22.6329 2.6 26.2 -78.6 1.7243 4.5 ------ UNKNOWN
271.5312 51.0681 2.3 35.9 -132.5 2.1166 4.9 ------ UNKNOWN
289.1928 33.6605 4.0 41.2 -98.4 3.7579 3.0 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-0.972000 3.016000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
245.0700 -15.6916 17.2 37.9 16.2 -0.0239 -0.7 6.1 Sco X-1
254.2855 35.4631 18.8 16.0 -130.4 0.0143 0.6 11.1 Her X-1
263.0317 -24.7650 9.2 50.5 -4.7 0.0661 1.2 1.7 GX 1+4
268.2229 -1.3761 5.1 33.4 -30.3 -0.0646 -2.2 9.8 SW J1753.5-0127
270.1872 -25.1110 4.5 53.7 -11.8 -0.1686 -2.6 5.6 GX 5-1
270.2834 -25.7653 4.2 54.3 -11.5 -0.2001 -2.8 1.7 GRS 1758-258
273.9381 -13.9996 5.3 46.6 -23.9 -0.1059 -2.2 4.5 GX 17+2
238.0251 -27.4805 2.5 50.0 24.8 0.3753 4.6 ------ UNKNOWN
248.7964 -10.5766 2.4 33.1 9.3 0.1432 4.8 ------ UNKNOWN
269.4696 -7.0551 0.7 38.4 -25.4 0.5909 17.6 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
92.996630 962.128400
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9848 -15.6514 0.5 25.5 69.7 33.8706 24.3 0.7 Sco X-1
254.5922 35.2123 0.0 44.5 164.1 6.9152 2.5 10.2 Her X-1
256.1500 -37.7951 6.4 33.1 21.1 2.7184 1.8 8.3 4U 1700-377
256.5122 -36.4178 3.9 31.7 21.7 4.3089 3.0 3.7 GX 349+2
262.8538 -24.8915 0.0 19.0 20.4 1.6493 1.6 12.2 GX 1+4
264.7489 -44.4490 36.2 37.6 7.1 0.4912 0.3 0.3 4U 1735-44
268.2840 -1.6048 7.4 5.6 169.1 1.5892 1.6 10.4 SW J1753.5-0127
270.3962 -25.0902 3.3 18.1 -1.1 3.4583 3.5 6.1 GX 5-1
270.4652 -25.8883 0.0 18.9 -1.2 0.5153 0.5 12.4 GRS 1758-258
273.9717 -14.0692 4.7 8.3 -30.1 2.4213 2.5 2.8 GX 17+2
275.7753 -30.4905 37.8 24.2 -11.8 0.3373 0.3 10.7 H1820-303
284.8835 -24.9881 5.1 23.2 -36.0 -2.4012 -2.3 9.2 HT1900.1-2455
288.8096 10.9801 5.3 26.3 -131.4 2.8725 2.2 2.2 GRS 1915+105
299.5758 35.1899 0.9 50.9 -146.5 40.0145 13.3 1.0 Cyg X-1
263.1507 -33.8510 2.8 27.5 13.0 4.3536 4.1 8.1 GX 354-0
252.5791 -13.0605 3.7 17.7 70.3 3.6145 3.1 ------ UNKNOWN
259.6617 49.1904 3.2 56.9 173.9 14.8197 3.7 ------ UNKNOWN
301.2600 -58.5733 2.8 57.0 -17.5 13.6949 4.0 ------ UNKNOWN
312.0692 -21.7689 2.7 43.6 -64.1 22.0018 4.3 ------ UNKNOWN
Plot creation:
Mon Oct 24 05:04:53 EDT 2022
