TDRSS scaled map for 1099310
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 25 Mar 22 17:16:36 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1099310, Seg_Num: 0
GRB_RA: 269.485d {+17h 57m 56s} (J2000),
269.785d {+17h 59m 08s} (current),
268.810d {+17h 55m 15s} (1950)
GRB_DEC: -7.031d {-07d 01' 50"} (J2000),
-7.031d {-07d 01' 52"} (current),
-7.027d {-07d 01' 35"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 4056 [cnts] Image_Peak=234 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 137 E_range: 15-50 keV
BKG_INTEN: 24316 [cnts]
BKG_TIME: 62171.15 SOD {17:16:11.15} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19663 TJD; 84 DOY; 22/03/25
GRB_TIME: 62183.05 SOD {17:16:23.05} UT
GRB_PHI: -25.47 [deg]
GRB_THETA: 38.41 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 15.84 [sigma]
IMAGE_SIGNIF: 10.22 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +1 +0 +0 +1 +9 +0
SUN_POSTN: 4.63d {+00h 18m 30s} +2.00d {+02d 00' 08"}
SUN_DIST: 95.05 [deg] Sun_angle= 6.3 [hr] (West of Sun)
MOON_POSTN: 282.67d {+18h 50m 41s} -26.76d {-26d 45' 48"}
MOON_DIST: 23.22 [deg]
MOON_ILLUM: 45 [%]
GAL_COORDS: 20.46, 8.54 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 269.47, 16.41 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 189.97,20.46 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 25 Mar 22 17:27:04 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1099310, Seg_Num: 0
POINT_RA: 244.042d {+16h 16m 10s} (J2000)
POINT_DEC: +22.213d {+22d 12' 48"} (J2000)
MAP_DATE: 19663 TJD; 84 DOY; 22/03/25
MAP_TIME: 62183.05 SOD {17:16:23.05} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 15.84 [sigma]
IMAGE_SIGNIF: 10.22 [sigma]
MAP_URL: sw01099310000msbsm.fits
SUN_POSTN: 4.63d {+00h 18m 32s} +2.01d {+02d 00' 19"}
MOON_POSTN: 282.78d {+18h 51m 08s} -26.76d {-26d 45' 38"}
MOON_ILLUM: 44 [%]
GAL_COORDS: 38.62, 43.54 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 236.55, 42.68 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

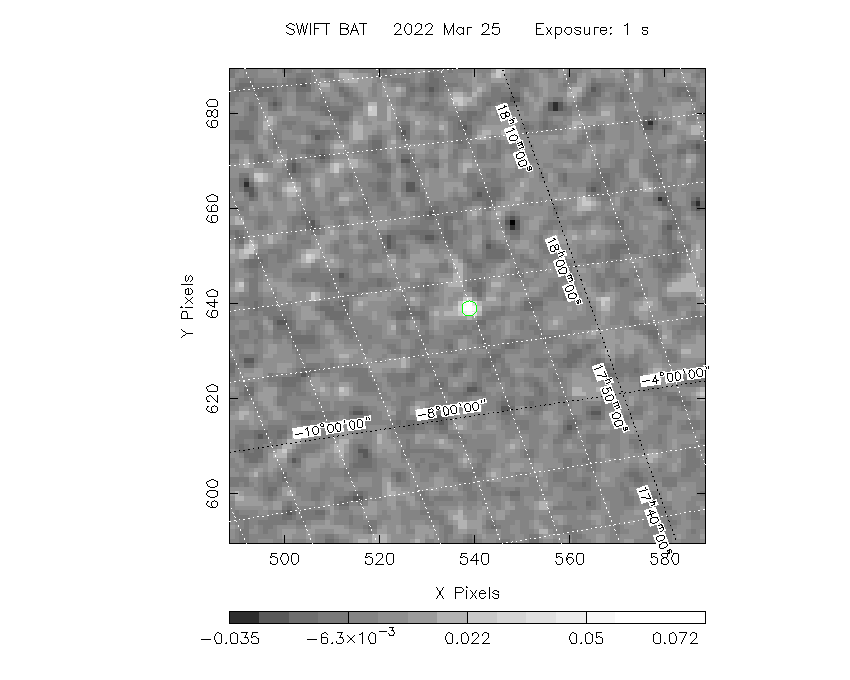

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (269.485, -7.031).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 269.485 -7.031 1.0
3EGJ1757-0711 ( 269.500 , -7.200 ) delta= 0.170
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
213.3119 -3.2075 0.0 39.3 71.5 -0.0298 -1.5 0.0 NGC 5506
244.9795 -15.6402 0.0 37.9 16.4 -0.0105 -1.2 0.0 Sco X-1
254.4576 35.3425 0.0 16.0 -129.8 0.0154 2.7 0.0 Her X-1
257.2333 -32.2833 0.0 55.9 4.4 -0.0156 -0.5 0.0 4U 1705-32
257.5517 -28.1317 0.0 52.0 2.7 0.0003 0.0 0.0 XTE J1710-281
261.3500 -32.9500 0.0 57.6 0.6 -0.0218 -0.5 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 55.7 -0.7 0.0327 1.3 0.0 4U 1722-30
262.9342 -16.9617 0.0 43.3 -9.0 0.0106 1.2 0.0 GX 9+9
262.9892 -33.8347 0.0 58.9 -0.5 -0.0646 -1.0 0.0 4U 1728-34
263.0090 -24.7456 0.0 50.4 -4.7 0.0270 2.0 0.0 GX 1+4
263.3504 -33.3878 0.0 58.6 -1.0 0.0144 0.3 0.0 4U 1730-335
264.5667 -27.0044 0.0 53.1 -5.2 -0.0267 -1.6 0.0 SLX 1735-269
265.9761 -29.7395 0.0 56.1 -5.2 -0.0034 -0.1 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 55.4 -5.8 -0.0680 -3.3 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 55.6 -6.0 -0.0514 -2.4 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 56.1 -5.8 -0.0233 -1.0 0.0 1A 1742-294
266.8579 -29.9994 0.0 56.6 -5.9 0.0015 0.1 0.0 SLX 1744-299
266.9833 -26.5636 0.0 53.6 -7.8 -0.0160 -0.9 0.0 GX 3+1
270.2842 -25.0792 0.0 53.7 -11.9 -0.0004 -0.0 0.0 GX 5-1
270.3025 -25.7431 0.0 54.3 -11.5 -0.0012 -0.1 0.0 GRS 1758-258
270.3846 -20.5289 0.0 49.9 -15.1 0.0179 1.3 0.0 GX 9+1
270.6663 -20.2871 0.0 49.8 -15.5 -0.0209 -1.5 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 48.9 -20.9 -0.0086 -0.7 0.0 GX 13+1
273.8000 -12.0833 0.0 45.0 -25.5 -0.0022 -0.2 0.0 4U 1812-12
274.0058 -14.0364 0.0 46.6 -23.9 -0.0036 -0.3 0.0 GX 17+2
277.3675 -23.7969 0.0 56.3 -19.3 -0.0067 -0.3 0.0 GS 1826-24
278.7590 32.6973 0.0 32.4 -98.6 -0.0079 -0.7 0.0 3C 382
279.9896 5.0358 0.0 38.8 -51.2 -0.0060 -0.6 0.0 Ser X-1
283.8804 -2.6067 0.0 46.1 -44.7 0.0267 1.6 0.0 XTE J1855-026
287.4138 9.8292 0.0 43.3 -62.7 -0.0191 -0.8 0.0 4U 1907+09
287.7208 7.6667 0.0 44.4 -60.0 0.0121 0.4 0.0 4U 1909+07
287.9565 4.9827 0.0 45.8 -56.7 0.0012 0.0 0.0 SS 433
288.5083 9.8883 0.0 44.3 -63.4 -0.0473 -1.2 0.0 IGR J19140+0951
288.7983 10.9456 0.0 44.2 -64.9 0.0498 1.4 0.0 GRS 1915+105
202.7667 42.9383 2.5 39.9 149.0 0.0466 4.6 ------ UNKNOWN
269.4883 -7.0380 1.2 38.4 -25.5 0.0811 10.0 ------ UNKNOWN
280.1319 81.2108 2.4 60.8 -156.2 0.2856 4.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 37.9 16.4 -0.0105 -1.2 0.0 Sco X-1
254.4576 35.3425 0.0 16.0 -129.8 0.0154 2.7 0.0 Her X-1
263.0090 -24.7456 0.0 50.4 -4.7 0.0270 2.0 0.0 GX 1+4
268.3680 -1.4526 0.0 33.5 -30.4 -0.0022 -0.3 0.0 SW J1753.5-0127
270.2842 -25.0792 0.0 53.7 -11.9 -0.0004 -0.0 0.0 GX 5-1
270.3025 -25.7431 0.0 54.3 -11.5 -0.0012 -0.1 0.0 GRS 1758-258
274.0058 -14.0364 0.0 46.6 -23.9 -0.0036 -0.3 0.0 GX 17+2
288.7983 10.9456 0.0 44.2 -64.9 0.0499 1.4 0.0 GRS 1915+105
262.9891 -33.8347 0.0 58.9 -0.5 -0.0648 -1.0 0.0 GX 354-0
202.7667 42.9383 2.5 39.9 149.0 0.0466 4.6 ------ UNKNOWN
269.4883 -7.0380 1.2 38.4 -25.5 0.0811 10.0 ------ UNKNOWN
280.1319 81.2108 2.4 60.8 -156.2 0.2856 4.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 202.7667 Dec. = +42.9383 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 269.4883 Dec. = -7.0380 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 280.1319 Dec. = +81.2108 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)

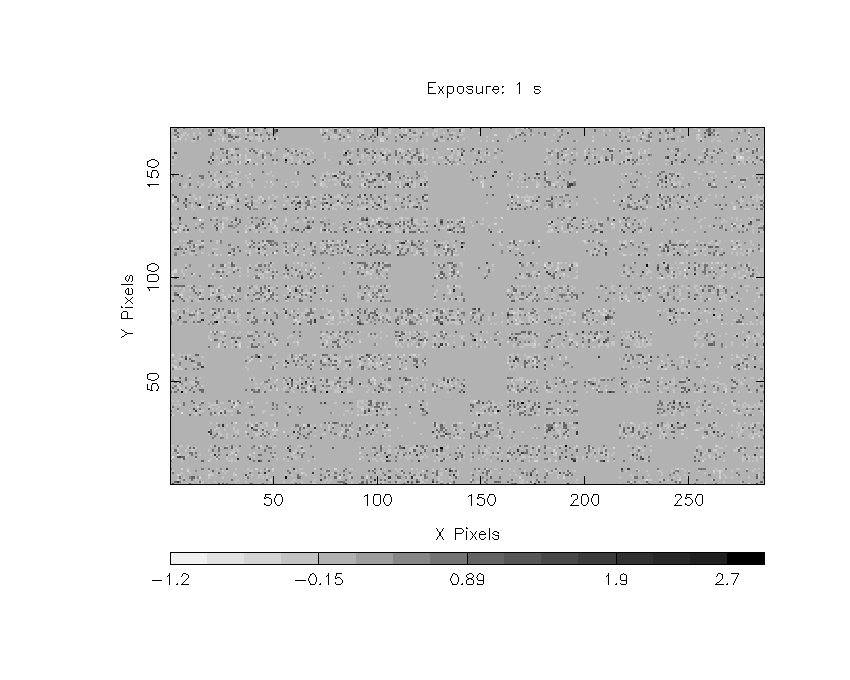

DPI of the scaled map

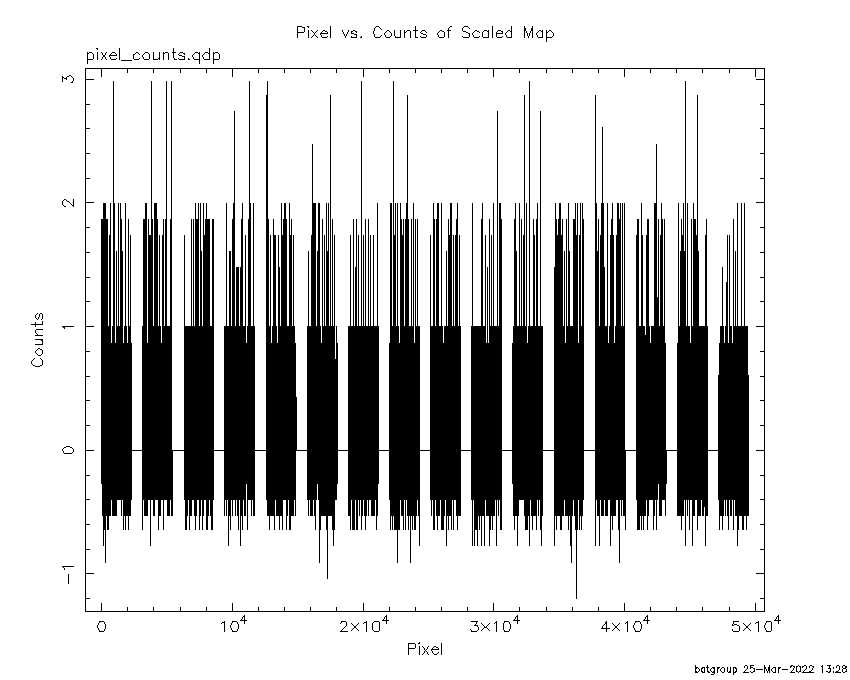

Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1099310/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Fri Mar 25 13:28:14 EDT 2022
