TDRSS scaled map for 1104842
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 01 May 22 19:52:11 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1104842, Seg_Num: 0
GRB_RA: 85.577d {+05h 42m 18s} (J2000),
85.894d {+05h 43m 35s} (current),
84.867d {+05h 39m 28s} (1950)
GRB_DEC: +14.033d {+14d 02' 00"} (J2000),
+14.043d {+14d 02' 34"} (current),
+14.010d {+14d 00' 37"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3195 [cnts] Image_Peak=197 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 155 E_range: 50-350 keV
BKG_INTEN: 15983 [cnts]
BKG_TIME: 71498.93 SOD {19:51:38.93} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19700 TJD; 121 DOY; 22/05/01
GRB_TIME: 71511.22 SOD {19:51:51.22} UT
GRB_PHI: -69.25 [deg]
GRB_THETA: 12.61 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 23.83 [sigma]
IMAGE_SIGNIF: 8.97 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +3 -1 -100 +1 -70 +0
SUN_POSTN: 38.99d {+02h 35m 58s} +15.26d {+15d 15' 22"}
SUN_DIST: 45.31 [deg] Sun_angle= -3.1 [hr] (East of Sun)
MOON_POSTN: 49.89d {+03h 19m 34s} +18.46d {+18d 27' 25"}
MOON_DIST: 34.79 [deg]
MOON_ILLUM: 1 [%]
GAL_COORDS: 192.38, -8.39 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 85.65, -9.34 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 263.54,12.40 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(1.0<100sec) coincident with the FERMI_GBM event (trignum=673127515).
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 01 May 22 20:01:21 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1104842, Seg_Num: 0
POINT_RA: 97.651d {+06h 30m 36s} (J2000)
POINT_DEC: +9.597d {+09d 35' 48"} (J2000)
MAP_DATE: 19700 TJD; 121 DOY; 22/05/01
MAP_TIME: 71511.22 SOD {19:51:51.22} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 23.83 [sigma]
IMAGE_SIGNIF: 8.97 [sigma]
MAP_URL: sw01104842000msbsm.fits
SUN_POSTN: 39.00d {+02h 35m 59s} +15.26d {+15d 15' 29"}
MOON_POSTN: 49.97d {+03h 19m 53s} +18.48d {+18d 29' 02"}
MOON_ILLUM: 1 [%]
GAL_COORDS: 202.03, -0.21 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 97.76,-13.64 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

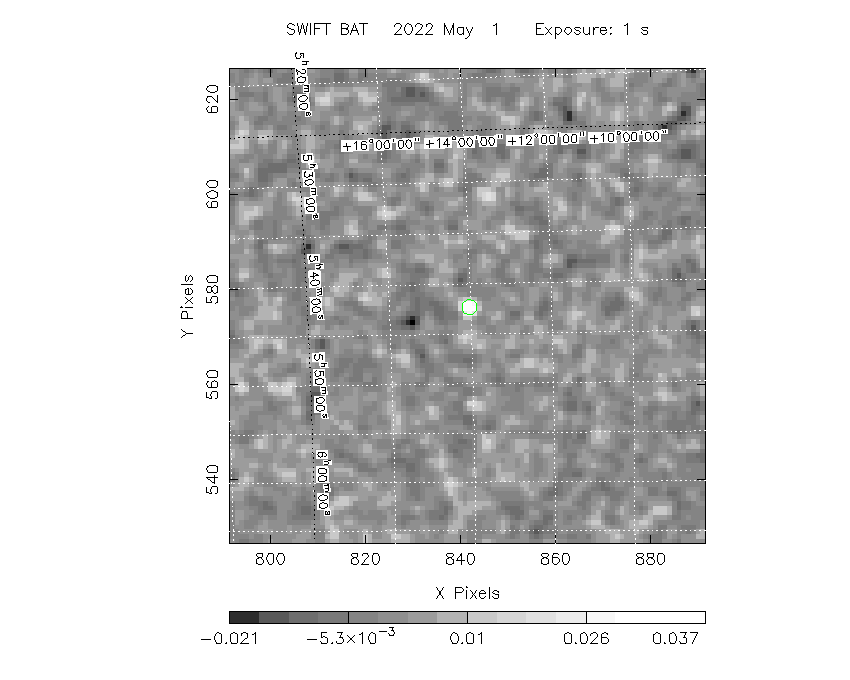

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (85.577, +14.033).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 85.577 +14.033 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
52.8001 43.9046 0.0 51.7 -41.3 -0.0269 -0.9 0.0 GK Per
53.7495 53.1732 0.0 56.0 -31.0 -0.0060 -0.2 0.0 V0332+53
58.8458 31.0497 0.0 41.9 -54.5 -0.0064 -0.5 0.0 X Per
76.4194 -23.8414 0.0 39.4 -149.5 -0.0000 -0.0 0.0 XSS J05054-2348
83.6332 22.0145 0.0 18.3 -46.6 0.0043 0.9 0.0 Crab
88.0474 -7.4562 0.0 19.6 -151.3 -0.0027 -0.5 0.0 NGC 2110
94.2804 9.1369 0.0 3.4 -98.7 0.0004 0.1 0.0 4U 0614+091
133.6934 39.5386 0.0 43.9 40.0 0.0132 0.9 0.0 NGC 2691
124.0102 -6.3073 2.0 30.7 119.3 0.0408 5.7 ------ UNKNOWN
87.4691 -27.9064 2.2 38.8 -166.5 0.0326 5.1 ------ UNKNOWN
85.5906 14.0429 1.4 12.6 -69.2 0.0453 8.5 ------ UNKNOWN
63.5605 -41.9514 2.1 60.3 -152.3 0.4488 5.5 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.6332 22.0145 0.0 18.3 -46.6 0.0043 0.9 0.0 Crab
124.0102 -6.3073 2.0 30.7 119.3 0.0408 5.7 ------ UNKNOWN
87.4691 -27.9064 2.2 38.8 -166.5 0.0326 5.1 ------ UNKNOWN
85.5906 14.0429 1.4 12.6 -69.2 0.0453 8.5 ------ UNKNOWN
63.5605 -41.9514 2.1 60.3 -152.3 0.4488 5.5 ------ UNKNOWN
Search for UNKNOWN source R.A. = 63.5605 Dec. = -41.9514 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 85.5906 Dec. = +14.0429 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 87.4691 Dec. = -27.9064 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 124.0102 Dec. = -6.3073 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1104842/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sun May 1 16:02:18 EDT 2022
