batgrbproduct Analysis for Trigger=1108021

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Fri May 27 11:18:30 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1108021/GCN5_download_cron
======================================================================

  Trigger: 01108021      Segment: 000

  BAT Trigger Time: 675257360   [s; MET]
      Trigger Stop: 675257456   [s; MET]
               UTC: 2022-05-26T11:28:50.793460    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.882992195959   Dec: -15.826487656551  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.61
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.61

  Flight Position:   [ source = BAT ]
    RA: 244.882992195959   Dec: -15.826487656551  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.926654274018   Dec: -15.7720726806221  [deg; J2000]
        { 16h 19m 42.4s , -15d 46' 19.5" }
         +/- 1.64375049340362 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.696480439834805 [arcmin] (formal 1-sigma fit error)
    SNR: 14.9548267251355

  Angular difference between Flight and Ground position is 4.124775 arcmin

  Partial Coding Fraction: 0.4882812    [ including projection effects ]

  Duration
     T90: 179.491999983788 +/- 288.46322300155
        Measured from: 188.660000085831
                   to: 368.152000069618     [s; relative to TRIGTIME]
     T50: 98.944000005722 +/- 319.400411436681
        Measured from: 223.012000083923
                   to: 321.956000089645     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 376.927999973297
                   to: 377.927999973297     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -86.6200000047684
                   to: 394.932000041008     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     8.418016   0.710243  -0.044193   0.037940
           0.226680   0.206003   0.173262   0.171902 [error]
 Peak      0.020195   0.070246   0.033357   0.030233
           0.048789   0.042490   0.033176   0.039869 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.67e-06 4.21e-07 3.08e-08 2.41e-09 3.12e-06 3.12e-06   erg/cm2
              Error 2.72e-07 8.96e-08 1.57e-08 2.12e-09 2.93e-07 2.93e-07   erg/cm2
Peak flux Power-law 1.88e-019.91e-06 2.46e-011.55e-04 2.36e-012.24e-03 4.04e-012.98e-01 8.04e-011.15e-02 1.07e+003.00e-01   ph/cm2/s
              Error 3.85e-01 2.94e-01 2.25e-01 2.37e+00 8.75e-01 2.40e+00   ph/cm2/s

Fluence   Cutoff-PL 2.72e-06 2.70e-07 2.68e-10 7.74e-17 2.99e-06 2.99e-06   erg/cm2
              Error 2.94e-07 1.12e-07 3.28e-09 4.06e-12 3.04e-07 3.04e-07   erg/cm2
Peak flux Cutoff-PL 1.95e-01 2.51e-01 2.36e-01 3.91e-01 8.13e-01 1.08e+00   ph/cm2/s
              Error 3.84e-01 3.03e-01 2.52e-01 -------- 8.75e-01 1.16e+01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.773    0.428    -      -           6.56e-05 2.71e-05   43.420 57
CPL   1.000    0.000      50.0    0.0      1.19e-03 0.00e+00  289.480 56

The chi2 of BB fit is 36.31 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL   -2.853    1.609    -      -           1.28e-05 1.22e-05   45.420 57
CPL   8.519    0.000     358.6    0.0      1.94e-36 0.00e+00   45.420 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  481.552  -86.620  394.932
T90   179.492  188.660  368.152
T50    98.944  223.012  321.956
Peak    1.000  376.928  377.928

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.9267 -15.7721 0.0129   25.5   83.7       5.3401    15.0  TRIG_01108021
------------------------------------------

Foreground time interval of the image:
-20.599  97.870 (delta_t = 118.469 [sec])
 99.000 101.901 (delta_t =   2.901 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

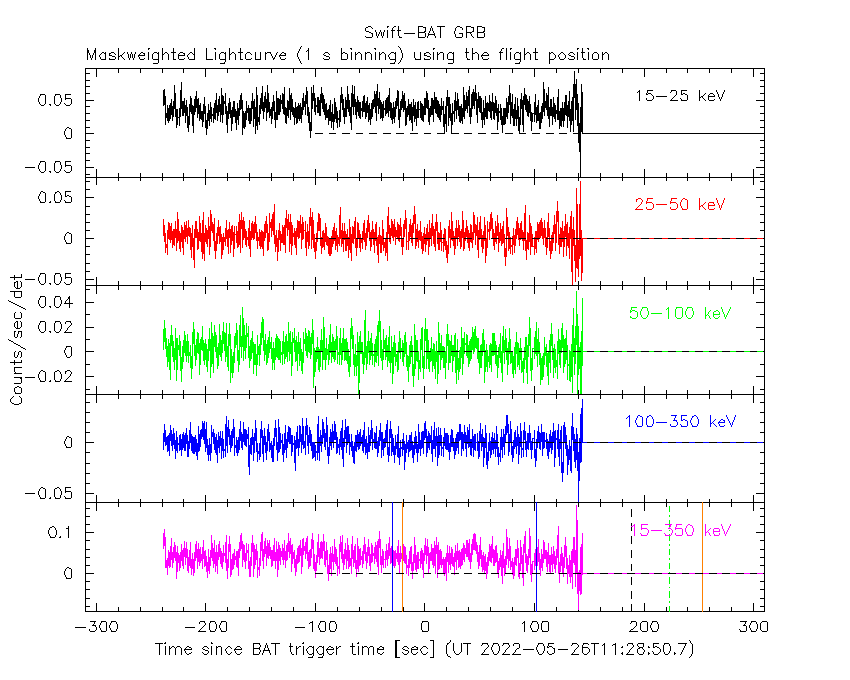

From T0-310 s to T0+310 s

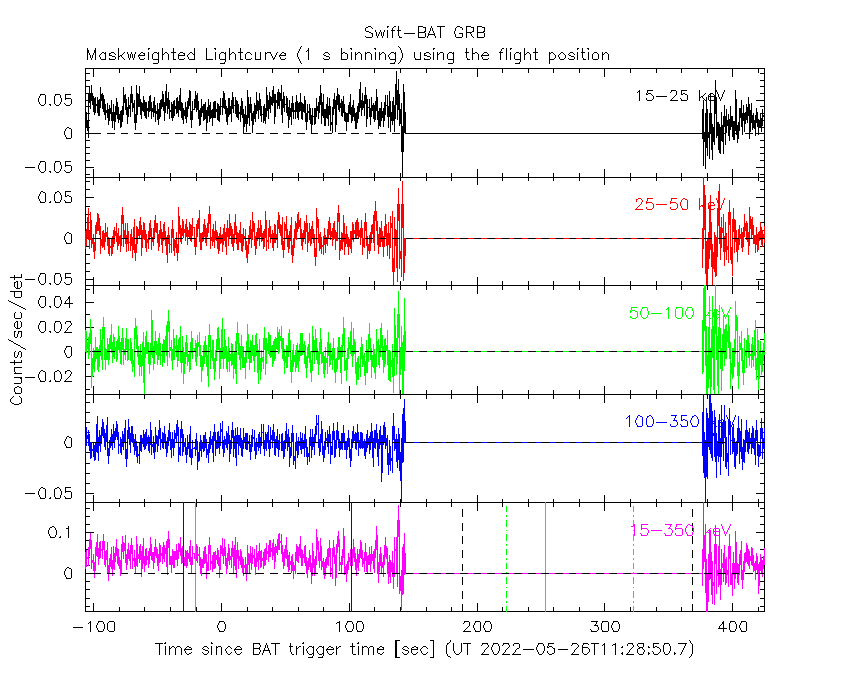

From T100_start - 20 s to T100_end + 30 s

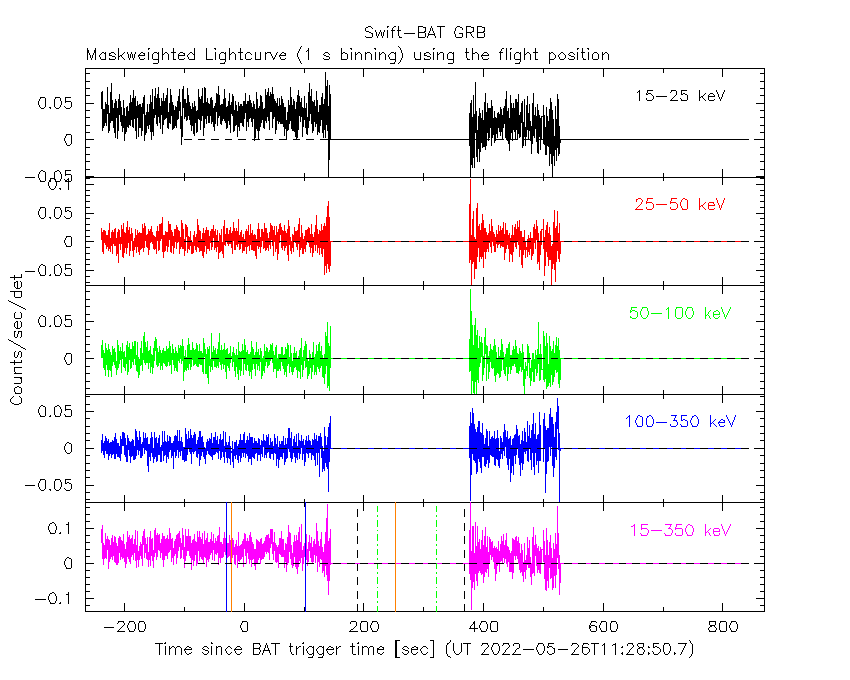

Full time interval

64 ms binning

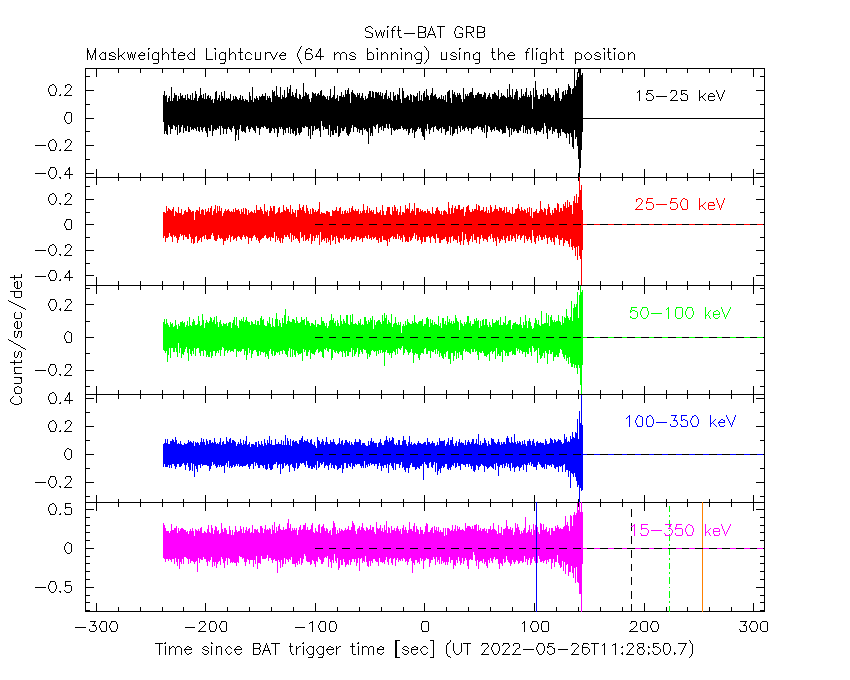

Full time interval

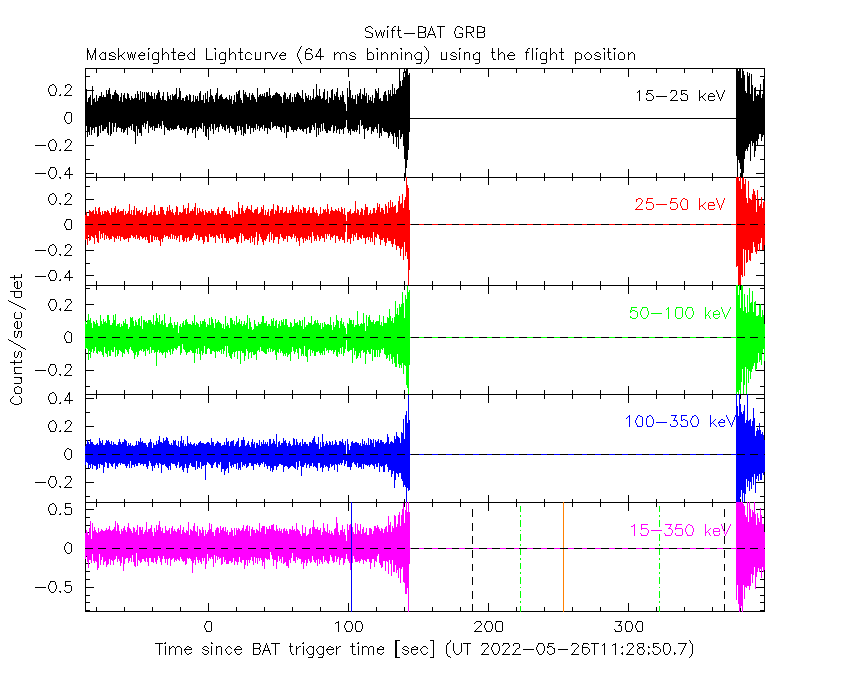

From T100_start to T100_end

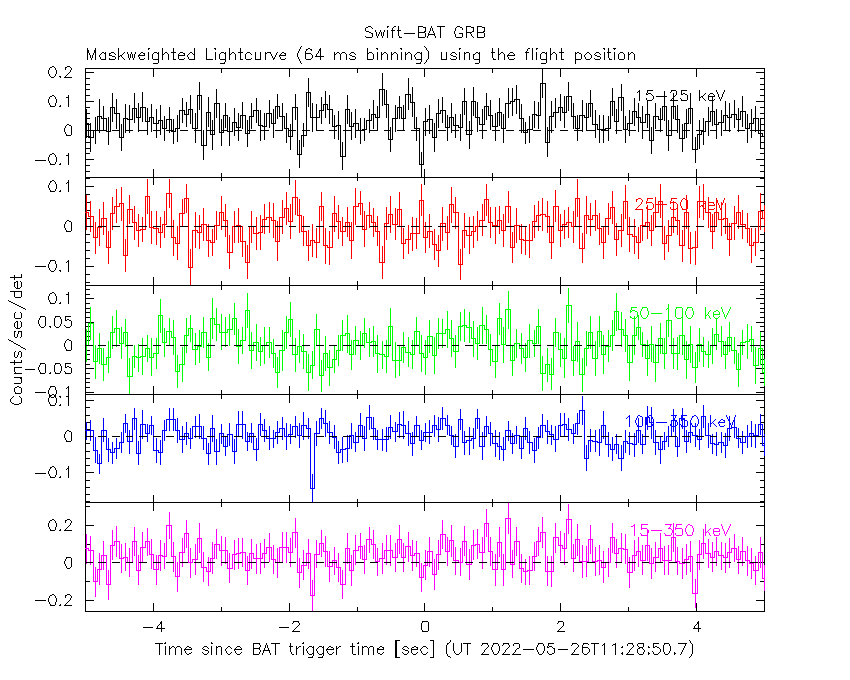

From T0-5 sec to T0+5 sec

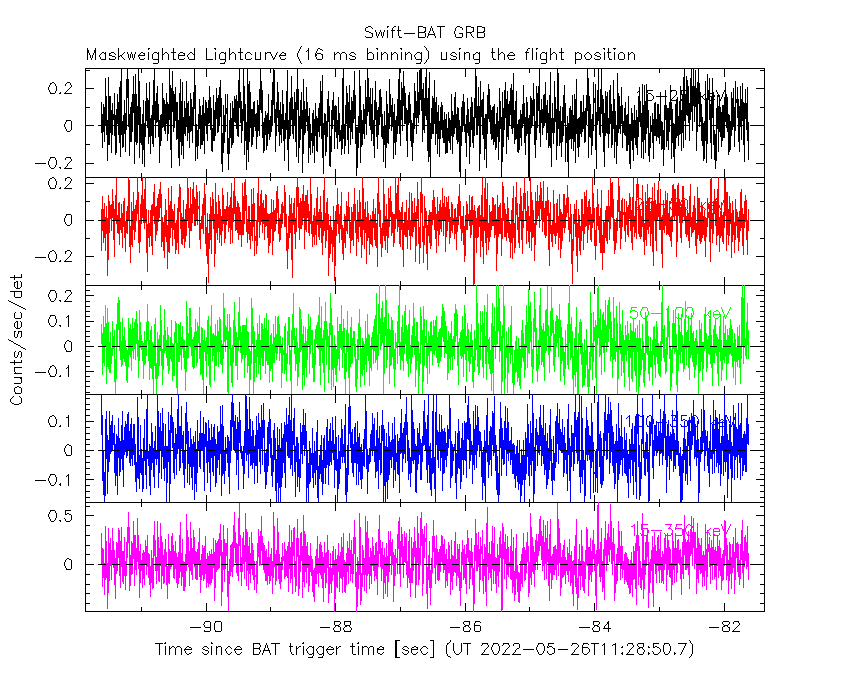

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 96.000000

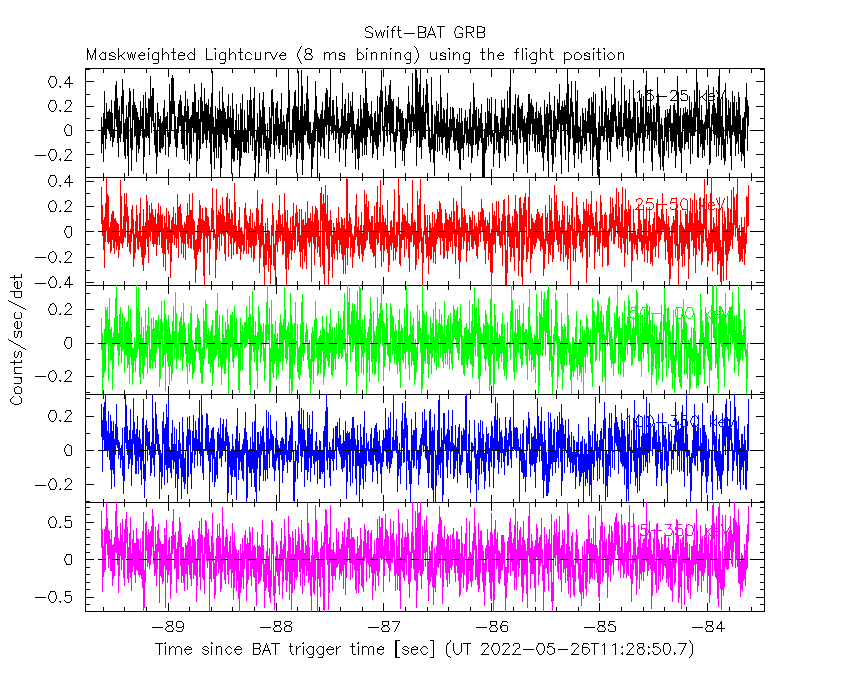

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 96.000000

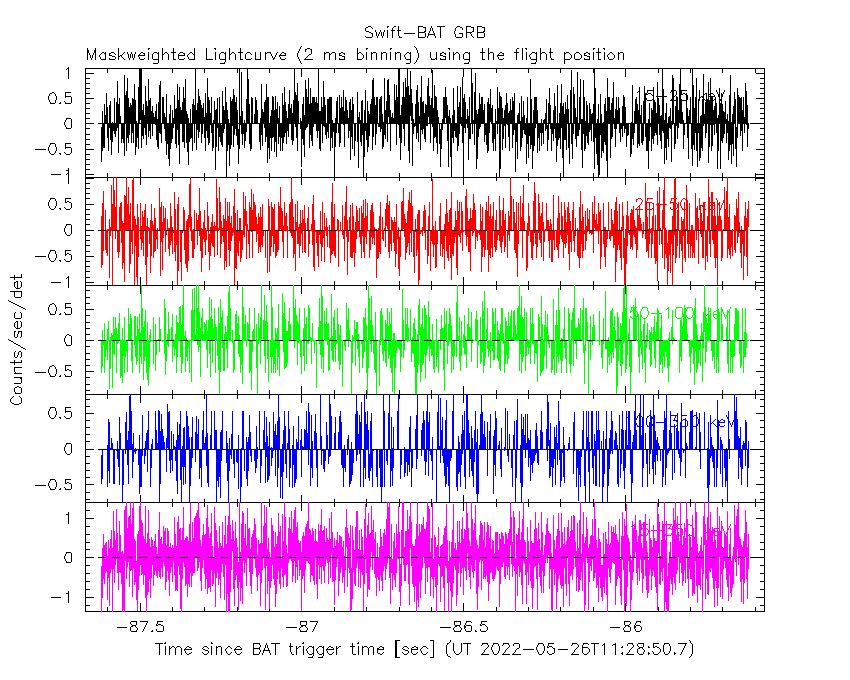

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 96.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-86.620000 -21.730000
-21.000000 97.870000
99.000000 145.660000
147.000000 225.040000
226.000000 394.932000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.77310     ( -0.420023   0.436914 )
Norm@50keV  : 6.55576E-05    ( -2.28732e-05   3.13154e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.42 using 59 PHA bins.
# Reduced chi-squared =         0.7617 for     57 degrees of freedom
# Null hypothesis probability =   9.076601e-01

Photon flux (15-150 keV)    in 477.4 sec: 0.215052 ( -0.0209606  0.0210084 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.12042e-06 ( -2.92496e-07  2.92539e-07 ) ergs/cm2

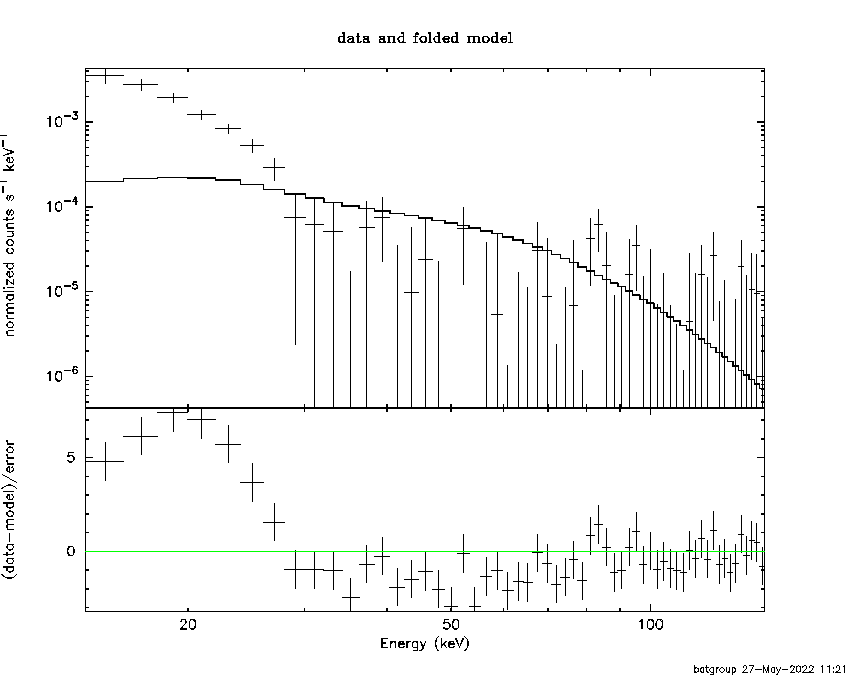

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-86.620000 -21.730000
-21.000000 97.870000
99.000000 145.660000
147.000000 225.040000
226.000000 394.932000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.18510E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         289.48 using 59 PHA bins.
# Reduced chi-squared =         5.1692 for     56 degrees of freedom
# Null hypothesis probability =   3.378117e-33

Photon flux (15-150 keV)    in 477.4 sec: 0.210339 ( -0.022752  0.022353 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.99085e-06 ( -3.05593e-07  3.01459e-07 ) ergs/cm2

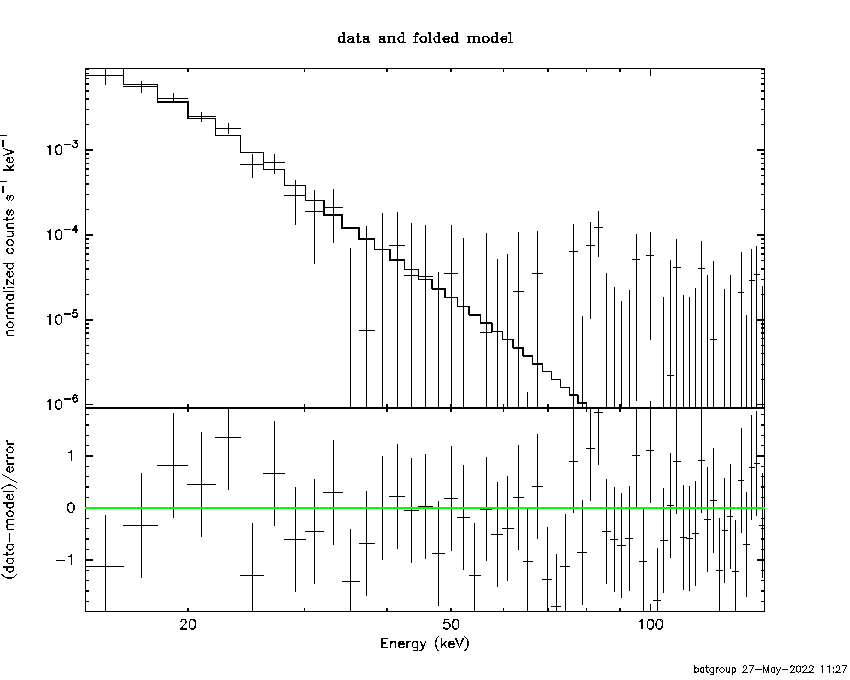

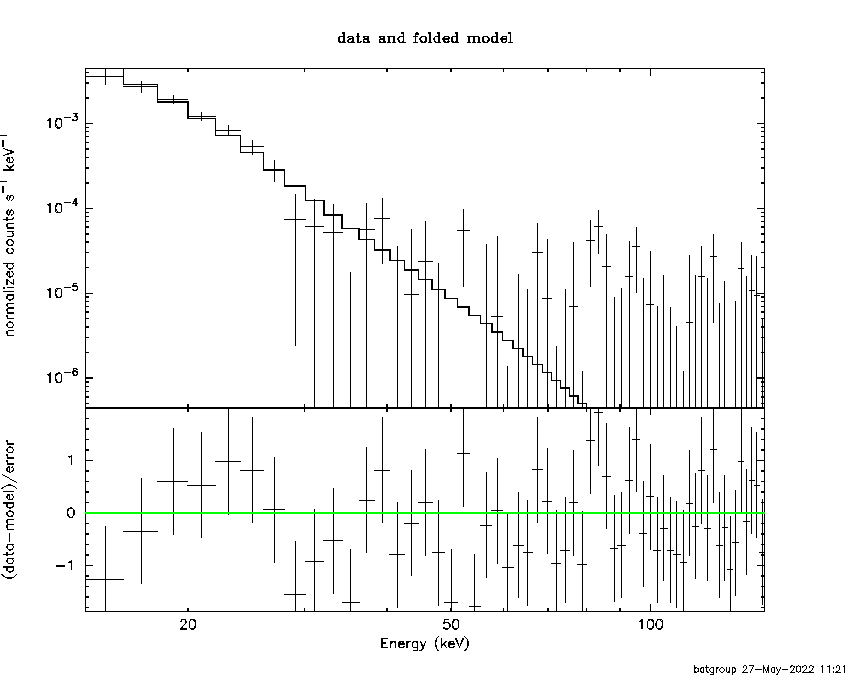

Band function

Multiple GTIs in the spectrum
tstart tstop
-86.620000 -21.730000
-21.000000 97.870000
99.000000 145.660000
147.000000 225.040000
226.000000 394.932000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.60443   ( 5.80628   8.60443 )
beta        : -5.82000    ( -0.402652   0.458797 )
Epeak [keV] : 426.950      ( -426.95 -426.95 )
Norm@50keV   : 8.50613E-03    ( -0.00286718   0.00452236 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.45 using 59 PHA bins.
# Reduced chi-squared =         0.7900 for     55 degrees of freedom
# Null hypothesis probability =   8.696303e-01

Photon flux (15-150 keV)    in 477.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

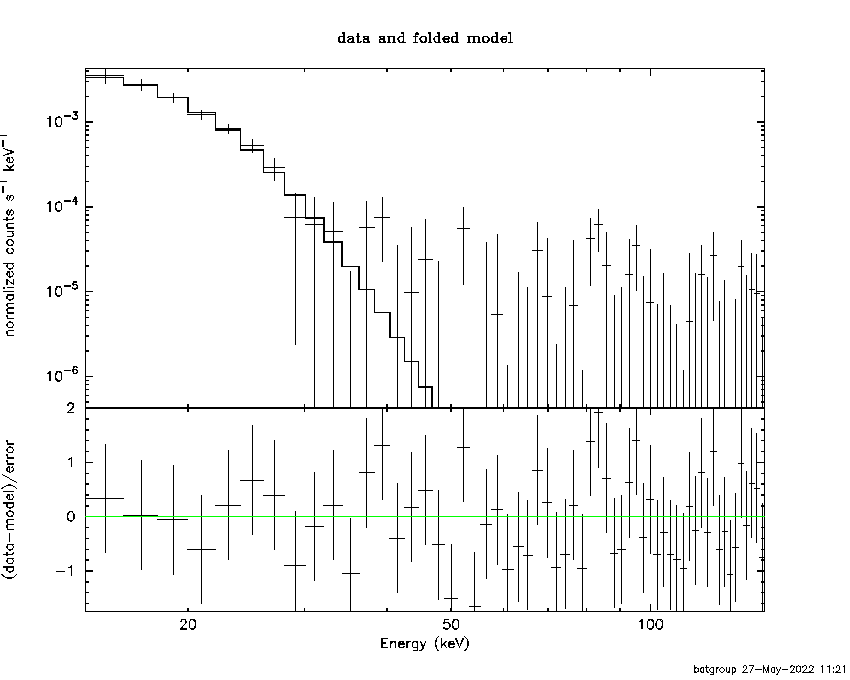

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.66547  (-0.207654  0.233693)
R^2/D10^2   : 66.0246  (-30.9184   58.2167)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.31 using 59 PHA bins.
# Reduced chi-squared =         0.6370 for     57 degrees of freedom
# Null hypothesis probability =   9.851810e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.720e-06   6.595e-07
25- 50  2.573e-07   7.171e-08
50-150  1.493e-10   1.115e-10
15-150  2.977e-06   5.211e-07

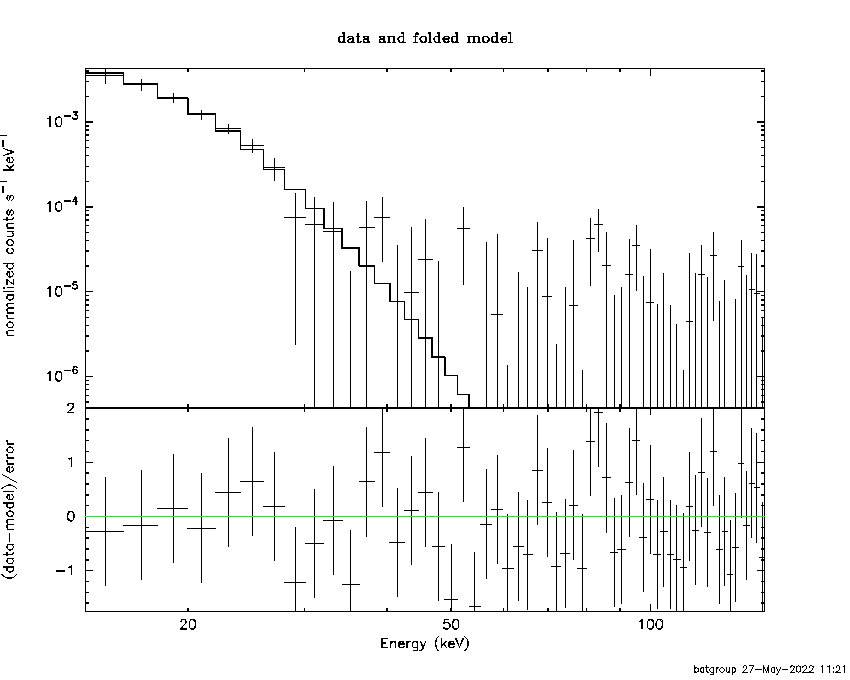

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.79866       (-0.553781      0.667432)
Norm        : 57.2063       (-23.082     39.5599)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.722e-06   4.495e-07
25- 50  3.129e-07   8.080e-08
50-150  1.313e-09   9.391e-10
15-150  3.036e-06   5.583e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.67000        (-0.211478      0.230013)
R1^2/D10^2  : 65.2625        (-30.2214      58.9166)
kT2 [keV]   : 199.363        (-0.834591      -0.834591)
R2^2/D10^2  : 2.47536E-12    (-1.14118e-13   -1.14118e-13)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.720e-06   6.046e-07
25- 50  2.590e-07   7.397e-08
50-150  1.529e-10   1.155e-10
15-150  2.979e-06   6.170e-07

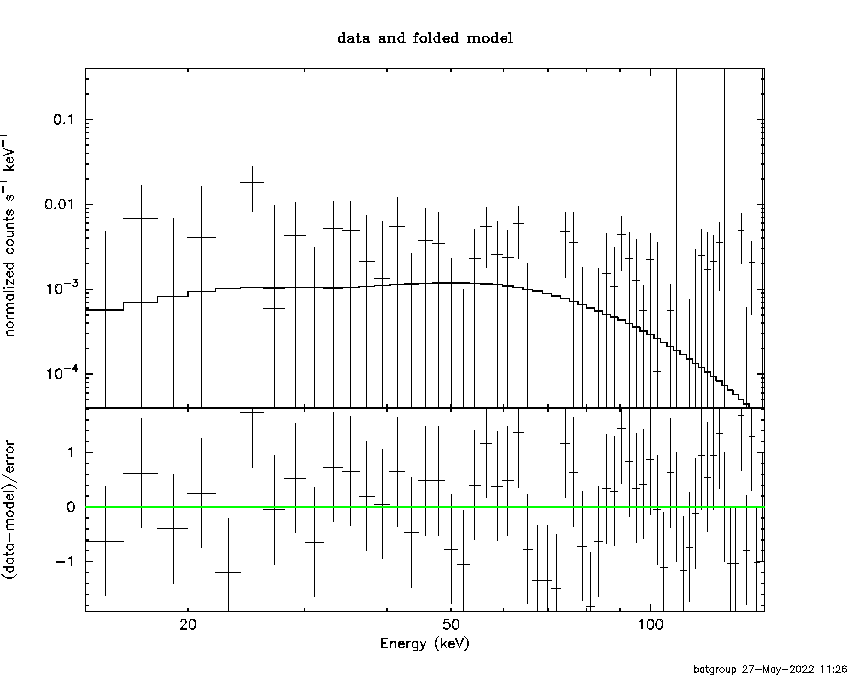

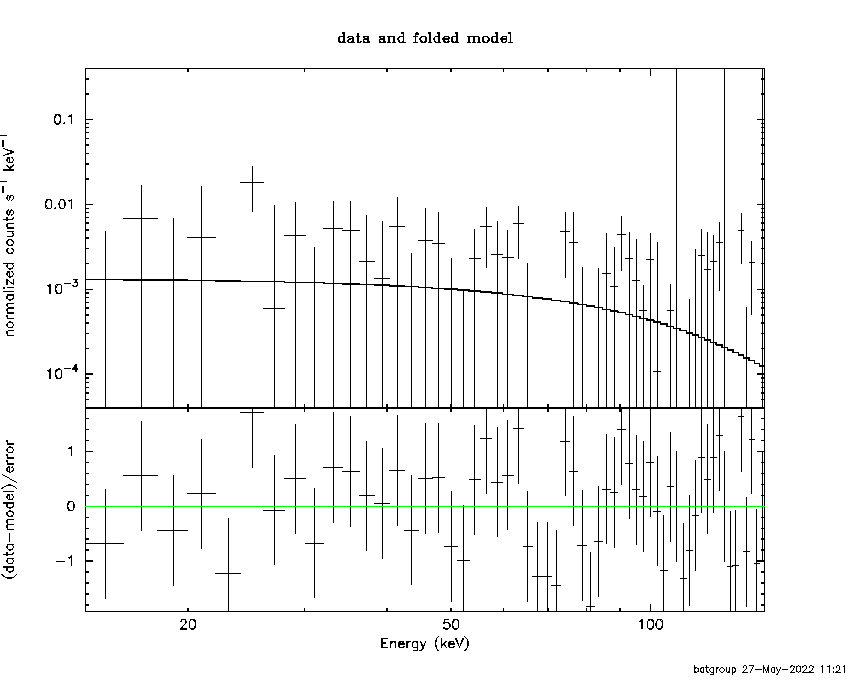

Peak spectrum fit

Power-law model

Time interval is from  376.928 sec. to  377.928 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.85337     ( 2.85337   6.07189 )
Norm@50keV  : 1.28336E-05    ( -1.28336e-05   1.15428e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.42 using 59 PHA bins.
# Reduced chi-squared =         0.7968 for     57 degrees of freedom
# Null hypothesis probability =   8.653433e-01

Photon flux (15-150 keV)    in 1 sec: 0.804440 1.14758E-02 ( -0.804891  0.945918 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.61655e-16 ( -6.66495e-08  6.69009e-08 ) ergs/cm2

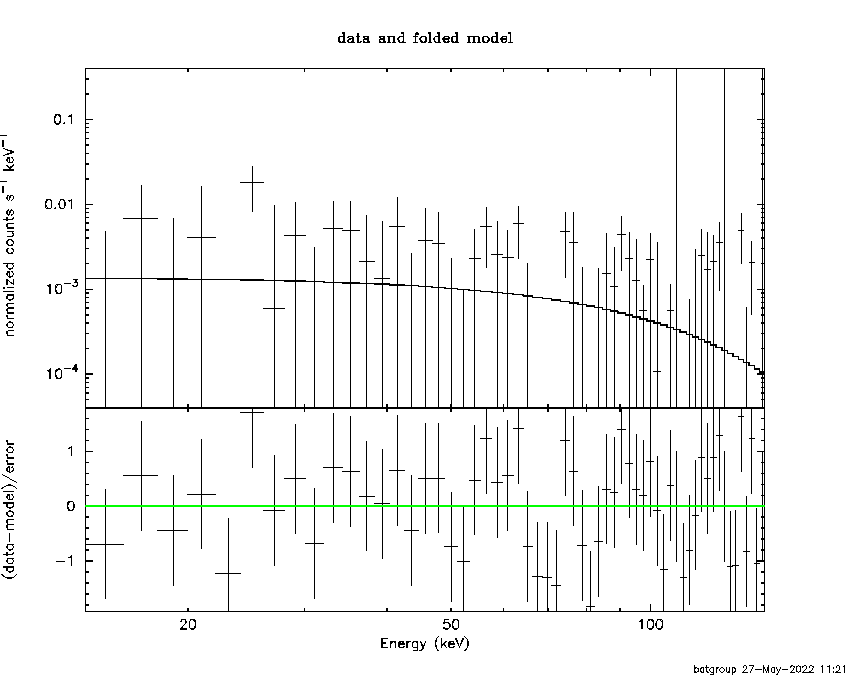

Cutoff power-law model

Time interval is from  376.928 sec. to  377.928 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 8.51879     (     )
Epeak [keV] : 358.553      (   )
Norm@50keV  : 1.93690E-36    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.42 using 59 PHA bins.
# Reduced chi-squared =         0.8111 for     56 degrees of freedom
# Null hypothesis probability =   8.429618e-01

Photon flux (15-150 keV)    in 1 sec: 0.812831 1.63816E-08 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.09075e-22 ( 0  0 ) ergs/cm2

Band function

Time interval is from  376.928 sec. to  377.928 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.96518   -4.96518 )
beta        : -1.46426    ( 1.4182   1.4182 )
Epeak [keV] : 37.2576      (   )
Norm@50keV   : 59.0959    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.27 using 59 PHA bins.
# Reduced chi-squared =         0.8231 for     55 degrees of freedom
# Null hypothesis probability =   8.223088e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.6154  (-23.14  -23.14)
R^2/D10^2   : 2.39659E-02  (-0.0210883   8.49598)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.239e-09   2.035e-09
25- 50  1.203e-08   1.013e-08
50-150  4.599e-08   3.955e-08
15-150  6.027e-08   4.667e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-199.363      -199.363)
Norm        : 3.72899       (-3.72899     8.84461)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.286e-09   6.960e-09
25- 50  1.786e-08   1.381e-08
50-150  3.917e-08   3.047e-08
15-150  6.632e-08   5.255e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 199.363        (-199.363      -199.363)
R1^2/D10^2  : 1.65844E-04        (-0.00017107      80.7289)
kT2 [keV]   : 9.91719        (-9.85962      -9.85962)
R2^2/D10^2  : 0.356088    (-0.357509   -0.357509)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.324e-09   6.250e-09
25- 50  1.928e-08   1.519e-08
50-150  5.281e-08   1.155e-08
15-150  7.942e-08   3.262e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.75822     ( -0.43688   0.456176 )
Norm@50keV  : 1.37600E-04    ( -4.9773e-05   6.89662e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.98 using 59 PHA bins.
# Reduced chi-squared =         0.7541 for     57 degrees of freedom
# Null hypothesis probability =   9.154982e-01

Photon flux (15-150 keV)    in 121.4 sec: 0.444750 ( -0.0445274  0.0446197 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.64238e-06 ( -1.58408e-07  1.58417e-07 ) ergs/cm2

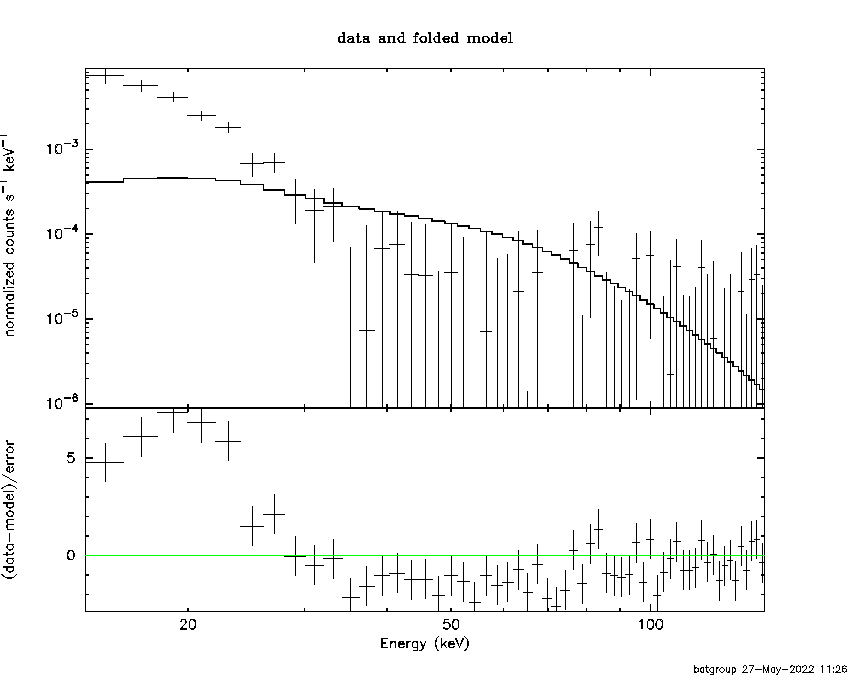

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.45772E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         275.96 using 59 PHA bins.
# Reduced chi-squared =         4.9279 for     56 degrees of freedom
# Null hypothesis probability =   8.081361e-31

Photon flux (15-150 keV)    in 121.4 sec: 0.438092 ( -0.047068  0.046557 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.58614e-06 ( -1.62882e-07  1.61693e-07 ) ergs/cm2

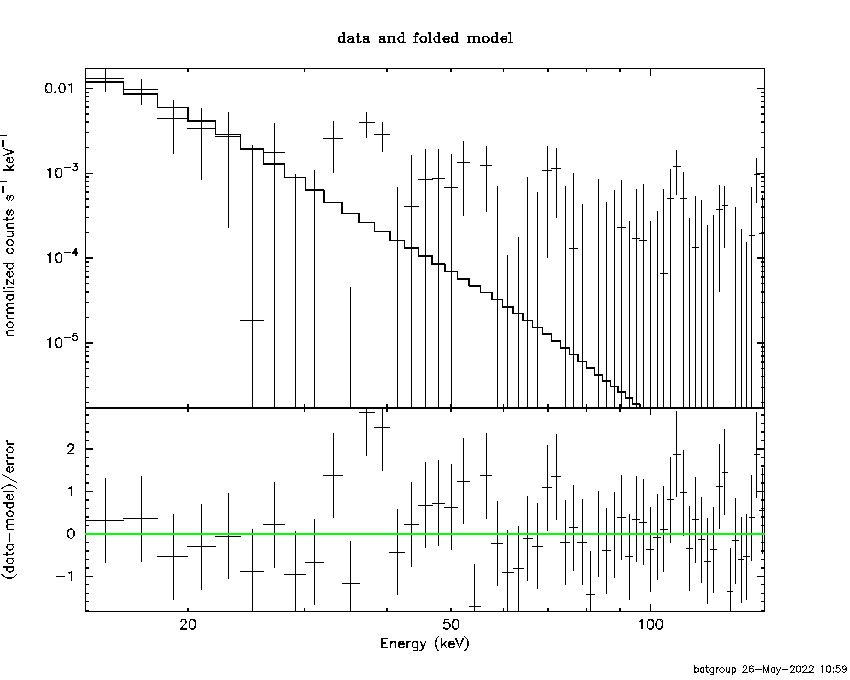

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.49776   ( 5.93451   8.49776 )
beta        : -5.80948    ( -0.418597   0.47961 )
Epeak [keV] : 350.684      ( -350.684 -350.684 )
Norm@50keV   : 1.77764E-02    ( -0.00620363   0.00999472 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.02 using 59 PHA bins.
# Reduced chi-squared =         0.7822 for     55 degrees of freedom
# Null hypothesis probability =   8.795785e-01

Photon flux (15-150 keV)    in 121.4 sec: 0.341023 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.21e-07
S(50-100 keV) = 3.08e-08

T90 vs. Hardness ratio plot

T90                                   = 179.491999983788 sec.
Hardness ratio (energy fluence ratio) = 0.0731591

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0843718
Count Ratio (50-100 keV) / (15-25 keV) = -0.00524981

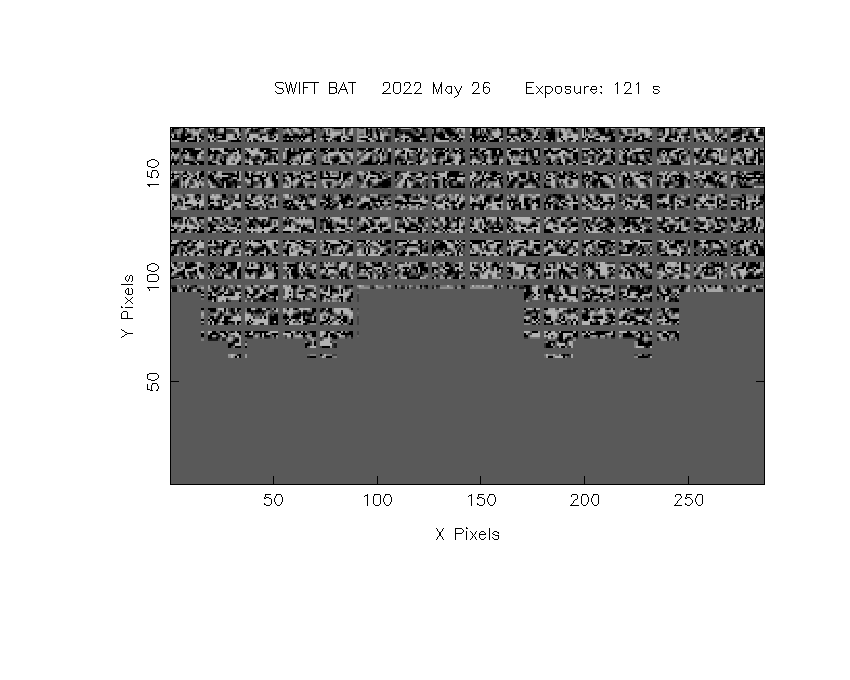

Mask shadow pattern

IMX = 5.263686285649891E-02, IMY = -4.748455084709479E-01

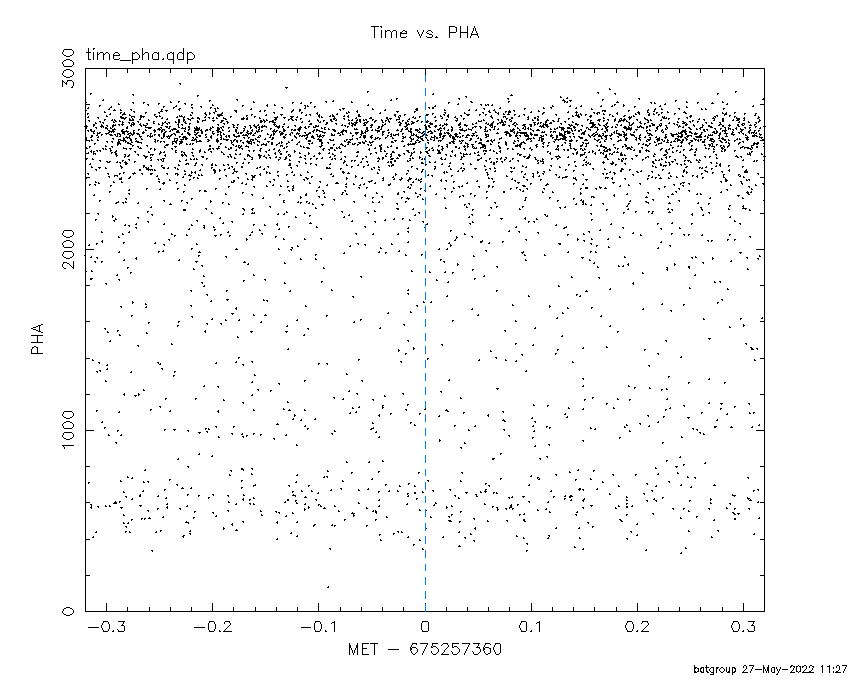

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 96.000000

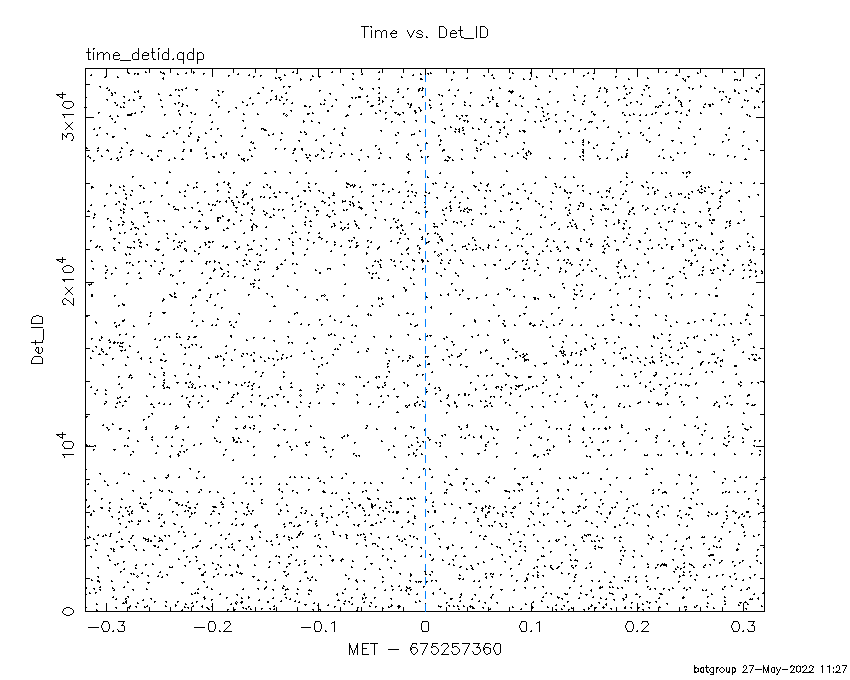

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 96.000000

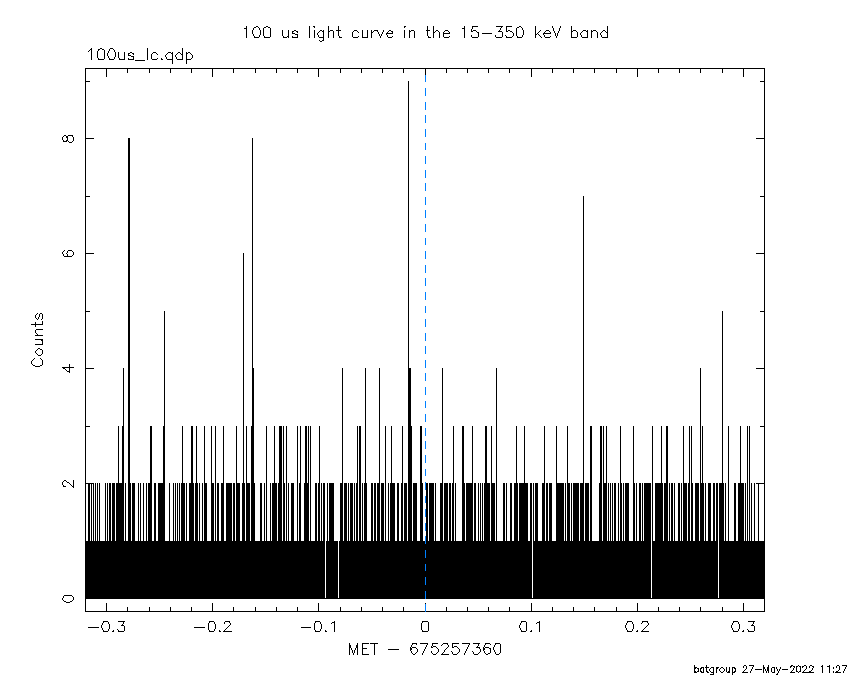

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 96.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-20.599400 97.870000
99.000000 101.900620

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9267 -15.7720    0.8  25.5   83.7   5.3412  15.0    8.5	Sco X-1
256.1674 -37.7743    7.5  11.5   13.0   0.3541   1.5    9.5	4U 1700-377
256.3262 -36.5464    3.3  10.8   18.1   0.8184   3.5    9.1	GX 349+2
263.0360 -24.5727   15.9   7.5  110.0  -0.1737  -0.7   10.5	GX 1+4
264.8532 -44.3223    5.7  13.5  -29.8  -0.5020  -2.0    9.0	4U 1735-44
268.5790  -1.4204    0.0  29.6  144.7  -0.3659  -1.1   12.8	SW J1753.5-0127
270.3535 -25.2454    4.9   6.3  167.4   0.5553   2.4   10.7	GX 5-1
270.3438 -25.7833   18.1   5.8  169.5  -0.1698  -0.7    3.3	GRS 1758-258
274.0082 -14.1659    4.8  17.9  163.6   0.6030   2.4    7.8	GX 17+2
275.8002 -30.4747    4.7   7.2 -129.4   0.5812   2.5    9.1	H1820-303
284.9166 -24.8140    6.0  16.6 -145.1  -0.4462  -1.9    9.1	HT1900.1-2455
288.8168  10.9545   12.0  46.7  171.8   0.6731   1.0    1.2	GRS 1915+105
262.9180 -33.6726    6.4   4.7   15.6   0.4317   1.8   10.4	GX 354-0
273.2704  18.1545    2.3  49.4  149.6   5.2852   5.0 ------	UNKNOWN
199.6931 -55.7419    2.6  52.5    3.3   2.4464   4.4 ------	UNKNOWN
301.7209  -1.0503    3.3  44.1 -163.7   1.5853   3.6 ------	UNKNOWN
312.4474   6.5918    2.9  57.1 -160.9   4.3660   4.0 ------	UNKNOWN
312.1574  -4.7894    3.4  49.5 -150.3   2.0207   3.4 ------	UNKNOWN
314.6449   2.5228    3.8  56.0 -155.5   3.5036   3.0 ------	UNKNOWN
304.7139 -42.8179    2.2  31.8  -95.2   2.0052   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
253.300610 266.100600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
326.1717  38.3217   79.7  42.8  170.0   0.0132   0.1    0.0	Cyg X-2
324.3944  22.6820    2.3  34.6  148.5   0.3561   5.0 ------	UNKNOWN
337.5847  21.8611    2.1  24.2  161.8   0.2950   5.5 ------	UNKNOWN
358.8221  53.5810    2.3  49.5 -153.4   0.5769   5.0 ------	UNKNOWN
 40.0001 -31.3177    2.3  55.9  -24.0   1.0710   5.0 ------	UNKNOWN

Plot creation:
Fri May 27 11:27:28 EDT 2022
