batgrbproduct analysis for trigger=1108515

batgrbproduct Analysis for Trigger=1108515

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue May 31 20:18:51 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1108515/GCN5_download_cron
======================================================================

  Trigger: 01108515      Segment: 000

  BAT Trigger Time: 675617392   [s; MET]
      Trigger Stop: 675617456   [s; MET]
               UTC: 2022-05-30T15:29:22.769060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 299.3527175481   Dec: 35.1396986872402  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.04
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.04

  Flight Position:   [ source = BAT ]
    RA: 299.3527175481   Dec: 35.1396986872402  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 299.408347511064   Dec: 35.1916931626533  [deg; J2000]
        { 19h 57m 38.0s , +35d 11' 30.1" }
         +/- 4.93523142381635 [arcmin] (estimated 90% radius based on SNR)
         +/- 3.57930840974369 [arcmin] (formal 1-sigma fit error)
    SNR: 3.10941766935872

  Angular difference between Flight and Ground position is 4.144596 arcmin

  Partial Coding Fraction: 0.53125    [ including projection effects ]

  Duration
     T90: 293.451999902725 +/- 77.835508052081
        Measured from: -151.415999889374
                   to: 142.036000013351     [s; relative to TRIGTIME]
     T50: 53.2039999961853 +/- 80.9831096083977
        Measured from: -20.1159999370575
                   to: 33.0880000591278     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 16.1640000343323
                   to: 17.1640000343323     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -220.335999965668
                   to: 160.075999975204     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     4.070721   5.029326   3.285806   0.679862
           0.180730   0.183754   0.158404   0.137726 [error]
 Peak      0.032218   0.044450   0.021234   0.003174
           0.009899   0.010062   0.008631   0.007767 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.42e-06 2.19e-06 2.54e-06 5.67e-06 7.83e-06 1.18e-05   erg/cm2
              Error 1.07e-07 9.95e-08 1.62e-07 7.70e-07 3.78e-07 8.98e-07   erg/cm2
Peak flux Power-law 3.97e-01 2.88e-01 1.39e-01 9.44e-02 8.69e-01 9.18e-01   ph/cm2/s
              Error 1.49e-01 8.30e-02 6.76e-02 8.70e-02 2.46e-01 2.65e-01   ph/cm2/s

Fluence   Cutoff-PL 1.31e-06 2.29e-06 2.58e-06 2.84e-06 7.51e-06 9.02e-06   erg/cm2
              Error 1.31e-07 1.22e-07 1.74e-07 1.40e-06 4.41e-07 1.47e-06   erg/cm2
Peak flux Cutoff-PL 3.71e-01 3.18e-01 1.40e-01 3.80e-02 8.57e-01 8.67e-01   ph/cm2/s
              Error 1.65e-01 1.09e-01 1.09e-01 7.11e-02 2.47e-01 2.71e-01   ph/cm2/s

Fluence        Band 1.29e-06 2.29e-06 2.55e-06 3.78e-06 7.51e-06 9.92e-06   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 3.87e-01 3.00e-01 1.42e-01 6.84e-02 8.67e-01 8.97e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- 2.65e-01   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.787    0.083    -      -           2.30e-03 1.08e-04   66.210 57
CPL   1.311    0.359      69.6   34.0      4.04e-03 1.76e-03   60.510 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.055    0.540    -      -           5.64e-03 2.13e-03   56.150 57
CPL   1.301    1.808      39.4    0.0      1.54e-02 0.00e+00   55.640 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  380.412 -220.336  160.076
T90   293.452 -151.416  142.036
T50    53.204  -20.116   33.088
Peak    1.000   16.164   17.164

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  299.4083 +35.1917 0.0617   31.7 -126.8       3.6646     3.1  TRIG_01108515
------------------------------------------

Foreground time interval of the image:
-220.336 -56.917 (delta_t = 163.419 [sec])
-49.000  27.010 (delta_t =  76.010 [sec])
 28.000  36.840 (delta_t =   8.840 [sec])
 39.000  70.601 (delta_t =  31.601 [sec])
Background time interval of the image:
-239.000 -220.336 (delta_t =  18.664 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

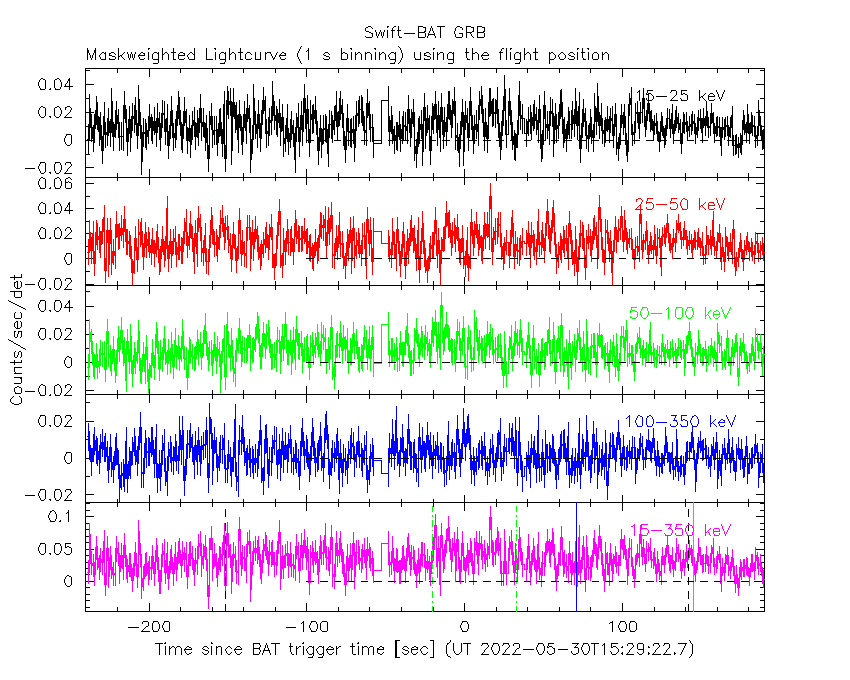

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-220.336000 -56.917000
-49.000000 27.010000
28.000000 36.840000
39.000000 160.076000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.78677     ( -0.082472   0.0833989 )
Norm@50keV  : 2.30123E-03    ( -0.000108513   0.000107985 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.21 using 59 PHA bins.
# Reduced chi-squared =          1.162 for     57 degrees of freedom
# Null hypothesis probability =   1.889213e-01

Photon flux (15-150 keV)    in 369.3 sec: 0.315493 ( -0.0146341  0.0146692 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.82768e-06 ( -3.77583e-07  3.7929e-07 ) ergs/cm2

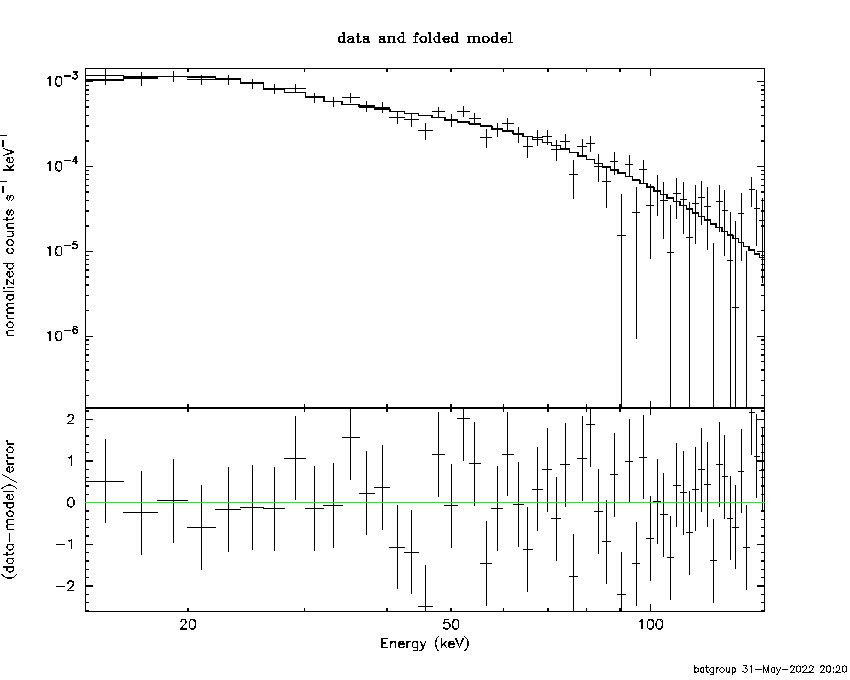

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-220.336000 -56.917000
-49.000000 27.010000
28.000000 36.840000
39.000000 160.076000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.31137     ( -0.373467   0.344316 )
Epeak [keV] : 69.6318      ( -12.8078 55.1592 )
Norm@50keV  : 4.04063E-03    ( -0.00132661   0.00220176 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.51 using 59 PHA bins.
# Reduced chi-squared =          1.081 for     56 degrees of freedom
# Null hypothesis probability =   3.162424e-01

Photon flux (15-150 keV)    in 369.3 sec: 0.306147 ( -0.015975  0.016029 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.51053e-06 ( -4.3991e-07  4.41277e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-220.336000 -56.917000
-49.000000 27.010000
28.000000 36.840000
39.000000 160.076000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.26473   ( -0.372214   1.74566 )
beta        : -2.24929    ( 2.26023   0.43125 )
Epeak [keV] : 66.4573      ( -35.5558 43.2407 )
Norm@50keV   : 4.29546E-03    ( -0.00138346   0.0696698 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.14 using 59 PHA bins.
# Reduced chi-squared =          1.094 for     55 degrees of freedom
# Null hypothesis probability =   2.949178e-01

Photon flux (15-150 keV)    in 369.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.50997e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.8203  (  )
R^2/D10^2   : 5.76035E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         153.53 using 59 PHA bins.
# Reduced chi-squared =         2.6935 for     57 degrees of freedom
# Null hypothesis probability =   8.564961e-11

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.416e-07   6.518e-08
25- 50  2.516e-06   1.370e-07
50-150  2.593e-06   2.565e-07
15-150  5.850e-06   3.342e-07

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 99.9812       (-13.7711      32.4913)
Norm        : 1.38616       (-0.110184     0.0811374)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.338e-06   1.200e-07
25- 50  2.313e-06   1.379e-07
50-150  3.749e-06   1.024e-06
15-150  7.400e-06   1.067e-06

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.26447        (-1.03804      1.17692)
R1^2/D10^2  : 0.504605        (-0.219965      0.475669)
kT2 [keV]   : 20.6145        (-2.72529      4.20335)
R2^2/D10^2  : 7.61218E-03    (-0.00398425   0.00600531)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.259e-06   2.513e-07
25- 50  2.284e-06   3.700e-07
50-150  3.777e-06   6.782e-07
15-150  7.319e-06   1.065e-06

Peak spectrum fit

Power-law model

Time interval is from   16.164 sec. to   17.164 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.05476     ( -0.486754   0.592945 )
Norm@50keV  : 5.64363E-03    ( -0.00219862   0.00207095 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.15 using 59 PHA bins.
# Reduced chi-squared =         0.9851 for     57 degrees of freedom
# Null hypothesis probability =   5.070142e-01

Photon flux (15-150 keV)    in 1 sec: 0.868575 ( -0.246016  0.246018 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.22296e-08 ( -1.78129e-08  1.87807e-08 ) ergs/cm2

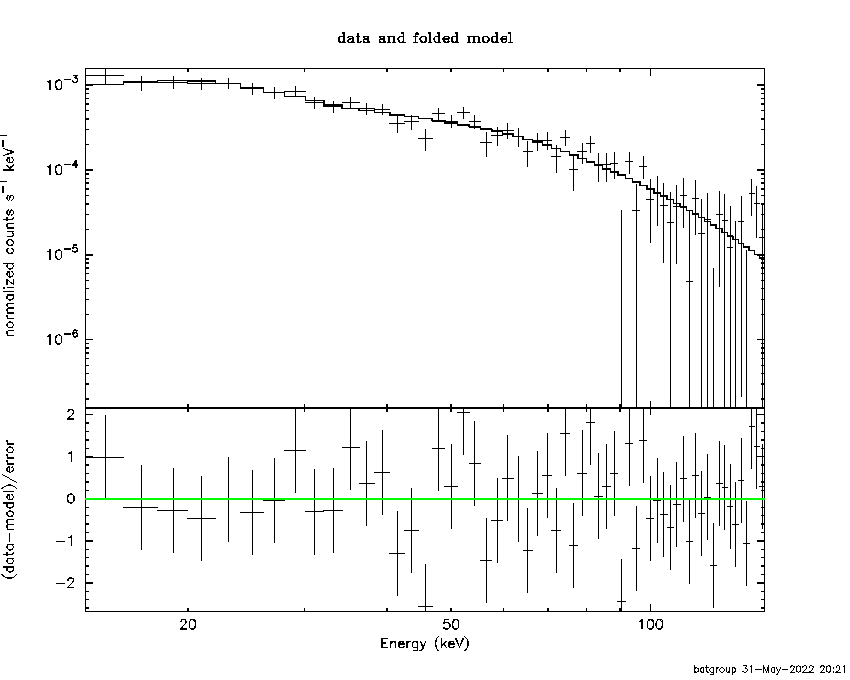

Cutoff power-law model

Time interval is from   16.164 sec. to   17.164 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.30058     ( -2.78029   0.835622 )
Epeak [keV] : 39.3722      (   )
Norm@50keV  : 1.54088E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.64 using 59 PHA bins.
# Reduced chi-squared =         0.9936 for     56 degrees of freedom
# Null hypothesis probability =   4.883638e-01

Photon flux (15-150 keV)    in 1 sec: 0.856922 ( -0.246227  0.246948 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.97398e-08 ( -1.76782e-08  1.96113e-08 ) ergs/cm2

Band function

Time interval is from   16.164 sec. to   17.164 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.28402   ( -6.01084   6.51847 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 39.4762      ( -30.7088 -39.4762 )
Norm@50keV   : 1.57316E-02    ( -0.0157316   0.8181 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.64 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     55 degrees of freedom
# Null hypothesis probability =   4.504421e-01

Photon flux (15-150 keV)    in 1 sec: 0.867371 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.99222e-08 ( -4.99152e-08  -1.79563e-08 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.48404  (-3.0406  4.66929)
R^2/D10^2   : 0.501967  (-0.499993   1.70645)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.011e-09   5.560e-09
25- 50  2.075e-08   1.247e-08
50-150  9.269e-09   6.740e-09
15-150  3.903e-08   2.382e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 61.7708       (-33.4413      123.634)
Norm        : 4.55794       (-1.66479     2.89657)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.151e-08   4.904e-09
25- 50  1.767e-08   1.051e-08
50-150  2.059e-08   1.629e-08
15-150  4.977e-08   2.770e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.33345        (-5.04921      4.86192)
R1^2/D10^2  : 3.07371        (-2.75472      -3.06981)
kT2 [keV]   : 17.7554        (-17.7127      139.556)
R2^2/D10^2  : 3.21470E-02    (-0.0326105   0.478056)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.165e-08   7.210e-09
25- 50  1.667e-08   8.440e-09
50-150  2.167e-08   1.386e-08
15-150  4.999e-08   2.764e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.74693     ( -0.0951535   0.0963896 )
Norm@50keV  : 2.32168E-03    ( -0.000128039   0.000127309 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.62 using 59 PHA bins.
# Reduced chi-squared =          1.046 for     57 degrees of freedom
# Null hypothesis probability =   3.804714e-01

Photon flux (15-150 keV)    in 279.9 sec: 0.313577 ( -0.0168358  0.0168712 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.99736e-06 ( -3.42052e-07  3.43997e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.29141     ( -0.422446   0.3862 )
Epeak [keV] : 75.1087      ( -16.4625 127.621 )
Norm@50keV  : 3.98182E-03    ( -0.00143232   0.00252789 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.52 using 59 PHA bins.
# Reduced chi-squared =         0.9913 for     56 degrees of freedom
# Null hypothesis probability =   4.931576e-01

Photon flux (15-150 keV)    in 279.9 sec: 0.305227 ( -0.018148  0.018191 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.77123e-06 ( -3.91356e-07  3.9256e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.29139   ( -0.299454   0.297278 )
beta        : -9.51402    ( 9.51402   19.514 )
Epeak [keV] : 75.0943      ( -14.527 127.788 )
Norm@50keV   : 3.98140E-03    ( -0.000204288   0.00253119 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.52 using 59 PHA bins.
# Reduced chi-squared =          1.009 for     55 degrees of freedom
# Null hypothesis probability =   4.551956e-01

Photon flux (15-150 keV)    in 279.9 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.66576e-06 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.19e-06
S(50-100 keV) = 2.54e-06

T90 vs. Hardness ratio plot

T90                                   = 293.451999902725 sec.
Hardness ratio (energy fluence ratio) = 1.15982

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.23549
Count Ratio (50-100 keV) / (15-25 keV) = 0.80718

Mask shadow pattern

IMX = -3.697836793257816E-01, IMY = 4.945643293723582E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -220.336000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4768  35.4994    4.8  41.1  171.6   0.2475   2.4    9.5	Her X-1
263.1998 -24.7474    6.5  37.9   66.2  -0.3199  -1.8   10.4	GX 1+4
268.3669  -1.6223    8.3  19.0   98.1  -0.1005  -1.4   10.2	SW J1753.5-0127
270.4233 -25.0112    6.0  34.5   56.6  -0.2247  -1.9    8.6	GX 5-1
270.2382 -25.9112    0.0  35.4   56.1  -0.1938  -1.5   10.7	GRS 1758-258
273.7960 -13.9879   60.6  23.3   62.1   0.0147   0.2   12.6	GX 17+2
275.9590 -30.2081    7.1  37.5   45.6   0.2172   1.6    9.7	H1820-303
285.0738 -24.9810   11.8  31.1   32.8   0.0834   1.0    4.2	HT1900.1-2455
288.8566  10.8056    7.8   5.6 -115.2  -0.0905  -1.5    9.1	GRS 1915+105
299.5159  35.1507    1.6  31.7 -126.6   0.6140   7.2    4.8	Cyg X-1
308.2033  40.8414    8.2  40.1 -121.7   0.1986   1.4    7.9	Cyg X-3
253.1674 -15.0952    2.9  38.6   88.0   0.9131   4.0 ------	UNKNOWN
241.9374  16.6897    2.2  44.1  139.4   0.9933   5.3 ------	UNKNOWN
242.1223  43.2210    2.4  53.3  172.8   1.0405   4.8 ------	UNKNOWN
317.8827 -35.8637    2.0  51.7   -1.7   0.8189   5.6 ------	UNKNOWN
259.4065  57.7413    2.6  55.6 -165.0   0.9084   4.5 ------	UNKNOWN
293.7963  44.5199    2.3  39.1 -139.2   0.4857   5.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-220.336000 -56.917000
-49.000000 27.010000
28.000000 36.840000
39.000000 70.600630

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4811  35.4954    5.1  41.1  171.6  -3.1571  -2.3    9.2	Her X-1
263.1182 -24.7823    5.5  37.9   66.2   5.3355   2.1    6.3	GX 1+4
268.3826  -1.6122    7.0  19.0   98.1   1.6582   1.7    9.6	SW J1753.5-0127
270.3994 -24.9789    7.7  34.5   56.7   2.5231   1.5    8.7	GX 5-1
270.4197 -25.7037    7.9  35.1   56.1  -2.5817  -1.5    6.8	GRS 1758-258
274.1236 -14.1342   12.2  23.3   61.2   1.0400   0.9    9.0	GX 17+2
275.9222 -30.3717  278.2  37.7   45.5   0.0780   0.0    0.3	H1820-303
284.9299 -25.0182    5.0  31.1   33.0  -2.8001  -2.3    8.2	HT1900.1-2455
288.8356  10.7932    4.4   5.6 -115.3   2.2629   2.6    9.4	GRS 1915+105
299.4082  35.1917    3.7  31.7 -126.8   3.6646   3.1    8.9	Cyg X-1
308.2177  40.8443    4.9  40.1 -121.7  -4.6120  -2.3    8.1	Cyg X-3
245.5421  25.1738    2.7  42.9  152.5   8.0483   4.3 ------	UNKNOWN
266.3613   1.4261    2.0  19.9  108.8   5.4915   5.9 ------	UNKNOWN
259.0764  52.2148    2.1  51.1 -169.1  11.7251   5.5 ------	UNKNOWN
285.9348  55.7411    2.2  49.6 -148.2  12.4872   5.3 ------	UNKNOWN
331.1526  -9.3159    1.9  47.8  -39.9  13.7867   5.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
144.900600 424.960000
426.000000 458.210000
459.000000 521.550000
525.000000 600.500000
601.000000 950.030000
951.000000 956.400000
959.000000 959.230000
960.000000 963.120000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3791  35.4362    6.4  36.5  145.0  -4.4796  -1.8    6.8	Her X-1
288.9950  10.9373    7.8  26.0   65.1   2.7248   1.5   11.6	GRS 1915+105
299.5826  35.2009    0.4   0.1  -77.1  34.7858  28.5    0.4	Cyg X-1
308.1069  41.0158    2.9   9.0  -92.3   4.8404   4.0    3.8	Cyg X-3
326.1601  38.2939    4.8  21.5  -65.2   3.5069   2.4    1.8	Cyg X-2
297.9893  -9.8719    2.4  45.1   43.1  12.9594   4.7 ------	UNKNOWN
218.8258  53.8127    2.6  57.1  177.1  21.6574   4.3 ------	UNKNOWN
292.8293  40.8415    2.5   7.7 -179.6   5.5303   4.7 ------	UNKNOWN
308.0015  37.6563    1.7   7.3  -71.5   7.9653   6.7 ------	UNKNOWN
225.0008  64.8780    3.5  52.1 -170.2  13.5046   3.3 ------	UNKNOWN
336.3301   5.1123    2.7  45.3  -16.1   8.6335   4.2 ------	UNKNOWN
239.7100  68.7543    2.7  46.7 -164.4  11.7452   4.3 ------	UNKNOWN

Plot creation:
Tue May 31 20:21:57 EDT 2022
