batgrbproduct Analysis for Trigger=1108538

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue May 31 20:14:18 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1108538/GCN5_download_cron
======================================================================

  Trigger: 01108538      Segment: 000

  BAT Trigger Time: 675635575.88   [s; MET]
      Trigger Stop: 675635575.896   [s; MET]
               UTC: 2022-05-30T20:32:26.647840    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 293.71420400356   Dec: 21.9012441525763  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    22.93
     Image Trigger?:     NO
     Rate S/N Ratio:     255.998046867549  [ if not an image trigger ]
     Image S/N Ratio:    22.93

  Flight Position:   [ source = BAT ]
    RA: 293.71420400356   Dec: 21.9012441525763  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 293.726411300169   Dec: 21.8916599275078  [deg; J2000]
        { 19h 34m 54.3s , +21d 53' 30.0" }
         +/- 0.625203837765301 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.214463436486806 [arcmin] (formal 1-sigma fit error)
    SNR: 59.4998737104746

  Angular difference between Flight and Ground position is 0.890248 arcmin

  Partial Coding Fraction: 0.8671875    [ including projection effects ]

  Duration
     T90: 0.111999988555908 +/- 0.0164924703816713
        Measured from: -0.0839998722076416
                   to: 0.0280001163482666     [s; relative to TRIGTIME]
     T50: 0.0359998941421509 +/- 0.004
        Measured from: -0.0279998779296875
                   to: 0.00800001621246338     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.526000022888184
                   to: 0.473999977111816     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.167999982833862
                   to: 0.111999988555908     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.845583   0.822847   0.196373   0.003085
           0.017362   0.016968   0.008734   0.003281 [error]
 Peak      0.852716   0.834007   0.192506   0.005214
           0.018441   0.018081   0.010333   0.005681 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.56e-07 2.62e-07 1.28e-07 8.91e-08 7.88e-07 8.35e-07   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 1.09e+01 5.31e+00 1.59e+00 6.01e-01 1.81e+01 1.84e+01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s

Fluence   Cutoff-PL 2.52e-07 3.51e-07 1.43e-07 1.06e-08 7.56e-07 7.56e-07   erg/cm2
              Error 1.81e-08 1.27e-08 1.02e-08 3.33e-09 2.68e-08 2.70e-08   erg/cm2
Peak flux Cutoff-PL 8.18e+00 6.51e+00 1.41e+00 5.48e-02 1.62e+01 1.62e+01   ph/cm2/s
              Error 6.52e-01 2.55e-01 1.18e-01 2.31e-02 7.36e-01 7.37e-01   ph/cm2/s

Fluence        Band 2.53e-07 3.47e-07 1.44e-07 1.17e-08 7.58e-07 7.59e-07   erg/cm2
              Error 1.50e-08 1.19e-08 9.81e-09 -------- 2.60e-08 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.032    0.000    -      -           2.31e-01 0.00e+00  415.510 57
CPL   0.265    0.355      28.1    2.1      7.62e+00 3.71e+00   64.600 56

The chi2 of BB fit is 119.79 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.742    0.000    -      -           7.89e-02 0.00e+00  207.610 57
CPL   0.226    0.444      28.1    2.3      2.29e+00 1.49e+00   50.930 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.064000 sec.
T50 in the 50-300 keV band: 0.064000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.280   -0.168    0.112
T90     0.112   -0.084    0.028
T50     0.036   -0.028    0.008
Peak    1.000   -0.526    0.474

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  293.7264 +21.8917 0.0032   17.5 -122.6       1.9494    59.5  TRIG_01108538
------------------------------------------

Foreground time interval of the image:
 -0.168   0.112 (delta_t =   0.280 [sec])
Background time interval of the image:
-239.880  -0.168 (delta_t = 239.712 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

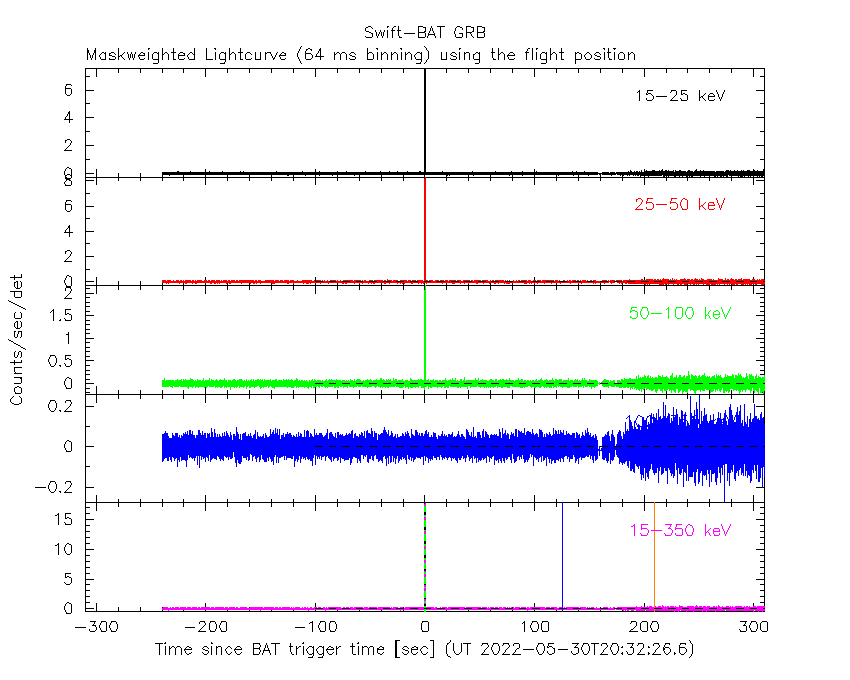

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

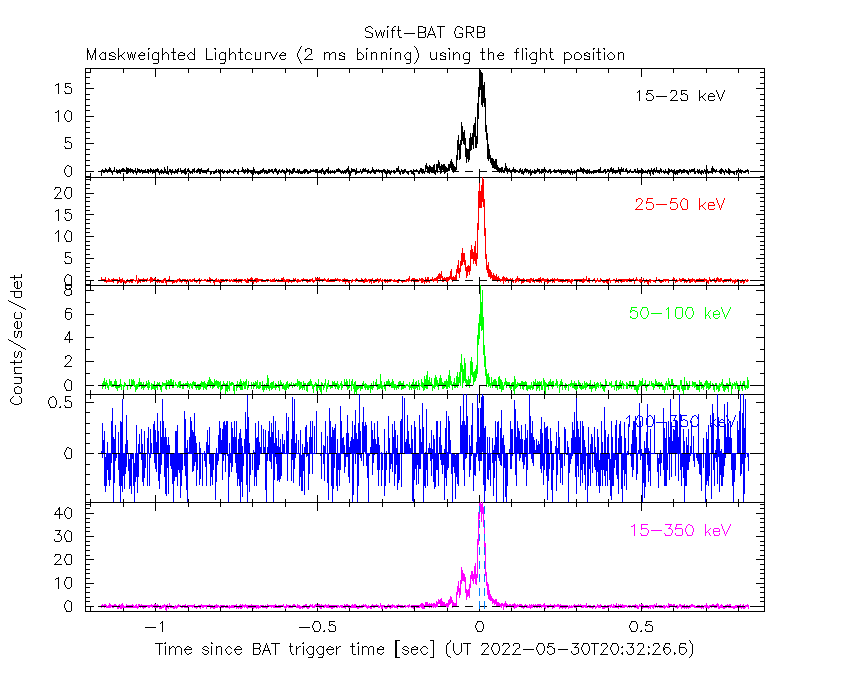

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -0.168 sec. to    0.112 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.03151     (     )
Norm@50keV  : 0.230721    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         415.51 using 59 PHA bins.
# Reduced chi-squared =         7.2897 for     57 degrees of freedom
# Null hypothesis probability =   6.433482e-56

Photon flux (15-150 keV)    in 0.28 sec: 64.9215 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.87646e-07 ( 0  0 ) ergs/cm2

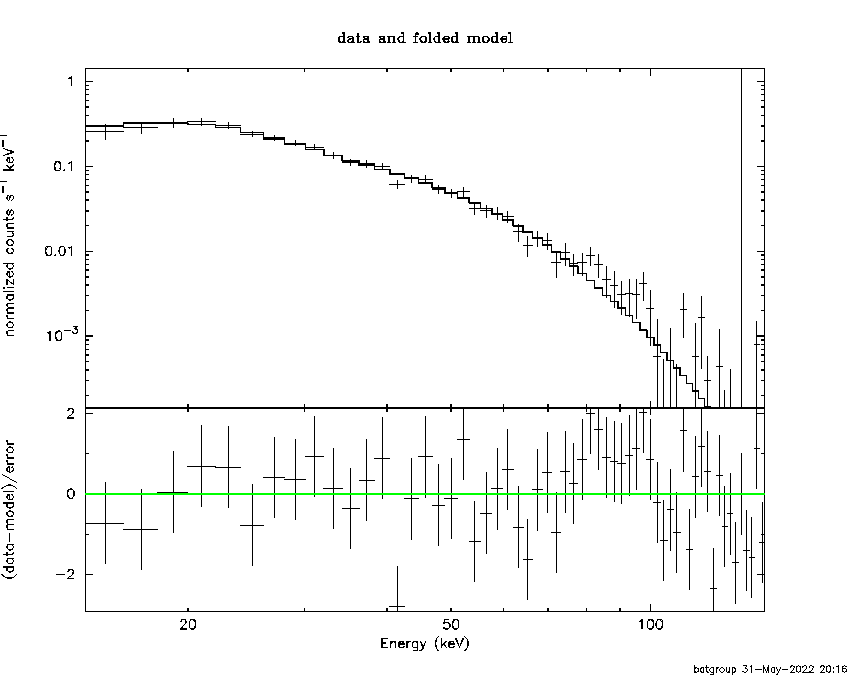

Cutoff power-law model

Time interval is from   -0.168 sec. to    0.112 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.264933     ( -0.371015   0.338554 )
Epeak [keV] : 28.0666      ( -2.27126 1.93081 )
Norm@50keV  : 7.61603    ( -2.69169   4.72576 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.60 using 59 PHA bins.
# Reduced chi-squared =          1.153 for     56 degrees of freedom
# Null hypothesis probability =   2.015053e-01

Photon flux (15-150 keV)    in 0.28 sec: 57.1298 ( -2.472  2.4906 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.55527e-07 ( 0  0 ) ergs/cm2

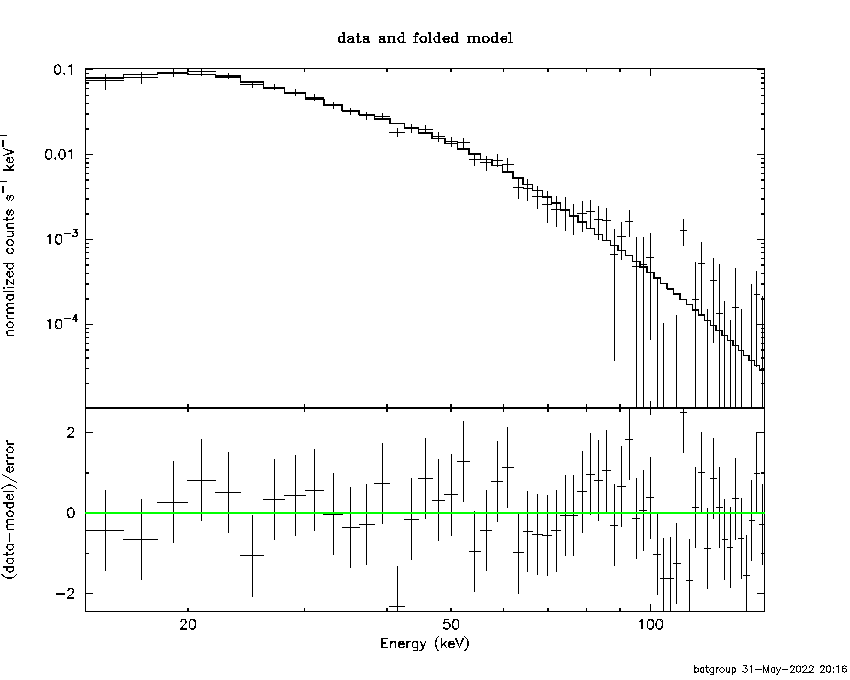

Band function

Time interval is from   -0.168 sec. to    0.112 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.265259   ( -0.340459   0.348059 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 28.0576      ( -2.2677 1.93193 )
Norm@50keV   : 7.61515    ( -2.6847   4.74119 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.60 using 59 PHA bins.
# Reduced chi-squared =          1.175 for     55 degrees of freedom
# Null hypothesis probability =   1.762389e-01

Photon flux (15-150 keV)    in 0.28 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.58162e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.49046  (  )
R^2/D10^2   : 51.0526  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         119.79 using 59 PHA bins.
# Reduced chi-squared =         2.1017 for     57 degrees of freedom
# Null hypothesis probability =   2.310352e-06

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.941e-07   1.149e-08
25- 50  3.756e-07   1.176e-08
50-150  1.195e-07   9.450e-09
15-150  6.892e-07   2.268e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 28.1993       (-1.26545      1.3044)
Norm        : 539.023       (-33.2339     35.7559)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.972e-07   1.330e-08
25- 50  3.279e-07   9.800e-09
50-150  1.653e-07   1.113e-08
15-150  7.904e-07   2.506e-08

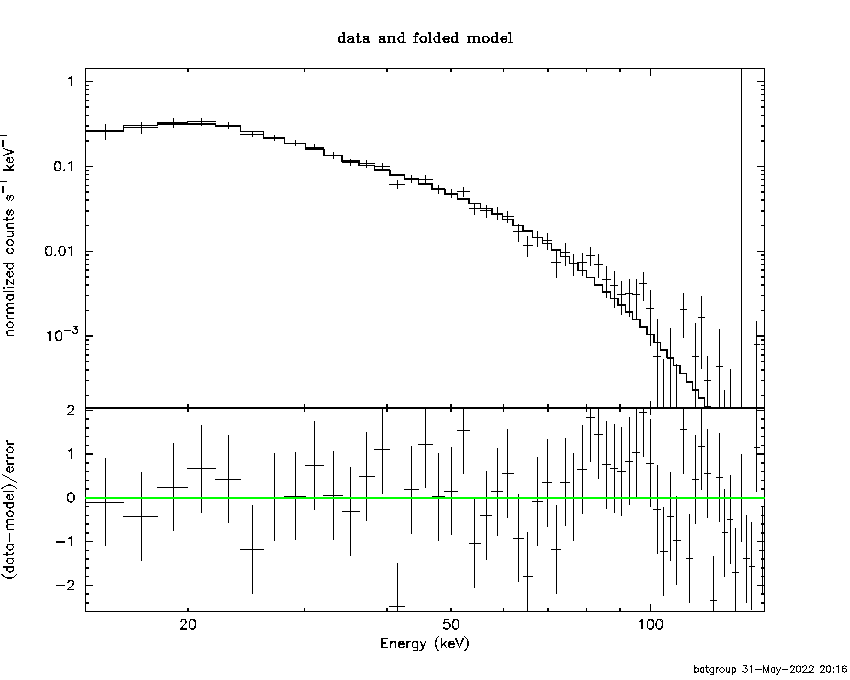

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.79751        (-0.774885      0.708384)
R1^2/D10^2  : 158.580        (-49.0244      95.5914)
kT2 [keV]   : 11.6948        (-1.1074      1.33733)
R2^2/D10^2  : 7.13716    (-3.66011   6.34735)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.461e-07   3.171e-08
25- 50  3.502e-07   5.072e-08
50-150  1.560e-07   4.119e-08
15-150  7.523e-07   1.072e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.526 sec. to    0.474 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.74214     (     )
Norm@50keV  : 7.89489E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         207.61 using 59 PHA bins.
# Reduced chi-squared =         3.6422 for     57 degrees of freedom
# Null hypothesis probability =   5.468981e-19

Photon flux (15-150 keV)    in 1 sec: 18.1229 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.5262e-07 ( 0  0 ) ergs/cm2

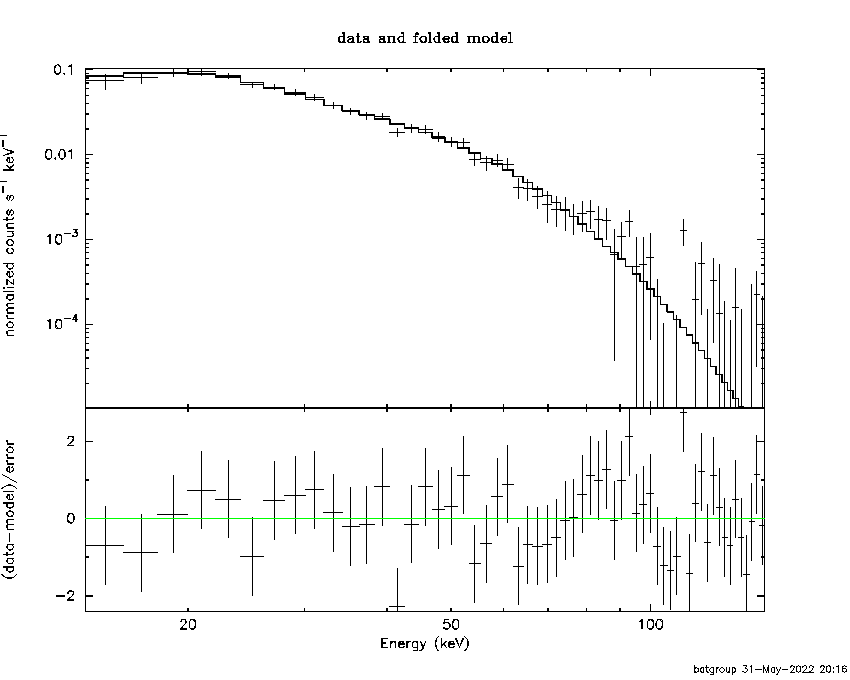

Cutoff power-law model

Time interval is from   -0.526 sec. to    0.474 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.225512     ( -0.462662   0.425614 )
Epeak [keV] : 28.1346      ( -2.52436 2.02052 )
Norm@50keV  : 2.29063    ( -0.995628   1.98664 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.93 using 59 PHA bins.
# Reduced chi-squared =         0.9095 for     56 degrees of freedom
# Null hypothesis probability =   6.665621e-01

Photon flux (15-150 keV)    in 1 sec: 16.1577 ( -0.7339  0.7386 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.62122e-07 ( -2.9861e-08  3.0103e-08 ) ergs/cm2

Band function

Time interval is from   -0.526 sec. to    0.474 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 7.28724E-02   ( -0.534684   0.680955 )
beta        : -4.40352    ( 4.40293   0.545713 )
Epeak [keV] : 28.6788      ( -2.27219 1.7922 )
Norm@50keV   : 3.56885    ( -1.90323   6.02767 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.08 using 59 PHA bins.
# Reduced chi-squared =         0.8924 for     55 degrees of freedom
# Null hypothesis probability =   6.990326e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.68438e-07 ( -7.68431e-07  -3.0421e-08 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.32434  (-0.246244  0.251967)
R^2/D10^2   : 15.7569  (-2.0038   2.30323)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.030e-07   1.175e-08
25- 50  3.803e-07   1.280e-08
50-150  1.136e-07   1.045e-08
15-150  6.969e-07   2.270e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 29.8477       (-1.68267      1.8112)
Norm        : 143.571       (-10.1232     10.8824)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.914e-07   1.375e-08
25- 50  3.321e-07   1.100e-08
50-150  1.806e-07   1.520e-08
15-150  8.042e-07   2.715e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.18895        (-1.21828      0.925514)
R1^2/D10^2  : 37.5783        (-12.0182      31.5132)
kT2 [keV]   : 12.3666        (-2.14937      3.9379)
R2^2/D10^2  : 1.36492    (-1.10475   3.24122)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.439e-07   3.705e-08
25- 50  3.570e-07   5.530e-08
50-150  1.573e-07   6.104e-08
15-150  7.583e-07   1.363e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.03151     (     )
Norm@50keV  : 0.230721    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         415.51 using 59 PHA bins.
# Reduced chi-squared =         7.2897 for     57 degrees of freedom
# Null hypothesis probability =   6.433482e-56

Photon flux (15-150 keV)    in 0.28 sec: 64.9215 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.87646e-07 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.264933     ( -0.371015   0.338554 )
Epeak [keV] : 28.0666      ( -2.27126 1.93081 )
Norm@50keV  : 7.61603    ( -2.69169   4.72576 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.60 using 59 PHA bins.
# Reduced chi-squared =          1.153 for     56 degrees of freedom
# Null hypothesis probability =   2.015053e-01

Photon flux (15-150 keV)    in 0.28 sec: 57.1298 ( -2.472  2.4906 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.55527e-07 ( 0  0 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.265259   ( -0.340459   0.348059 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 28.0576      ( -2.2677 1.93193 )
Norm@50keV   : 7.61515    ( -2.6847   4.74119 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.60 using 59 PHA bins.
# Reduced chi-squared =          1.175 for     55 degrees of freedom
# Null hypothesis probability =   1.762389e-01

Photon flux (15-150 keV)    in 0.28 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.58162e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.62e-07
S(50-100 keV) = 1.28e-07

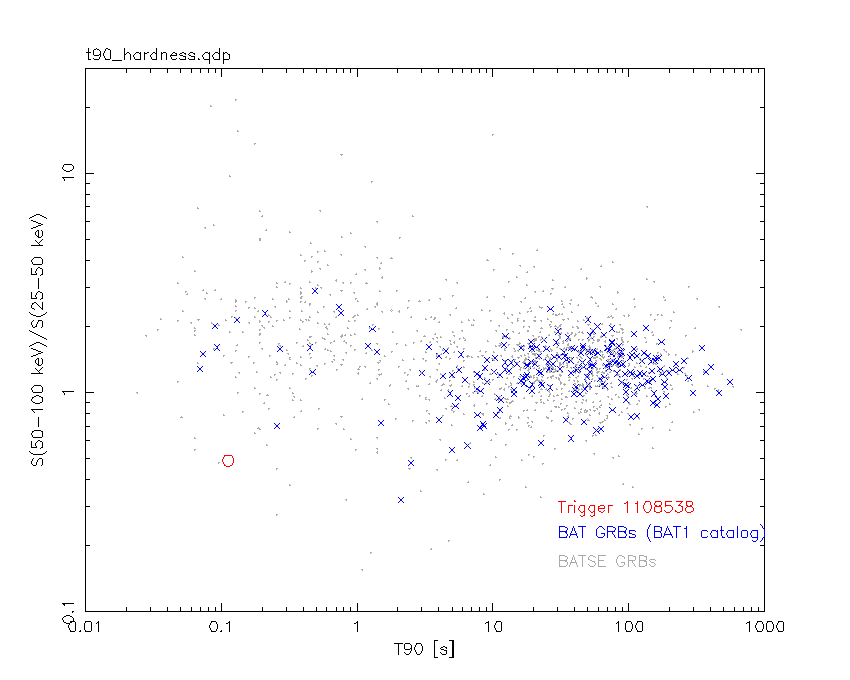

T90 vs. Hardness ratio plot

T90                                   = 0.111999988555908 sec.
Hardness ratio (energy fluence ratio) = 0.48855

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.973112
Count Ratio (50-100 keV) / (15-25 keV) = 0.232234

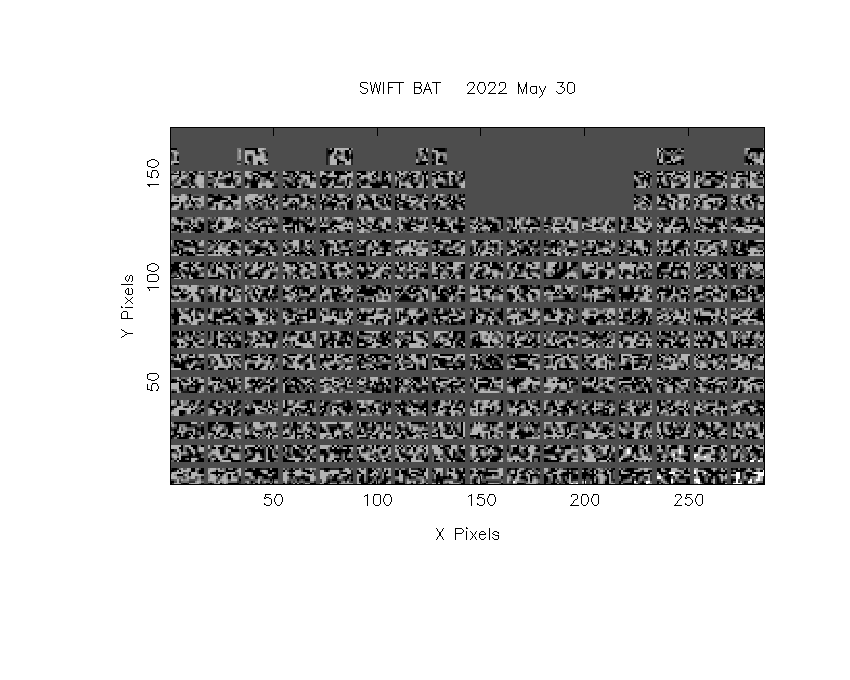

Mask shadow pattern

IMX = -1.700441619695643E-01, IMY = 2.663493240192547E-01

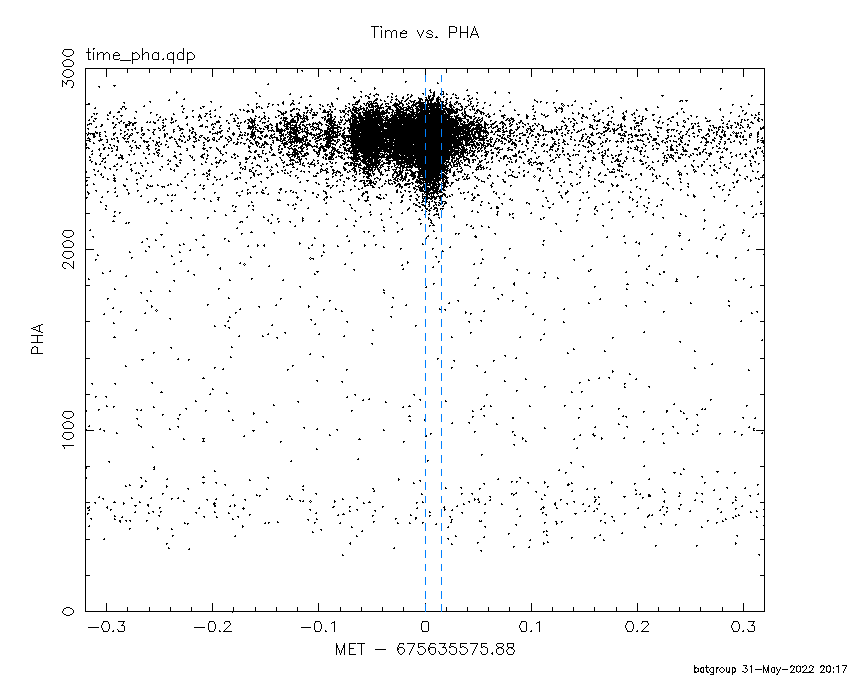

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.880000 -0.168000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3392  35.4575    6.4  41.1  171.8   1.4078   1.8    9.0	Her X-1
263.0841 -24.5825    0.0  37.8   66.8  -2.0475  -1.6   10.6	GX 1+4
268.3183  -1.6547    0.0  19.0   98.3  -0.9384  -1.8   12.5	SW J1753.5-0127
270.1086 -25.0207    3.5  34.7   57.3   2.8777   3.3   10.2	GX 5-1
270.2298 -25.7569    4.5  35.3   56.6   2.3244   2.6    4.0	GRS 1758-258
273.8340 -14.0507    4.3  23.4   62.1   1.3519   2.6   10.0	GX 17+2
275.9290 -30.3358    4.5  37.7   45.8   2.2259   2.6    1.9	H1820-303
285.0416 -24.9179  164.8  31.1   33.1   0.0401   0.1    0.3	HT1900.1-2455
288.8069  10.8691    4.2   5.6 -115.1   1.0433   2.7    4.6	GRS 1915+105
299.5883  35.1985    0.6  31.7 -126.1  11.2457  20.6    0.2	Cyg X-1
307.9117  40.9320   14.5  40.0 -121.7   0.6961   0.8    9.1	Cyg X-3
318.3283 -12.8669    2.6  37.6  -27.5   2.4705   4.5 ------	UNKNOWN
289.1837  41.8514    2.7  35.8 -143.6   2.3663   4.3 ------	UNKNOWN
304.4999  45.0619    2.3  42.2 -128.2   4.5142   5.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.168000 0.112000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4601  35.3362   46.1  40.9  171.8  -0.0133  -0.2    0.4	Her X-1
263.0841 -24.5825    0.0  37.8   66.8  -0.0766  -1.0   10.6	GX 1+4
268.1669  -1.4145    0.0  19.1   99.1  -0.0401  -1.1   12.3	SW J1753.5-0127
270.1010 -25.0580   13.7  34.7   57.3  -0.0551  -0.8   10.0	GX 5-1
270.2392 -25.9115    0.0  35.4   56.4  -0.0635  -0.9   10.7	GRS 1758-258
273.8344 -13.9682    8.9  23.3   62.3   0.0503   1.3   10.8	GX 17+2
276.1000 -30.3708    5.2  37.7   45.6  -0.1430  -2.2    9.1	H1820-303
284.9040 -24.8791    6.2  31.1   33.4   0.0790   1.9    7.6	HT1900.1-2455
288.6392  11.0252    4.9   5.7 -117.4  -0.0713  -2.3   10.5	GRS 1915+105
299.5409  35.0379    8.1  31.6 -126.0   0.0616   1.4   10.1	Cyg X-1
308.0645  40.8130    7.2  40.0 -121.4  -0.1092  -1.6    8.6	Cyg X-3
244.0105  17.9222    2.6  42.3  141.9   0.3286   4.5 ------	UNKNOWN
254.5723  37.4742    3.0  42.2  174.3   0.2074   3.9 ------	UNKNOWN
319.7618 -38.1008    2.2  54.4   -0.8   0.6024   5.3 ------	UNKNOWN
248.9906  48.6176    2.8  52.6 -177.9   0.3632   4.1 ------	UNKNOWN
293.7264  21.8917    0.2  17.5 -122.6   1.9493  59.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
209.320600 719.280000
720.120000 902.620000
904.120000 962.171200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
285.0428 -24.9809   16.1  37.4   96.9  -2.0812  -0.7    3.6	HT1900.1-2455
288.9136  10.9816  306.6  43.0  153.8   0.1312   0.0    7.1	GRS 1915+105
299.5314  35.1825    2.5  55.0 -175.3  19.3764   4.6    3.1	Cyg X-1
308.0580  40.9214   13.7  57.6 -165.1   5.1632   0.8    3.0	Cyg X-3
326.2069  38.3023    5.4  53.3 -148.7   8.8122   2.1    2.0	Cyg X-2
285.2176   5.1604    2.6  43.0  143.7  16.9140   4.4 ------	UNKNOWN
335.2126 -51.6005    2.3  37.9   16.9   9.2836   5.1 ------	UNKNOWN
358.2199   7.2506    2.3  40.9  -91.7  25.2496   5.0  447.9	UNKNOWN

Plot creation:
Tue May 31 20:17:26 EDT 2022
