TDRSS scaled map for 1110821
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 18 Jun 22 09:10:55 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1110821, Seg_Num: 0
GRB_RA: 38.966d {+02h 35m 52s} (J2000),
39.368d {+02h 37m 28s} (current),
38.077d {+02h 32m 19s} (1950)
GRB_DEC: +55.214d {+55d 12' 49"} (J2000),
+55.310d {+55d 18' 38"} (current),
+54.996d {+54d 59' 44"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3815 [cnts] Image_Peak=132 [image_cnts]
TRIGGER_DUR: 2.048 [sec]
TRIGGER_INDEX: 262 E_range: 25-100 keV
BKG_INTEN: 38272 [cnts]
BKG_TIME: 32994.65 SOD {09:09:54.65} UT
BKG_DUR: 24 [sec]
GRB_DATE: 19748 TJD; 169 DOY; 22/06/18
GRB_TIME: 33029.92 SOD {09:10:29.92} UT
GRB_PHI: -41.14 [deg]
GRB_THETA: 46.96 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 7.14 [sigma]
IMAGE_SIGNIF: 9.03 [sigma]
MERIT_PARAMS: +1 +0 +0 +1 +2 -1 +0 +1 -67 +0
SUN_POSTN: 86.88d {+05h 47m 31s} +23.40d {+23d 24' 17"}
SUN_DIST: 47.20 [deg] Sun_angle= 3.2 [hr] (West of Sun)
MOON_POSTN: 325.87d {+21h 43m 30s} -19.16d {-19d 09' 32"}
MOON_DIST: 96.73 [deg]
MOON_ILLUM: 79 [%]
GAL_COORDS: 137.52, -4.67 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 55.93, 37.65 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 37.28,14.07 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 18 Jun 22 09:23:25 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1110821, Seg_Num: 0
POINT_RA: 162.183d {+10h 48m 44s} (J2000)
POINT_DEC: +71.771d {+71d 46' 15"} (J2000)
MAP_DATE: 19748 TJD; 169 DOY; 22/06/18
MAP_TIME: 33029.92 SOD {09:10:29.92} UT
TRIGGER_DUR: 2.048 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 7.14 [sigma]
IMAGE_SIGNIF: 9.03 [sigma]
MAP_URL: sw01110821000msbsm.fits
SUN_POSTN: 86.89d {+05h 47m 33s} +23.40d {+23d 24' 18"}
MOON_POSTN: 326.00d {+21h 44m 00s} -19.12d {-19d 07' 05"}
MOON_ILLUM: 79 [%]
GAL_COORDS: 135.39, 42.26 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 122.60, 56.45 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

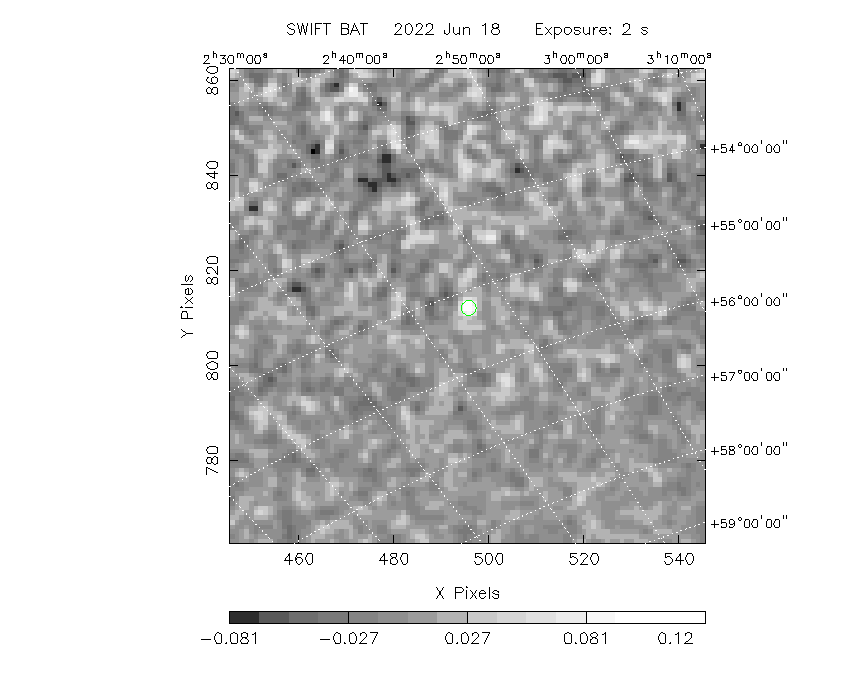

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (38.966, +55.214).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 38.966 +55.214 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
7.2036 59.2894 0.0 47.8 -17.3 -0.0178 -1.4 0.0 V709 Cas
19.5112 65.2916 0.0 40.6 -23.3 -0.0061 -0.6 0.0 4U 0114+65
53.7495 53.1732 0.0 45.5 -53.3 0.0239 0.7 0.0 V0332+53
93.9015 71.0375 0.0 20.6 -59.4 0.0121 1.7 0.0 Mkn 3
133.6934 39.5386 0.0 35.3 -140.8 -0.0037 -0.4 0.0 NGC 2691
166.6979 72.5686 0.0 1.6 57.8 -0.0004 -0.1 0.0 NGC 3516
169.5454 48.0369 0.0 24.0 167.5 -0.0102 -1.3 0.0 XTE J1118+480
182.6357 39.4057 0.0 34.0 150.7 -0.0107 -0.9 0.0 NGC 4151
321.1638 50.9739 0.0 56.3 15.4 0.0387 0.7 0.0 IGR J21247+5058
323.4320 51.1236 0.0 56.4 13.6 0.0206 0.4 0.0 RX J2133.7+5107
331.9808 54.5197 0.0 53.5 7.0 -0.0398 -1.6 0.0 4U 2206+54
232.7623 55.9203 2.7 32.3 80.8 0.0558 4.2 ------ UNKNOWN
309.6597 50.9449 2.5 55.1 24.0 0.2459 4.7 ------ UNKNOWN
228.3084 57.7271 2.9 29.5 82.7 0.0561 4.0 ------ UNKNOWN
300.0328 61.1518 2.6 43.9 27.4 0.0732 4.5 ------ UNKNOWN
278.3633 67.6220 2.9 34.3 36.9 0.0589 3.9 ------ UNKNOWN
282.0840 69.1268 2.9 33.7 33.5 0.0549 3.9 ------ UNKNOWN
172.6701 30.6432 2.2 41.5 166.0 0.0771 5.3 ------ UNKNOWN
189.7122 64.9570 2.5 12.1 110.2 0.0368 4.6 ------ UNKNOWN
170.8546 30.2596 3.5 41.8 168.3 0.0472 3.4 ------ UNKNOWN
180.3442 63.8108 2.6 10.4 130.2 0.0302 4.5 ------ UNKNOWN
166.1222 25.8778 2.3 46.0 174.7 0.0746 5.0 ------ UNKNOWN
165.0739 27.1054 2.6 44.7 176.0 0.0695 4.5 ------ UNKNOWN
163.1689 13.9996 2.8 57.8 178.5 0.0643 4.1 ------ UNKNOWN
38.9624 55.2128 1.7 47.0 -41.1 0.1396 6.9 ------ UNKNOWN
89.6845 45.2973 1.8 42.2 -88.6 0.3481 6.6 ------ UNKNOWN
100.4730 40.7482 1.9 42.9 -102.0 0.3597 6.0 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
232.7623 55.9203 2.7 32.3 80.8 0.0558 4.2 ------ UNKNOWN
309.6597 50.9449 2.5 55.1 24.0 0.2459 4.7 ------ UNKNOWN
228.3084 57.7271 2.9 29.5 82.7 0.0561 4.0 ------ UNKNOWN
300.0328 61.1518 2.6 43.9 27.4 0.0732 4.5 ------ UNKNOWN
278.3633 67.6220 2.9 34.3 36.9 0.0589 3.9 ------ UNKNOWN
282.0840 69.1268 2.9 33.7 33.5 0.0549 3.9 ------ UNKNOWN
172.6701 30.6432 2.2 41.5 166.0 0.0771 5.3 ------ UNKNOWN
189.7122 64.9570 2.5 12.1 110.2 0.0368 4.6 ------ UNKNOWN
170.8546 30.2596 3.5 41.8 168.3 0.0472 3.4 ------ UNKNOWN
180.3442 63.8108 2.6 10.4 130.2 0.0302 4.5 ------ UNKNOWN
166.1222 25.8778 2.3 46.0 174.7 0.0746 5.0 ------ UNKNOWN
165.0739 27.1054 2.6 44.7 176.0 0.0695 4.5 ------ UNKNOWN
163.1689 13.9996 2.8 57.8 178.5 0.0643 4.1 ------ UNKNOWN
38.9624 55.2128 1.7 47.0 -41.1 0.1396 6.9 ------ UNKNOWN
89.6845 45.2973 1.8 42.2 -88.6 0.3481 6.6 ------ UNKNOWN
100.4730 40.7482 1.9 42.9 -102.0 0.3597 6.0 ------ UNKNOWN
Search for UNKNOWN source R.A. = 38.9624 Dec. = +55.2128 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 89.6845 Dec. = +45.2973 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 100.4730 Dec. = +40.7482 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 163.1689 Dec. = +13.9996 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 165.0739 Dec. = +27.1054 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 166.1222 Dec. = +25.8778 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 170.8545 Dec. = +30.2596 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 172.6701 Dec. = +30.6432 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 180.3442 Dec. = +63.8108 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 189.7122 Dec. = +64.9570 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 228.3084 Dec. = +57.7271 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 232.7623 Dec. = +55.9203 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 278.3633 Dec. = +67.6220 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 282.0840 Dec. = +69.1268 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 300.0328 Dec. = +61.1518 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 309.6597 Dec. = +50.9449 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)

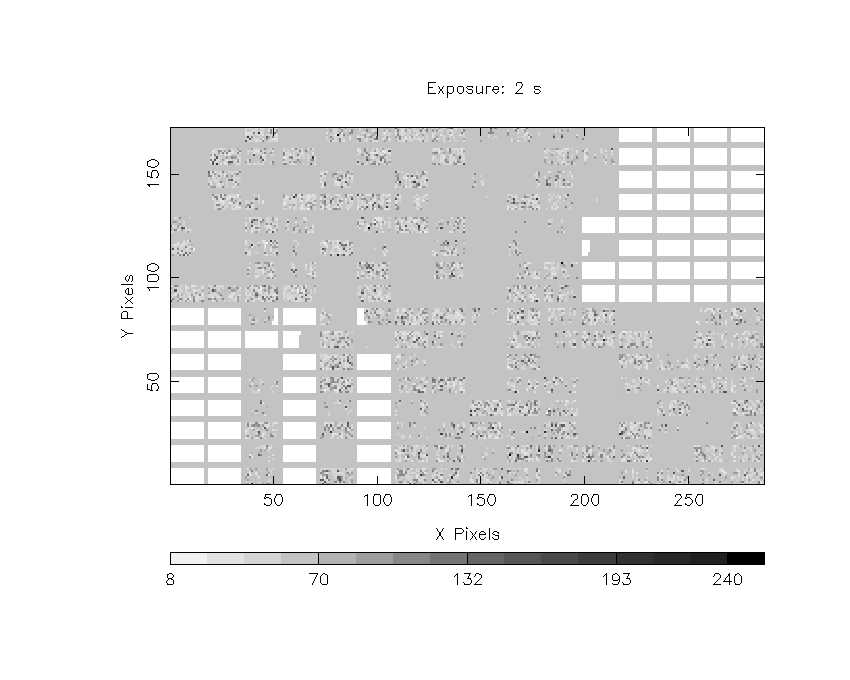

DPI of the scaled map

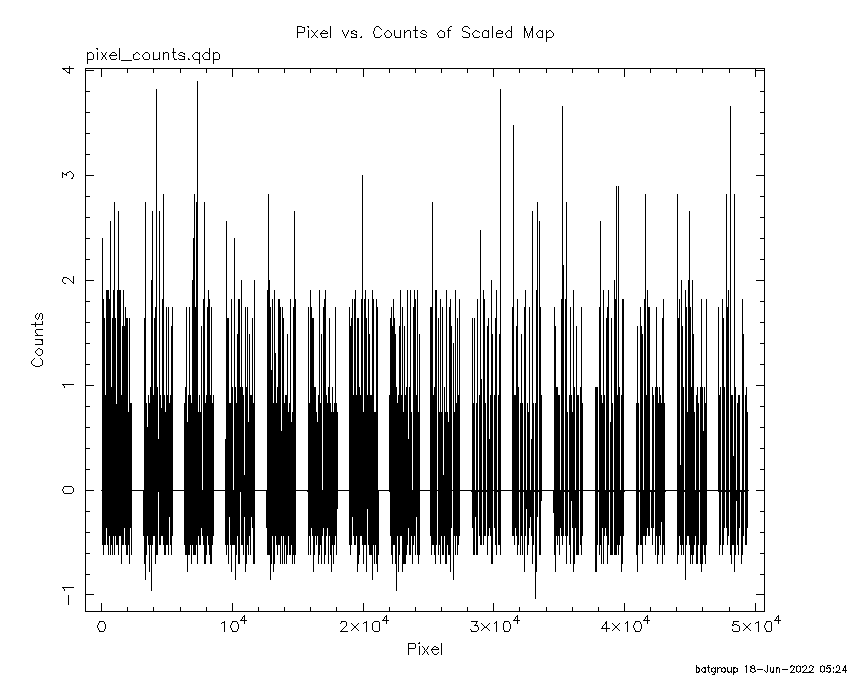

Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1110821/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sat Jun 18 05:24:09 EDT 2022
