TDRSS scaled map for 1111242
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 21 Jun 22 15:20:49 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1111242, Seg_Num: 0
GRB_RA: 103.829d {+06h 55m 19s} (J2000),
104.113d {+06h 56m 27s} (current),
103.195d {+06h 52m 47s} (1950)
GRB_DEC: -1.479d {-01d 28' 43"} (J2000),
-1.509d {-01d 30' 32"} (current),
-1.414d {-01d 24' 49"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=1352 [image_cnts]
TRIGGER_DUR: 64.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 19751 TJD; 172 DOY; 22/06/21
GRB_TIME: 55170.64 SOD {15:19:30.64} UT
GRB_PHI: -102.95 [deg]
GRB_THETA: 20.21 [deg]
SOLN_STATUS: 0x10000013
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 8.50 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 -1 -100 +1 -88 +0
SUN_POSTN: 90.27d {+06h 01m 04s} +23.44d {+23d 26' 08"}
SUN_DIST: 28.35 [deg] Sun_angle= -0.9 [hr] (East of Sun)
MOON_POSTN: 7.44d {+00h 29m 46s} -0.93d {-00d 55' 35"}
MOON_DIST: 96.64 [deg]
MOON_ILLUM: 45 [%]
GAL_COORDS: 214.69, 0.19 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 105.19,-24.19 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 339.70,-6.83 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is spatially(0.00<0.1deg) coincident with the SWIFT_BAT event (trignum=1110865).
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Tue 21 Jun 22 15:28:11 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1111242, Seg_Num: 0
POINT_RA: 119.049d {+07h 56m 12s} (J2000)
POINT_DEC: -14.993d {-14d 59' 34"} (J2000)
MAP_DATE: 19751 TJD; 172 DOY; 22/06/21
MAP_TIME: 55170.64 SOD {15:19:30.64} UT
TRIGGER_DUR: 64.000 [sec]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 8.50 [sigma]
MAP_URL: sw01111242000msbsm.fits
SUN_POSTN: 90.27d {+06h 01m 05s} +23.44d {+23d 26' 08"}
MOON_POSTN: 7.50d {+00h 30m 01s} -0.90d {-00d 53' 47"}
MOON_ILLUM: 45 [%]
GAL_COORDS: 233.77, 6.99 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 124.92,-34.98 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

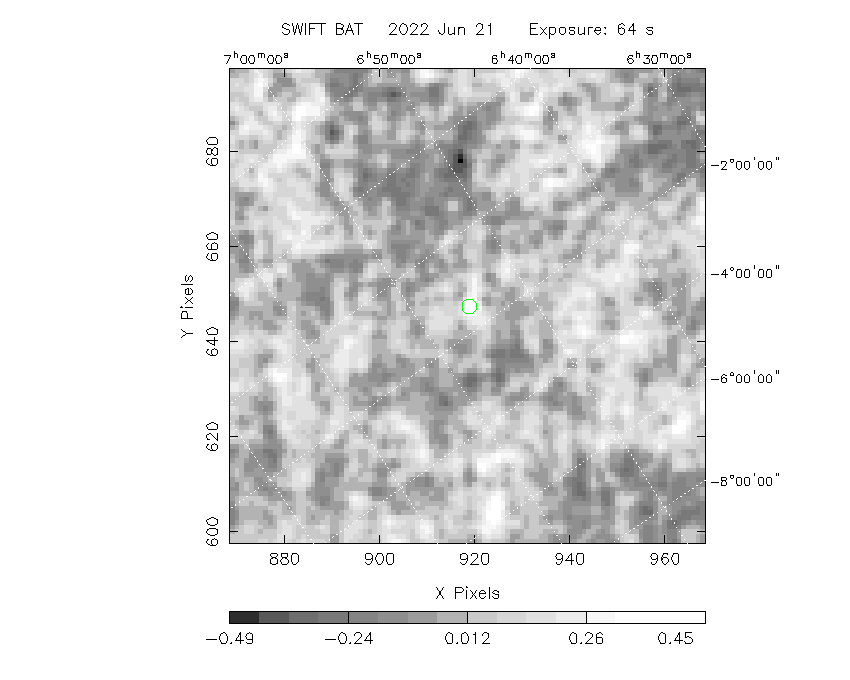

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (103.829, -1.479).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 103.829 -1.479 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
76.4194 -23.8414 0.0 41.0 -162.7 -0.0560 -0.3 0.0 XSS J05054-2348
88.0474 -7.4562 0.0 31.3 -133.0 -0.0358 -0.2 0.0 NGC 2110
94.2804 9.1369 0.0 34.4 -100.5 -0.0825 -0.4 0.0 4U 0614+091
128.8361 -45.1764 0.0 31.3 113.2 -0.0449 -0.3 0.0 PSR B0833-45
135.5286 -40.5547 0.0 29.3 100.4 0.0973 0.6 0.0 Vela X-1
146.4116 -31.1911 0.0 29.8 74.2 0.0613 0.4 0.0 NGC 2997
146.9173 -30.9489 0.0 30.1 73.4 0.2193 1.3 0.0 MCG -5-23-016
173.1892 -0.2986 3.8 55.4 26.3 3.1876 3.1 ------ UNKNOWN
147.1249 -26.6352 3.7 28.6 65.1 0.4102 3.1 ------ UNKNOWN
152.8479 6.1013 4.1 39.6 6.7 0.4078 2.8 ------ UNKNOWN
58.6488 -38.2793 3.2 57.7 -179.6 2.4298 3.6 ------ UNKNOWN
103.8049 -1.5302 2.7 20.2 -103.1 0.4896 4.2 ------ UNKNOWN
139.5649 36.8204 3.4 55.3 -33.5 2.1442 3.4 ------ UNKNOWN
95.4171 20.5257 2.1 42.4 -87.3 3.8433 5.6 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
135.5286 -40.5547 0.0 29.3 100.4 0.0973 0.6 0.0 Vela X-1
173.1892 -0.2986 3.8 55.4 26.3 3.1876 3.1 ------ UNKNOWN
147.1249 -26.6352 3.7 28.6 65.1 0.4102 3.1 ------ UNKNOWN
152.8479 6.1013 4.1 39.6 6.7 0.4078 2.8 ------ UNKNOWN
58.6488 -38.2793 3.2 57.7 -179.6 2.4298 3.6 ------ UNKNOWN
103.8049 -1.5302 2.7 20.2 -103.1 0.4896 4.2 ------ UNKNOWN
139.5649 36.8204 3.4 55.3 -33.5 2.1442 3.4 ------ UNKNOWN
95.4171 20.5257 2.1 42.4 -87.3 3.8433 5.6 ------ UNKNOWN
Search for UNKNOWN source R.A. = 58.6488 Dec. = -38.2793 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 95.4171 Dec. = +20.5257 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 103.8049 Dec. = -1.5302 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 139.5649 Dec. = +36.8204 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 147.1249 Dec. = -26.6352 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 152.8479 Dec. = +6.1013 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 173.1892 Dec. = -0.2986 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
76.4194 -23.8414 0.0 41.0 -162.7 -0.0713 -0.6 0.0 XSS J05054-2348
88.0474 -7.4562 0.0 31.3 -133.0 -0.0613 -0.6 0.0 NGC 2110
94.2804 9.1369 0.0 34.4 -100.5 -0.0253 -0.2 0.0 4U 0614+091
128.8361 -45.1764 0.0 31.3 113.2 -0.0188 -0.2 0.0 PSR B0833-45
135.5286 -40.5547 0.0 29.3 100.4 0.0267 0.2 0.0 Vela X-1
146.4116 -31.1911 0.0 29.8 74.2 0.0422 0.3 0.0 NGC 2997
146.9173 -30.9489 0.0 30.1 73.4 0.0495 0.4 0.0 MCG -5-23-016
157.3589 2.1983 2.4 41.6 15.3 0.5966 4.8 ------ UNKNOWN
168.1440 19.1806 2.6 59.2 2.7 4.1249 4.4 ------ UNKNOWN
122.8576 -6.8258 1.9 9.0 -28.5 0.4190 6.0 ------ UNKNOWN
103.8012 -1.5333 2.3 20.2 -103.1 0.4290 5.0 ------ UNKNOWN
109.7761 7.1763 2.7 24.0 -76.7 0.3970 4.4 ------ UNKNOWN
88.1484 14.7285 2.3 42.6 -100.7 3.3261 5.0 ------ UNKNOWN
95.4262 20.5210 1.9 42.4 -87.3 3.8348 5.9 ------ UNKNOWN
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1111242/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Tue Jun 21 11:29:11 EDT 2022
