TDRSS lightcurve for Trigger=1111672
Notes:
- 1) None of the TDRSS light curves are background subtracted.
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 23 Jun 22 07:04:34 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1111672, Seg_Num: 0
GRB_RA: 145.462d {+09h 41m 51s} (J2000),
146.028d {+09h 44m 07s} (current),
144.181d {+09h 36m 43s} (1950)
GRB_DEC: +75.828d {+75d 49' 42"} (J2000),
+75.725d {+75d 43' 30"} (current),
+76.056d {+76d 03' 22"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 5814 [cnts] Image_Peak=731 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 146 E_range: 25-100 keV
BKG_INTEN: 14589 [cnts]
BKG_TIME: 25442.63 SOD {07:04:02.63} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19753 TJD; 174 DOY; 22/06/23
GRB_TIME: 25454.40 SOD {07:04:14.40} UT
GRB_PHI: 40.99 [deg]
GRB_THETA: 11.98 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 84.49 [sigma]
IMAGE_SIGNIF: 18.90 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +2 +6 +0 +0 -51 +0
SUN_POSTN: 91.99d {+06h 07m 57s} +23.42d {+23d 25' 23"}
SUN_DIST: 58.79 [deg] Sun_angle= -3.6 [hr] (East of Sun)
MOON_POSTN: 26.33d {+01h 45m 19s} +8.50d {+08d 30' 17"}
MOON_DIST: 88.71 [deg]
MOON_ILLUM: 29 [%]
GAL_COORDS: 135.82, 36.13 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 111.46, 56.55 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 89.75,-6.62 [deg].
GCN BAT Lightcurve Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Thu 23 Jun 22 07:21:11 UT
NOTICE_TYPE: Swift-BAT GRB Lightcurve
TRIGGER_NUM: 1111672, Seg_Num: 0
GRB_RA: 145.462d {+09h 41m 51s} (J2000),
146.028d {+09h 44m 07s} (current),
144.181d {+09h 36m 43s} (1950)
GRB_DEC: +75.828d {+75d 49' 42"} (J2000),
+75.725d {+75d 43' 30"} (current),
+76.056d {+76d 03' 22"} (1950)
GRB_DATE: 19753 TJD; 174 DOY; 22/06/23
GRB_TIME: 25454.40 SOD {07:04:14.40} UT
TRIGGER_INDEX: 146
GRB_PHI: 40.99 [deg]
GRB_THETA: 11.98 [deg]
DELTA_TIME: -56.00 [sec]
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 84.49 [sigma]
IMAGE_SIGNIF: 18.90 [sigma]
LC_URL: sw01111672000msb.lc
GCN template for BAT paragraph
Click here!
At 07:04:14 UT, the Swift Burst Alert Telescope (BAT) triggered and
located GRB 220623 ***A*** (trigger=1111672). Swift slewed immediately to the burst.
The BAT on-board calculated location is
RA, Dec 145.462, +75.828 which is
RA(J2000) = 09h 41m 51s
Dec(J2000) = +75d 49' 42"
with an uncertainty of 3 arcmin (radius, 90% containment, including
systematic uncertainty). The BAT light curve showed a [**double-peaked**]
structure with a duration of about TTT sec. The peak count rate
was ~9007 counts/sec (15-350 keV), at ~0 sec after the trigger.
Test version of draft template
Initial TDRSS lightcurve and spacecraft attitude plot
TDRSS lightcurve from T0-30 to T0+50 (zoom in)
TDRSS light curve from T0-1 to T0+2 (More zoom in)
1.6s binned TDRSS light curve
Tilan's background subtracted TDRSS light curves
Extended TDRSS light curve and spacecraft attitude plot(s)
Extended TDRSS lc No.1

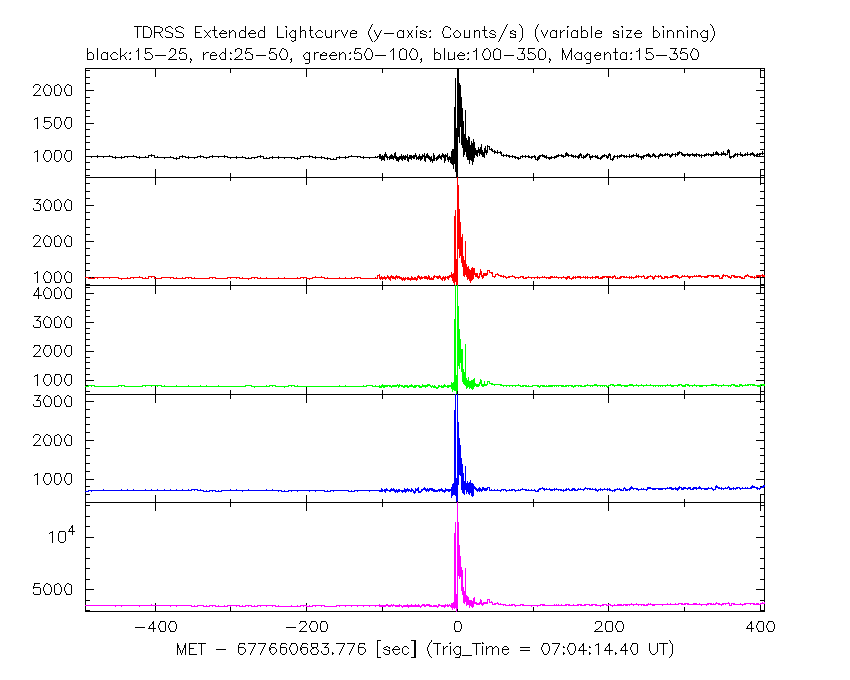

Extended TDRSS lc No.2
Extended TDRSS lc No.3
Extended TDRSS lc No.4
TDRSS extended lightcurve from T0-1 to T0+2
T50 and T90 calculation
******************************************
battblocks v1.18
------------------------------------------
Input Data: bat_raw_lc.fits
Output GTI: bb.gti
Events to Skip: 128 Changepoint log(prob) Prior: 6.000000
Internal Tick: 1.000000e-04 s
Lookback time: 0 s
Bkg. Subtract?: yes (for fluence/T50/T90 calculations)
------------------------------------------
Estimated T90 duration: 45.44 s +/- 4.096 s
Estimated T50 duration: 11.776 s +/- 0.778594 s
Estimated Peak Interval: MET 677660684.09599996 +/- 0.500000 s
Estimated background rate 1: 3461.058 near MET 677660669.600000 s
Estimated background rate 2: 3517.688 near MET 677660805.632000 s
Estimated total duration: 62.144 s (for data selection)
(from MET 677660680.000000 to MET 677660742.144000)
Estimated total fluence: 50609.431051 count
Created GTI with 27 entries
------------------------------------------
Search for this GRB position to the previously BAT detected GRB positions (search radius within 5 arcmin)
bat_grb_pos_cat.sh 145.462 75.828 0.083
No match
Search for this GRB position to the source locations in BAT transient monitor (search radius within 12 arcmin)
python compare_catalog.py 145.462 75.828
No match
Link to SIMBAD
Click here for the SIMBAD search!
Frank's UVOT result
Click here!
Frank's UVOT Blinking images
Click here!
Elevation angle of GRB/Sun at the ground telescope locations
GSFC, Greenbelt, Maryland
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 206.892046 -22.654890
Obj: 2022 6 23 7 172.849517 26.016783
the object visibility at GSFC, Greenbelt, Maryland
MMT Observatory, Mt. Hopkins, Arizona
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 172.279104 -34.513037
Obj: 2022 6 23 7 166.345651 23.997387
the object visibility at MMT, Mt. Hopkins, Arizona
Hale Telescope, Palomar Mountain, California
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 166.021670 -31.926775
Obj: 2022 6 23 7 165.262161 26.851475
the object visibility at Hale Telescope, Palomar Mt., California
Mauna Kea, Hawaii
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 128.330016 -23.746798
Obj: 2022 6 23 7 165.042326 22.985408
the object visibility at Mauna Kea, Hawaii
Siding Spring Obs., Australia
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 118.629173 1.252656
Obj: 2022 6 23 7 175.170933 -17.733388
the object visibility at Siding Spring Obs., Australia
Tokyo, Japan
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 93.088700 40.034152
Obj: 2022 6 23 7 179.117846 48.639413
the object visibility at Tokyo, Japan
William Herschel Telescope, La Palma, Canary Islands, Spain
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 247.513094 7.787885
Obj: 2022 6 23 7 187.836662 16.398794
the object visibility at William Hershel Telescope, La Palma, Canary Islands, Spain
Gemini South, Cerro Pachon, Chile
TimeUT Azimuth Elevation
Sun: 2022 6 23 7 275.215173 -59.928178
Obj: 2022 6 23 7 172.982948 -43.503950
the object visibility at Gemini South, Cerro Pachon, Chile
The data/results are in /local/data/bat1/prebascript/trigger1111672/tdrss_ql/
bat_raw_lc.fits : TDRSS FITS light curve from GCN
gcn_position.txt : GCN BAT position notice
ratelc_tdrss.qdp : QDP file of the TDRSS light curve
tdrss_lc.gif : GIF TDRSS light curve
sc_att.qdp : QDP file of the spacecraft attitude
sc_att.gif : GIF spacecraft attitude
bb.gti : Bayesian block GTI file (battblocks)
dur.gti : Duration GTI file (battblocks)
battblocks.log : Output log of battblocks
Plot creation:
Thu Jun 23 03:21:22 EDT 2022
