batgrbproduct analysis for trigger=1113743

batgrbproduct Analysis for Trigger=1113743

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Thu Jun 30 13:21:32 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1113743/GCN5_download_cron
======================================================================

  Trigger: 01113743      Segment: 000

  BAT Trigger Time: 678205648   [s; MET]
      Trigger Stop: 678205712   [s; MET]
               UTC: 2022-06-29T14:26:58.593700    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 103.786471289097   Dec: -1.49292885263794  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    14.86
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    14.86

  Flight Position:   [ source = BAT ]
    RA: 103.786471289097   Dec: -1.49292885263794  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 103.781796917968   Dec: -1.50829702627768  [deg; J2000]
        { 06h 55m 07.6s , -01d 30' 29.9" }
         +/- 2.61212375190842 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.48338028771031 [arcmin] (formal 1-sigma fit error)
    SNR: 7.71636967128721

  Angular difference between Flight and Ground position is 0.963772 arcmin

  Partial Coding Fraction: 0.59375    [ including projection effects ]

  Duration
     T90: 113.81199991703 +/- 19.3677452945808
        Measured from: 5.47200012207031
                   to: 119.284000039101     [s; relative to TRIGTIME]
     T50: 58.2400000095367 +/- 16.1043627242886
        Measured from: 36.4120000600815
                   to: 94.6520000696182     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 78.4759999513626
                   to: 79.4759999513626     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -1.55200004577637
                   to: 131.396000027657     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.138491   1.518691   0.183877  -0.087873
           0.092145   0.094942   0.085242   0.084405 [error]
 Peak      0.032606   0.011592   0.020630   0.018879
           0.007983   0.007985   0.007158   0.006979 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.14e-07 5.70e-07 3.07e-07 2.41e-07 1.70e-06 1.83e-06   erg/cm2
              Error 6.15e-08 5.09e-08 5.67e-08 8.01e-08 1.45e-07 1.83e-07   erg/cm2
Peak flux Power-law 2.07e-01 1.85e-01 1.14e-01 1.07e-01 5.51e-01 6.13e-01   ph/cm2/s
              Error 1.66e-01 6.43e-02 8.88e-02 1.49e-01 1.88e-01 2.18e-01   ph/cm2/s

Fluence   Cutoff-PL 6.70e-07 6.50e-07 4.20e-08 2.40e-11 1.36e-06 1.36e-06   erg/cm2
              Error 7.06e-08 6.94e-08 3.30e-08 2.08e-10 1.14e-07 1.14e-07   erg/cm2
Peak flux Cutoff-PL 2.12e-01 1.86e-01 1.11e-01 9.91e-02 5.52e-01 6.08e-01   ph/cm2/s
              Error 1.05e-01 6.31e-02 8.88e-02 1.57e-01 1.87e-01 2.18e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.894    0.170    -      -           1.12e-03 1.55e-04  107.820 57
CPL  -2.117    2.038      23.4    2.0      3.88e+00 1.56e+02   66.930 56

The chi2 of BB fit is 67.31 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.697    0.805    -      -           4.16e-03 1.75e-03   53.840 57
CPL   1.701    0.813    10000.0   -0.0      4.16e-03 0.00e+00   53.850 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  132.948   -1.552  131.396
T90   113.812    5.472  119.284
T50    58.240   36.412   94.652
Peak    1.000   78.476   79.476

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  103.7818  -1.5083 0.0248   25.4  -72.3       1.4411     7.7  TRIG_01113743
------------------------------------------

Foreground time interval of the image:
 -1.552  11.130 (delta_t =  12.682 [sec])
 12.000  93.301 (delta_t =  81.301 [sec])
Background time interval of the image:
-239.000 -56.360 (delta_t = 182.640 [sec])
-55.000  -1.552 (delta_t =  53.448 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

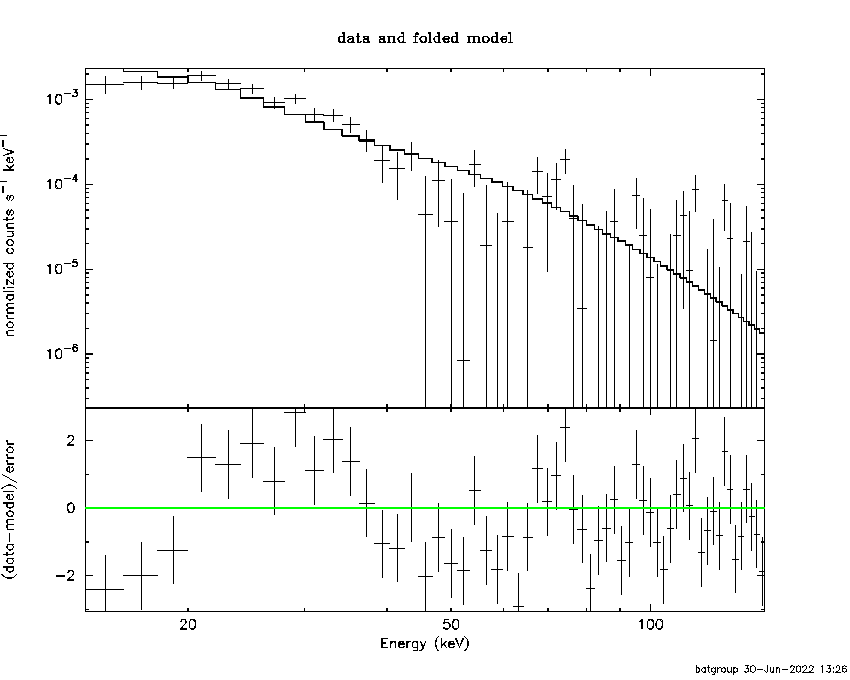

Time averaged spectrum fit using the pre-slew DRM

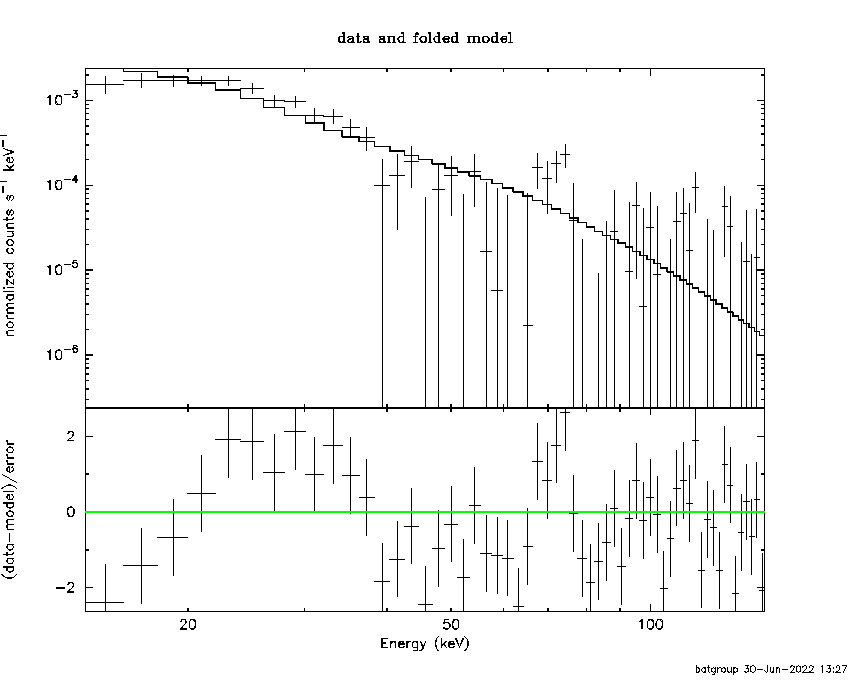

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-1.552000 11.130000
12.000000 131.396000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.89389     ( -0.165801   0.174615 )
Norm@50keV  : 1.12199E-03    ( -0.00015269   0.000156393 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         107.82 using 59 PHA bins.
# Reduced chi-squared =         1.8916 for     57 degrees of freedom
# Null hypothesis probability =   5.550205e-05

Photon flux (15-150 keV)    in 132.1 sec: 0.285957 ( -0.0206841  0.0206858 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.6994e-06 ( -1.43618e-07  1.47136e-07 ) ergs/cm2

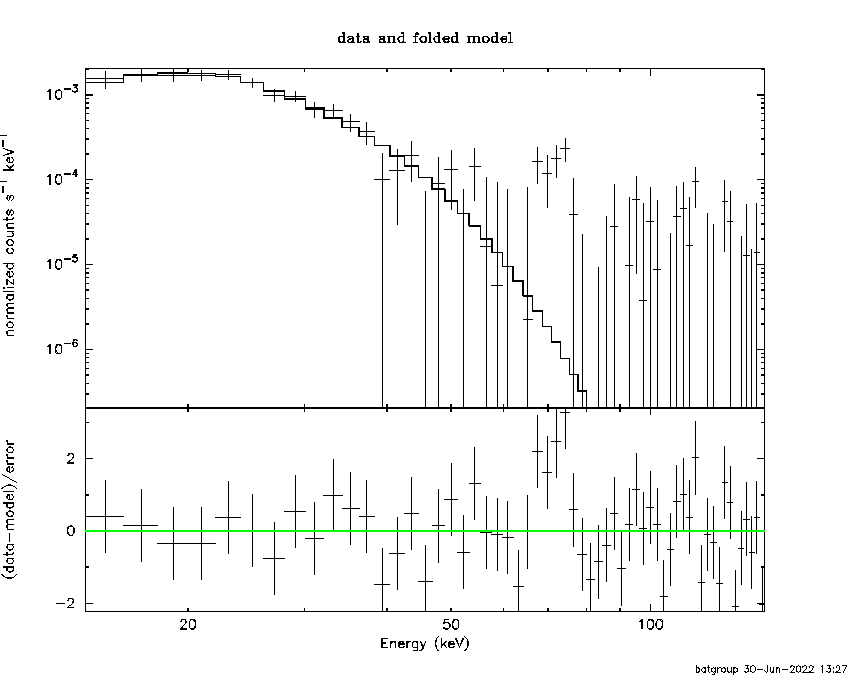

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-1.552000 11.130000
12.000000 131.396000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.11709     ( -2.63667   1.43841 )
Epeak [keV] : 23.3687      ( -2.2754 1.75858 )
Norm@50keV  : 3.88453    ( -7.70023   303.327 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.93 using 59 PHA bins.
# Reduced chi-squared =          1.195 for     56 degrees of freedom
# Null hypothesis probability =   1.503839e-01

Photon flux (15-150 keV)    in 132.1 sec: 0.261385 ( -0.021005  0.021047 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.36186e-06 ( -1.11642e-07  1.1605e-07 ) ergs/cm2

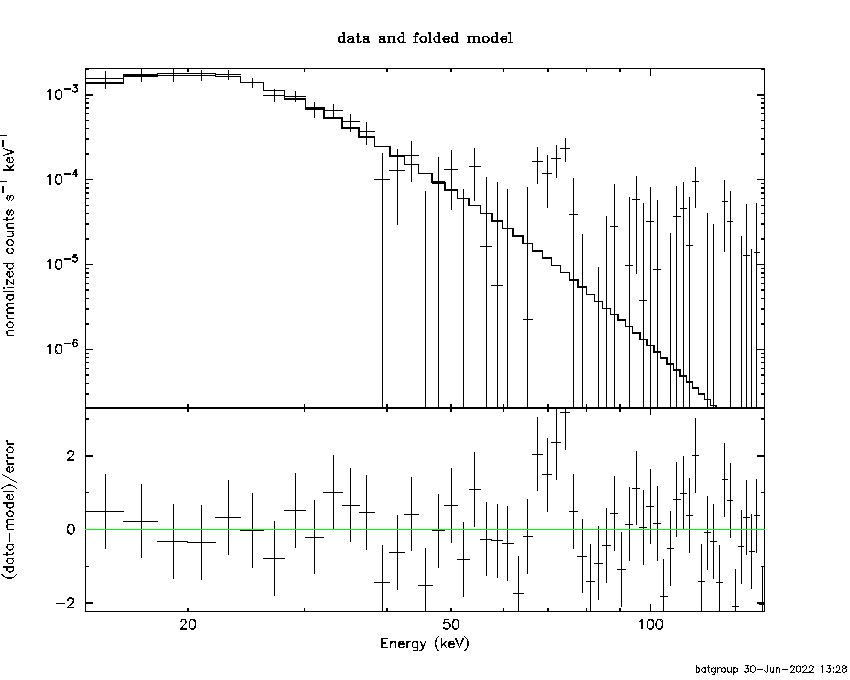

Band function

Multiple GTIs in the spectrum
tstart tstop
-1.552000 11.130000
12.000000 131.396000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.49437   ( -1.57033   -2.49255 )
beta        : -5.27746    ( 5.37387   1.3011 )
Epeak [keV] : 23.7045      ( -1.47993 1.42203 )
Norm@50keV   : 7.11411    ( -7.32959   207.711 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.78 using 59 PHA bins.
# Reduced chi-squared =          1.196 for     55 degrees of freedom
# Null hypothesis probability =   1.514509e-01

Photon flux (15-150 keV)    in 132.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

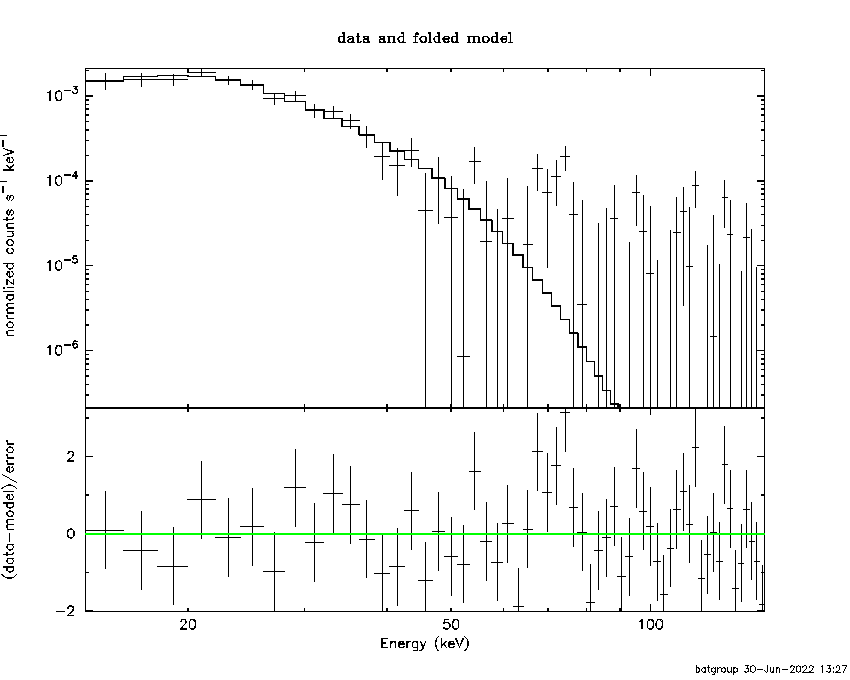

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.88724  (-0.365402  0.390745)
R^2/D10^2   : 1.15100  (-0.295381   0.40024)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.31 using 59 PHA bins.
# Reduced chi-squared =          1.181 for     57 degrees of freedom
# Null hypothesis probability =   1.649782e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.811e-07   7.166e-08
25- 50  6.515e-07   7.279e-08
50-150  5.516e-08   1.832e-08
15-150  1.388e-06   1.109e-07

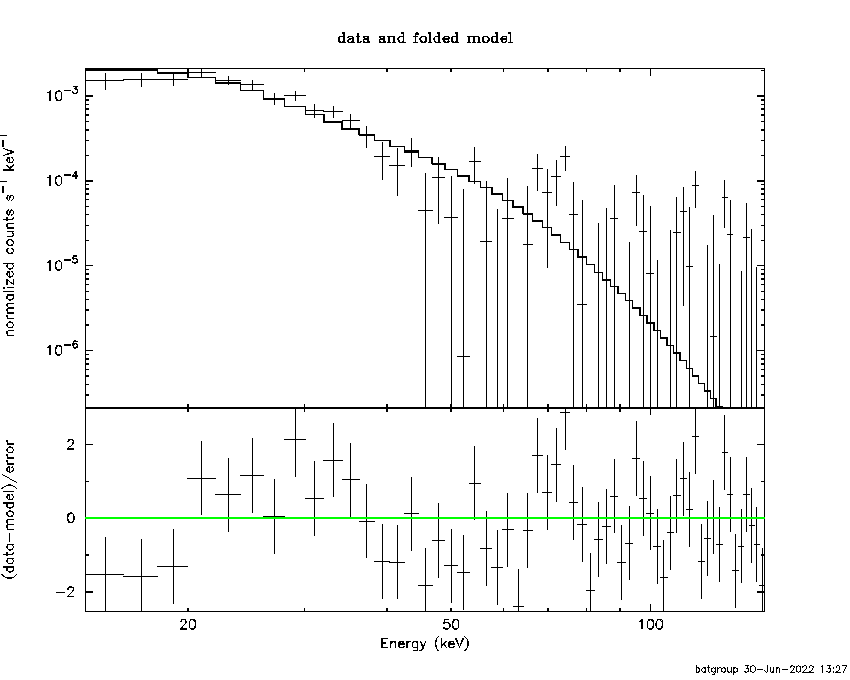

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 19.6040       (-2.53982      3.07187)
Norm        : 3.56243       (-0.605237     0.746228)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.175e-07   6.697e-08
25- 50  6.186e-07   6.433e-08
50-150  1.791e-07   6.063e-08
15-150  1.515e-06   1.420e-07

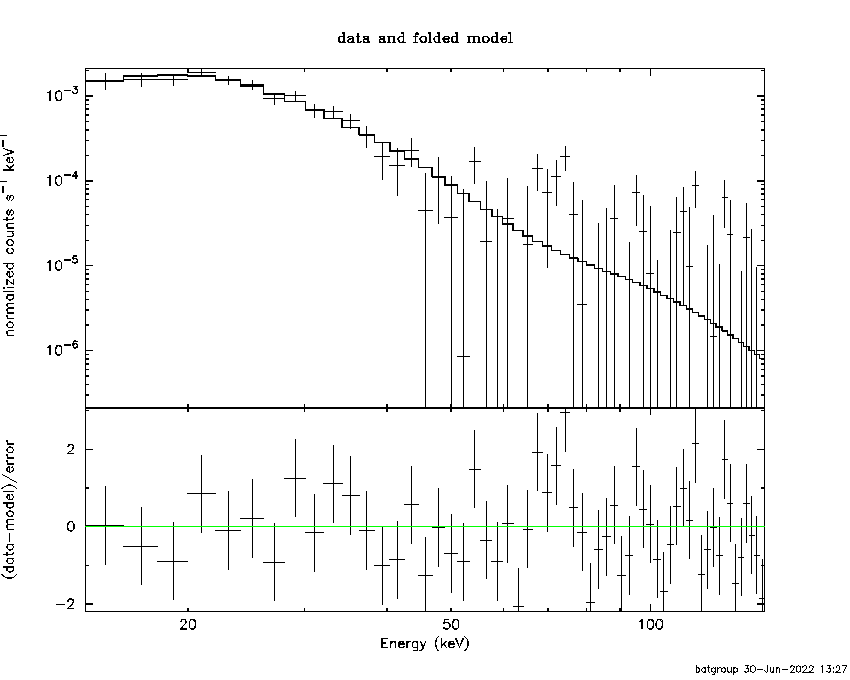

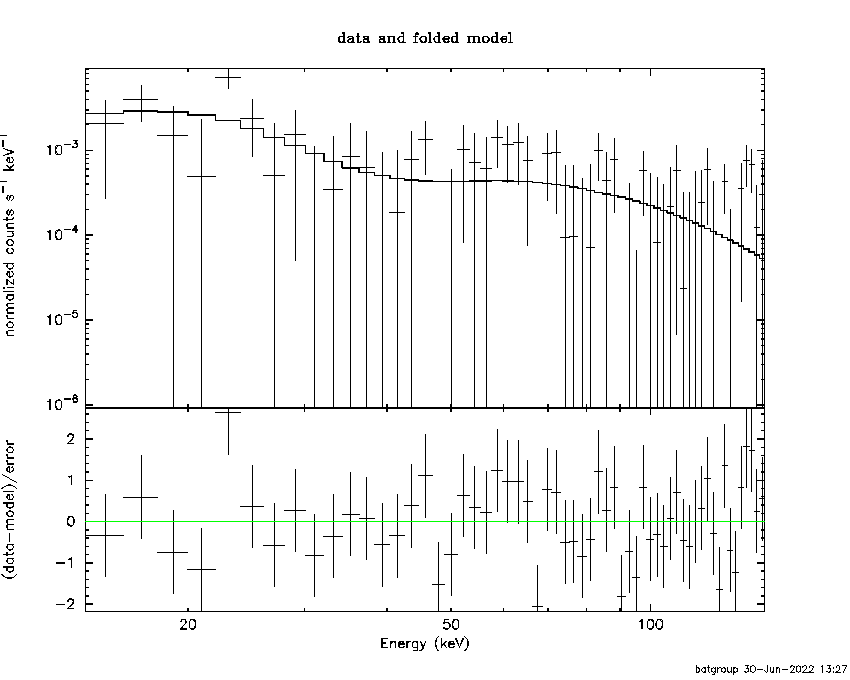

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.78450        (-0.365439      0.390706)
R1^2/D10^2  : 1.22803        (-0.295347      0.400273)
kT2 [keV]   : 29.5625        (-28.2824      -28.2824)
R2^2/D10^2  : 1.49424E-04    (-0.000152605   1.47874)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Peak spectrum fit

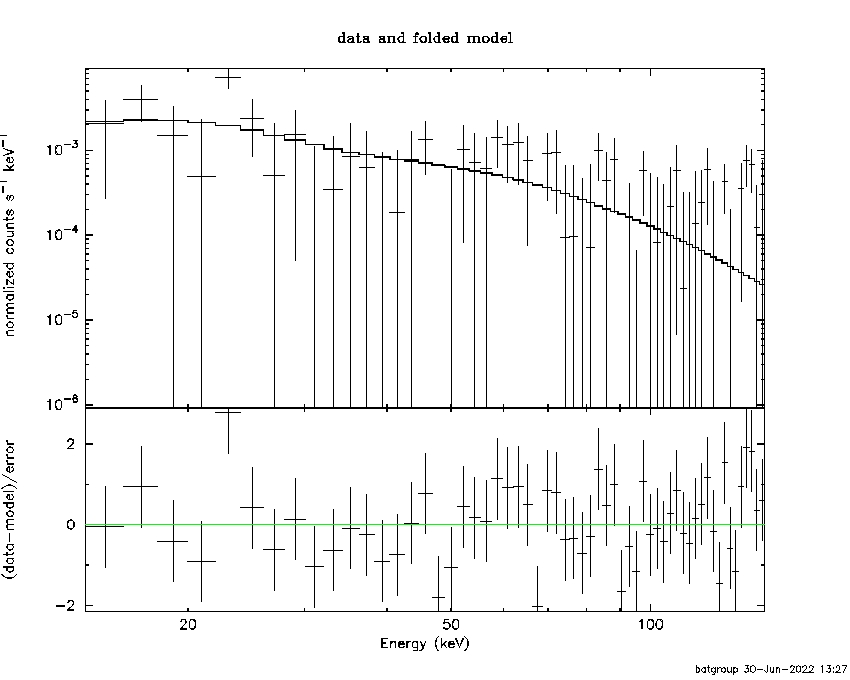

Power-law model

Time interval is from   78.476 sec. to   79.476 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.69711     ( -0.761244   0.848767 )
Norm@50keV  : 4.15670E-03    ( -0.00188395   0.00161846 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.84 using 59 PHA bins.
# Reduced chi-squared =         0.9446 for     57 degrees of freedom
# Null hypothesis probability =   5.942048e-01

Photon flux (15-150 keV)    in 1 sec: 0.551499 ( -0.187981  0.187846 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.84893e-08 ( -1.64262e-08  1.74528e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   78.476 sec. to   79.476 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.70086     ( -0.81766   0.808432 )
Epeak [keV] : 1.00000E+04      ( -9999.99 -10000 )
Norm@50keV  : 4.15586E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.85 using 59 PHA bins.
# Reduced chi-squared =         0.9616 for     56 degrees of freedom
# Null hypothesis probability =   5.567711e-01

Photon flux (15-150 keV)    in 1 sec: 0.551932 ( -0.187516  0.187369 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.78514e-08 ( -1.58259e-08  1.81133e-08 ) ergs/cm2

Band function

Time interval is from   78.476 sec. to   79.476 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.32603   ( 1.32471   1.32471 )
beta        : -1.69621    ( 1.69738   0.761563 )
Epeak [keV] : 24.4395      ( -25.4374 -25.4374 )
Norm@50keV   : 9.79645E-03    ( -0.00974462   2443.3 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.84 using 59 PHA bins.
# Reduced chi-squared =         0.9790 for     55 degrees of freedom
# Null hypothesis probability =   5.188249e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

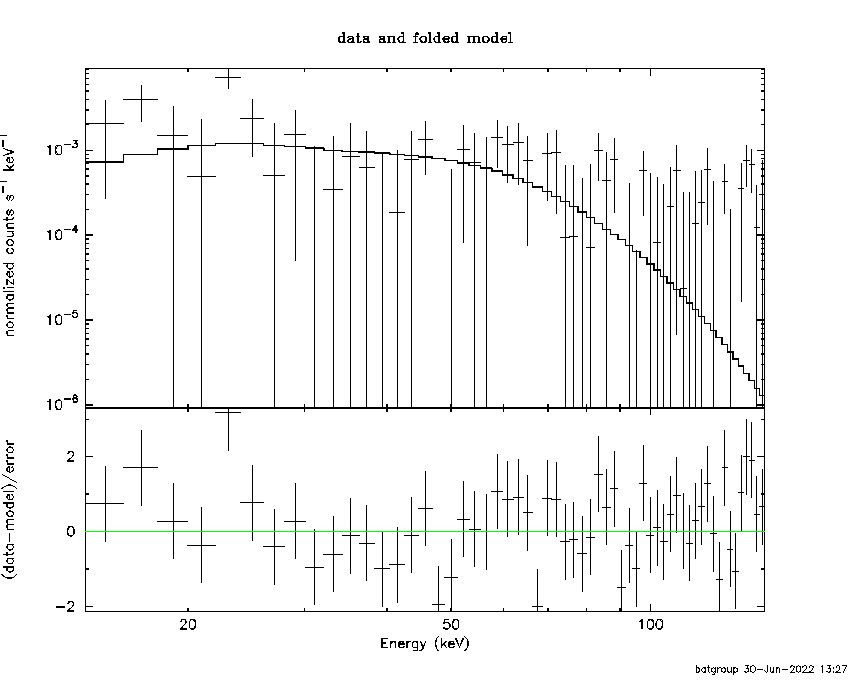

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.0399  (-9.6403  23.836)
R^2/D10^2   : 6.82104E-02  (-0.0663725   10.7037)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.217e-09   4.611e-09
25- 50  9.426e-09   6.345e-09
50-150  1.430e-09   1.386e-09
15-150  1.807e-08   1.122e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 198.849       (-165.21      -198.966)
Norm        : 2.18815       (-0.754349     1.71869)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.450e-09   3.540e-09
25- 50  1.048e-08   6.685e-09
50-150  2.297e-08   1.436e-08
15-150  3.890e-08   2.461e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.66123        (-2.04702      2.51807)
R1^2/D10^2  : 4.22889        (-3.85139      70.1183)
kT2 [keV]   : 42.4713        (-26.6151      -42.6848)
R2^2/D10^2  : 1.91938E-03    (-0.00176904   0.0113501)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.129e-09   5.085e-09
25- 50  7.181e-09   3.916e-09
50-150  3.059e-08   1.917e-08
15-150  4.590e-08   2.332e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.92226     ( -0.186503   0.198032 )
Norm@50keV  : 1.11108E-03    ( -0.000173373   0.000178851 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         101.61 using 59 PHA bins.
# Reduced chi-squared =         1.7827 for     57 degrees of freedom
# Null hypothesis probability =   2.566065e-04

Photon flux (15-150 keV)    in 93.98 sec: 0.288927 ( -0.0230937  0.0230942 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.21183e-06 ( -1.15278e-07  1.18872e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.97795     ( -3.3057   1.54301 )
Epeak [keV] : 23.1908      ( -2.2249 2.15839 )
Norm@50keV  : 19.3146    ( -19.029   1192.95 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.38 using 59 PHA bins.
# Reduced chi-squared =          1.239 for     56 degrees of freedom
# Null hypothesis probability =   1.079963e-01

Photon flux (15-150 keV)    in 93.98 sec: 0.265919 ( -0.023236  0.023249 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.67985e-07 ( -8.73591e-08  9.1311e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.27991   ( -3.04876   -3.87513 )
beta        : -5.29256    ( 5.45778   1.48087 )
Epeak [keV] : 23.2384      ( -1.59907 1.36635 )
Norm@50keV   : 32.6975    ( -32.707   219.386 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.17 using 59 PHA bins.
# Reduced chi-squared =          1.240 for     55 degrees of freedom
# Null hypothesis probability =   1.093030e-01

Photon flux (15-150 keV)    in 93.98 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.70e-07
S(50-100 keV) = 3.07e-07

T90 vs. Hardness ratio plot

T90                                   = 113.81199991703 sec.
Hardness ratio (energy fluence ratio) = 0.538596

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.710169
Count Ratio (50-100 keV) / (15-25 keV) = 0.0859845

Mask shadow pattern

IMX = 1.441883822019237E-01, IMY = 4.515049016723787E-01

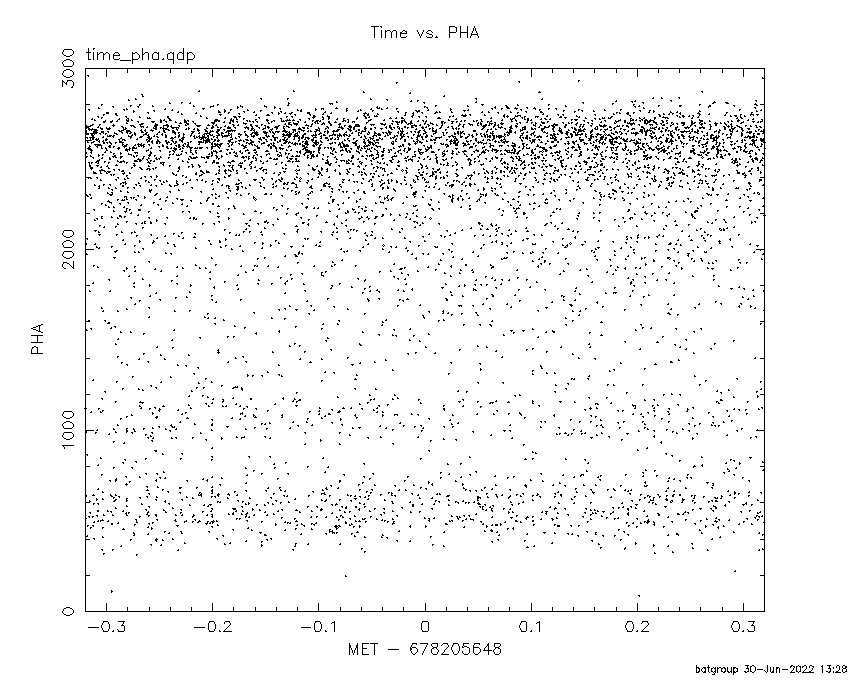

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -56.360000
-55.000000 -1.552000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.4873 -40.5473    8.1  37.9   28.5  -1.1182  -1.4    1.9	Vela X-1
 85.5310 -57.2536    2.4  32.8   92.1   5.0598   4.9 ------	UNKNOWN
155.0542 -40.0906    2.7  52.7   26.4   7.5270   4.3 ------	UNKNOWN
130.7863 -16.9498    4.9  35.3  -11.9   1.3668   2.4 ------	UNKNOWN
146.7006 -11.0274    2.5  51.9  -11.7   4.4989   4.5 ------	UNKNOWN
103.7679  -1.4925    2.0  25.4  -72.3   3.3851   5.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-1.552000 11.130000
12.000000 93.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5190 -40.4205    6.0  37.9   28.3   0.4516   1.9    8.1	Vela X-1
102.6541 -28.8330    2.6   8.8   21.9   0.5982   4.4 ------	UNKNOWN
121.6017 -21.6033    2.3  25.7   -7.9   0.7550   4.9 ------	UNKNOWN
103.7818  -1.5083    1.5  25.4  -72.3   1.4415   7.7 ------	UNKNOWN
 65.0193   3.5312    3.0  39.9 -144.7   0.8958   3.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
241.100600 420.480000
421.000000 603.054700
661.000000 823.160000
824.000000 869.500600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1697 -60.7453    5.8  34.8 -157.6   1.9806   2.0    8.5	Cen X-3
186.3707 -62.7662  327.8  31.8 -171.0   0.0310   0.0    7.9	GX 301-2
184.8450 -34.0426    2.8  13.8 -105.2   2.8907   4.2 ------	UNKNOWN
181.0977 -28.7633    3.3  17.7  -87.4   2.8248   3.5 ------	UNKNOWN
160.8314 -54.2023    2.3  35.9 -143.5   5.0438   5.1 ------	UNKNOWN
156.2203 -22.6392    2.8  40.8  -91.8  14.1713   4.1 ------	UNKNOWN
140.0543 -46.1454    2.5  48.1 -129.2  14.9727   4.7 ------	UNKNOWN

Plot creation:
Thu Jun 30 13:28:25 EDT 2022
