TDRSS scaled map for 1114148
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 02 Jul 22 02:03:46 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1114148, Seg_Num: 0
GRB_RA: 264.572d {+17h 38m 17s} (J2000),
264.923d {+17h 39m 42s} (current),
263.790d {+17h 35m 10s} (1950)
GRB_DEC: -26.964d {-26d 57' 49"} (J2000),
-26.975d {-26d 58' 31"} (current),
-26.936d {-26d 56' 08"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=16926 [image_cnts]
TRIGGER_DUR: 600.000 [sec] (=10.0 [min])
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 19762 TJD; 183 DOY; 22/07/02
GRB_TIME: 6786.57 SOD {01:53:06.57} UT
GRB_PHI: -163.00 [deg]
GRB_THETA: 5.08 [deg]
SOLN_STATUS: 0x11D
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 11.21 [sigma]
MERIT_PARAMS: +0 +0 +95 +6 +1 +1 +0 +1 +96 +0
SUN_POSTN: 101.10d {+06h 44m 24s} +23.04d {+23d 02' 36"}
SUN_DIST: 164.83 [deg] Sun_angle= -10.9 [hr] (East of Sun)
MOON_POSTN: 136.73d {+09h 06m 56s} +21.84d {+21d 50' 17"}
MOON_DIST: 132.86 [deg]
MOON_ILLUM: 8 [%]
GAL_COORDS: 0.82, 2.42 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 265.15, -3.62 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This matches a source in the on-board catalog: Num=15356=(null) (a Fluence Trigger).
COMMENTS: This matches a source in the ground catalog: SLX_1735-269, delta=0.040 [deg].
COMMENTS: This is not a GRB.
COMMENTS: This is an interesting source.
COMMENTS: This trigger occurred at longitude,latitude = 5.15,19.44 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sat 02 Jul 22 02:24:37 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1114148, Seg_Num: 0
POINT_RA: 0.000d {+00h 00m 00s} (J2000)
POINT_DEC: +0.000d {+00d 00' 00"} (J2000)
MAP_DATE: 19762 TJD; 183 DOY; 22/07/02
MAP_TIME: 6786.57 SOD {01:53:06.57} UT
TRIGGER_DUR: 600.000 [sec] (=10.0 [min])
SOLN_STATUS: 0x10000
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 11.21 [sigma]
MAP_URL: sw01114148000msbsm.fits
SUN_POSTN: 101.12d {+06h 44m 28s} +23.04d {+23d 02' 32"}
MOON_POSTN: 136.91d {+09h 07m 39s} +21.79d {+21d 47' 24"}
MOON_ILLUM: 8 [%]
GAL_COORDS: 96.34,-60.19 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 0.00, 0.00 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS: WARNING: This Notice was received with 1 (or more) critical values out of range.

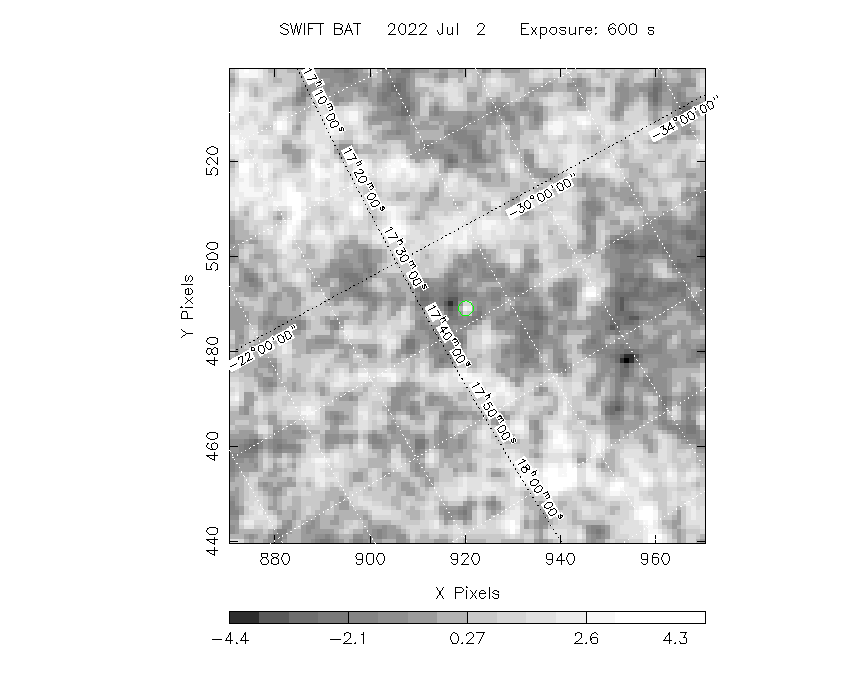

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (264.572, -26.964).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 264.572 -26.964 1.0
AXJ1739.4-2656 ( 264.871 , -26.947 ) delta= 0.267
AXJ1739.5-2730 ( 264.900 , -27.505 ) delta= 0.615
KS1732-273 ( 264.008 , -27.426 ) delta= 0.682
SLX1735-269 ( 264.567 , -27.004 ) delta= 0.041
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
228.4837 -59.1356 0.0 44.6 -126.4 -3.7389 -0.8 0.0 PSR B1509-58
231.2913 -65.3390 0.0 48.1 -133.8 4.2073 1.0 0.0 Circinus AGN
235.5971 -52.3861 0.0 37.1 -123.0 2.7885 1.3 0.0 H 1538-522
243.1792 -52.4231 0.0 34.2 -129.1 2.3071 1.2 0.0 4U 1608-522
243.1792 -57.1669 0.0 38.1 -133.4 1.4403 0.8 0.0 Cir X-1
244.9795 -15.6402 0.0 18.5 -44.2 9.9648 8.5 0.0 Sco X-1
248.0700 -67.4619 0.0 46.5 -143.1 1.3991 0.5 0.0 4U 1626-67
250.2312 -53.7514 0.0 33.3 -136.9 0.9797 0.5 0.0 4U 1636-536
251.4487 -45.6111 0.0 25.6 -131.5 0.0496 0.0 0.0 GX 340+0
253.5006 -39.8458 0.0 19.7 -128.1 0.9938 0.7 0.0 GRO J1655-40
255.1996 -41.6731 0.0 20.8 -133.7 -1.5390 -1.0 0.0 OAO 1657-415
255.9866 -37.8441 0.0 17.1 -130.8 3.4911 2.5 0.0 4U 1700-377
256.4354 -36.4231 0.0 15.6 -129.9 -0.2540 -0.2 0.0 GX 349+2
256.5638 -43.0361 0.0 21.8 -137.6 0.8108 0.5 0.0 4U 1702-429
257.2292 -44.1000 0.0 22.7 -139.6 0.7911 0.5 0.0 4U 1705-440
257.2333 -32.2833 0.0 11.7 -124.4 -1.2920 -1.2 0.0 4U 1705-32
257.2750 -36.4108 0.0 15.4 -132.2 1.6380 1.2 0.0 IGR J17091-3624
257.4500 -36.4700 0.0 15.4 -132.8 0.1444 0.1 0.0 IGR J17098-3628
257.5517 -28.1317 0.0 8.1 -111.5 -0.2118 -0.2 0.0 XTE J1710-281
261.3000 -36.2667 0.0 14.4 -144.3 -0.2248 -0.2 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 11.1 -142.2 -1.9206 -1.7 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 8.9 -142.7 -0.2351 -0.2 0.0 4U 1722-30
262.9342 -16.9617 0.0 5.1 23.9 0.6435 0.6 0.0 GX 9+9
262.9892 -33.8347 0.0 11.8 -149.5 -0.3033 -0.3 0.0 4U 1728-34
263.0090 -24.7456 0.0 2.8 -143.8 -0.1952 -0.2 0.0 GX 1+4
263.3504 -33.3878 0.0 11.4 -150.9 0.7310 0.6 0.0 4U 1730-335
264.5667 -27.0044 0.0 5.1 -162.9 4.5468 3.8 0.0 SLX 1735-269
264.7429 -44.4500 0.0 22.5 -153.6 0.1716 0.1 0.0 4U 1735-44
265.7500 -36.3447 0.0 14.5 -158.7 0.9881 0.9 0.0 XTE J1743-363
265.9761 -29.7395 0.0 8.1 -167.2 3.5102 2.8 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 7.4 -170.9 -0.1287 -0.1 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 7.5 -171.7 0.2204 0.2 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 8.0 -171.0 0.5093 0.4 0.0 1A 1742-294
266.8579 -29.9994 0.0 8.6 -171.6 -0.2606 -0.2 0.0 SLX 1744-299
266.9833 -26.5636 0.0 5.6 174.0 1.4028 1.1 0.0 GX 3+1
270.2842 -25.0792 0.0 7.0 146.3 2.3576 2.0 0.0 GX 5-1
270.3025 -25.7431 0.0 7.3 151.0 0.4343 0.4 0.0 GRS 1758-258
270.3846 -20.5289 0.0 6.7 107.5 -0.6785 -0.6 0.0 GX 9+1
270.6663 -20.2871 0.0 7.0 106.1 0.6096 0.5 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 10.8 94.0 -0.2363 -0.2 0.0 GX 13+1
273.8000 -12.0833 0.0 14.0 75.6 -1.0859 -0.8 0.0 4U 1812-12
274.0058 -14.0364 0.0 12.8 82.4 2.4872 2.1 0.0 GX 17+2
275.9185 -30.3611 0.0 14.0 158.2 0.5256 0.5 0.0 4U 1820-30
276.4450 -37.1053 0.0 18.9 175.0 0.4839 0.4 0.0 3A 1822-371
277.3675 -23.7969 0.0 13.0 129.6 -0.1044 -0.1 0.0 GS 1826-24
278.9337 -32.9914 0.0 17.6 160.9 -0.2969 -0.2 0.0 XB 1832-330
279.5847 -65.4276 0.0 44.7 -160.6 -0.8625 -0.4 0.0 ESO 103-035
279.9896 5.0358 0.0 31.5 61.8 -0.2195 -0.1 0.0 Ser X-1
283.8804 -2.6067 0.0 27.8 77.5 1.4386 0.8 0.0 XTE J1855-026
287.4138 9.8292 0.0 39.6 67.9 5.1073 1.3 0.0 4U 1907+09
287.7208 7.6667 0.0 38.1 70.4 0.5418 0.2 0.0 4U 1909+07
287.9565 4.9827 0.0 36.1 73.5 -0.3525 -0.1 0.0 SS 433
288.5083 9.8883 0.0 40.3 69.2 5.0936 1.2 0.0 IGR J19140+0951
288.7983 10.9456 0.0 41.3 68.5 5.3265 0.9 0.0 GRS 1915+105
311.2505 -41.2810 2.8 44.4 156.1 11.3452 4.1 ------ UNKNOWN
222.5506 -61.8172 4.3 48.6 -126.8 21.9118 2.7 ------ UNKNOWN
214.7298 -10.0251 2.9 48.1 -54.8 31.3913 3.9 ------ UNKNOWN
217.4396 -37.5342 2.0 42.3 -93.3 50.5174 5.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 18.5 -44.2 9.9648 8.5 0.0 Sco X-1
255.9866 -37.8441 0.0 17.1 -130.8 3.4968 2.5 0.0 4U 1700-377
256.4354 -36.4231 0.0 15.6 -129.9 -0.3094 -0.2 0.0 GX 349+2
263.0090 -24.7456 0.0 2.8 -143.8 -0.1955 -0.2 0.0 GX 1+4
264.7429 -44.4500 0.0 22.5 -153.6 0.1716 0.1 0.0 4U 1735-44
268.3680 -1.4526 0.0 21.1 42.8 -0.0449 -0.0 0.0 SW J1753.5-0127
270.2842 -25.0792 0.0 7.0 146.3 2.3553 2.0 0.0 GX 5-1
270.3025 -25.7431 0.0 7.3 151.0 0.4353 0.4 0.0 GRS 1758-258
274.0058 -14.0364 0.0 12.8 82.4 2.4926 2.1 0.0 GX 17+2
275.9250 -30.3670 0.0 14.0 158.2 0.5657 0.5 0.0 H1820-303
285.0360 -24.9205 0.0 20.0 131.5 0.2897 0.2 0.0 HT1900.1-2455
288.7983 10.9456 0.0 41.3 68.5 5.3285 1.0 0.0 GRS 1915+105
262.9891 -33.8347 0.0 11.8 -149.5 -0.3809 -0.3 0.0 GX 354-0
311.2505 -41.2810 2.8 44.4 156.1 11.3452 4.1 ------ UNKNOWN
222.5506 -61.8172 4.3 48.6 -126.8 21.9118 2.7 ------ UNKNOWN
214.7298 -10.0251 2.9 48.1 -54.8 31.3913 3.9 ------ UNKNOWN
217.4396 -37.5342 2.0 42.3 -93.3 50.5174 5.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 214.7298 Dec. = -10.0251 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 217.4396 Dec. = -37.5342 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 222.5506 Dec. = -61.8172 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 311.2505 Dec. = -41.2810 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
228.4837 -59.1356 0.0 44.6 -126.4 -5.1652 -1.5 0.0 PSR B1509-58
231.2913 -65.3390 0.0 48.1 -133.8 3.7490 1.1 0.0 Circinus AGN
235.5971 -52.3861 0.0 37.1 -123.0 3.4044 2.1 0.0 H 1538-522
243.1792 -52.4231 0.0 34.2 -129.1 2.9722 2.1 0.0 4U 1608-522
243.1792 -57.1669 0.0 38.1 -133.4 0.6817 0.4 0.0 Cir X-1
244.9795 -15.6402 0.0 18.5 -44.2 10.5799 11.2 0.0 Sco X-1
248.0700 -67.4619 0.0 46.5 -143.1 2.3899 1.2 0.0 4U 1626-67
250.2312 -53.7514 0.0 33.3 -136.9 1.0088 0.8 0.0 4U 1636-536
251.4487 -45.6111 0.0 25.6 -131.5 0.0939 0.1 0.0 GX 340+0
253.5006 -39.8458 0.0 19.7 -128.1 0.9885 1.0 0.0 GRO J1655-40
255.1996 -41.6731 0.0 20.8 -133.7 -1.4712 -1.5 0.0 OAO 1657-415
255.9866 -37.8441 0.0 17.1 -130.8 3.3164 3.7 0.0 4U 1700-377
256.4354 -36.4231 0.0 15.6 -129.9 0.0154 0.0 0.0 GX 349+2
256.5638 -43.0361 0.0 21.8 -137.6 0.2596 0.3 0.0 4U 1702-429
257.2292 -44.1000 0.0 22.7 -139.6 0.2923 0.3 0.0 4U 1705-440
257.2333 -32.2833 0.0 11.7 -124.4 -1.7587 -2.0 0.0 4U 1705-32
257.2750 -36.4108 0.0 15.4 -132.2 2.9780 3.3 0.0 IGR J17091-3624
257.4500 -36.4700 0.0 15.4 -132.8 -1.2855 -1.4 0.0 IGR J17098-3628
257.5517 -28.1317 0.0 8.1 -111.5 -0.1372 -0.1 0.0 XTE J1710-281
261.3000 -36.2667 0.0 14.4 -144.3 -0.9336 -1.0 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 11.1 -142.2 -1.1624 -1.2 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 8.9 -142.7 0.4955 0.6 0.0 4U 1722-30
262.9342 -16.9617 0.0 5.1 23.9 0.5293 0.6 0.0 GX 9+9
262.9892 -33.8347 0.0 11.8 -149.5 0.0312 0.0 0.0 4U 1728-34
263.0090 -24.7456 0.0 2.8 -143.8 0.0320 0.0 0.0 GX 1+4
263.3504 -33.3878 0.0 11.4 -150.9 -0.1274 -0.1 0.0 4U 1730-335
264.5667 -27.0044 0.0 5.1 -162.9 4.9391 5.6 0.0 SLX 1735-269
264.7429 -44.4500 0.0 22.5 -153.6 -0.4028 -0.4 0.0 4U 1735-44
265.7500 -36.3447 0.0 14.5 -158.7 1.0349 1.2 0.0 XTE J1743-363
265.9761 -29.7395 0.0 8.1 -167.2 2.9798 3.5 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 7.4 -170.9 0.4429 0.5 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 7.5 -171.7 0.4505 0.5 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 8.0 -171.0 0.5883 0.6 0.0 1A 1742-294
266.8579 -29.9994 0.0 8.6 -171.6 0.0076 0.0 0.0 SLX 1744-299
266.9833 -26.5636 0.0 5.6 174.0 0.7078 0.7 0.0 GX 3+1
270.2842 -25.0792 0.0 7.0 146.3 2.3641 2.7 0.0 GX 5-1
270.3025 -25.7431 0.0 7.3 151.0 0.3889 0.4 0.0 GRS 1758-258
270.3846 -20.5289 0.0 6.7 107.5 -0.6283 -0.7 0.0 GX 9+1
270.6663 -20.2871 0.0 7.0 106.1 -0.2739 -0.3 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 10.8 94.0 -0.6245 -0.7 0.0 GX 13+1
273.8000 -12.0833 0.0 14.0 75.6 -0.9355 -1.0 0.0 4U 1812-12
274.0058 -14.0364 0.0 12.8 82.4 2.6851 2.8 0.0 GX 17+2
275.9185 -30.3611 0.0 14.0 158.2 1.2365 1.5 0.0 4U 1820-30
276.4450 -37.1053 0.0 18.9 175.0 0.3457 0.4 0.0 3A 1822-371
277.3675 -23.7969 0.0 13.0 129.6 -0.2684 -0.3 0.0 GS 1826-24
278.9337 -32.9914 0.0 17.6 160.9 0.3048 0.3 0.0 XB 1832-330
279.5847 -65.4276 0.0 44.7 -160.6 0.3605 0.2 0.0 ESO 103-035
279.9896 5.0358 0.0 31.5 61.8 -0.3741 -0.2 0.0 Ser X-1
283.8804 -2.6067 0.0 27.8 77.5 0.7528 0.6 0.0 XTE J1855-026
287.4138 9.8292 0.0 39.6 67.9 1.8255 0.6 0.0 4U 1907+09
287.7208 7.6667 0.0 38.1 70.4 1.4367 0.6 0.0 4U 1909+07
287.9565 4.9827 0.0 36.1 73.5 1.1994 0.6 0.0 SS 433
288.5083 9.8883 0.0 40.3 69.2 3.2457 1.0 0.0 IGR J19140+0951
288.7983 10.9456 0.0 41.3 68.5 5.3392 1.2 0.0 GRS 1915+105
300.6157 -20.1168 3.0 34.7 122.8 6.6112 3.9 ------ UNKNOWN
303.4500 -47.9025 2.7 41.1 167.9 6.4797 4.3 ------ UNKNOWN
259.5806 -40.4376 2.7 18.7 -142.0 3.7326 4.3 ------ UNKNOWN
217.4043 -37.5341 1.7 42.4 -93.3 48.9376 6.9 ------ UNKNOWN
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1114148/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Fri Jul 1 22:25:17 EDT 2022
