batgrbproduct analysis for trigger=1119268

batgrbproduct Analysis for Trigger=1119268

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Jun 14 12:32:44 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1119268
======================================================================

  Trigger: 01119268      Segment: 000

  BAT Trigger Time: 681502149.44   [s; MET]
      Trigger Stop: 681502150.464   [s; MET]
               UTC: 2022-08-06T18:08:39.809960    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 260.873417061978   Dec: -26.0230362270796  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.93
     Image Trigger?:     NO
     Rate S/N Ratio:     14.1774468787578  [ if not an image trigger ]
     Image S/N Ratio:    9.93

  Flight Position:   [ source = BAT ]
    RA: 260.873417061978   Dec: -26.0230362270796  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 260.853751780465   Dec: -26.0236492102056  [deg; J2000]
        { 17h 23m 24.9s , -26d 01' 25.1" }
         +/- 2.05369290554543 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.957546966420791 [arcmin] (formal 1-sigma fit error)
    SNR: 10.8802554055448

  Angular difference between Flight and Ground position is 1.060929 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 4.70799994468689 +/- 2.0652602451552
        Measured from: -0.0680000782012939
                   to: 4.6399998664856     [s; relative to TRIGTIME]
     T50: 1.75599992275238 +/- 0.837147518388818
        Measured from: 0.639999985694885
                   to: 2.39599990844727     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.763999938964844
                   to: 1.76399993896484     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.300000071525574
                   to: 6.66399991512299     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.195070   0.134494   0.016889   0.006139
           0.020001   0.017805   0.014548   0.012580 [error]
 Peak      0.069060   0.049788   0.009237   0.001297
           0.008295   0.007237   0.005633   0.004682 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.74e-08 4.83e-08 2.76e-08 2.35e-08 1.43e-07 1.57e-07   erg/cm2
              Error 9.15e-09 8.58e-09 9.98e-09 1.55e-08 2.52e-08 3.32e-08   erg/cm2
Peak flux Power-law 6.93e-01 3.15e-01 8.64e-02 2.95e-02 1.11e+00 1.12e+00   ph/cm2/s
              Error 1.38e-01 6.41e-02 3.83e-02 2.37e-02 1.78e-01 1.81e-01   ph/cm2/s

Fluence   Cutoff-PL 5.70e-08 5.52e-08 8.57e-09 8.36e-11 1.20e-07 1.20e-07   erg/cm2
              Error 1.00e-08 1.15e-08 1.10e-08 -------- 2.14e-08 2.15e-08   erg/cm2
Peak flux Cutoff-PL 6.59e-01 3.31e-01 7.06e-02 7.89e-03 1.08e+00 1.09e+00   ph/cm2/s
              Error 1.07e-01 6.01e-02 4.30e-02 1.35e-02 1.74e-01 1.74e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.805    0.327    -      -           1.86e-03 5.04e-04   40.040 57
CPL  -0.419    2.827      21.7   13.1      3.51e-01 7.77e+01   33.950 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.867    0.434    -      -           4.45e-03 1.50e-03   50.840 57
CPL   1.967    0.941       1.2   11.6      1.75e-02 8.40e-03   51.040 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    6.964   -0.300    6.664
T90     4.708   -0.068    4.640
T50     1.756    0.640    2.396
Peak    1.000    0.764    1.764

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  260.8538   -26.0236   0.0177     5.6916   -49.0121         0.3633903     10.880 TRIG_01119268

Foreground time interval of the image:
 -0.300   6.664 (delta_t =   6.964 [sec])
Background time interval of the image:
-147.939  -0.300 (delta_t = 147.639 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

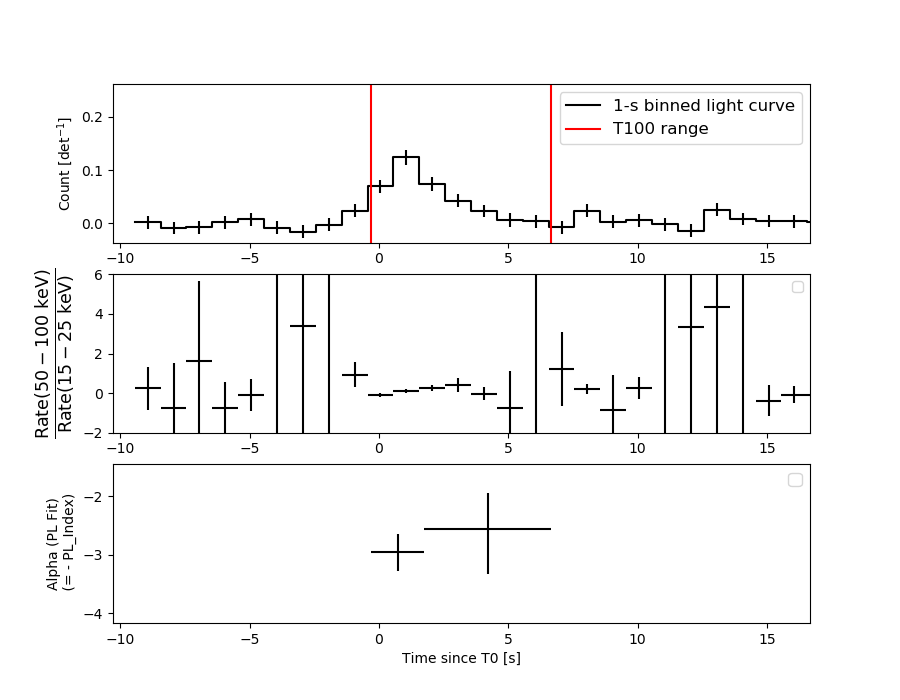

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

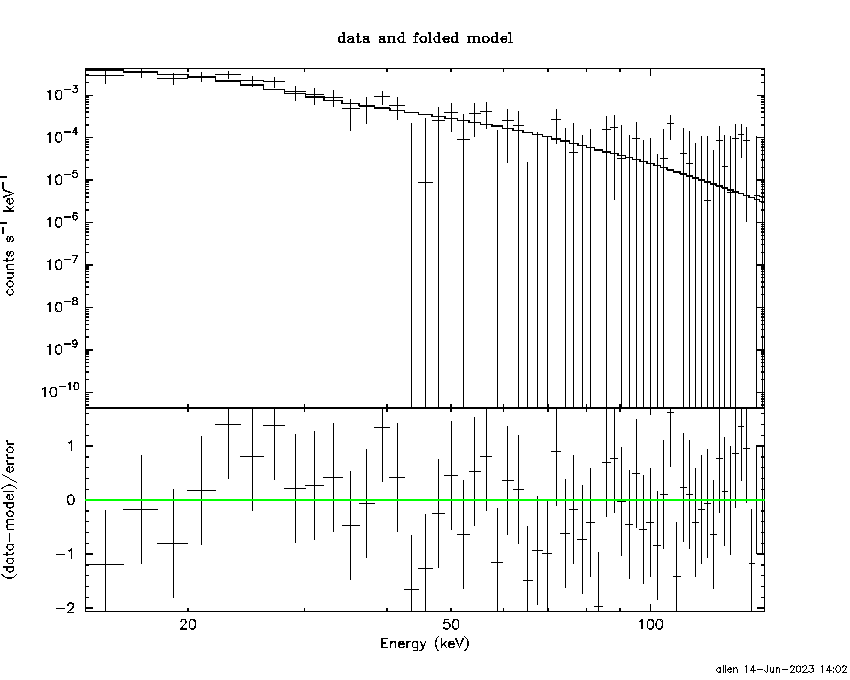

Power-law model

Time interval is from   -0.300 sec. to    6.664 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.80470     ( -0.307569   0.34629 )
Norm@50keV  : 1.86445E-03    ( -0.000494046   0.000513556 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.04     using 59 bins.
 Reduced chi-squared = 0.702456
# Null hypothesis probability of 9.57e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 6.964 sec: 0.446665 ( -0.062169  0.062185 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.43618e-07 ( -2.45489e-08  2.58623e-08 ) ergs/cm2

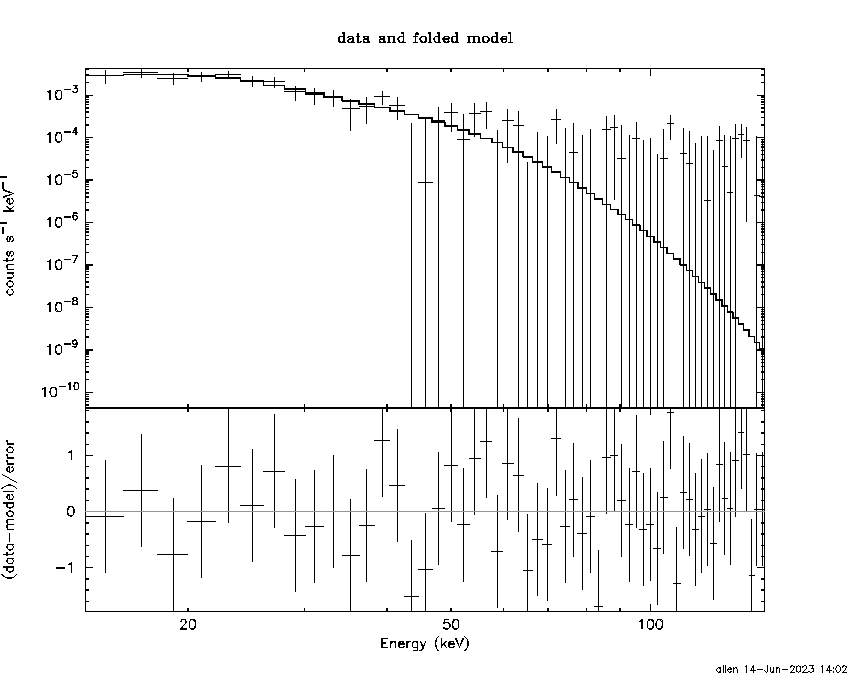

Cutoff power-law model

Time interval is from   -0.300 sec. to    6.664 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.418602     ( -4.28569   1.36784 )
Epeak [keV] : 21.6806      ( -20.336 5.90177 )
Norm@50keV  : 0.351386    ( -0.343527   154.998 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   33.95     using 59 bins.
 Reduced chi-squared = 0.60625
# Null hypothesis probability of 9.91e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 6.964 sec: 0.447366 ( -0.062751  0.061858 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20789e-07 ( -1.98363e-08  2.29611e-08 ) ergs/cm2

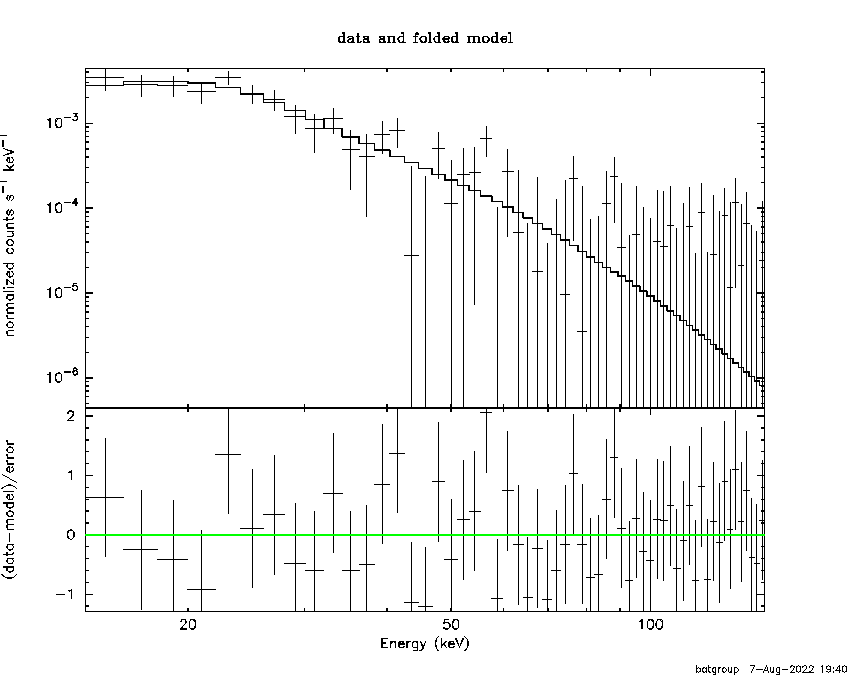

Band function

Time interval is from   -0.300 sec. to    6.664 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

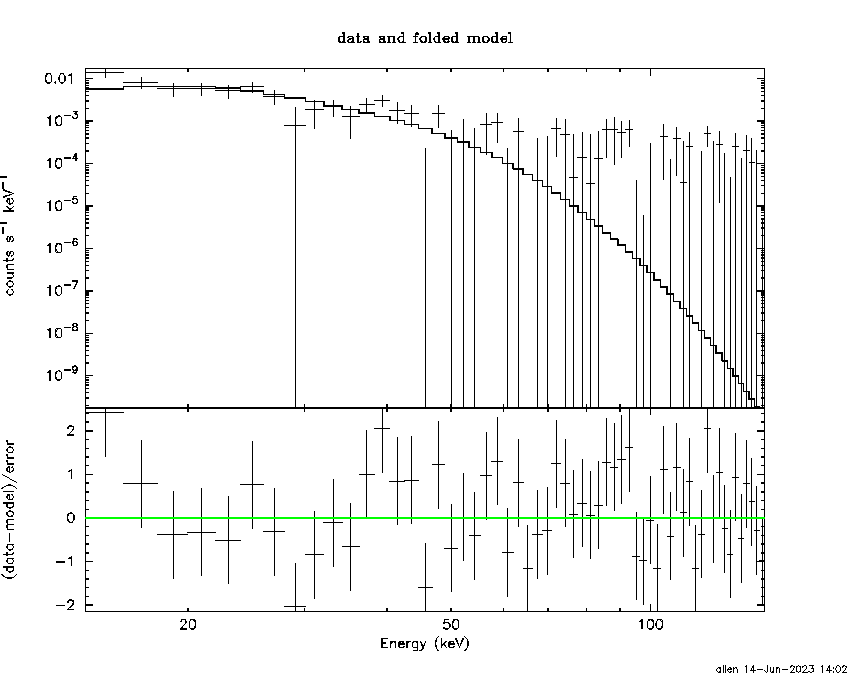

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.94633  (-0.757167  0.861629)
R^2/D10^2   : 1.74065  (-0.787063   1.47086)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   34.50     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.92e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.621e-08   1.342e-08
25- 50  5.497e-08   1.456e-08
50-150  4.851e-09   2.915e-09
15-150  1.160e-07   2.427e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 21.1329       (-5.19673      7.50266)
Norm        : 5.12433       (-1.48121     2.23123)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   35.25     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.90e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.791e-08   1.010e-08
25- 50  5.287e-08   1.179e-08
50-150  1.734e-08   9.985e-09
15-150  1.281e-07   2.531e-08

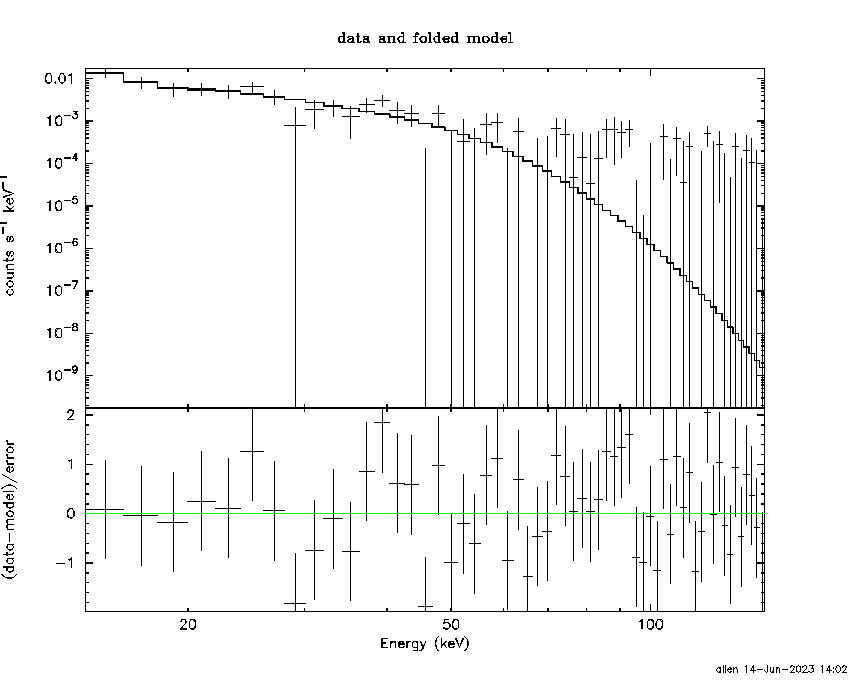

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.30031        (-5.30031      1.26842)
R1^2/D10^2  : 2.49672        (-2.49672      -2.49672)
kT2 [keV]   : 12.0182        (-12.0182      -12.0182)
R2^2/D10^2  : 2.05447E-02    (-0.0205447   2.83511)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   33.57     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.90e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.747e-08   3.538e-08
25- 50  5.372e-08   3.239e-08
50-150  1.412e-08   8.061e-09
15-150  1.253e-07   7.761e-08

Peak spectrum fit

Power-law model

Time interval is from    0.764 sec. to    1.764 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.86729     ( -0.39443   0.472911 )
Norm@50keV  : 4.44580E-03    ( -0.00148704   0.00152267 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   50.84     using 59 bins.
 Reduced chi-squared = 0.89193
# Null hypothesis probability of 7.04e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.11231 ( -0.178197  0.17821 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.04255e-08 ( -9.98002e-09  1.05717e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.764 sec. to    1.764 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.96683     ( -1.85652   0.0260542 )
Epeak [keV] : 1.20779      ( -0.780747 22.3663 )
Norm@50keV  : 1.74946E-02    ( -0.00642967   0.0103788 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.04     using 59 bins.
 Reduced chi-squared = 0.911429
# Null hypothesis probability of 6.63e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 1.08471 ( -0.174346  0.17363 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.70446e-08 ( -9.54989e-09  1.0206e-08 ) ergs/cm2

Band function

Time interval is from    0.764 sec. to    1.764 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.26964  (-1.10561  1.24413)
R^2/D10^2   : 3.23744  (-1.76819   4.46217)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   56.60     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.90e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.796e-08   5.456e-09
25- 50  1.968e-08   7.035e-09
50-150  2.151e-09   1.384e-09
15-150  3.980e-08   1.085e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 21.9457       (-6.84274      10.8442)
Norm        : 11.9251       (-4.16769     7.41993)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.61     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.77e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.993e-08   4.625e-09
25- 50  1.870e-08   5.235e-09
50-150  6.517e-09   4.031e-09
15-150  4.514e-08   1.073e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.30964        (-1.37266      1.90132)
R1^2/D10^2  : 4.72846E+04        (-49332.4      -49373.6)
kT2 [keV]   : 7.34164        (-1.44533      2.34071)
R2^2/D10^2  : 1.47868    (-1.08882   1.25128)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.52     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.19e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.883e-08   1.009e-08
25- 50  1.941e-08   1.114e-08
50-150  4.859e-09   3.401e-09
15-150  4.310e-08   2.198e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.80470     ( -0.307569   0.34629 )
Norm@50keV  : 1.86445E-03    ( -0.000494046   0.000513556 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   40.04     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.57e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 6.964 sec: 0.446573 ( -0.0621525  0.0621814 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.43575e-07 ( -2.4544e-08  2.58801e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.415065     ( -4.29685   1.55314 )
Epeak [keV] : 21.6744      ( -20.3132 5.92693 )
Norm@50keV  : 0.349338    ( -0.342012   154.99 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   33.95     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 9.91e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 6.964 sec: 0.428773 ( -0.060969  0.061232 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.208e-07 ( -1.00665e-08  2.00891e-08 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.83e-08
S(50-100 keV) = 2.76e-08

T90 vs. Hardness ratio plot

T90                                   = 4.70799994468689 sec.
Hardness ratio (energy fluence ratio) = 0.571429

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.689465
Count Ratio (50-100 keV) / (15-25 keV) = 0.0865792

Mask shadow pattern

IMX = 6.537020839191149E-02, IMY = 7.523190730335999E-02

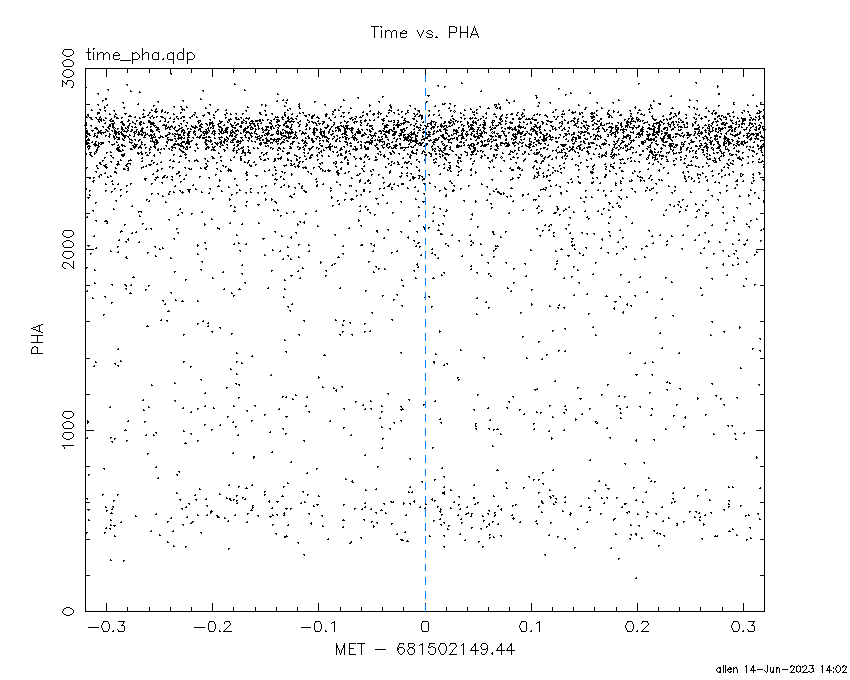

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-147.939380 -0.300000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9858 -15.6644    1.0  23.8  -49.3   3.4506  11.4    1.5	Sco X-1
256.0870 -37.9529    2.7  12.4 -127.9   1.0133   4.3    8.1	4U 1700-377
256.4425 -36.4267    2.9  11.2 -123.2   0.9484   3.9    0.4	GX 349+2
263.0219 -24.7404   18.8   5.2  -24.7  -0.1589  -0.6    0.8	GX 1+4
264.9107 -44.3063   28.3  15.4 -164.8   0.1013   0.4   11.2	4U 1735-44
268.3608  -1.4534   14.6  27.6   15.6   0.2330   0.8    0.4	SW J1753.5-0127
270.2438 -25.2333    5.3   5.1   55.1   0.5230   2.2    9.5	GX 5-1
270.5027 -25.8548    0.0   4.8   62.2   0.1362   0.6   12.7	GRS 1758-258
274.1728 -14.0741    4.1  16.5   38.9   0.7392   2.8   10.0	GX 17+2
276.0104 -30.2937    3.1   8.5  112.7  -1.0419  -3.7    6.2	H1820-303
285.0641 -24.9155  197.7  17.1   92.1   0.0179   0.1    1.6	HT1900.1-2455
288.8775  10.9950    3.7  45.5   43.1   2.1433   3.1    5.5	GRS 1915+105
262.9085 -33.9974    9.8   5.8 -139.4   0.2860   1.2   10.6	GX 354-0
327.8155 -55.3580    3.1  50.5  151.0   3.9773   3.7 ------	UNKNOWN
247.8818 -48.8109    2.1  24.4 -138.3   1.5525   5.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.300000 6.664000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1306 -15.7155    7.1  23.6  -49.2   0.0676   1.6    9.8	Sco X-1
255.7789 -37.7098    0.0  12.4 -126.2   0.0540   1.6   12.7	4U 1700-377
256.2638 -36.5314    4.4  11.4 -123.1   0.0863   2.6   10.5	GX 349+2
263.0818 -24.8862    4.6   5.0  -25.1  -0.0843  -2.5    9.3	GX 1+4
264.6091 -44.4885   27.8  15.6 -164.1  -0.0144  -0.4    6.2	4U 1735-44
268.2651  -1.5980    7.5  27.4   15.4   0.0596   1.5   10.7	SW J1753.5-0127
270.4515 -25.0754    3.3   5.3   55.5  -0.1245  -3.5    9.1	GX 5-1
270.4831 -25.7799    7.3   4.8   61.4   0.0569   1.6   10.0	GRS 1758-258
273.9715 -13.9161    6.5  16.6   38.0  -0.0617  -1.8    7.5	GX 17+2
275.7374 -30.3449   13.6   8.3  113.3   0.0289   0.8    9.8	H1820-303
285.0317 -24.9057   25.2  17.1   92.0   0.0165   0.5    0.9	HT1900.1-2455
288.7757  10.8118    7.1  45.3   43.1   0.1922   1.6    8.1	GRS 1915+105
262.8400 -33.9993    4.1   5.9 -138.9   0.0893   2.8   12.4	GX 354-0
305.1479 -28.0035    2.3  34.0  109.3   0.3448   5.0 ------	UNKNOWN
261.7225 -23.2284    2.3   7.1  -25.8   0.1574   5.1 ------	UNKNOWN
260.8538 -26.0236    1.1   5.7  -49.0   0.3634  10.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
833.860600 962.600000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
328.3978 -64.7740    2.8  37.7   -1.1   1.0020   4.1 ------	UNKNOWN
 15.5223   3.1214    3.4  38.7 -170.8   0.8619   3.4 ------	UNKNOWN
 33.1389   7.8074    2.0  52.1 -153.5   2.8290   5.7 ------	UNKNOWN
 44.2728 -63.2432    2.9  43.2  -49.5   1.9481   3.9 ------	UNKNOWN
 51.2437 -55.8244    2.8  44.4  -61.2   3.7050   4.1 ------	UNKNOWN
 46.4872 -34.7707    3.3  40.9  -92.4   3.0329   3.5 ------	UNKNOWN

Plot creation:
Wed Jun 14 14:02:50 EDT 2023
