batgrbproduct analysis for trigger=1125350

batgrbproduct Analysis for Trigger=1125350

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Sep 27 07:24:26 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1125350/GCN5_download_cron
======================================================================

  Trigger: 01125350      Segment: 000

  BAT Trigger Time: 685872664   [s; MET]
      Trigger Stop: 685872728   [s; MET]
               UTC: 2022-09-26T08:10:34.072960    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 244.925075128708   Dec: -15.8371320617403  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    13.83
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    13.83

  Flight Position:   [ source = BAT ]
    RA: 244.925075128708   Dec: -15.8371320617403  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 244.981441339023   Dec: -15.81140277812  [deg; J2000]
        { 16h 19m 55.5s , -15d 48' 41.1" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 4.38678887484741 [arcmin] (formal 1-sigma fit error)
    SNR: -2.8217700523529

  Angular difference between Flight and Ground position is 3.601448 arcmin

  Partial Coding Fraction: 0.7265625    [ including projection effects ]

  Duration
     T90: 527.619999885559 +/- 62.4594673523249
        Measured from: 81.200000166893
                   to: 608.820000052452     [s; relative to TRIGTIME]
     T50: 254.947999954224 +/- 27.479059725424
        Measured from: 245.048000097275
                   to: 499.996000051498     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 410.728000044823
                   to: 411.728000044823     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -183.251999974251
                   to: 633.56400001049     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    34.230733   2.403790  -0.193209   0.117144
           0.266495   0.231850   0.191202   0.161505 [error]
 Peak      0.064191   0.023272   0.015647   0.002464
           0.008431   0.007087   0.006396   0.005378 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.20e-05 1.17e-06 4.60e-08 1.88e-09 1.32e-05 1.32e-05   erg/cm2
              Error 9.52e-07 1.17e-07 1.23e-08 8.65e-10 9.38e-07 9.38e-07   erg/cm2
Peak flux Power-law 6.53e-01 2.10e-01 3.75e-02 7.81e-03 9.05e-01 9.08e-01   ph/cm2/s
              Error 1.65e-01 8.80e-02 3.73e-02 1.62e-02 1.94e-01 1.95e-01   ph/cm2/s

Fluence   Cutoff-PL 1.12e-05 8.54e-07 2.89e-10 5.22e-18 1.21e-05 1.21e-05   erg/cm2
              Error 1.15e-06 1.34e-07 8.59e-10 2.95e-15 1.16e-06 1.16e-06   erg/cm2
Peak flux Cutoff-PL 6.67e-01 1.95e-01 3.10e-02 5.58e-03 8.98e-01 8.99e-01   ph/cm2/s
              Error -------- 8.94e-02 4.25e-02 1.63e-02 1.96e-01 1.96e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.665    0.255    -      -           6.85e-05 1.51e-05   71.210 57
CPL   1.000    0.000      50.0    0.0      1.21e-03 0.00e+00  740.050 56

The chi2 of BB fit is 42.72 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.481    0.949    -      -           2.27e-03 2.10e-03   70.220 57
CPL   1.844    0.000       3.9    0.0      2.09e-02 0.00e+00   74.120 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  816.816 -183.252  633.564
T90   527.620   81.200  608.820
T50   254.948  245.048  499.996
Peak    1.000  410.728  411.728

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte

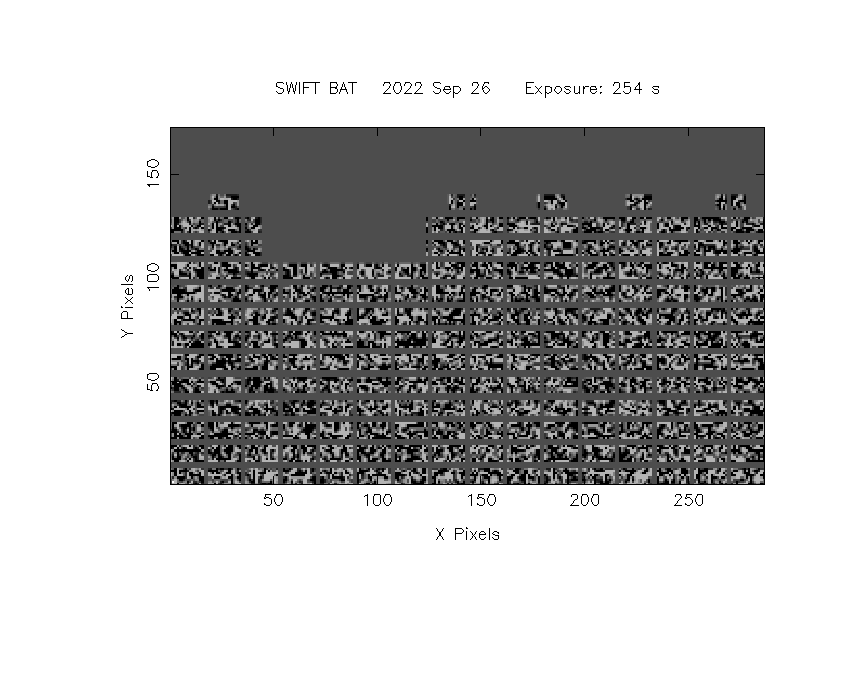

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  244.9814 -15.8114 0.0680   23.7  -55.4      -1.7084    -2.8  TRIG_01125350
------------------------------------------

Foreground time interval of the image:
-183.252  71.201 (delta_t = 254.453 [sec])
Background time interval of the image:
-239.000 -183.252 (delta_t =  55.748 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

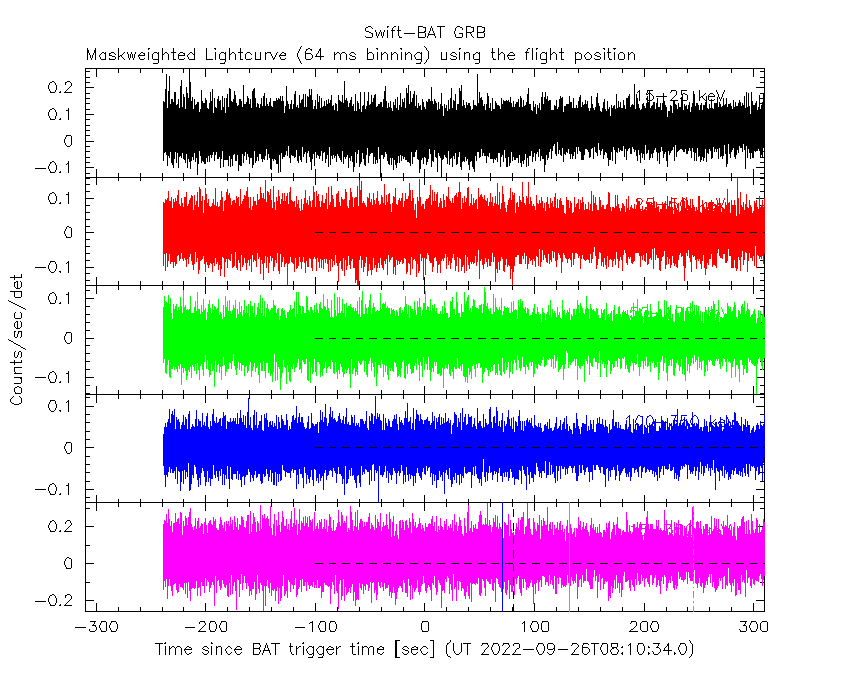

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

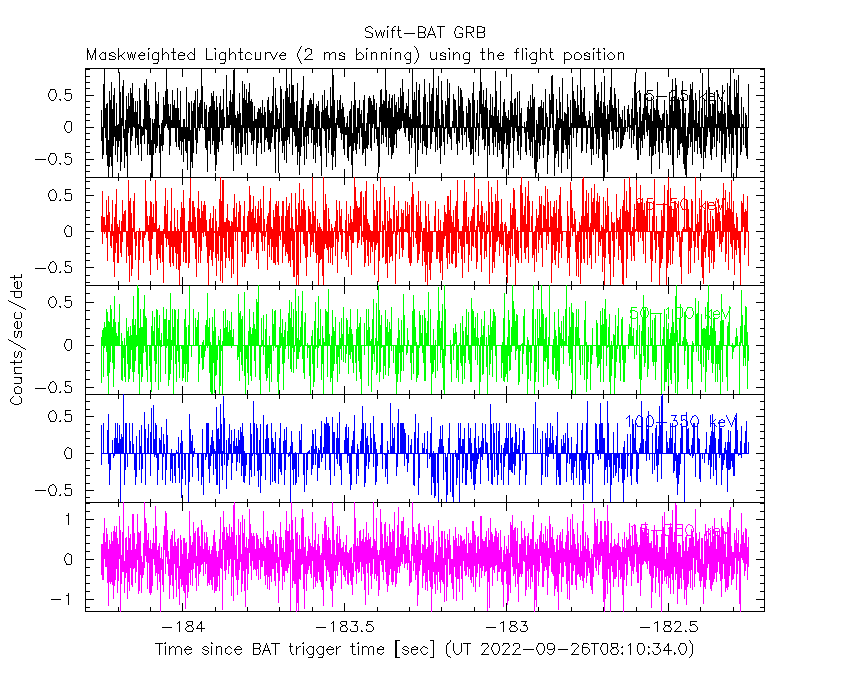

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

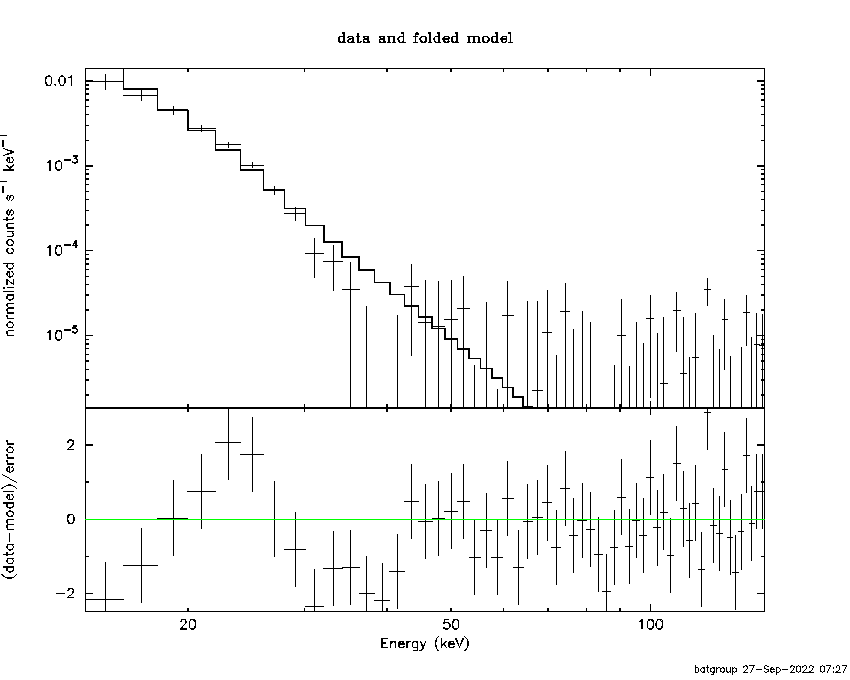

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-183.252000 353.210000
355.000000 407.150000
408.000000 633.564000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.66505     ( -0.255746   0.254197 )
Norm@50keV  : 6.85132E-05    ( -1.36791e-05   1.64564e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.21 using 59 PHA bins.
# Reduced chi-squared =          1.249 for     57 degrees of freedom
# Null hypothesis probability =   9.759980e-02

Photon flux (15-150 keV)    in 814.2 sec: 0.554225 ( -0.0425625  0.0430327 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.31673e-05 ( -9.33708e-07  9.43316e-07 ) ergs/cm2

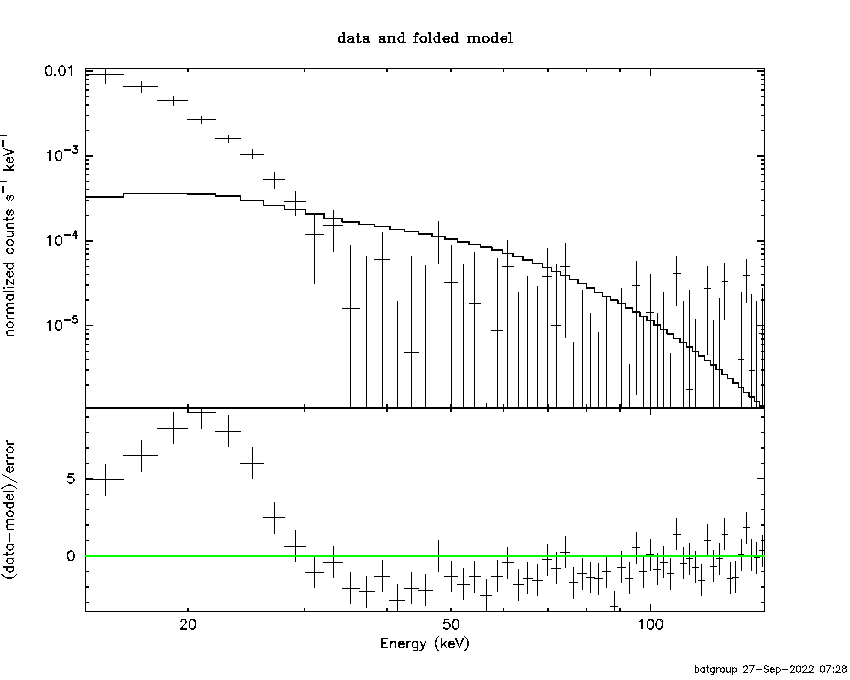

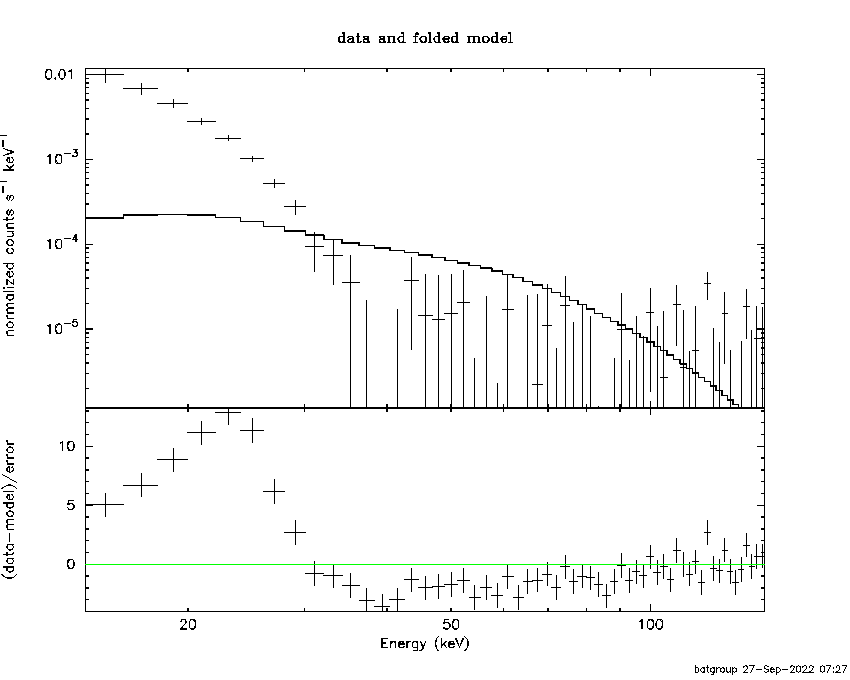

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-183.252000 353.210000
355.000000 407.150000
408.000000 633.564000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.20533E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         740.05 using 59 PHA bins.
# Reduced chi-squared =         13.215 for     56 degrees of freedom
# Null hypothesis probability =  4.337682e-120

Photon flux (15-150 keV)    in 814.2 sec: 0.504193 ( -0.054011  0.052506 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20669e-05 ( -1.17456e-06  1.14159e-06 ) ergs/cm2

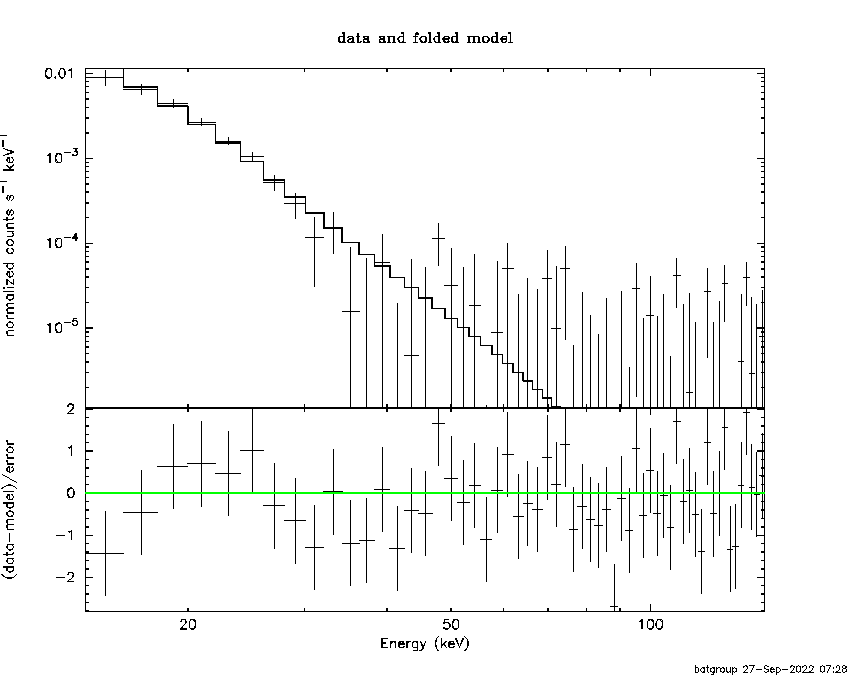

Band function

Multiple GTIs in the spectrum
tstart tstop
-183.252000 353.210000
355.000000 407.150000
408.000000 633.564000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.64634   (     )
beta        : -7.38061    (     )
Epeak [keV] : 19.6641      (   )
Norm@50keV   : 1.24414E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         652.31 using 59 PHA bins.
# Reduced chi-squared =         11.860 for     55 degrees of freedom
# Null hypothesis probability =  4.742548e-103

Photon flux (15-150 keV)    in 814.2 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

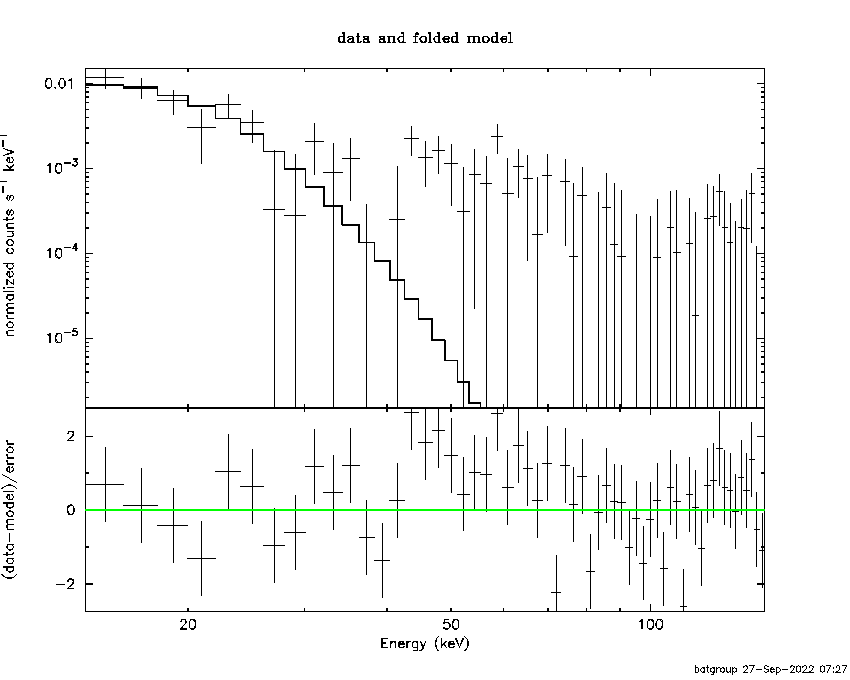

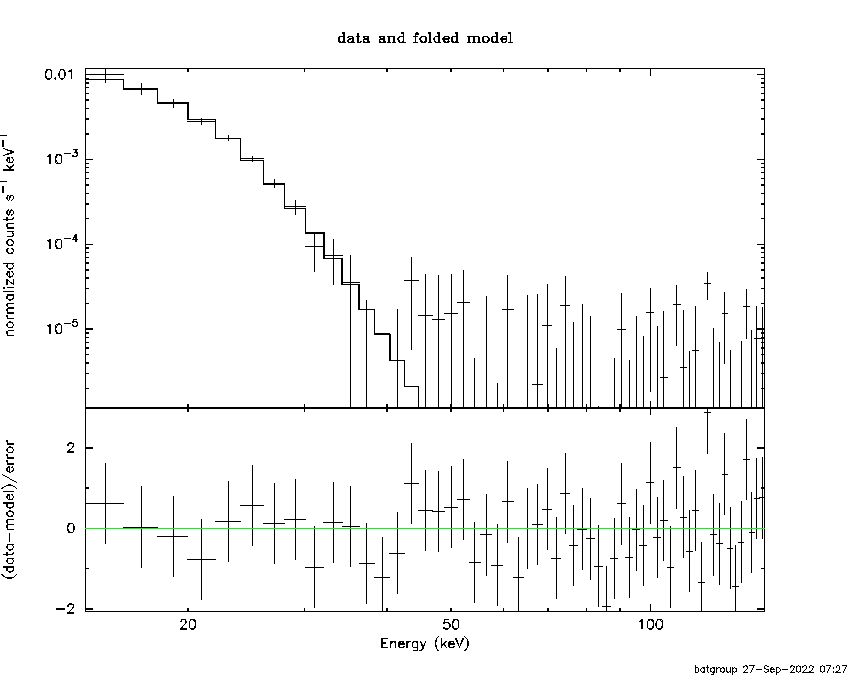

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.52413  (-0.108648  0.118113)
R^2/D10^2   : 234.454  (-77.9432   113.99)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.72 using 59 PHA bins.
# Reduced chi-squared =         0.7494 for     57 degrees of freedom
# Null hypothesis probability =   9.200330e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.123e-05   1.201e-06
25- 50  8.577e-07   1.242e-07
50-150  2.976e-10   1.463e-10
15-150  1.208e-05   1.303e-06

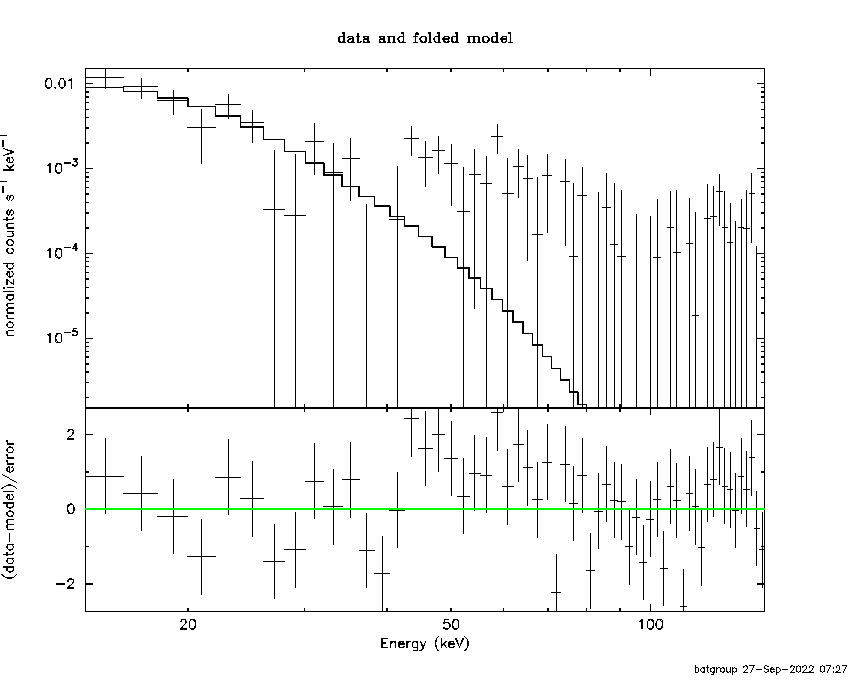

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.16471       (-0.25073      0.282132)
Norm        : 250.943       (-72.3049     99.3638)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.169e-05   1.128e-06
25- 50  9.476e-07   1.264e-07
50-150  1.790e-09   8.366e-10
15-150  1.264e-05   1.352e-06

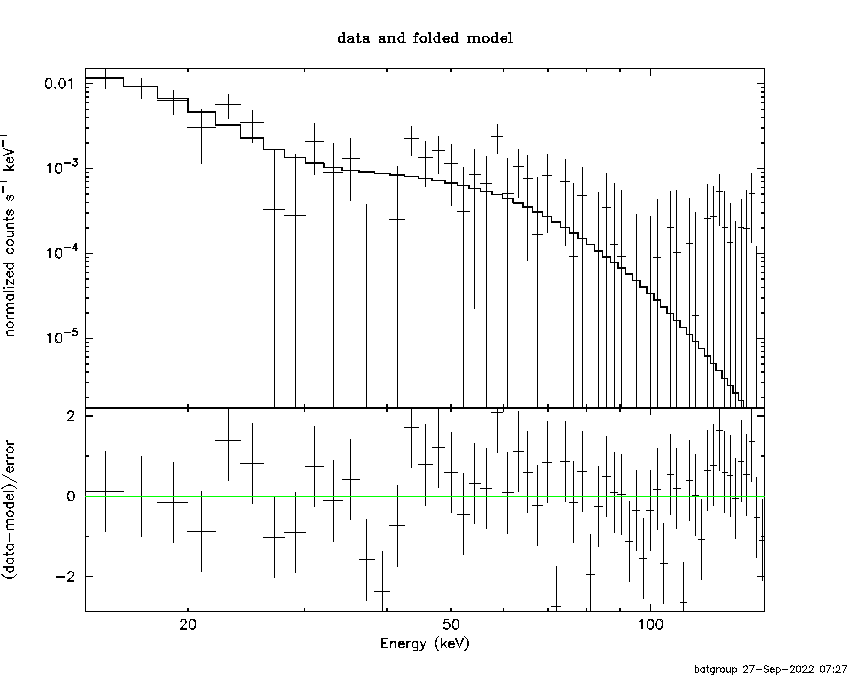

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.54767        (-0.108638      0.118122)
R1^2/D10^2  : 214.823        (-77.9504      113.981)
kT2 [keV]   : 0.644174        (-1.11182      25.3948)
R2^2/D10^2  : 3.26686E+08    (-3.51101e+08   6.46138e+12)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Peak spectrum fit

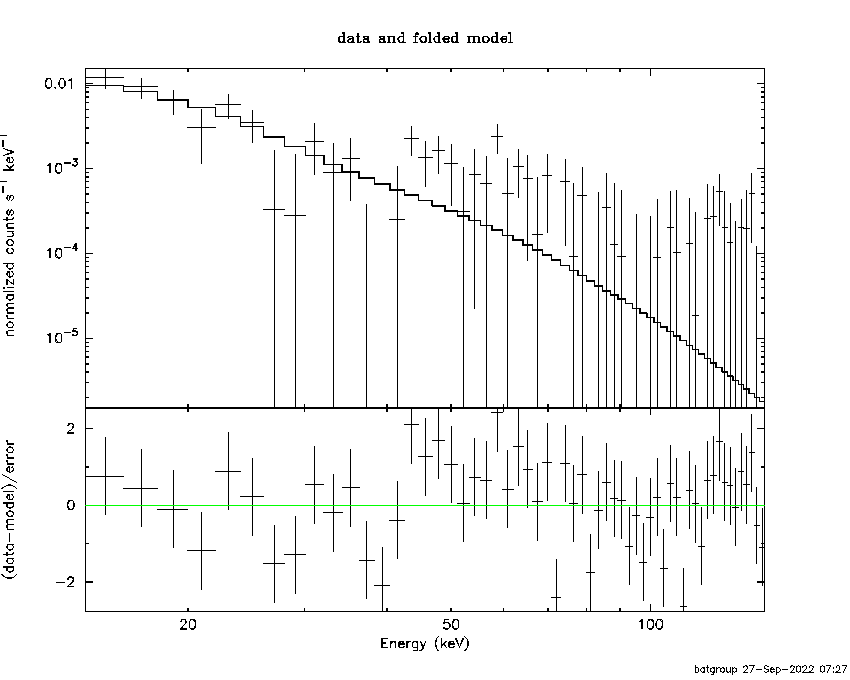

Power-law model

Time interval is from  410.728 sec. to  411.728 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.48083     ( -0.775089   1.12387 )
Norm@50keV  : 2.27334E-03    ( -0.00226961   0.00193237 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.22 using 59 PHA bins.
# Reduced chi-squared =          1.232 for     57 degrees of freedom
# Null hypothesis probability =   1.122135e-01

Photon flux (15-150 keV)    in 1 sec: 0.905194 ( -0.1941  0.193726 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.53418e-08 ( -1.00529e-08  1.14636e-08 ) ergs/cm2

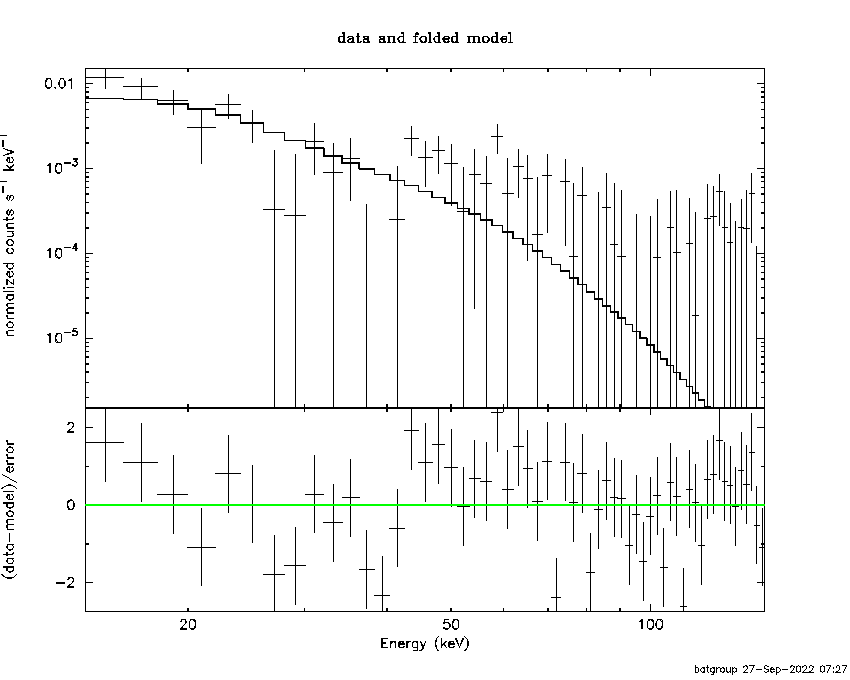

Cutoff power-law model

Time interval is from  410.728 sec. to  411.728 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.84425     (     )
Epeak [keV] : 3.92777      (   )
Norm@50keV  : 2.08875E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.12 using 59 PHA bins.
# Reduced chi-squared =          1.324 for     56 degrees of freedom
# Null hypothesis probability =   5.288717e-02

Photon flux (15-150 keV)    in 1 sec: 0.898059 ( -0.189705  0.202831 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.4412e-08 ( -9.2064e-09  1.24617e-08 ) ergs/cm2

Band function

Time interval is from  410.728 sec. to  411.728 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -6.23912   ( 6.23912   6.23912 )
beta        : -3.48336    ( -1.12094   0.776545 )
Epeak [keV] : 24.2096      ( -24.2096 -24.2096 )
Norm@50keV   : 0.308317    ( -0.30838   0.262711 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.22 using 59 PHA bins.
# Reduced chi-squared =          1.277 for     55 degrees of freedom
# Null hypothesis probability =   8.111594e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.27289  (-0.77466  1.11812)
R^2/D10^2   : 66.2870  (-66.3192   303.492)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.086e-08   1.183e-08
25- 50  4.081e-09   2.460e-09
50-150  1.292e-11   1.436e-11
15-150  2.496e-08   1.404e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 9.39840       (-4.35185      20.6167)
Norm        : 33.2091       (-25.5536     129.268)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.995e-08   1.110e-08
25- 50  7.890e-09   4.801e-09
50-150  4.550e-10   4.375e-10
15-150  2.830e-08   1.639e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.48378        (-0.734672      0.850506)
R1^2/D10^2  : 320.104        (-272.027      4444.55)
kT2 [keV]   : 13.4682        (-4.07296      6.32596)
R2^2/D10^2  : 7.28023E-02    (-0.0574021   0.157201)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.954e-08   1.092e-08
25- 50  1.120e-08   6.585e-09
50-150  1.170e-08   8.135e-09
15-150  4.245e-08   2.269e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.19250     ( -0.352186   0.355675 )
Norm@50keV  : 9.99861E-05    ( -2.80471e-05   3.65654e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.09 using 59 PHA bins.
# Reduced chi-squared =         0.8436 for     57 degrees of freedom
# Null hypothesis probability =   7.937327e-01

Photon flux (15-150 keV)    in 254.5 sec: 0.499553 ( -0.0441179  0.0444367 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.78358e-06 ( -3.06942e-07  3.08663e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.94442E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         423.67 using 59 PHA bins.
# Reduced chi-squared =         7.5655 for     56 degrees of freedom
# Null hypothesis probability =   6.685512e-58

Photon flux (15-150 keV)    in 254.5 sec: 0.483800 ( -0.049885  0.048808 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.63227e-06 ( -3.45178e-07  3.37772e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.17438   ( 6.16147   8.17438 )
beta        : -6.23300    ( -0.326154   0.38557 )
Epeak [keV] : 289.438      ( -289.438 -289.438 )
Norm@50keV   : 1.30815E-02    ( -0.00351861   0.0052891 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.12 using 59 PHA bins.
# Reduced chi-squared =         0.8750 for     55 degrees of freedom
# Null hypothesis probability =   7.326068e-01

Photon flux (15-150 keV)    in 254.5 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.17e-06
S(50-100 keV) = 4.60e-08

T90 vs. Hardness ratio plot

T90                                   = 527.619999885559 sec.
Hardness ratio (energy fluence ratio) = 0.0393162

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0702232
Count Ratio (50-100 keV) / (15-25 keV) = -0.00564431

Mask shadow pattern

IMX = 2.492296391413217E-01, IMY = 3.610915106966280E-01

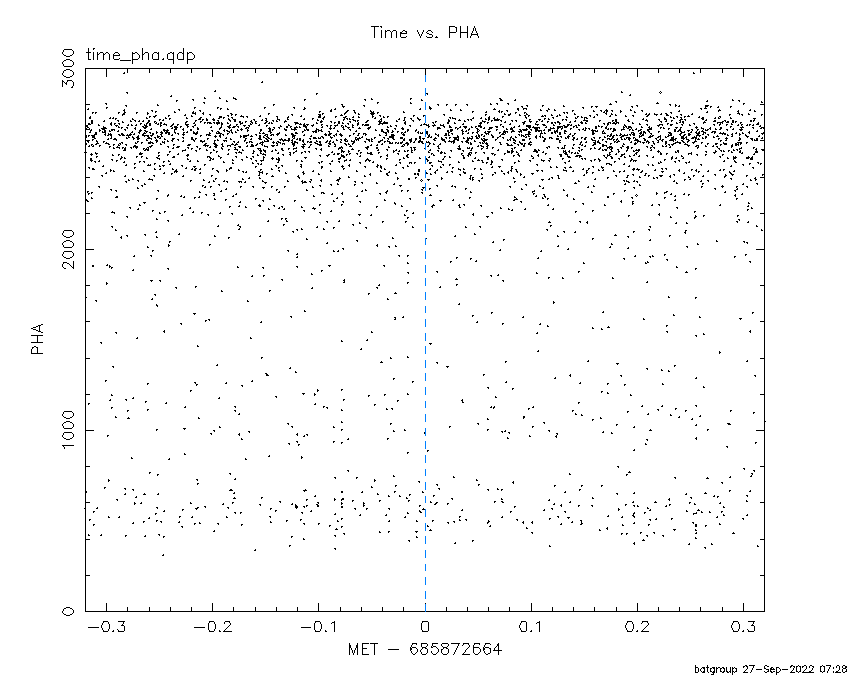

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -183.252000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9706 -15.7817    0.6  23.7  -55.3   3.1612  18.9    8.5	Sco X-1
255.7984 -37.8099    4.1  12.5 -132.4  -0.3563  -2.8    9.2	4U 1700-377
256.3845 -36.5710    7.6  11.3 -129.3   0.1962   1.5    9.2	GX 349+2
263.0645 -24.8590    7.2   5.1  -30.9   0.2370   1.6    7.4	GX 1+4
264.7175 -44.5252  135.2  15.6 -170.1  -0.0122  -0.1    4.6	4U 1735-44
268.2475  -1.3129    5.1  27.7    9.5  -0.4044  -2.3   11.1	SW J1753.5-0127
270.3991 -25.1732    8.6   5.2   49.7   0.1850   1.3    8.4	GX 5-1
270.1570 -25.8993    4.6   4.6   53.9   0.3420   2.5   12.2	GRS 1758-258
274.1438 -13.9542    7.6  16.7   32.7   0.2206   1.5    9.4	GX 17+2
275.8369 -30.4948   32.1   8.4  108.3   0.0504   0.4    8.9	H1820-303
285.0164 -24.9210   92.7  17.1   86.1   0.0212   0.1    1.1	HT1900.1-2455
288.8078  10.8102   14.0  45.3   37.3   0.3059   0.8    8.1	GRS 1915+105
262.9374 -33.9444    5.4   5.8 -144.9   0.2879   2.1    7.1	GX 354-0
309.6928 -20.0919    2.4  40.2   92.8   2.7154   4.9 ------	UNKNOWN
222.1857 -56.5454    3.1  41.4 -139.0   0.9732   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-183.252000 71.200580

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9824 -15.7818    3.7  23.7  -55.3  -1.8793  -3.1    8.5	Sco X-1
255.8385 -37.7806    8.9  12.4 -132.4   0.6549   1.3    8.0	4U 1700-377
256.3919 -36.2745  113.6  11.1 -128.1   0.0508   0.1    9.2	GX 349+2
263.0579 -24.8358    9.2   5.1  -30.8  -0.6247  -1.3    6.0	GX 1+4
264.9078 -44.2911    5.5  15.4 -170.6  -1.1138  -2.1   11.9	4U 1735-44
268.2536  -1.6125    0.0  27.4    9.6  -1.3793  -2.3   11.8	SW J1753.5-0127
270.1411 -25.2461    0.0   5.0   48.3   0.1265   0.2   12.7	GX 5-1
270.1185 -25.6130   12.5   4.7   51.1   0.4786   0.9   12.6	GRS 1758-258
274.1297 -13.8718    0.0  16.7   32.6  -1.4194  -2.7   12.2	GX 17+2
275.9281 -30.3684   26.3   8.4  107.4  -0.2261  -0.4    0.2	H1820-303
285.1163 -25.0502    6.2  17.1   86.7   1.1035   1.9    8.9	HT1900.1-2455
288.9731  10.8106  159.2  45.4   37.5   0.1239   0.1   13.1	GRS 1915+105
262.8520 -33.8854    9.2   5.8 -144.0  -0.6142  -1.2    7.5	GX 354-0
237.1783 -33.5418    2.2  25.3 -102.4   3.5363   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
132.300590 353.210000
355.000000 407.150000
408.000000 415.900610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9406 -15.7868    0.4   0.0   14.9  14.0956  26.2    9.1	Sco X-1
254.5103  35.3751    4.2  52.0    3.2   3.5066   2.7    3.2	Her X-1
255.8254 -37.9924    6.4  24.2  151.9  -1.1223  -1.8   11.7	4U 1700-377
256.4657 -36.4204    5.3  23.0  149.0   1.3598   2.2    1.5	GX 349+2
262.8534 -24.6044  146.8  18.9  113.8  -0.0550  -0.1   12.0	GX 1+4
264.9270 -44.5494    8.4  33.3  147.0   1.2207   1.4    9.9	4U 1735-44
268.5122  -1.3285    0.0  27.4   53.7  -1.0192  -1.2   11.4	SW J1753.5-0127
270.2842 -25.0791    8.8  25.4  108.8   1.1408   1.3    0.0	GX 5-1
270.3045 -25.7438  101.2  25.7  110.2   0.1000   0.1    0.1	GRS 1758-258
273.8931 -13.9039    5.6  28.0   83.3   2.1184   2.1   10.3	GX 17+2
276.0532 -30.2143   10.9  31.9  115.6  -1.2343  -1.1   11.3	H1820-303
285.0899 -25.0323   10.7  38.6  103.8   1.6550   1.1    7.3	HT1900.1-2455
263.0783 -33.6862    6.8  24.2  134.1  -1.2222  -1.7   10.0	GX 354-0
272.5254 -21.2789    3.5  26.7   99.3   2.8616   3.3 ------	UNKNOWN
272.1483 -48.4629    2.6  39.5  144.8   6.5311   4.4 ------	UNKNOWN
262.2969 -17.0868    2.5  16.7   90.1   3.0468   4.6 ------	UNKNOWN
238.4351  22.4652    3.0  38.8  -16.3   3.1118   3.9 ------	UNKNOWN
230.4270 -17.4125    2.9  14.0 -105.3   2.1680   4.0 ------	UNKNOWN
229.1202  39.3824    2.9  57.1  -21.2   8.0274   3.9 ------	UNKNOWN
191.8999 -60.2436    3.1  58.4 -159.0  14.1839   3.7 ------	UNKNOWN
224.2487  34.0779    2.5  53.6  -28.0   8.8479   4.7 ------	UNKNOWN
	UNKNOWN
	UNKNOWN
	UNKNOWN

Plot creation:
Tue Sep 27 07:28:41 EDT 2022
