batgrbproduct analysis for trigger=1125354

batgrbproduct Analysis for Trigger=1125354

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Tue Sep 27 14:35:20 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1125354/GCN5_download_cron
======================================================================

  Trigger: 01125354      Segment: 000

  BAT Trigger Time: 685877000   [s; MET]
      Trigger Stop: 685877064   [s; MET]
               UTC: 2022-09-26T09:22:50.072660    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.011391002499   Dec: -16.0425187265264  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    22.17
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    22.17

  Flight Position:   [ source = BAT ]
    RA: 245.011391002499   Dec: -16.0425187265264  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 245.006643659963   Dec: -16.043286141507  [deg; J2000]
        { 16h 20m 01.6s , -16d 02' 35.8" }
         +/- 0.90813801181378 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.268129926863154 [arcmin] (formal 1-sigma fit error)
    SNR: 34.9061093871693

  Angular difference between Flight and Ground position is 0.277593 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 1029.10399997234 +/- 25.7217503021218
        Measured from: -204.923999905586
                   to: 824.180000066757     [s; relative to TRIGTIME]
     T50: 568.327999949455 +/- 288.671237870655
        Measured from: 16.5080001354218
                   to: 584.836000084877     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -200.496000051498
                   to: -199.496000051498     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -223.299999952316
                   to: 840.416000008583     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    77.080283   5.935864  -0.301958   0.234268
           0.306091   0.257679   0.217114   0.196039 [error]
 Peak      0.126736   0.021644   0.000724   0.009697
           0.012577   0.009927   0.008408   0.007888 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.67e-05 2.53e-06 9.55e-08 3.74e-09 2.93e-05 2.93e-05   erg/cm2
              Error 1.87e-06 1.57e-07 1.72e-08 1.18e-09 1.85e-06 1.85e-06   erg/cm2
Peak flux Power-law 1.21e+00 1.81e-01 1.23e-02 8.96e-04 1.41e+00 1.41e+00   ph/cm2/s
              Error 2.31e-01 8.94e-02 1.65e-02 2.20e-03 2.78e-01 2.78e-01   ph/cm2/s

Fluence   Cutoff-PL 2.40e-05 2.23e-06 4.62e-09 1.88e-14 2.62e-05 2.62e-05   erg/cm2
              Error 2.29e-06 1.78e-07 5.93e-09 4.16e-13 2.29e-06 2.29e-06   erg/cm2
Peak flux Cutoff-PL 1.38e+00 4.71e-02 1.05e-07 1.31e-21 1.43e+00 1.43e+00   ph/cm2/s
              Error 2.60e-01 9.66e-02 7.67e-03 0.00e+00 2.67e-01 2.68e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    6.726    0.187    -      -           1.10e-04 1.62e-05  100.180 57
CPL   1.000    0.000      50.0    0.0      1.45e-03 0.00e+00 1281.290 56

The chi2 of BB fit is 67.68 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.875    0.900    -      -           1.03e-03 9.68e-04   67.630 57
CPL   1.000    0.000      50.0    0.0      1.71e-02 0.00e+00  115.120 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100 1063.720 -223.300  840.416
T90  1029.100 -204.924  824.180
T50   568.328   16.508  584.836
Peak    1.000 -200.496 -199.496

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  245.0066 -16.0433 0.0055   17.1  -16.6       8.8102    34.9  TRIG_01125354
------------------------------------------

Foreground time interval of the image:
-16.799  71.301 (delta_t =  88.100 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

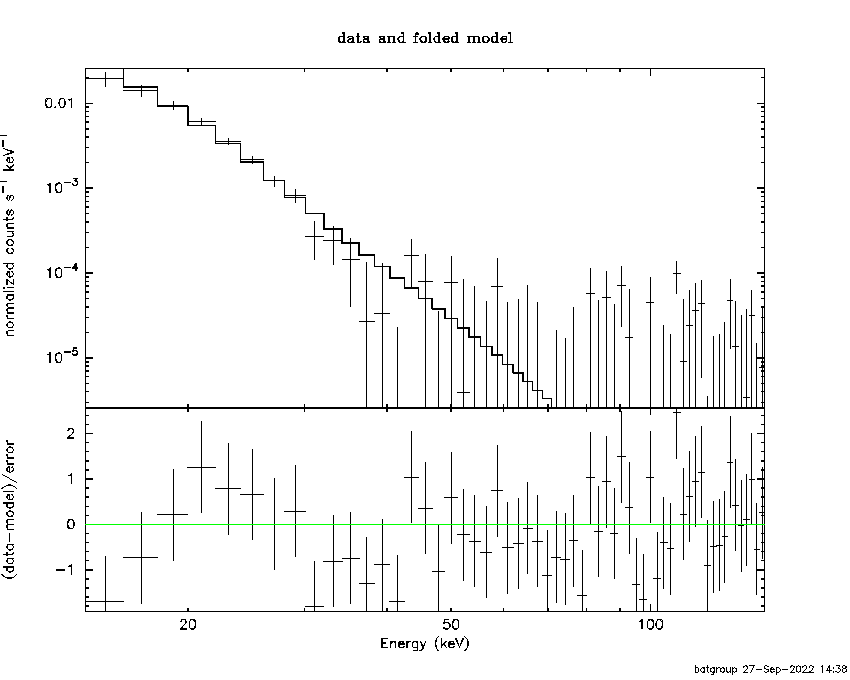

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-223.300000 212.862100
214.000000 248.770000
250.000000 682.930000
684.000000 720.249100
721.000000 840.416000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.72551     ( -0.187932   0.18563 )
Norm@50keV  : 1.10447E-04    ( -1.51961e-05   1.71993e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         100.18 using 59 PHA bins.
# Reduced chi-squared =         1.7575 for     57 degrees of freedom
# Null hypothesis probability =   3.608436e-04

Photon flux (15-150 keV)    in 1060 sec: 0.950805 ( -0.0643408  0.0654109 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.9343e-05 ( -1.83746e-06  1.86485e-06 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-223.300000 212.862100
214.000000 248.770000
250.000000 682.930000
684.000000 720.249100
721.000000 840.416000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.44836E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =        1281.29 using 59 PHA bins.
# Reduced chi-squared =        22.8802 for     56 degrees of freedom
# Null hypothesis probability =  3.397001e-231

Photon flux (15-150 keV)    in 1060 sec: 0.837898 ( -0.081208  0.080222 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.62101e-05 ( -2.31059e-06  2.27921e-06 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-223.300000 212.862100
214.000000 248.770000
250.000000 682.930000
684.000000 720.249100
721.000000 840.416000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.75654   ( 4.00328   7.75654 )
beta        : -6.71073    ( -0.196095   0.178075 )
Epeak [keV] : 394.540      ( -394.54 -394.54 )
Norm@50keV   : 1.51956E-02    ( -0.00215164   0.00225337 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         100.20 using 59 PHA bins.
# Reduced chi-squared =         1.8217 for     55 degrees of freedom
# Null hypothesis probability =   1.897198e-04

Photon flux (15-150 keV)    in 1060 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.67502  (-0.0935345  0.100549)
R^2/D10^2   : 237.726  (-67.214   91.967)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.68 using 59 PHA bins.
# Reduced chi-squared =          1.187 for     57 degrees of freedom
# Null hypothesis probability =   1.572565e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.229e-05   2.221e-06
25- 50  2.137e-06   1.521e-07
50-150  1.281e-09   4.312e-10
15-150  2.442e-05   2.173e-06

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.39577       (-0.208411      0.229314)
Norm        : 321.441       (-76.3307     98.4088)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.431e-05   2.178e-06
25- 50  2.261e-06   1.701e-07
50-150  5.868e-09   1.917e-09
15-150  2.657e-05   2.035e-06

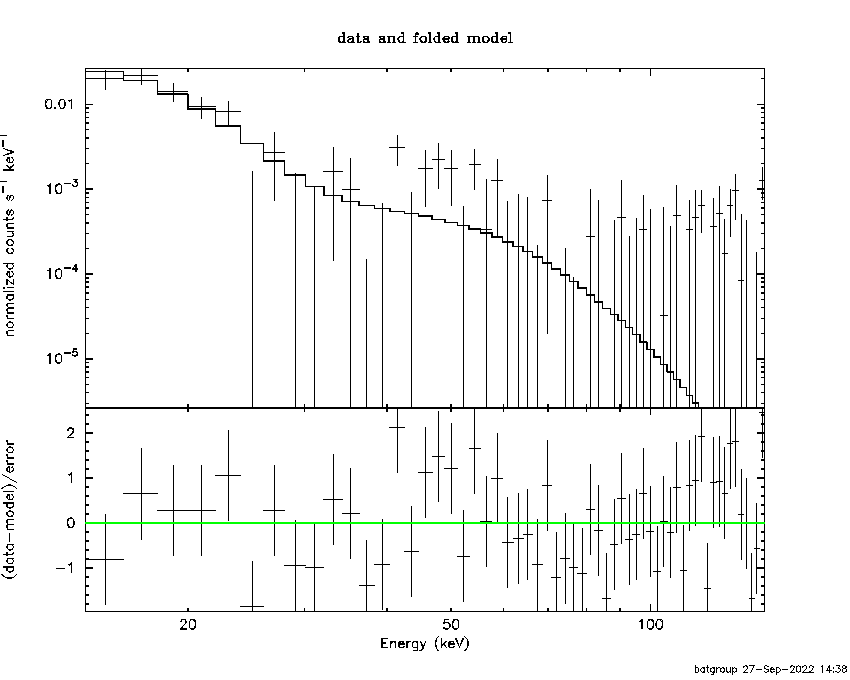

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.67971        (-0.0974159      0.0971116)
R1^2/D10^2  : 234.132        (-64.41      93.7612)
kT2 [keV]   : 199.363        (-199.363      -199.363)
R2^2/D10^2  : 4.08000E-16    (-1.48596e-17   0.000500611)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.221e-05   1.924e-06
25- 50  2.145e-06   1.627e-07
50-150  1.307e-09   4.571e-10
15-150  2.436e-05   2.215e-06

Peak spectrum fit

Power-law model

Time interval is from -200.496 sec. to -199.496 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.87527     ( -0.827423   0.9718 )
Norm@50keV  : 1.02659E-03    ( -0.00066932   0.00126662 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.63 using 59 PHA bins.
# Reduced chi-squared =          1.186 for     57 degrees of freedom
# Null hypothesis probability =   1.584009e-01

Photon flux (15-150 keV)    in 1 sec: 1.40702 ( -0.277632  0.278062 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.55151e-08 ( -1.02083e-08  1.08742e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from -200.496 sec. to -199.496 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.70746E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         115.12 using 59 PHA bins.
# Reduced chi-squared =         2.0557 for     56 degrees of freedom
# Null hypothesis probability =   5.650281e-06

Photon flux (15-150 keV)    in 1 sec: 1.42883 1.43030 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.91073e-15 ( 0  0 ) ergs/cm2

Band function

Time interval is from -200.496 sec. to -199.496 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.93650   ( 2.87468   8.9365 )
beta        : -4.87526    ( -0.973007   0.827443 )
Epeak [keV] : 169.587      ( -169.587 -169.587 )
Norm@50keV   : 0.139528    ( -0.0909627   0.172151 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.63 using 59 PHA bins.
# Reduced chi-squared =          1.230 for     55 degrees of freedom
# Null hypothesis probability =   1.180075e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.71437  (-0.419495  0.50725)
R^2/D10^2   : 390.428  (-390.44   879.892)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.814e-08   2.131e-08
25- 50  3.866e-09   2.468e-09
50-150  2.646e-12   2.956e-12
15-150  4.201e-08   2.319e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.33694       (-1.30011      2.01334)
Norm        : 256.098       (-158.233     451.902)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.691e-08   2.077e-08
25- 50  5.388e-09   3.321e-09
50-150  3.842e-11   4.287e-11
15-150  4.234e-08   2.323e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.53387        (-0.453386      0.511734)
R1^2/D10^2  : 580.256        (-290.627      1790.45)
kT2 [keV]   : 11.9581        (-6.39869      184.024)
R2^2/D10^2  : 6.90770E-02    (-0.0674503   1.10087)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.717e-08   2.056e-08
25- 50  9.268e-09   5.365e-09
50-150  5.616e-09   5.695e-09
15-150  5.205e-08   2.812e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 6.19421     ( -0.285727   0.286114 )
Norm@50keV  : 2.10500E-04    ( -4.70393e-05   5.75943e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.56 using 59 PHA bins.
# Reduced chi-squared =         0.8871 for     57 degrees of freedom
# Null hypothesis probability =   7.136839e-01

Photon flux (15-150 keV)    in 88.1 sec: 1.05354 ( -0.0851536  0.0860692 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.76203e-06 ( -2.03282e-07  2.05101e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.42819E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         570.46 using 59 PHA bins.
# Reduced chi-squared =         10.187 for     56 degrees of freedom
# Null hypothesis probability =   2.643290e-86

Photon flux (15-150 keV)    in 88.1 sec: 1.00048 ( -0.099733  0.09744 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.61496e-06 ( -2.37597e-07  2.32249e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.51347   ( 5.91767   8.51347 )
beta        : -6.21943    ( -0.268479   0.305091 )
Epeak [keV] : 320.284      ( -320.284 -320.284 )
Norm@50keV   : 2.79646E-02    ( -0.00605636   0.00818692 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.59 using 59 PHA bins.
# Reduced chi-squared =         0.9197 for     55 degrees of freedom
# Null hypothesis probability =   6.438260e-01

Photon flux (15-150 keV)    in 88.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.53e-06
S(50-100 keV) = 9.55e-08

T90 vs. Hardness ratio plot

T90                                   = 1029.10399997234 sec.
Hardness ratio (energy fluence ratio) = 0.037747

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0770089
Count Ratio (50-100 keV) / (15-25 keV) = -0.00391745

Mask shadow pattern

IMX = 2.953377431095035E-01, IMY = 8.820660980388671E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-16.799400 71.300600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.3158 -60.6230   14.4  56.3 -148.8  -1.2344  -0.8    0.0	Cen X-3
186.6247 -62.7442    4.4  48.6 -151.4   1.3356   2.6    1.8	GX 301-2
245.0944 -15.4998    4.8  17.6  -16.0  -0.5968  -2.4   10.7	Sco X-1
255.7980 -37.7254    5.9   7.5  128.7  -0.4616  -1.9   11.4	4U 1700-377
256.6221 -36.5707    0.0   7.4  118.5   0.1615   0.6   12.6	GX 349+2
263.1630 -24.6104   87.5  15.0   56.4   0.0357   0.1   11.7	GX 1+4
264.5550 -44.6147    0.0  17.0  134.6  -0.4106  -1.6   12.7	4U 1735-44
268.4152  -1.4626    5.9  36.4   30.4  -0.8360  -2.0    2.9	SW J1753.5-0127
270.4008 -25.2119    8.9  20.3   69.5  -0.3971  -1.3   10.2	GX 5-1
270.3676 -25.6447    4.7  20.1   70.6  -0.9227  -3.0    6.9	GRS 1758-258
273.8430 -13.9045    4.3  29.6   52.1  -1.1119  -2.7   12.4	GX 17+2
275.8279 -30.3492    5.2  23.1   87.1  -0.8045  -2.2    5.1	H1820-303
284.8834 -24.8879    4.3  32.4   81.3   1.4695   2.7    8.5	HT1900.1-2455
262.9889 -33.8347  215.0  11.9   94.7   0.0146   0.1    0.0	GX 354-0
268.3397 -21.1405    2.9  20.9   56.8   1.1232   4.0 ------	UNKNOWN
238.0844 -51.6871    2.7  20.4 -164.7   1.0111   4.2 ------	UNKNOWN
241.1772   5.2779    2.4  38.8  -16.3   1.6106   4.8 ------	UNKNOWN
240.8721  15.7849    2.7  49.2  -14.2   2.0499   4.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
122.700600 212.862100
214.000000 248.770000
250.000000 682.930000
684.000000 720.249100
721.000000 963.042300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0149 -15.7953    1.8   0.2   -7.4  11.0298   6.4    9.5	Sco X-1
254.4230  35.3290    9.6  52.1    3.0  -4.8266  -1.2    1.9	Her X-1
255.9322 -37.6972    5.8  23.7  151.4  -3.7621  -2.0    9.2	4U 1700-377
256.5015 -36.5697    6.6  22.9  149.0   3.2983   1.8    9.4	GX 349+2
262.8475 -24.6727    6.3  18.8  113.5  -4.0694  -1.8    9.8	GX 1+4
264.8686 -44.3858   11.9  32.9  146.7   2.7736   1.0    6.6	4U 1735-44
268.5125  -1.6091    0.0  27.3   53.7  -5.7416  -2.0   12.8	SW J1753.5-0127
270.1732 -24.9487   10.2  25.1  108.1  -3.1577  -1.1    9.9	GX 5-1
270.1386 -25.8178    8.4  25.4  110.1  -3.8920  -1.4    9.9	GRS 1758-258
273.9948 -14.0602    5.8  28.0   83.1   6.5403   2.0    1.6	GX 17+2
275.8951 -30.4135   12.8  31.7  115.7  -3.2824  -0.9    3.2	H1820-303
285.0774 -24.8833   13.2  38.4  103.2  -4.1331  -0.9    3.2	HT1900.1-2455
262.9939 -33.6907    7.0  24.0  134.0   3.9506   1.6    8.6	GX 354-0
256.9349  -5.2820    3.0  15.9   41.9   7.1802   3.8 ------	UNKNOWN
248.8371 -52.0635    3.1  36.2  169.3   9.4962   3.8 ------	UNKNOWN
246.9566  37.8267    2.4  53.9   -4.9  17.7966   4.7 ------	UNKNOWN
238.5875  22.2402    2.9  38.8  -16.3  10.4773   4.0 ------	UNKNOWN
229.6372 -24.9116    2.4  16.9 -130.9   8.6545   4.7 ------	UNKNOWN
220.1268  33.8696    2.8  55.3  -31.9  43.6456   4.2 ------	UNKNOWN
211.2974  17.4733    2.6  47.2  -53.0  37.9858   4.4 ------	UNKNOWN
195.3303 -34.4836    3.2  48.0 -129.0  32.9911   3.6 ------	UNKNOWN
	UNKNOWN
	UNKNOWN

Plot creation:
Tue Sep 27 14:39:04 EDT 2022
