batgrbproduct analysis for trigger=1126854

batgrbproduct Analysis for Trigger=1126854

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Mon Oct 10 21:05:20 EDT 2022
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1126854/GCN5_download_cron
======================================================================

  Trigger: 01126854      Segment: 000

  BAT Trigger Time: 687017856   [s; MET]
      Trigger Stop: 687017920   [s; MET]
               UTC: 2022-10-09T14:17:05.995200    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 288.275175179698   Dec: 19.7721721338671  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    19.95
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    19.95

  Flight Position:   [ source = BAT ]
    RA: 288.275175179698   Dec: 19.7721721338671  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 288.271504694335   Dec: 19.7755461900339  [deg; J2000]
        { 19h 13m 05.2s , +19d 46' 32.0" }
         +/- nan [arcmin] (estimated 90% radius based on SNR)
         +/- 0.774699313520381 [arcmin] (formal 1-sigma fit error)
    SNR: -13.916635859283

  Angular difference between Flight and Ground position is 0.289712 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 483.479999899864 +/- 346.381171531333
        Measured from: -67.7959998846054
                   to: 415.684000015259     [s; relative to TRIGTIME]
     T50: 254.051999926567 +/- 376.493503413487
        Measured from: -7.35599982738495
                   to: 246.696000099182     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 368.468000054359
                   to: 369.468000054359     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -81.3359999656677
                   to: 572.503999948502     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    19.178132  17.728400   8.965156   1.483941
           0.213605   0.216159   0.188150   0.175432 [error]
 Peak      0.045925   0.045581   0.024865   0.011756
           0.008237   0.008367   0.007362   0.006842 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.57e-06 7.19e-06 6.79e-06 1.13e-05 2.33e-05 3.09e-05   erg/cm2
              Error 2.38e-07 1.64e-07 2.10e-07 8.02e-07 4.90e-07 9.12e-07   erg/cm2
Peak flux Power-law 4.61e-01 3.29e-01 1.56e-01 1.03e-01 9.95e-01 1.05e+00   ph/cm2/s
              Error 1.22e-01 6.53e-02 5.89e-02 7.46e-02 1.90e-01 2.08e-01   ph/cm2/s

Fluence   Cutoff-PL 5.57e-06 7.20e-06 6.79e-06 1.12e-05 2.33e-05 3.08e-05   erg/cm2
              Error 2.55e-07 1.64e-07 2.10e-07 1.25e-06 4.87e-07 1.55e-06   erg/cm2
Peak flux Cutoff-PL 4.60e-01 3.30e-01 1.56e-01 1.03e-01 9.95e-01 1.05e+00   ph/cm2/s
              Error 1.30e-01 7.63e-02 5.98e-02 7.99e-02 1.90e-01 2.18e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 4.34e-01 3.14e-01 1.48e-01 9.22e-02 9.42e-01 9.89e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.083    0.046    -      -           3.87e-03 8.50e-05   44.030 57
CPL   1.996   -0.950       2.9   14.9      4.23e-03 2.05e-04   45.300 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.082    0.414    -      -           6.38e-03 1.81e-03   66.250 57
CPL   1.985    0.000       7.2    0.0      7.20e-03 0.00e+00   66.260 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 472.064000 sec.
T50 in the 50-300 keV band: 472.064000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  653.840  -81.336  572.504
T90   483.480  -67.796  415.684
T50   254.052   -7.356  246.696
Peak    1.000  368.468  369.468

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  288.2715 +19.7755 0.0139    0.0  133.7     -12.6988   -13.9  TRIG_01126854
------------------------------------------

Foreground time interval of the image:
-81.336  93.320 (delta_t = 174.656 [sec])
 94.000 154.610 (delta_t =  60.610 [sec])
156.000 231.950 (delta_t =  75.950 [sec])
233.000 320.050 (delta_t =  87.050 [sec])
321.000 420.750 (delta_t =  99.750 [sec])
421.000 572.504 (delta_t = 151.504 [sec])
Background time interval of the image:
-239.000 -217.060 (delta_t =  21.940 [sec])
-216.000 -99.200 (delta_t = 116.800 [sec])
-97.000 -81.336 (delta_t =  15.664 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-81.336000 93.320000
94.000000 154.610000
156.000000 231.950000
233.000000 320.050000
321.000000 420.750000
421.000000 572.504000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.08253     ( -0.0463482   0.0466012 )
Norm@50keV  : 3.87438E-03    ( -8.51656e-05   8.48821e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.03 using 59 PHA bins.
# Reduced chi-squared =         0.7725 for     57 degrees of freedom
# Null hypothesis probability =   8.957351e-01

Photon flux (15-150 keV)    in 649.5 sec: 0.604336 ( -0.0157345  0.0158603 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.33422e-05 ( -4.9022e-07  4.90502e-07 ) ergs/cm2

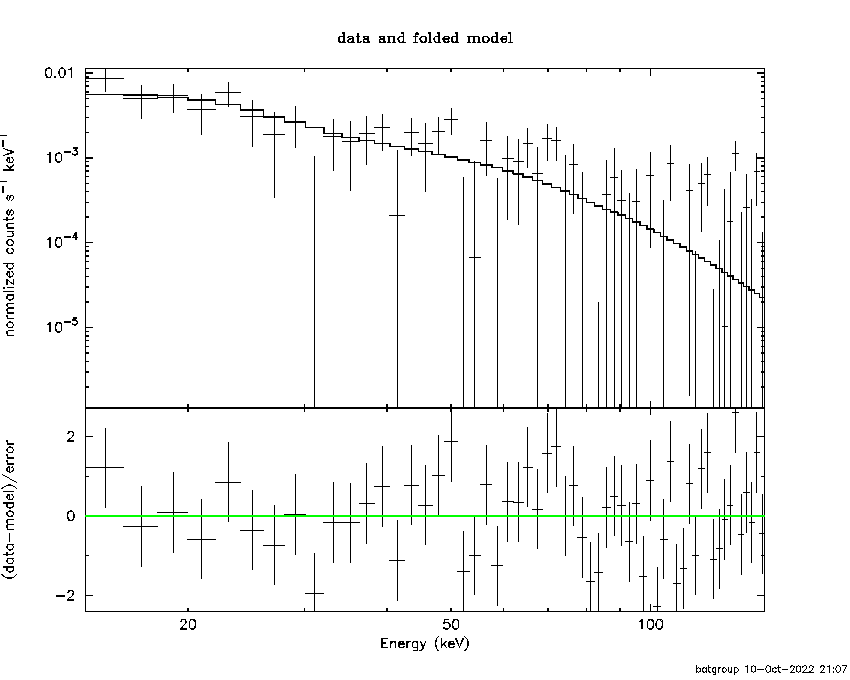

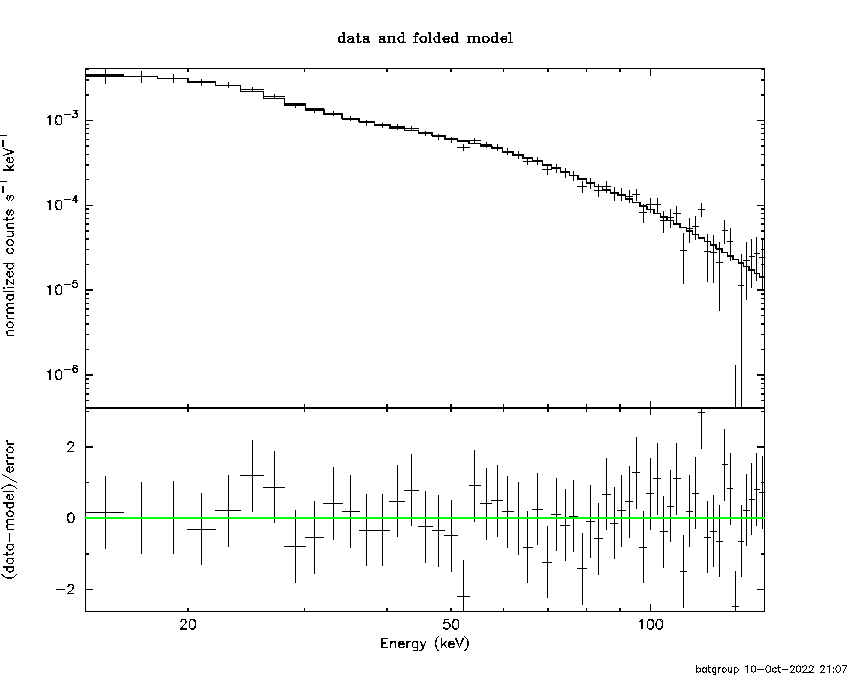

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-81.336000 93.320000
94.000000 154.610000
156.000000 231.950000
233.000000 320.050000
321.000000 420.750000
421.000000 572.504000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99550     ( -0.096377   -1.9955 )
Epeak [keV] : 2.86827      ( -1.06894 28.6606 )
Norm@50keV  : 4.23413E-03    ( -0.000203383   0.000206193 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.30 using 59 PHA bins.
# Reduced chi-squared =         0.8090 for     56 degrees of freedom
# Null hypothesis probability =   8.460111e-01

Photon flux (15-150 keV)    in 649.5 sec: 0.603886 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.33382e-05 ( -4.8654e-07  4.86865e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-81.336000 93.320000
94.000000 154.610000
156.000000 231.950000
233.000000 320.050000
321.000000 420.750000
421.000000 572.504000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.55424   ( 1.55445   1.55445 )
beta        : -2.08804    ( 2.08792   0.0503769 )
Epeak [keV] : 21.3884      ( -21.3575 11.3278 )
Norm@50keV   : 9.44775E-03    ( -0.00455441   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.88 using 59 PHA bins.
# Reduced chi-squared =         0.7979 for     55 degrees of freedom
# Null hypothesis probability =   8.591652e-01

Photon flux (15-150 keV)    in 649.5 sec: 0.689975 ( 6.31002  -0.689975 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

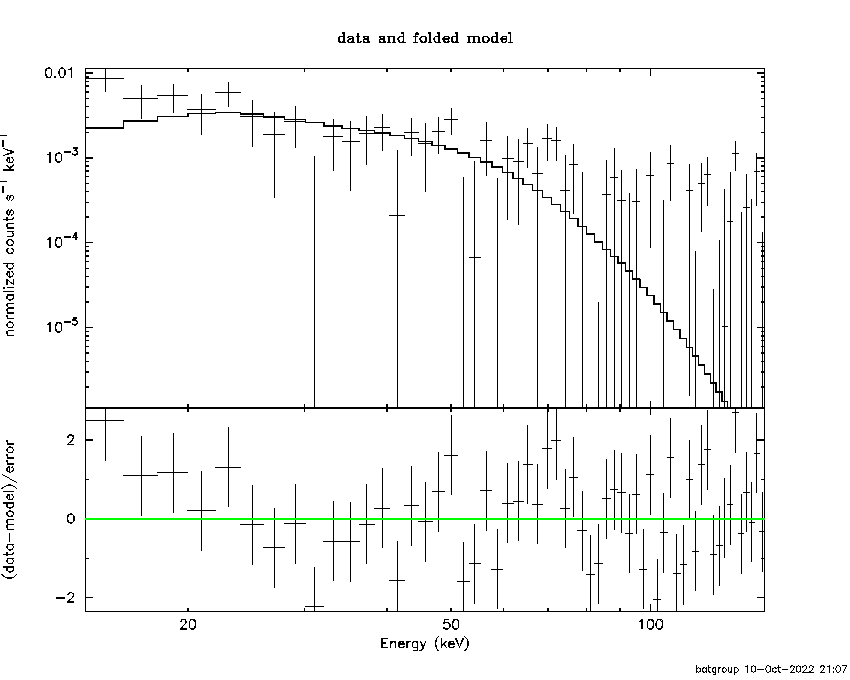

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.0886  (  )
R^2/D10^2   : 0.117126  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         580.37 using 59 PHA bins.
# Reduced chi-squared =         10.182 for     57 degrees of freedom
# Null hypothesis probability =   9.579058e-88

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.353e-06   9.905e-08
25- 50  7.468e-06   2.046e-07
50-150  6.594e-06   2.975e-07
15-150  1.641e-05   3.540e-07

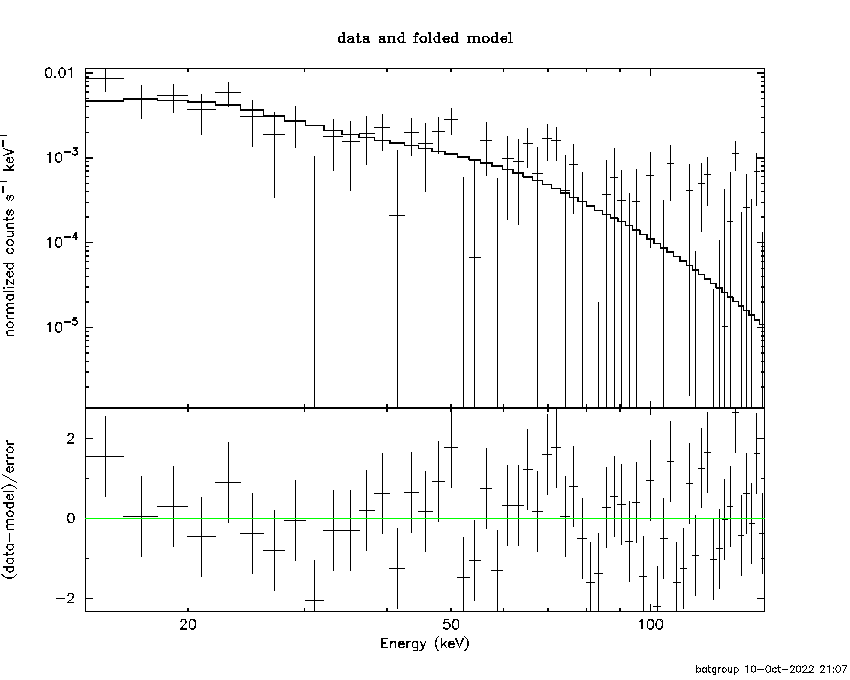

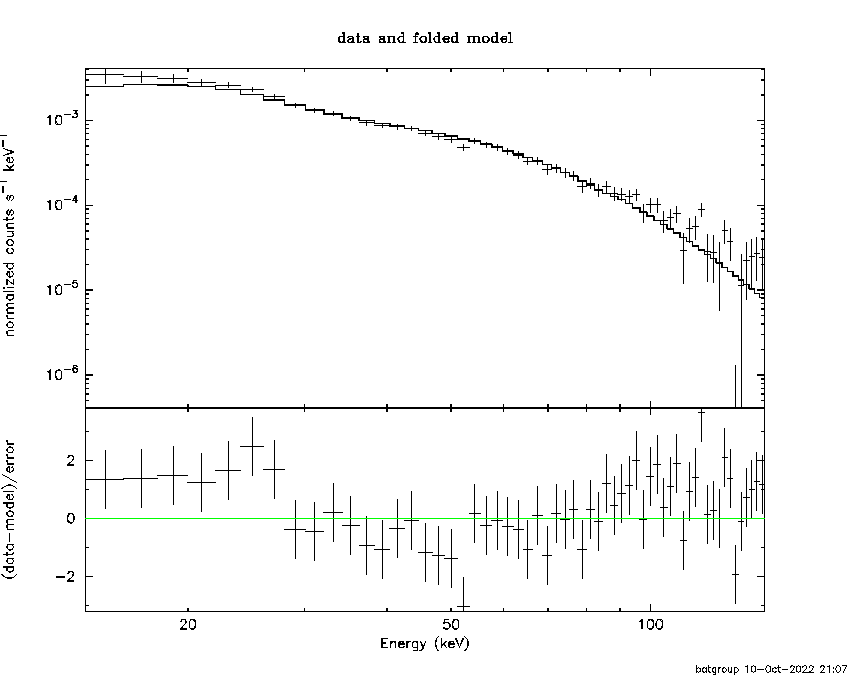

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 73.1799       (-5.14626      5.78514)
Norm        : 2.72111       (-0.116799     0.123539)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.554e-06   1.572e-07
25- 50  7.332e-06   1.689e-07
50-150  9.728e-06   4.157e-07
15-150  2.161e-05   5.196e-07

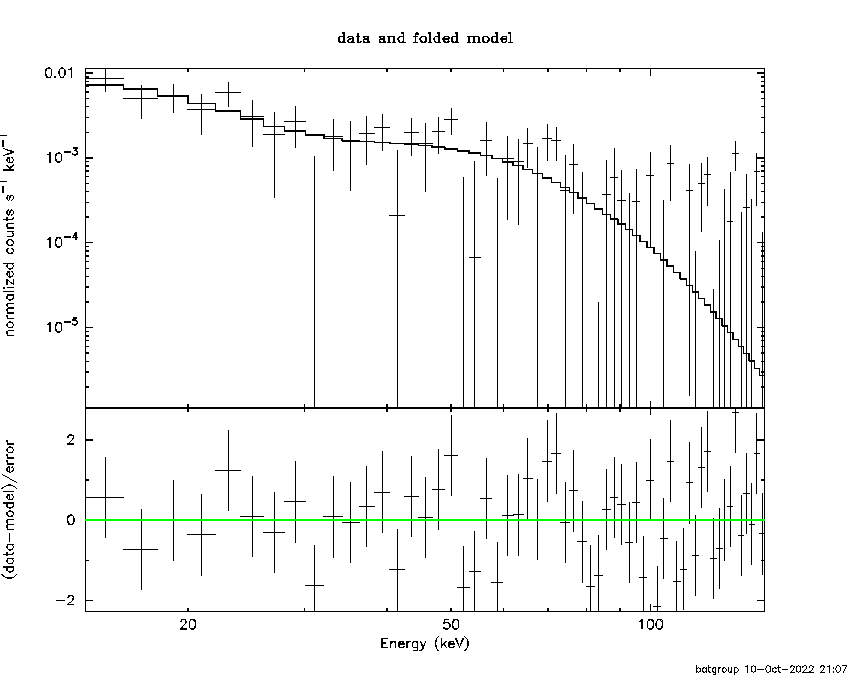

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.30038        (-0.455335      0.476695)
R1^2/D10^2  : 1.15625        (-0.288398      0.416655)
kT2 [keV]   : 22.5930        (-1.82664      2.24215)
R2^2/D10^2  : 7.93986E-03    (-0.00244248   0.00317814)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.716e-06   3.429e-07
25- 50  7.272e-06   2.468e-07
50-150  1.038e-05   6.527e-07
15-150  2.237e-05   8.996e-07

Peak spectrum fit

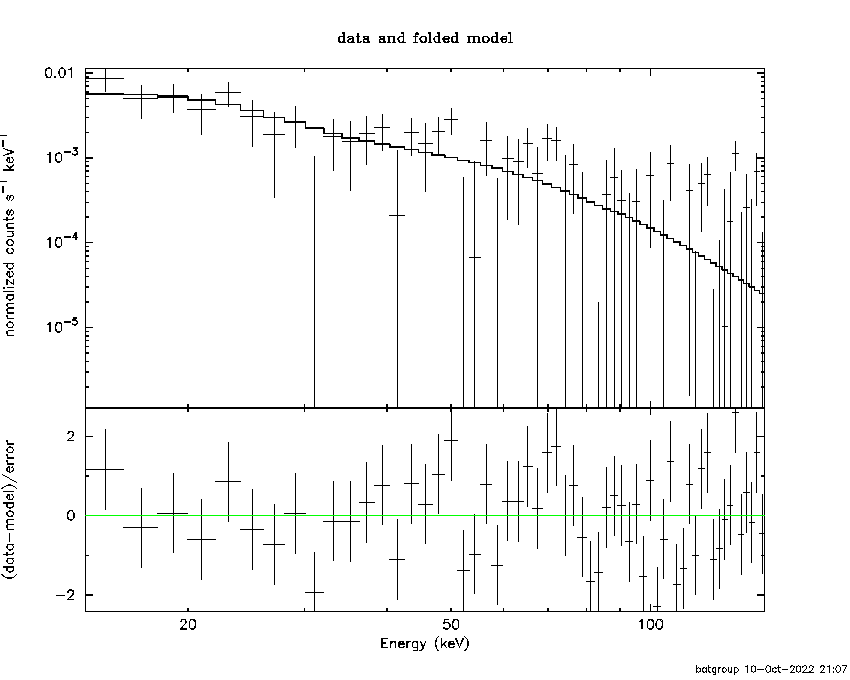

Power-law model

Time interval is from  368.468 sec. to  369.468 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.08164     ( -0.379466   0.449534 )
Norm@50keV  : 6.38424E-03    ( -0.00186559   0.00174854 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.25 using 59 PHA bins.
# Reduced chi-squared =          1.162 for     57 degrees of freedom
# Null hypothesis probability =   1.881107e-01

Photon flux (15-150 keV)    in 1 sec: 0.995400 ( -0.190337  0.190375 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.92154e-08 ( -1.47829e-08  1.55659e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  368.468 sec. to  369.468 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.98529     (     )
Epeak [keV] : 7.17307      (   )
Norm@50keV  : 7.20162E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.26 using 59 PHA bins.
# Reduced chi-squared =          1.183 for     56 degrees of freedom
# Null hypothesis probability =   1.640081e-01

Photon flux (15-150 keV)    in 1 sec: 0.995067 ( -0.189961  0.190003 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.91924e-08 ( -1.5773e-08  8.4992e-09 ) ergs/cm2

Band function

Time interval is from  368.468 sec. to  369.468 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -2.77084   ( 1.64499   2.77084 )
beta        : -2.08164    ( -0.449533   0.380008 )
Epeak [keV] : 64.5429      ( -64.5429 -64.5429 )
Norm@50keV   : 0.867708    ( -0.25356   0.237653 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.25 using 59 PHA bins.
# Reduced chi-squared =          1.204 for     55 degrees of freedom
# Null hypothesis probability =   1.424250e-01

Photon flux (15-150 keV)    in 1 sec: 0.942132 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.55681e-08 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.6749  (-2.74425  3.11009)
R^2/D10^2   : 0.354674  (-0.214686   0.7049)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.389e-09   3.410e-09
25- 50  2.281e-08   7.485e-09
50-150  1.434e-08   7.653e-09
15-150  4.554e-08   1.471e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 62.9558       (-28.484      75.3854)
Norm        : 5.08556       (-1.38996     2.10861)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.288e-08   3.508e-09
25- 50  1.988e-08   6.285e-09
50-150  2.353e-08   1.401e-08
15-150  5.629e-08   1.987e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.85807        (-1.47147      1.85988)
R1^2/D10^2  : 72.9343        (-67.4699      20172.9)
kT2 [keV]   : 14.8088        (-3.78161      6.01844)
R2^2/D10^2  : 8.99271E-02    (-0.066114   0.191166)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.416e-08   7.305e-09
25- 50  1.747e-08   9.891e-09
50-150  2.410e-08   1.548e-08
15-150  5.574e-08   3.031e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.08253     ( -0.0463482   0.0466012 )
Norm@50keV  : 3.87438E-03    ( -8.51656e-05   8.48821e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.03 using 59 PHA bins.
# Reduced chi-squared =         0.7725 for     57 degrees of freedom
# Null hypothesis probability =   8.957351e-01

Photon flux (15-150 keV)    in 649.5 sec: 0.604336 ( -0.0157345  0.0158603 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.33422e-05 ( -4.9022e-07  4.90502e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99550     ( -0.096377   -1.9955 )
Epeak [keV] : 2.86827      ( -1.06894 28.6531 )
Norm@50keV  : 4.23413E-03    ( -0.000203383   0.000206193 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.30 using 59 PHA bins.
# Reduced chi-squared =         0.8090 for     56 degrees of freedom
# Null hypothesis probability =   8.460111e-01

Photon flux (15-150 keV)    in 649.5 sec: 0.603886 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.33382e-05 ( -4.8654e-07  4.86865e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.55424   ( 1.55445   1.55445 )
beta        : -2.08804    ( 2.08792   0.0503769 )
Epeak [keV] : 21.3884      ( -21.3575 11.3278 )
Norm@50keV   : 9.44775E-03    ( -0.00488864   1.40299e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.88 using 59 PHA bins.
# Reduced chi-squared =         0.7979 for     55 degrees of freedom
# Null hypothesis probability =   8.591652e-01

Photon flux (15-150 keV)    in 649.5 sec: 0.689975 ( 6.31002  -0.689975 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.19e-06
S(50-100 keV) = 6.79e-06

T90 vs. Hardness ratio plot

T90                                   = 483.479999899864 sec.
Hardness ratio (energy fluence ratio) = 0.944367

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.924407
Count Ratio (50-100 keV) / (15-25 keV) = 0.467468

Mask shadow pattern

IMX = -4.037865055845048E-04, IMY = -4.228675683715646E-04

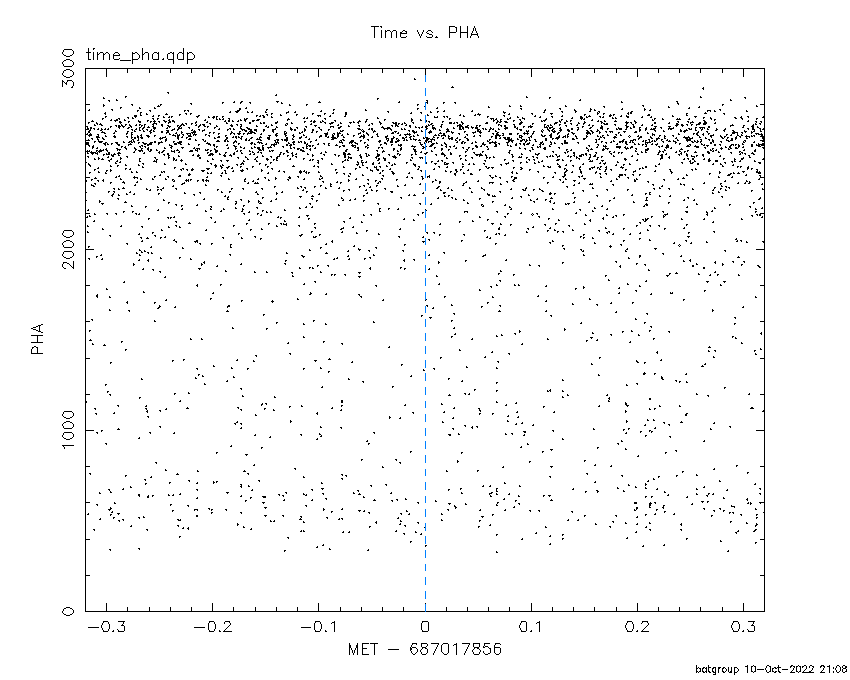

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -217.060000
-216.000000 -99.200000
-97.000000 -81.336000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3107  35.2521    8.8  33.6  -50.4  -0.7523  -1.3    9.0	Her X-1
263.0065 -24.7414  104.2  50.9 -145.0   0.1419   0.1    0.3	GX 1+4
268.2461  -1.5399    5.9  29.0 -130.1  -0.9619  -2.0    9.0	SW J1753.5-0127
270.1753 -25.1462   11.0  48.3 -152.8   0.9093   1.0    7.2	GX 5-1
270.2147 -25.7796    3.8  48.8 -153.2   2.7314   3.1    5.2	GRS 1758-258
273.9511 -14.0292   19.9  36.6 -151.3   0.3169   0.6    3.2	GX 17+2
276.0445 -30.3655    7.7  51.5 -161.5   1.6068   1.5    6.2	H1820-303
285.1411 -25.0660    9.4  45.0 -171.0  -0.9103  -1.2   10.4	HT1900.1-2455
288.8511  11.0401    3.7   8.8 -178.8  -1.1998  -3.1    6.5	GRS 1915+105
299.6125  35.2006    0.9  18.4   35.8   5.2992  12.5    1.1	Cyg X-1
307.9315  41.1178    0.0  27.1   38.9   0.3939   0.8   12.8	Cyg X-3
326.3377  38.2350    6.8  37.7   57.5   2.1660   1.7    9.4	Cyg X-2
320.0626  47.8573    2.5  38.0   40.1   4.2783   4.6 ------	UNKNOWN
288.2640  19.7693    0.3   0.0  148.9  14.0850  34.4 ------	UNKNOWN
266.7502  12.1891    2.7  22.0 -101.9   1.9984   4.3 ------	UNKNOWN
237.4070  36.5297    2.4  47.2  -53.0   9.3049   4.8 ------	UNKNOWN
238.9693  32.8692    2.9  45.6  -57.9   7.6839   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-81.336000 93.320000
94.000000 154.610000
156.000000 231.950000
233.000000 320.050000
321.000000 420.750000
421.000000 572.504000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6614  35.2730    0.0  33.3  -50.2   1.4530   1.1   10.8	Her X-1
263.0149 -24.7247  160.9  50.8 -145.0  -0.2232  -0.1    1.3	GX 1+4
268.2664  -1.5487    5.7  29.0 -130.1   2.1711   2.0    8.4	SW J1753.5-0127
270.1457 -25.0431    7.6  48.2 -152.7  -3.2718  -1.5    7.8	GX 5-1
270.1870 -25.7794    4.1  48.8 -153.2  -6.2038  -2.8    6.6	GRS 1758-258
273.9526 -14.0595   11.3  36.7 -151.3  -1.2581  -1.0    3.4	GX 17+2
275.8115 -30.3742    8.9  51.6 -161.2   3.1043   1.3    5.9	H1820-303
284.8918 -24.7764    0.0  44.7 -170.6  -0.6113  -0.4   11.7	HT1900.1-2455
288.8700  11.0776    3.2   8.7 -179.0   3.3863   3.7    9.0	GRS 1915+105
299.7435  35.0505   37.2  18.3   36.3  -0.3018  -0.3   11.8	Cyg X-1
308.0861  41.1005    5.0  27.2   39.1  -2.7496  -2.3    8.9	Cyg X-3
326.3627  38.3671 1411.8  37.8   57.3   0.0199   0.0    9.4	Cyg X-2
254.8228  24.9764    2.4  31.3  -69.2   6.9968   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-10.000000 63.070000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5458  35.5020    4.2  33.5  -49.9   0.7481   2.7   10.5	Her X-1
263.1356 -24.8003    5.7  50.8 -145.2  -1.1403  -2.0    7.6	GX 1+4
268.2437  -1.5535   13.6  29.0 -130.1  -0.2204  -0.9    9.6	SW J1753.5-0127
270.2833 -25.0805  364.0  48.2 -152.9   0.0137   0.0    0.1	GX 5-1
270.3025 -25.7431    9.0  48.8 -153.3   0.5821   1.3    0.0	GRS 1758-258
274.0657 -14.0328    6.1  36.6 -151.4   0.5136   1.9    3.5	GX 17+2
275.8408 -30.4363    6.7  51.6 -161.3  -0.9414  -1.7    6.0	H1820-303
285.1458 -24.8579   95.5  44.8 -170.9  -0.0461  -0.1    7.1	HT1900.1-2455
288.8076  10.7958   85.2   9.0 -178.5   0.0258   0.1    9.0	GRS 1915+105
299.6010  35.1995    1.0  18.4   35.8   2.3939  11.9    0.5	Cyg X-1
307.9315  41.1178    0.0  27.1   38.9   0.1684   0.6   12.8	Cyg X-3
325.9796  38.2700   45.6  37.4   57.3   0.1398   0.3    9.6	Cyg X-2
288.2625  19.7711    0.4   0.0  150.1   5.8150  30.2 ------	UNKNOWN
288.1977 -30.2927    2.7  50.1 -174.9   2.1923   4.3 ------	UNKNOWN
281.6264 -19.8695    2.3  40.2 -165.3   1.4106   5.1 ------	UNKNOWN
230.6662  53.8348    2.4  55.2  -32.3   5.2382   4.8 ------	UNKNOWN
254.7737 -15.0645    2.5  47.9 -129.1   4.2553   4.5 ------	UNKNOWN
239.0082  32.9330    2.5  45.6  -57.8   4.2654   4.5 ------	UNKNOWN

Plot creation:
Mon Oct 10 21:08:22 EDT 2022
