TDRSS scaled map for 1144698
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 16 Dec 22 11:21:34 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 1144698, Seg_Num: 0
GRB_RA: 326.021d {+21h 44m 05s} (J2000),
326.364d {+21h 45m 27s} (current),
325.272d {+21h 41m 05s} (1950)
GRB_DEC: -34.405d {-34d 24' 17"} (J2000),
-34.299d {-34d 17' 55"} (current),
-34.635d {-34d 38' 04"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 2091 [cnts] Image_Peak=169 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 146 E_range: 25-100 keV
BKG_INTEN: 10787 [cnts]
BKG_TIME: 40865.59 SOD {11:21:05.59} UT
BKG_DUR: 8 [sec]
GRB_DATE: 19929 TJD; 350 DOY; 22/12/16
GRB_TIME: 40880.95 SOD {11:21:20.95} UT
GRB_PHI: -18.24 [deg]
GRB_THETA: 15.71 [deg]
SOLN_STATUS: 0x20000003
RATE_SIGNIF: 17.83 [sigma]
IMAGE_SIGNIF: 9.84 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +2 +0 +0 +0 -57 +0
SUN_POSTN: 263.98d {+17h 35m 56s} -23.32d {-23d 19' 12"}
SUN_DIST: 54.92 [deg] Sun_angle= -4.2 [hr] (East of Sun)
MOON_POSTN: 177.42d {+11h 49m 42s} +5.21d {+05d 12' 25"}
MOON_DIST: 139.10 [deg]
MOON_ILLUM: 49 [%]
GAL_COORDS: 10.74,-49.46 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 316.56,-19.57 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 142.50,-19.84 [deg].
COMMENTS:
COMMENTS: NOTE: This BAT event is temporally(2.0<100sec) coincident with the FERMI_GBM event (trignum=692882483).
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Fri 16 Dec 22 11:32:46 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 1144698, Seg_Num: 0
POINT_RA: 334.964d {+22h 19m 51s} (J2000)
POINT_DEC: -48.663d {-48d 39' 46"} (J2000)
MAP_DATE: 19929 TJD; 350 DOY; 22/12/16
MAP_TIME: 40880.95 SOD {11:21:20.95} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 17.83 [sigma]
IMAGE_SIGNIF: 9.84 [sigma]
MAP_URL: sw01144698000msbsm.fits
SUN_POSTN: 263.99d {+17h 35m 58s} -23.32d {-23d 19' 13"}
MOON_POSTN: 177.51d {+11h 50m 03s} +5.16d {+05d 09' 47"}
MOON_ILLUM: 49 [%]
GAL_COORDS: 346.23,-53.73 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 317.15,-35.29 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

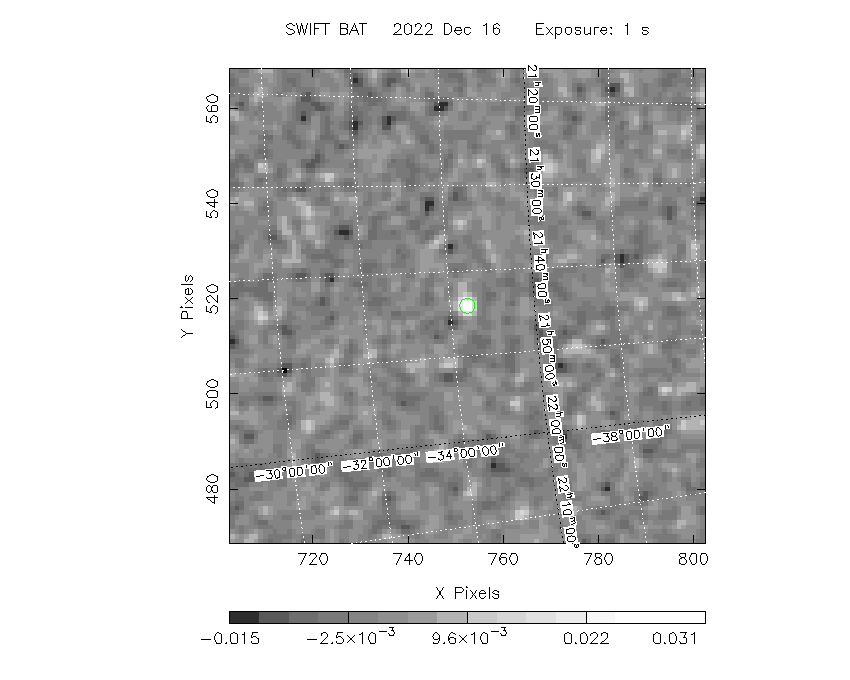

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (326.021, -34.405).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 326.021 -34.405 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
19.2729 -73.4422 0.0 31.3 167.5 0.0032 0.6 0.0 SMC X-1
83.1921 -66.3675 0.0 52.8 161.4 -0.0223 -1.4 0.0 LMC X-4
231.2913 -65.3390 0.0 51.9 -139.0 0.0097 0.4 0.0 Circinus AGN
248.0700 -67.4619 0.0 45.0 -137.2 0.0121 1.3 0.0 4U 1626-67
279.5847 -65.4276 0.0 33.0 -131.0 -0.0086 -1.6 0.0 ESO 103-035
348.3857 5.5206 3.4 55.4 26.3 0.0137 3.4 ------ UNKNOWN
348.8717 -5.8963 2.3 44.4 30.0 0.0527 5.1 ------ UNKNOWN
90.3671 -66.5586 2.1 54.8 163.9 0.1077 5.5 ------ UNKNOWN
326.0038 -34.3860 1.1 15.7 -18.3 0.0382 10.3 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
348.3857 5.5206 3.4 55.4 26.3 0.0137 3.4 ------ UNKNOWN
348.8717 -5.8963 2.3 44.4 30.0 0.0527 5.1 ------ UNKNOWN
90.3671 -66.5586 2.1 54.8 163.9 0.1077 5.5 ------ UNKNOWN
326.0038 -34.3860 1.1 15.7 -18.3 0.0382 10.3 ------ UNKNOWN
Search for UNKNOWN source R.A. = 90.3671 Dec. = -66.5586 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 326.0038 Dec. = -34.3860 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 348.3857 Dec. = +5.5206 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 348.8717 Dec. = -5.8963 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/bat1/prebascript/trigger1144698/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Fri Dec 16 06:33:09 EST 2022
