batgrbproduct analysis for trigger=114797

batgrbproduct Analysis for Trigger=114797

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jan 22 22:21:55 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger114797
======================================================================

  Trigger: 00114797      Segment: 000

  BAT Trigger Time: 135383753.6   [s; MET]
      Trigger Stop: 135383754.112   [s; MET]
               UTC: 2005-04-16T22:35:54.119620    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 133.852677933438   Dec: 11.1731175564645  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8
     Image Trigger?:     NO
     Rate S/N Ratio:     25.5734237050888  [ if not an image trigger ]
     Image S/N Ratio:    8

  Flight Position:   [ source = BAT ]
    RA: 133.852677933438   Dec: 11.1731175564645  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 133.846627138052   Dec: 11.1855187849144  [deg; J2000]
        { 08h 55m 23.2s , +11d 11' 07.9" }
         +/- 1.35412158570901 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.664201445591195 [arcmin] (formal 1-sigma fit error)
    SNR: 19.7258627463894

  Angular difference between Flight and Ground position is 0.824921 arcmin

  Partial Coding Fraction: 0.1289062    [ including projection effects ]

  Duration
     T90: 3.39200001955032 +/- 0.63150613607837
        Measured from: 0.187999993562698
                   to: 3.58000001311302     [s; relative to TRIGTIME]
     T50: 1.56000000238419 +/- 0.317238070375656
        Measured from: 0.612000018358231
                   to: 2.17200002074242     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.136000007390976
                   to: 1.13600000739098     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.0719999969005585
                   to: 4.19600000977516     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.263869   0.529920   0.571839   0.070797
           0.033982   0.038636   0.038308   0.035513 [error]
 Peak      0.091406   0.225170   0.284116   0.099091
           0.017504   0.021610   0.023044   0.019741 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.28e-07 2.60e-07 4.14e-07 1.47e-06 1.15e-06 2.27e-06   erg/cm2
              Error 1.81e-08 2.27e-08 3.72e-08 2.86e-07 9.41e-08 3.09e-07   erg/cm2
Peak flux Power-law 1.34e+00 1.83e+00 1.83e+00 3.32e+00 6.07e+00 8.32e+00   ph/cm2/s
              Error 2.69e-01 2.28e-01 1.77e-01 6.70e-01 6.07e-01 8.13e-01   ph/cm2/s

Fluence   Cutoff-PL 1.03e-07 2.78e-07 4.54e-07 5.42e-07 1.11e-06 1.38e-06   erg/cm2
              Error 2.29e-08 2.66e-08 4.60e-08 3.29e-07 1.00e-07 3.35e-07   erg/cm2
Peak flux Cutoff-PL 1.17e+00 1.86e+00 1.95e+00 2.27e+00 5.99e+00 7.26e+00   ph/cm2/s
              Error 3.43e-01 2.44e-01 2.43e-01 1.17e+00 6.17e-01 1.32e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.330    0.128    -      -           2.84e-02 2.17e-03   73.420 57
CPL   0.403    0.632      95.8   43.5      7.56e-02 5.44e-02   65.590 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.996    0.158    -      -           5.28e-02 5.14e-03   51.960 57
CPL   0.538    0.654     195.9    0.0      8.23e-02 0.00e+00   50.450 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 2.752000 sec.
T50 in the 50-300 keV band: 1.152000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    4.124    0.072    4.196
T90     3.392    0.188    3.580
T50     1.560    0.612    2.172
Peak    1.000    0.136    1.136

Click here for the BAT GCN circular template

Special notes of this burst

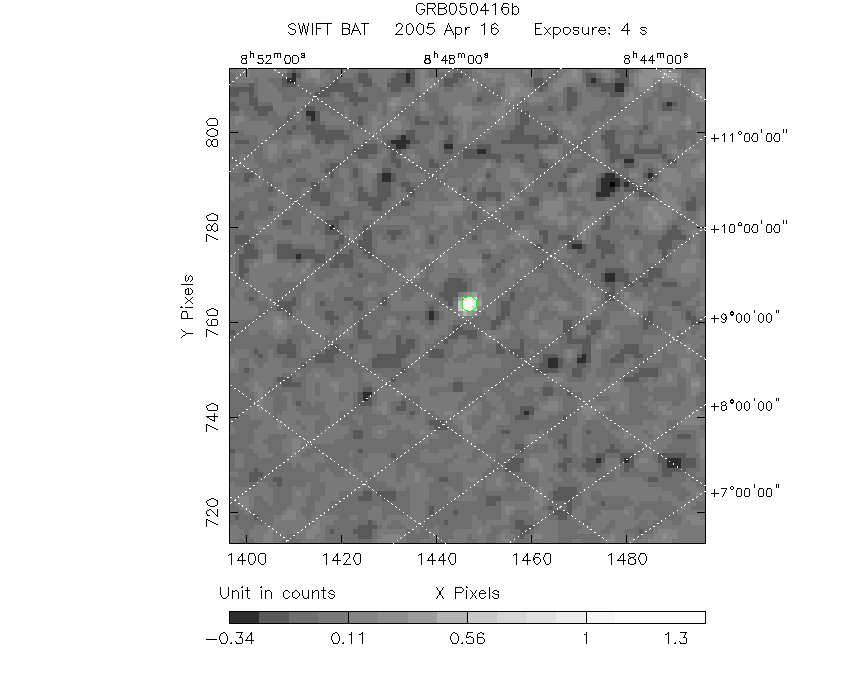

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  133.8466    11.1855   0.0097    53.1853  -153.1367         1.6237576     19.726 TRIG_00114797

Foreground time interval of the image:
  0.072   4.196 (delta_t =   4.124 [sec])
Background time interval of the image:
-299.600   0.072 (delta_t = 299.672 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

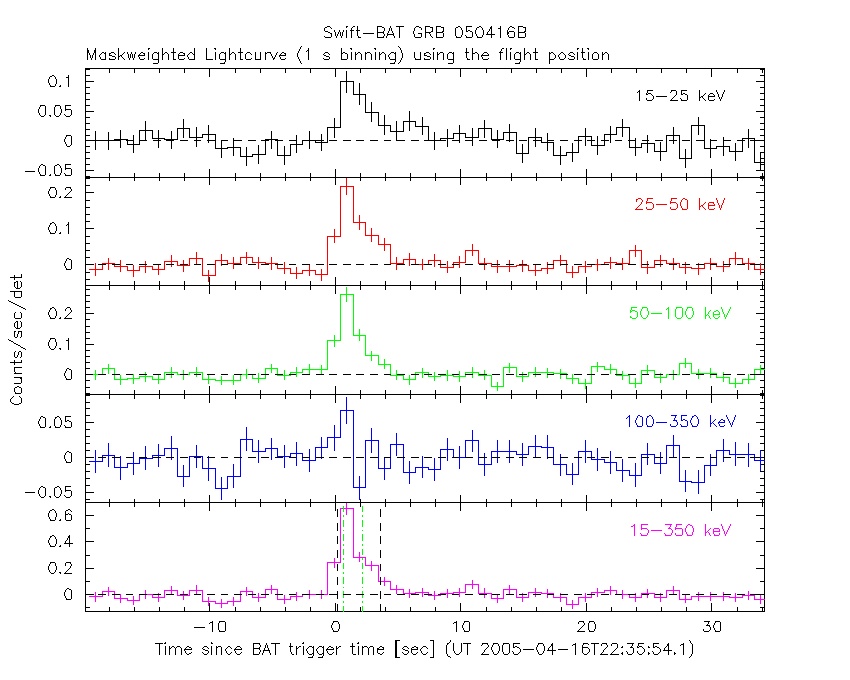

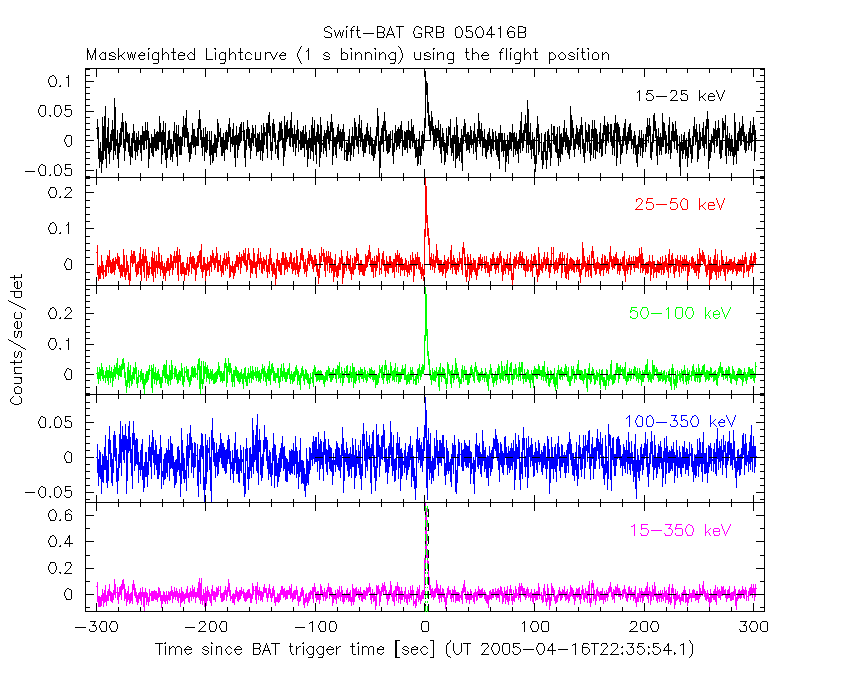

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

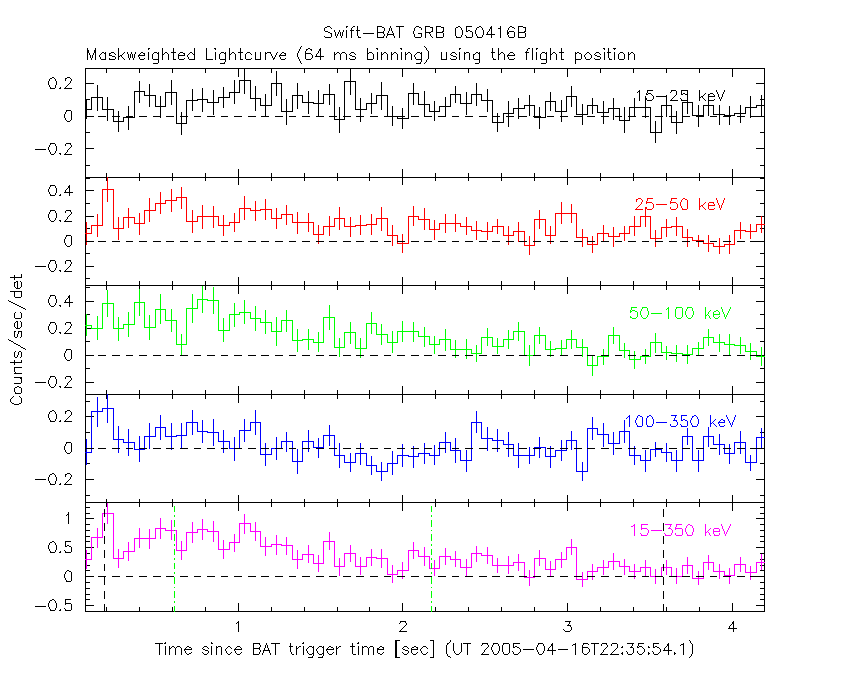

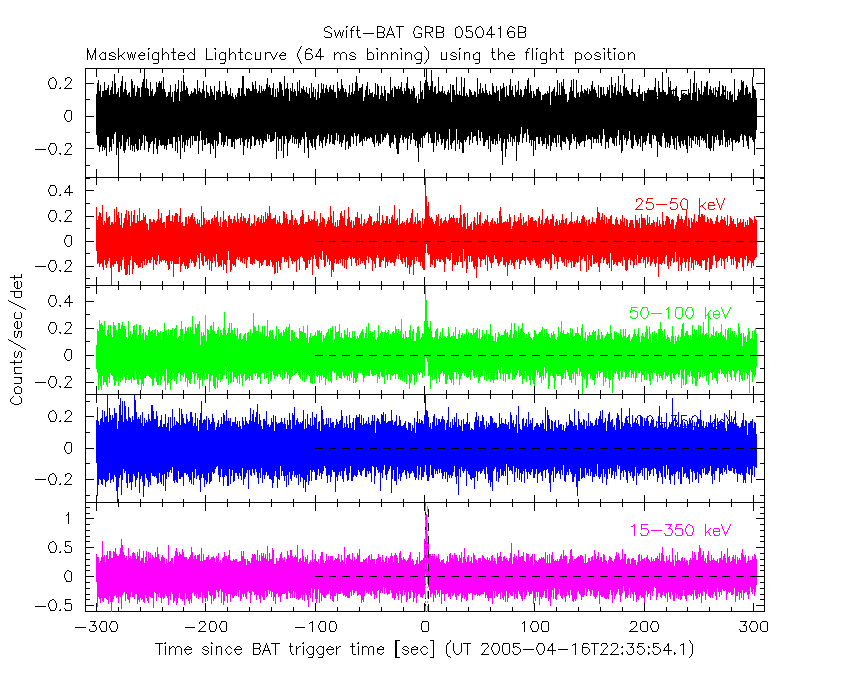

64 ms binning

Full time interval

From T100_start to T100_end

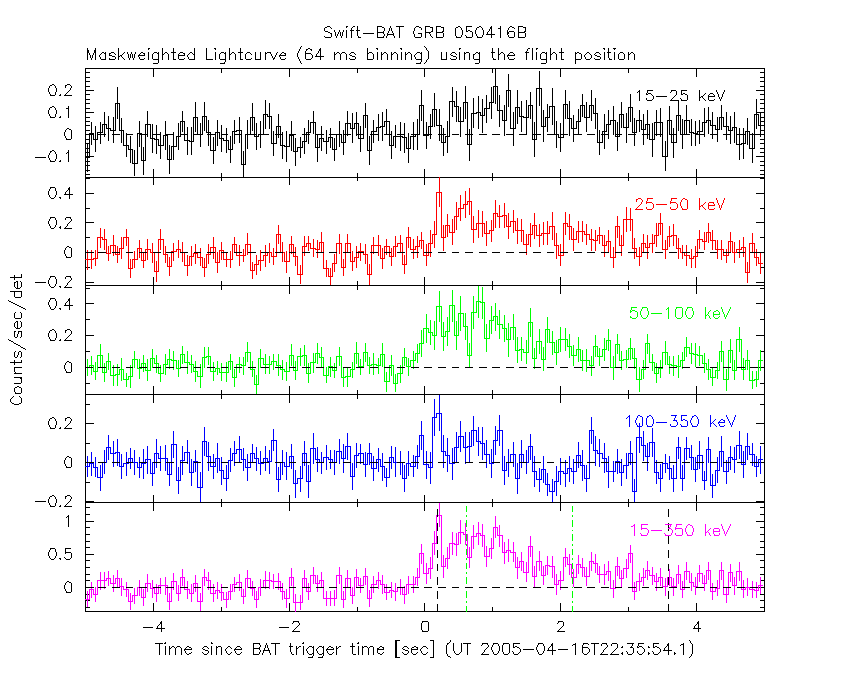

From T0-5 sec to T0+5 sec

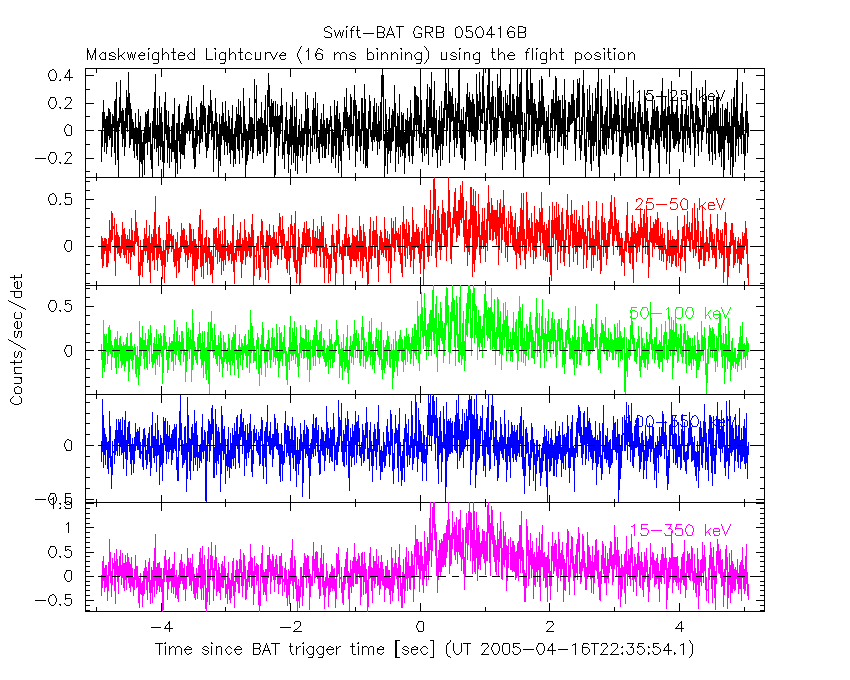

16 ms binning

From T100_start-5 s to T100_start+5 s

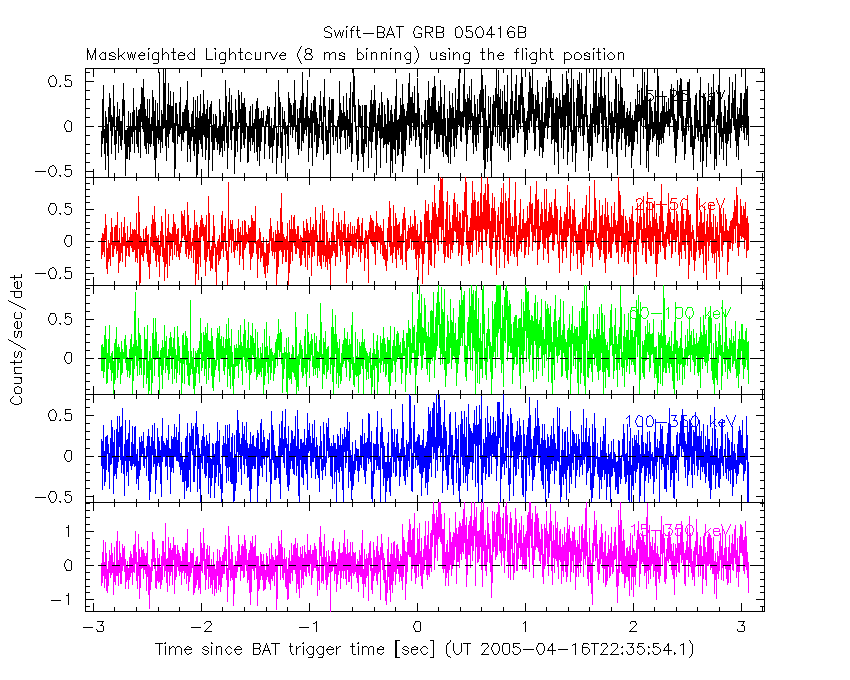

8 ms binning

From T100_start-3 s to T100_start+3 s

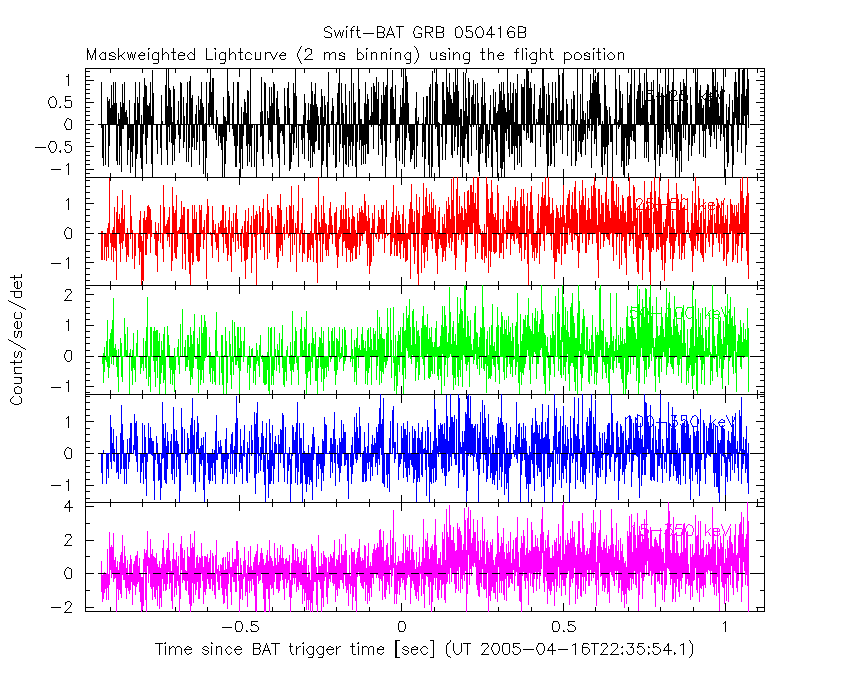

2 ms binning

From T100_start-1 s to T100_start+1 s

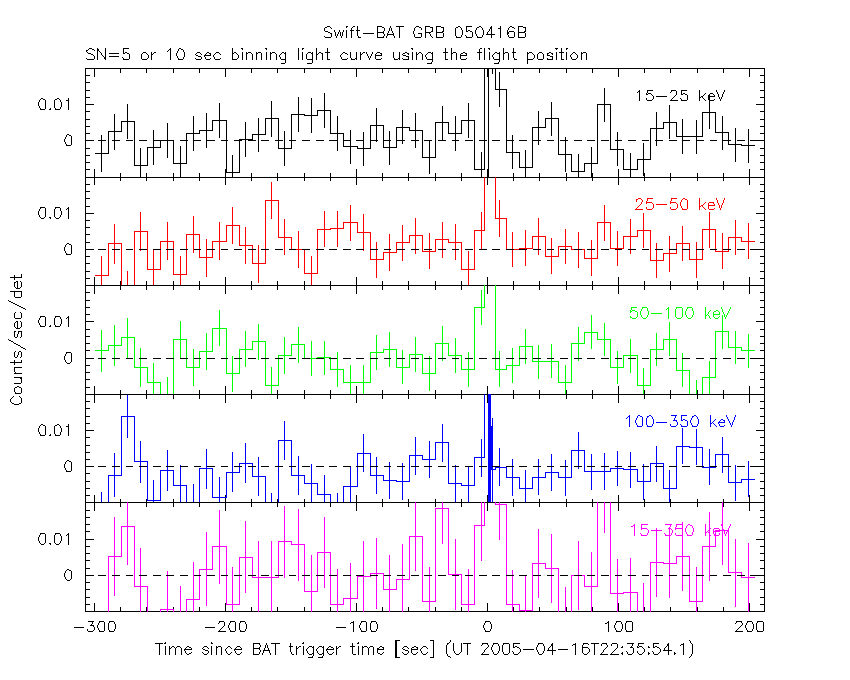

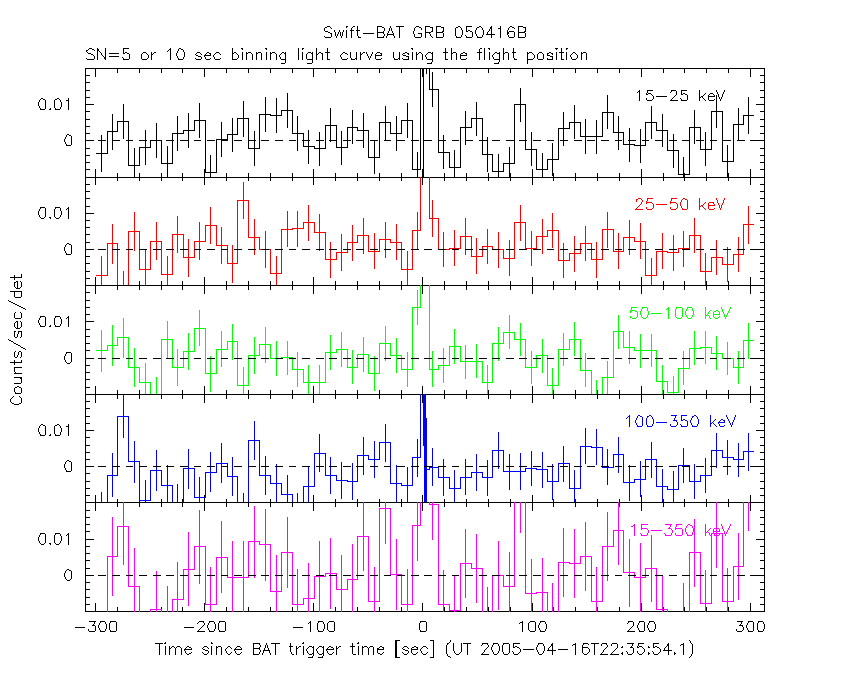

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

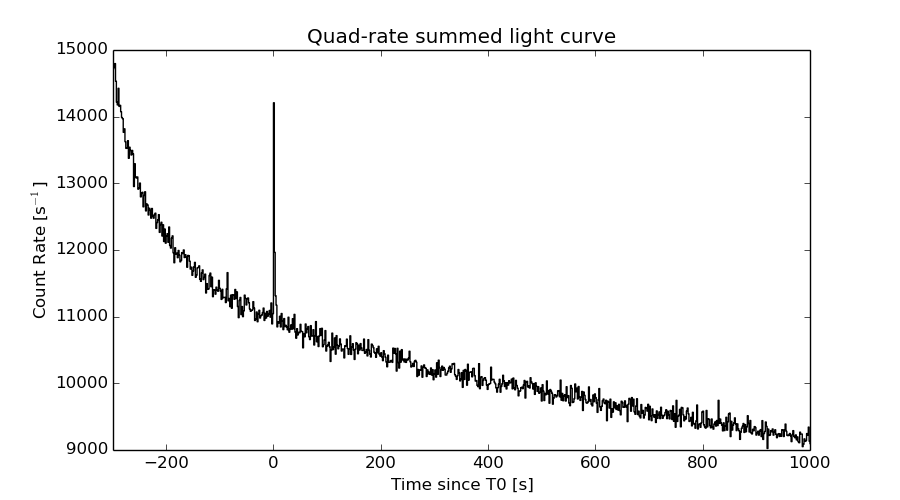

Quad-rate summed light curves (from T0-300s to T0+1000s)

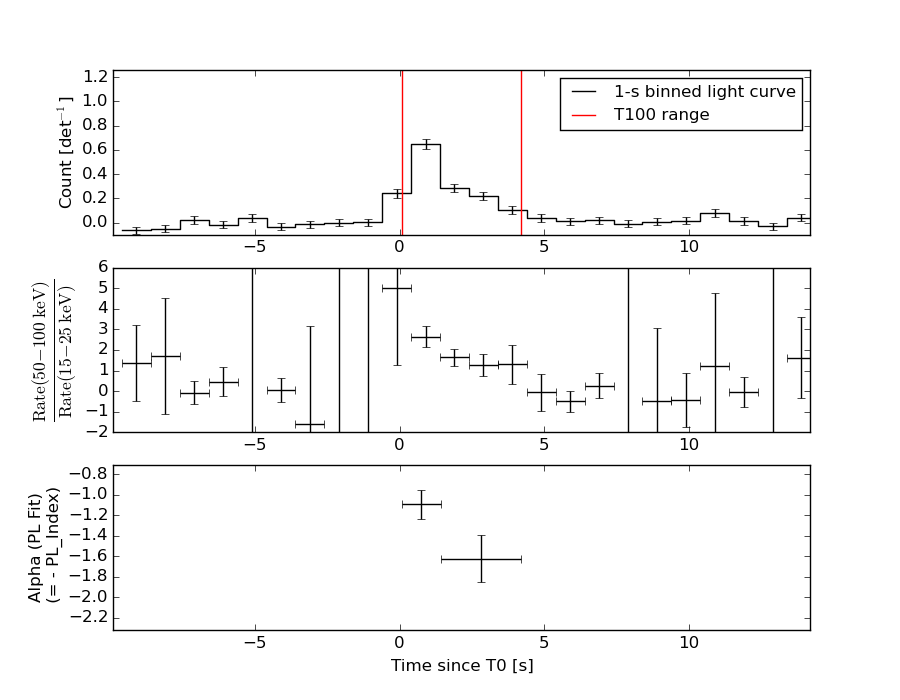

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

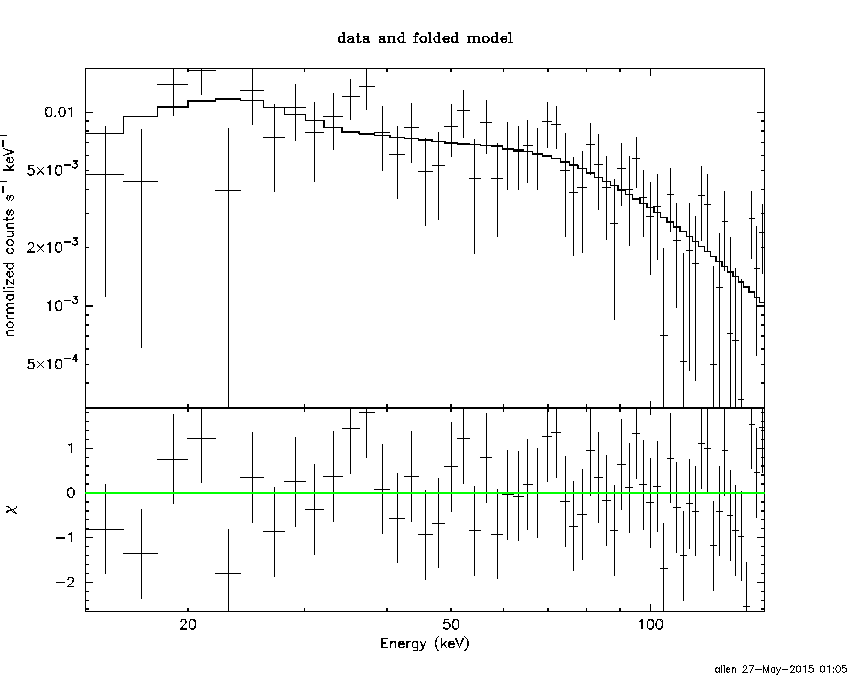

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    0.072 sec. to    4.196 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33028     ( -0.128092   0.127776 )
Norm@50keV  : 2.84403E-02    ( -0.00217492   0.00217491 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.42 using 59 PHA bins.
# Reduced chi-squared =          1.288 for     57 degrees of freedom
# Null hypothesis probability =   7.048003e-02

Photon flux (15-150 keV)    in 4.124 sec: 3.41266 ( -0.274955  0.275792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.15068e-06 ( -9.3929e-08  9.42429e-08 ) ergs/cm2

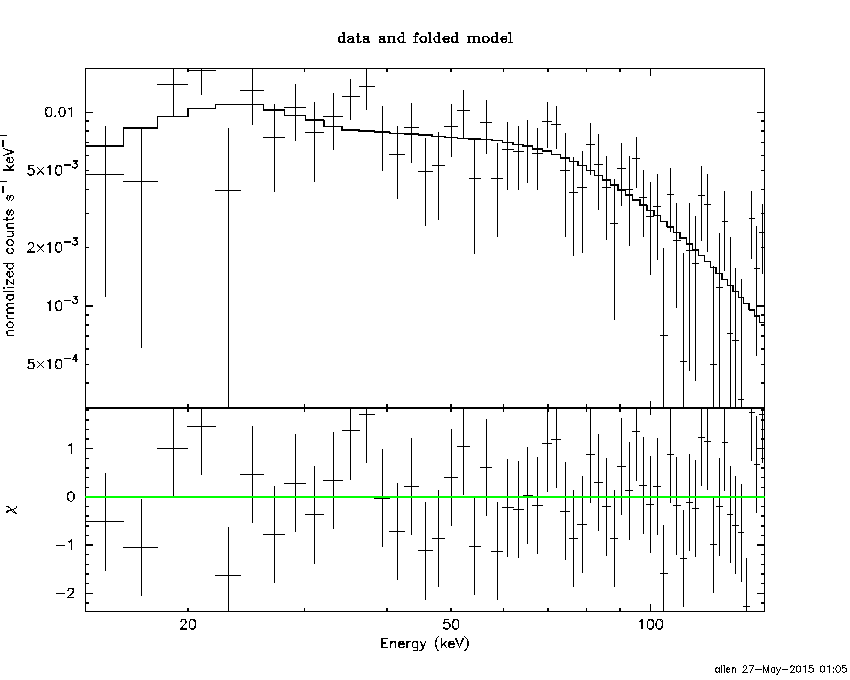

Cutoff power-law model

Time interval is from    0.072 sec. to    4.196 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.402896     ( -0.678166   0.585371 )
Epeak [keV] : 95.7523      ( -19.5579 67.4138 )
Norm@50keV  : 7.55866E-02    ( -0.0341669   0.0746006 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.59 using 59 PHA bins.
# Reduced chi-squared =          1.171 for     56 degrees of freedom
# Null hypothesis probability =   1.784104e-01

Photon flux (15-150 keV)    in 4.124 sec: 3.27162 ( -0.28835  0.28924 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.10602e-06 ( -1.00679e-07  1.00292e-07 ) ergs/cm2

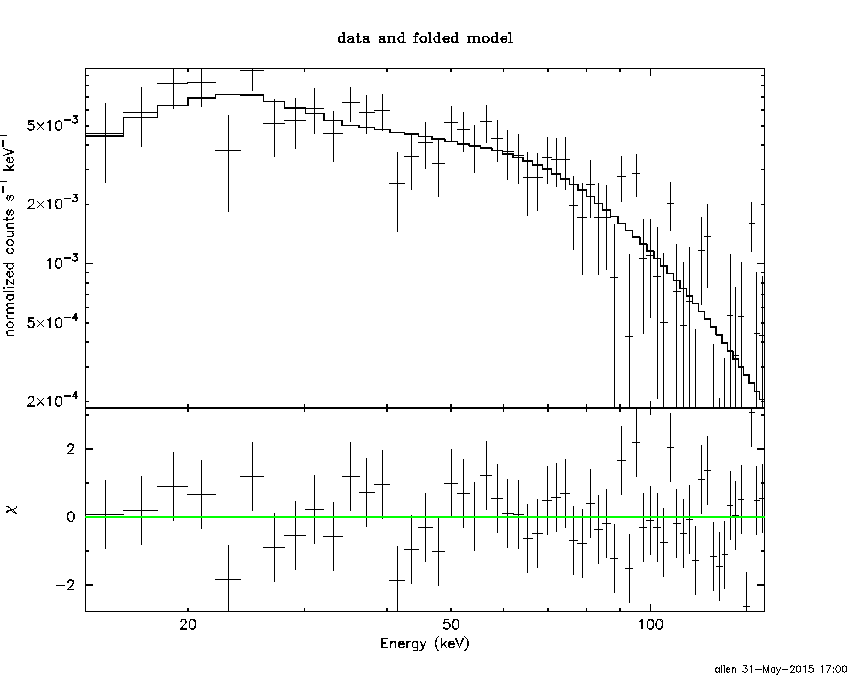

Band function

Time interval is from    0.072 sec. to    4.196 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.402857   ( -0.344653   0.563866 )
beta        : -10.00000    ( 10   20 )
Epeak [keV] : 95.7357      ( -14.3871 67.4081 )
Norm@50keV   : 7.55918E-02    ( -0.00573225   0.0478644 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.59 using 59 PHA bins.
# Reduced chi-squared =          1.193 for     55 degrees of freedom
# Null hypothesis probability =   1.552479e-01

Photon flux (15-150 keV)    in 4.124 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

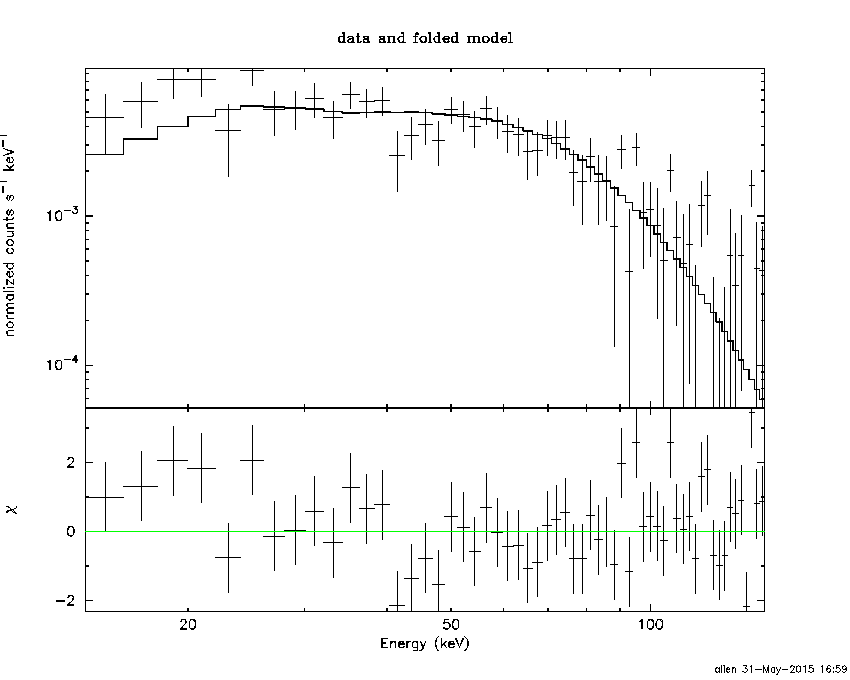

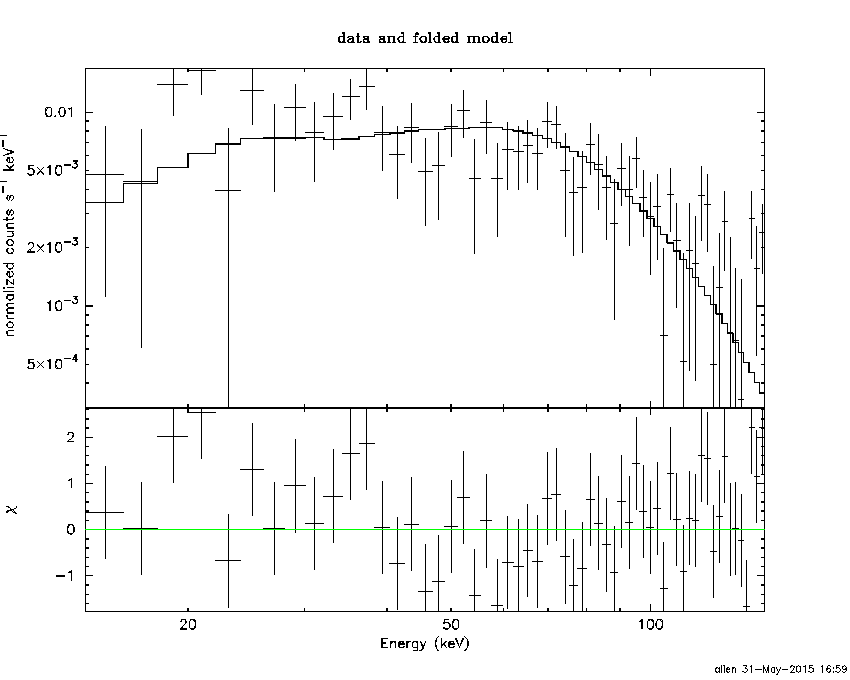

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.0739  (-1.52275  1.70163)
R^2/D10^2   : 0.219313  (-0.0584667   0.0776906)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          81.07 using 59 PHA bins.
# Reduced chi-squared =          1.422 for     57 degrees of freedom
# Null hypothesis probability =   1.977393e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.908e-08   8.784e-09
25- 50  2.741e-07   2.978e-08
50-150  6.505e-07   7.980e-08
15-150  9.837e-07   8.516e-08

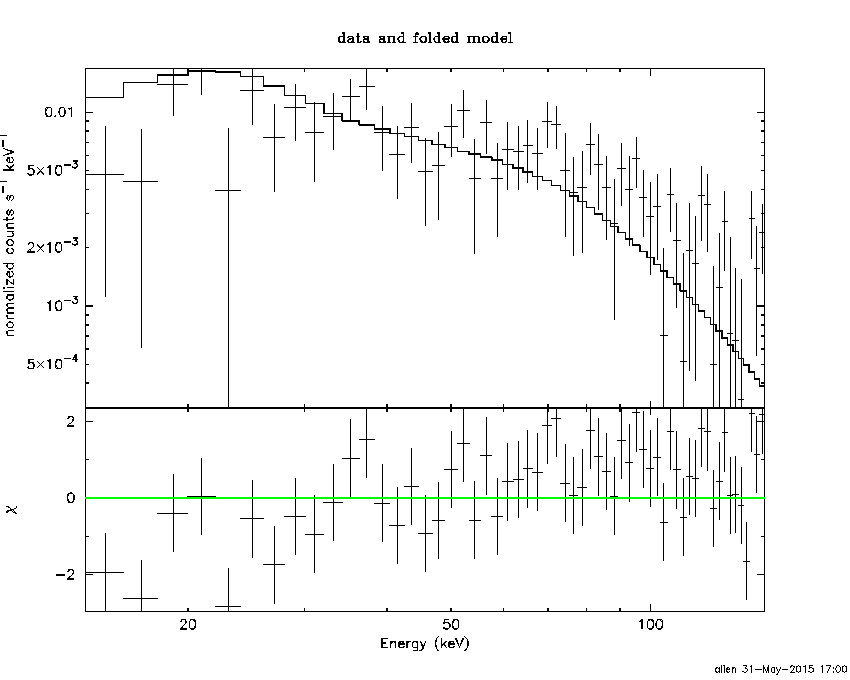

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 14.3661       (-1.1054     1.10525)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.84 using 59 PHA bins.
# Reduced chi-squared =          1.383 for     57 degrees of freedom
# Null hypothesis probability =   2.929322e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.475e-07   1.423e-08
25- 50  2.838e-07   3.870e-08
50-150  6.224e-07   1.994e-07
15-150  1.054e-06   2.456e-07

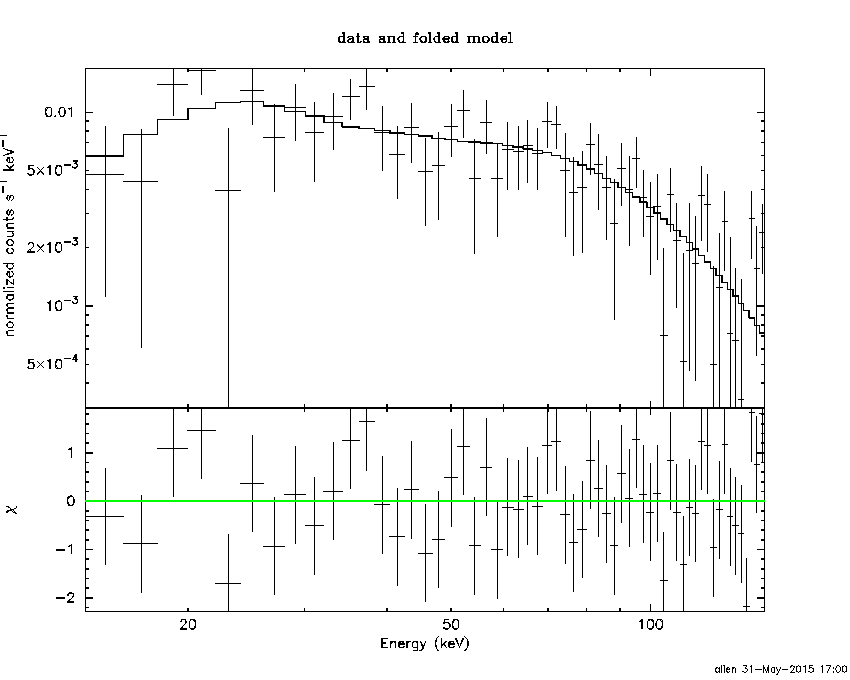

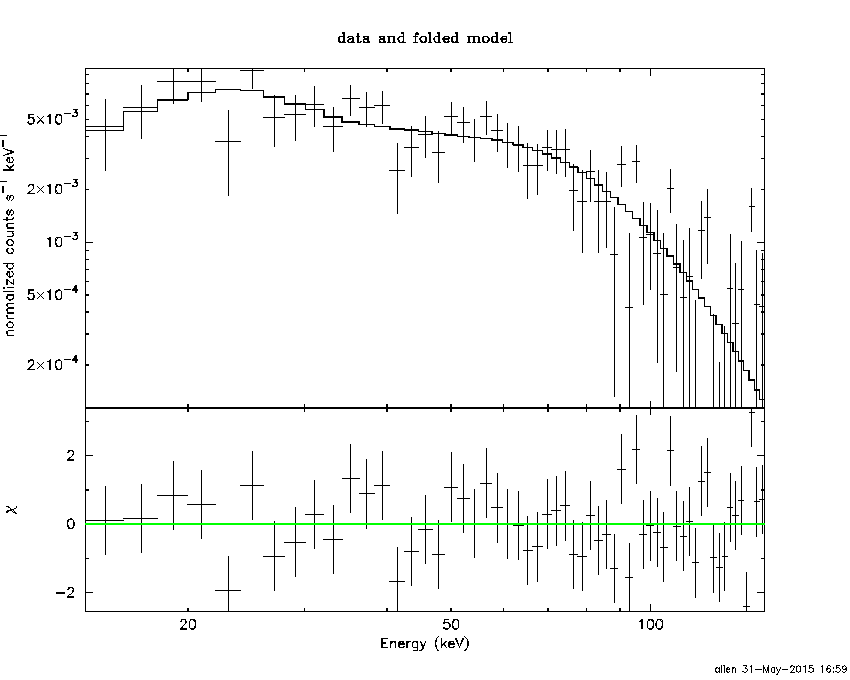

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.35566        (-2.9215      5.48042)
R1^2/D10^2  : 2.95832        (-2.37587      17.0097)
kT2 [keV]   : 22.3454        (-3.44005      12.146)
R2^2/D10^2  : 9.36081E-02    (-0.0773852   0.0840596)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.22 using 59 PHA bins.
# Reduced chi-squared =          1.204 for     55 degrees of freedom
# Null hypothesis probability =   1.429759e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.062e-07   5.048e-08
25- 50  2.688e-07   8.869e-08
50-150  7.144e-07   1.869e-07
15-150  1.089e-06   2.753e-07

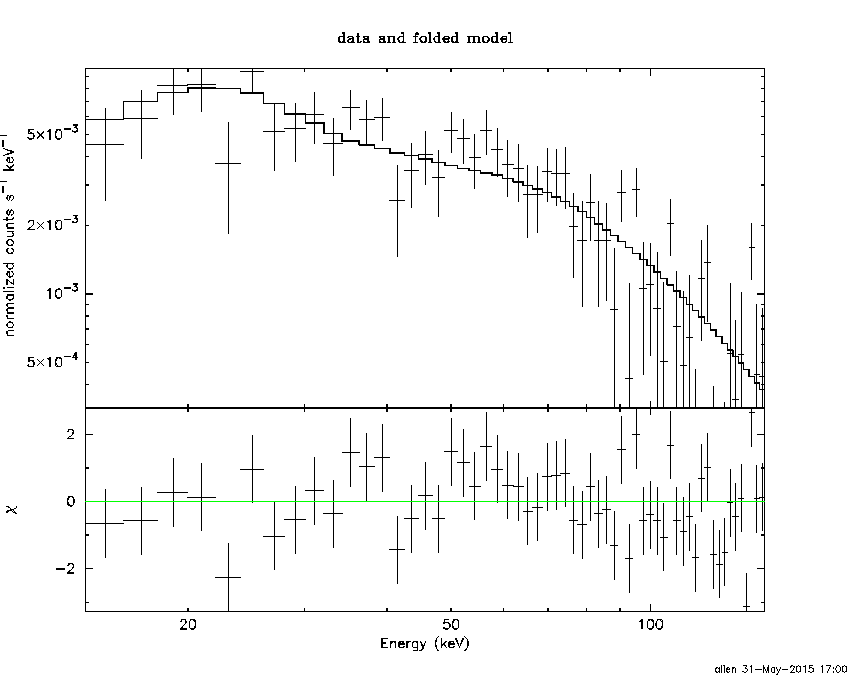

Peak spectrum fit

Power-law model

Time interval is from    0.136 sec. to    1.136 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.995858     ( -0.160187   0.155413 )
Norm@50keV  : 5.27652E-02    ( -0.00515629   0.00511591 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.96 using 59 PHA bins.
# Reduced chi-squared =         0.9117 for     57 degrees of freedom
# Null hypothesis probability =   6.639769e-01

Photon flux (15-150 keV)    in 1 sec: 6.07332 ( -0.605248  0.607822 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.71472e-07 ( -5.53207e-08  5.52789e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.136 sec. to    1.136 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.538406     ( -0.727021   0.580678 )
Epeak [keV] : 195.927      (   )
Norm@50keV  : 8.22524E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.45 using 59 PHA bins.
# Reduced chi-squared =         0.9008 for     56 degrees of freedom
# Null hypothesis probability =   6.842977e-01

Photon flux (15-150 keV)    in 1 sec: 5.98989 ( -0.61538  0.61789 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.68119e-07 ( -5.6588e-08  5.6289e-08 ) ergs/cm2

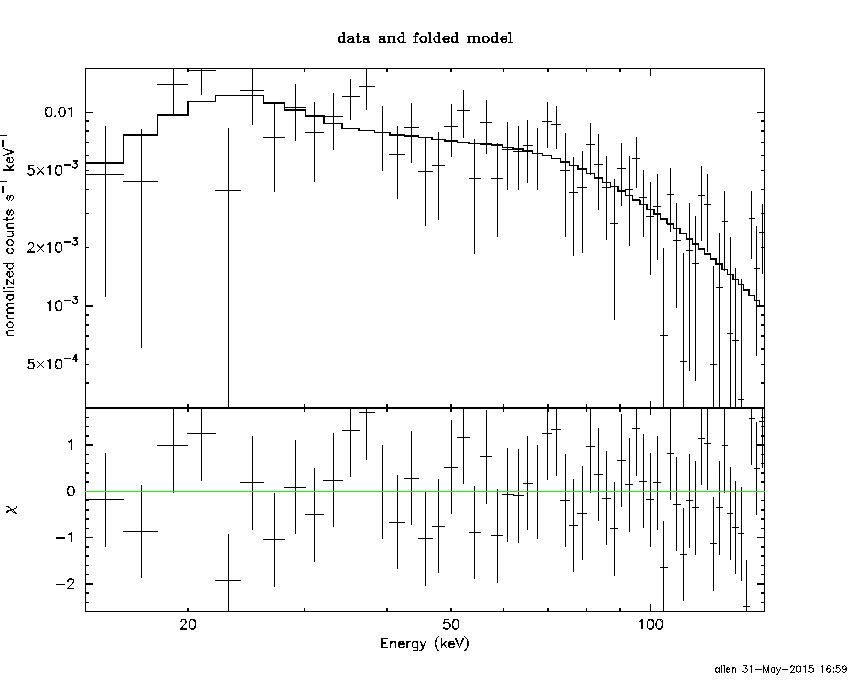

Band function

Time interval is from    0.136 sec. to    1.136 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -1.05230    ( -0.17507   0.174561 )
Epeak [keV] : 28.6789      ( -28.6787 11.4435 )
Norm@50keV   : 1607.54    ( -149.114   9.14493e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.64 using 59 PHA bins.
# Reduced chi-squared =         0.9208 for     55 degrees of freedom
# Null hypothesis probability =   6.416489e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.7340  (-2.69157  3.21191)
R^2/D10^2   : 0.176394  (-0.0585595   0.0829498)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.73 using 59 PHA bins.
# Reduced chi-squared =          1.136 for     57 degrees of freedom
# Null hypothesis probability =   2.249154e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.773e-08   3.690e-09
25- 50  9.788e-08   1.562e-08
50-150  4.112e-07   5.825e-08
15-150  5.268e-07   6.340e-08

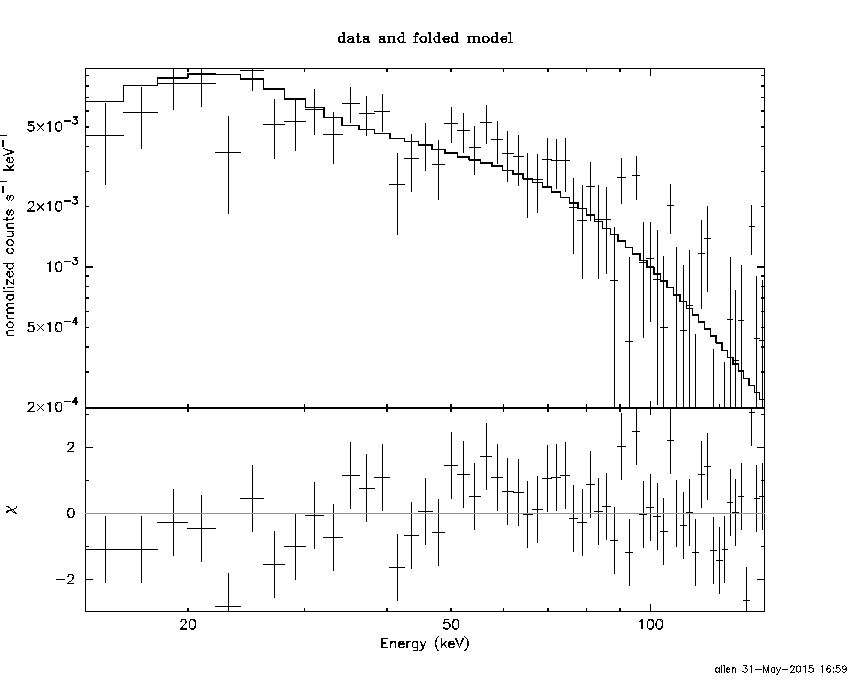

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 25.4928       (-2.51443     2.51405)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          86.80 using 59 PHA bins.
# Reduced chi-squared =          1.523 for     57 degrees of freedom
# Null hypothesis probability =   6.680706e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.345e-08   2.010e-08
25- 50  1.221e-07   4.320e-08
50-150  2.677e-07   1.442e-07
15-150  4.532e-07   2.251e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.98767        (-3.36199      5.85346)
R1^2/D10^2  : 1.77623        (-1.27308      4.09127)
kT2 [keV]   : 34.2848        (-7.85466      42.7754)
R2^2/D10^2  : 4.73392E-02    (-0.037446   0.0676918)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.09 using 59 PHA bins.
# Reduced chi-squared =         0.9107 for     55 degrees of freedom
# Null hypothesis probability =   6.622804e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.591e-08   1.820e-08
25- 50  1.111e-07   5.179e-08
50-150  4.263e-07   2.127e-07
15-150  5.733e-07   2.750e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33028     ( -0.128092   0.127776 )
Norm@50keV  : 2.84403E-02    ( -0.00217492   0.00217491 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.42 using 59 PHA bins.
# Reduced chi-squared =          1.288 for     57 degrees of freedom
# Null hypothesis probability =   7.048003e-02

Photon flux (15-150 keV)    in 4.124 sec: 3.41266 ( -0.274955  0.275792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.15068e-06 ( -9.3929e-08  9.42429e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.402896     ( -0.678166   0.585371 )
Epeak [keV] : 95.7523      ( -19.5579 67.4138 )
Norm@50keV  : 7.55866E-02    ( -0.0341669   0.0746006 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.59 using 59 PHA bins.
# Reduced chi-squared =          1.171 for     56 degrees of freedom
# Null hypothesis probability =   1.784104e-01

Photon flux (15-150 keV)    in 4.124 sec: 3.27162 ( -0.28835  0.28924 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.10602e-06 ( -1.00679e-07  1.00292e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.402857   ( -0.344653   0.563866 )
beta        : -10.00000    ( 10   20 )
Epeak [keV] : 95.7357      ( -14.3871 67.4081 )
Norm@50keV   : 7.55918E-02    ( -0.00573225   0.0478644 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.59 using 59 PHA bins.
# Reduced chi-squared =          1.193 for     55 degrees of freedom
# Null hypothesis probability =   1.552479e-01

Photon flux (15-150 keV)    in 4.124 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.60e-07
S(50-100 keV) = 4.14e-07

T90 vs. Hardness ratio plot

T90                                   = 3.39200001955032 sec.
Hardness ratio (energy fluence ratio) = 1.59231

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.00827
Count Ratio (50-100 keV) / (15-25 keV) = 2.16713

Mask shadow pattern

IMX = -1.191838068794340E+00, IMY = 6.036945848098397E-01

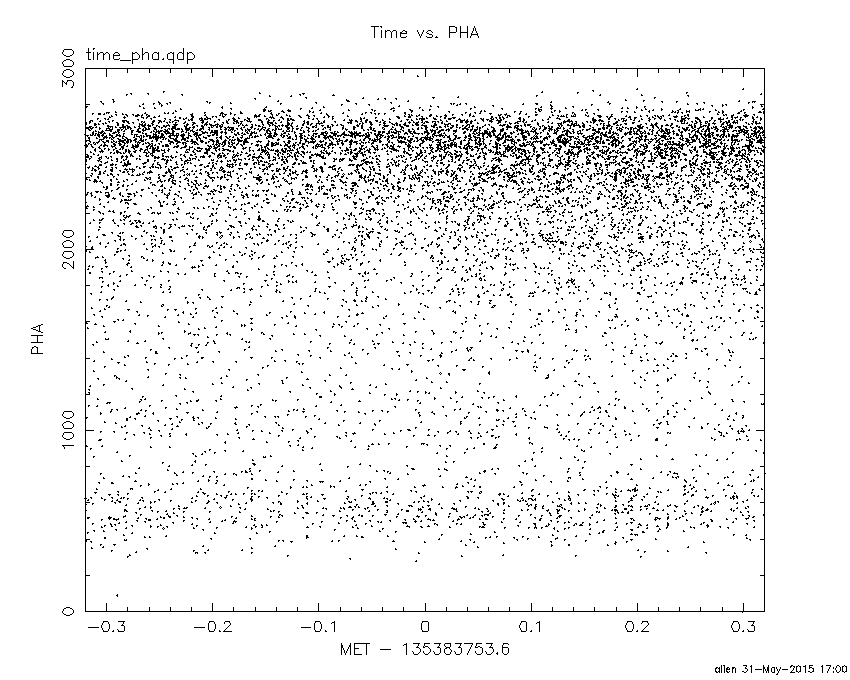

TIME vs. PHA plot around the trigger time

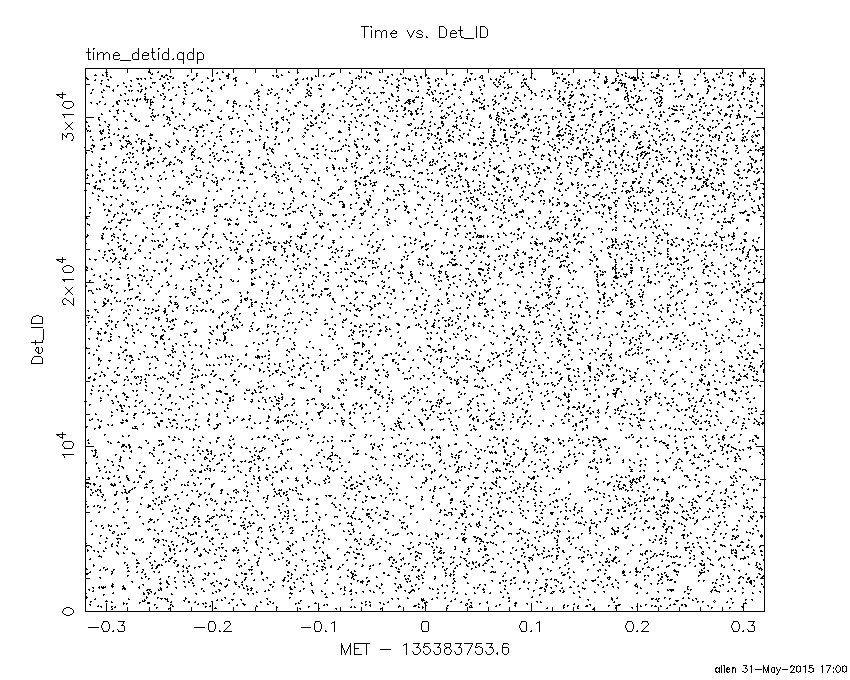

TIME vs. DetID plot around the trigger time

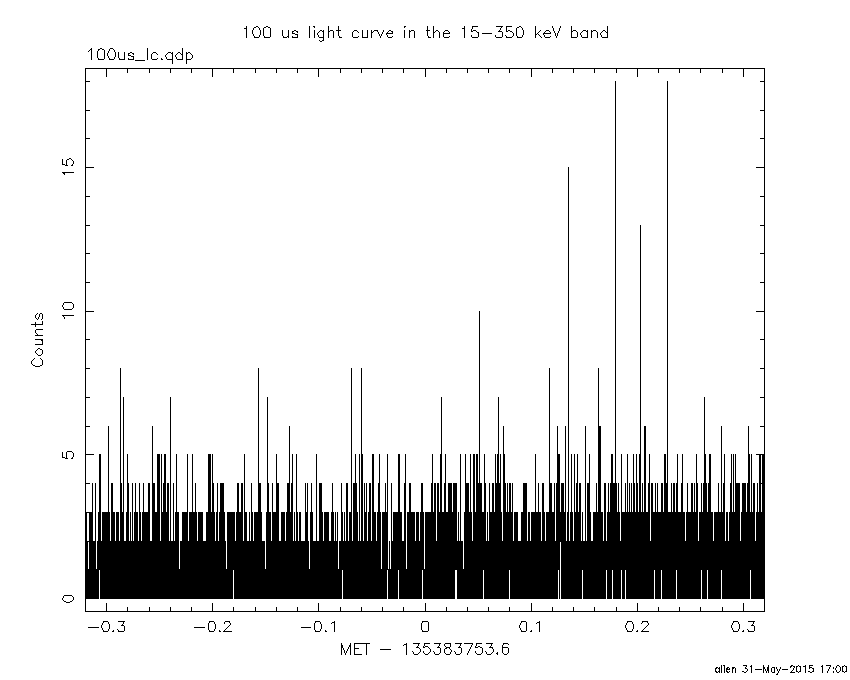

100 us light curve (15-350 keV)

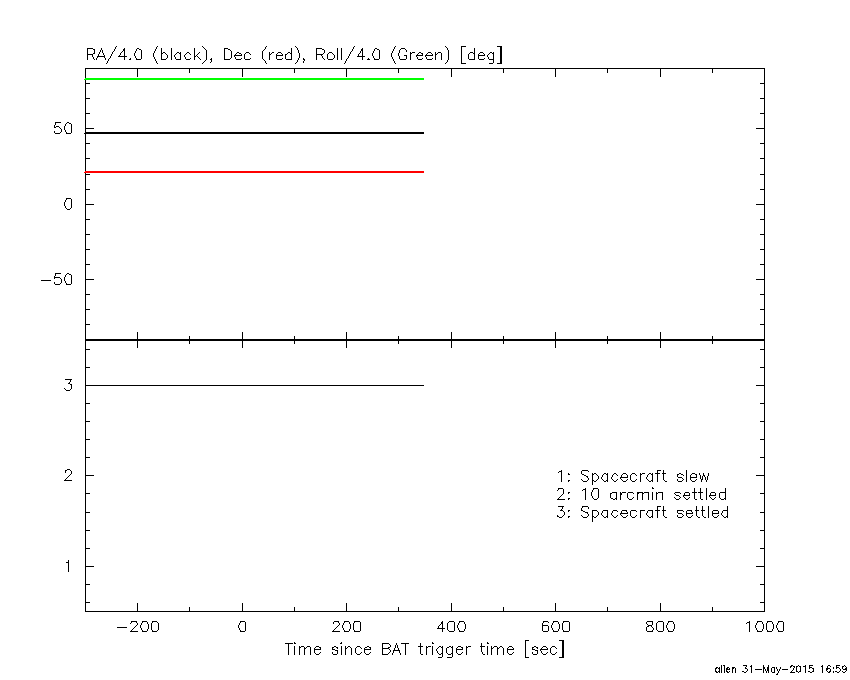

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-299.600000 0.072000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
159.1999 -22.9128    2.4  52.4  153.2   5.3653   4.9 ------	UNKNOWN
175.2772  -8.1678    2.5  32.0  143.8   1.5196   4.5 ------	UNKNOWN
226.5334  36.1504    2.7  36.3   -4.4   1.3004   4.3 ------	UNKNOWN
219.7263  35.0980    2.2  30.7   -5.4   1.3084   5.2 ------	UNKNOWN
248.4831  38.8541    2.4  53.9   -5.0   2.7576   4.7 ------	UNKNOWN
166.7432  23.1952    2.7  20.3 -141.4   0.8106   4.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.072000 4.196000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
156.4561 -18.9714    3.0  50.9  158.8   0.2770   3.8 ------	UNKNOWN
150.2651   7.6688    1.9  39.3 -165.7   0.1794   6.2 ------	UNKNOWN
133.8466  11.1855    0.6  53.2 -153.1   1.6235  19.7 ------	UNKNOWN
211.7886  67.3312    2.6  48.6  -49.8   0.4386   4.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-299.600000 302.400800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
191.9863 -19.3111    2.6  40.5  113.4   5.2566   4.5 ------	UNKNOWN
166.7602  23.2233    3.1  20.2 -141.3   1.1172   3.7 ------	UNKNOWN
164.1060  27.1571    3.0  23.1 -131.4   1.3018   3.8 ------	UNKNOWN
229.4154  49.9025    2.5  43.2  -23.5   2.4492   4.7 ------	UNKNOWN
175.2364  51.9451    3.4  32.6  -76.7   2.0570   3.4 ------	UNKNOWN

Plot creation:
Sun May 31 17:00:53 EDT 2015
