batgrbproduct analysis for trigger=1149250

batgrbproduct Analysis for Trigger=1149250

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Wed Jun 14 15:20:16 EDT 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger1149250
======================================================================

  Trigger: 01149250      Segment: 000

  BAT Trigger Time: 695576032   [s; MET]
      Trigger Stop: 695576096   [s; MET]
               UTC: 2023-01-16T15:33:21.412960    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 223.46306794312   Dec: -16.8714844051089  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    13.88
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    13.88

  Flight Position:   [ source = BAT ]
    RA: 223.46306794312   Dec: -16.8714844051089  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 223.467132990072   Dec: -16.8828378347964  [deg; J2000]
        { 14h 53m 52.1s , -16d 52' 58.2" }
         +/- 1.38765514586551 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.753159925701396 [arcmin] (formal 1-sigma fit error)
    SNR: 19.0484227988708

  Angular difference between Flight and Ground position is 0.720080 arcmin

  Partial Coding Fraction: 0.65625    [ including projection effects ]

  Duration
     T90: 315.871999979019 +/- 53.4216859637062
        Measured from: -20.2960000038147
                   to: 295.575999975204     [s; relative to TRIGTIME]
     T50: 117.904000043869 +/- 57.7623406301486
        Measured from: 21.1599999666214
                   to: 139.06400001049     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 247.707999944687
                   to: 248.707999944687     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -35.7999999523163
                   to: 346.679999947548     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     3.108276   3.876502   2.496329   0.609698
           0.251275   0.249853   0.216416   0.188613 [error]
 Peak      0.044973   0.040063   0.036230   0.006156
           0.014069   0.014454   0.012072   0.010814 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.06e-06 1.69e-06 2.03e-06 4.78e-06 6.16e-06 9.56e-06   erg/cm2
              Error 1.29e-07 1.26e-07 2.19e-07 1.09e-06 5.11e-07 1.27e-06   erg/cm2
Peak flux Power-law 4.51e-01 3.29e-01 1.59e-01 1.09e-01 9.90e-01 1.05e+00   ph/cm2/s
              Error 2.25e-01 1.22e-01 9.08e-02 1.30e-01 3.67e-01 3.88e-01   ph/cm2/s

Fluence   Cutoff-PL 1.03e-06 1.72e-06 2.05e-06 3.59e-06 6.04e-06 8.38e-06   erg/cm2
              Error 1.42e-07 1.54e-07 2.27e-07 2.33e-06 5.73e-07 1.84e-06   erg/cm2
Peak flux Cutoff-PL 3.69e-01 3.86e-01 1.78e-01 3.43e-02 9.60e-01 9.70e-01   ph/cm2/s
              Error 3.22e-01 1.60e-01 1.15e-01 8.22e-02 3.72e-01 3.84e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.733    0.137    -      -           1.74e-03 1.38e-04   54.380 57
CPL   1.559    0.432     121.5  -30.1      2.15e-03 1.22e-03   54.040 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.049    0.673    -      -           6.45e-03 2.94e-03   51.190 57
CPL   0.619    2.929      45.7   -0.6      3.74e-02 2.47e+00   50.200 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 234.816000 sec.
T50 in the 50-300 keV band: 62.656000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  382.480  -35.800  346.680
T90   315.872  -20.296  295.576
T50   117.904   21.160  139.064
Peak    1.000  247.708  248.708

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minute to calcaulte


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  223.4671   -16.8828   0.0101    30.4645    32.0511         4.9544864     19.048 TRIG_01149250

Foreground time interval of the image:
-35.800  69.901 (delta_t = 105.701 [sec])
Background time interval of the image:
-239.000 -35.800 (delta_t = 203.200 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

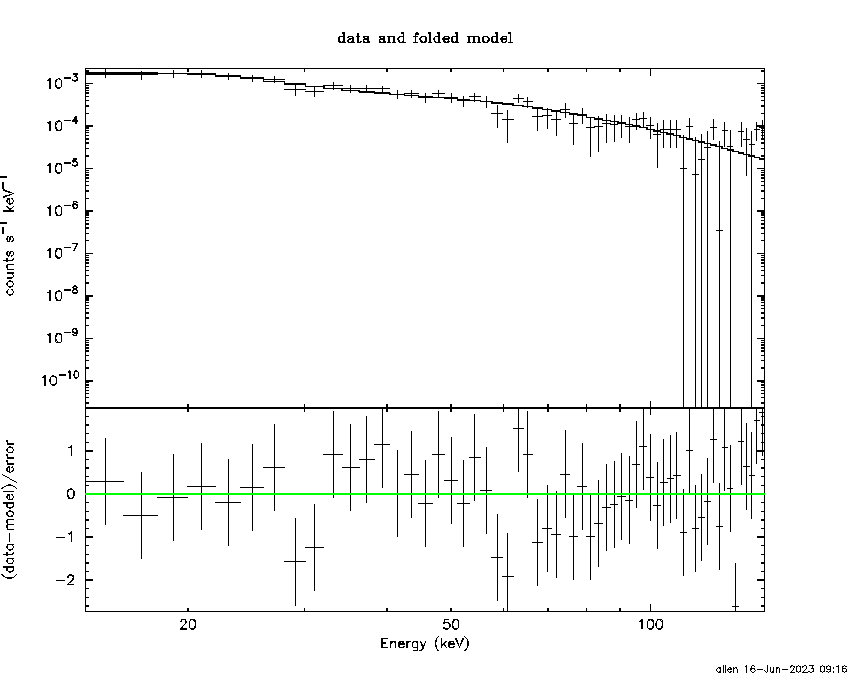

Power-law model

Time interval is from  -35.800 sec. to  346.680 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73281     ( -0.13529   0.137867 )
Norm@50keV  : 1.74126E-03    ( -0.000138895   0.000137522 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.38     using 59 bins.
 Reduced chi-squared = 0.954035
# Null hypothesis probability of 5.74e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 382.5 sec: 0.233984 ( -0.0177  0.017747 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.15305e-06 ( -5.08339e-07  5.13353e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -35.800 sec. to  346.680 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.55859     ( -0.561358   0.302475 )
Epeak [keV] : 121.539      ( -61.4001 -121.539 )
Norm@50keV  : 2.14679E-03    ( -0.000431431   0.0020087 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.04     using 59 bins.
 Reduced chi-squared = 0.965
# Null hypothesis probability of 5.49e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 382.5 sec: 0.231865 ( -0.018755  0.018719 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.06152e-06 ( -5.75444e-07  5.70897e-07 ) ergs/cm2

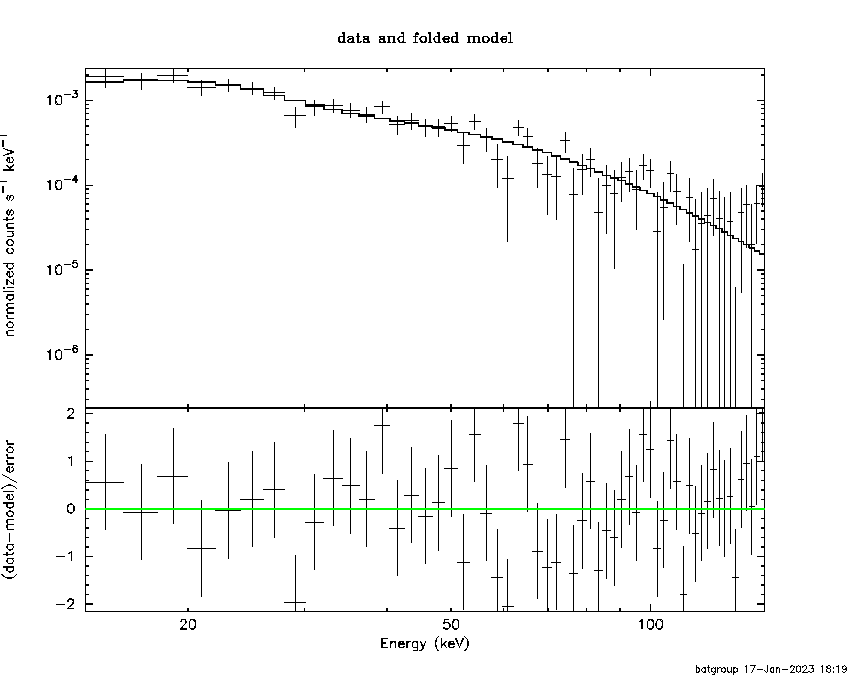

Band function

Time interval is from  -35.800 sec. to  346.680 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

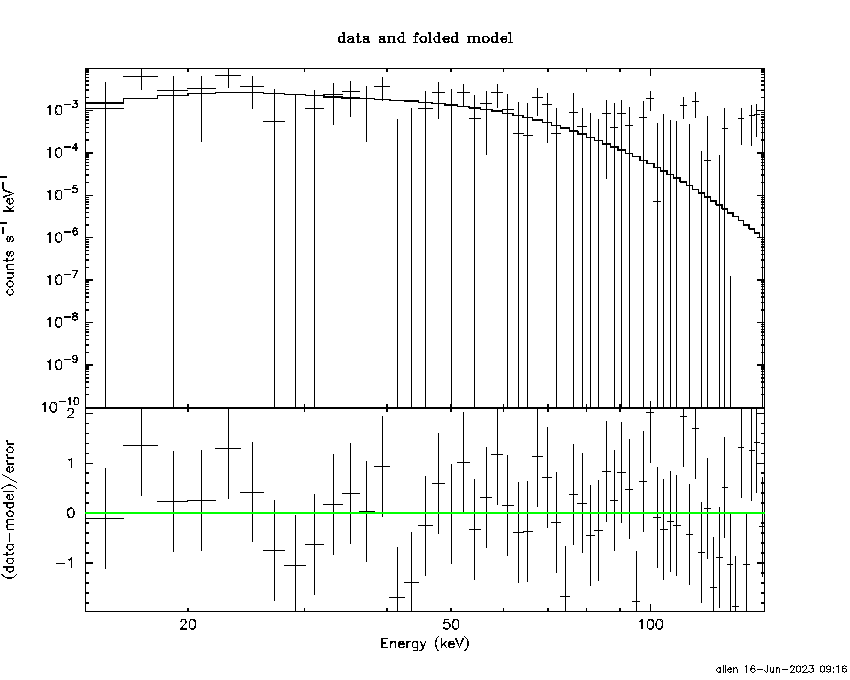

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.7831  (-1.18909  1.33319)
R^2/D10^2   : 4.38066E-02  (-0.0134016   0.0190328)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   99.42     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 4.31e-04 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.807e-07   8.071e-08
25- 50  1.964e-06   1.844e-07
50-150  2.009e-06   3.161e-07
15-150  4.553e-06   4.188e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 132.407       (-38.6166      57.0276)
Norm        : 0.962107       (-0.0863913     0.116122)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   54.87     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 5.55e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.538e-07   9.964e-08
25- 50  1.735e-06   2.134e-07
50-150  3.243e-06   1.188e-06
15-150  5.931e-06   1.427e-06

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.56991        (-1.75603      1.82205)
R1^2/D10^2  : 0.339348        (-0.188482      0.725466)
kT2 [keV]   : 23.9913        (-5.63518      11.4623)
R2^2/D10^2  : 3.36227E-03    (-0.00252127   0.00627028)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   57.15     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 3.95e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.700e-07   2.873e-07
25- 50  1.742e-06   5.523e-07
50-150  3.261e-06   1.407e-06
15-150  5.973e-06   1.938e-06

Peak spectrum fit

Power-law model

Time interval is from  247.708 sec. to  248.708 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.04943     ( -0.589952   0.755407 )
Norm@50keV  : 6.44882E-03    ( -0.00303616   0.00284285 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.19     using 59 bins.
 Reduced chi-squared = 0.89807
# Null hypothesis probability of 6.92e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.990039 ( -0.367097  0.367611 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.96733e-08 ( -2.47705e-08  2.5859e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  247.708 sec. to  248.708 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.618922     ( -4.32936   1.52789 )
Epeak [keV] : 45.7213      ( -44.5775 -45.7537 )
Norm@50keV  : 3.74113E-02    ( -0.0371404   4.90489 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   50.20     using 59 bins.
 Reduced chi-squared = 0.896429
# Null hypothesis probability of 6.93e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 1 sec: 0.959504 ( -0.37115  0.372636 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.77511e-08 ( -2.34633e-08  2.56113e-08 ) ergs/cm2

Band function

Time interval is from  247.708 sec. to  248.708 sec.


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.3253  (-4.33209  5.31551)
R^2/D10^2   : 0.225418  (-0.225366   0.865823)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   51.17     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.92e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.256e-09   4.768e-09
25- 50  2.355e-08   1.457e-08
50-150  2.189e-08   1.655e-08
15-150  5.270e-08   3.390e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 66.5256       (-39.424      -66.5542)
Norm        : 5.07902       (-2.25834     3.98568)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   50.40     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.19e-01 with 57 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.295e-08   8.105e-09
25- 50  2.032e-08   1.280e-08
50-150  2.512e-08   2.108e-08
15-150  5.840e-08   4.072e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.69696        (-3.70418      53.7676)
R1^2/D10^2  : 13.9142        (-13.8592      -13.8592)
kT2 [keV]   : 14.8120        (-5.36511      -14.8164)
R2^2/D10^2  : 9.62400E-02    (-0.095581   0.467641)
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   49.34     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 6.90e-01 with 55 degrees of freedom

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.296e-08   6.845e-09
25- 50  1.984e-08   1.218e-08
50-150  2.584e-08   1.707e-08
15-150  5.864e-08   3.552e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.83570     ( -0.127911   0.130415 )
Norm@50keV  : 3.05058E-03    ( -0.000226259   0.000223672 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.56     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.79e-01 with 57 degrees of freedom

Photon flux (15-150 keV)    in 105.7 sec: 0.426323 ( -0.029458  0.0295604 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.96554e-06 ( -2.20993e-07  2.22866e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.83495     ( -0.467388   0.599654 )
Epeak [keV] : 9996.42      ( -9997.78 -9997.79 )
Norm@50keV  : 3.05369E-03    ( -0.000831163   0.00252333 )
------------------------------------------------------------
#Fit statistic  : Chi-Squared                   48.56     using 59 bins.
 Reduced chi-squared =
# Null hypothesis probability of 7.50e-01 with 56 degrees of freedom

Photon flux (15-150 keV)    in 105.7 sec: 0.426256 ( -0.031209  0.029348 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.96467e-06 ( -2.54917e-07  2.20892e-07 ) ergs/cm2

Band function



Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.69e-06
S(50-100 keV) = 2.03e-06

T90 vs. Hardness ratio plot

T90                                   = 315.871999979019 sec.
Hardness ratio (energy fluence ratio) = 1.20118

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.24716
Count Ratio (50-100 keV) / (15-25 keV) = 0.803123

Mask shadow pattern

IMX = 4.985528199833181E-01, IMY = -3.121490077274349E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -35.800000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9690 -15.6341    0.5  18.6  -10.7   9.4730  24.4    0.7	Sco X-1
254.4635  35.3357   43.3  33.2  174.4   0.1387   0.3    0.5	Her X-1
255.8888 -37.7078    8.4  41.4  -27.5  -0.9710  -1.4    9.4	4U 1700-377
256.3642 -36.4664    3.4  40.3  -28.5   2.2399   3.4    4.3	GX 349+2
262.8304 -24.7922    8.8  31.6  -45.0  -0.7899  -1.3   10.1	GX 1+4
264.9708 -44.3563    5.0  49.9  -33.6  -3.0117  -2.3   11.3	4U 1735-44
268.4711  -1.6311    0.0  21.9  -95.3   0.9141   1.9   12.4	SW J1753.5-0127
270.3224 -25.1605    5.0  36.0  -54.4   1.6850   2.3    5.3	GX 5-1
270.1874 -25.8318    2.9  36.4  -53.5   2.9438   4.0    8.2	GRS 1758-258
274.1186 -14.1905    0.0  31.8  -73.8   1.0804   1.5   11.3	GX 17+2
276.0333 -30.2435    3.6  43.2  -54.6   3.5738   3.2    9.3	H1820-303
288.9266  11.0023    5.6  42.4 -120.0   2.5619   2.1    8.3	GRS 1915+105
262.8617 -33.9302    9.0  39.7  -37.6   0.8811   1.3    8.5	GX 354-0
214.9436 -28.9702    2.6  44.2   24.9   2.4108   4.4 ------	UNKNOWN
233.4811  18.9766    2.8  20.9  124.9   2.0033   4.2 ------	UNKNOWN
250.6310  50.8910    3.2  48.1  166.3   6.0532   3.6 ------	UNKNOWN
250.4667 -53.7199    2.6  56.6  -19.3   6.7801   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-35.800000 69.900600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1194 -15.6866    7.0  18.6  -11.2   0.3341   1.6    8.5	Sco X-1
254.5951  35.3379    4.8  33.3  174.6   0.6451   2.4    6.7	Her X-1
256.1428 -37.7168    6.4  41.4  -27.8  -0.6758  -1.8   10.6	4U 1700-377
256.3746 -36.3528    8.5  40.2  -28.6  -0.4629  -1.4    5.1	GX 349+2
263.0394 -24.6685    2.9  31.6  -45.4   1.3786   4.0    4.9	GX 1+4
264.7678 -44.3774    4.0  49.8  -33.4   2.5094   2.9    4.5	4U 1735-44
268.1849  -1.5411    0.0  21.6  -95.4   0.3637   1.2   12.2	SW J1753.5-0127
270.2610 -25.0630   75.6  35.9  -54.4   0.0649   0.2    1.6	GX 5-1
270.3019 -25.7440   34.2  36.4  -53.7   0.1480   0.3    0.1	GRS 1758-258
273.9488 -14.1512   21.0  31.7  -73.7   0.2342   0.6    7.6	GX 17+2
275.8491 -30.4910   34.9  43.2  -54.2   0.2318   0.3    8.4	H1820-303
288.9603  10.9917   12.3  42.4 -120.0  -0.7650  -0.9    9.9	GRS 1915+105
263.1418 -33.8649   20.2  39.7  -38.0  -0.2400  -0.6    7.8	GX 354-0
213.6667  24.5510    2.6  38.8  110.3   2.8230   4.4 ------	UNKNOWN
223.4671 -16.8828    0.6  30.5   32.1   4.9528  19.0 ------	UNKNOWN
239.9032  18.1397    2.0  16.8  139.3   1.2689   5.8 ------	UNKNOWN
229.5978 -34.8757    2.3  41.1    5.1   1.6338   5.0 ------	UNKNOWN
267.9315 -30.2934    2.3  38.7  -46.4   2.2047   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
147.100600 729.500600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5473  35.4052   33.2  34.3 -145.4   0.4307   0.3    5.8	Her X-1
171.3962   8.6553    2.1  46.4   53.8  12.2631   5.5 ------	UNKNOWN
171.4353   5.4476    3.8  47.8   49.8   8.0689   3.0 ------	UNKNOWN
171.4109   5.8565    3.2  47.6   50.3   9.7100   3.8 ------	UNKNOWN
243.0515  68.6887    3.1  48.2  166.3  14.9854   3.8 ------	UNKNOWN
213.6688  13.9939    3.0   9.8   -3.3   3.2664   3.9 ------	UNKNOWN
244.7622  -9.4346    2.2  42.0  -68.2  14.2359   5.4 ------	UNKNOWN

Plot creation:
Fri Jun 16 09:17:13 EDT 2023
