batgrbproduct analysis for trigger=1150107

batgrbproduct Analysis for Trigger=1150107

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 15 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.48
    Process Start Time (local time): Sun Jan 22 11:52:14 EST 2023
             Host Name: batproc1
   Current Working Dir: /local/data/bat1/prebascript/trigger1150107/GCN5_download_cron
======================================================================

  Trigger: 01150107      Segment: 000

  BAT Trigger Time: 695972688   [s; MET]
      Trigger Stop: 695972752   [s; MET]
               UTC: 2023-01-21T05:44:17.385960    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 70.2675240336892   Dec: 44.5251276674773  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    18.08
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    18.08

  Flight Position:   [ source = BAT ]
    RA: 70.2675240336892   Dec: 44.5251276674773  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 70.1948935120162   Dec: 44.5097356055812  [deg; J2000]
        { 04h 40m 46.8s , +44d 30' 35.0" }
         +/- 2.72828445689505 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.45324285400289 [arcmin] (formal 1-sigma fit error)
    SNR: 7.25135023340287

  Angular difference between Flight and Ground position is 3.241633 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 1047.94799995422 +/- 144.831554239483
        Measured from: -134.595999836922
                   to: 913.352000117302     [s; relative to TRIGTIME]
     T50: 740.135999917984 +/- 143.048354974743
        Measured from: 64.2480001449585
                   to: 804.384000062943     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -135.947999954224
                   to: -134.947999954224     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -166.136000037193
                   to: 935.963999986649     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total    21.151745  19.412903   6.162938  -0.395544
           0.299165   0.304586   0.258978   0.233560 [error]
 Peak      0.059620   0.080340   0.038288   0.002976
           0.009885   0.010228   0.008563   0.007099 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 7.35e-06 7.30e-06 5.08e-06 5.60e-06 2.20e-05 2.53e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 6.02e-01 4.92e-01 2.72e-01 2.21e-01 1.46e+00 1.59e+00   ph/cm2/s
              Error 1.27e-01 7.59e-02 6.46e-02 9.75e-02 2.26e-01 2.51e-01   ph/cm2/s

Fluence   Cutoff-PL 5.98e-06 8.03e-06 4.52e-06 8.93e-07 1.93e-05 1.94e-05   erg/cm2
              Error 4.15e-07 2.48e-07 3.14e-07 3.20e-07 7.43e-07 8.20e-07   erg/cm2
Peak flux Cutoff-PL 5.13e-01 6.07e-01 2.59e-01 3.01e-02 1.41e+00 1.41e+00   ph/cm2/s
              Error 1.48e-01 1.15e-01 8.64e-02 6.10e-02 2.28e-01 2.32e-01   ph/cm2/s

Fluence        Band 5.92e-06 7.99e-06 4.51e-06 8.92e-07 1.92e-05 1.94e-05   erg/cm2
              Error 3.92e-07 2.36e-07 3.10e-07 -------- 7.30e-07 --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.523    0.000    -      -           1.98e-03 0.00e+00  130.520 57
CPL   1.045    0.343      26.9    3.8      1.32e-02 6.06e-03   55.670 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.856    0.258    -      -           1.04e-02 1.92e-03   60.190 57
CPL   0.004    1.648      44.2   13.0      1.25e-01 9.04e-01   54.270 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100 1102.100 -166.136  935.964
T90  1047.950 -134.596  913.352
T50   740.136   64.248  804.384
Peak    1.000 -135.948 -134.948

Click here for the BAT GCN circular template

Estimated redshift from machine learning (Ukwatta et al. 2016) - may take a few minutes to calcaulte


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   70.1949 +44.5097 0.0266    0.1 -129.0      16.1485     7.3  TRIG_01150107
------------------------------------------

Foreground time interval of the image:
-166.136 843.044 (delta_t = 1009.180 [sec])
844.000 935.964 (delta_t =  91.964 [sec])
Background time interval of the image:
-236.899 -166.136 (delta_t =  70.763 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

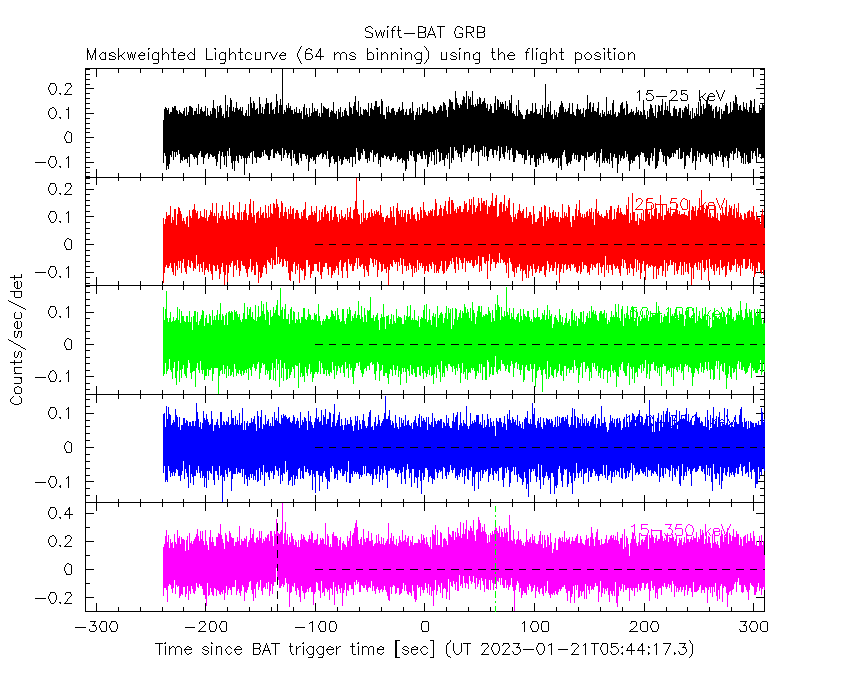

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

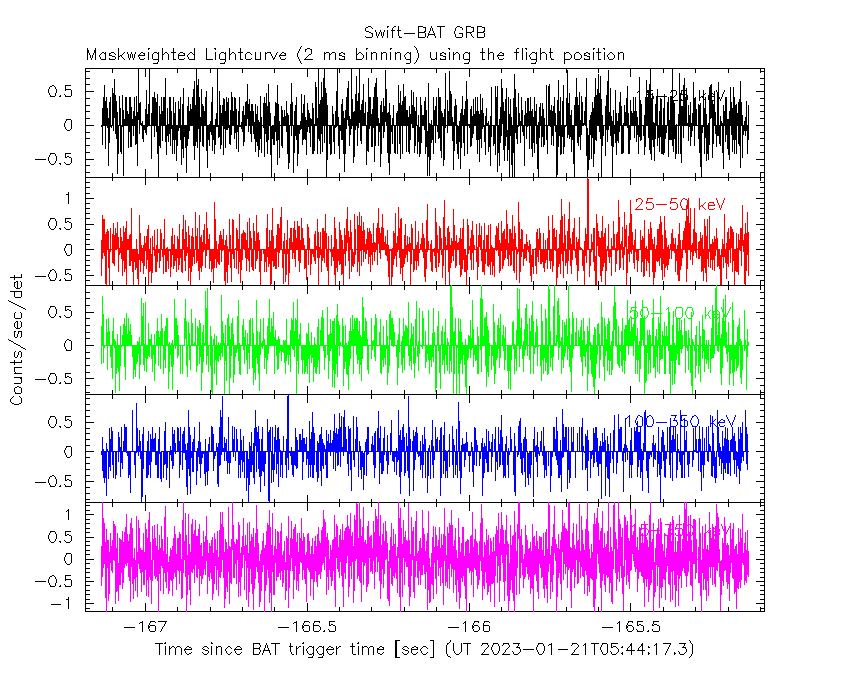

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

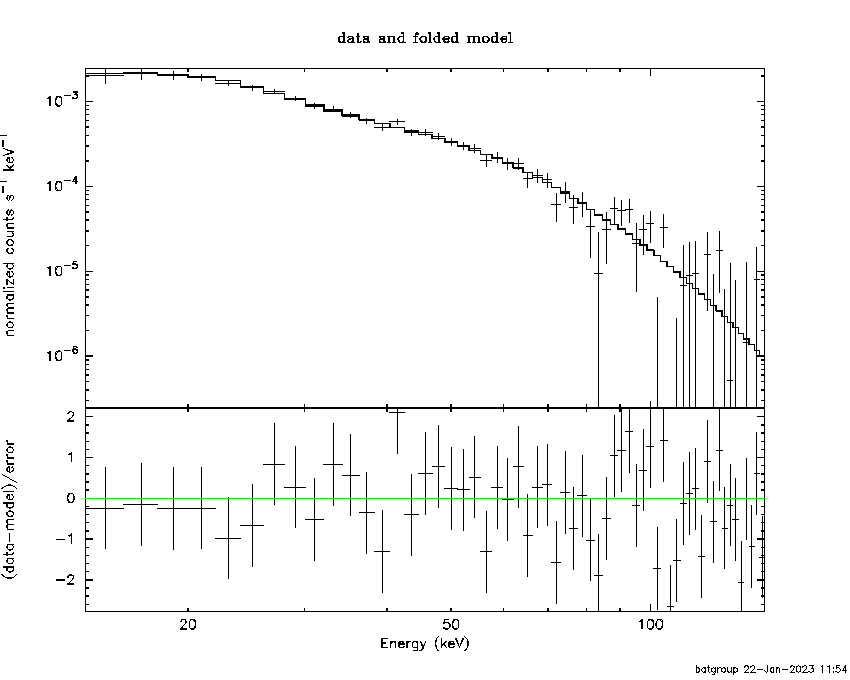

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-166.136000 843.044000
844.000000 935.964000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.52261     (     )
Norm@50keV  : 1.98304E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         130.52 using 59 PHA bins.
# Reduced chi-squared =         2.2899 for     57 degrees of freedom
# Null hypothesis probability =   1.076059e-07

Photon flux (15-150 keV)    in 1101 sec: 0.395014 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.19679e-05 ( 0  0 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-166.136000 843.044000
844.000000 935.964000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04476     ( -0.354917   0.330396 )
Epeak [keV] : 26.8659      ( -4.48955 3.18478 )
Norm@50keV  : 1.31519E-02    ( -0.00451683   0.00759917 )
------------------------------------------------------------

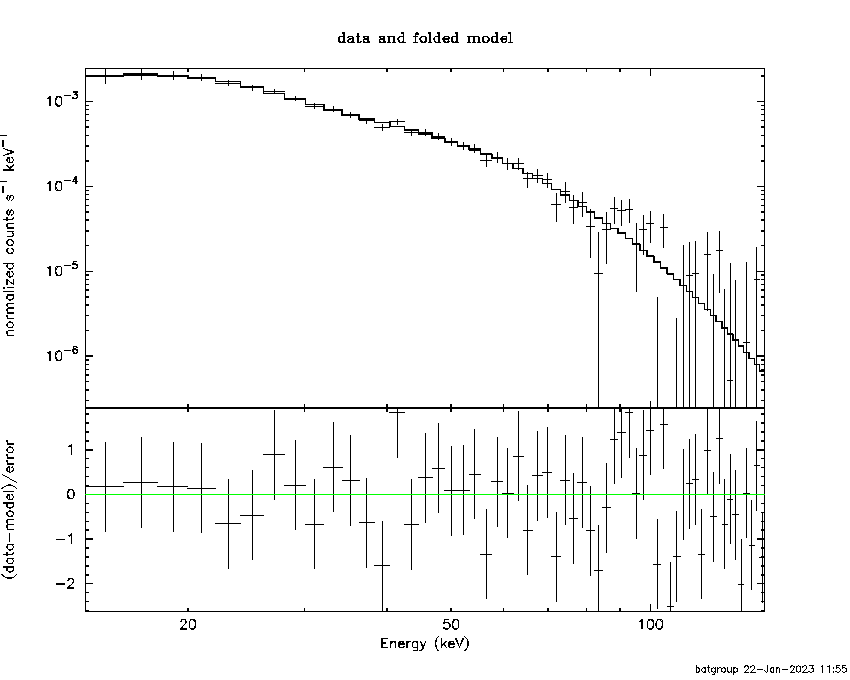

#Fit statistic : Chi-Squared =          55.67 using 59 PHA bins.
# Reduced chi-squared =         0.9941 for     56 degrees of freedom
# Null hypothesis probability =   4.872842e-01

Photon flux (15-150 keV)    in 1101 sec: 0.351341 ( -0.014488  0.014648 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92707e-05 ( -7.35578e-07  7.50662e-07 ) ergs/cm2

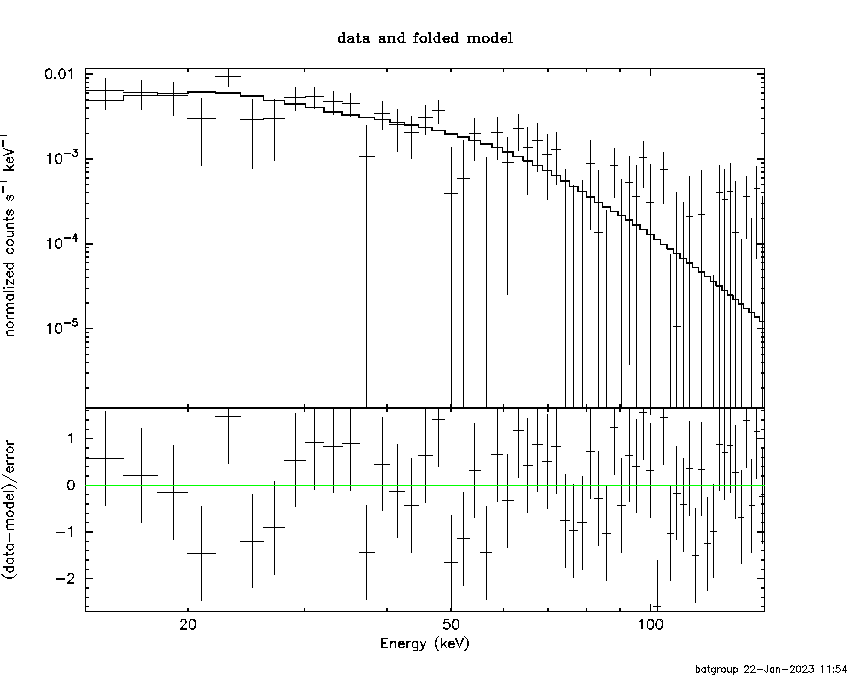

Band function

Multiple GTIs in the spectrum
tstart tstop
-166.136000 843.044000
844.000000 935.964000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.59778   (     )
beta        : -8.78669    (     )
Epeak [keV] : 27.7479      (   )
Norm@50keV   : 4.73148E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         134.94 using 59 PHA bins.
# Reduced chi-squared =         2.4535 for     55 degrees of freedom
# Null hypothesis probability =   1.148143e-08

Photon flux (15-150 keV)    in 1101 sec: 0.352271 ( 6.64773  -0.015193 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92359e-05 ( -1.92282e-05  -7.2699e-07 ) ergs/cm2

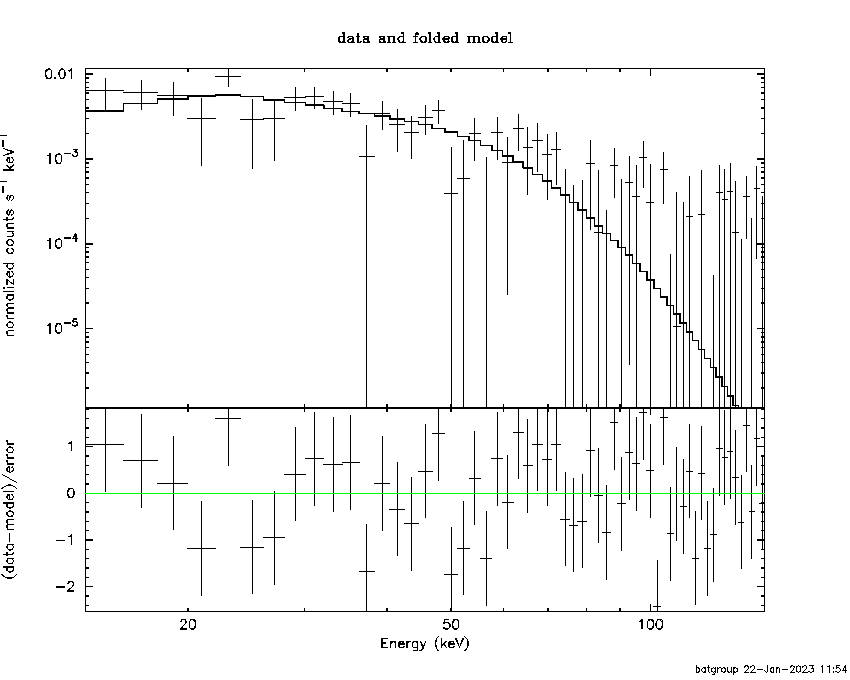

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.03889  (  )
R^2/D10^2   : 0.230196  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         159.98 using 59 PHA bins.
# Reduced chi-squared =         2.8067 for     57 degrees of freedom
# Null hypothesis probability =   1.034216e-11

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.041e-06   2.031e-07
25- 50  8.646e-06   2.307e-07
50-150  3.342e-06   2.675e-07
15-150  1.603e-05   4.239e-07

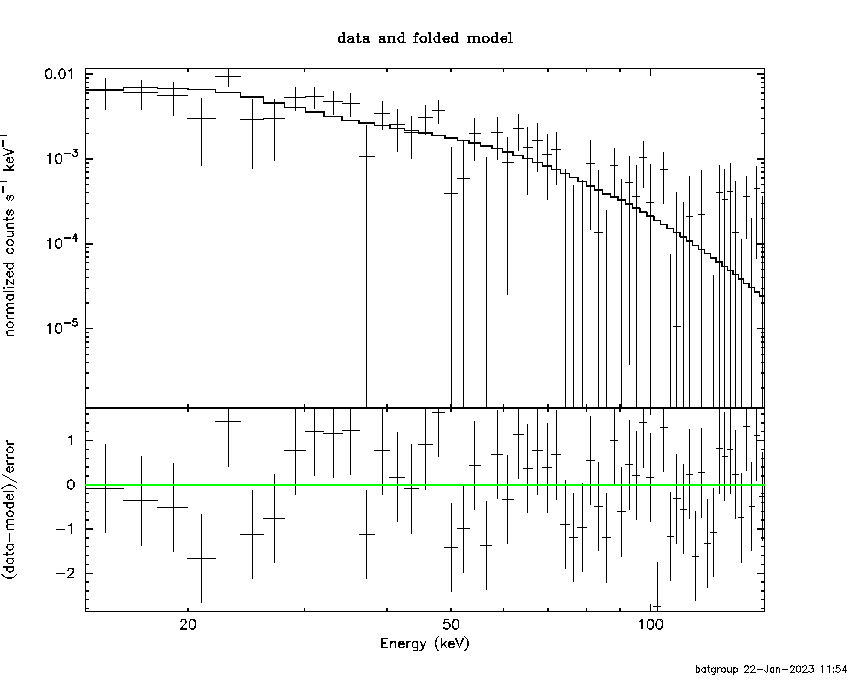

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 36.7383       (-2.22047      2.42536)
Norm        : 2.54966       (-0.156537     0.167802)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.252e-06   2.945e-07
25- 50  7.918e-06   2.152e-07
50-150  5.566e-06   4.002e-07
15-150  1.974e-05   5.560e-07

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.04091        (-0.78592      0.859019)
R1^2/D10^2  : 1.53783        (-0.659625      1.53116)
kT2 [keV]   : 12.4236        (-1.14827      1.69668)
R2^2/D10^2  : 4.35989E-02    (-0.0216289   0.0291581)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.824e-06   9.111e-07
25- 50  7.979e-06   8.632e-07
50-150  5.003e-06   6.678e-07
15-150  1.881e-05   1.927e-06

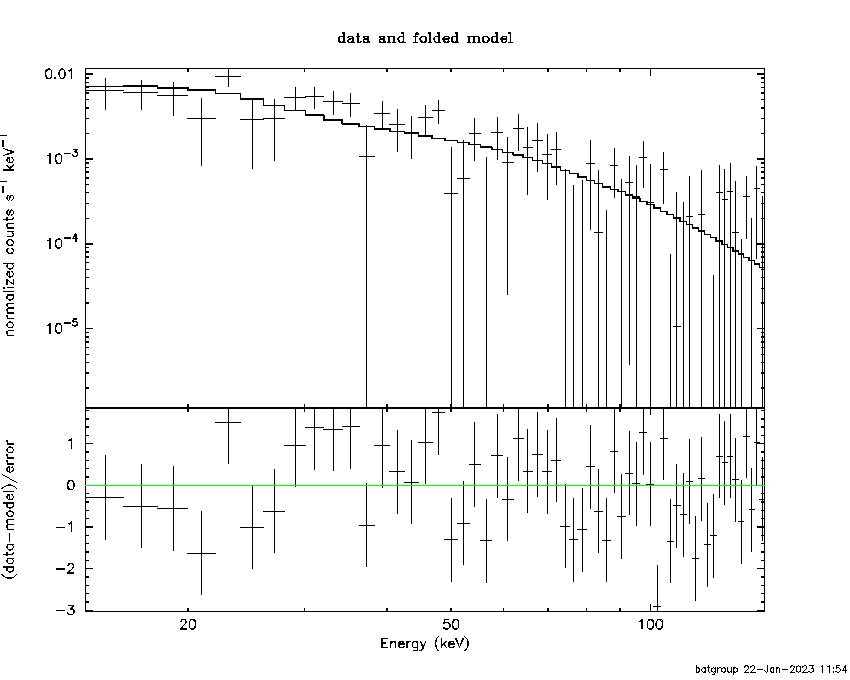

Peak spectrum fit

Power-law model

Time interval is from -135.948 sec. to -134.948 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.85560     ( -0.249646   0.267288 )
Norm@50keV  : 1.03948E-02    ( -0.0019458   0.00190187 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.19 using 59 PHA bins.
# Reduced chi-squared =          1.056 for     57 degrees of freedom
# Null hypothesis probability =   3.610997e-01

Photon flux (15-150 keV)    in 1 sec: 1.46443 ( -0.226063  0.226067 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.55773e-08 ( -1.75451e-08  1.80339e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from -135.948 sec. to -134.948 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.10452E-03     ( -1.93895   1.35631 )
Epeak [keV] : 44.1749      ( -8.33431 17.6642 )
Norm@50keV  : 0.125188    ( -0.125194   1.682 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.27 using 59 PHA bins.
# Reduced chi-squared =         0.9691 for     56 degrees of freedom
# Null hypothesis probability =   5.406046e-01

Photon flux (15-150 keV)    in 1 sec: 1.40599 ( -0.22757  0.22861 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.29111e-08 ( -1.65631e-08  1.89009e-08 ) ergs/cm2

Band function

Time interval is from -135.948 sec. to -134.948 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.248291   ( -1.58579   -0.221924 )
beta        : -3.56418    ( 3.59879   1.59864 )
Epeak [keV] : 42.9089      ( -14.4085 10.3055 )
Norm@50keV   : 0.179814    ( -0.080114   146.863 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.29 using 59 PHA bins.
# Reduced chi-squared =         0.9870 for     55 degrees of freedom
# Null hypothesis probability =   5.018252e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.31683e-08 ( 0  0 ) ergs/cm2

Single BB

 XSPEC: quit


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.6376  (-1.53408  1.82711)
R^2/D10^2   : 0.588429  (-0.266053   0.464967)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.381e-08   3.709e-09
25- 50  3.737e-08   7.885e-09
50-150  2.327e-08   9.300e-09
15-150  7.445e-08   1.592e-08

Thermal bremsstrahlung (OTTB)

XSPEC12>exit
 XSPEC: quit


Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 78.1586       (-28.3157      61.2291)
Norm        : 7.08338       (-1.38322     1.75857)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.835e-08   3.895e-09
25- 50  3.004e-08   5.685e-09
50-150  4.174e-08   2.428e-08
15-150  9.013e-08   3.299e-08

Double BB

XSPEC12>exit
 XSPEC: quit


Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.72915        (-7.38989      -7.38989)
R1^2/D10^2  : 1.19452        (-1.19187      -1.19187)
kT2 [keV]   : 16.8582        (-16.9134      -16.9134)
R2^2/D10^2  : 5.51916E-02    (-0.0543252   0.744264)
------------------------------------------------------------
 Reduced chi-squared =

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.585e-08   9.905e-09
25- 50  3.460e-08   2.143e-08
50-150  3.254e-08   1.883e-08
15-150  8.299e-08   4.655e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.52261     (     )
Norm@50keV  : 1.98304E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         130.52 using 59 PHA bins.
# Reduced chi-squared =         2.2899 for     57 degrees of freedom
# Null hypothesis probability =   1.076059e-07

Photon flux (15-150 keV)    in 1101 sec: 0.395014 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.19679e-05 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.04476     ( -0.354917   0.330396 )
Epeak [keV] : 26.8659      ( -4.48955 3.18478 )
Norm@50keV  : 1.31519E-02    ( -0.00451683   0.00759917 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.67 using 59 PHA bins.
# Reduced chi-squared =         0.9941 for     56 degrees of freedom
# Null hypothesis probability =   4.872842e-01

Photon flux (15-150 keV)    in 1101 sec: 0.351341 ( -0.014488  0.014648 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92707e-05 ( -7.35578e-07  7.50662e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.59778   (     )
beta        : -8.78669    (     )
Epeak [keV] : 27.7479      (   )
Norm@50keV   : 4.73148E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         134.94 using 59 PHA bins.
# Reduced chi-squared =         2.4535 for     55 degrees of freedom
# Null hypothesis probability =   1.148143e-08

Photon flux (15-150 keV)    in 1101 sec: 0.352271 ( 6.64773  -0.015193 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.92359e-05 ( -1.92282e-05  -7.2699e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.30e-06
S(50-100 keV) = 5.08e-06

T90 vs. Hardness ratio plot

T90                                   = 1047.94799995422 sec.
Hardness ratio (energy fluence ratio) = 0.69589

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.917792
Count Ratio (50-100 keV) / (15-25 keV) = 0.291368

Mask shadow pattern

IMX = -6.170995062944211E-04, IMY = 7.634102784632525E-04

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-236.899420 -166.136000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6081  22.0058    1.0  25.1  131.3   2.9300  12.0    1.5	Crab
 70.2331  44.5331    1.0   0.0   85.3   2.0075  11.3 ------	UNKNOWN
 56.5847   1.7961    2.5  44.4 -178.6   1.6525   4.5 ------	UNKNOWN
133.1620  81.3203    2.0  42.1   -6.6   1.6462   5.7 ------	UNKNOWN
259.6185  76.5475    2.2  58.8  -20.7   5.5218   5.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-166.136000 843.044000
844.000000 935.964000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6575  22.0151    1.2  25.1  138.1  31.0072   9.7    1.4	Crab
115.6938  28.9817    2.2  39.0   86.3  37.7887   5.2 ------	UNKNOWN
129.1131  56.6685    2.8  37.9   38.4  14.9300   4.2 ------	UNKNOWN
 70.1925  44.5097    1.6   0.1 -128.2  16.1818   7.3 ------	UNKNOWN
 81.3615  70.3005    2.5  26.4   -3.0  11.4763   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Sun Jan 22 11:55:33 EST 2023
